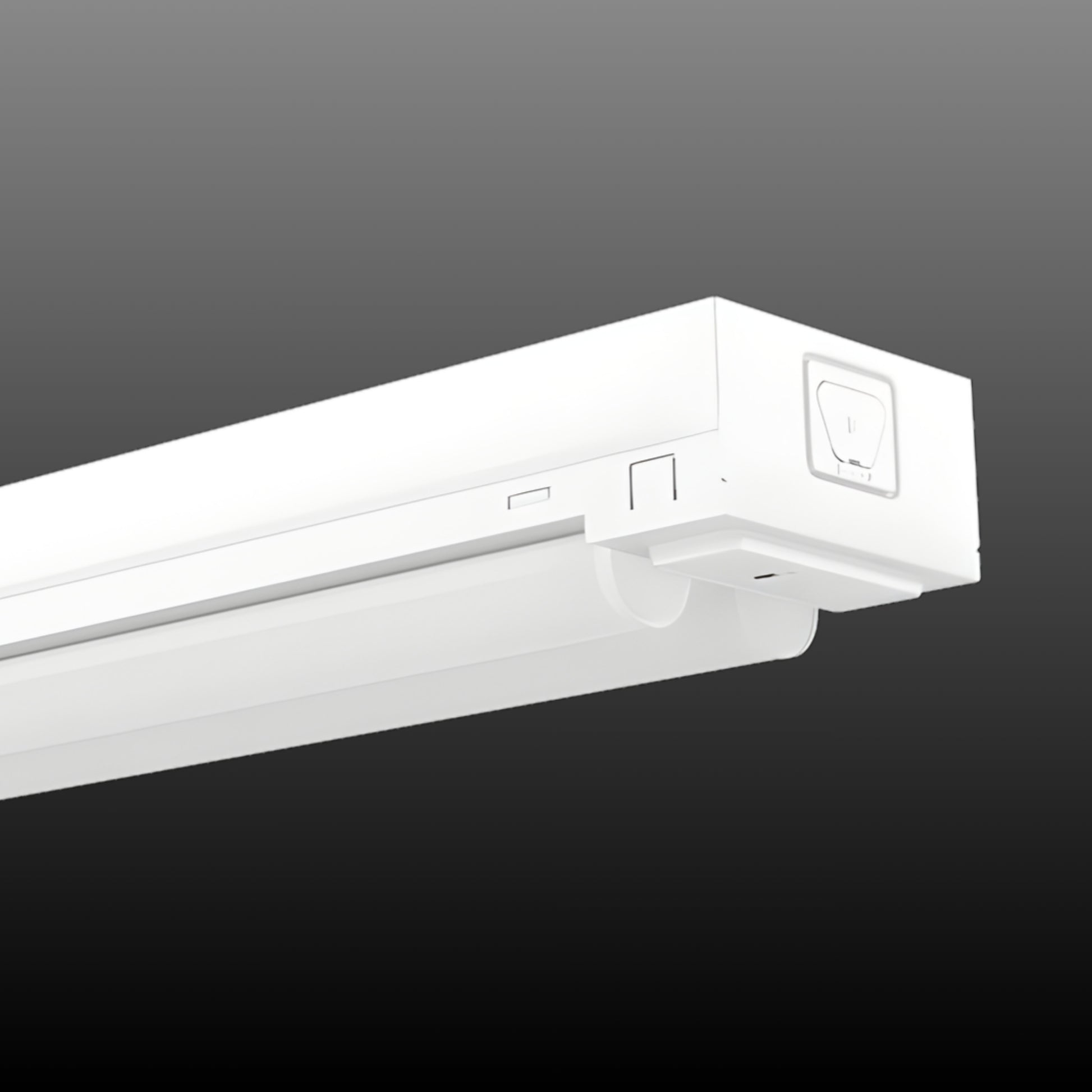

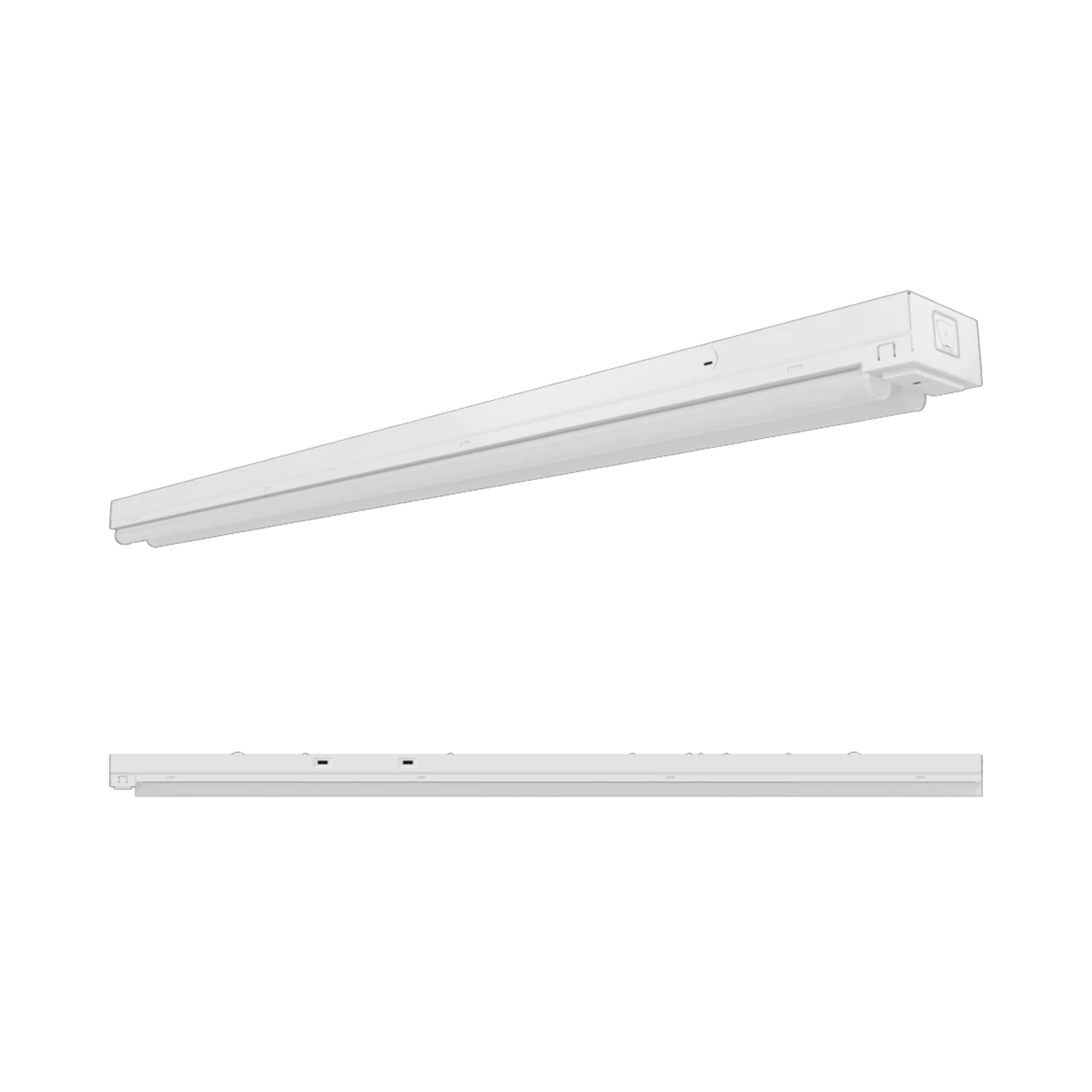

RAB STRP4H/MVS Field-Adjustable 4ft High Output LED Strip Light — 40W — 3500K/4000K/5000K — Motion Sensor — White

The RAB STRP4H/MVS is a commercial 4ft High Output LED Strip Light engineered to deliver up to 5,815 lumens with field-adjustable 40/30/20W power settings and switchable 3500K/4000K/5000K color temperatures. Operating on 120–277V electrical systems with 0–10V continuous dimming down to off, this luminaire includes a factory-installed microwave occupancy sensor for automated bi-level dimming control. Built with a UL Listed damp location rating, it is qualified for commercial utility rebates under DLC Listed standards and features a CCEA-compliant sheet metal enclosure approved for City of Chicago environmental air spaces.

Key Features

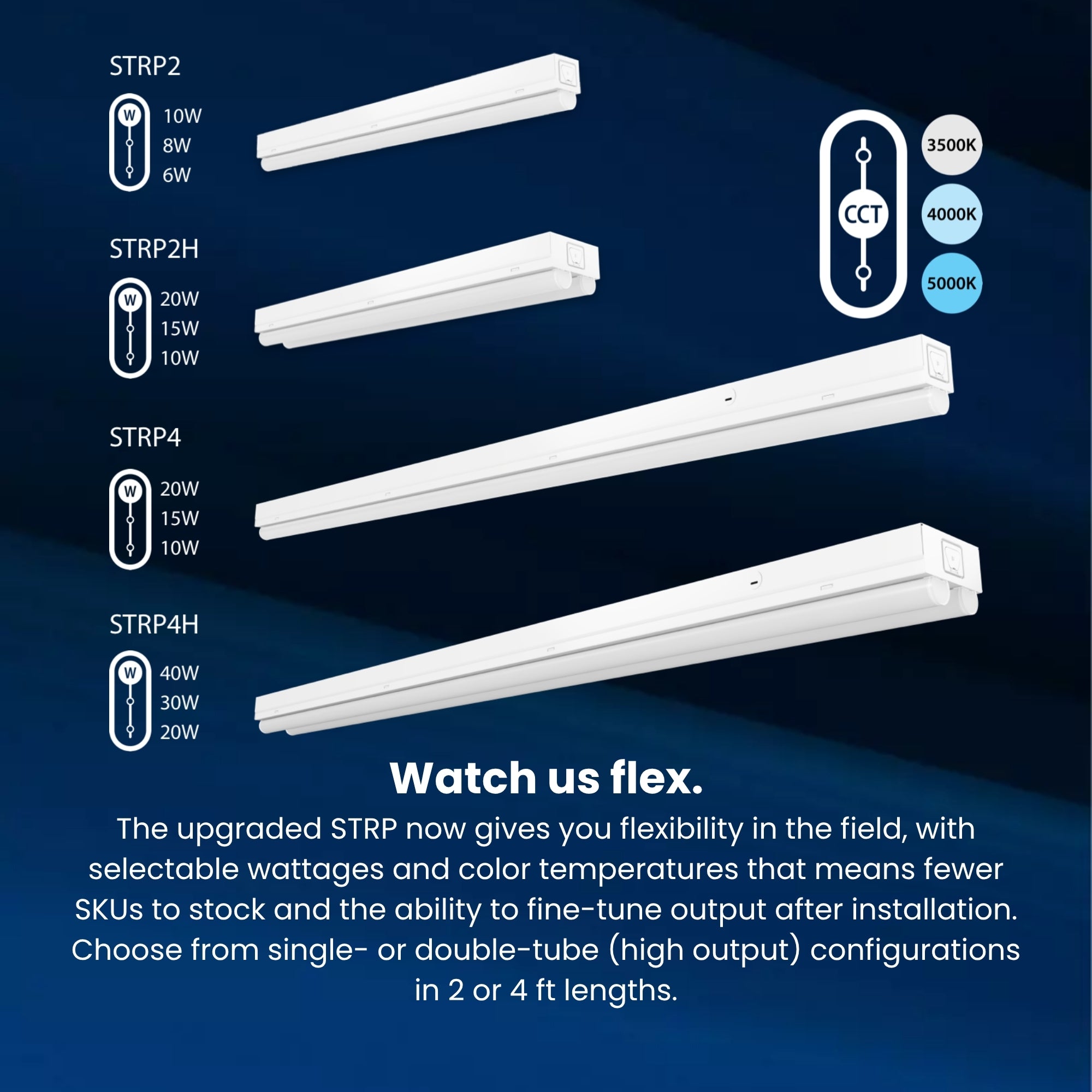

• Selectable Wattage: 40W / 30W / 20W — field-adjustable lumen output via onboard switch (factory default 40W)
• Maximum Lumen Output: 5,815 lm at 40W (4000K setting)
• Peak Efficacy: 160.8 lm/W for high-efficiency commercial operation
• CRI: >80 color rendering (84–85 CRI across all configurations)
• Selectable CCT: 3500K / 4000K / 5000K — color temperature selectable via onboard switch (factory default 4000K)
• Color Consistency: 7-step MacAdam Ellipse binning
• Lens & Optics: Frosted polycarbonate lens with metal reflector for uniform, glare-free distribution
• Dimming: 0–10V continuous dimming standard (dims down to off)
• Sensor Compatibility: Factory-installed microwave occupancy sensor (MVS) with 360-degree detection up to 50 ft mounting height
• Voltage: Universal 120–277V AC, 50/60Hz Class 2 constant current driver with 12VDC AUX power
• Location Rating: UL Listed for damp locations; CCEA Compliant for City of Chicago environmental air spaces
• Operating Temperature: -4°F (-20°C) to 104°F (40°C) ambient range
• Certifications: DLC Listed, UL Listed, CCEA Compliant, RoHS
• Rated Life: 100,000 hours (L70) based on IES LM-80 results and TM-21 calculations
• Warranty: 5-year limited warranty — RAB

Performance & Light Output

At 40W: 5,592 lm (3500K / 146.8 lm/W), 5,815 lm (4000K / 156.3 lm/W), 5,730 lm (5000K / 150.4 lm/W). At 30W: 4337 lm (3500K / 151.6 lm/W), 4,495 lm (4000K / 160.5 lm/W), 4,462 lm (5000K / 156.0 lm/W). At 20W: 2,924 lm (3500K / 153.9 lm/W), 3,007 lm (4000K / 160.8 lm/W), 3,017 lm (5000K / 158.8 lm/W).

CRI >80 (84–85) across all configurations. Rated life 100,000 hours (L70) per IES TM-21 testing.

Form Factor & Design Profile

Engineered with an expanded 3.5-inch wide double-tube architectural footprint, the STRP4H/MVS delivers superior thermal dissipation to support higher lumen packages up to 5,815 lumens while maintaining a slim 2.5-inch depth profile. The fixture is designed to support end-to-end continuous row mounting, enabling contractors to link multiple units into seamless, uninterrupted linear runs across extended commercial hallways, warehouse aisles, and open retail layouts. Its field-adjustable CCT (tunable white 3500K/4000K/5000K) and variable power settings allow specifiers to standardize on a single linear luminaire across diverse spaces, while CCEA compliance permits direct installation within environmental air-handling plenums.

Smart & Control Features

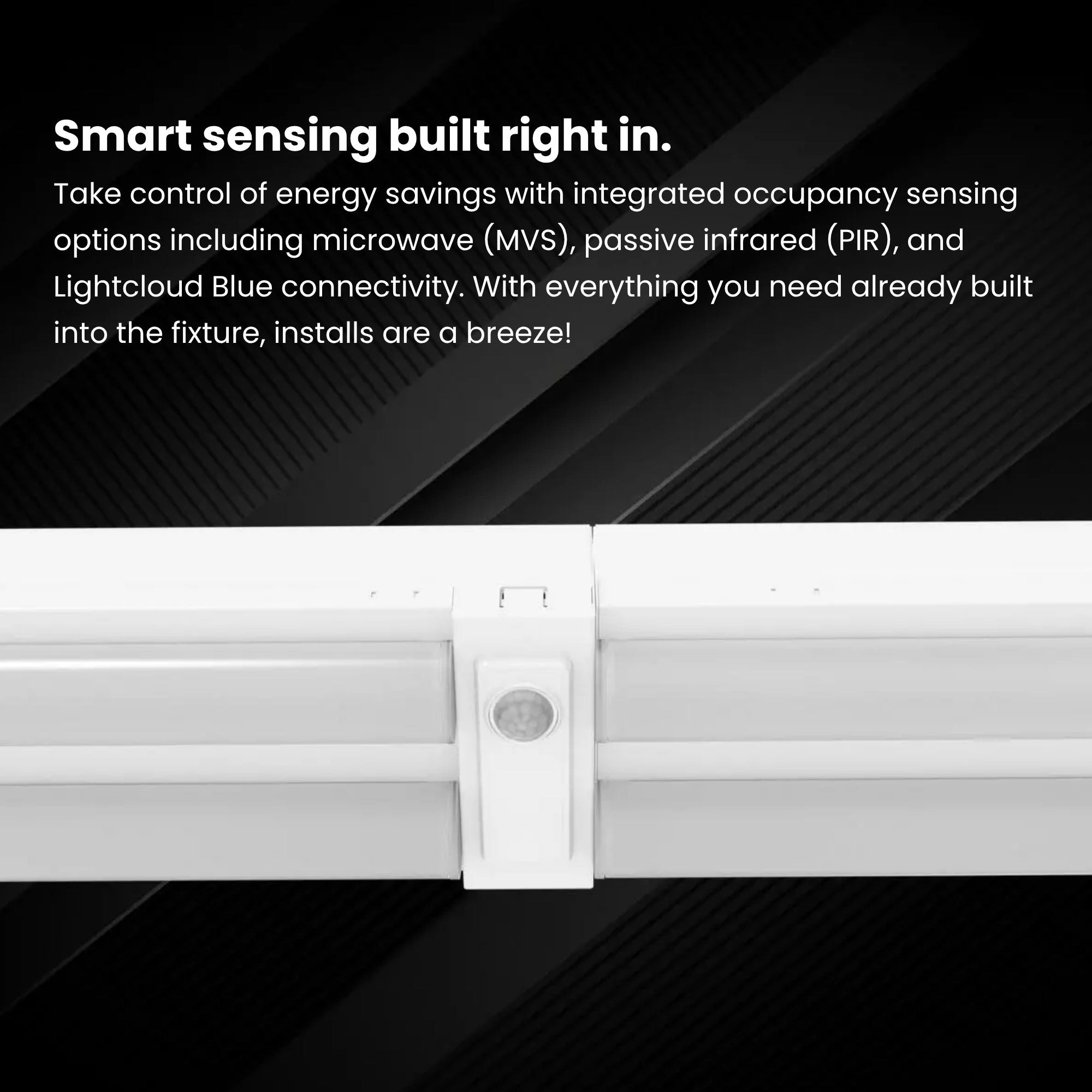

The STRP4H/MVS strip light features an integrated microwave occupancy sensor connected to a Class 2 dimming driver with 12VDC auxiliary power:

• Microwave Occupancy Sensing (Factory-Installed): Utilizes high-frequency 5.8GHz sensing to detect motion through plastic and glass up to a 50 ft ceiling height. Provides automated bi-level dimming transitions between occupied illumination and standby power savings.
• 0–10V Continuous Dimming (Standard): Dims smoothly down to off or programmed standby levels on standard 0–10V low-voltage control circuits.

Sensor parameters including hold time, detection range, daylight threshold, and standby dimming level can be configured using an optional handheld remote control (sold separately).

Electrical

Powered by a Class 2 constant current driver operating on 120–277V AC at 50/60Hz (18.7–38.1W input power). Delivers high electrical efficiency with a Power Factor of 99.3% at 120V (95.3% at 277V) and Total Harmonic Distortion (THD) of 9.8% at 120V (6.7% at 277V). Integrated 1kV differential mode (DM) and 2kV common mode (CM) surge protection protects internal electronics against transient voltage spikes. Includes pre-wired 0–10V dimming leads and 12VDC auxiliary power.

Operating current and amp draw across input voltages for branch circuit and breaker loading calculations:

Construction

Housing & Thermal: Heavy-gauge sheet metal housing and internal metal reflector engineered for maximum thermal dissipation across high-wattage operation.

Lens & Optics: Polycarbonate lens designed for impact resistance, optical clarity, and uniform glare control.

Finish: Powder-coated matte white finish formulated for high durability, long-lasting color, and resistance against corrosion and surface wear.

Environmental Sealing: UL Listed for damp locations. Operating ambient temperature range: -4°F (-20°C) to 104°F (40°C).

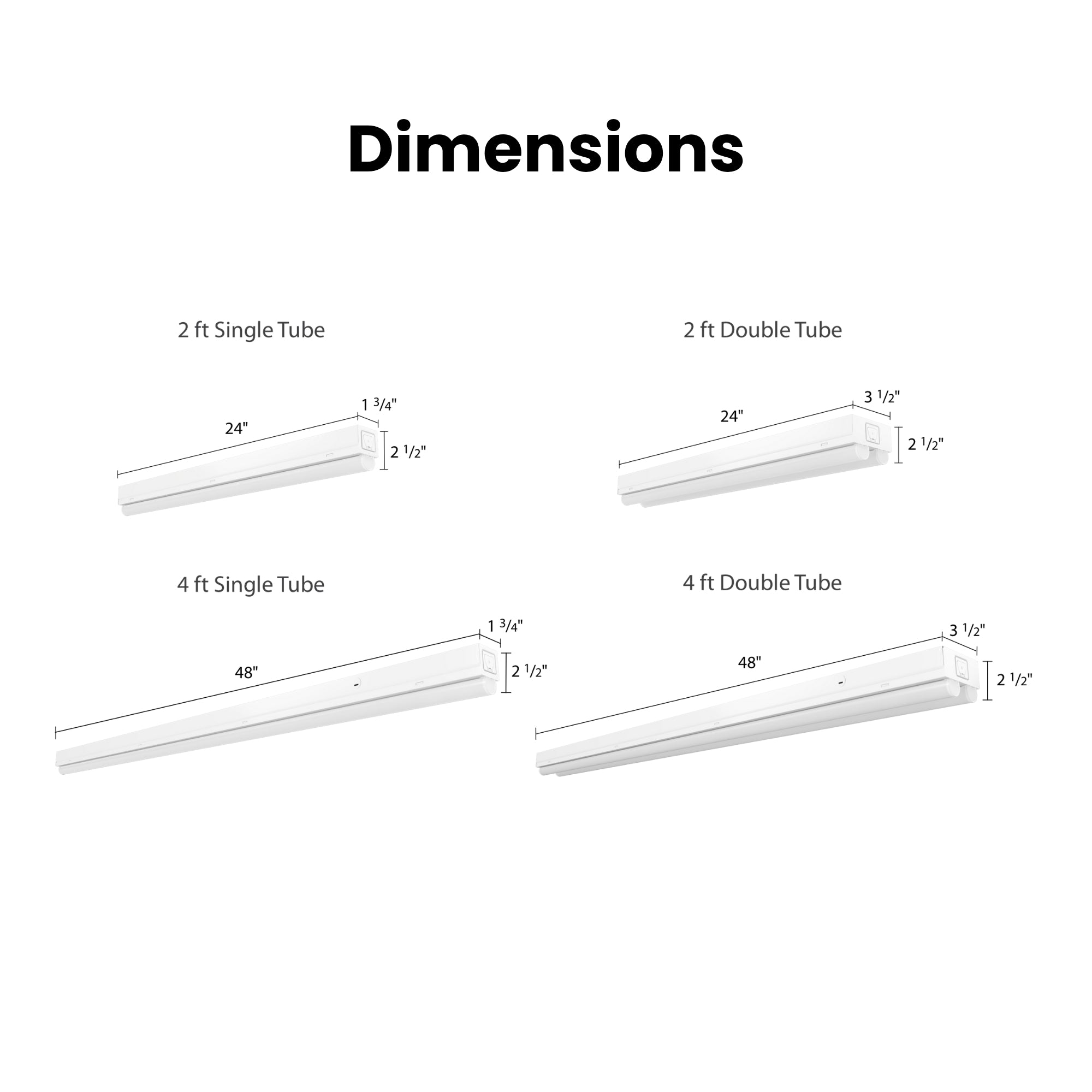

Dimensions & Weight: 48.00" L × 3.50" W × 2.50" H. Fixture weight: 5.70 lbs.

Installation & Mounting

Standard Mounting: Surface mounting standard for direct ceiling or wall installation.

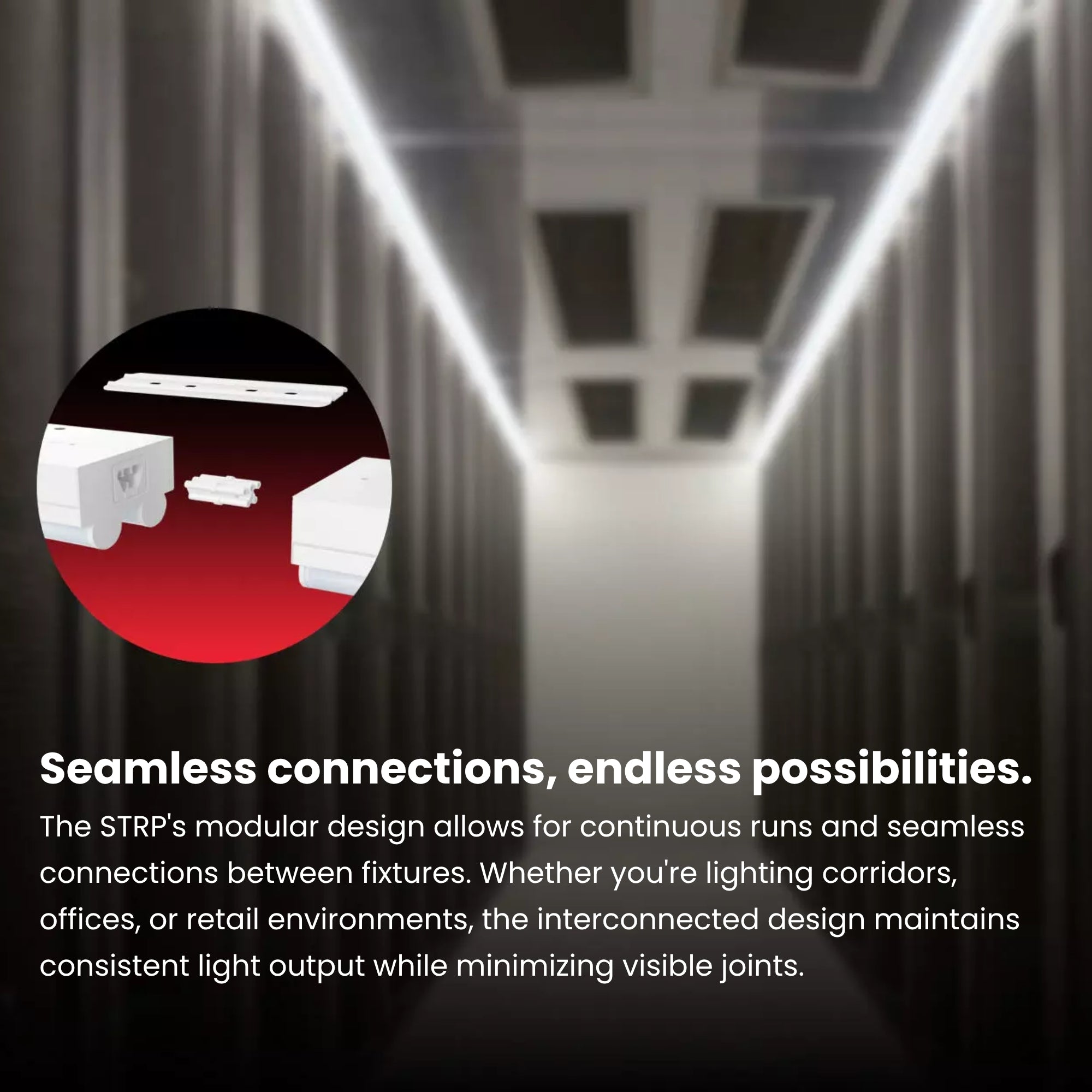

Continuous Run Mounting: Supports end-to-end continuous row mounting using an aligner bracket/joiner plate for seamless linear runs.

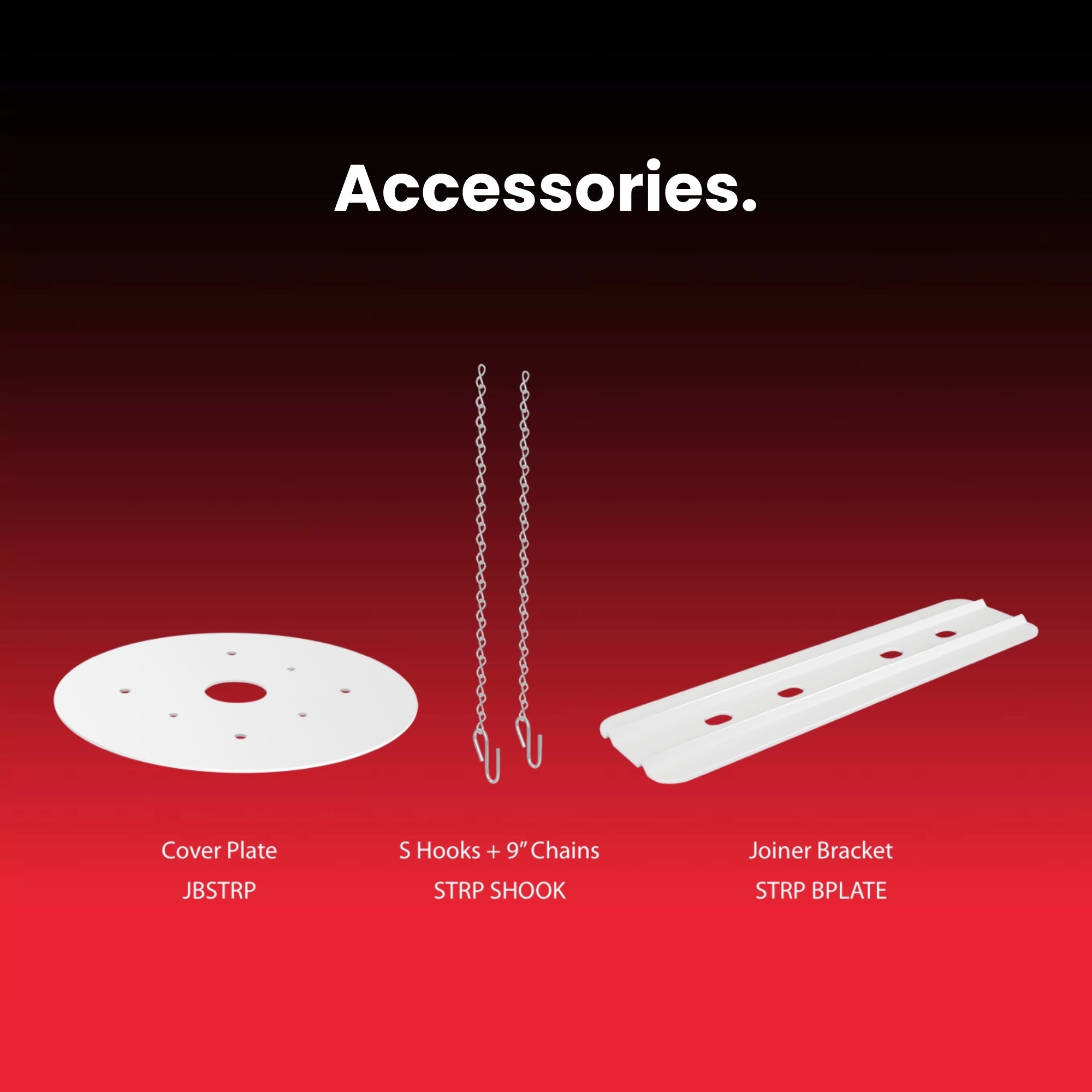

Accessories (Sold Separately):

• Mounts & Suspension Hardware: Suspension Hook 9.5" 2-Pieces (STRP SHOOK), Bracket Plate 120-277VAC (STRP BPLATE), J-Box Plate (JBSTRP), and continuous run aligner brackets
• Controls: Handheld Remote Control for Microwave Sensor commissioning (MSR1)

Certifications & Rebates

• DLC Listed: Qualifies for commercial utility rebate incentives across regional energy efficiency programs. To confirm rebate eligibility with your local utility provider, visit designlights.org and search the DLC Qualified Products List under the RAB STRP family.
• UL Listed: Certified for damp locations.
• CCEA Compliant: Meets Luminaire Requirements used in Environmental Air Space per the electrical code specification of the City of Chicago.
• TAA Compliant: Product of Cambodia ("designated country" end product) complying with the Trade Agreements Act (TAA) for federal, municipal, and GSA schedule procurement.
• IESNA LM-79 & LM-80 Tested: Luminaires and LED components tested by an independent laboratory in accordance with IESNA LM-79 and LM-80 standards.
• RoHS Compliant: Green technology engineered free of toxic mercury, UV, and hazardous substances.

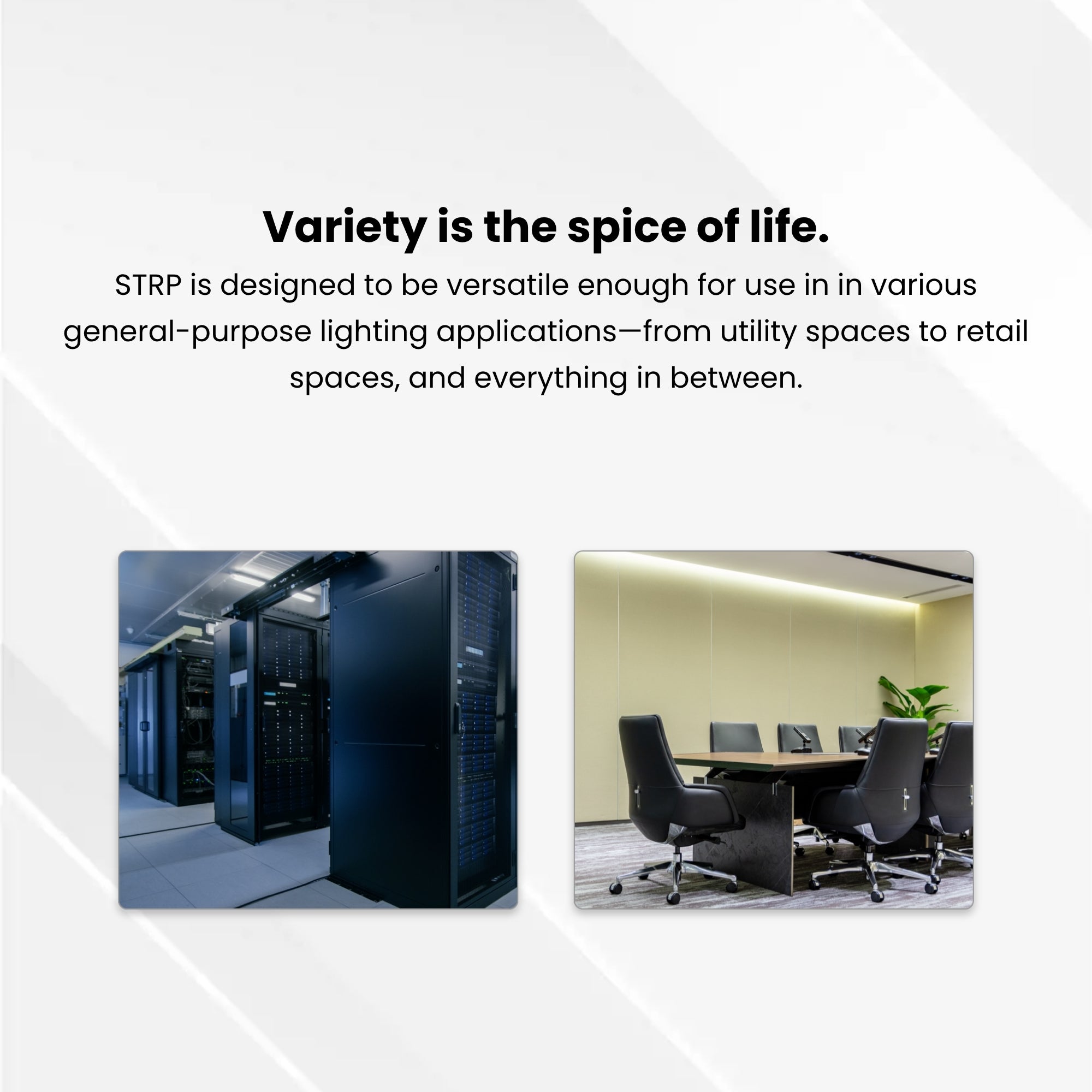

Typical Applications

• Commercial Stairwells & Hallways — Integrated microwave motion sensor provides code-compliant multi-level dimming based on occupant traffic.
• City of Chicago Plenum & Mechanical Spaces — CCEA environmental air space compliance and -4°F to 104°F operating tolerance support code-compliant mechanical room installations.
• Government & Municipal Facilities — Trade Agreements Act (TAA) compliance and DLC qualification satisfy federal procurement standards and utility rebate requirements.
• Back-of-House Storage Aisles — Automated high-frequency motion sensing triggers full 5,815-lumen output during active picking and dims when unoccupied.
• Utility Rooms & Restrooms — 0–10V dim-to-off operation reduces electrical load (0.33A max at 120V) and automates shut-off in unoccupied areas.

What's Included

• RAB STRP4H/MVS 4ft High Output LED Strip Light with Factory Microwave Sensor — White
• Installation and operation manual
