RAB STRP4H-E - 4ft LED Strip Light, 40/30/20W Selectable, 3500K/4000K/5000K, 5815 Lumens, 120-277V, Emergency Battery Backup
RAB STRP4H-E - 4ft LED Strip Light, 40/30/20W Selectable, 3500K/4000K/5000K, 5815 Lumens, 120-277V, Emergency Battery Backup
Available in stock (100)
Choose your location
enter a US zip code
Couldn't load pickup availability
About this item
About this item
- Field-Adjustable CCT: Select from 3500K (neutral), 4000K (cool), or 5000K (daylight) to match any environment.
- Field-Adjustable Wattage: Customize brightness and energy consumption directly on the fixture.
- Professional Grade: Features a 0-10V dimmable driver and 120-277V universal voltage.
- Extreme Longevity: 100,000-hour LED lifespan ensures decades of reliable, maintenance-free operation.
- Fully Compliant: TAA Compliant, DLC 5.1 Listed, and UL Listed for Damp Locations.
Shipping & Returns
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. (Exclusions apply for oversized & commercial items). We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. (Exclusions: Special orders, clearance, and custom items).
We process payments securely and do not store credit card information.
Description
Description

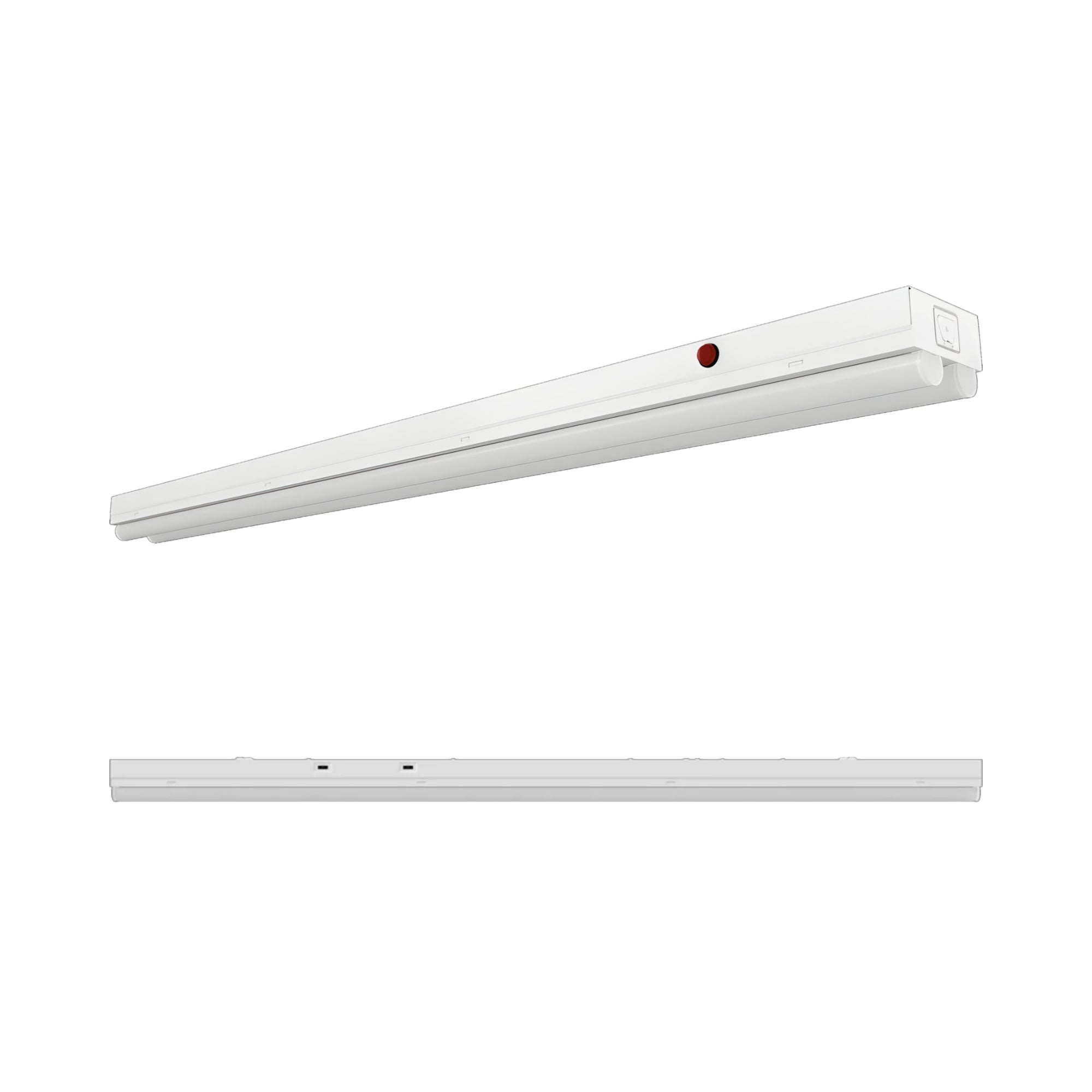

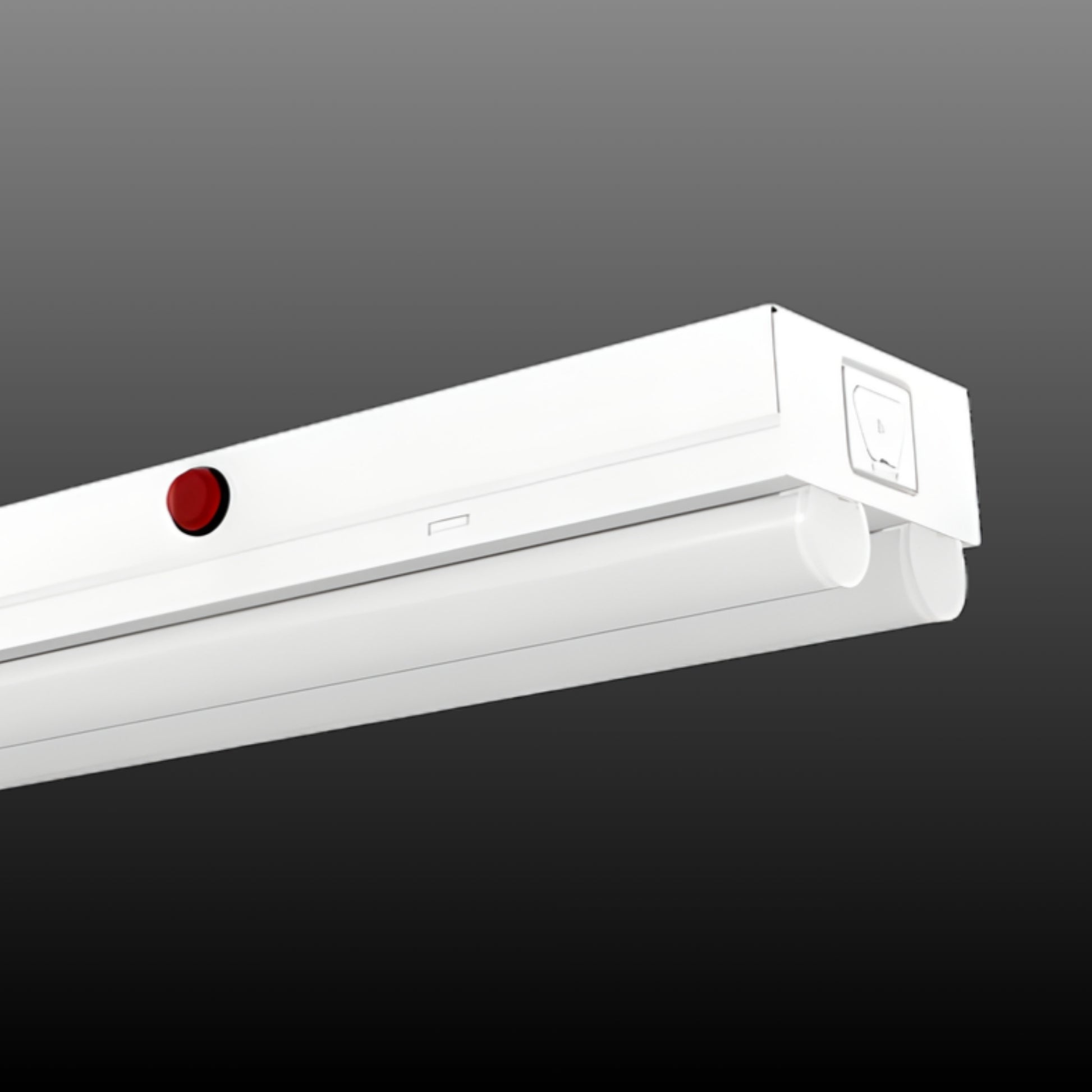

RAB STRP4H-E LED Strip Light with Emergency Battery Backup
The RAB STRP4H-E is a premium 4-foot LED strip light featuring dual selectable technology that allows you to adjust both wattage (40W/30W/20W) and color temperature (3500K/4000K/5000K) in the field, plus integrated 90-minute emergency battery backup for code-compliant egress lighting. Delivering up to 5,815 lumens with exceptional efficacy up to 160.8 LPW, this versatile fixture is ideal for commercial offices, retail spaces, warehouses, and educational facilities. Operating on universal 120-277V input with 0-10V dimming capability, the STRP4H-E combines energy efficiency with life-safety compliance.
RAB STRP4H-E Features
- Emergency Battery Backup: Integrated 90-minute battery backup provides automatic emergency illumination during power outages, meeting NEC and IBC egress lighting requirements
- Lumen/CCT Selectability: Field-adjustable between 40W/30W/20W wattage settings and 3500K/4000K/5000K color temperatures to match your exact lighting requirements
- DLC 5.1 Premium Listed: Qualifies for utility rebates and energy incentive programs (DLC ID: S-XOGP4X)

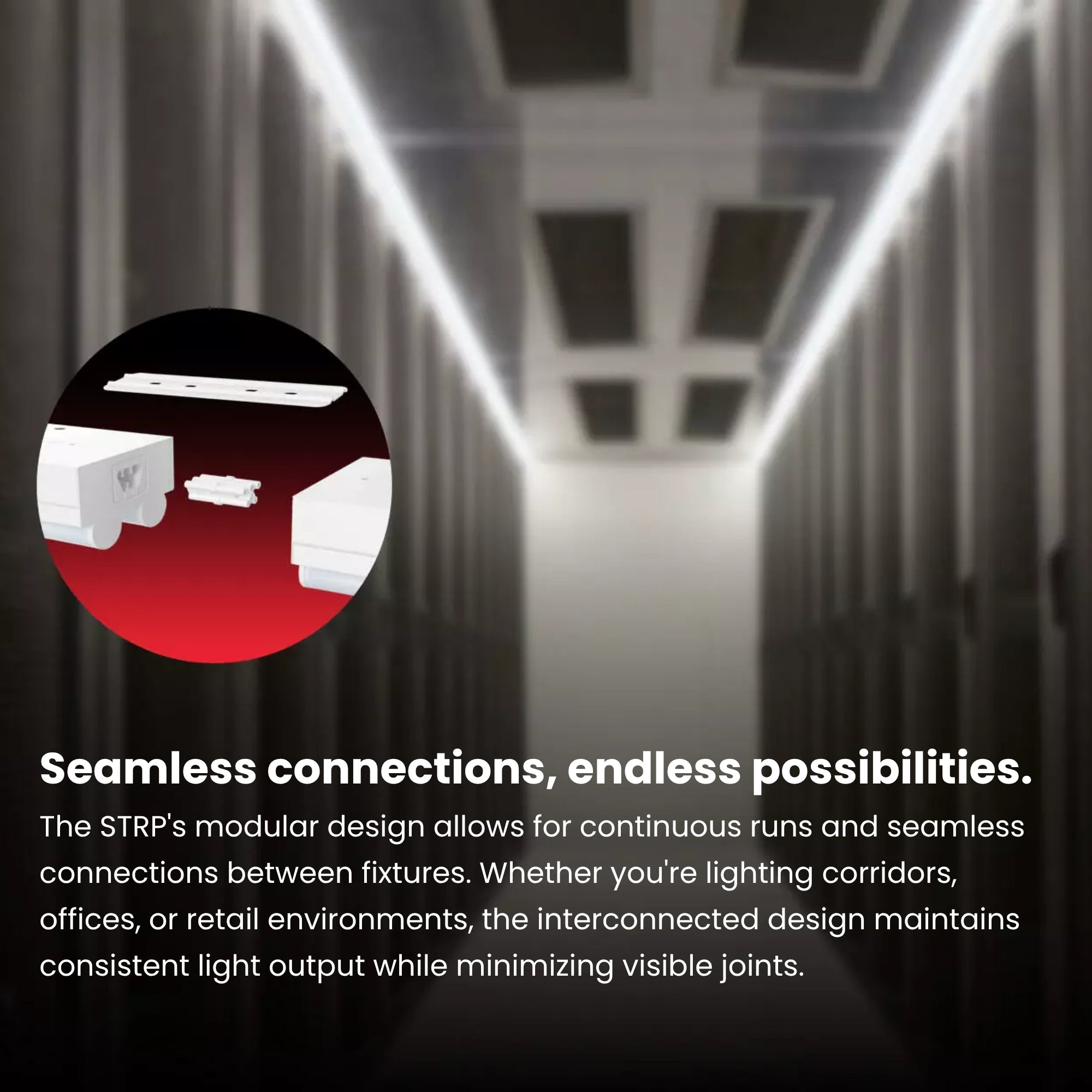

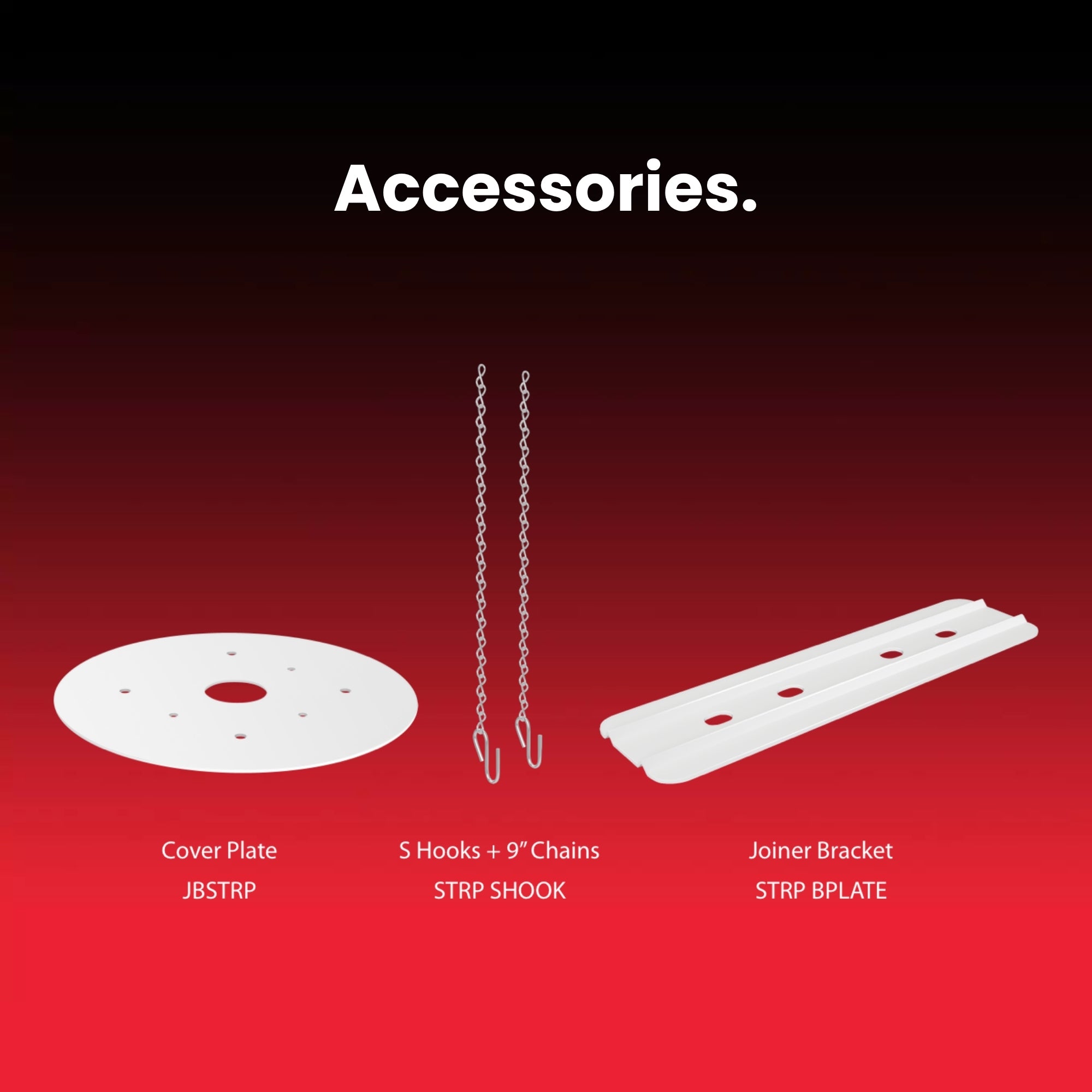

- Retrofit & New Construction Ready: Versatile mounting options including surface mount, suspended installation with optional accessories
- Prismatic Lens: Polycarbonate lens provides uniform light distribution with minimal glare
- 0-10V Dimming: Smooth, flicker-free dimming for precise light level control
- Universal Voltage: 120-277V operation eliminates the need for voltage-specific fixtures
- Long Life: 100,000-hour LED lifespan based on IES LM-80 testing reduces maintenance costs
- Cold Weather Starting: Operates in temperatures as low as -8°C (17°F) for battery backup models
- CCEA Compliant: Meets City of Chicago Environmental Air ratings for commercial installations

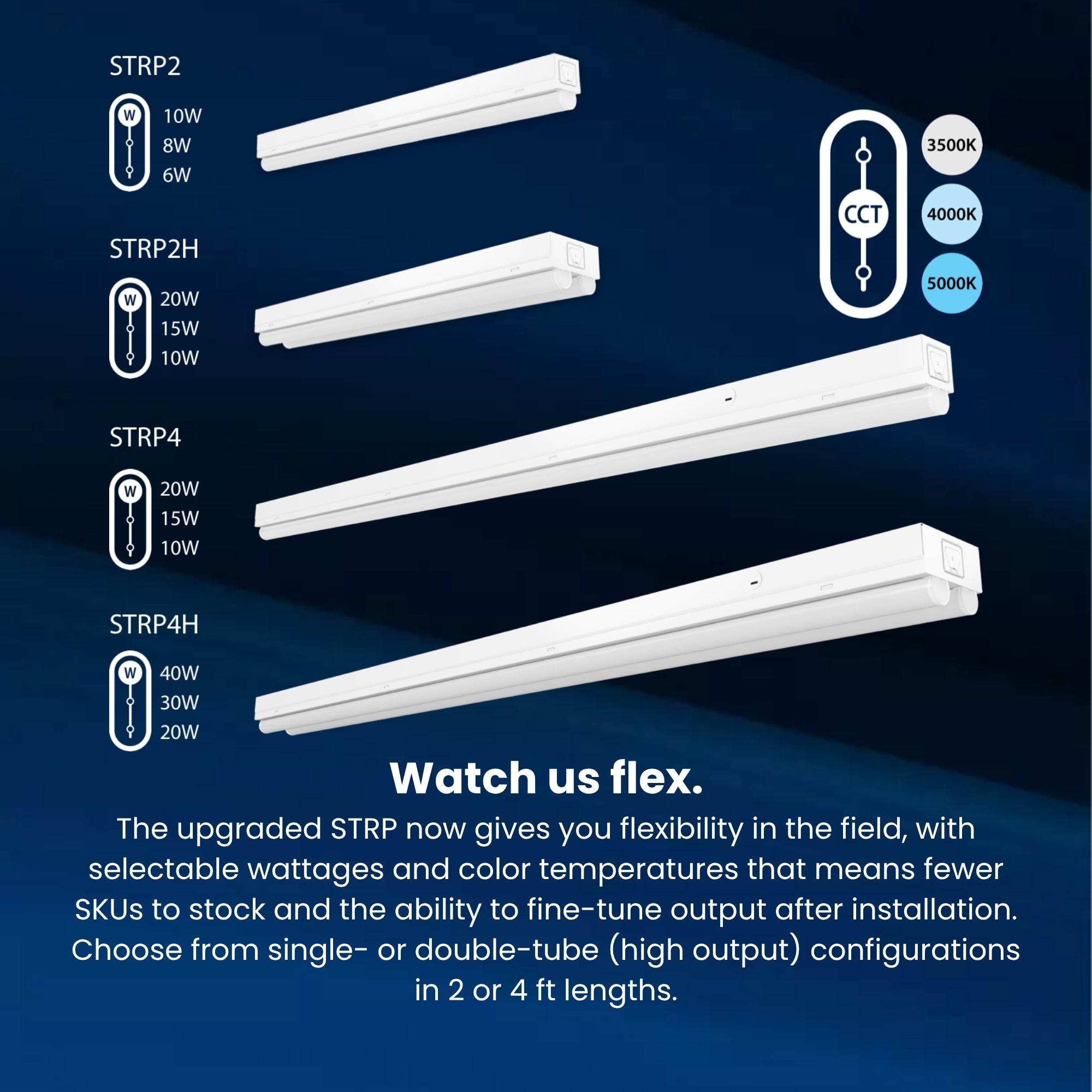

Dual Selectable Technology
The STRP4H-E's innovative field-adjustable design lets you customize performance on-site without stocking multiple SKUs. Simply select your preferred settings during installation or adjust later as needs change.
Wattage Options:
- 40W: 5,815 lumens at 4000K (156.3 LPW efficacy)
- 30W: 4,495 lumens at 4000K (160.5 LPW efficacy)
- 20W: 3,007 lumens at 4000K (160.8 LPW efficacy)
CCT Options:
- 3500K: Warm neutral white for inviting commercial spaces
- 4000K: Cool neutral white for offices and task lighting (default)
- 5000K: Bright daylight white for high-visibility applications
Emergency Battery Backup
The integrated 90-minute emergency battery backup automatically activates during power failures, providing continuous illumination for safe egress. Fully compliant with NEC and IBC emergency lighting requirements for commercial and institutional applications.
Energy Efficiency & Rebates
DLC 5.1 Premium certification ensures the STRP4H-E qualifies for utility rebates from DLC Member Utilities nationwide. With efficacy ratings up to 160.8 lumens per watt, this fixture delivers up to 75% energy savings compared to legacy fluorescent strip lights. The 100,000-hour rated life (L70) significantly reduces maintenance and replacement costs. California Title 24 compliant for commercial applications.
Why Choose RAB
RAB's STRP series represents decades of lighting innovation, combining field-proven reliability with cutting-edge LED technology. DLC 5.1 Premium listed with a 100,000-hour rated life and backed by RAB's comprehensive 5-year limited warranty covering light output, driver performance, and finish quality.
Why Buy From Us: As an authorized RAB dealer, we provide genuine factory-direct products, expert technical support, and fast shipping to ensure your project stays on schedule.
Specifications
Specifications

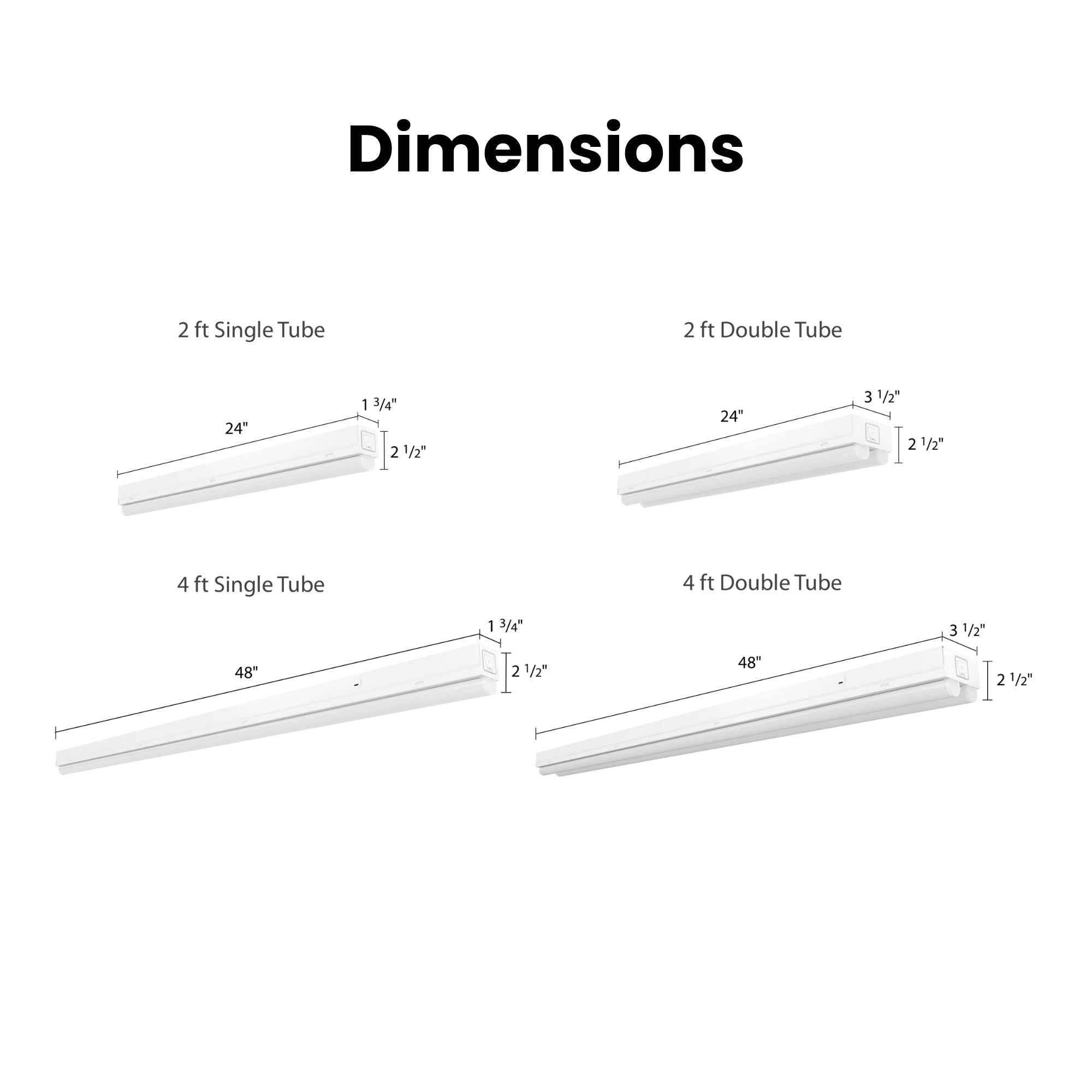

Dimensions
