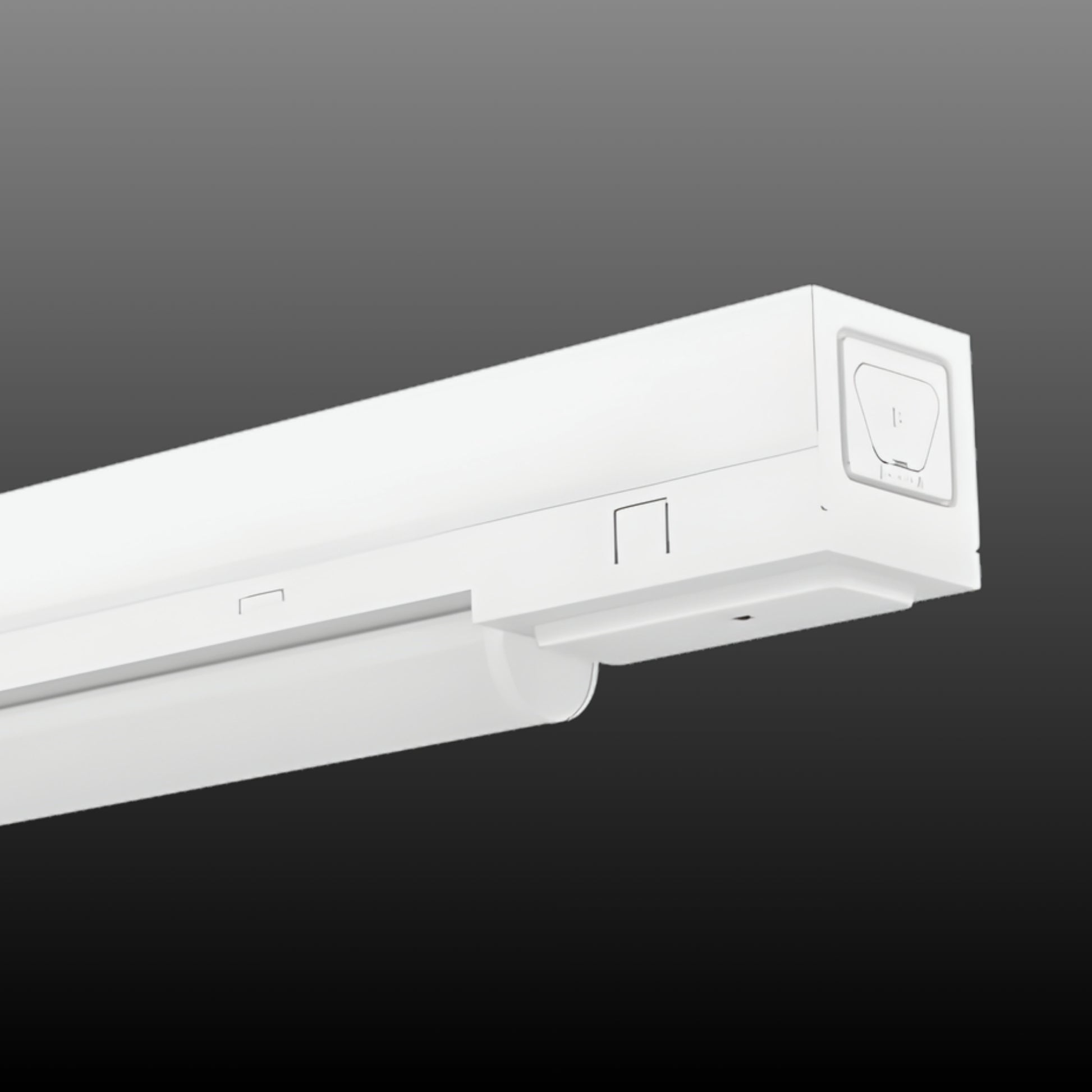

RAB STRP2/MVS Field-Adjustable 2ft LED Strip Light with Microwave Sensor — 10W — 3500K/4000K/5000K — White

The RAB STRP2/MVS is a commercial 2ft LED Strip Light engineered to deliver up to 1,555 lumens with field-adjustable 10/8/5W power settings and switchable 3500K/4000K/5000K color temperatures. Operating on 120–277V electrical systems with 0–10V continuous dimming down to off, this luminaire includes a factory-installed microwave occupancy sensor for automated multi-level dimming control. Built with a UL Listed damp location rating, it is qualified for commercial utility rebates under DLC 5.1 Listed standards and features a CCEA-compliant sheet metal enclosure approved for City of Chicago environmental air spaces.

Key Features

• Selectable Wattage: 10W / 8W / 5W — field-adjustable lumen output via onboard switch (factory default 10W)
• Maximum Lumen Output: 1,555 lm at 10W (4000K setting)
• Peak Efficacy: 158.7 lm/W for high-efficiency commercial operation
• CRI: >80 color rendering (83–85 CRI across all configurations)
• Selectable CCT: 3500K / 4000K / 5000K — color temperature selectable via onboard switch (factory default 4000K)
• Color Consistency: 7-step MacAdam Ellipse binning
• Lens & Optics: Frosted polycarbonate lens with metal reflector for uniform, glare-free distribution
• Dimming: 0–10V continuous dimming standard (dims down to off)
• Sensor Compatibility: Factory-installed microwave occupancy sensor (MVS) with 360-degree detection up to 50 ft mounting height
• Voltage: Universal 120–277V AC, 50/60Hz Class 2 constant current driver with 12VDC AUX power
• Location Rating: UL Listed for damp locations; CCEA Compliant for City of Chicago environmental air spaces
• Operating Temperature: -4°F (-20°C) to 104°F (40°C) ambient range
• Certifications: DLC 5.1 Listed, UL Listed, CCEA Compliant, TAA Compliant, RoHS
• Rated Life: 100,000 hours (L70) based on IES LM-80 results and TM-21 calculations
• Warranty: 5-year limited warranty — RAB

Performance & Light Output

At 10W: 1,498 lm (3500K / 152.9 lm/W), 1,555 lm (4000K / 158.7 lm/W), 1,536 lm (5000K / 156.7 lm/W). At 8W: 1,132 lm (3500K / 150.9 lm/W), 1,171 lm (4000K / 156.1 lm/W), 1,163 lm (5000K / 155.1 lm/W). At 5W: 779 lm (3500K / 149.8 lm/W), 804 lm (4000K / 154.6 lm/W), 802 lm (5000K / 154.2 lm/W).

CRI >80 (83–85) across all configurations. Rated life 100,000 hours (L70) per IES TM-21 testing.

Form Factor & Design Profile

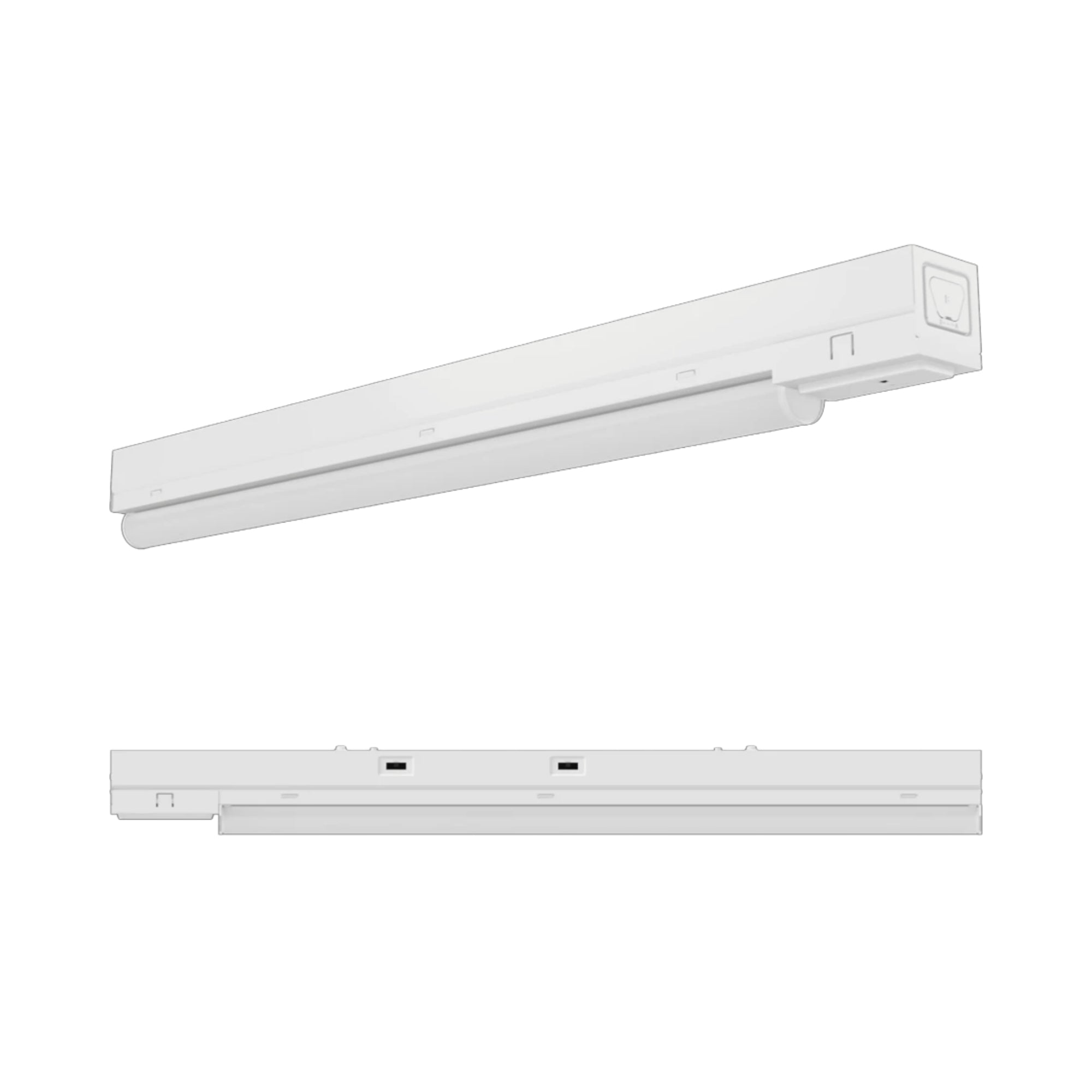

Engineered in a sleek 2ft single-tube architectural footprint measuring 2" wide by 2.5" high, the STRP2/MVS provides clean linear illumination where ceiling space is restricted. The fixture is designed to support end-to-end continuous row mounting, enabling contractors to link multiple units into seamless, uninterrupted linear runs across extended commercial hallways, warehouse aisles, and open retail ceiling layouts. Its field-adjustable CCT (tunable white 3500K/4000K/5000K) and variable power settings allow specifiers to standardize on a single linear luminaire across diverse spaces, while CCEA compliance permits direct installation within environmental air-handling plenums.

Smart & Control Features

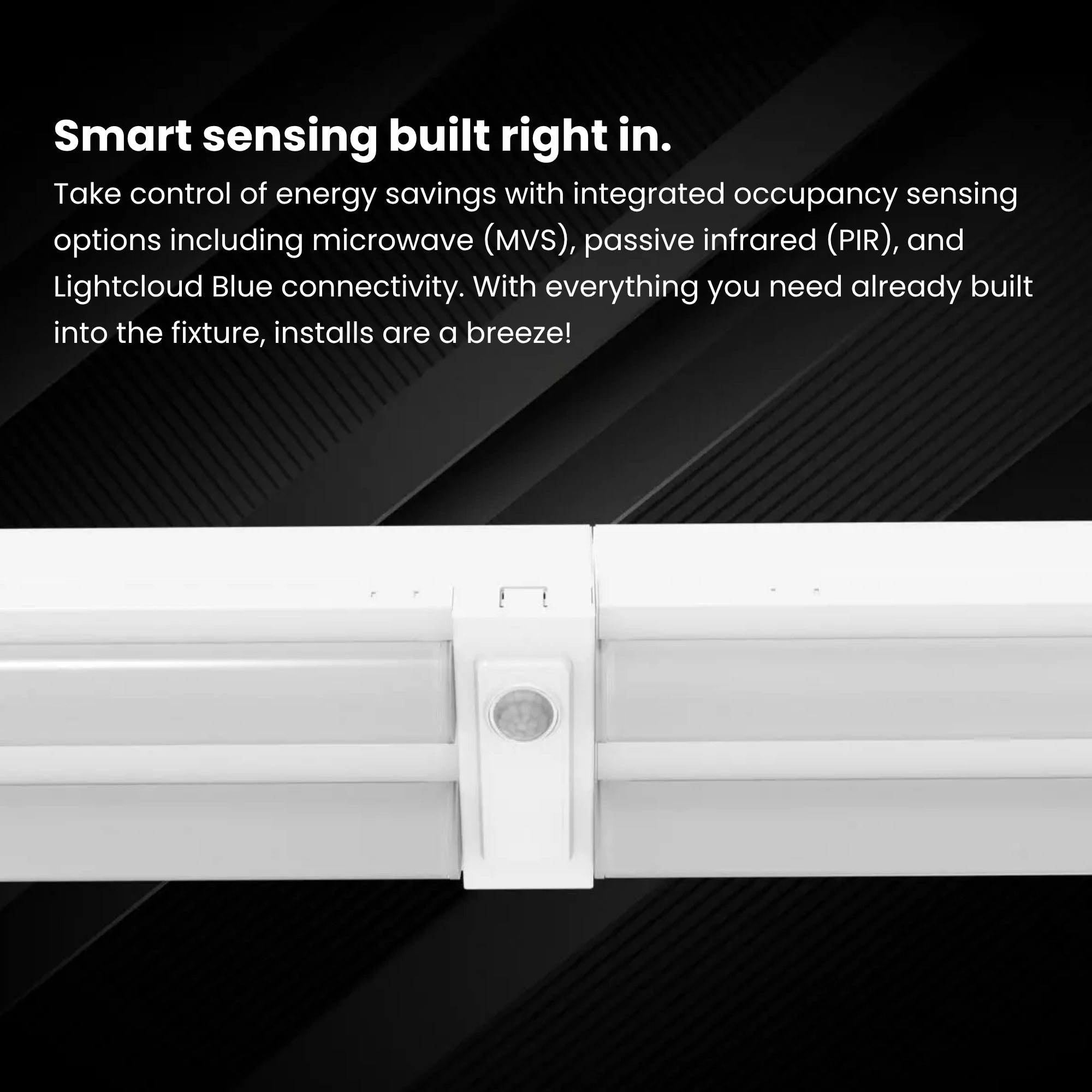

The STRP2/MVS strip light features an integrated microwave occupancy sensor connected to a Class 2 dimming driver with 12VDC auxiliary power:

• Microwave Occupancy Sensing (Factory-Installed): Utilizes high-frequency 5.8GHz sensing to detect motion through plastic and glass up to a 50 ft ceiling height. Provides automated bi-level dimming transitions between occupied illumination and standby power savings.
• 0–10V Continuous Dimming (Standard): Dims smoothly down to off or programmed standby levels on standard 0–10V low-voltage control circuits.

Sensor parameters including hold time, detection range, daylight threshold, and standby dimming level can be configured using an optional handheld remote control (sold separately).

Electrical

Powered by a Class 2 constant current driver operating on 120–277V AC at 50/60Hz (5.3–9.8W input power). Delivers high electrical efficiency with a Power Factor of 99.2% at 120V (95.0% at 277V) and Total Harmonic Distortion (THD) of 7.8% at 120V (8.9% at 277V). Integrated 1kV differential mode (DM) and 2kV common mode (CM) surge protection protects internal electronics against transient voltage spikes. Includes pre-wired 0–10V dimming leads and 12VDC auxiliary power.

Operating current and amp draw across input voltages for branch circuit and breaker loading calculations:

Construction

Housing & Thermal: Sheet metal housing and internal metal reflector engineered for thermal dissipation.

Lens & Optics: Frosted polycarbonate lens designed for impact resistance, optical clarity, and uniform glare control.

Finish: Powder-coated matte white finish formulated for high durability, long-lasting color, and resistance against corrosion and surface wear.

Environmental Sealing: UL Listed for damp locations. Operating ambient temperature range: -4°F (-20°C) to 104°F (40°C).

Dimensions & Weight: 24.00" L × 2.00" W × 2.50" H. Fixture weight: 2.5 lbs.

Installation & Mounting

Standard Mounting: Surface mounting standard for direct ceiling or wall installation.

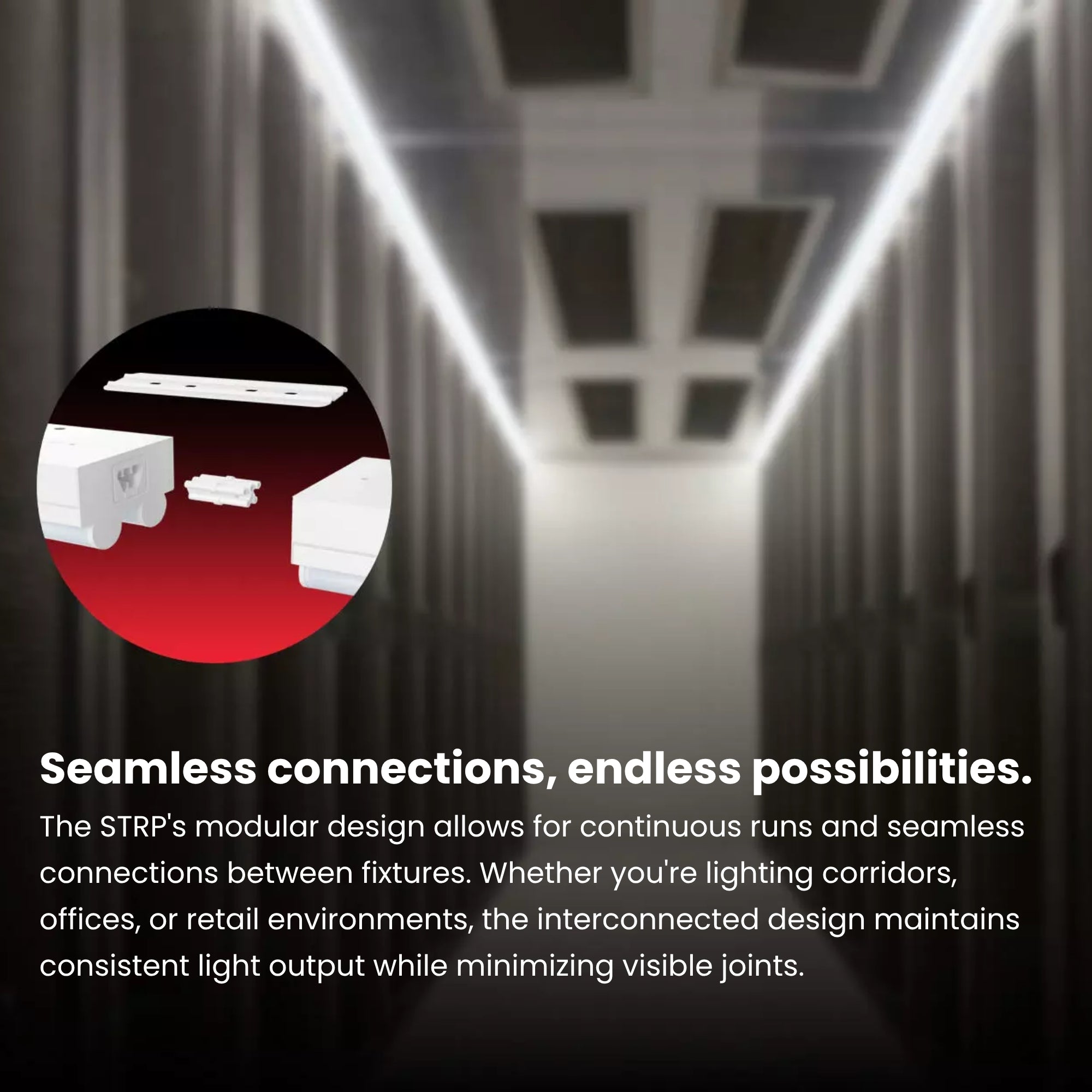

Continuous Run Mounting: Supports end-to-end continuous row mounting using an aligner bracket/joiner plate for seamless linear runs.

Accessories (Sold Separately):

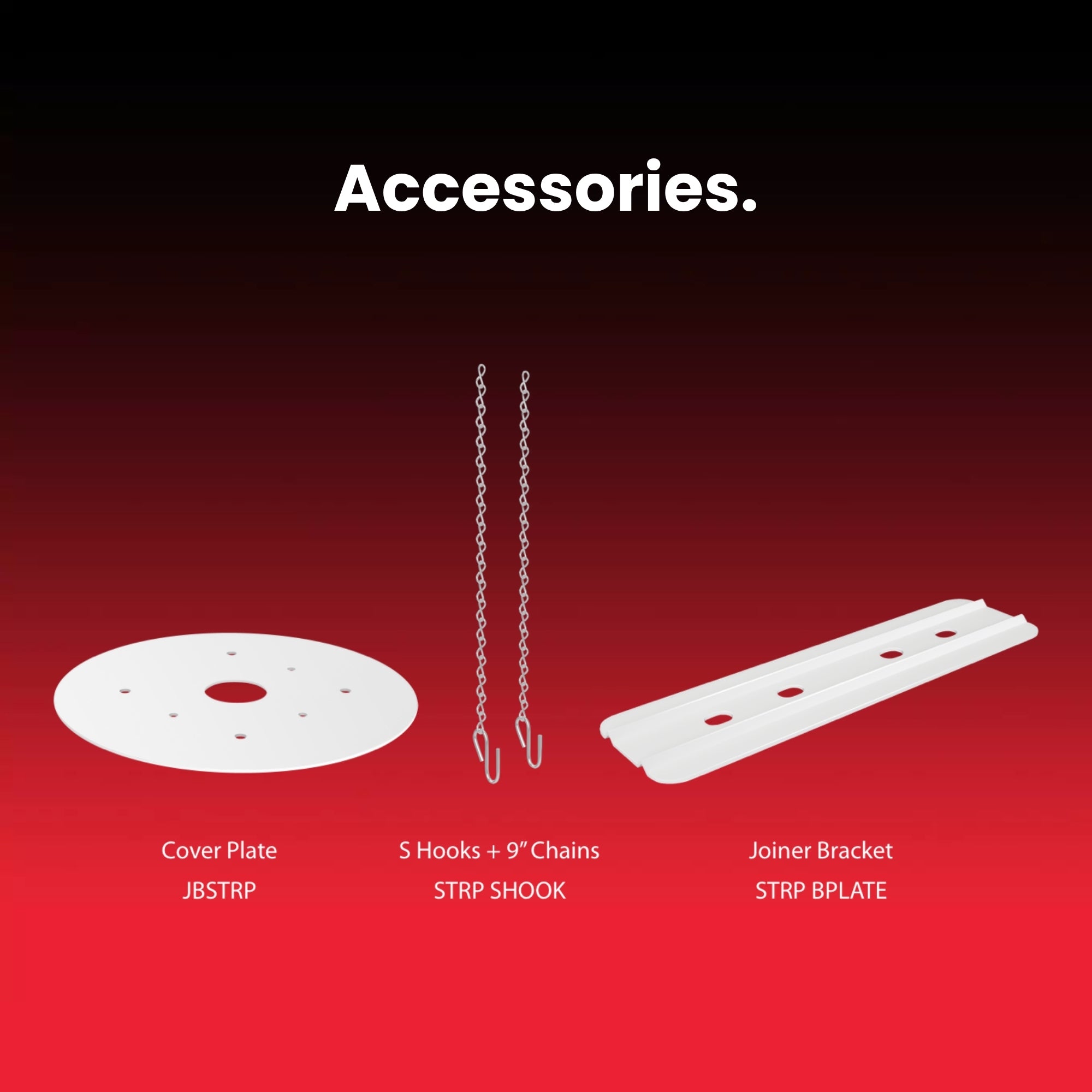

• Mounts & Suspension Hardware: V-Hooks and Chain Mounting Kit (SR VHOOK KIT), S-Hooks and 9" Chains (STRP SHOOK), Flat Junction-Box Cover Plate Adapter (JBSTRP), and continuous run row aligner bracket
• Controls: Handheld Remote Control for Microwave Sensor commissioning

Certifications & Rebates

• DLC 5.1 Listed: Qualifies for commercial utility rebate incentives across regional energy programs. To confirm rebate eligibility with your local utility provider, visit designlights.org and search DLC Qualified Products List under the RAB STRP family.
• UL Listed: Certified for damp locations.
• CCEA Compliant: Meets Luminaire Requirements used in Environmental Air Space per the electrical code specification of the City of Chicago.
• TAA Compliant: Product of Cambodia ("designated country" end product) complying with the Trade Agreements Act (TAA) for federal, municipal, and GSA schedule procurement.
• IESNA LM-79 & LM-80 Tested: Luminaires and LED components tested by an independent laboratory in accordance with IESNA LM-79 and LM-80 standards.
• RoHS Compliant: Green technology engineered free of toxic mercury, UV, and hazardous substances.

Typical Applications

• Stairwells & Hallways — Integrated microwave sensor enables automatic bi-level dimming upon occupancy, fulfilling commercial energy code standards.
• City of Chicago Plenum & Mechanical Spaces — CCEA environmental air space compliance and -4°F to 104°F operating tolerance support code-compliant mechanical room installations.
• Government & Municipal Facilities — Trade Agreements Act (TAA) compliance and DLC 5.1 qualification satisfy federal procurement standards and utility rebate requirements.
• Storage Closets & Restrooms — Automated high-frequency motion detection prevents accidental full-power burn hours in low-traffic utility rooms.
• Back-of-House Retail Aisleways — Up to 1,555 lumens, continuous row runs, and 158.7 lm/W efficacy deliver bright task visibility with automated energy management.

What's Included

• RAB STRP2/MVS 2ft LED Strip Light with Factory Microwave Sensor — White
• Installation and operation manual
