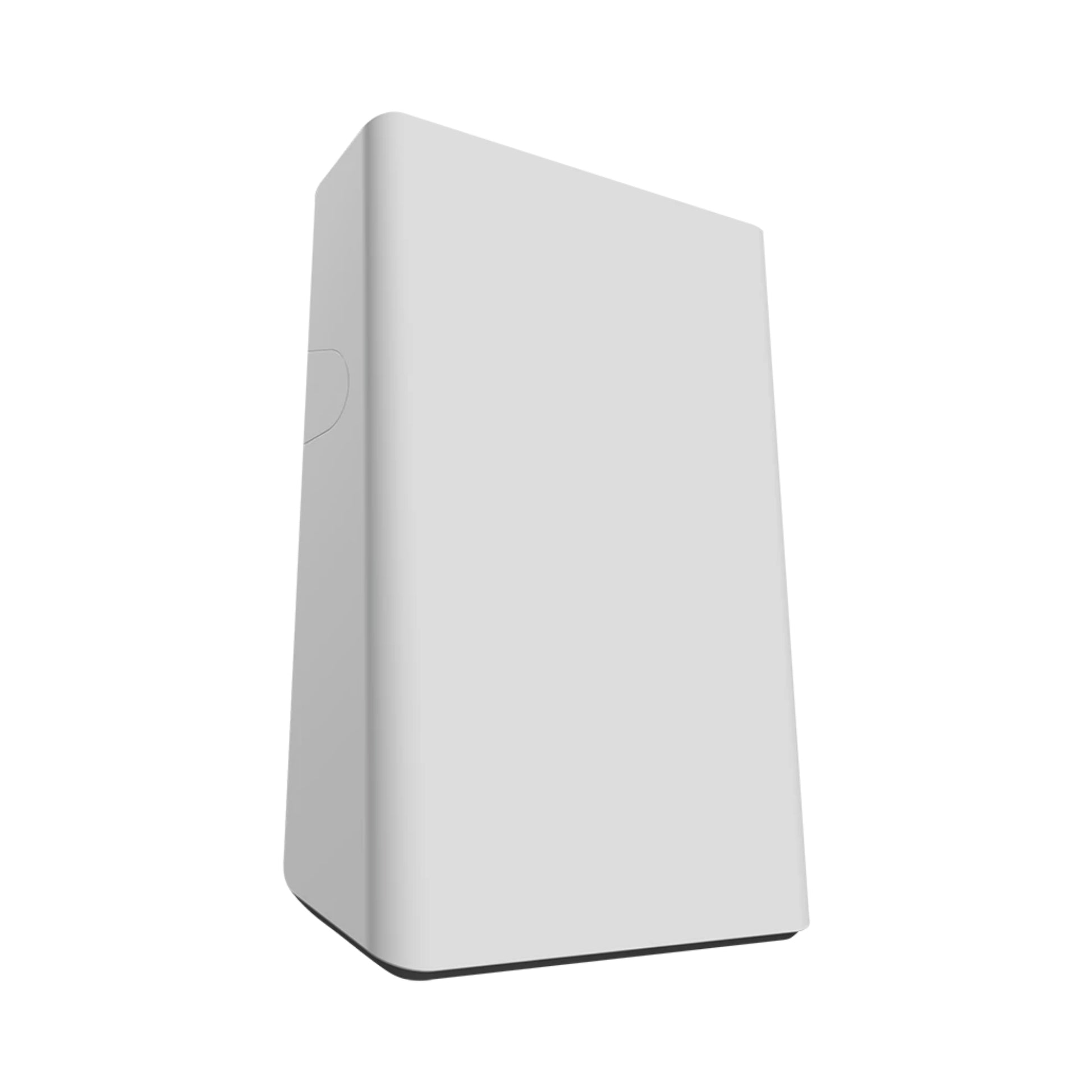

RAB SLIMYAW Amber LED Wall Pack — 26/18/12W Selectable

The SLIMYAW is an ultra-thin LED wall pack designed to provide wildlife-friendly illumination. Delivering up to 1,190 lumens, it features field-adjustable 26/18/12W power settings and operates on a universal 120-277V electrical input. Finished in crisp commercial white, this ADA-compliant fixture meets dark sky requirements and zero-uplight cutoff standards, making it an ideal choice for coastal regions and strict zoning areas.

Key Features

• Light Output: Generates up to 1,190 lumens with an efficacy of 64.5 LPW on the lowest setting.
• Wattage Selectable: Field-adjustable between 26W, 18W, and 12W to strictly tailor energy consumption.
• Color Temperature: Produces a wildlife-friendly amber wavelength of 585-595nm.
• Voltage: Operates efficiently across a universal 120-277V electrical input range.
• Dimming: Includes a 0-10V dimming driver capable of dimming down to 10 percent.
• Photocell: Features a selectable dusk-to-dawn photocell with a manual on/off switch.
• Surge Protection: Built-in 4kV surge protection defends against unexpected job site power spikes.
• Lifespan: Rated for an exceptional 100,000-hour LED lifespan to minimize overhead maintenance.
• BUG Rating: Achieves a B1 U0 G0 rating for precise light control and zero uplight.

Typical Applications

• Coastal properties and beachfront commercial buildings.
• Nature reserves and wildlife sanctuaries.
• Observatories and dark sky compliance zones.
• Commercial facility perimeters and tight alleys.
• Walkways requiring ADA-compliant luminaires.

Performance & Light Output

This slim fixture delivers up to 1,190 lumens while generating a specialized amber wavelength (585-595nm) designed to be safely ignored by sea turtles and other sensitive nocturnal wildlife. With a highly controlled B1 U0 G0 BUG rating, the zero-uplight optics eliminate light pollution into the night sky. The high-efficiency surface-mount LEDs ensure consistent illumination and maintain top performance over an impressive 100,000-hour rated L70 lifespan.

Electrical & Controls

Powered by a constant current driver running on a 120-277V input, this wall pack provides maximum flexibility for electrical contractors. It comes standard with a 0-10V dimming interface that reliably dims down to 10%, along with a built-in 120-277V selectable photocell for automated dusk-to-dawn energy savings. All vital internal components are safeguarded by integrated 4kV surge protection.

Construction & Durability

The low-profile housing is constructed from rugged aluminum finished in a clean white powder coat, featuring a specialized ASA/ABS reflector paired with a protective polycarbonate lens. Fully ADA compliant, the sleek design protrudes minimally from the mounting surface to keep pedestrian walkways clear. It is tightly sealed with an IP65 ingress protection rating, ensuring a complete defense against dust and water in harsh coastal environments.

Installation & Mounting

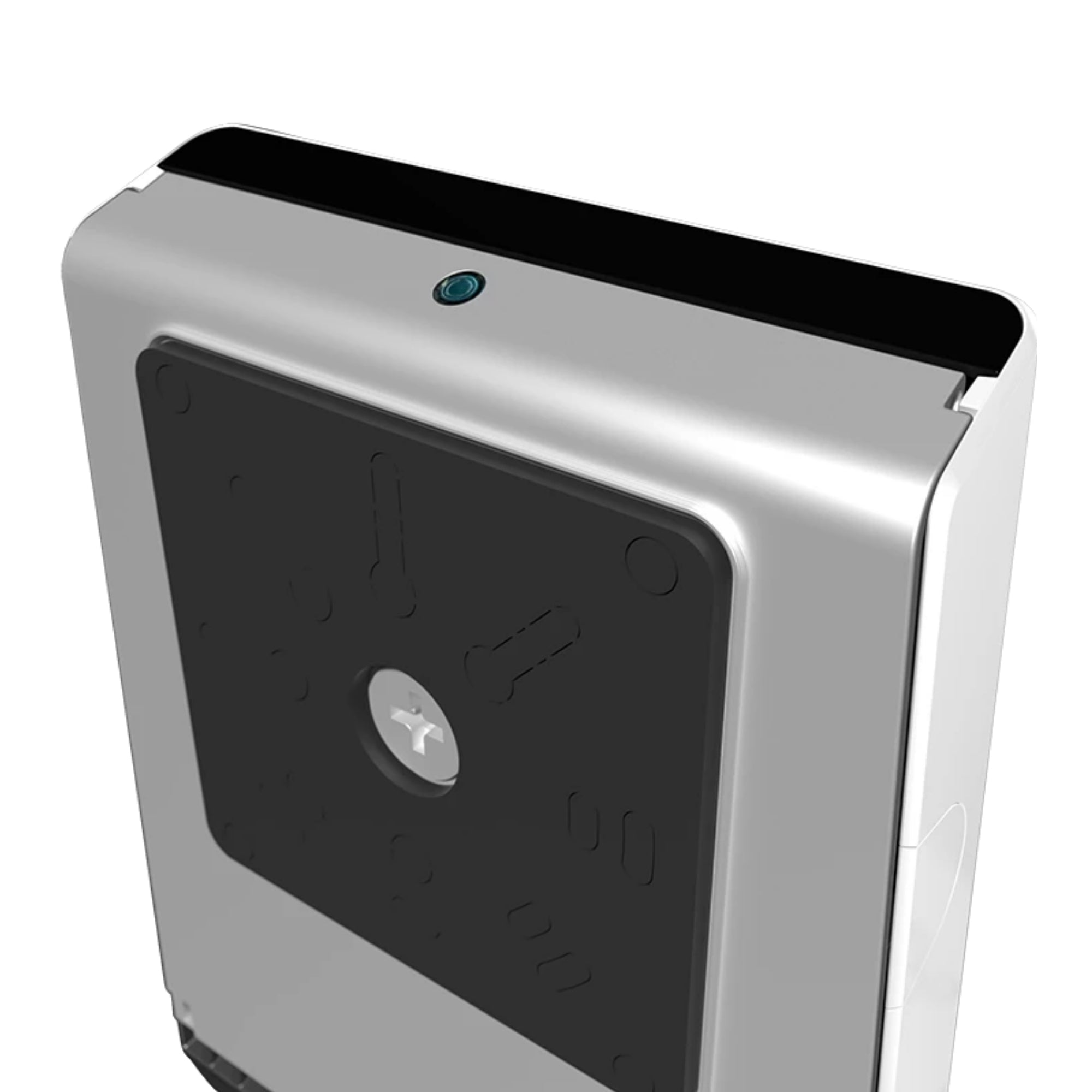

Designed for straightforward surface wall mounting, the fixture features a heavy-duty mounting bracket. A unique spring-hinged housing and integrated \"kick stand\" provide hands-free access to the wiring compartment during installation, drastically reducing lift time. It includes multiple conduit entries on the back and sides for versatile electrical routing.

What's Included

• LED Amber Wall Pack (White Finish)
• Integrated Selectable Photocell
