RAB SLIMYABR Field-Adjustable Full Cutoff LED Wall Pack - 26W/18W/12W Selectable - Amber (585-595 nm) - Brass

The RAB SLIMYABR is a commercial full cutoff LED wall pack and amber wall pack with field-adjustable wattages engineered to deliver up to 1,190 lumens across field-adjustable 26W, 18W, and 12W power settings (factory default 26W) at a wildlife-friendly 585-595 nm amber wavelength. Operating on 120-277V electrical systems with 0-10V dimming down to 10%, it is DarkSky Certified as a Sea Turtle Sensitive Luminaire for coastal and ecologically sensitive applications. Built with a weatherproof IP65 solid brass body, this UL wet-location luminaire features a slim 2 3/16" ADA-compliant wall projection depth, a heavy-duty mounting bracket with a spring-hinged housing and built-in kick stand for hands-free wiring, and 3 conduit entry points alongside an ASA/ABS lens, an integrated on/off photocell, and 4kV surge protection.

Key Features

• Selectable Wattage: 26W / 18W / 12W field-adjustable (Factory default 26W)
• Wavelength & Spectrum: Wildlife-friendly monochromatic Amber (585-595 nm)
• Maximum Lumen Output: Up to 1,190 lm
• Peak Efficacy: Up to 64.5 lm/W
• Color Consistency: 7-step MacAdam Ellipse binning
• Lens & Optics: Full cutoff DarkSky Sea Turtle Sensitive shielding with ASA/ABS lens and mirror-finish polycarbonate reflector
• Photocell & Controls: Integrated dusk-to-dawn photocell with on/off selector switch
• Dimming: 0-10V continuous dimming down to 10%
• Voltage & Surge Protection: 120-277V AC, 50/60Hz; 4kV surge protection
• Location & Body Rating: UL Wet Location; IP65 rated; ADA compliant
• Operating Temperature: -40°F (-40°C) to 104°F (40°C)
• Certifications: DarkSky Certified (Sea Turtle Sensitive Luminaire), UL Listed, IP65, ADA Compliant, TAA Compliant, RoHS
• Rated Life: L70 100,000 hours

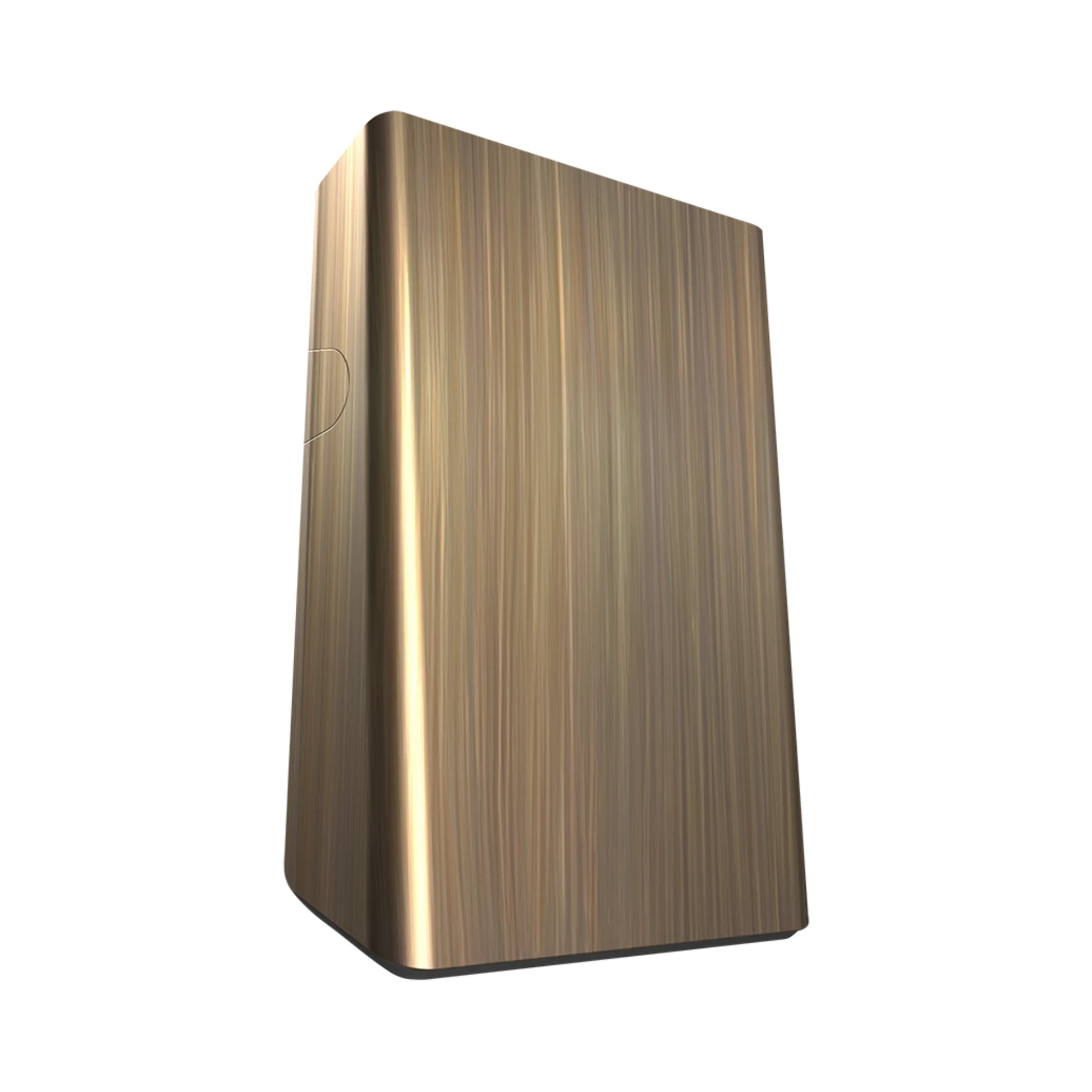

• Housing & Finish: Solid brass housing in Brass
• Warranty: 10-year no-compromise warranty covering light output, color stability, driver performance, paint finish, and labor - RAB

Performance & Light Output

Engineered with long-life, high-efficacy surface-mount LEDs tuned to a narrow 585-595 nm amber spectrum across all wattage configurations. Rated life 100,000 hours (L70) based on IES LM-80 results and TM-21 calculations.

Lens & Optics

Engineered with an acrylonitrile styrene acrylate (ASA) / acrylonitrile butadiene styrene (ABS) lens and an internal mirror-finish polycarbonate reflector delivering a dedicated Full Cutoff downlight distribution from a slim 2 3/16" ADA-compliant profile. Certified by DarkSky as a Sea Turtle Sensitive Luminaire, the shielded zero-uplight optical design and 585-595 nm amber spectrum eliminate skyglow and shoreline light trespass to protect nesting sea turtles and coastal wildlife.

Smart & Control Features

Engineered for automated exterior operation and commercial lighting control integration:

• Dusk-to-Dawn Photocell (Integrated): Built-in photocell with an internal on/off bypass switch allows automatic dusk-to-dawn operation or manual wall-switch and timeclock control.
• 0-10V Continuous Dimming: Driver includes dimming control wiring for 0-10V dimming systems (requires separate 0-10V DC dimming circuit) and dims smoothly down to 10%.

Electrical

Powered by a Constant Current, Class 2 driver operating on 120-277V AC at 50/60Hz with a Power Factor of 99.8% at 120V (96.6% at 277V) at 26W, 99.6% at 120V (94.3% at 277V) at 18W, and 99.2% at 120V (88.8% at 277V) at 12W, alongside Total Harmonic Distortion (THD) of 2.8% at 120V (4.9% at 277V) at 26W, 3.8% at 120V (5.6% at 277V) at 18W, and 4.0% at 120V (9.5% at 277V) at 12W. Integrated 4kV surge protection safeguards internal electronics against utility line transients. Includes pre-wired 0-10V dimming leads.

Operating current and amp draw across input voltages for branch circuit and breaker loading calculations:

Construction

Housing & Thermal: Precision solid brass body engineered with passive convection thermal management to draw heat away from the surface-mount LED array and Class 2 driver.

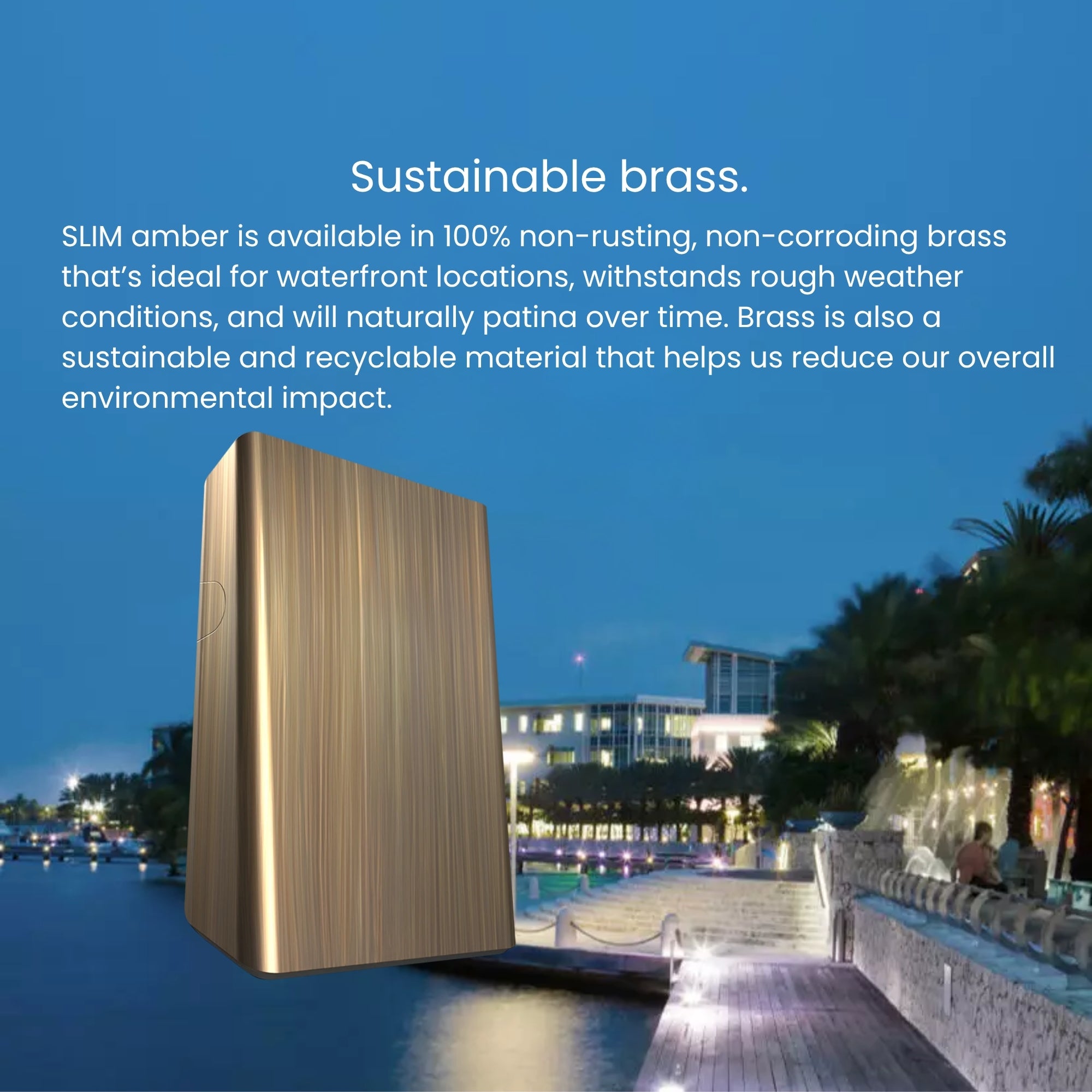

Finish: Brushed and electroplated solid brass finish engineered to naturally patina over time in coastal and exterior environments.

Environmental Sealing: IP65 weatherproof rated for dust and water ingress and UL Listed for wet locations. Ambient operating temperature: -40°F (-40°C) to 104°F (40°C).

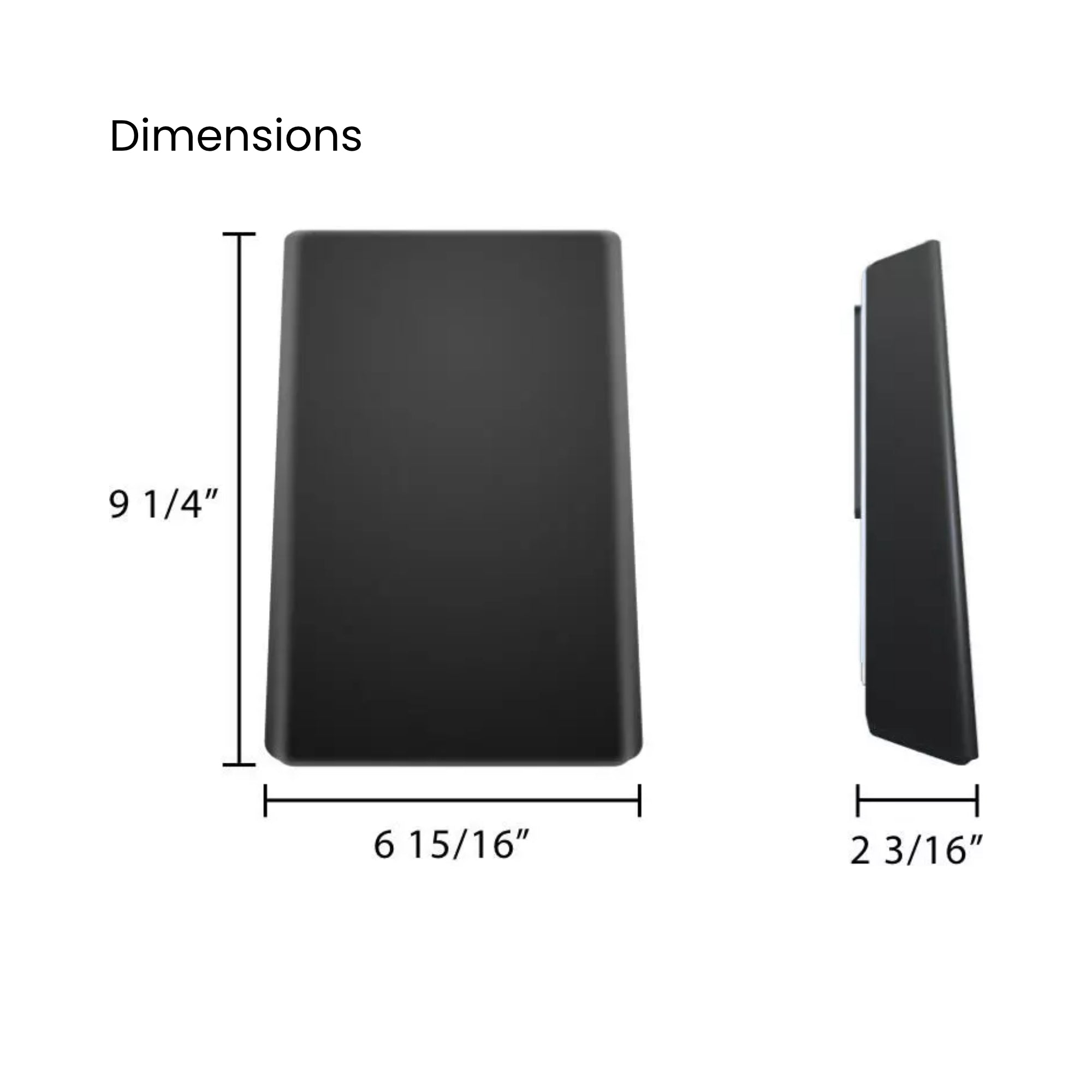

Dimensions & Weight: 6 15/16" W x 9 1/4" H x 2 3/16" D (6.94" W x 9.25" H x 2.19" D). Fixture weight: 5.7 lbs.

Installation & Mounting

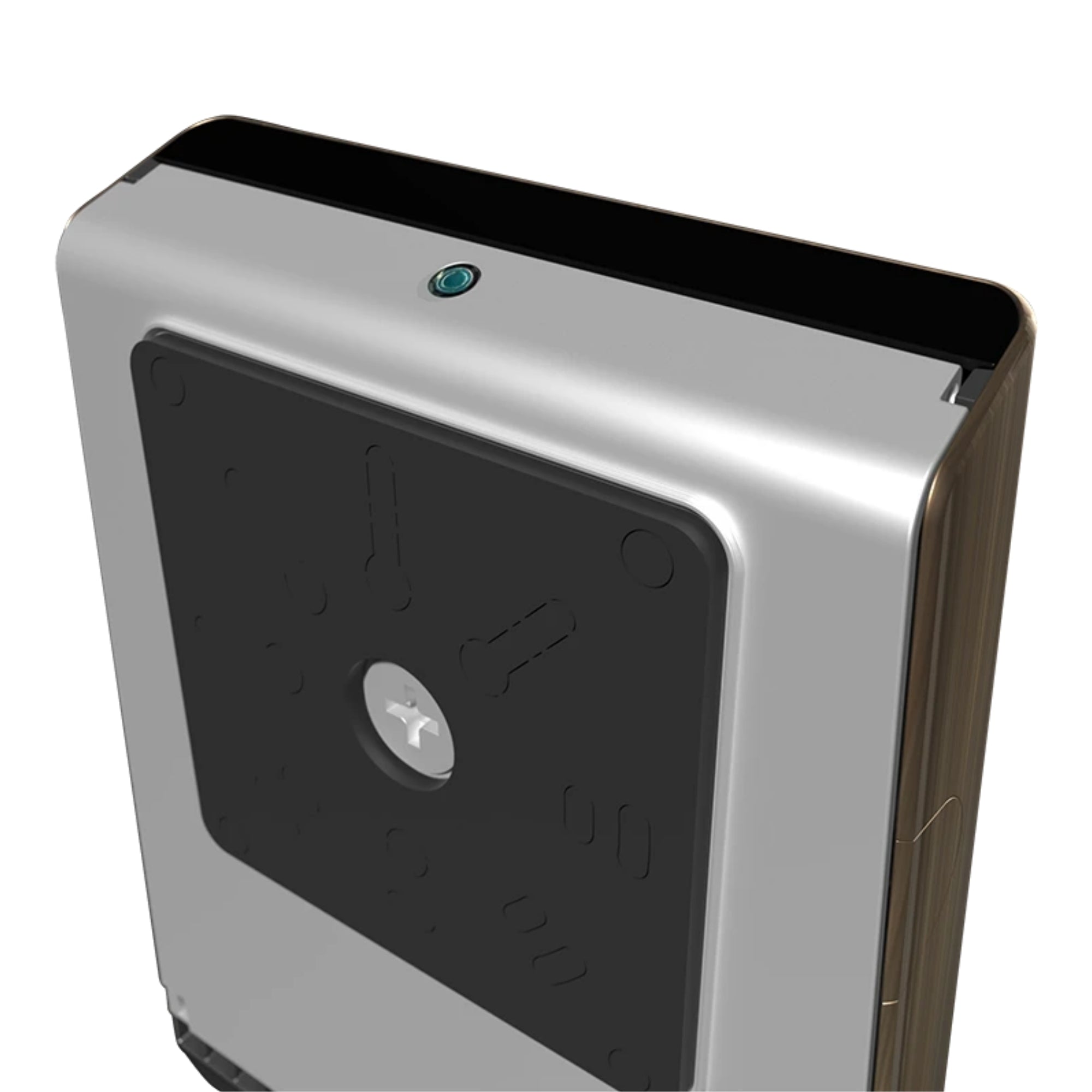

Mounting Hardware: Heavy-duty wall mounting bracket with a spring-hinged housing and integrated "kick stand" props the luminaire open during installation for rapid, hands-free wiring over recessed junction boxes or vertical wall surfaces while maintaining a slim 2 3/16" ADA-compliant wall projection.

Conduit & Wiring Access: Includes 3 conduit entry points located on the back and both sides of the housing for surface conduit or concealed branch-circuit wiring.

Certifications & Rebates

• DarkSky Certified (Sea Turtle Sensitive Luminaire): Certified by DarkSky with full cutoff shielding and a 585-595 nm amber spectrum tuned to protect coastal sea turtle and wildlife habitats
• UL Listed: Certified for wet locations per UL outdoor luminaire standards
• IP65 Rated: Ingress protection rating of IP65 for dust and water
• ADA Compliant: Ultra-slim 2 3/16" wall projection meets ADA requirements for wall-mounted luminaires in pedestrian walkways
• TAA Compliant: Product of Cambodia; designated country end product that complies with the Trade Agreements Act (TAA)
• RoHS Compliant: Mercury and UV free with RoHS-compliant components

Typical Applications

• Coastal & Beachfront Properties - DarkSky Sea Turtle Sensitive certification and 585-595 nm amber spectrum prevent disorientation of nesting sea turtles and hatchlings along regulated shorelines
• ADA Pedestrian Walkways & Corridors - Ultra-slim 2 3/16" wall projection meets ADA protrusion limits (<4") along commercial breezeways, stairwells, and exterior hallways
• Marine & Waterfront Hospitality - Solid brass housing naturally patinas to withstand harsh salt-air exposure at oceanfront resorts, piers, and boardwalks
• Parks, Nature Reserves & Ecological Zones - Full cutoff zero-uplight shielding and monochromatic amber light preserve night-sky visibility and protect nocturnal wildlife habitats
• Municipal & Federal Coastal Facilities - Trade Agreements Act (TAA) compliance and selectable 26W/18W/12W output support government, port, and military coastal installations

What's Included

• RAB SLIMYABR Field-Adjustable Full Cutoff Amber Wall Pack - Brass
• Heavy-duty mounting bracket with spring-hinged housing and kick stand
• Pre-installed integrated dusk-to-dawn photocell with on/off switch
• Installation hardware and operation manual
