RAB SLIMW Field-Adjustable Full Cutoff Wall Pack — 26W — 3000K/4000K/5000K — White
Available in stock (100)
About this item
About this item

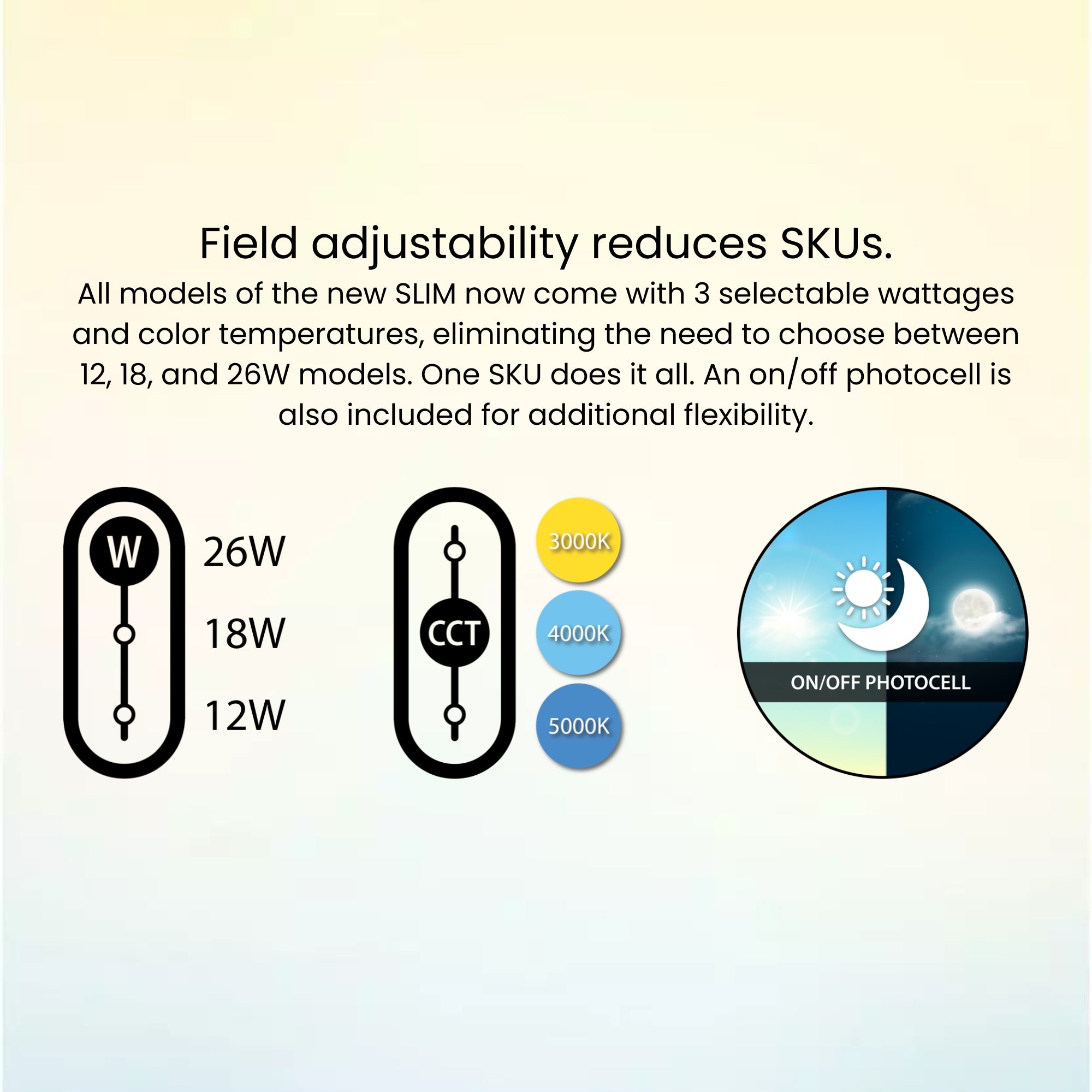

- Selectable Output & Equivalency: Field-adjustable 26W, 18W, and 12W settings (factory default 26W) deliver up to 4,389 lumens at up to 150.6 lm/W, replacing up to 175W Metal Halide or 150W HPS fixtures.
- Full Cutoff & ADA Housing: Full cutoff zero-uplight design with an ASA/ABS lens, mirror-finish polycarbonate reflector, and spring-hinged kick-stand aluminum housing with 3 conduit entries.
- Selectable CCT: Onboard switch adjusts color temperature across 3000K, 4000K (factory default), and 5000K with 82-85 CRI.
- Photocell & Dimming: Integrated on/off photocell, 120-277V driver, and 0-10V dimming down to 10%.
- Rebates & Ingress: DLC 5.1 Premium and DLC LUNA (at 3000K) listed, UL Wet Location rated, IP65 sealed, ADA and TAA compliant, with 4kV surge protection.
Description
Description

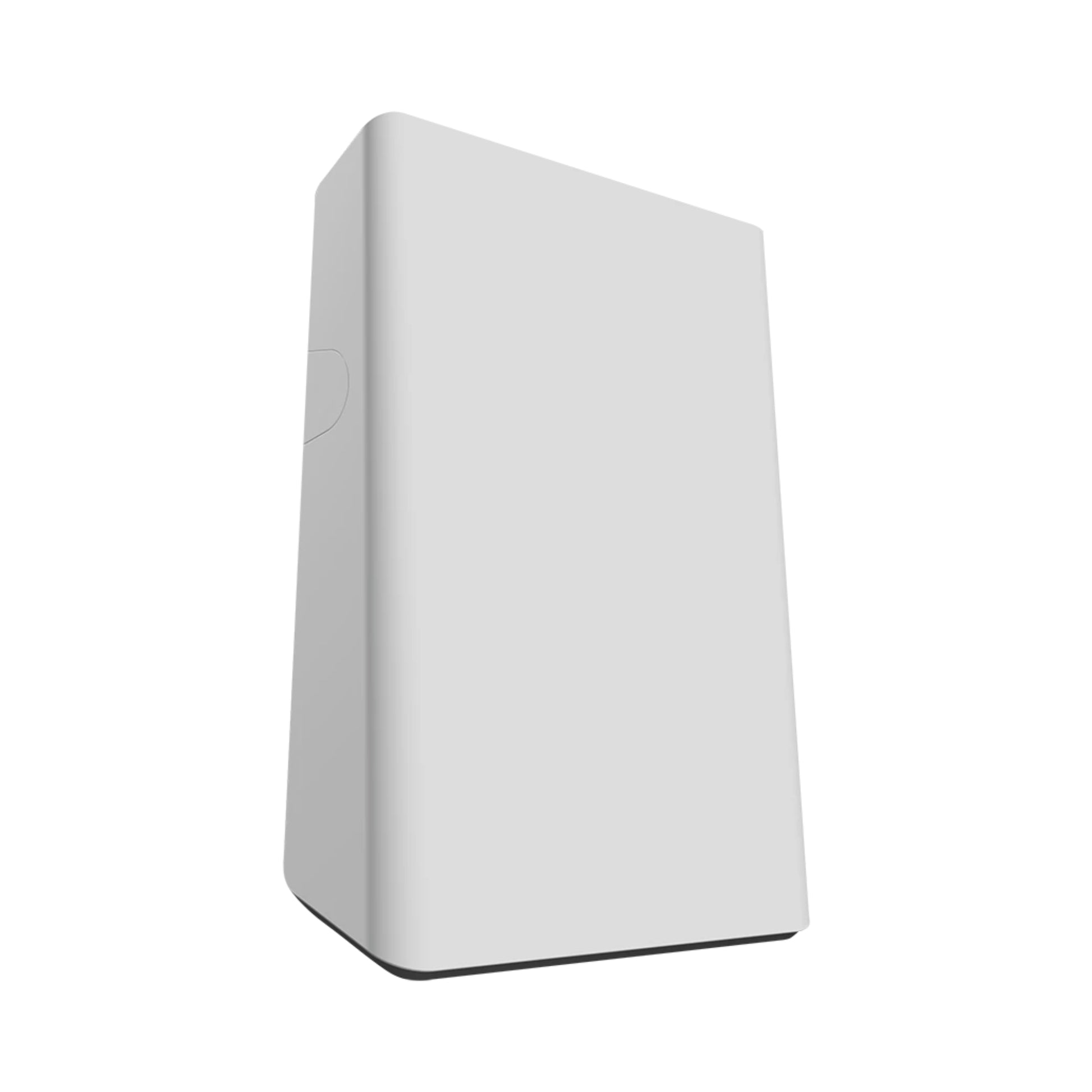

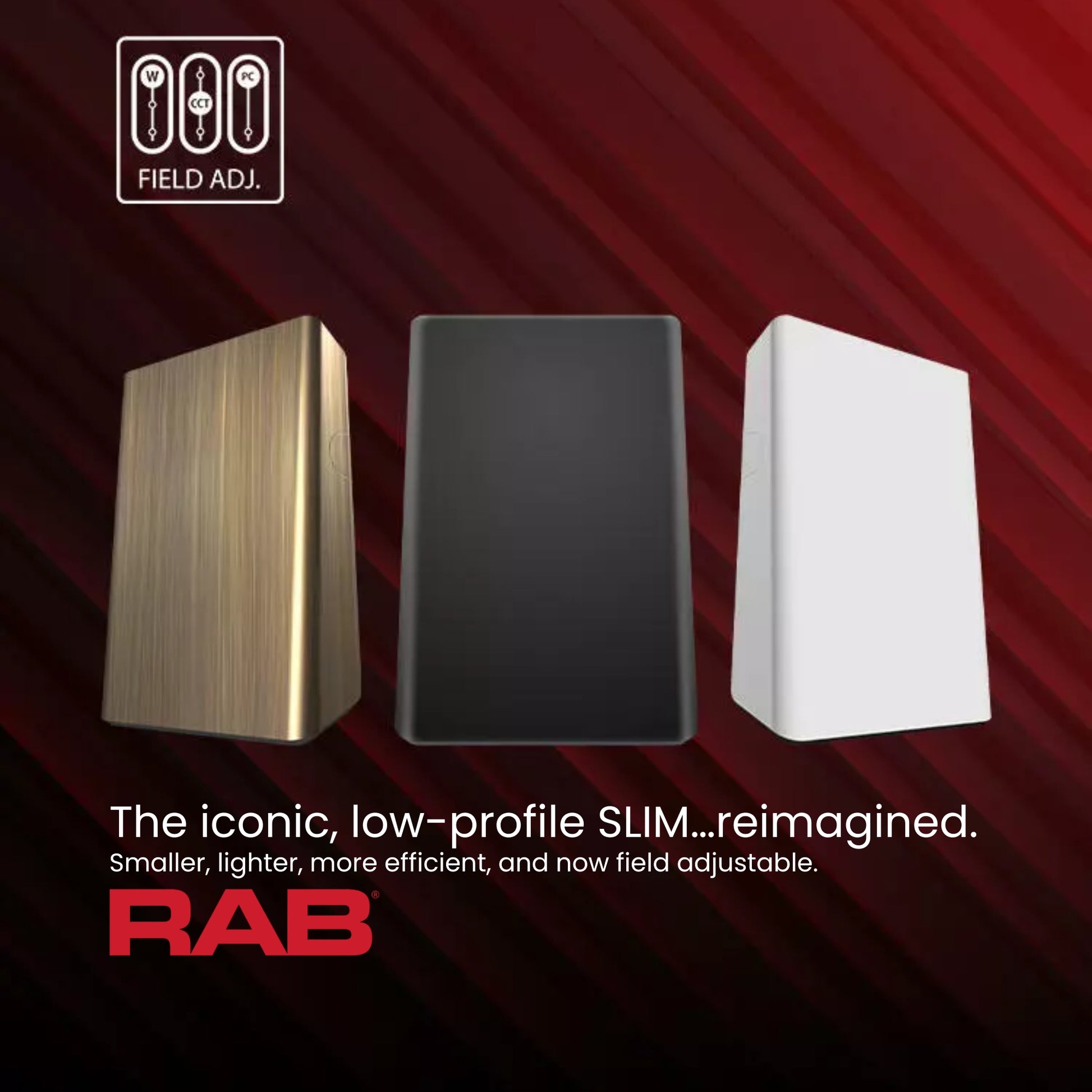

RAB SLIMW Field-Adjustable Full Cutoff LED Wall Pack - 26W/18W/12W Selectable - 3000K/4000K/5000K - White
The RAB SLIMW is a commercial full cutoff LED wall pack and field-adjustable wall pack engineered to deliver up to 4,389 lumens across field-adjustable 26W, 18W, and 12W power settings (factory default 26W) and switchable 3000K, 4000K, and 5000K color temperatures (factory default 4000K). Operating on 120-277V electrical systems with 0-10V dimming down to 10%, it replaces legacy HID wall packs up to 175W Metal Halide (MH) or 150W High Pressure Sodium (HPS) while qualifying for DLC 5.1 Premium and DLC LUNA 5.1 (at 3000K) utility rebates. Built with a weatherproof IP65 aluminum body, this UL wet-location luminaire features a slim 2 3/16" ADA-compliant wall projection depth, a heavy-duty mounting bracket with a spring-hinged housing and built-in kick stand for hands-free wiring, and 3 conduit entry points alongside an ASA/ABS lens, an integrated on/off photocell, and 4kV surge protection.
Key Features
- Selectable Wattage: 26W / 18W / 12W field-adjustable (Factory default 26W)
- Wattage Equivalency: Replaces up to 175W Metal Halide (MH) or 150W High Pressure Sodium (HPS)
- Maximum Lumen Output: Up to 4,389 lm
- Peak Efficacy: Up to 150.6 lm/W
- CRI & Color Consistency: 82-85 CRI; 7-step MacAdam Ellipse binning
- Selectable CCT: 3000K / 4000K / 5000K (Factory default 4000K)
- Lens & Optics: Full cutoff downlight distribution with ASA/ABS lens and mirror-finish polycarbonate reflector
- Photocell & Controls: Integrated dusk-to-dawn photocell with on/off selector switch
- Dimming: 0-10V continuous dimming down to 10%
- Voltage & Surge Protection: 120-277V AC, 50/60Hz; 4kV surge protection
- Location & Body Rating: UL Wet Location; IP65 rated; ADA compliant
- Operating Temperature: -40°F (-40°C) to 104°F (40°C)
- Certifications: DLC 5.1 Premium, DLC LUNA 5.1 (at 3000K), UL Listed, IP65, ADA Compliant, TAA Compliant, BAA Capable (upon request), RoHS
- Rated Life: L70 100,000 hours
- Warranty: 10-year no-compromise warranty covering light output, color stability, driver performance, paint finish, and labor - RAB
Performance & Light Output
| Nominal Wattage | 3000K (Warm White) | 4000K (Neutral White - Default) | 5000K (Cool White) | Legacy Equivalent |
|---|---|---|---|---|
| 26W (Factory Default) | 4,122 lm (135.1 lm/W @ 30.5W, 82 CRI) | 4,389 lm (149.3 lm/W @ 29.4W, 85 CRI) | 4,267 lm (140.4 lm/W @ 30.4W, 84 CRI) | Up to 175W MH / 150W HPS |
| 18W | 3,189 lm (139.3 lm/W @ 22.9W, 83 CRI) | 3,343 lm (150.6 lm/W @ 22.2W, 84 CRI) | 3,291 lm (144.3 lm/W @ 22.8W, 84 CRI) | Up to 125W MH / 100W HPS |
| 12W | 2,175 lm (140.3 lm/W @ 15.5W, 82 CRI) | 2,260 lm (148.7 lm/W @ 15.2W, 85 CRI) | 2,253 lm (146.3 lm/W @ 15.4W, 84 CRI) | Up to 100W MH / 70W HPS |
Engineered with long-life, high-efficacy surface-mount LEDs delivering 82-85 CRI across all field-selectable configurations. Rated life 100,000 hours (L70) based on IES LM-80 results and TM-21 calculations.
Lens & Optics
Engineered with an acrylonitrile styrene acrylate (ASA) / acrylonitrile butadiene styrene (ABS) lens and an internal mirror-finish polycarbonate reflector delivering a dedicated Full Cutoff downlight optical distribution from a slim 2 3/16" ADA-compliant profile. The zero-uplight cutoff geometry directs illumination downward onto walkways and building perimeters while minimizing skyglow and neighbor light trespass (DLC LUNA 5.1 listed at 3000K).
Smart & Control Features
Engineered for automated exterior operation and commercial lighting control integration:
- Dusk-to-Dawn Photocell (Integrated): Built-in photocell with an internal on/off bypass switch allows automatic dusk-to-dawn operation or manual wall-switch and timeclock control.
- 0-10V Continuous Dimming: Driver includes dimming control wiring for 0-10V dimming systems (requires separate 0-10V DC dimming circuit) and dims smoothly down to 10%.
Electrical
Powered by a Constant Current, Class 2 driver operating on 120-277V AC at 50/60Hz with a Power Factor of 99.8% at 120V (96.5% at 277V) at 26W, 99.7% at 120V (94.6% at 277V) at 18W, and 99.4% at 120V (89.6% at 277V) at 12W, alongside Total Harmonic Distortion (THD) of 3.4% at 120V (4.68% at 277V) at 26W, 2.95% at 120V (5.3% at 277V) at 18W, and 3.0% at 120V (8.42% at 277V) at 12W. Integrated 4kV surge protection safeguards internal electronics against utility line transients. Includes pre-wired 0-10V dimming leads.
Operating current and amp draw across input voltages for branch circuit and breaker loading calculations:
| Wattage | 120V Current (A) | 208V Current (A) | 240V Current (A) | 277V Current (A) |
|---|---|---|---|---|
| 26W | 0.26A | 0.13A | 0.12A | 0.11A |
| 18W | 0.20A | 0.10A | 0.09A | 0.08A |
| 12W | 0.13A | 0.07A | 0.06A | 0.06A |
Construction
Housing & Thermal: Precision aluminum body engineered with passive convection thermal management to draw heat away from the surface-mount LED array and Class 2 driver.
Finish: Architectural white finish formulated for high durability, corrosion resistance, and long-lasting color retention.
Environmental Sealing: IP65 weatherproof rated for dust and water ingress and UL Listed for wet locations. Ambient operating temperature: -40°F (-40°C) to 104°F (40°C).

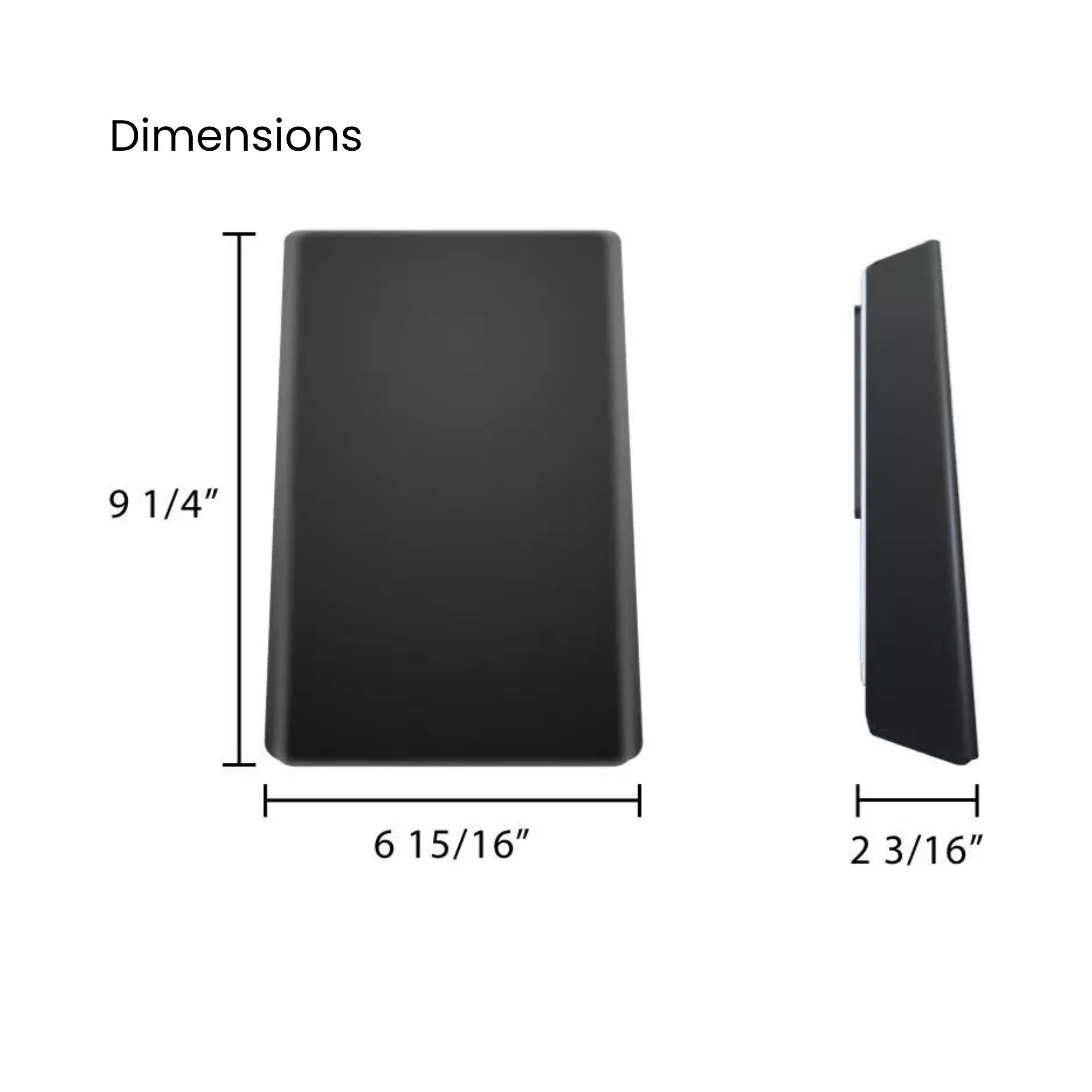

Dimensions & Weight: 6 15/16" W x 9 1/4" H x 2 3/16" D (6.94" W x 9.25" H x 2.19" D). Fixture weight: 2.9 lbs.
Installation & Mounting

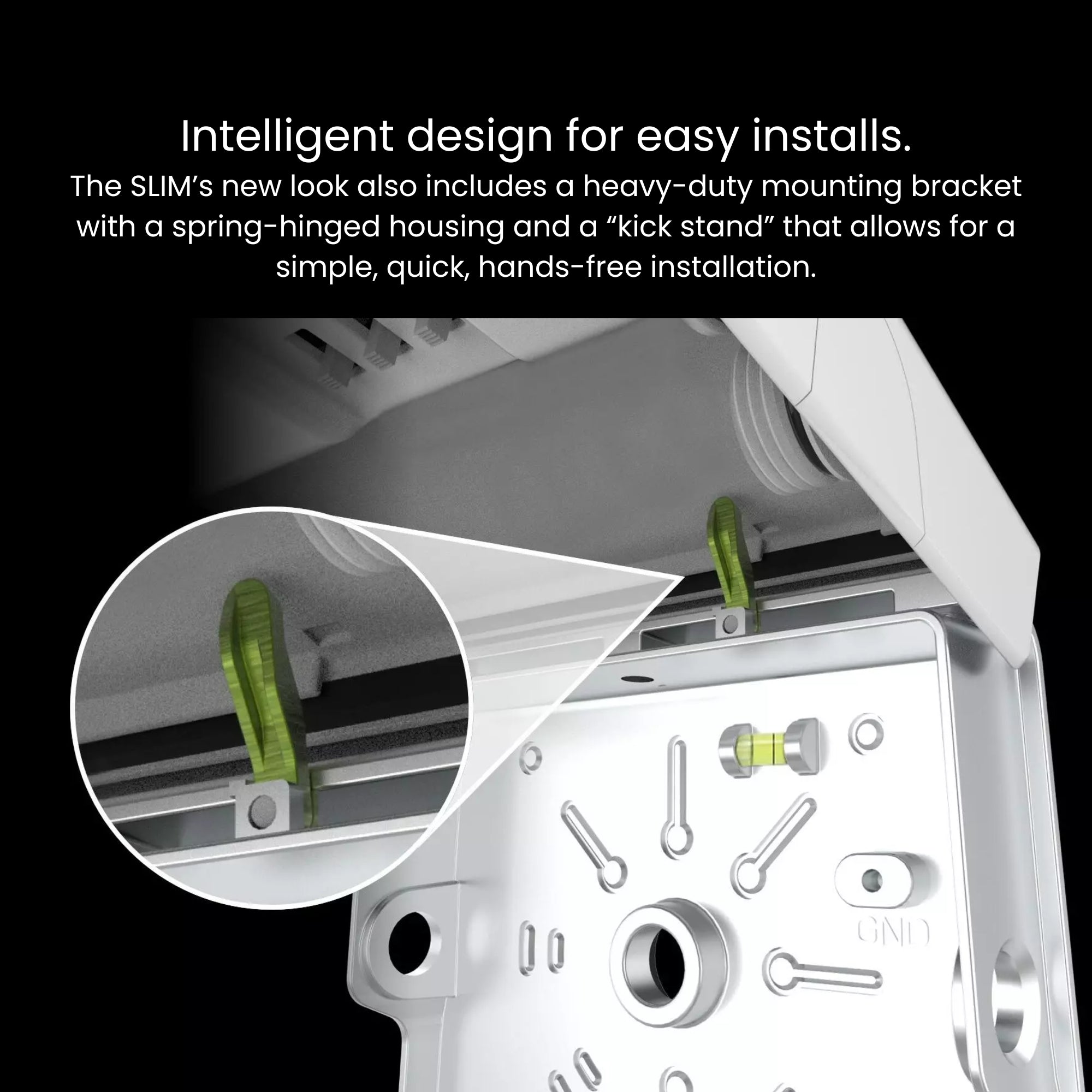

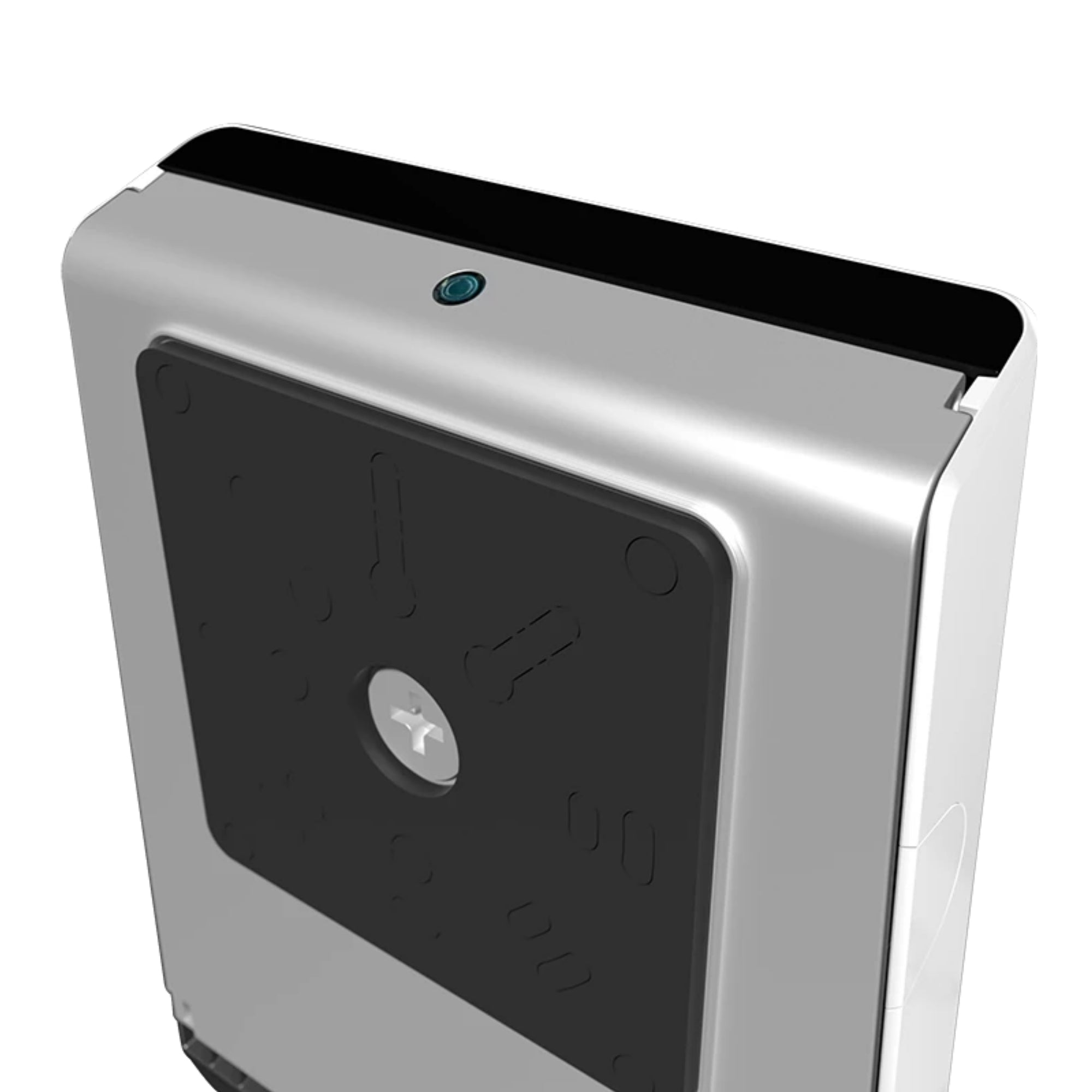

Mounting Hardware: Heavy-duty wall mounting bracket with a spring-hinged housing and integrated "kick stand" props the luminaire open during installation for rapid, hands-free wiring over recessed junction boxes or vertical wall surfaces while maintaining a slim 2 3/16" ADA-compliant wall projection.
Conduit & Wiring Access: Includes 3 conduit entry points located on the back and both sides of the housing for surface conduit or concealed branch-circuit wiring.
Certifications & Rebates
- DLC 5.1 Premium Listed: Qualifies for the highest tier of commercial utility rebates (searchable on designlights.org under DLC Product ID S-IHR6OX / Family ID BBBGKA)
- DLC LUNA 5.1 Listed (3000K): Certified to meet DLC LUNA 5.1 dark-sky requirements for reduced light pollution at the 3000K setting (LUNA Product Code S-5T4RPJ)
- UL Listed: Certified for wet locations per UL outdoor luminaire standards
- IP65 Rated: Ingress protection rating of IP65 for dust and water

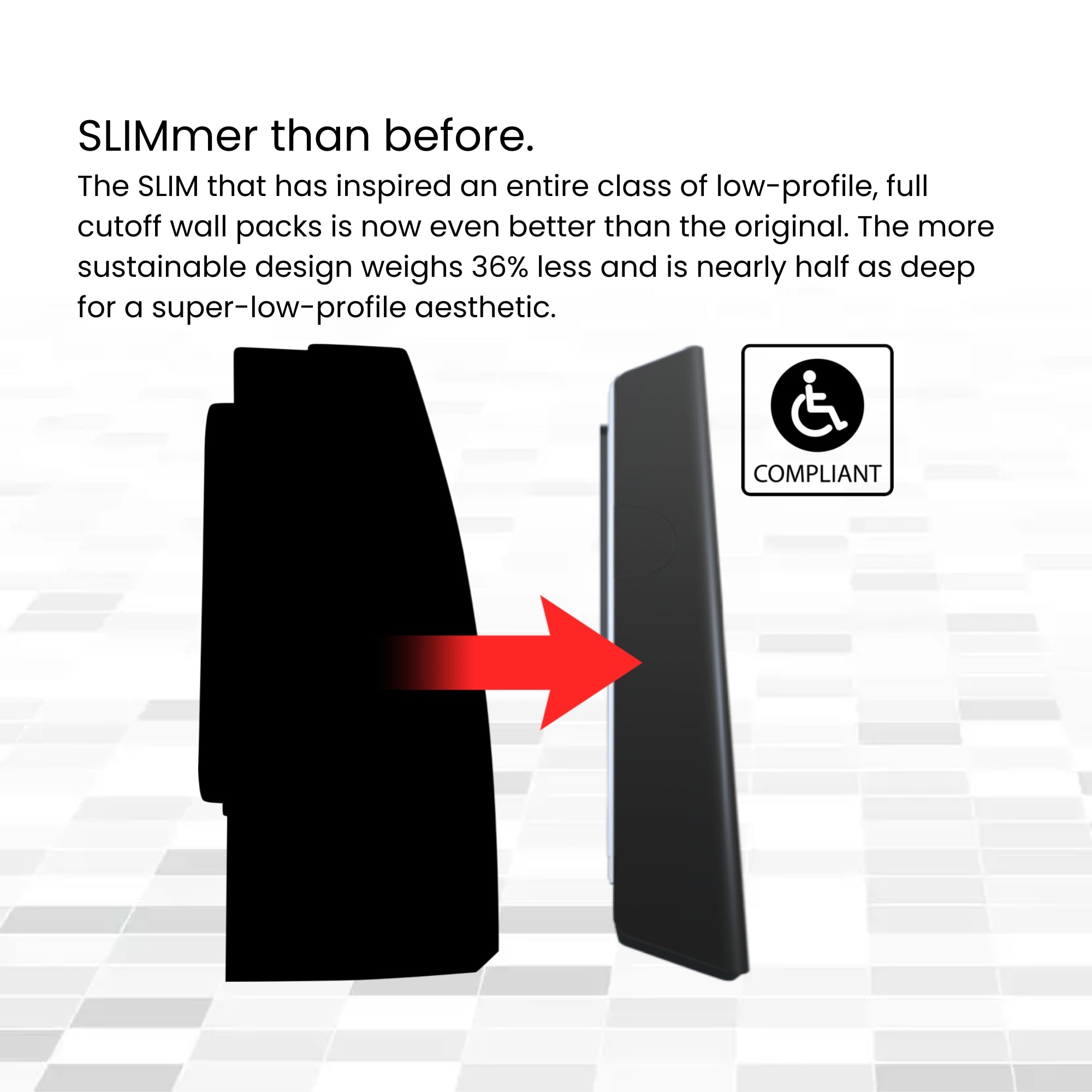

- ADA Compliant: Ultra-slim 2 3/16" wall projection meets ADA requirements for wall-mounted luminaires in pedestrian walkways
- TAA Compliant & BAA Option: Product of Cambodia complying with the Trade Agreements Act (TAA); Buy American Act (BAA) compliant manufacturing available upon special request from RAB
- RoHS Compliant: Mercury and UV free with RoHS-compliant components
Typical Applications
- ADA Pedestrian Walkways & Exterior Corridors - Ultra-slim 2 3/16" depth satisfies ADA wall-protrusion limits (<4") along commercial walkways, breezeways, and entry doors
- Commercial Building Perimeters & Entryways - Field-selectable 26W/18W/12W output replaces 70W–150W HPS and 100W–175W Metal Halide wall packs with up to 4,389 lumens
- Dark-Sky & Municipal Ordinance Zones - Full cutoff zero-uplight geometry and DLC LUNA 5.1 qualification (at 3000K) minimize skyglow and property-line light trespass
- Coastal, Hospitality & Architectural Facades - IP65-sealed aluminum housing in white complements modern commercial, retail, and multifamily building facades
- Federal, Military & Institutional Facilities - Trade Agreements Act (TAA) compliance and 100,000-hour L70 lifespan support government, school, and municipal retrofits
What's Included
- RAB SLIMW Field-Adjustable Full Cutoff LED Wall Pack - White
- Heavy-duty mounting bracket with spring-hinged housing and kick stand
- Pre-installed integrated dusk-to-dawn photocell with on/off switch
- Installation hardware and operation manual
Specifications
Specifications
Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
