RAB SLIMBR LED Wall Pack — 26/18/12W Selectable

The SLIMBR is an ultra-thin, ADA-compliant LED wall pack crafted from premium solid brass to provide ultimate corrosion resistance and zero-uplight illumination. Delivering up to 4,389 lumens, it features field-adjustable 26/18/12W power settings and operates efficiently on a universal 120-277V electrical input. This high-end fixture effortlessly meets strict dark sky compliance requirements, making it the premier choice for luxury coastal properties and severe marine environments.

Key Features

• Housing Material: Heavy-duty solid brass housing engineered for severe marine and coastal environments, naturally patinas over time.
• Cutoff Classification: Full cutoff, zero-uplight design approved by the International Dark Sky Association.

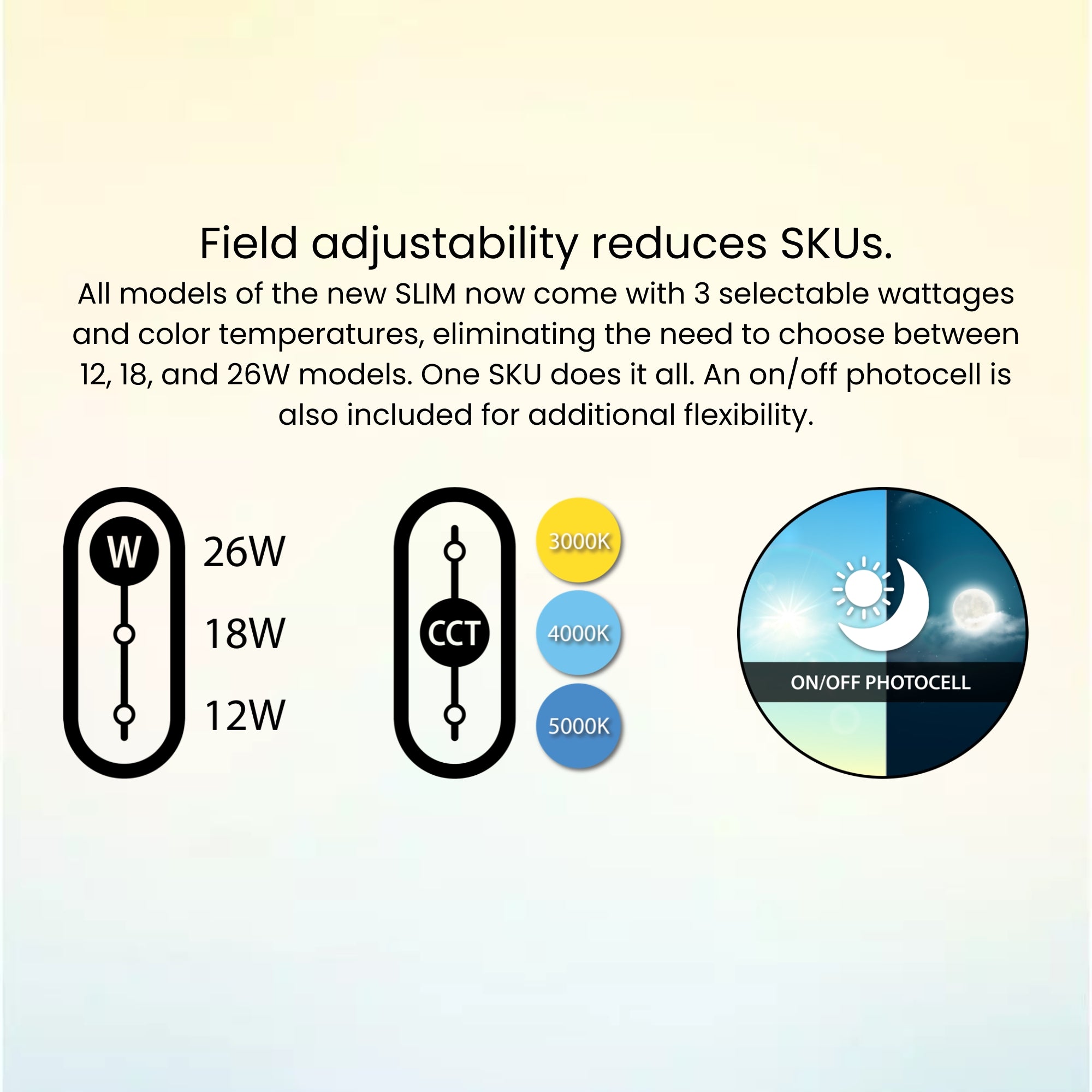

• Wattage Selectable: Field-adjustable between 26W, 18W, and 12W to strictly tailor energy consumption.
• CCT Selectable: Switchable color temperatures of 3000K, 4000K, and 5000K to match site requirements.
• Voltage: Operates efficiently across a universal 120-277V electrical input range.
• Dimming: Includes a 0-10V dimming driver capable of smoothly dimming down to 10 percent.

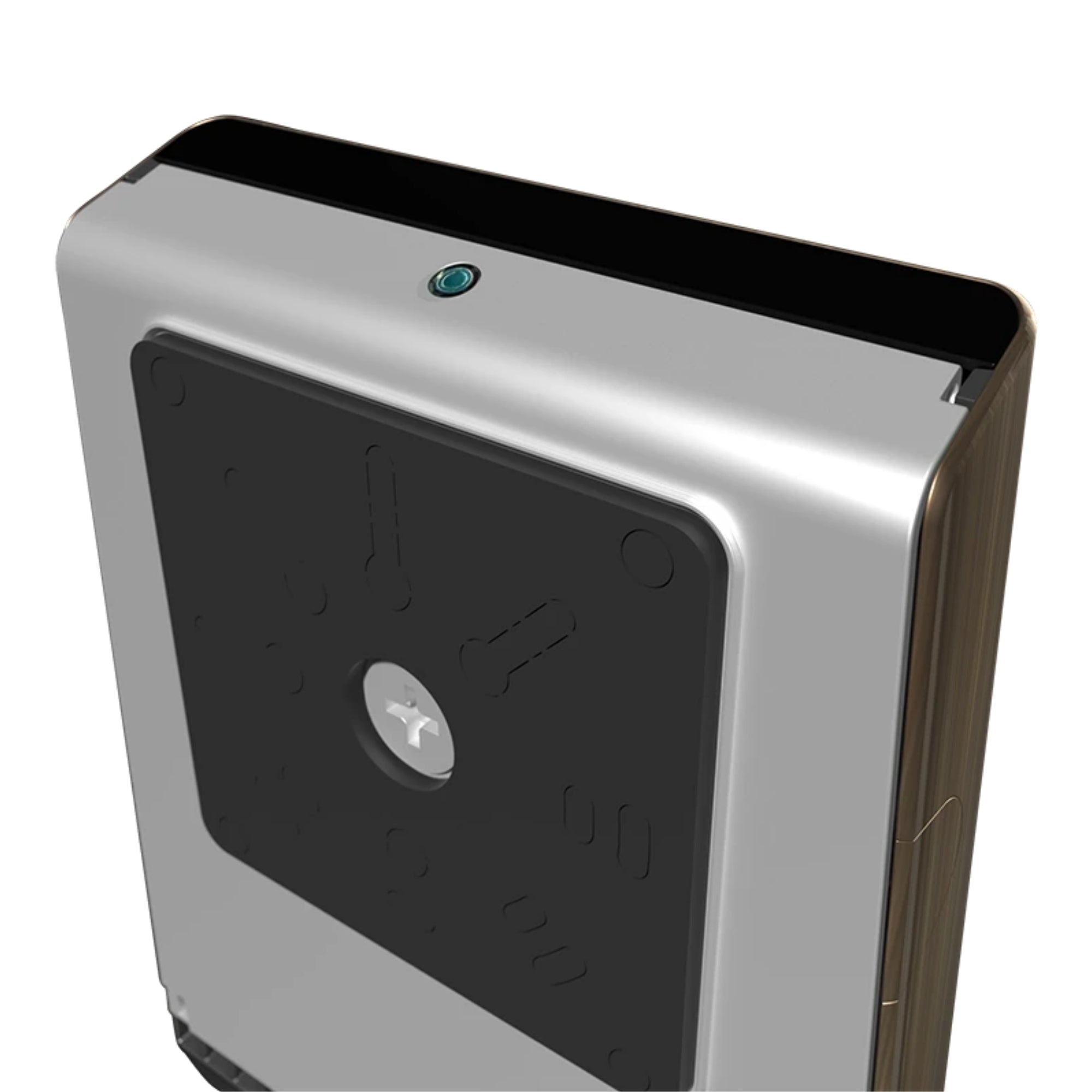

• Photocell: Features an integrated dusk-to-dawn photocell with an easily accessible on/off switch.
• Surge Protection: Built-in 4kV surge protection defends against unexpected job site power spikes.
• Profile: ADA-compliant design extends minimally from the wall to keep pedestrian walkways clear.

Typical Applications

• Luxury coastal properties and beachfront commercial buildings.
• Nature reserves and marine wildlife sanctuaries.
• Observatories and strict dark sky compliance zones.
• Corrosive marine environments and boardwalks.
• Walkways requiring premium ADA-compliant luminaires.

Performance & Light Output

This heavy-duty fixture delivers up to 4,389 lumens with an outstanding efficacy of up to 150.6 LPW. It features a specialized mirrored polycarbonate reflector and ASA/ABS lens to optimize downward light distribution without creating glare. The surface-mount LEDs maintain a high 82-85 CRI for accurate color rendering and are engineered to sustain superior lumen output over a 100,000-hour rated L70 lifespan.

Electrical & Controls

Powered by a robust constant current Class 2 driver, the unit operates seamlessly on a universal 120-277V electrical input. It comes standard with a 0-10V dimming interface that reliably dims down to 10%, maximizing energy savings during off-peak hours. The system includes a selectable 120-277V photocell for automated dusk-to-dawn operation, while integrated 4kV surge protection safeguards internal components from severe electrical transients.

Construction & Durability

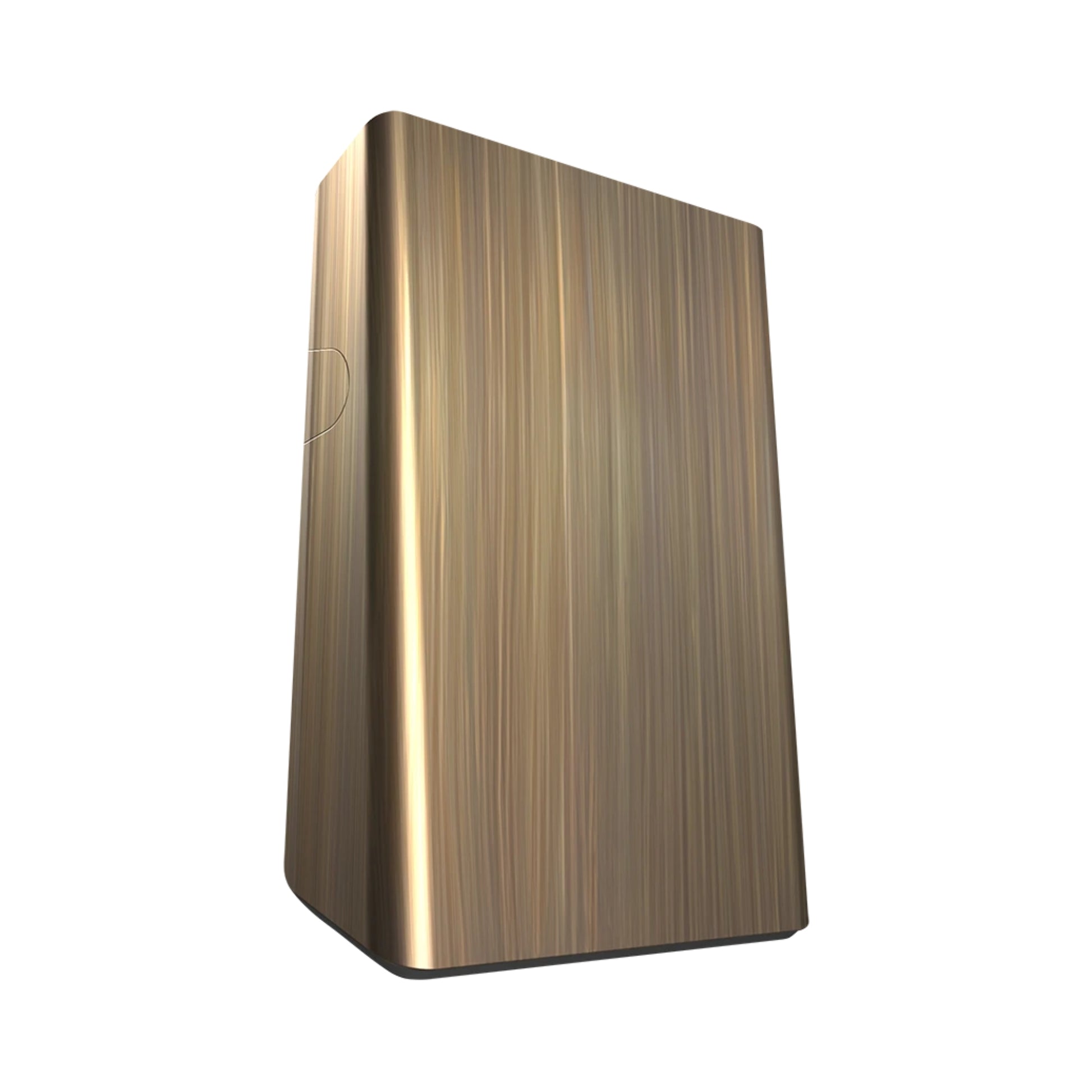

The low-profile housing is constructed from rugged, heavy-duty solid brass weighing 5.7 lbs, offering unmatched protection against saltwater corrosion. The brushed and electroplated finish will naturally patina over time, adding architectural character. Tightly sealed against the elements, the IP65-rated fixture completely blocks dust and water ingress, ensuring reliable operation in extreme ambient temperatures ranging from -40°F to 104°F.

Installation & Mounting

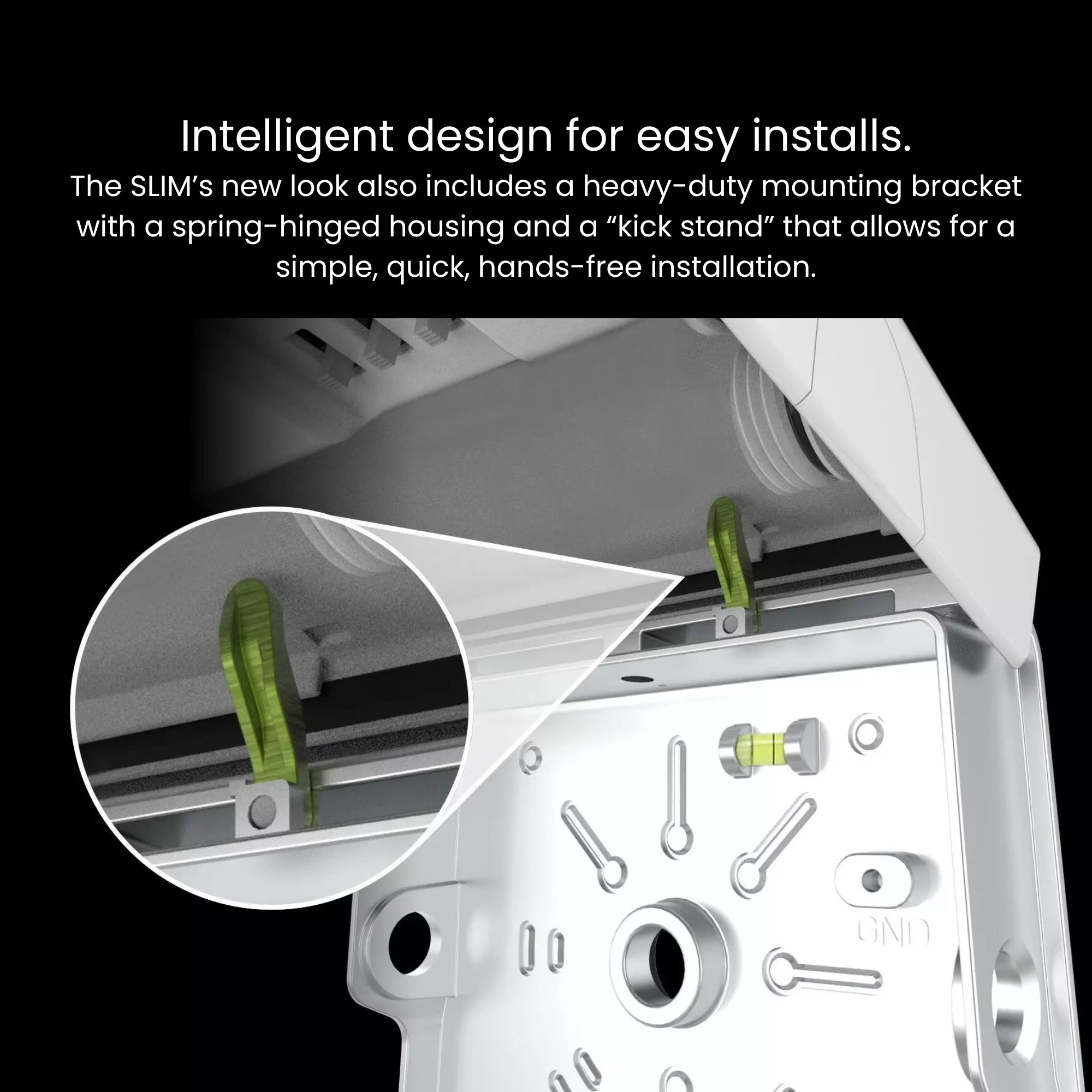

Designed for straightforward surface wall mounting, the fixture features a heavy-duty mounting bracket capable of supporting the robust brass frame. A unique spring-hinged housing and integrated \"kick stand\" provide hands-free access to the wiring compartment during installation, drastically reducing contractor lift time. The back plate includes multiple conduit entries on the rear and both sides to accommodate versatile electrical routing requirements.

What's Included

• LED Selectable Wall Pack (Solid Brass)
• Integrated Selectable Photocell
• Mounting Bracket
