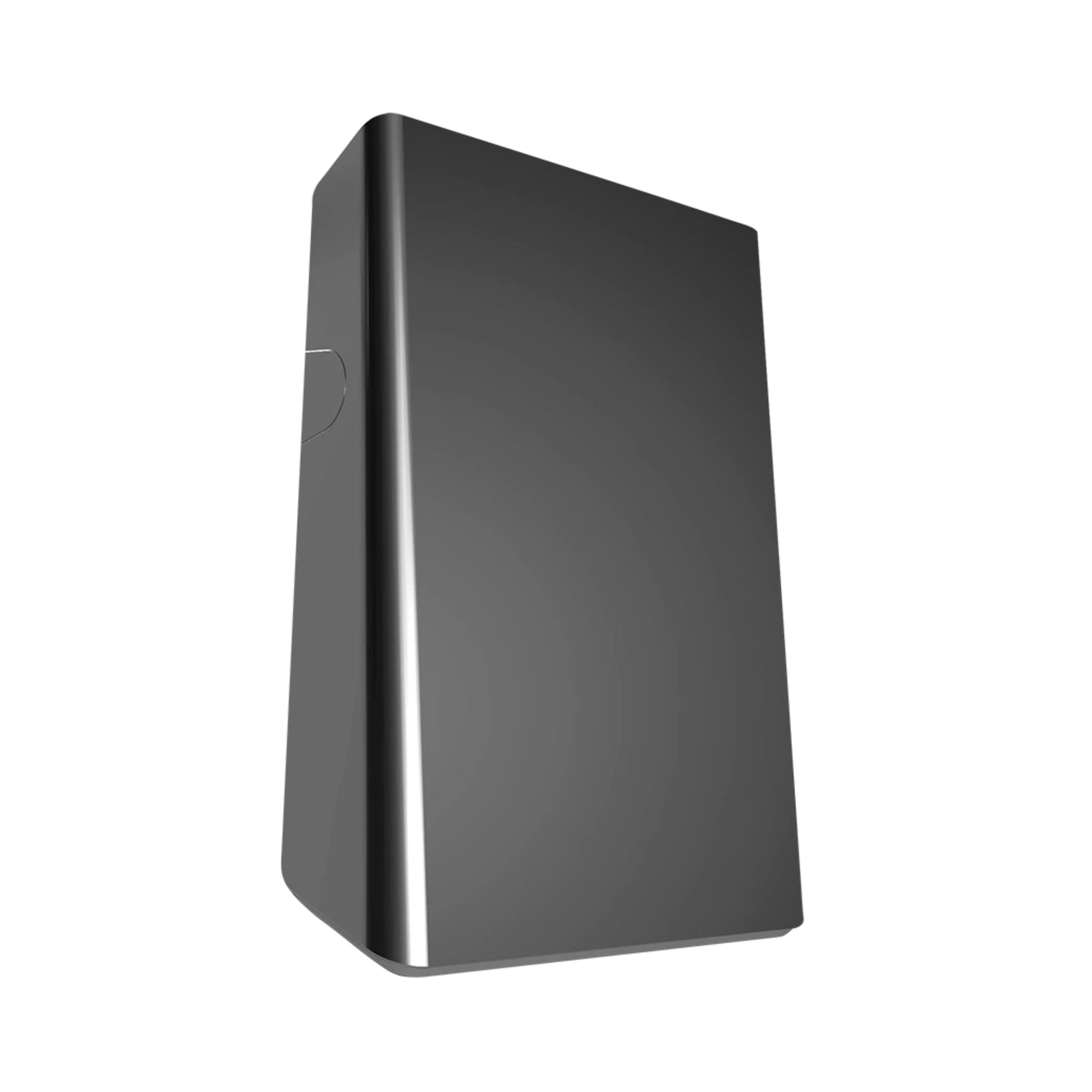

RAB SLIM LED Wall Pack — 26/18/12W Selectable

The SLIM is an ultra-thin, ADA-compliant LED wall pack designed to provide fully shielded, zero-uplight illumination for dark sky compliance. Delivering up to 4,389 lumens, it features field-adjustable 26/18/12W power settings and operates efficiently on a universal 120-277V electrical input. This versatile fixture easily meets strict commercial zoning requirements while maximizing energy savings through its built-in selectable photocell.

Key Features

• Cutoff Classification: Full cutoff, zero-uplight design approved by the International Dark Sky Association.

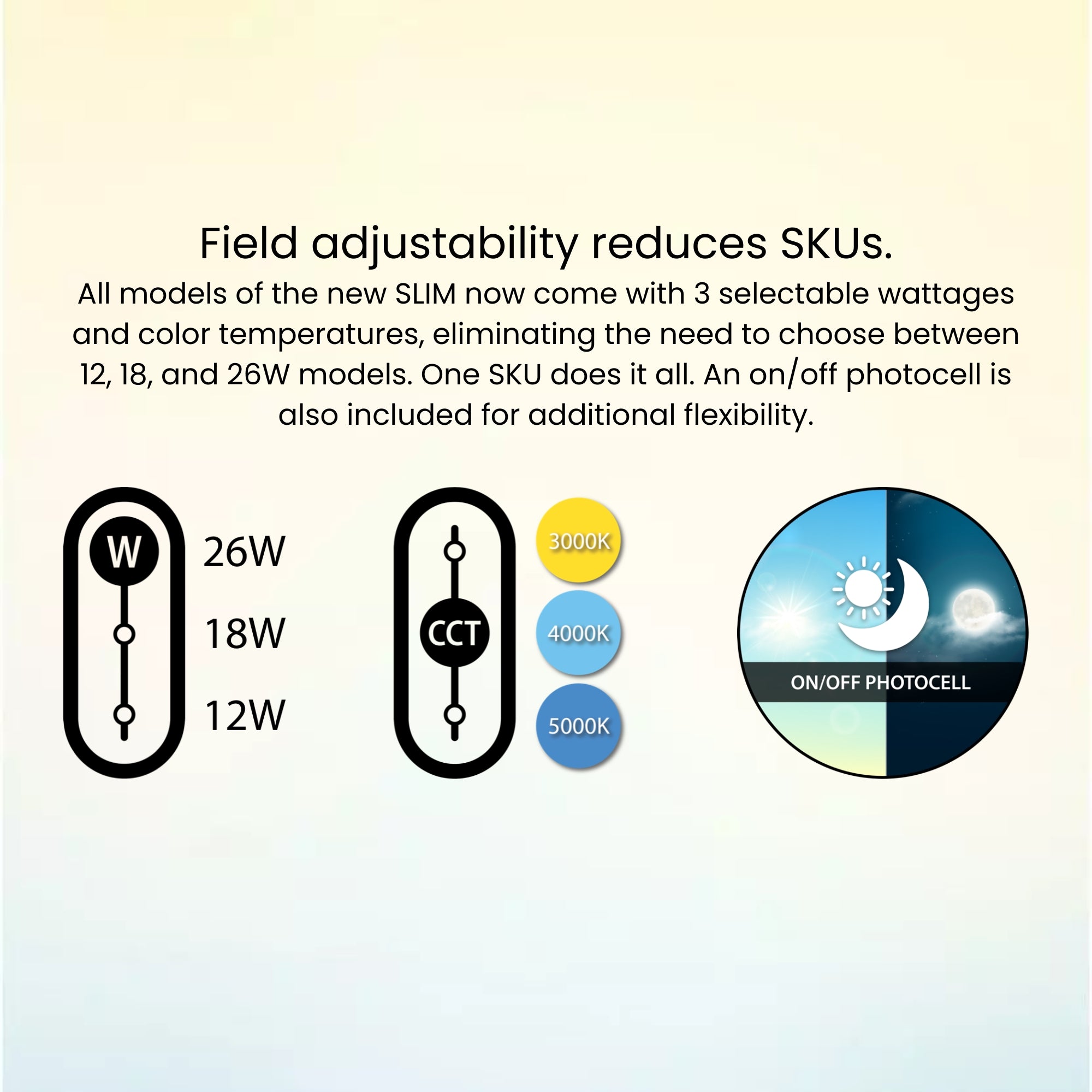

• Wattage Selectable: Field-adjustable between 26W, 18W, and 12W to strictly tailor energy consumption.
• CCT Selectable: Switchable color temperatures of 3000K, 4000K, and 5000K to match site requirements.
• Voltage: Operates efficiently across a universal 120-277V electrical input range.
• Dimming: Includes a 0-10V dimming driver capable of smoothly dimming down to 10 percent.
• Photocell: Features an integrated dusk-to-dawn photocell with an easily accessible on/off switch.
• Surge Protection: Built-in 4kV surge protection defends against unexpected job site power spikes.
• Lifespan: Rated for an exceptional 100,000-hour LED lifespan to minimize overhead maintenance.

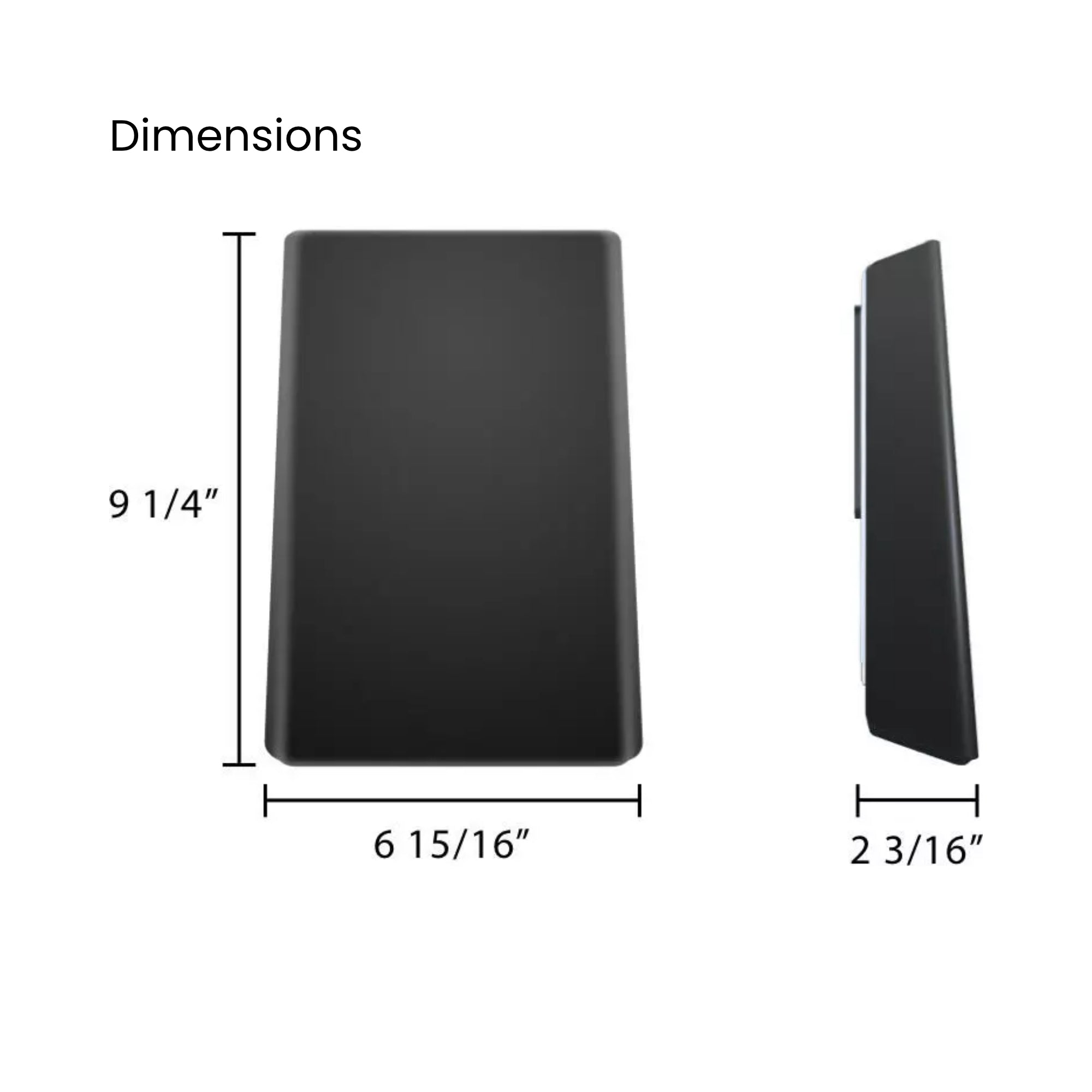

• Profile: ADA-compliant design extends minimally from the wall to keep pedestrian walkways clear.

Typical Applications

• Commercial building perimeters and facades.
• High-traffic pedestrian walkways and tight alleys.
• Observatories and strict dark sky compliance zones.
• Industrial facility exterior security lighting.
• Parking structure walls and stairwells.

Performance & Light Output

This high-performance fixture delivers up to 4,389 lumens with an outstanding efficacy of up to 150.6 LPW. It features a specialized mirrored polycarbonate reflector and ASA/ABS lens to optimize downward light distribution without creating glare. The surface-mount LEDs maintain a high 82-85 CRI for accurate color rendering and are engineered to sustain superior lumen output over a 100,000-hour rated L70 lifespan.

Electrical & Controls

Powered by a robust constant current Class 2 driver, the unit operates seamlessly on a universal 120-277V electrical input. It comes standard with a 0-10V dimming interface that reliably dims down to 10%, maximizing energy savings during off-peak hours. The system includes a selectable 120-277V photocell for automated dusk-to-dawn operation, while integrated 4kV surge protection safeguards internal components from severe electrical transients.

Construction & Durability

The ultra-thin housing is constructed from precision die-cast aluminum finished in a highly durable commercial bronze powder coat. Tightly sealed against the elements, the IP65-rated fixture completely blocks dust and water ingress. Its superior thermal management utilizes internal air-flow fins to ensure reliable operation in extreme ambient temperatures ranging from -40°F to 104°F.

Installation & Mounting

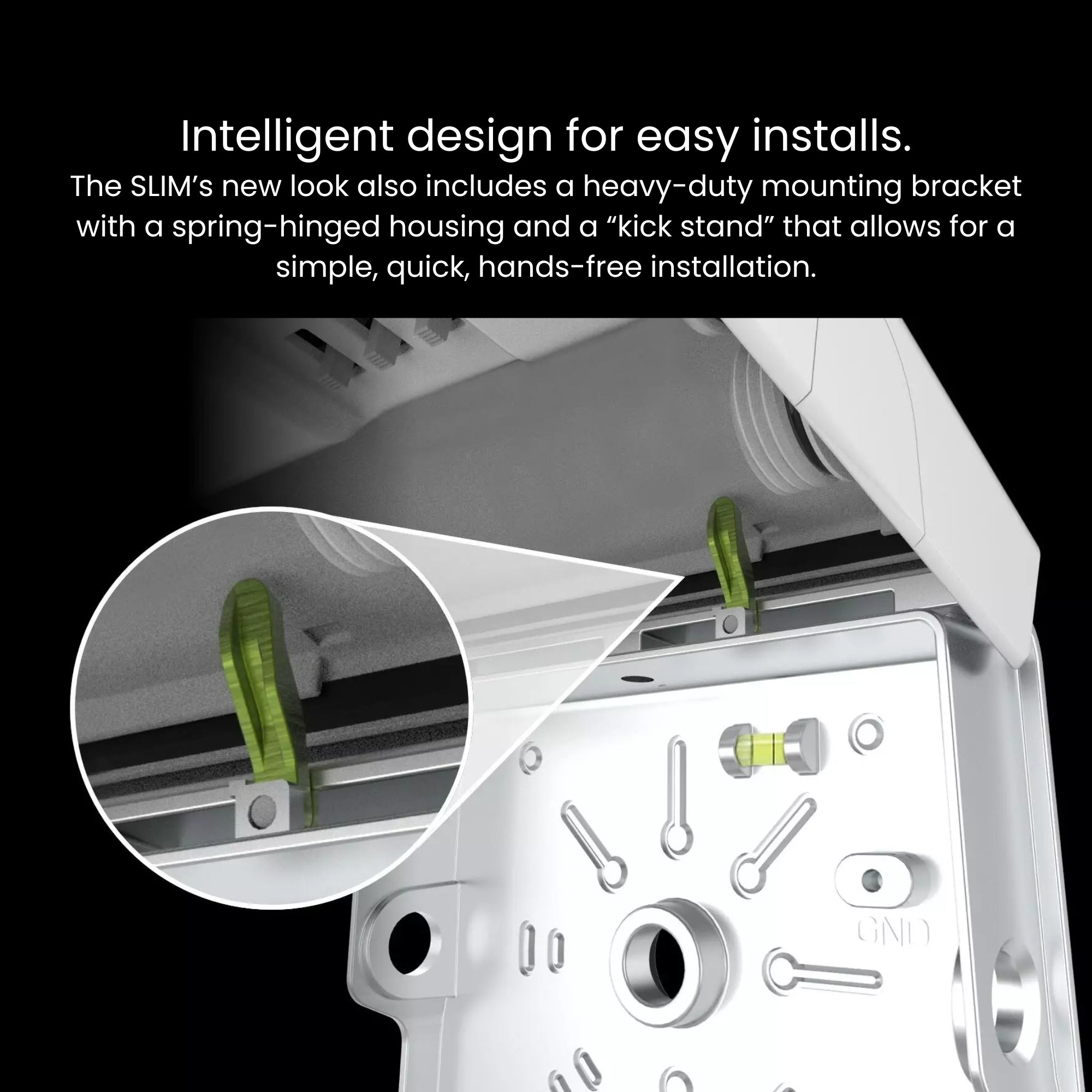

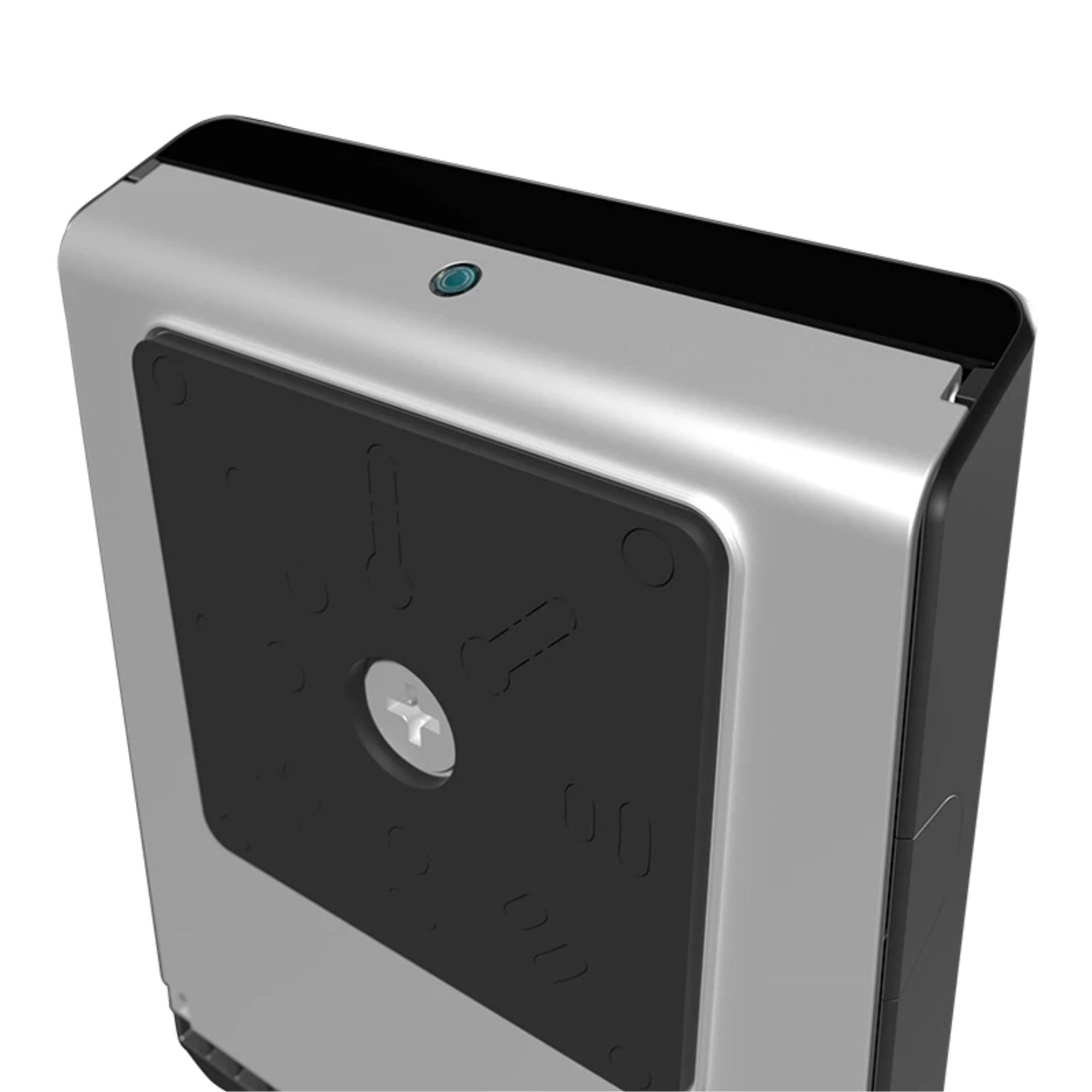

Designed for straightforward surface wall mounting, the fixture features a heavy-duty mounting bracket. A unique spring-hinged housing and integrated \"kick stand\" provide hands-free access to the wiring compartment during installation, drastically reducing contractor lift time. The back plate includes multiple conduit entries on the rear and both sides to accommodate versatile electrical routing requirements.

What's Included

• LED Selectable Wall Pack
• Integrated Selectable Photocell
• Mounting Bracket
