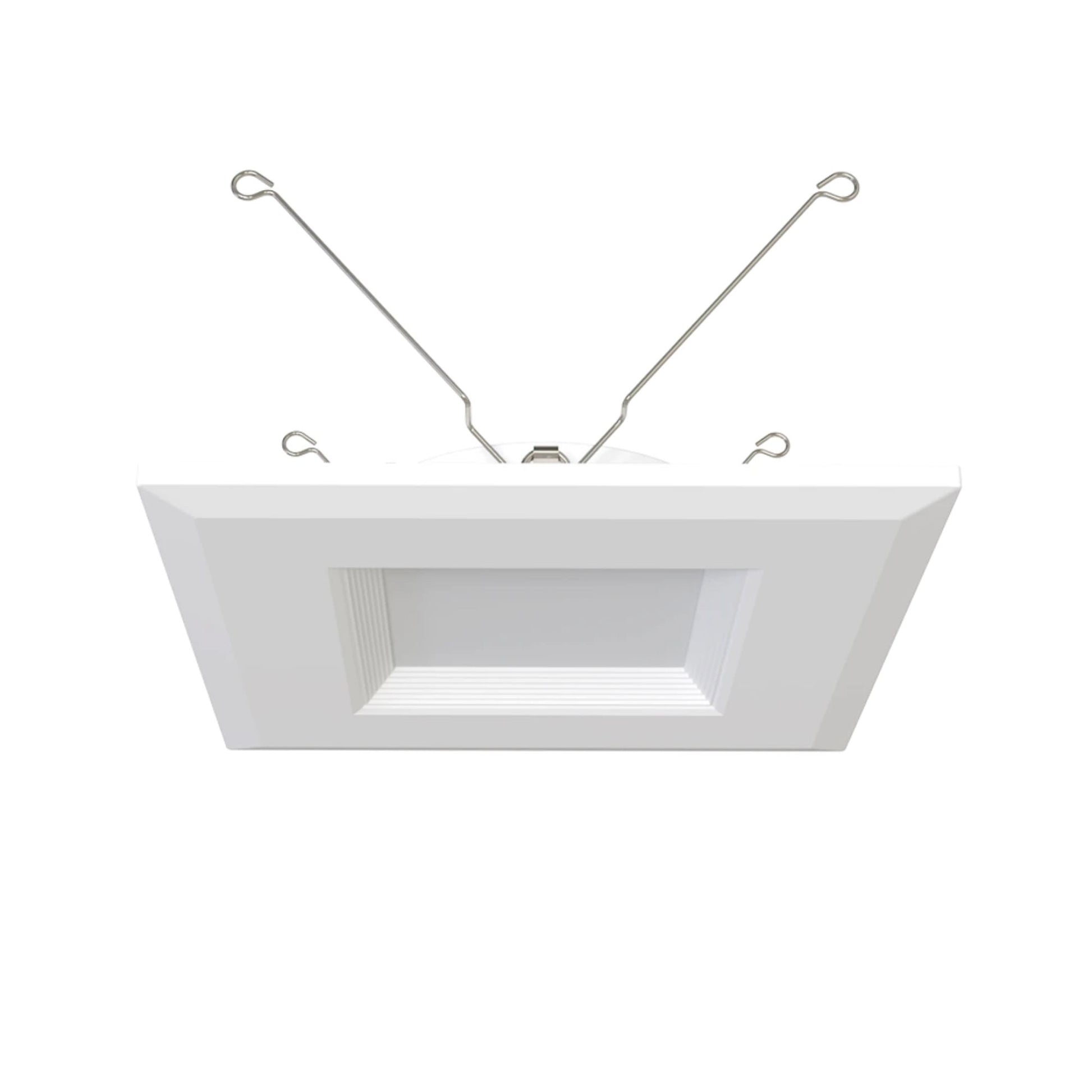

RAB R34S-6B 6 in Square Baffle Retrofit Downlight — 10W / 900 lm / Selectable CCT / 120V / White

The RAB R34S-6B is a 6 in square baffle retrofit downlight in white finish, designed as an economical CCT-adjustable replacement for traditional 75W incandescent recessed fixtures. Polycarbonate light diffuser distributes light evenly and smoothly for general lighting applications. E26 Edison base adapter for compatibility with most standard recessed can housings. Field-selectable CCT via dip switch — 5 color temperatures in 1 SKU. 120V input. Wet rated. California Title 20 compliant.

Key Features

• Trim Style: Square baffle | White finish | Polycarbonate light diffuser for even, smooth light distribution
• Construction: Plastic enclosure | E26 Edison base adapter included | Fits standard recessed can housings
• Wattage: 10W (replaces 75W incandescent)
• Light Output: 900 lm
• Efficacy: 90 lm/W
• Beam Angle: 90°
• Field-Selectable CCT: 2700K / 3000K / 3500K / 4000K / 5000K via dip switch
• CRI: 90 | R9 >50 | <4-step MacAdam Ellipse (2700K & 5000K) | Color stability ≤200K over 5 years
• Input Voltage: 120V | 60 Hz
• Driver: Constant Current | PF: ≥0.7 | Flicker: ≤30%
• Dimming: TRIAC/ELV dimmable to 10% (120V) — see RAB Dimmer Compatibility List
• Environment: Dry, damp, and wet rated | Not IC rated | Not Air Tight | Op temp: -4°F to 104°F
• Certifications: UL Classified | UL Recognized | ENERGY STAR Certified | California Title 20 Compliant (DLR0160(R34S-6B)) | CEC: Lawful for CA | IESNA LM-79 & LM-80 | RoHS | FCC Part 15
• Note: Not Title 24 JA8 compliant. Not DLC listed.
• Lifespan: 50,000 hours L70 | Warranty: 5-year no-compromise warranty

Light Output & Performance

The R34S-6B delivers 900 lm at 10W (90 lm/W), replacing a 75W incandescent at a fraction of the energy cost. The 90° beam angle and polycarbonate light diffuser provide even, smooth illumination suited to general lighting applications. With a CRI of 90 and R9 >50, colors render accurately across all five CCT settings. The <4-step MacAdam Ellipse binning (at 2700K and 5000K) ensures consistent fixture-to-fixture color uniformity. Color temperature is warranted to shift no more than 200K over 5 years.

Electrical & Installation

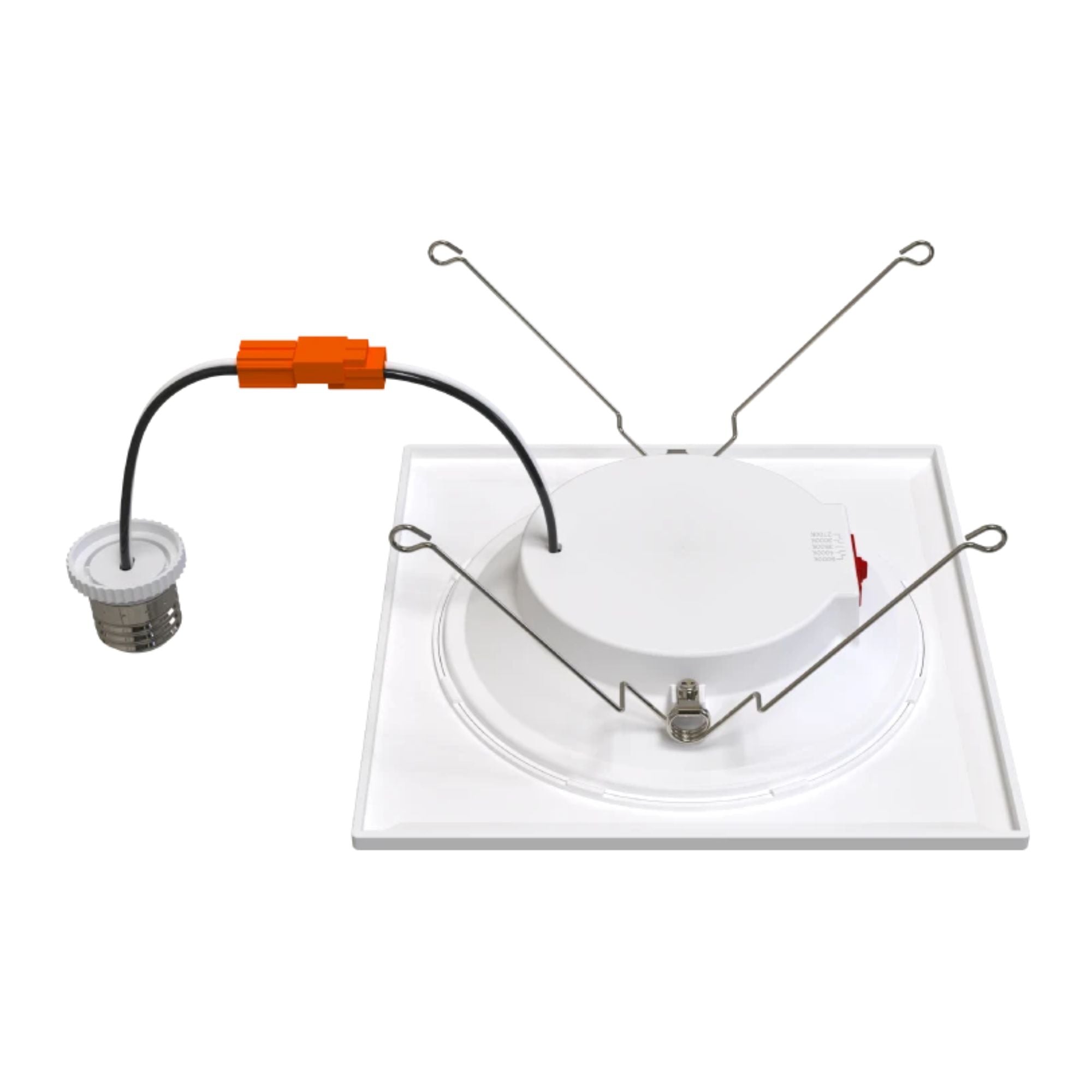

The R34S-6B operates on 120V input with a constant current driver. TRIAC/ELV dimmable to 10% — see the RAB Dimmer Compatibility List for compatible dimmers. PF ≥0.7, flicker ≤30%. Wet rated for dry, damp, and wet environments. Not IC rated. Not air tight. Rated for operation from -4°F to 104°F. Installs via E26 Edison base into most standard recessed can housings — no special housing required.

Compatible Accessories

• 6 in New Construction Housing: NDCANIC6R
• 6 in Retrofit Housing: RDCANIC6R

Typical Applications

• Retrofit replacement for 75W incandescent recessed fixtures
• Residential and light commercial general lighting
• Budget-conscious projects requiring CCT flexibility across 2700K–5000K
• Wet-rated applications: bathrooms, covered outdoor areas
• California Title 20 compliant installations

What’s Included

• RAB R34S-6B 6 in square baffle retrofit downlight
• E26 Edison base adapter
