RAB R34S-6 6 in. Smooth Trim Downlight — 9W / Selectable CCT

The RAB R34S-6 is a 6-inch square retrofit downlight featuring a smooth trim design. Delivering 900 lumens using just 9W, this fixture offers selectable color temperatures ranging from 2700K to 5000K, making it ideal for various lighting needs.

Key Features

• Wattage Equivalency: Replaces 75W incandescent
• Input Voltage: 120V
• Beam Angle: 90°
• Color Accuracy: 90 CRI
• Energy Star Certified: Meets energy efficiency standards
• RoHS Compliant: Mercury and UV free
• Operating Temperature: -4°F to 104°F
• Power Factor: ≥0.7
• Warranty: 5-year limited warranty

Construction & Aesthetics

This downlight features a white finish with a smooth trim style, constructed from durable plastic. The frosted polycarbonate lens ensures even light distribution. Suitable for both indoor and outdoor applications, it is wet rated for added versatility.

Electrical & Installation

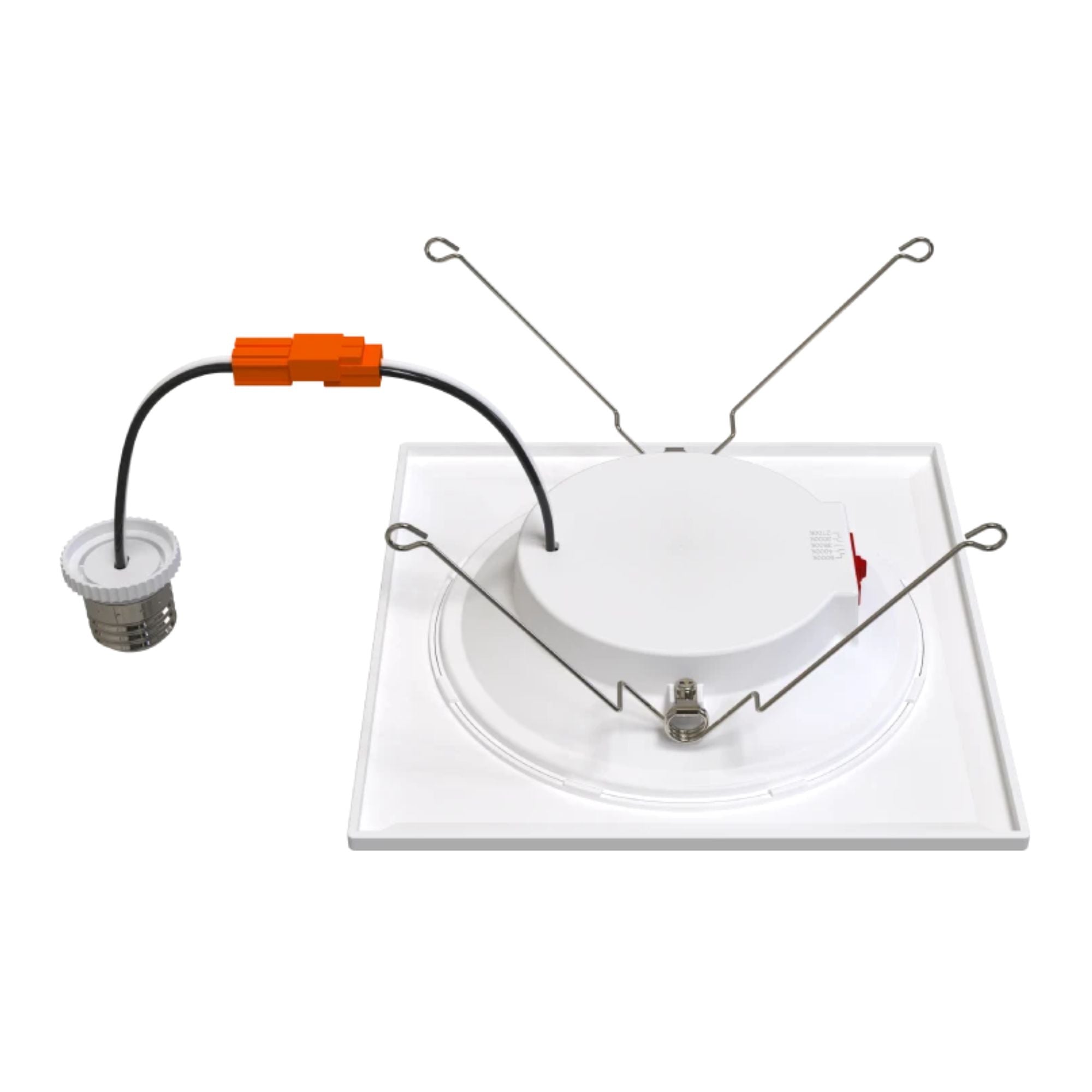

Designed for easy installation in recessed can housings, the R34S-6 includes an E26 Edison base adapter. It operates on 120V and is dimmable with compatible TRIAC/ELV systems, allowing for customized lighting levels.

Light Output & Performance

With a light output of 900 lumens and a 90° beam angle, this downlight provides ample illumination. The high color accuracy of 90 CRI ensures vibrant and true-to-life colors, while the 50,000-hour lifespan guarantees long-term performance.

Typical Applications

• Residential living areas
• Commercial offices
• Retail spaces
• Hospitality environments
• Outdoor covered areas
