RAB R34-6B 6 in Round Baffle Retrofit Downlight — 10W / 900 lm / Selectable CCT / 120V / White

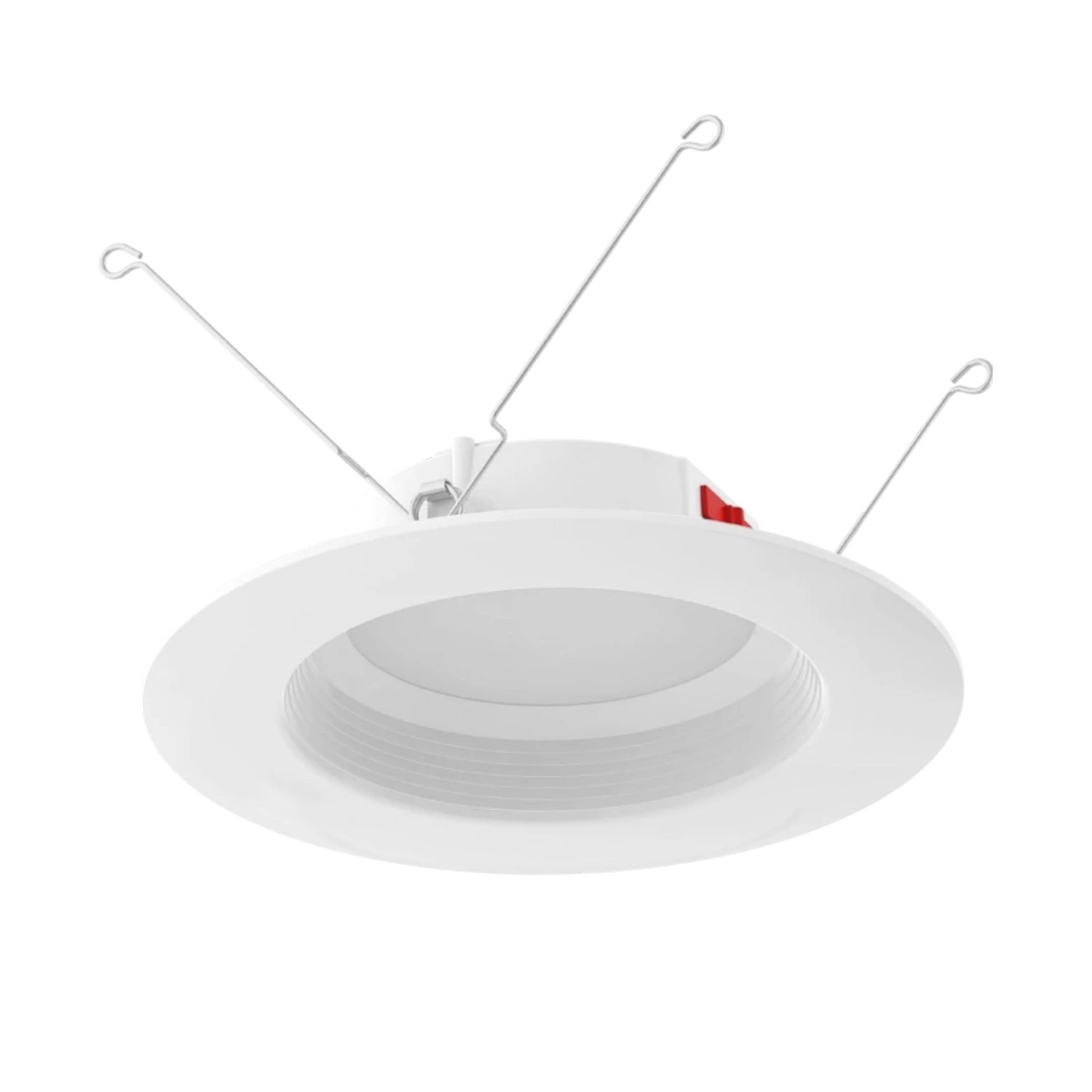

The RAB R34-6B is a 6 in round baffle retrofit downlight in white finish, designed as an economical CCT-adjustable replacement for traditional 75W halogen recessed fixtures. Polycarbonate light diffuser distributes light evenly for general lighting applications. Plastic enclosure with E26 Edison base adapter and fully captured V-spring mounting for compatibility with most standard 5 in or 6 in recessed can housings. UV rated for exposure to direct sunlight. Field-selectable CCT via dip switch — 5 color temperatures in 1 SKU. 120V input. Wet rated. California Title 20 compliant.

Key Features

• Trim Style: Round baffle | White finish | Polycarbonate light diffuser for even, smooth light distribution

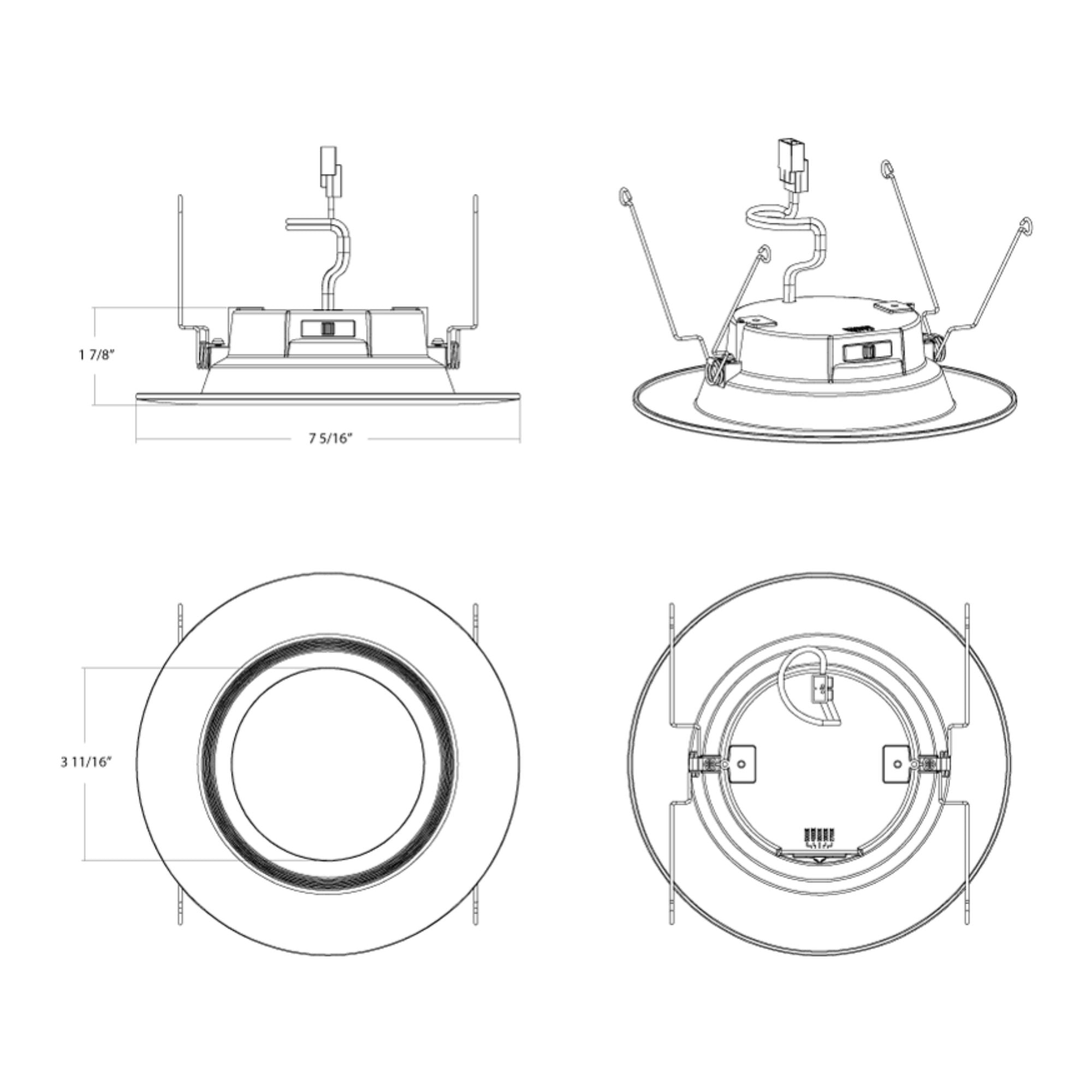

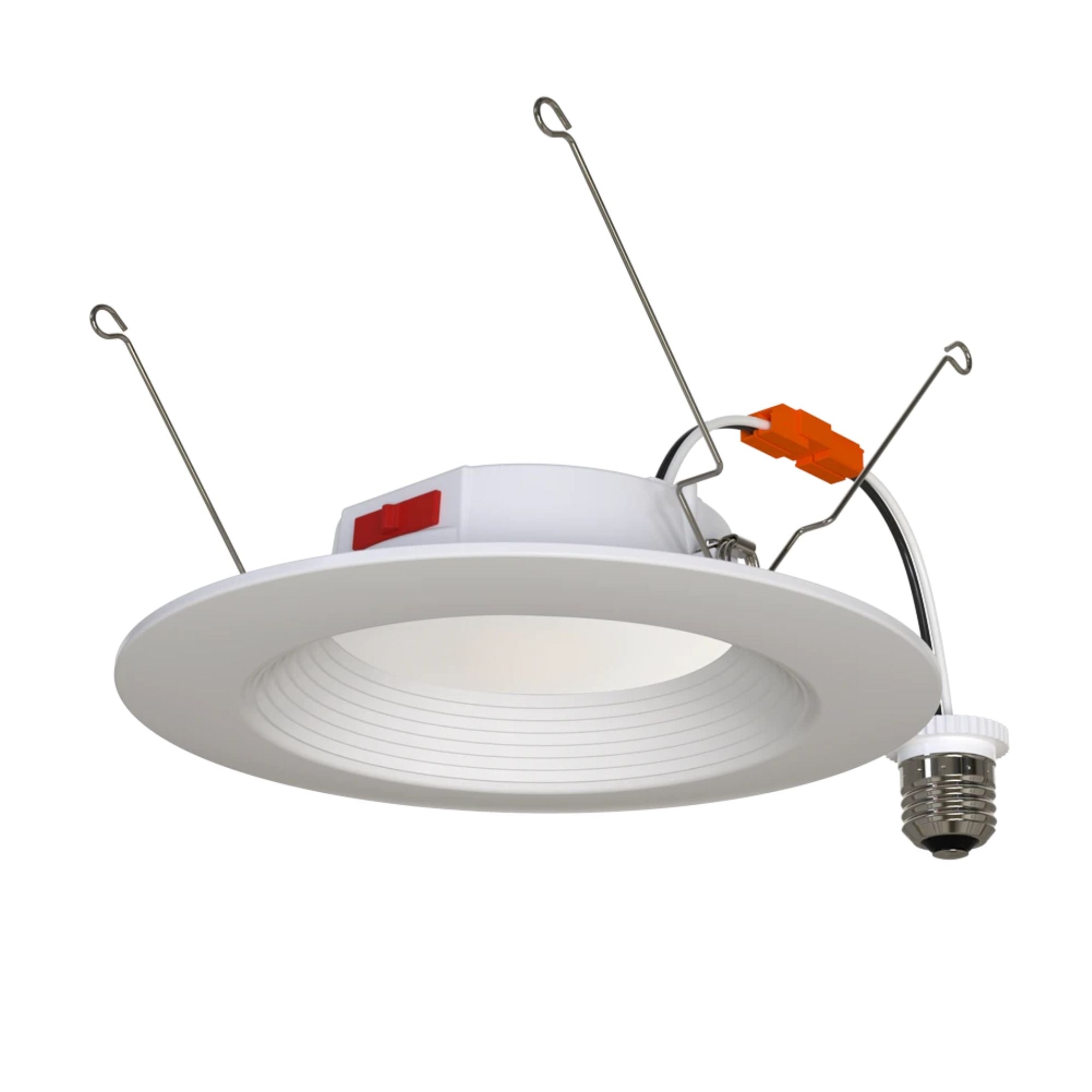

• Construction: Plastic enclosure | E26 Edison base adapter included | Fully captured V-spring mounting | Cut out: 6 5/16 in | Compatible with most standard 5 in or 6 in recessed can housings
• Wattage: 10W input (replaces 75W halogen)
• Light Output: 900 lm nominal | Measured: 2700K: 939 lm | 3000K: 957 lm | 3500K: 973 lm | 4000K: 944 lm | 5000K: 910 lm
• Efficacy: 2700K: 95 lm/W | 3000K: 97 lm/W | 3500K: 98 lm/W | 4000K: 95 lm/W | 5000K: 93 lm/W
• Beam Angle: 90°
• Field-Selectable CCT: 2700K / 3000K / 3500K / 4000K / 5000K via dip switch
• CRI: >90 | R9 ≥50 | 4-step MacAdam Ellipse | Color stability ≤200K over 5 years
• Input Voltage: 120V | 60 Hz | Input Current: 100mA
• Driver: Constant Current | PF: ≥0.7 | Flicker: ≤30%
• Dimming: TRIAC/ELV dimmable to 10% (120V) — see RAB Dimmer Compatibility List
• Environment: Dry, damp, and wet rated | UV rated (direct sunlight) | Not IC rated | Not Air Tight | Op temp: -13°F to 104°F | Weight: 0.4 lbs
• Certifications: UL Classified | ENERGY STAR Certified (v2.2) | California Title 20 Compliant (DLR0144(R34-6B)) | CEC: Lawful for CA | NEC Sec. 410.16 (A)(1) & (C3) | IESNA LM-79 & LM-80 | RoHS | FCC Part 15
• Note: Not Title 24 JA8 compliant. Not DLC listed. 120V only. All values typical (tolerance +/- 10%).
• Lifespan: 50,000 hours L70 | Warranty: 5-year no-compromise warranty

Light Output & Performance

The R34-6B delivers 900 lm nominal at 10W, replacing a 75W halogen at a fraction of the energy cost. Measured output ranges from 910 lm (5000K) to 973 lm (3500K), with efficacy peaking at 98 lm/W at 3500K. The 90° beam angle and polycarbonate diffuser provide even, smooth illumination suited to general lighting applications. With a CRI of >90 and R9 ≥50, colors render accurately across all five CCT settings. The 4-step MacAdam Ellipse binning ensures consistent fixture-to-fixture color uniformity. Color temperature is warranted to shift no more than 200K over 5 years.

Electrical & Installation

The R34-6B operates on 120V input at 100mA with a constant current driver. TRIAC/ELV dimmable to 10% — see the RAB Dimmer Compatibility List for compatible dimmers. PF ≥0.7, flicker ≤30%. Wet rated for dry, damp, and wet environments. UV rated for exposure to direct sunlight. Not IC rated. Not air tight. Rated for operation from -13°F to 104°F. Installs via E26 Edison base with fully captured V-springs into most standard 5 in or 6 in recessed can housings (cut out: 6 5/16 in).

Compatible Accessories

• New Construction & Retrofit Housings: NDCANIC6R (6 in new construction) | RDCANIC6R (6 in retrofit housing)
• Color Trims — Baffle: DLTRIM/R6RB-BN (brushed nickel) | DLTRIM/R6RB-BRZ (bronze) | DLTRIM/R6RB-B (black)
• Retrofit Band: RFLED-RETROBAND
• Emergency Drivers: DRI-25-EMGR-DC (25W) | DRI-21-EMGR-DC-D10 (21W, 0-10V T20)

Typical Applications

• Retrofit replacement for 75W halogen recessed fixtures
• Residential and light commercial general lighting
• UV-rated outdoor and covered applications with direct sunlight exposure
• Wet-rated applications: bathrooms, covered outdoor areas
• California Title 20 compliant installations

What’s Included

• RAB R34-6B 6 in round baffle retrofit downlight
• E26 Edison base adapter
