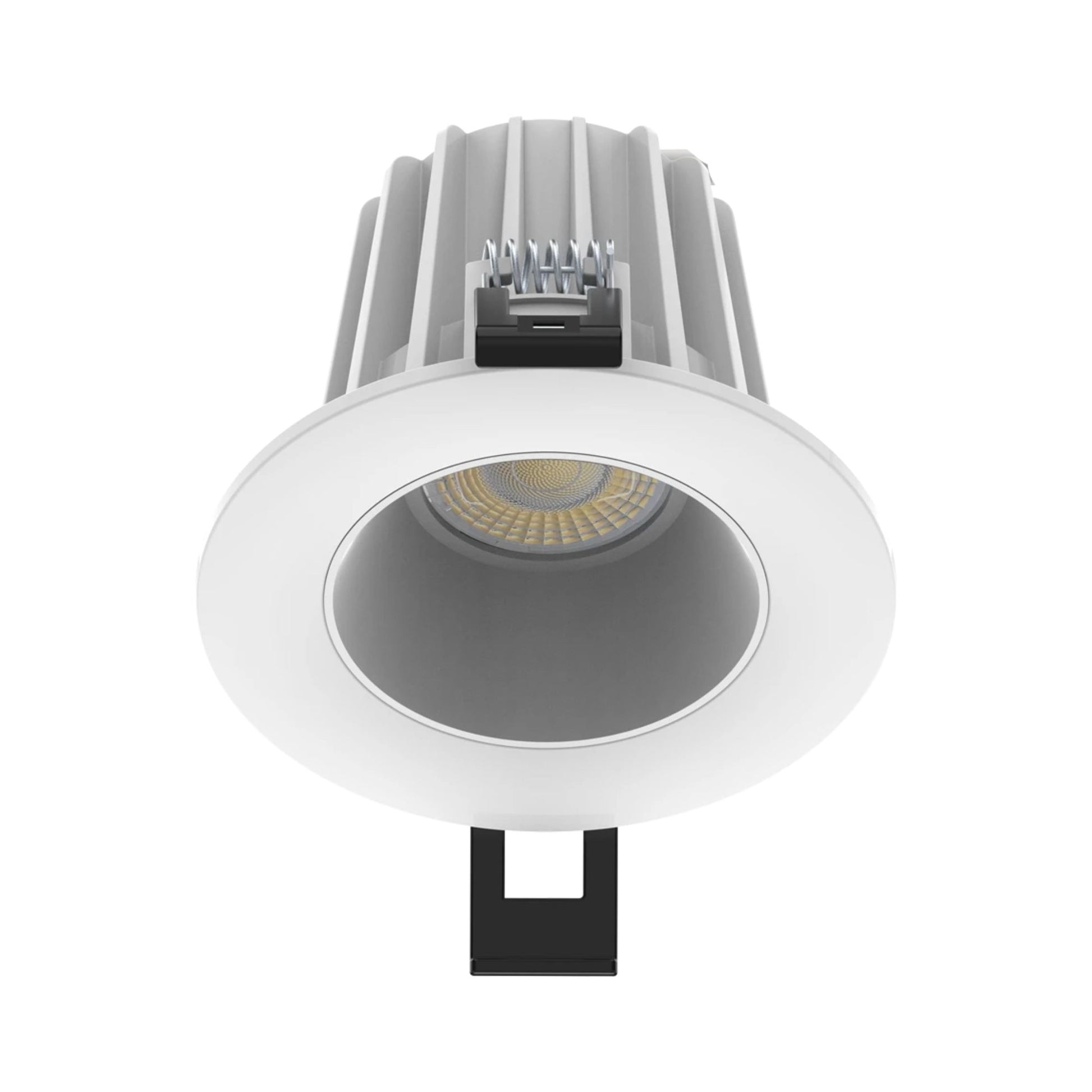

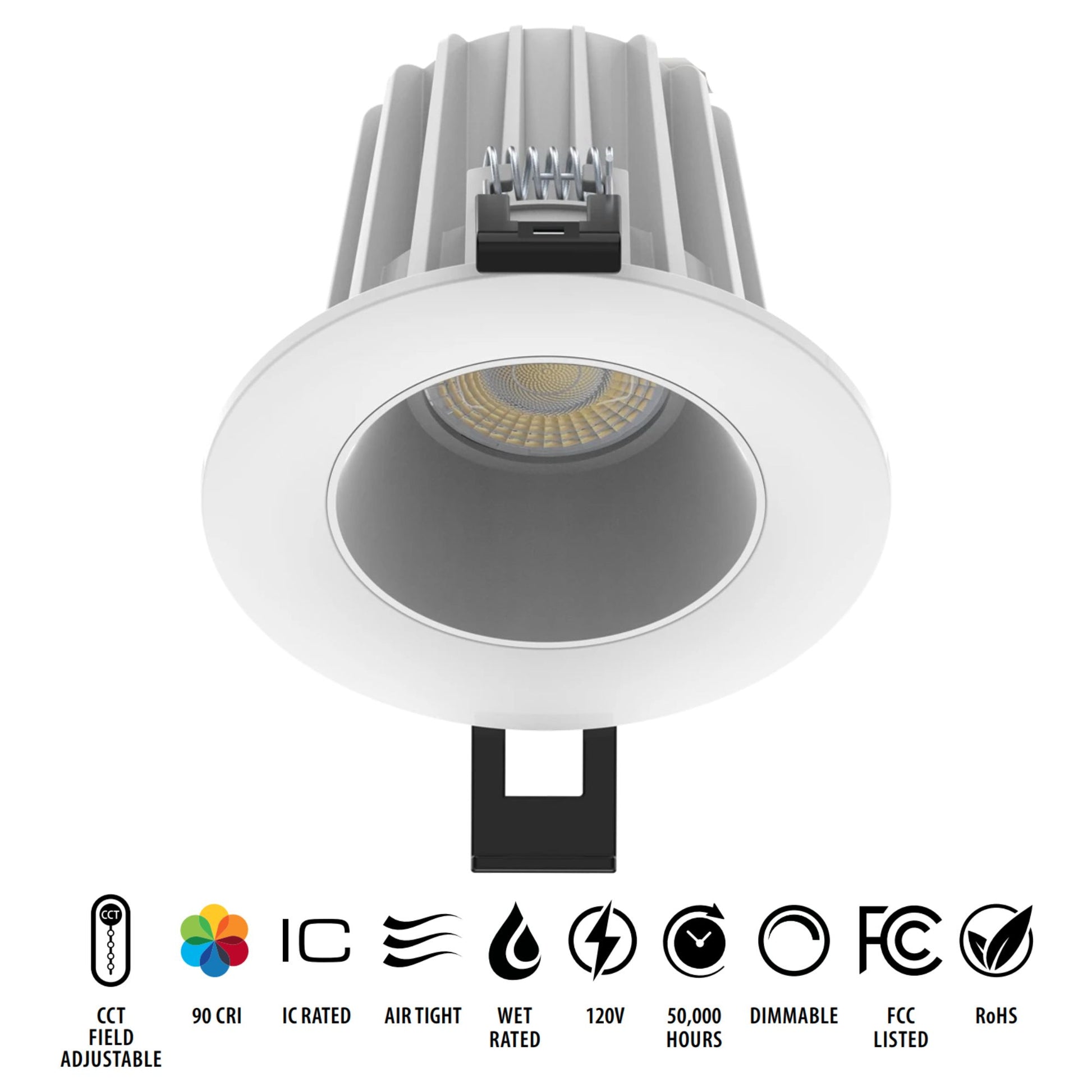

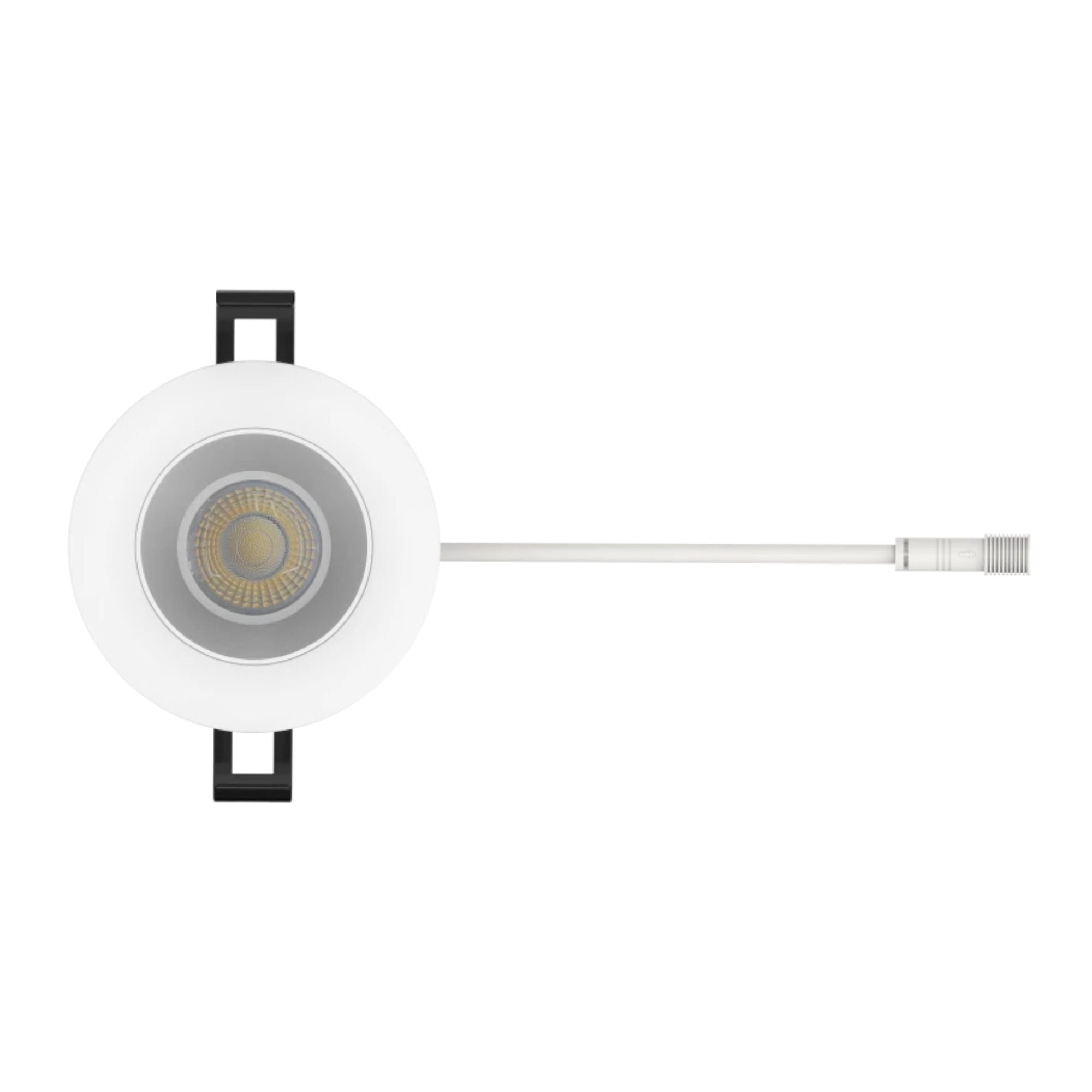

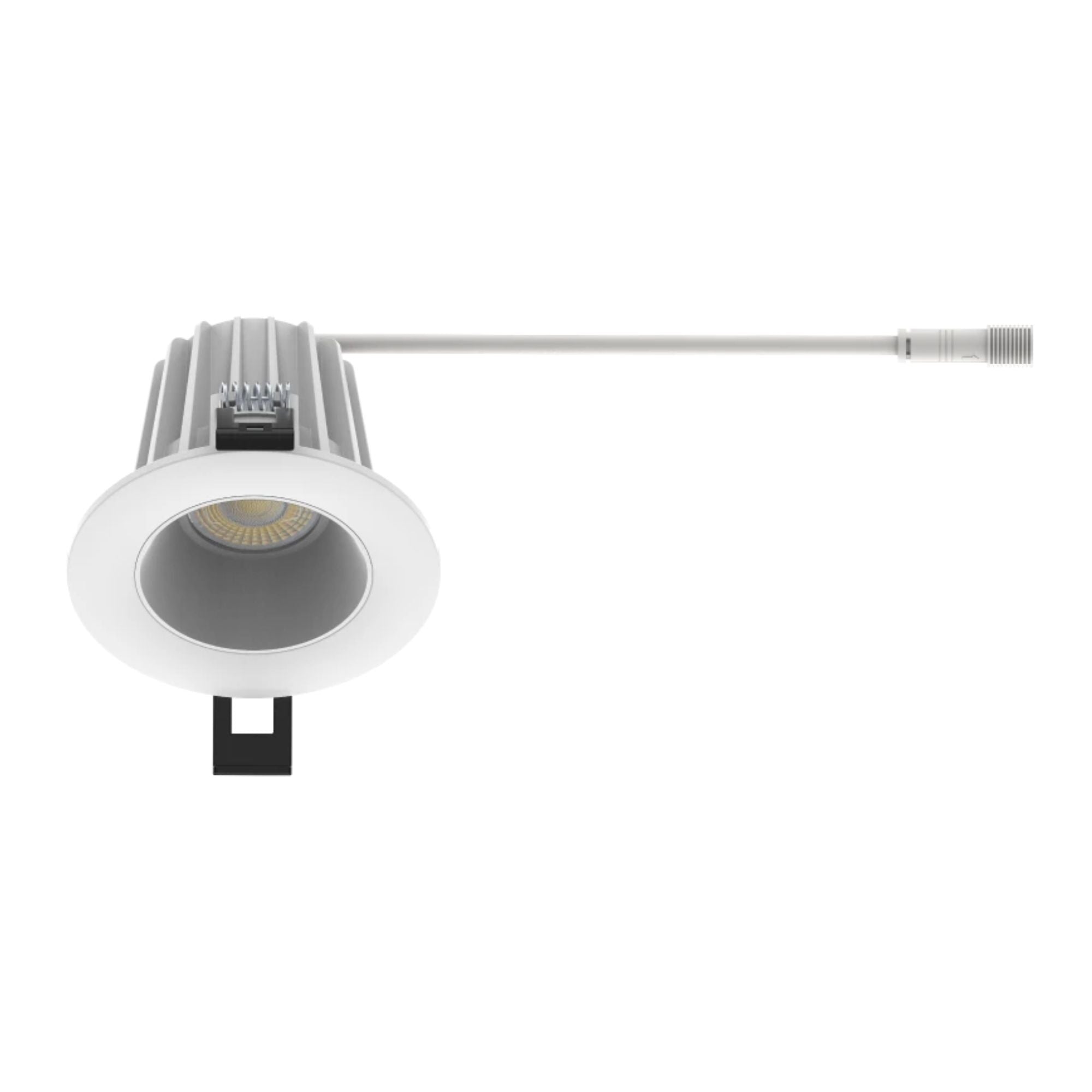

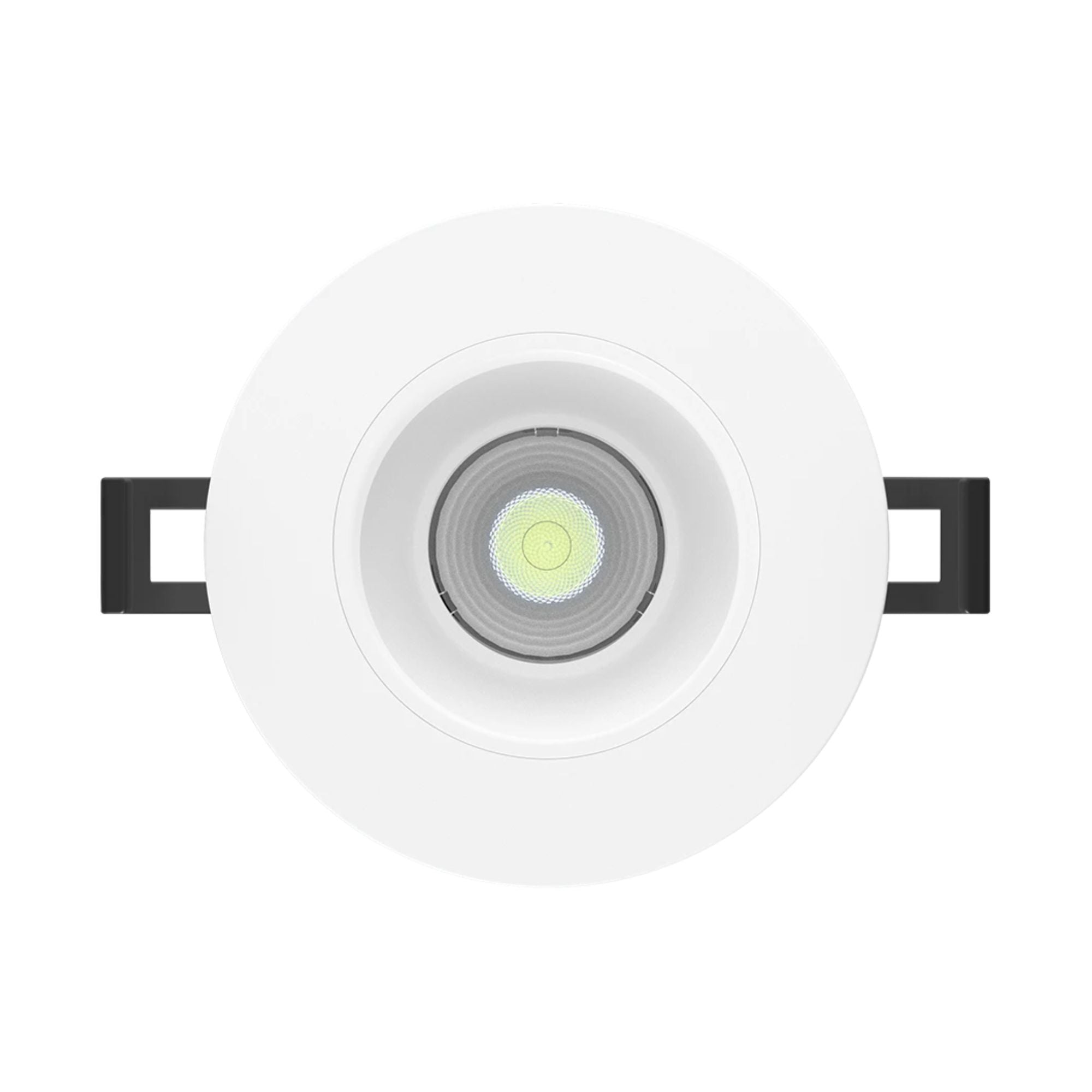

RAB R3-9 3 in Round Smooth Recessed Downlight — 9W / Selectable CCT / 120V / White

The RAB R3-9 is a 3 in round smooth recessed downlight in white with a remote driver, delivering 650 lumens at 9W and 72.22 lm/W with a 38° beam angle and 30° tilt. The smooth trim delivers a clean, minimal ceiling aesthetic compared to the baffle RAB R3-9B. No housing or J-box required — installs via spring-loaded retention clips in new construction or retrofit ceilings. CCT is field-selectable 2700K–5000K via dip switch (default: 3000K) with TRIAC/ELV dimming at 120V.

Key Features

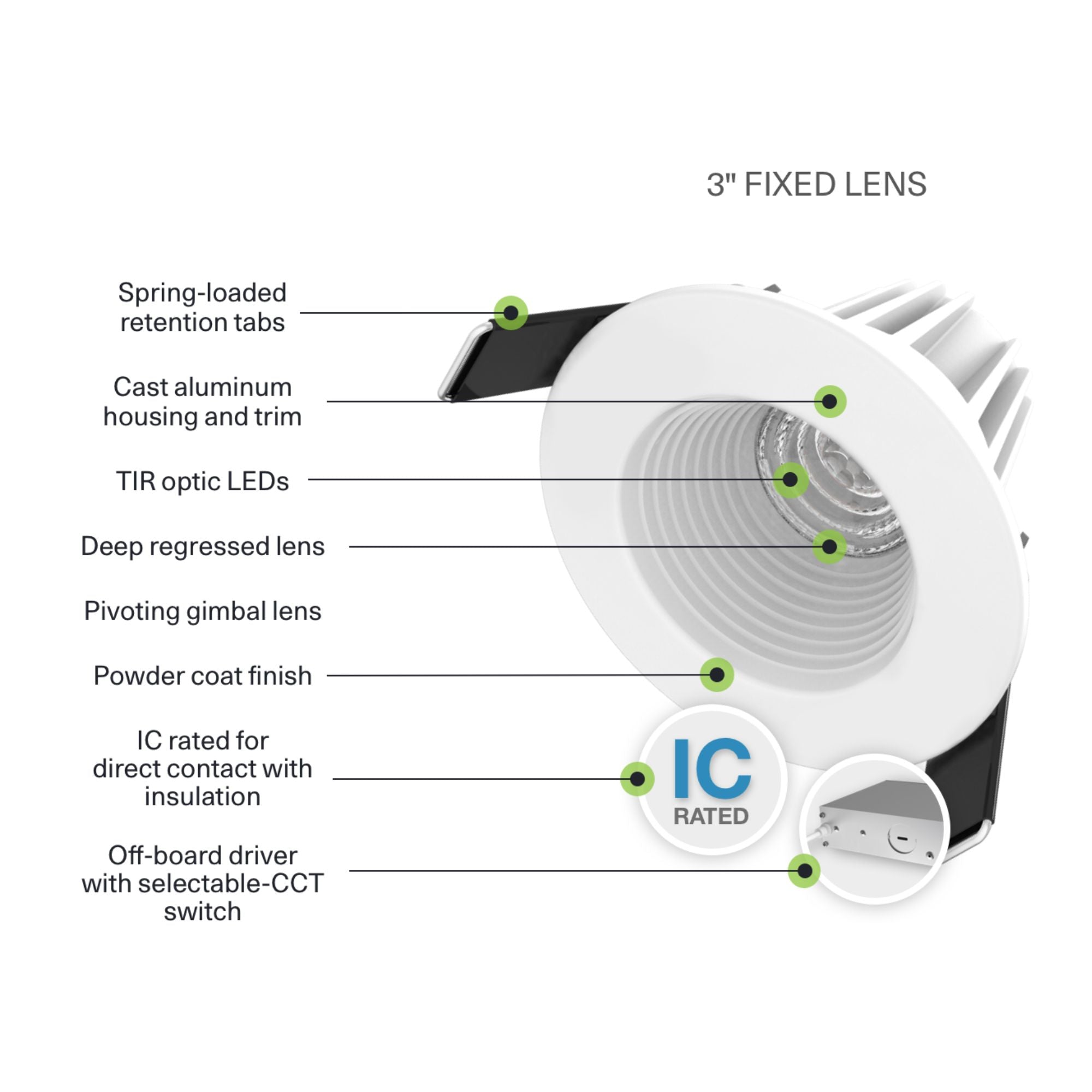

• 3 in Round Smooth — White: Metal enclosure; polycarbonate light diffuser; remote driver; smooth trim for clean ceiling appearance
• No Housing Required: Spring-loaded retention clips; new construction and retrofit applications
• 38° Beam Angle (±5°) / 30° Tilt: Fixed recessed downlight for general and task lighting
• Field-Selectable CCT: Dip-switch adjustable between 2700K, 3000K, 3500K, 4000K, and 5000K (default: 3000K); 5 CCTs in 1 SKU
• Lumen Output: 658 lm (2700K) | 703 lm (3000K) | 743 lm (3500K) | 763 lm (4000K) | 781 lm (5000K)
• Efficacy: 77 lm/W (2700K) | 84 lm/W (3000K) | 90 lm/W (3500K) | 92 lm/W (4000K) | 91 lm/W (5000K)
• Wattage: 9W | 65W incandescent equivalent | 650 lm nominal | 72.22 lm/W
• CRI: 90+, R9 ≥ 50 | 4-step MacAdam Ellipse consistency
• Dimming: TRIAC/ELV dimmable to 10% at 120V
• Voltage: 120V | 77mA (0.08A)
• IC Rated — airtight per ASTM E283 | Wet location rated
• Certifications: ETL Listed | ENERGY STAR v2.2 | Title 24 JA8 | RoHS | FCC Part 15B | NEC closet compliant Sec. 410.16 (A)(1) & (C3)
• Note: This product does NOT meet California Title 20 requirements
• Color Stability: Color temperature warranted to shift no more than 200K over 5 years
• Lifespan: 50,000 hours L70 | Warranty: 5-year no-compromise warranty

Construction & Design

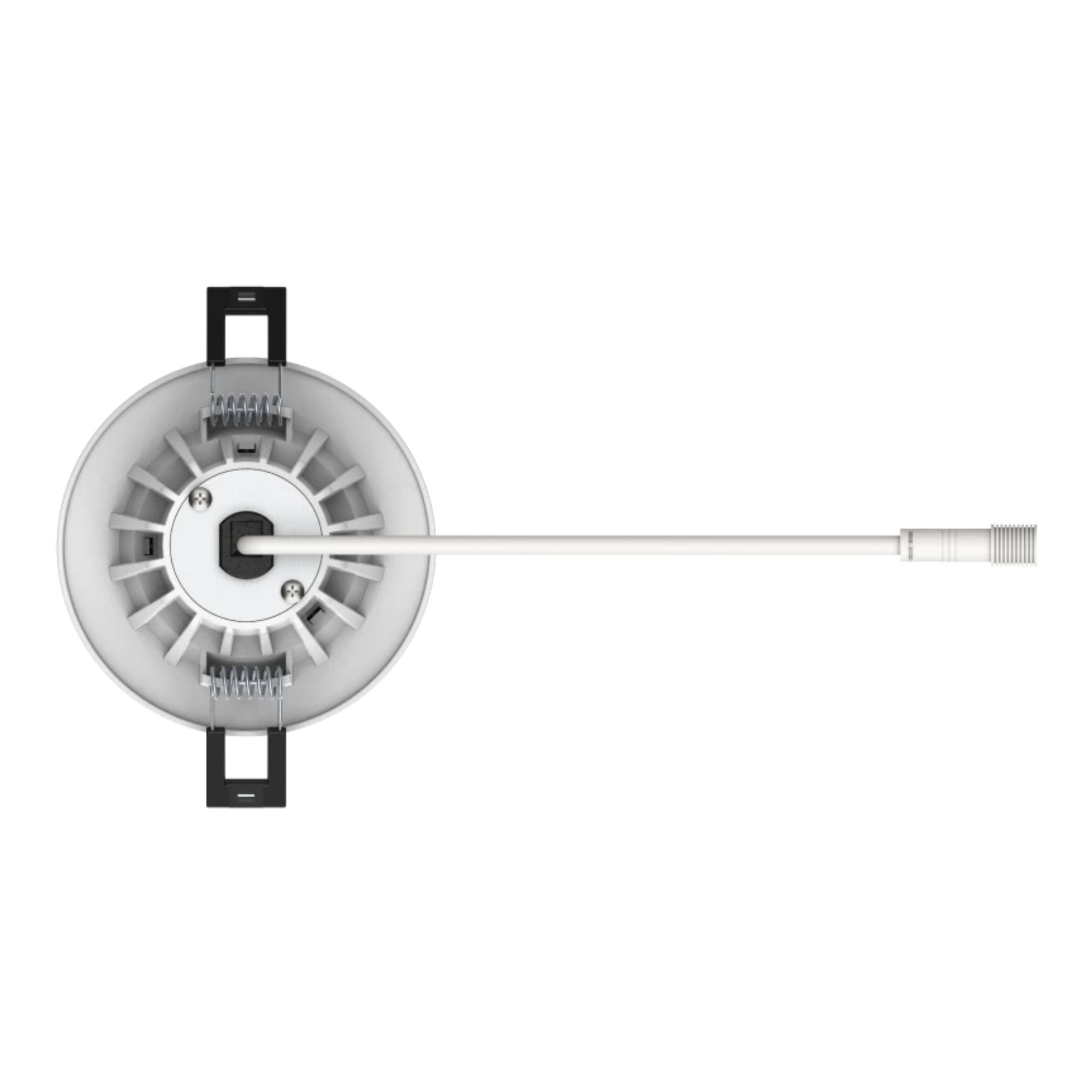

Metal enclosure with white smooth trim. Polycarbonate light diffuser. Remote driver (Class 2, 60 Hz, 120V, 0.08A). Housing certified airtight per ASTM E283. IC rated for direct contact with insulation (not spray foam; consult NEMA LSD57-2013). Wet location rated. Weight: 1.0 lbs.

Light Output & Performance

650 lm nominal at 72.22 lm/W. Per-CCT: 658 lm (2700K), 703 lm (3000K), 743 lm (3500K), 763 lm (4000K), 781 lm (5000K). 90+ CRI, R9 ≥ 50. 4-step MacAdam Ellipse. MBCP: 1,520. Color temperature warranted to shift no more than 200K over 5 years. Flicker ≤30%.

Electrical & Installation

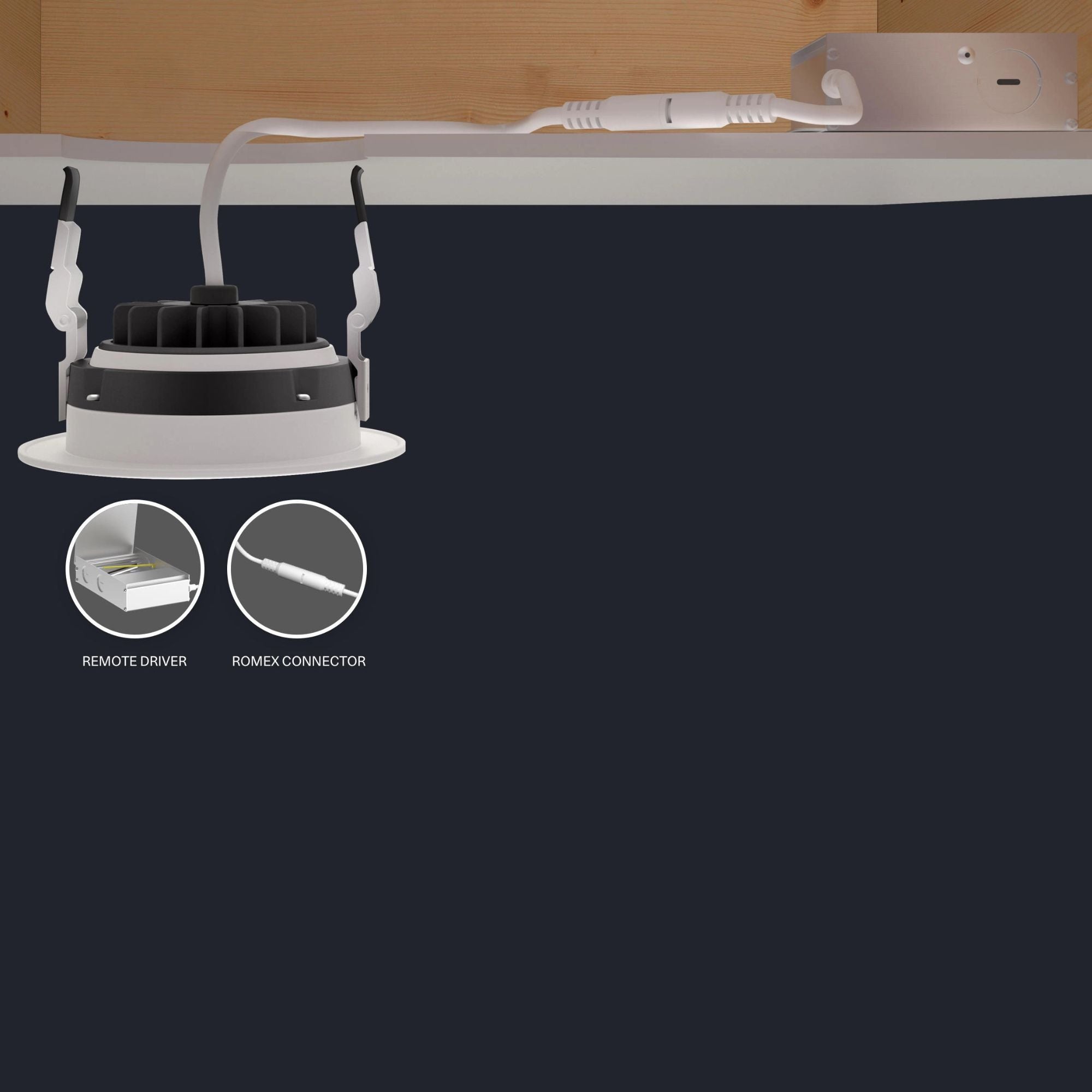

120V Constant Current Class 2 remote driver (77mA / 0.08A). TRIAC/ELV dimmable to 10%. No housing or J-box required — spring-loaded retention clips; new construction or retrofit. THD ≤25%, PF ≥0.9. Operating temp: -13°F to 104°F (-25°C to 40°C).

What’s Included

• RAB R3-9 3 in round smooth recessed downlight (white)
• Remote driver

Typical Applications

• General and task lighting in residential new construction and remodels
• Small-aperture recessed lighting in living rooms, kitchens, and hallways
• Retail and commercial general illumination
• Kitchens, bathrooms, hallways, and closets
• Wet, damp, and dry interior and covered outdoor environments
