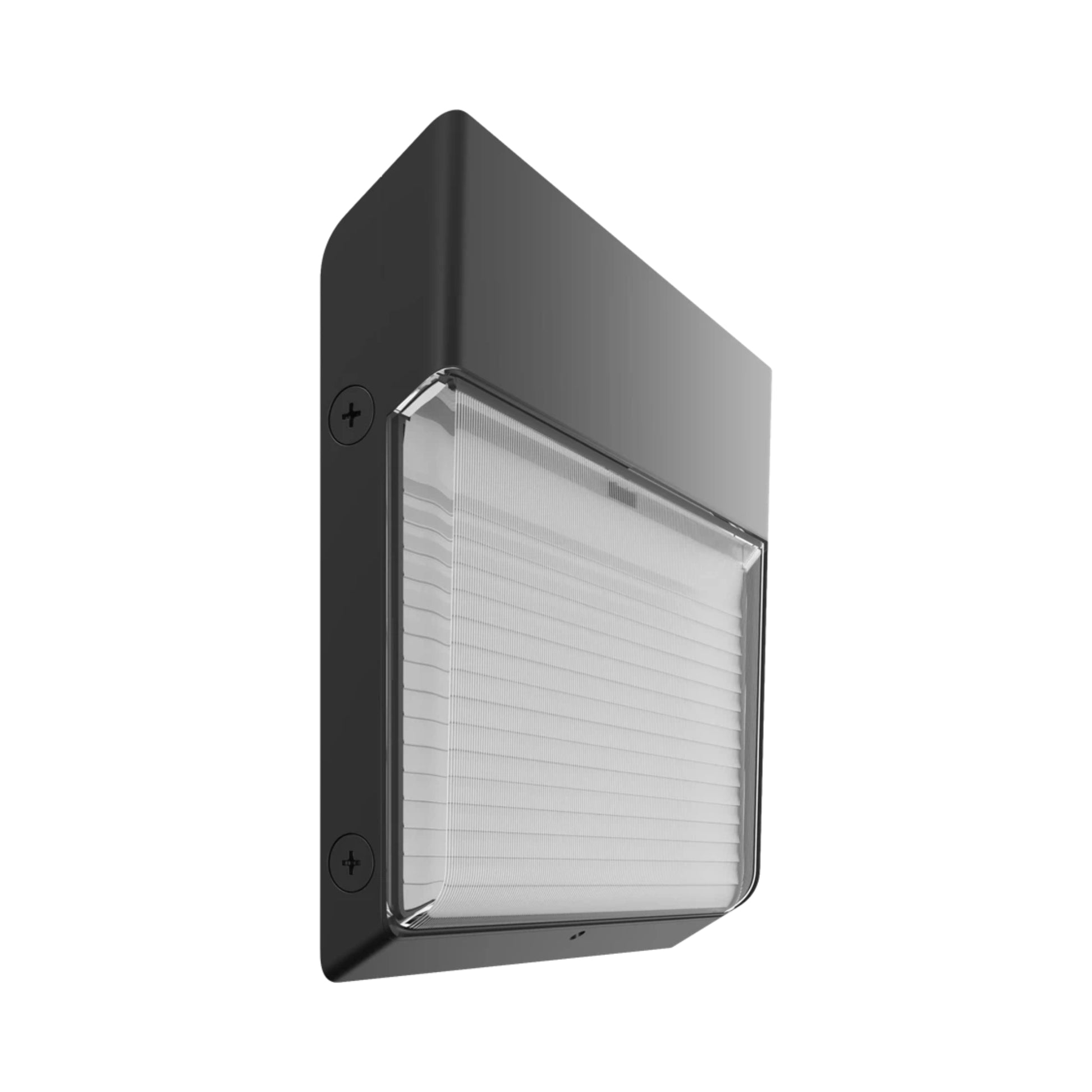

RAB PWLED/480 Field-Adjustable Portrait Traditional LED Wall Pack — 72W/41W/13W Selectable — 3000K/4000K/5000K — 480V — Bronze

The RAB PWLED/480 is a commercial field-adjustable portrait wall pack and traditional LED wall pack engineered to deliver up to 9,642 lumens across field-adjustable 72W/41W/13W power settings (41W factory default) and switchable 3000K/4000K/5000K color temperatures (4000K factory default). Operating on 480V electrical systems with 0-10V dim-to-off dimming, this low-profile ADA-compliant luminaire projects no more than 3.13" (3 1/8") from the wall while delivering peak efficacy up to 145.1 lm/W and qualifying for DLC utility rebates and Trade Agreements Act (TAA) compliance. Built with a weatherproof die-cast aluminum housing in a Bronze finish with silicone rubber gasketing, this UL wet-location luminaire includes a slim 3.13"-deep ADA-compliant backbox (15.00" W x 15.63" H) with a sliding front lens assembly, positioning tabs, built-in bubble level, and dual side conduit knockouts, and features a borosilicate glass lens, a specular aluminum reflector, an integrated selectable on/off photocell, and 6kV (L-L) / 6kV (L-G) surge protection.

Key Features

• Selectable Wattage: 72W / 41W / 13W (41W factory default)
• Maximum Lumen Output: Up to 9,642 lm
• Peak Efficacy: Up to 145.1 lm/W
• CRI: 81-84
• Selectable CCT: 3000K / 4000K / 5000K (4000K factory default)
• Color Consistency: 7-step MacAdam Ellipse binning; ANSI C78.377-2017 compliant
• Lens & Optics: Borosilicate glass lens with specular aluminum reflector; BUG Rating B1-U3-G3 (72W/41W) / B0-U2-G1 (13W) at 4000K
• Photocell & Controls: Integrated selectable on/off photocell
• Dimming: 0-10V continuous dimming (dims to off)
• Voltage & Surge Protection: 480V AC, 50/60Hz; 6kV (L-L) / 6kV (L-G) surge protection
• Location & Body Rating: UL Listed Wet Location; ADA Compliant (3.13" depth)
• Operating Temperature: -40°F (-40°C) to 104°F (40°C)
• Certifications: DLC Listed (Standard & Premium family), UL Listed, ADA Compliant, IESNA LM-79 & LM-80 tested, TAA Compliant, RoHS Compliant
• Rated Life: L70 100,000 hours
• Warranty: 10-year no-compromise warranty covering light output, color stability, driver performance, and paint finish - RAB

Performance & Light Output

At 72W (70.8W at 3000K; 68.3W at 4000K; 71.2W at 5000K): 8,874 lm (3000K / 125.3 lm/W / 81 CRI), 9,621 lm (4000K / 140.9 lm/W / 84 CRI), and 9,642 lm (5000K / 135.4 lm/W / 83 CRI).

At 41W (Factory Default) (39.8W at 3000K; 38.9W at 4000K; 39.8W at 5000K): 5,288 lm (3000K / 132.7 lm/W / 81 CRI), 5,643 lm (4000K / 145.1 lm/W / 84 CRI), and 5,725 lm (5000K / 143.9 lm/W / 82 CRI).

At 13W (13.4W at 3000K; 13.2W at 4000K; 13.4W at 5000K): 1,643 lm (3000K / 122.6 lm/W / 82 CRI), 1,721 lm (4000K / 130.4 lm/W / 84 CRI), and 1,786 lm (5000K / 133.3 lm/W / 83 CRI).

Engineered with long-life, high-efficacy surface-mount LEDs delivering CRI 81-84 across all configurations. Achieves a BUG Rating of B1-U3-G3 (72W and 41W) and B0-U2-G1 (13W) at 4000K. Rated life 100,000 hours (L70) based on IES LM-80 results and TM-21 calculations.

Lens & Optics

Engineered with a durable borosilicate glass lens and internal specular aluminum reflector delivering a standard forward-throw LED wall pack optical distribution. The prismatic borosilicate glass refractor resists thermal shock, yellowing, and UV degradation while projecting low-glare pedestrian walkway and perimeter illumination (verified BUG ratings of B1-U3-G3 (72W/41W) and B0-U2-G1 (13W) at 4000K) from a slim 3.13"-deep ADA-compliant vertical portrait housing.

Smart & Control Features

Engineered for automated exterior operation and commercial lighting control integration:

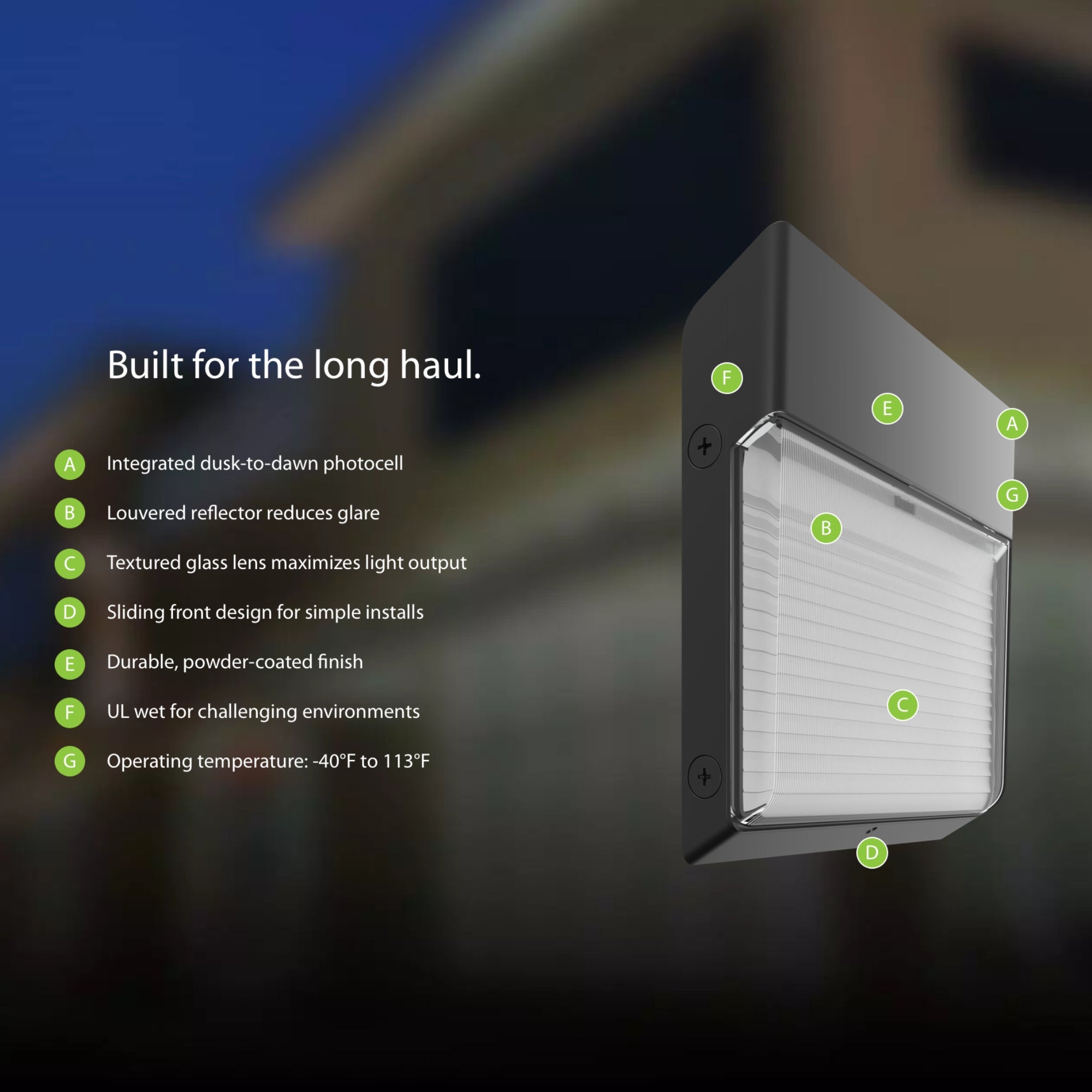

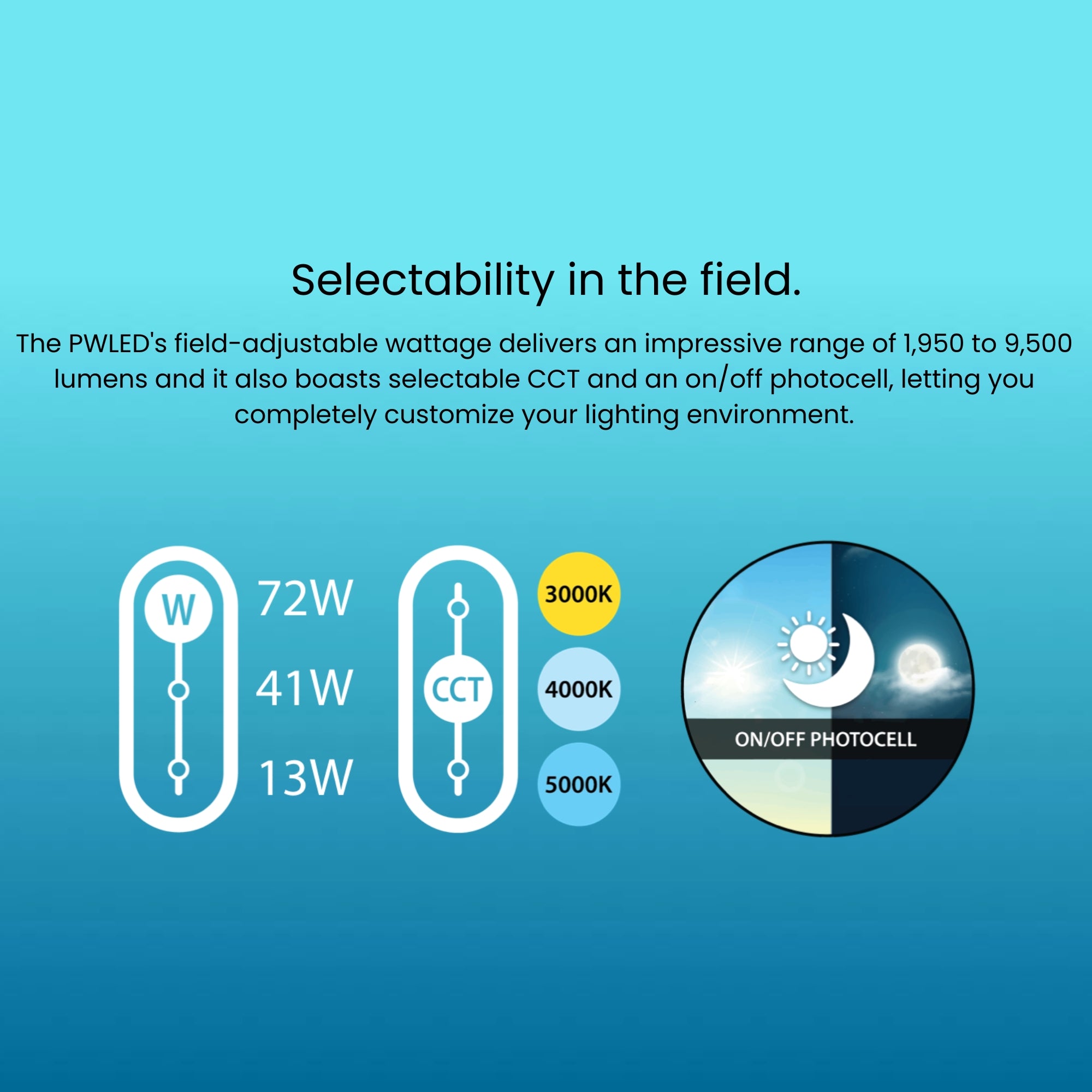

• Dusk-to-Dawn Photocell (Integrated): Factory-installed selectable photocell includes an onboard on/off switch for automatic dusk-to-dawn operation or manual wall-switch and timeclock control.
• 0-10V Dim-to-Off Control: Driver includes dimming control wiring for 0-10V dimming systems (requires separate 0-10V DC dimming circuit) and dims smoothly all the way to off.

Electrical

Powered by a Constant Current, Class 2 driver operating on 480V AC, 50/60Hz with a Power Factor of 91.7% at 480V and Total Harmonic Distortion (THD) of 7.6% at 480V. Integrated 6kV (L-L) / 6kV (L-G) surge protection safeguards internal electronics against utility line transients and lightning strikes. Includes pre-wired 0-10V dim-to-off leads and a factory-installed selectable on/off photocell.

Operating current and amp draw across input voltages for branch circuit and breaker loading calculations:

Construction

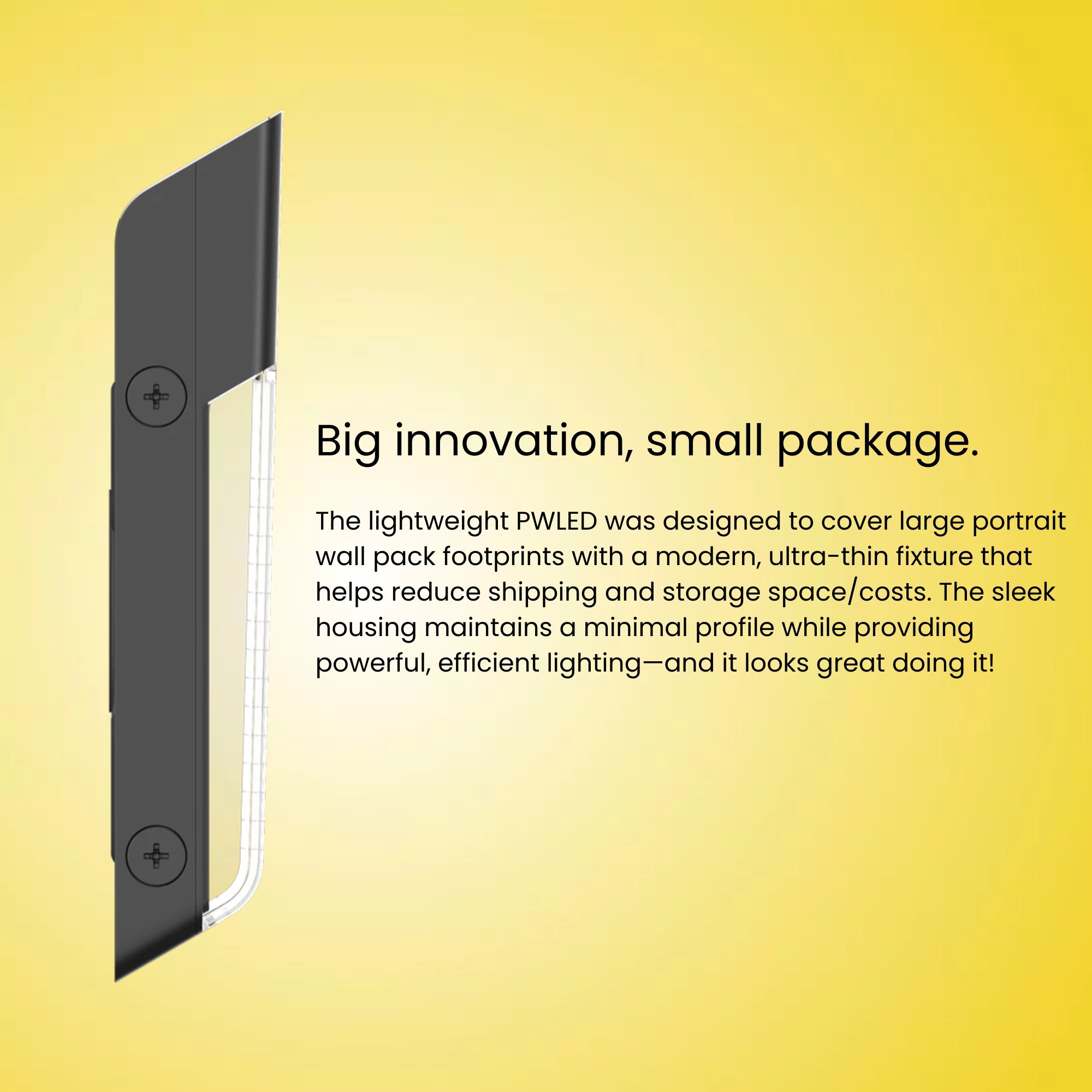

Housing & Thermal: Die-cast aluminum portrait housing with engineered passive convection cooling and an ADA-compliant 3.13" (3 1/8") wall projection.

Finish: High-durability Bronze powder-coat finish formulated for long-lasting color and weather resistance.

Environmental Sealing: UL Listed for wet locations with continuous silicone rubber gasketing to seal out rain, dust, and insects. Ambient operating temperature: -40°F (-40°C) to 104°F (40°C).

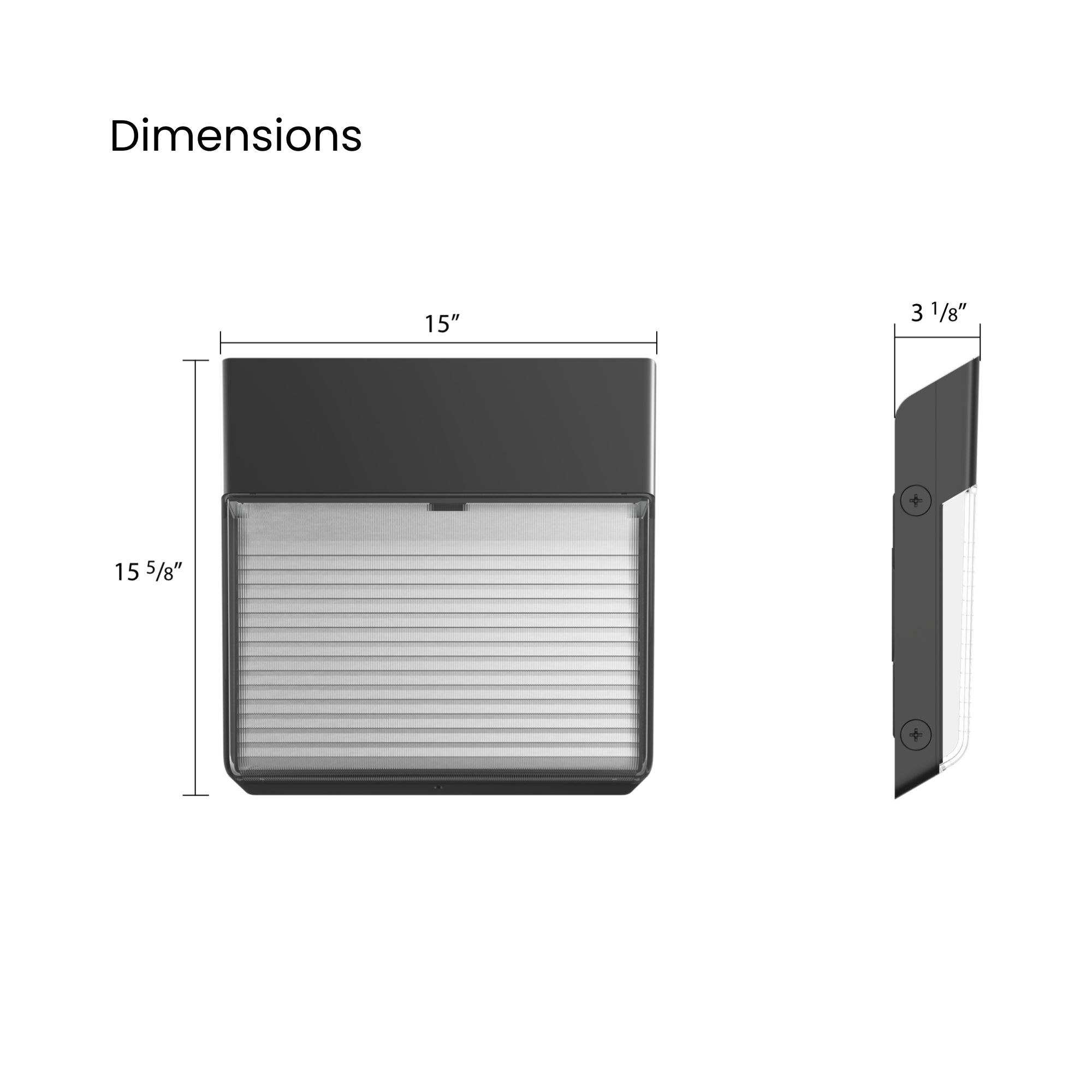

Dimensions & Weight: 15.00" W x 15.63" H x 3.13" D (15" W x 15 5/8" H x 3 1/8" D). Fixture weight: 9.0 lbs.

Installation & Mounting

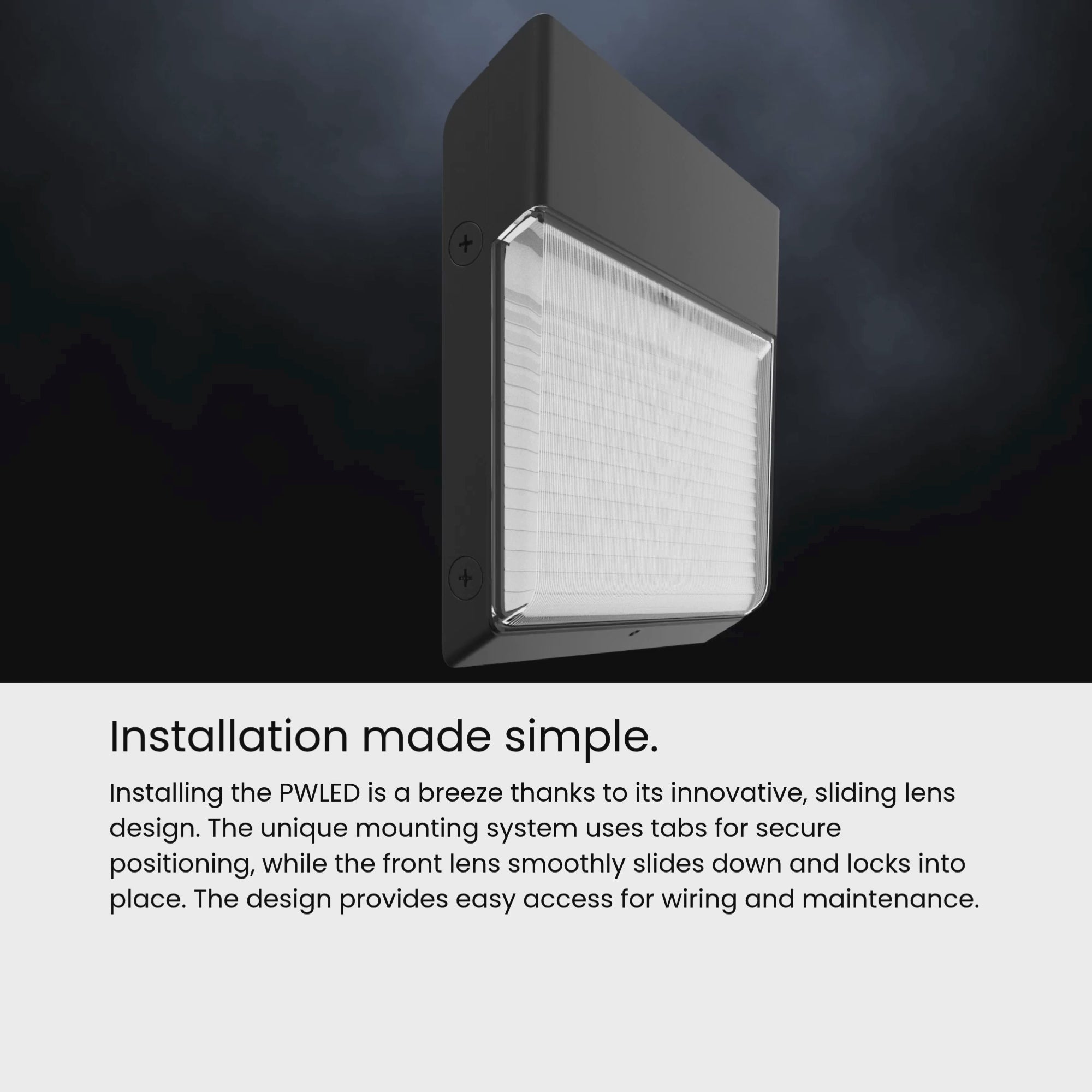

Mounting Hardware: Wall-mount die-cast aluminum backbox mounts flush to exterior walls (meeting ADA protrusion limits) and features a universal junction box knockout pattern, an integrated bubble level, and positioning tabs so the front lens assembly smoothly slides down and locks into place.

Conduit & Wiring Access: Sliding front lens design provides unobstructed hands-free access to the wiring compartment and internal selector switches, paired with side threaded conduit entry knockouts for surface conduit routing.

Certifications & Rebates

• DLC Listed: Listed with the DesignLights Consortium (carrying DLC Standard and DLC Premium family qualifications) to qualify for commercial utility rebate programs nationwide
• UL Listed: Certified for wet locations per UL outdoor luminaire standards
• ADA Compliant: Slim 3.13" (3 1/8") depth meets ADA protrusion requirements for wall-mounted pedestrian walkway luminaires
• IESNA LM-79 & LM-80 Tested: Tested by an independent laboratory in accordance with IESNA LM-79 and LM-80 standards
• TAA Compliant: Product of Cambodia and a designated country end product that complies with the Trade Agreements Act (TAA) for federal and municipal procurement
• RoHS Compliant: Mercury and UV free with RoHS-compliant components

Typical Applications

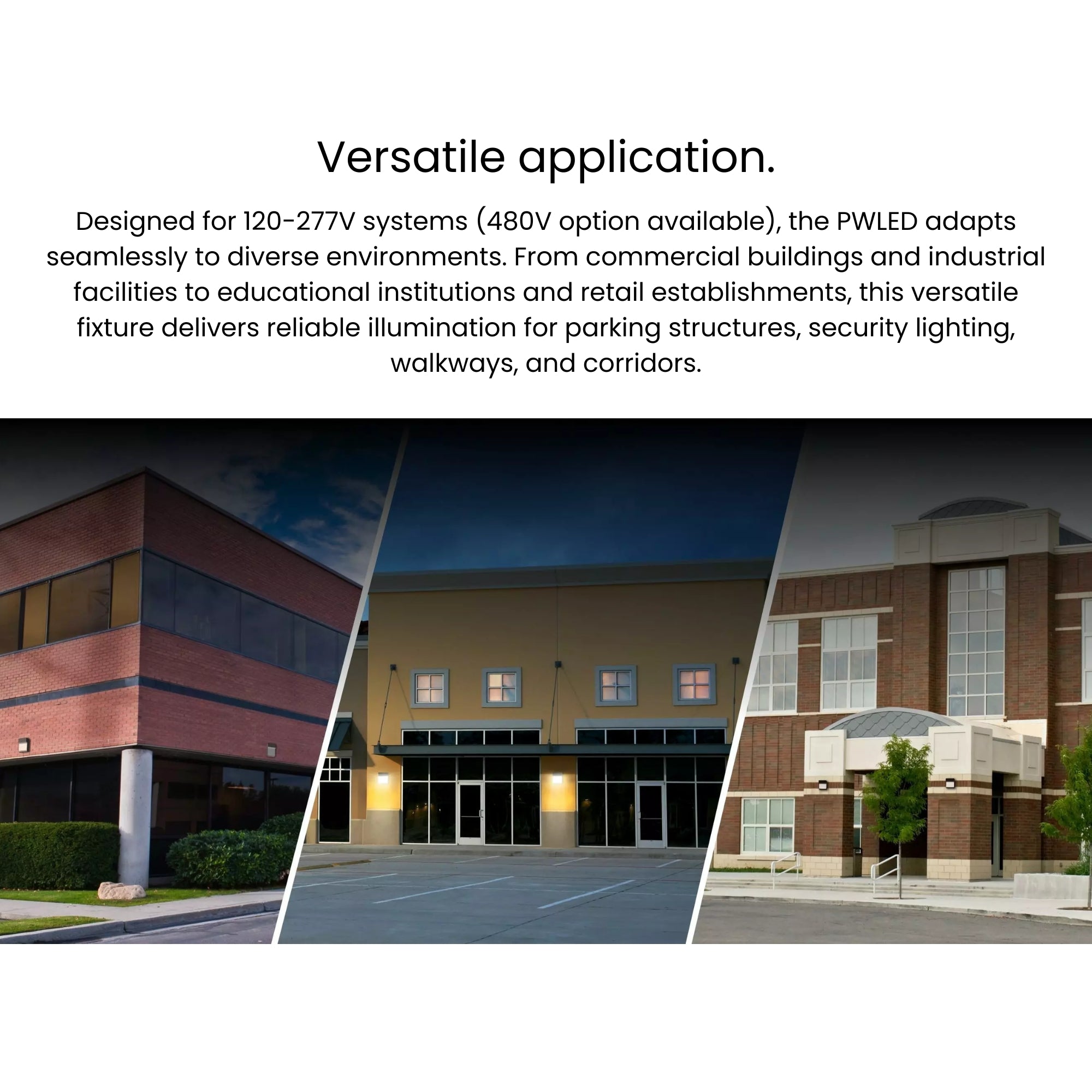

• ADA Pedestrian Walkways, Breezeways & Corridors - Slim 3.13" (3 1/8") depth complies with ADA wall-mount projection limits along commercial sidewalks and building passages
• Building Entrances, Exits & Egress Doorways - Selectable 72W/41W/13W output and integrated on/off photocell automate dusk-to-dawn entryway security
• Federal, Military & Municipal Facilities - Trade Agreements Act (TAA) compliance (designated country end product of Cambodia) and 10-year no-compromise warranty meet government procurement standards
• Commercial & Industrial Building Perimeters - Dedicated 480V Class 2 driver with 6kV (L-L) / 6kV (L-G) surge protection and 0.16A max current at 480V supports high-voltage industrial branch circuits
• Retail, Healthcare & Educational Campuses - Borosilicate glass lens with specular aluminum reflector and 100,000-hour L70 lifespan eliminate lens yellowing and reduce maintenance

What's Included

• RAB PWLED/480 Field-Adjustable Portrait Wall Pack - Bronze
• Pre-installed selectable on/off photocell
• Installation hardware and operation manual
