RAB MASI20 20-in Field-Adjustable Canopy Light 31,640 Lumens Selectable 150W/180W/200W 3000K/4000K/5000K 120-277V Surface Mount White
Available in stock (60)
About this item
About this item

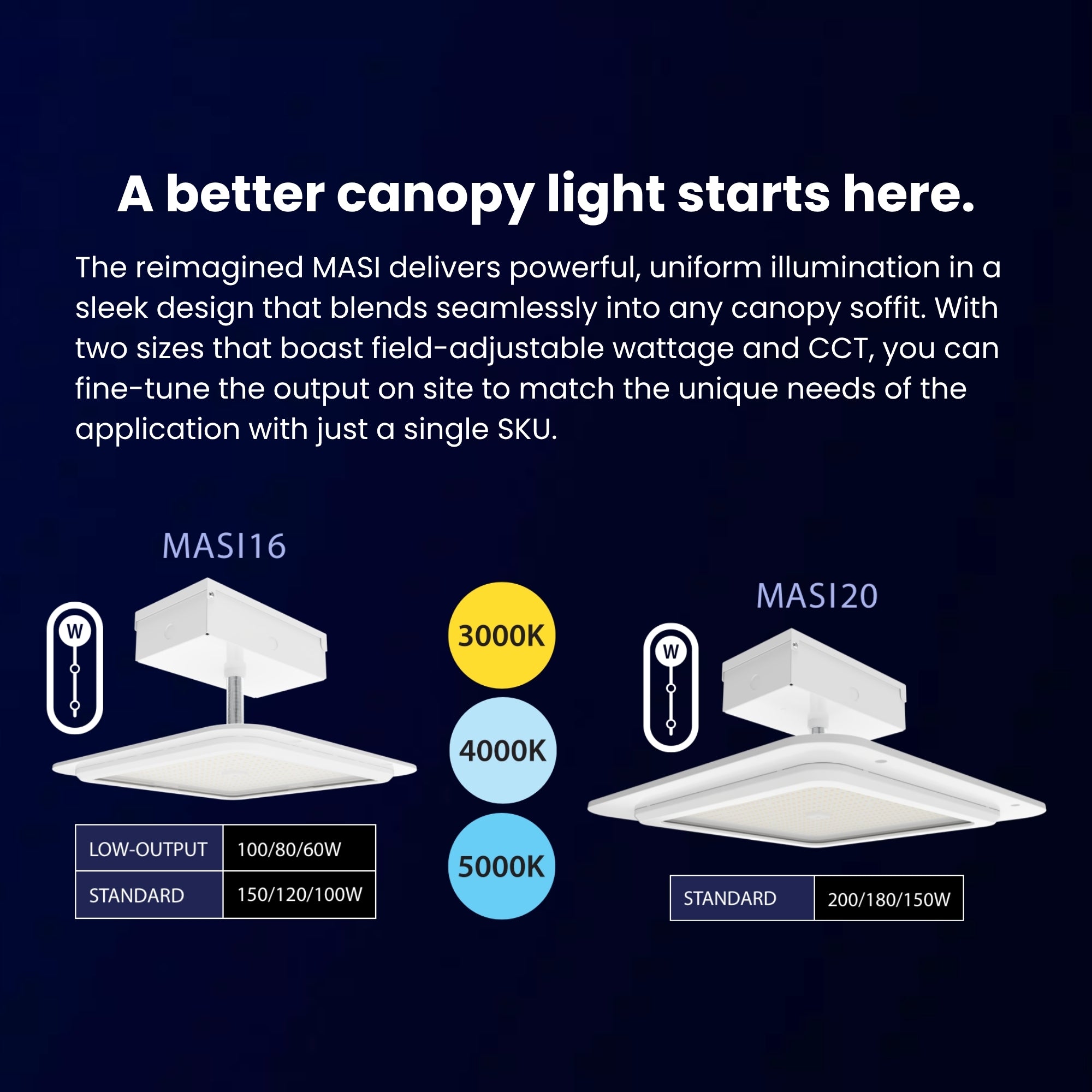

- Field-Adjustable Performance: Selectable 200W, 180W, and 150W power levels with 3 CCT options (3000K, 4000K, 5000K) provide maximum inventory flexibility for diverse applications.
- High-Output Illumination: Delivers an immense maximum output of 31,640 lumens with an exceptional efficacy up to 166.8 LPW to efficiently replace high-wattage legacy HID canopy fixtures.
- Rugged Durability: Die-cast aluminum housing paired with a tempered glass lens and IP65 wet location rating ensures long-lasting outdoor performance.
- Commercial Dimming: Integrated 0-10V continuous dimming driver allows for precise energy management and lighting control.
- Easy Installation: Designed for surface mounting with a semi-recessed construction and junction box featuring four 1/2-inch NPS conduit openings.
We process payments securely and do not store credit card information.
Description
Description

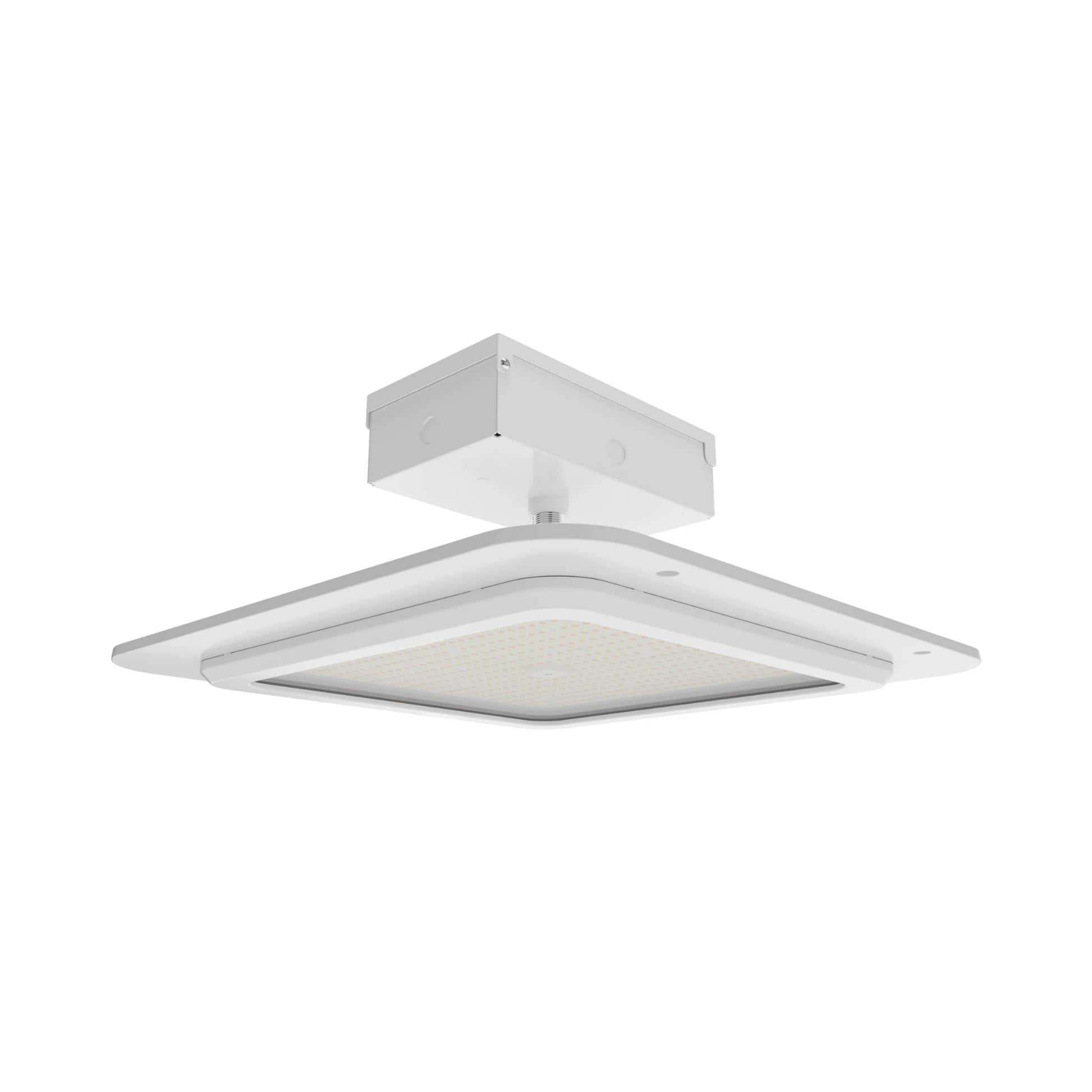

RAB MASI20 Canopy Light — 200W Field-Adjustable Configuration

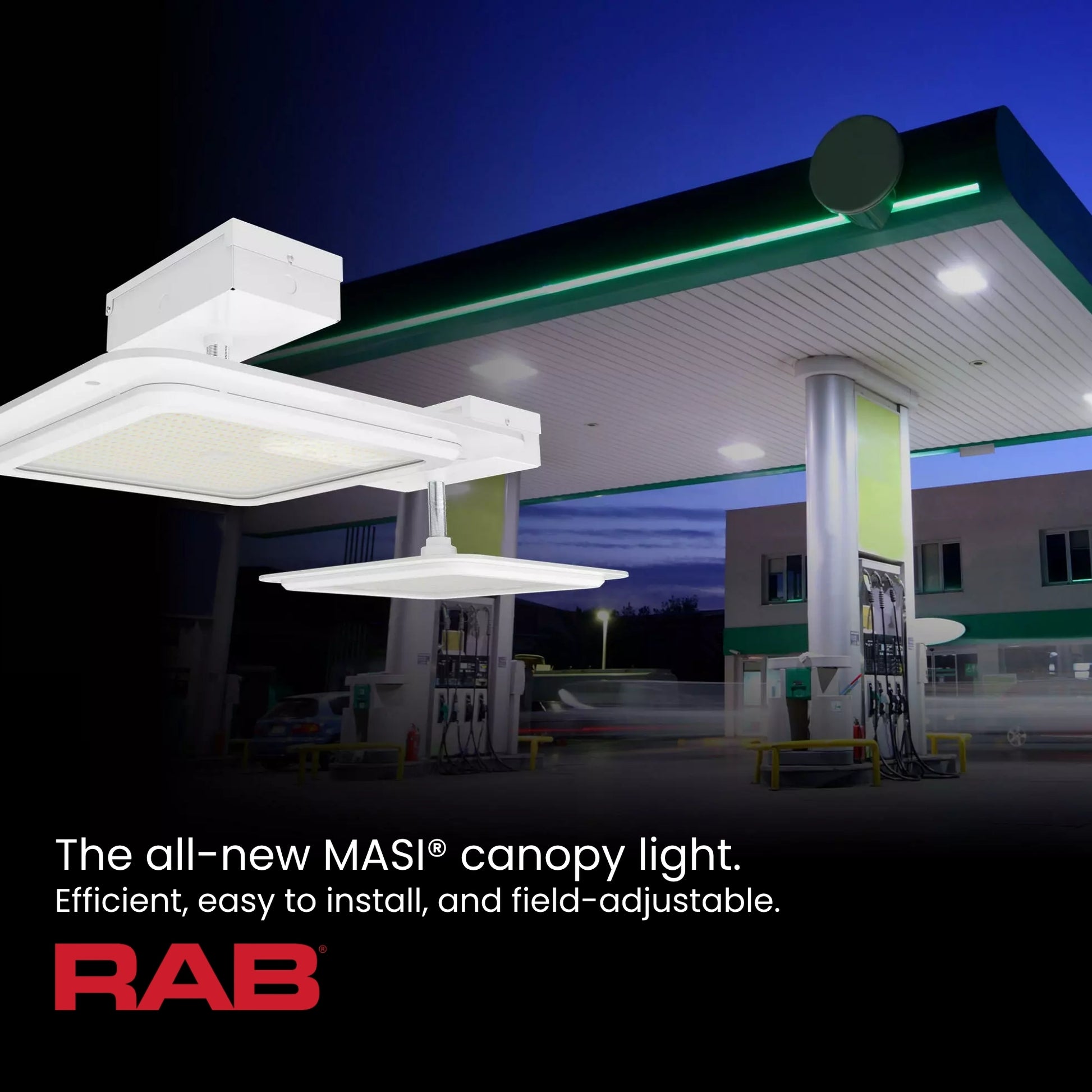

The RAB MASI20 is a highly adaptable 20-inch commercial canopy light engineered for surface mount applications. Operating on a universal 120-277V system, this fixture offers selectable wattage up to 200W, delivering a massive peak output of 31,640 lumens. Featuring an IP65 wet location rating and DLC qualification, it provides facility operators with an energy-efficient, long-lasting solution for large gas stations, high-clearance drive-thrus, and exterior walkways.
Key Features
- Selectable Wattage: 3 power levels (200W, 180W, 150W)
- Selectable CCT: 3 color temperatures (3000K, 4000K, 5000K)
- Maximum Output: Up to 31,640 lumens at peak configuration
- Voltage Range: Universal 120-277V operation
- Dimming Capability: Standard 0-10V continuous dimming
- Color Accuracy: Minimum 80 CRI
- Environmental Rating: IP65 Wet Location listed
- Surge Protection: Built-in 6kV line-neutral protection
- LED Lifespan: 100,000-hour rated life (L70)
- Aesthetics: Die-cast aluminum housing in white
Typical Applications
- Large gas station canopies
- High-clearance drive-thru lanes
- Parking garage perimeters
- Covered commercial walkways
- Building overhangs and soffits
Performance & Light Output
The MASI20 delivers incredibly powerful downlight illumination with a maximum output of 31,640 lumens and an outstanding efficacy of up to 166.8 LPW. Built-in field-adjustable switches allow for seamless toggling between three color temperatures, ensuring visual consistency across various architectural environments. With a CRI of >80 and a B3-U0-G3 bug rating, this luminaire provides clear, uniform light distribution while maintaining strict uplight control to eliminate light pollution.
Electrical & Controls

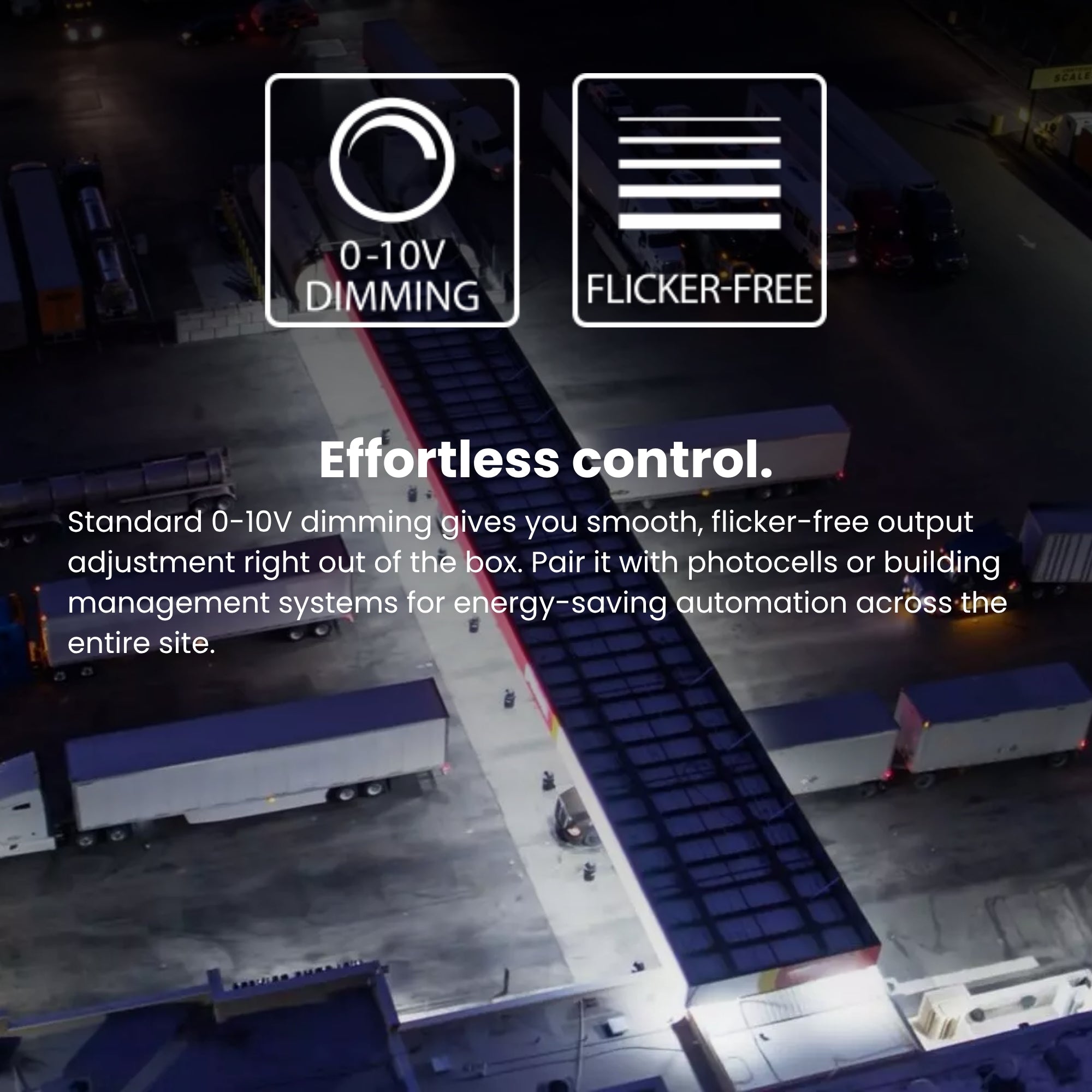

Equipped with a constant current, Class 1 driver, this canopy light operates smoothly on universal 120-277V AC electrical systems. It features standard 0-10V continuous dimming, allowing for deep integration with advanced commercial energy management systems. The internal electronics are fortified with 6kV surge protection to withstand power spikes, ensuring reliable operation with a high power factor exceeding 0.90 and total harmonic distortion (THD) below 20%.
Construction & Durability
Designed to withstand harsh environments, the fixture features a rugged die-cast aluminum housing combined with a durable tempered glass lens and high-temperature silicone gasketing. It holds a strict IP65 rating, completely sealing the optical chamber against dust and water intrusion. Finished with an environmentally friendly white polyester powder coat, the luminaire is 3G vibration tested per ANSI C136.31 and supports an extreme operating temperature range of -40°F to 122°F.

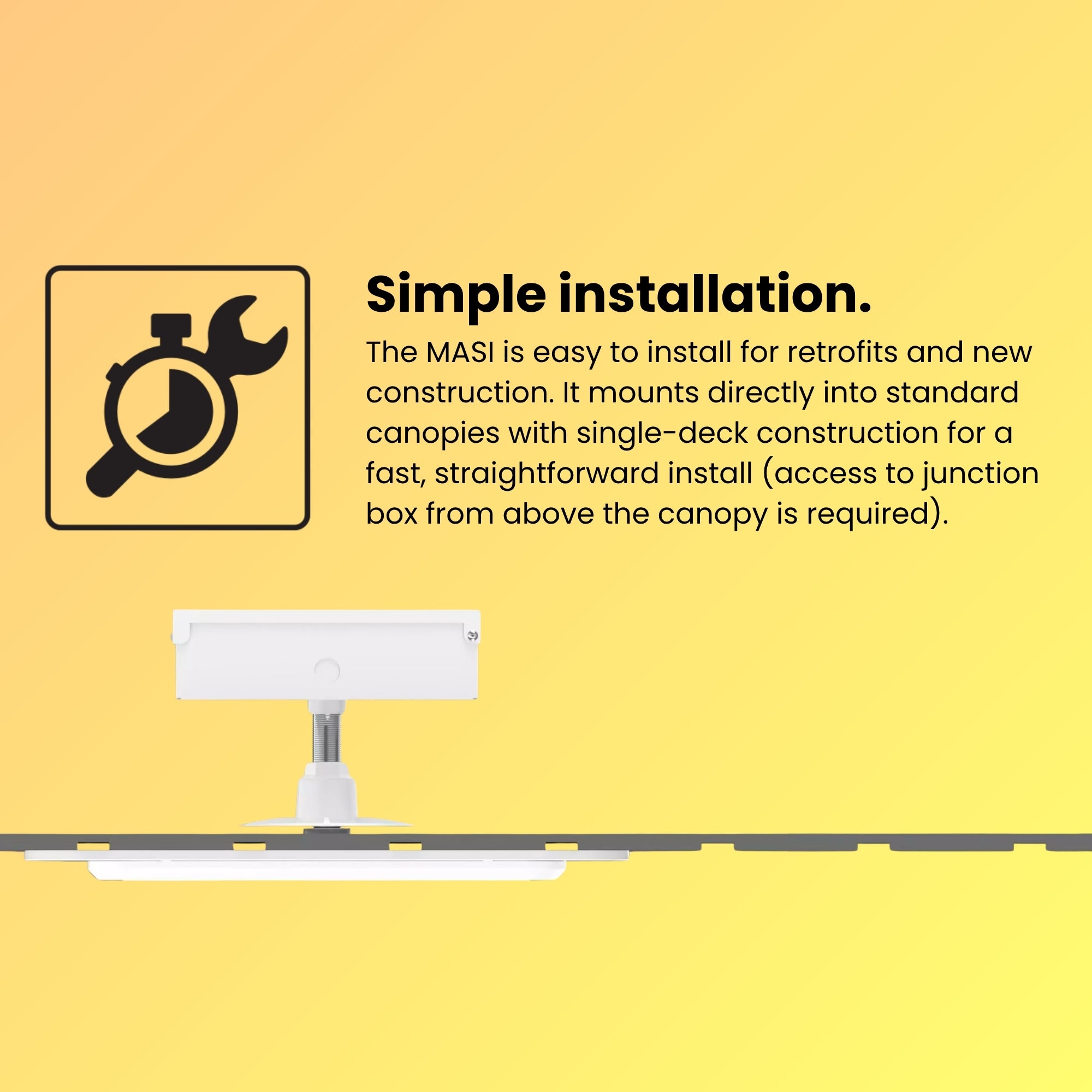

Installation & Mounting

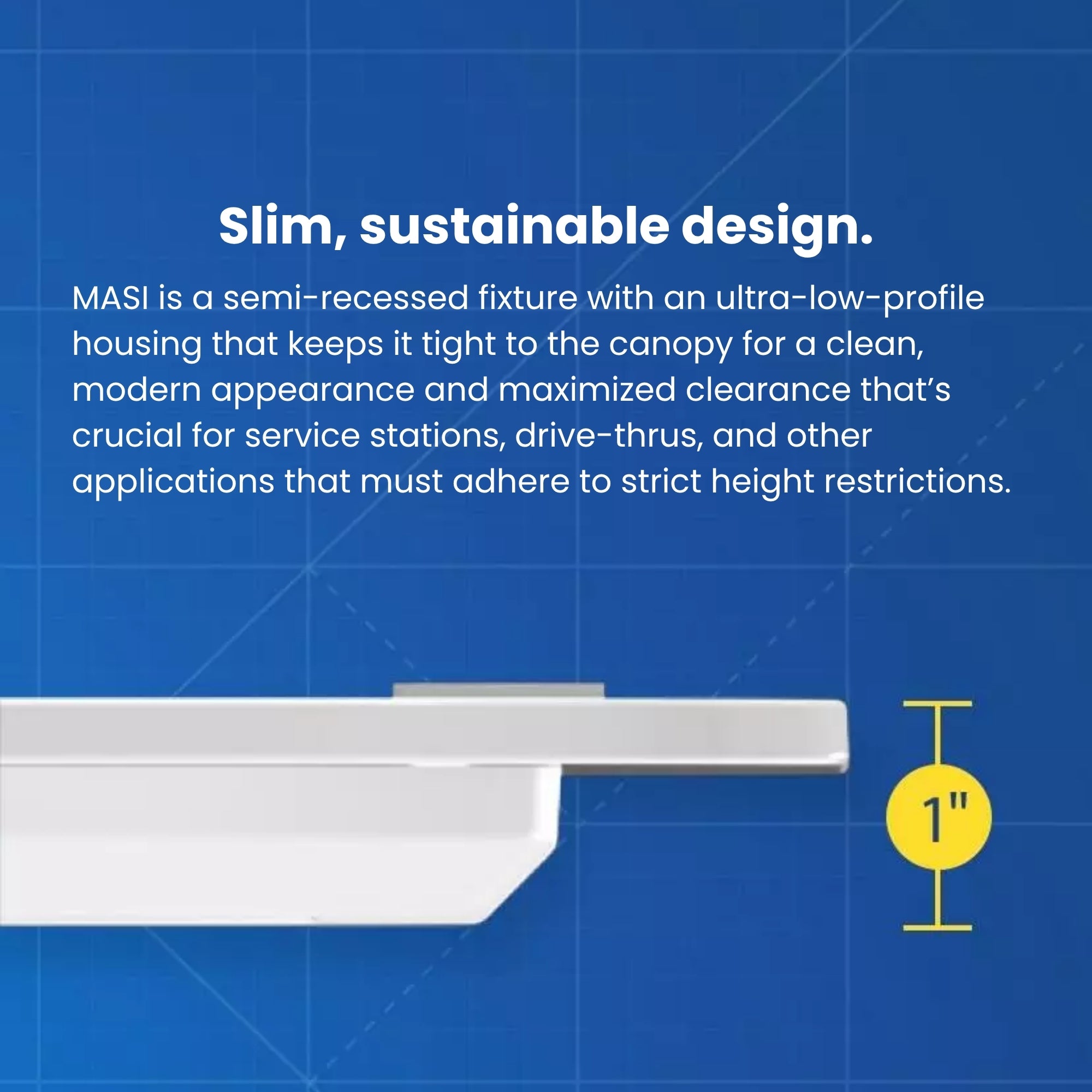

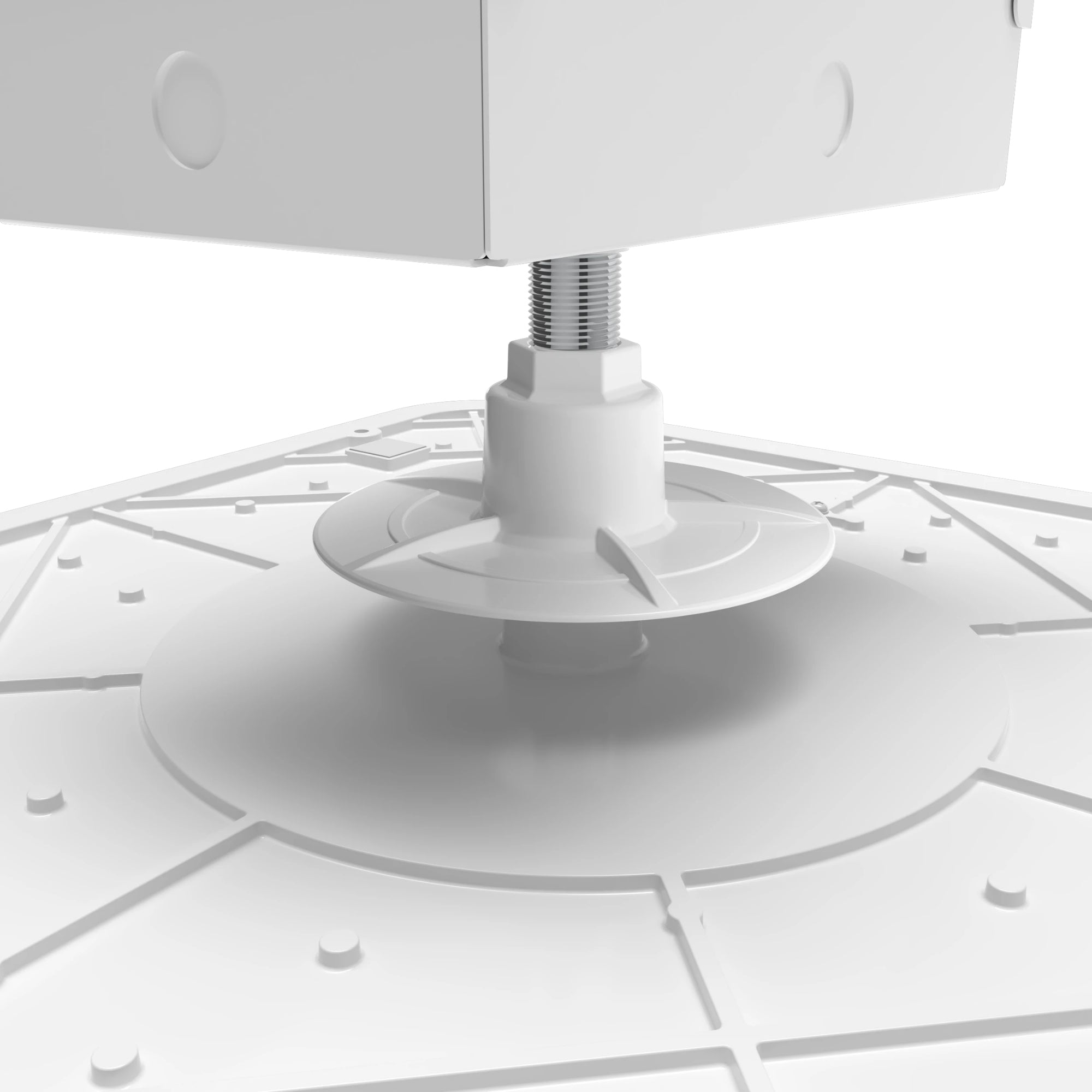

The MASI20 is engineered for streamlined surface mounting in commercial canopies and soffits. Its semi-recessed construction maintains a low-profile aesthetic while the integrated junction box includes four 1/2-inch NPS conduit openings for flexible wiring access. The field-adjustable switches are conveniently located to allow contractors to rapidly dial in the exact wattage and CCT during the installation process.
What's Included
- RAB MASI20 Field-Adjustable Canopy Light
- Pre-installed 0-10V Dimming Driver
Specifications
Specifications

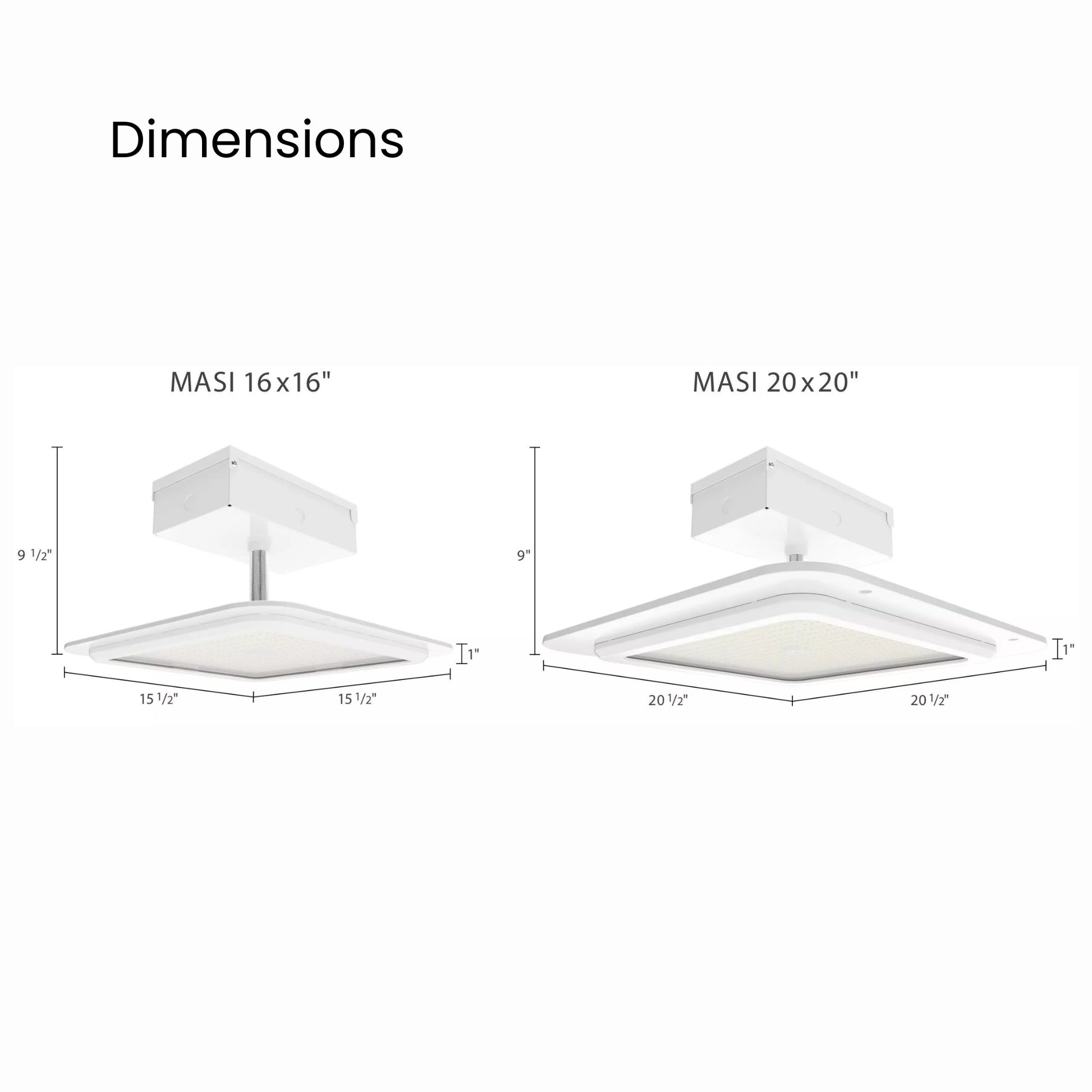

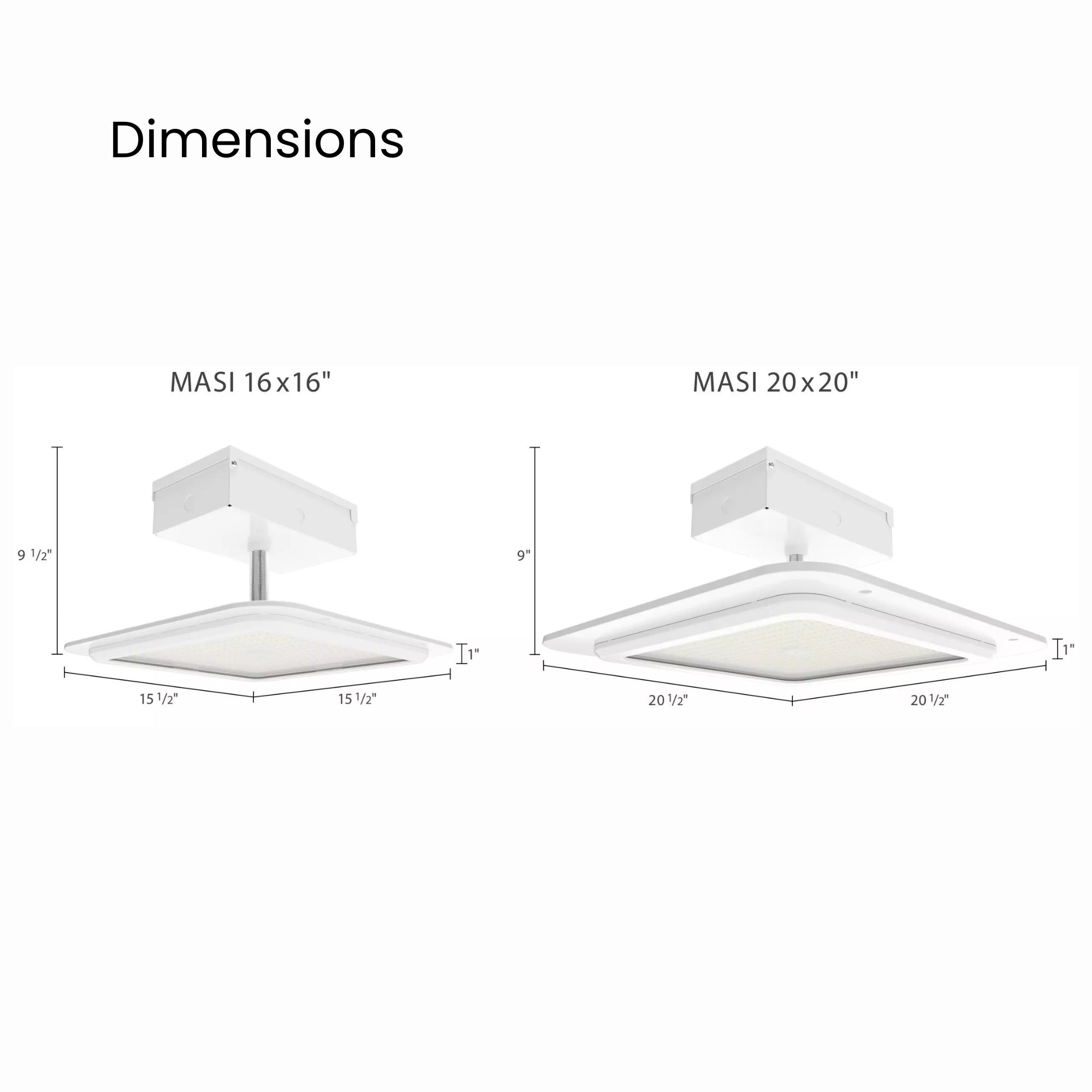

Dimensions
