RAB MASI16 16-in Field-Adjustable Canopy Light 23,442 Lumens Selectable 100W/120W/150W 3000K/4000K/5000K 120-277V Surface Mount White
Available in stock (200)
About this item
About this item
- Field-Adjustable Performance: Selectable 150W, 120W, and 100W power levels with 3 CCT options (3000K, 4000K, 5000K) provide maximum inventory flexibility for diverse applications.
- High-Output Illumination: Delivers up to 23,442 lumens with an exceptional efficacy of up to 167 LPW to efficiently replace high-wattage legacy HID canopy fixtures.
- Rugged Durability: Die-cast aluminum housing paired with a tempered glass lens and IP65 wet location rating ensures long-lasting outdoor performance.
- Commercial Dimming: Integrated 0-10V continuous dimming driver allows for precise energy management and lighting control.
- Easy Installation: Designed for surface mounting with a semi-recessed construction and junction box featuring four 1/2-inch NPS conduit openings.
We process payments securely and do not store credit card information.
Description
Description

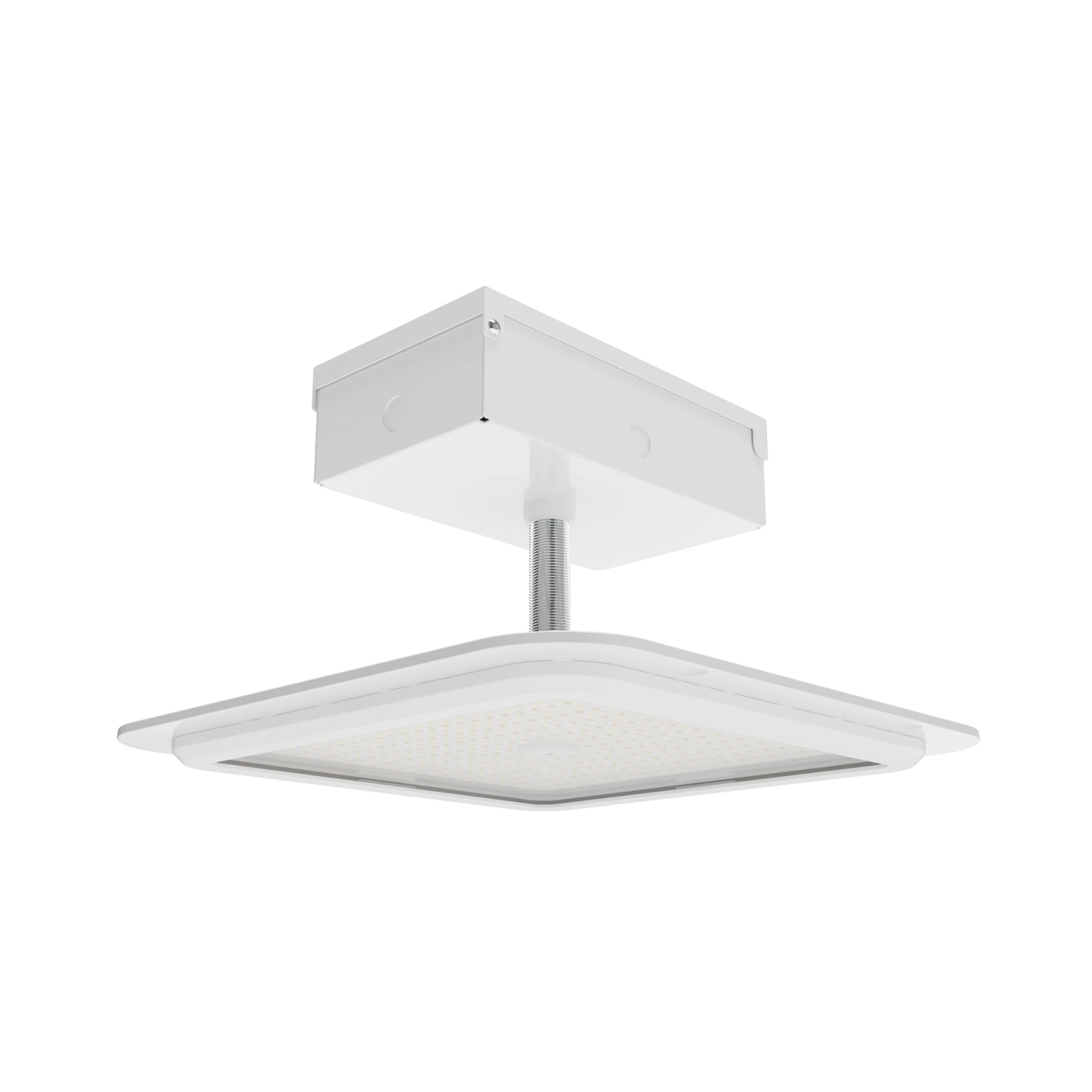

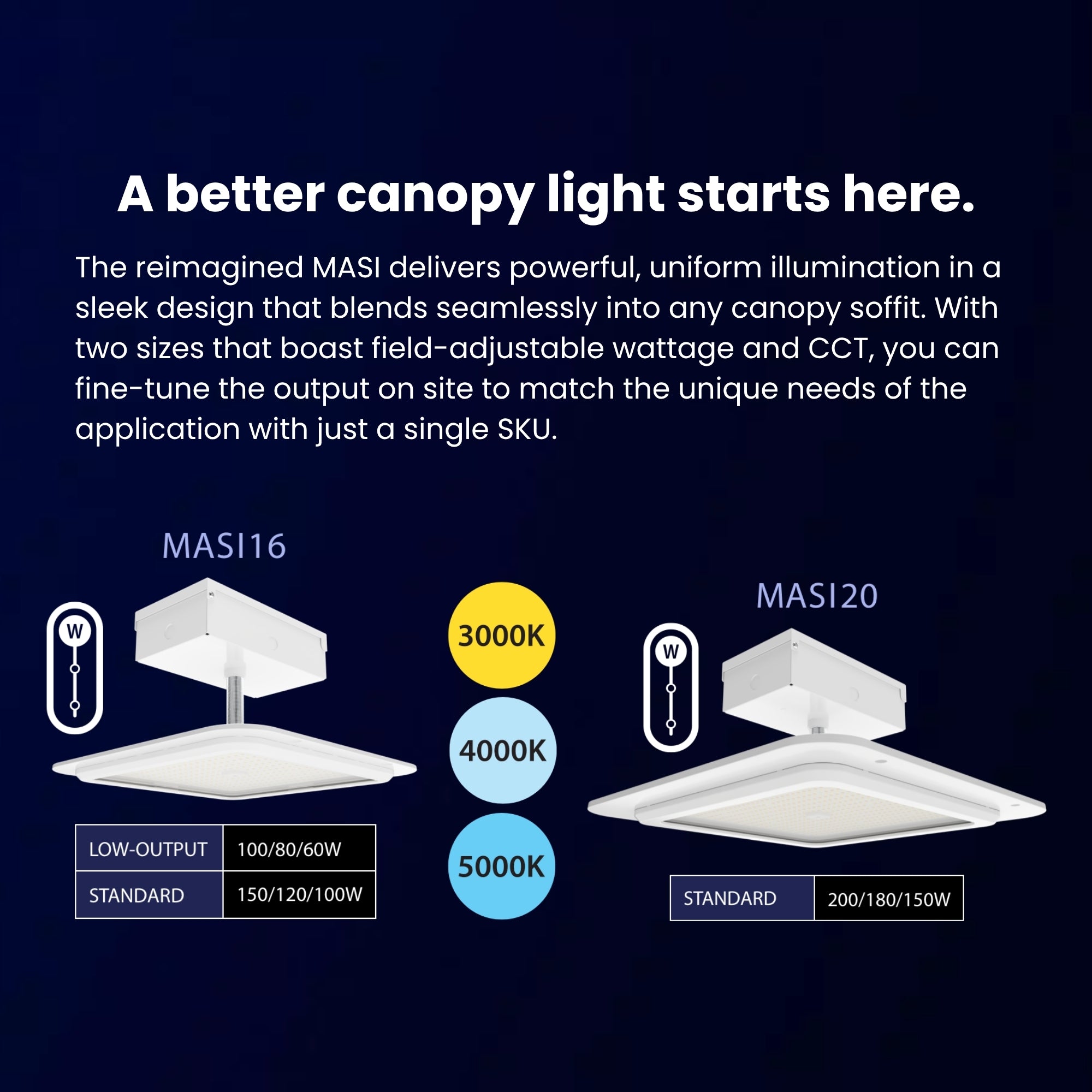

RAB MASI16 Canopy Light — 150W Field-Adjustable Configuration
The RAB MASI16 is a highly adaptable 16-inch commercial canopy light engineered for surface mount applications. Operating on a universal 120-277V system, this fixture offers selectable wattage up to 150W, delivering a massive peak output of 23,442 lumens. Featuring an IP65 wet location rating and DLC qualification, it provides facility operators with an energy-efficient, long-lasting solution for large gas stations, high-clearance drive-thrus, and exterior walkways.
Key Features
- Selectable Wattage: 3 power levels (150W, 120W, 100W)
- Selectable CCT: 3 color temperatures (3000K, 4000K, 5000K)
- Maximum Output: Up to 23,442 lumens at peak configuration
- Voltage Range: Universal 120-277V operation
- Dimming Capability: Standard 0-10V continuous dimming
- Color Accuracy: Minimum 80 CRI
- Environmental Rating: IP65 Wet Location listed
- Surge Protection: Built-in line-neutral protection
- LED Lifespan: 100,000-hour rated life (L70)
- Aesthetics: Die-cast aluminum housing in white
Typical Applications
- Large gas station canopies
- High-clearance drive-thru lanes
- Parking garage perimeters
- Covered commercial walkways
- Building overhangs and soffits
Performance & Light Output
The MASI16 delivers incredibly powerful downlight illumination with a maximum output of 23,442 lumens and an outstanding efficacy of up to 167 LPW. Built-in field-adjustable switches allow for seamless toggling between three color temperatures, ensuring visual consistency across various architectural environments. With a CRI of >80, this luminaire provides clear, uniform light distribution while maintaining strict uplight control to eliminate light pollution.
Electrical & Controls
Equipped with a constant current driver, this canopy light operates smoothly on universal 120-277V AC electrical systems. It features standard 0-10V continuous dimming, allowing for deep integration with advanced commercial energy management systems and compatible sensors. The internal electronics are fortified with built-in surge protection to withstand power spikes, ensuring reliable operation with a high power factor exceeding 0.90 and total harmonic distortion (THD) below 20%.
Construction & Durability
Designed to withstand harsh environments, the fixture features a rugged die-cast aluminum housing combined with a durable tempered glass lens and high-temperature silicone gasketing. It holds a strict IP65 rating, completely sealing the optical chamber against dust and water intrusion. Finished with an environmentally friendly white polyester powder coat, the luminaire is vibration-tested and supports an extreme operating temperature range of -40°F to 104°F.
Installation & Mounting

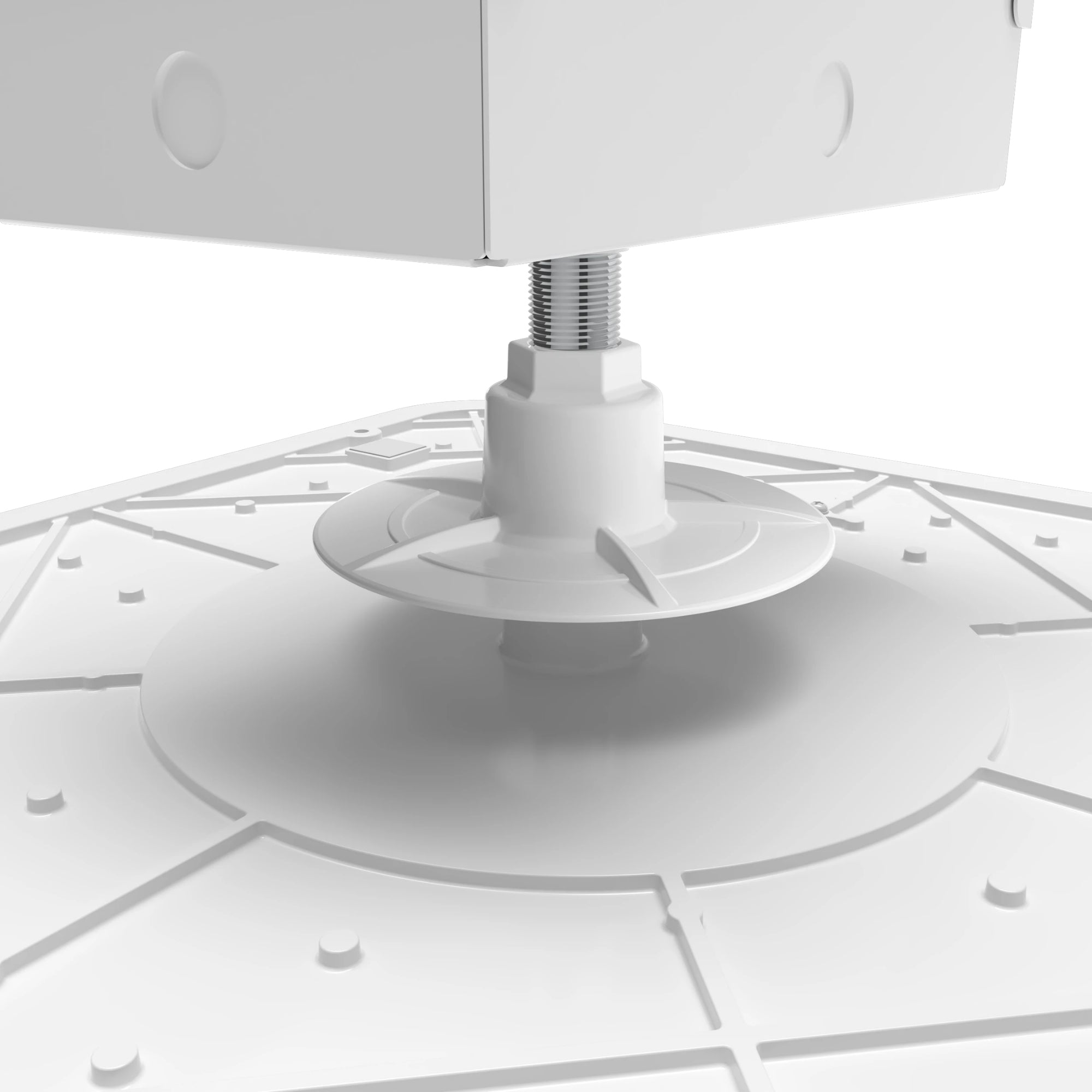

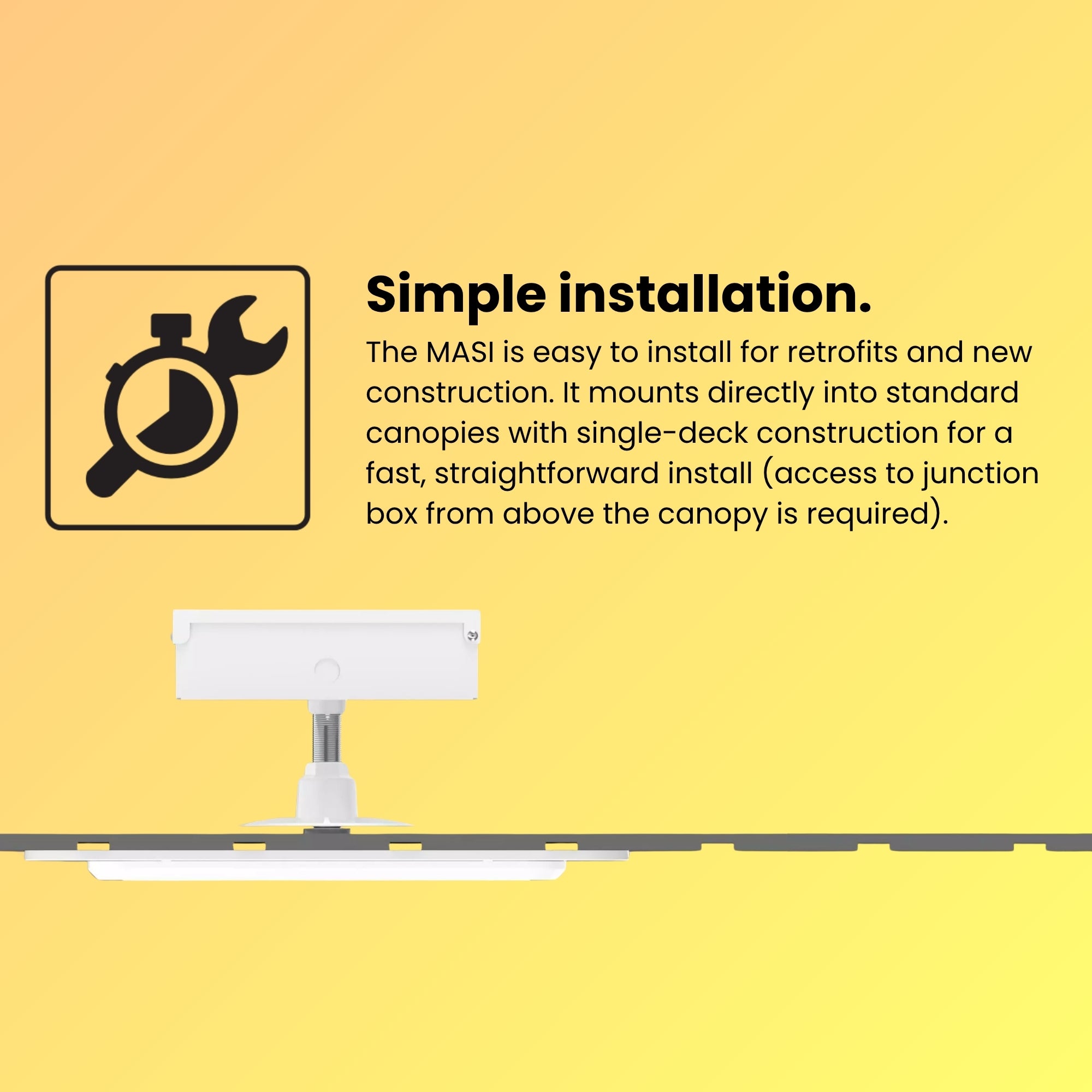

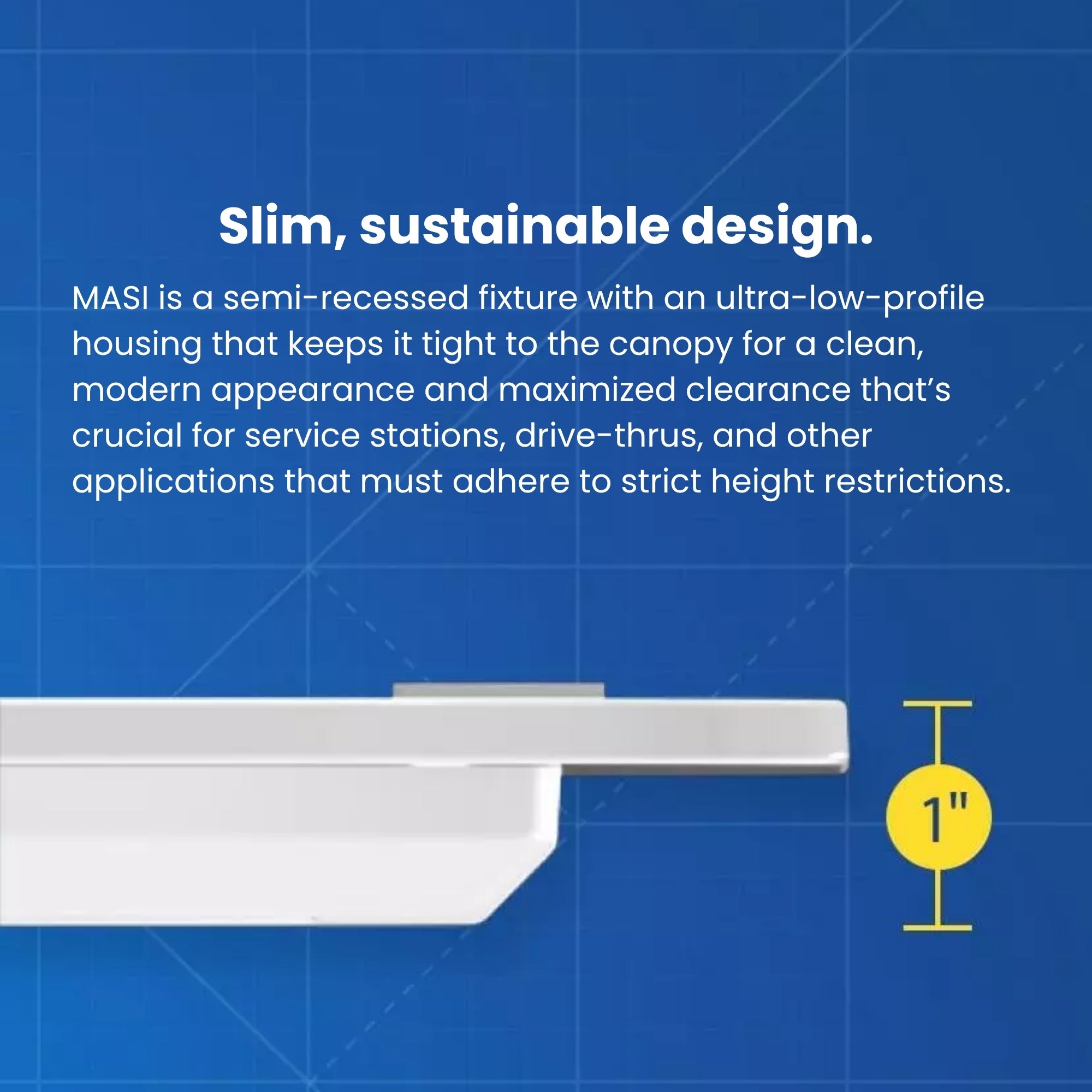

The MASI16 is engineered for streamlined surface mounting in commercial canopies and soffits. Its semi-recessed construction maintains a low-profile aesthetic while the integrated junction box includes four 1/2-inch NPS conduit openings for flexible wiring access. The field-adjustable switches are conveniently located to allow contractors to rapidly dial in the exact wattage and CCT during the installation process.
What's Included
- RAB MASI16 Field-Adjustable Canopy Light
- Pre-installed 0-10V Dimming Driver
Specifications
Specifications

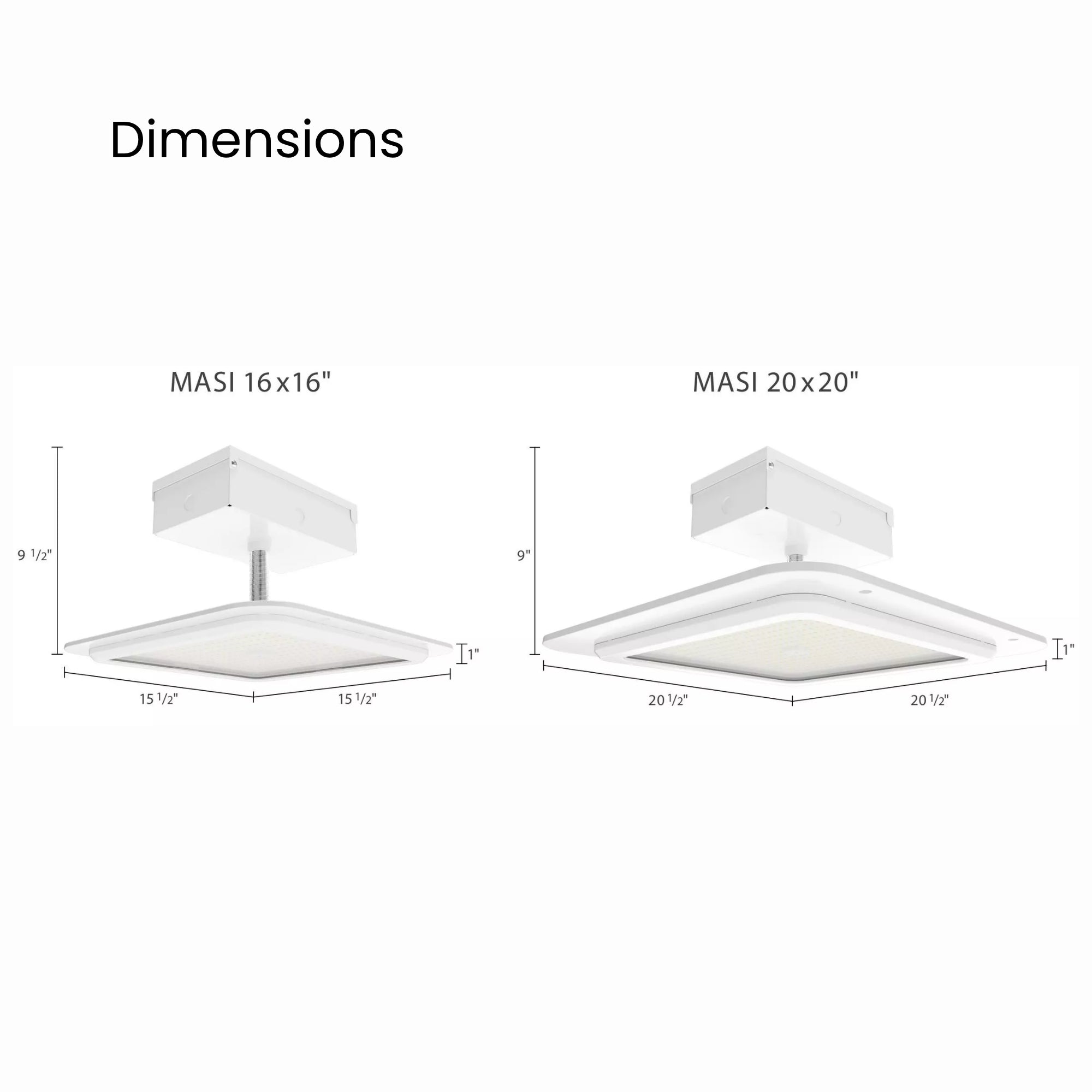

Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
