RAB L2XW Luminator LED Security Light 2,094 Lumens 20W Tunable 30K-50K 120V Photocell White

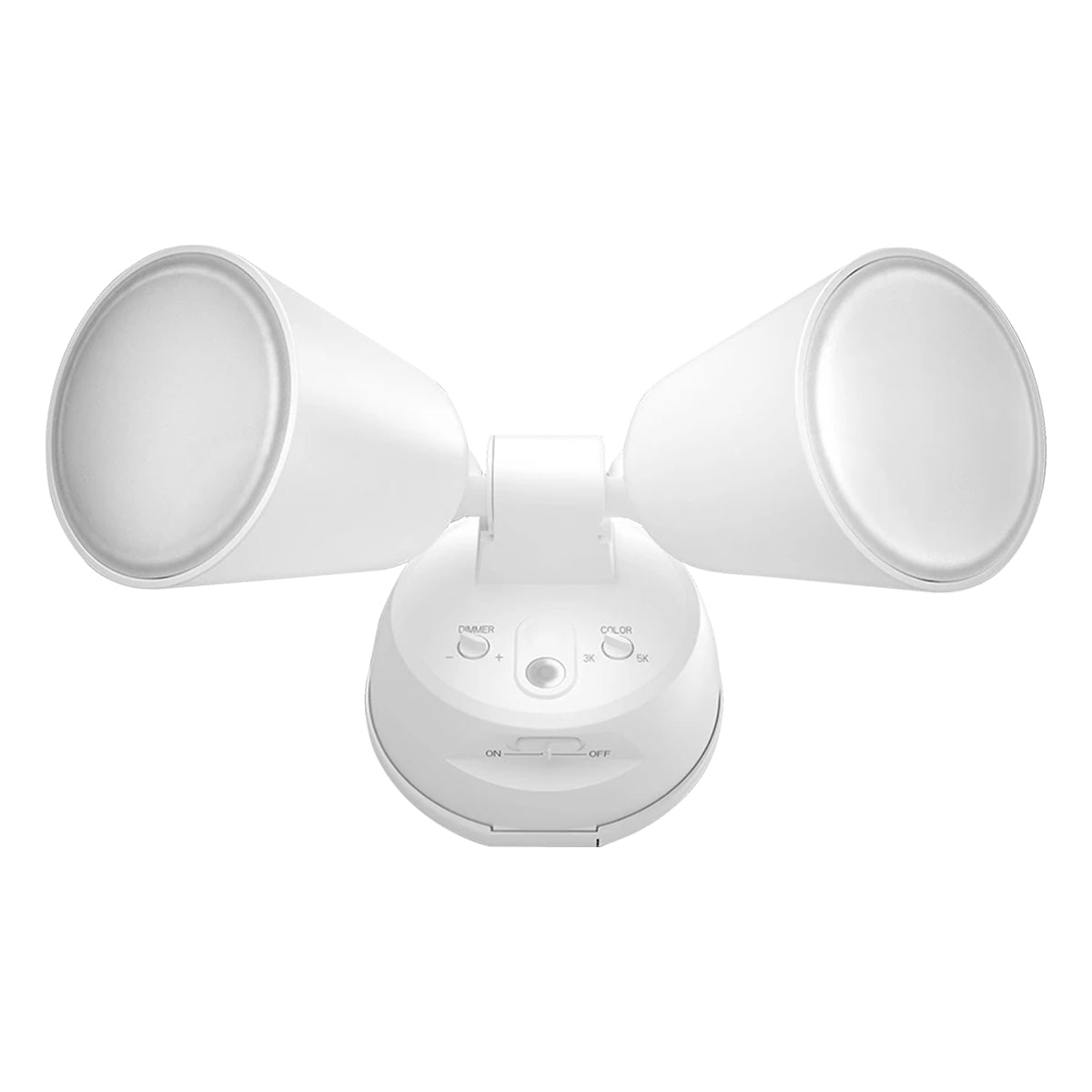

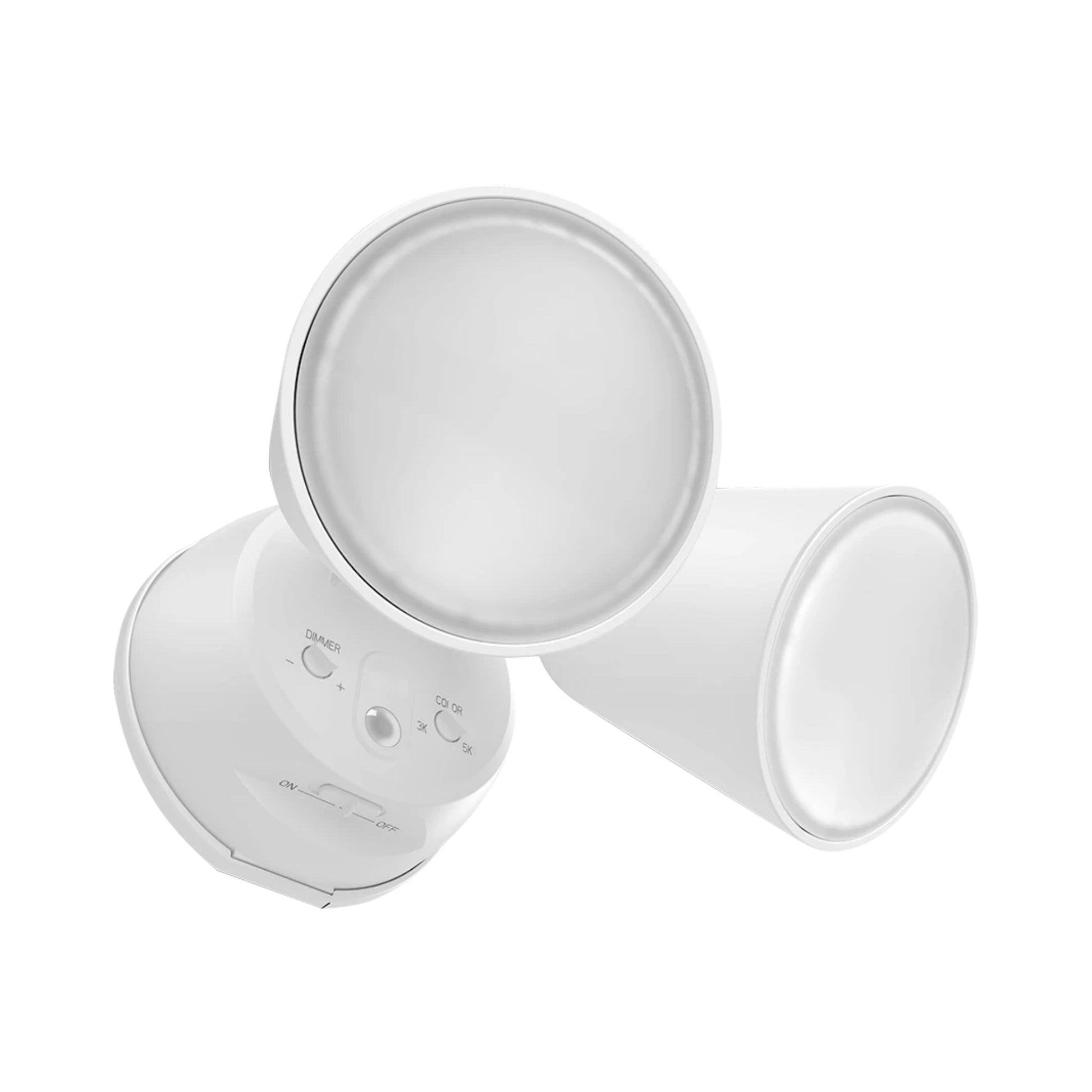

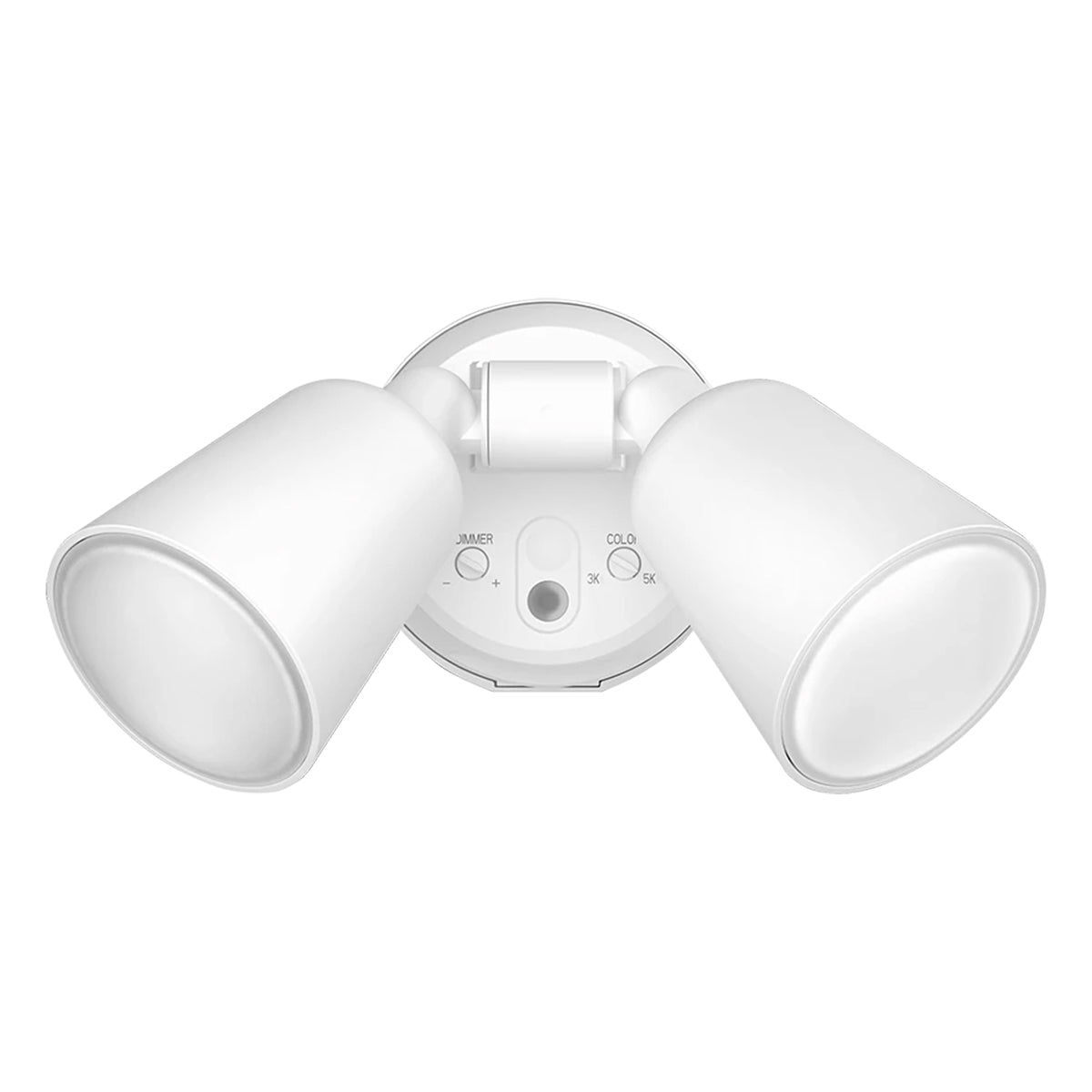

RAB L2XW Luminator LED Security Light — 20W, Tunable CCT, Photocell, 120V, White

The RAB L2XW Luminator is a highly versatile and customizable LED security light delivering up to 2,094 lumens. Designed to provide top-tier security lighting, this 20W fixture features a crisp white finish and field-adjustable "tunable white" technology, allowing you to manually adjust the color temperature anywhere from a warm 3000K to a bright 5000K. Operating on a standard 120V input, the L2XW gives users ultimate control with a 10% to 100% stepless dimmer and a built-in photocell that deactivates the lights during daylight hours. With an IP65 rating for wet locations, it is the premier choice for residential and commercial exterior security.

Key Features

• Wattage: 20W (19.6W - 19.8W input)
• Selectable CCT: Tunable white from 3000K to 5000K (4000K default)
• Delivered Lumens: 2,000 lumens (at 3000K) to 2,094 lumens (at 5000K)
• Efficacy: Up to 105.8 Lumens Per Watt (LPW)
• Voltage: 120V AC @ 60Hz
• Dimming: 10% to 100% stepless dimmer
• Photocell: On/Off photocell with a 5-45 lux daylight threshold
• CRI: Up to 84
• Environmental Ratings: IP65 rated and suitable for wet locations
• Compliance & Certifications: DLC Listed (meets DLC 5.1 requirements), RoHS Compliant
• Warranty: 5-Year limited warranty

Typical Applications

• Residential driveways and backyards
• Commercial building perimeters and loading docks
• Walkways, entryways, and eaves
• Exterior security lighting

Performance & Light Output

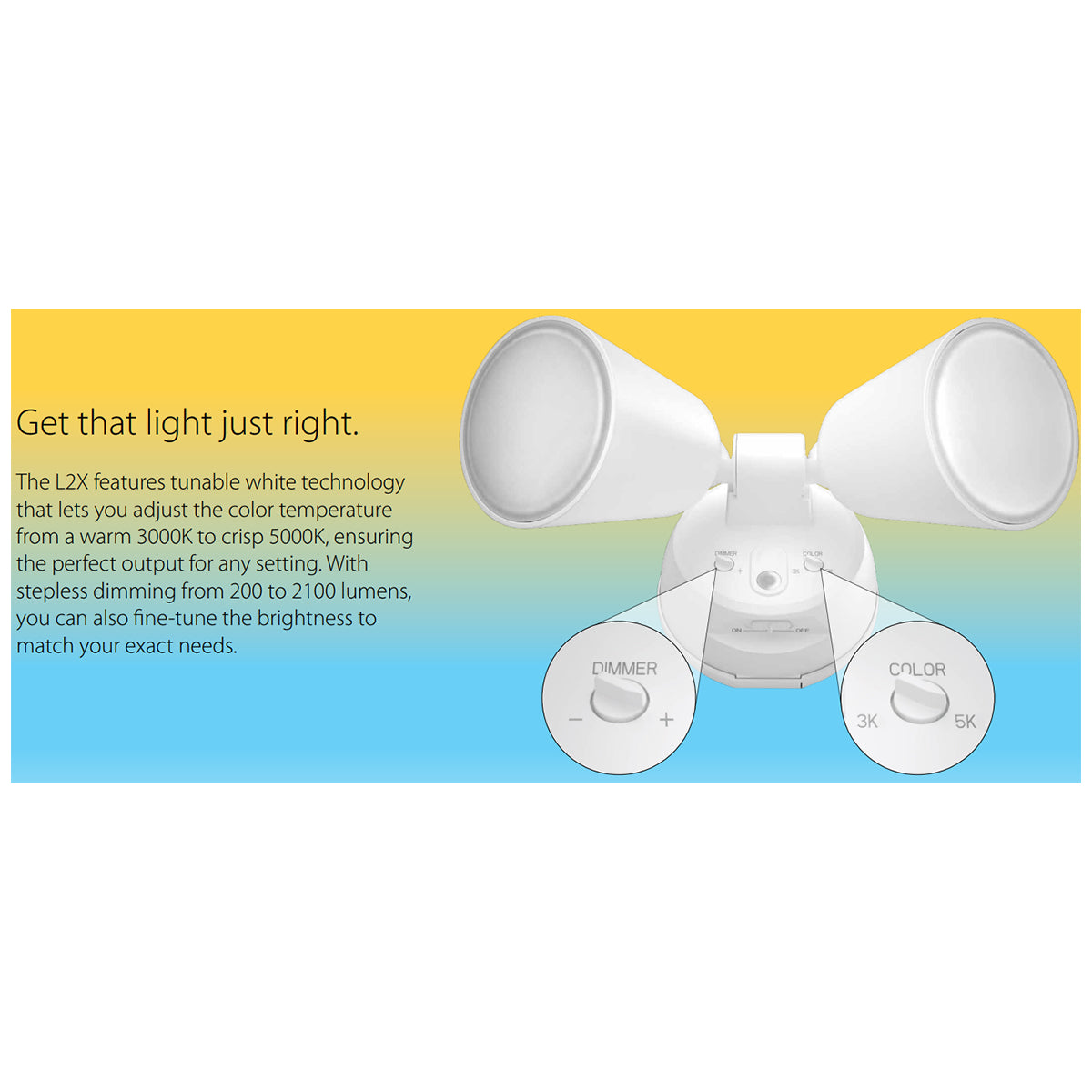

The L2XW Luminator provides bright, welcoming illumination with an output of up to 2,094 lumens. Its tunable white feature allows you to perfectly match the color temperature of your existing exterior lighting. The built-in stepless dimmer also lets you manually dial in the exact lumen output you need, anywhere from 10% to 100% brightness. With an impressive 100,000-hour rated lifespan, this fixture drastically reduces maintenance cycles.

Electrical & Controls

This fixture operates on a 120V AC input and features built-in surge protection of 1kV. It provides maximum energy savings through its fully integrated photocell, which ensures the light remains off during daylight hours. The photocell comes with a default setting of "Off," but can be easily enabled during installation.

Construction & Durability

Engineered for outdoor reliability, the fixture features a rugged polycarbonate housing and reflector finished in white. It is fully IP65 rated, protecting it against dust and wet weather in ambient operating temperatures ranging from -4°F to 122°F (-20°C to 50°C). The environmentally friendly polyester powder coating is formulated for high durability and contains no toxic heavy metals.

Installation & Mounting

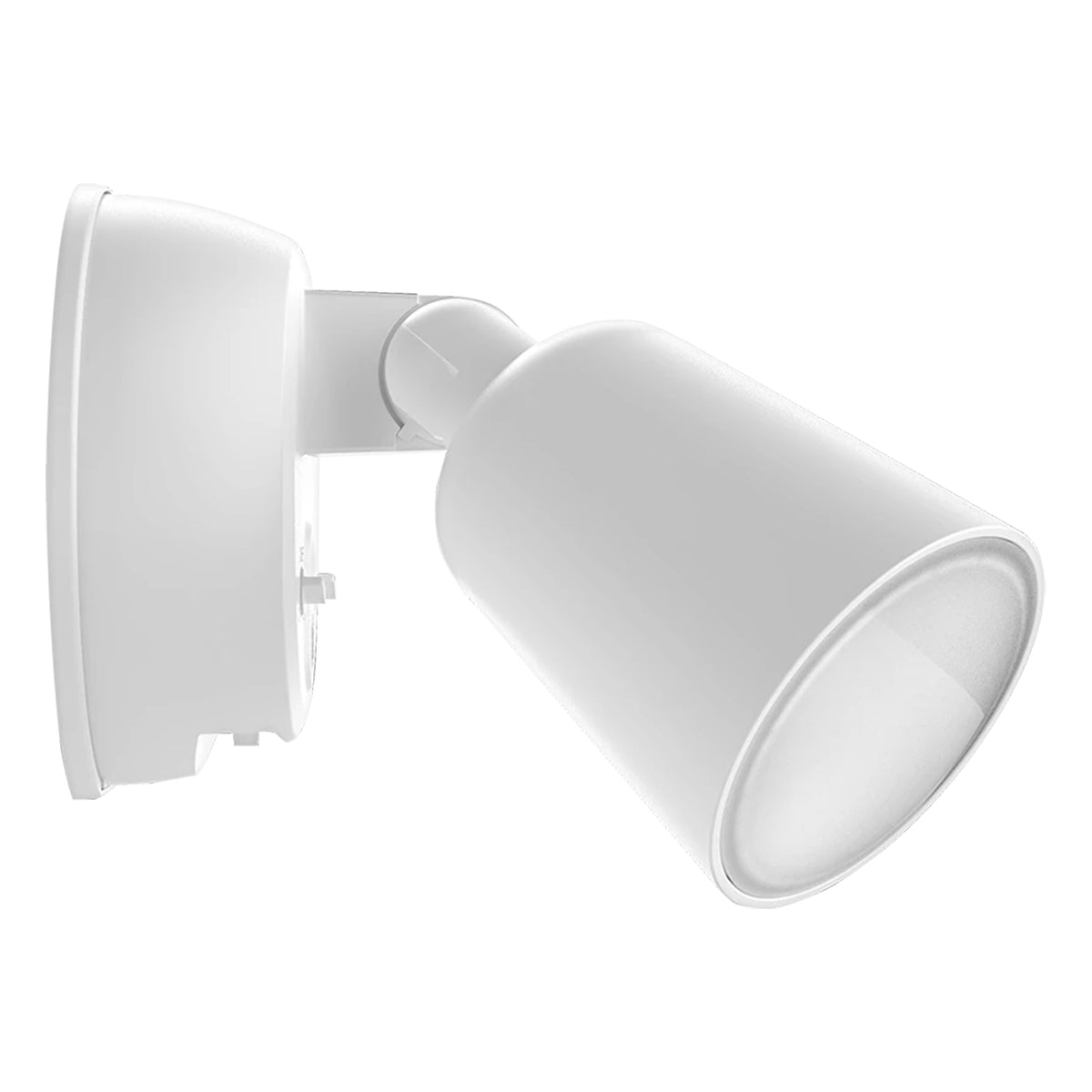

The L2XW offers highly versatile installation options. It can be easily mounted directly on walls, eaves, or ceilings at a maximum height of 12 feet, making it adaptable to almost any residential or commercial exterior layout.

What's Included

• RAB L2XW Luminator LED Security Light (White)
• Integrated Photocell
