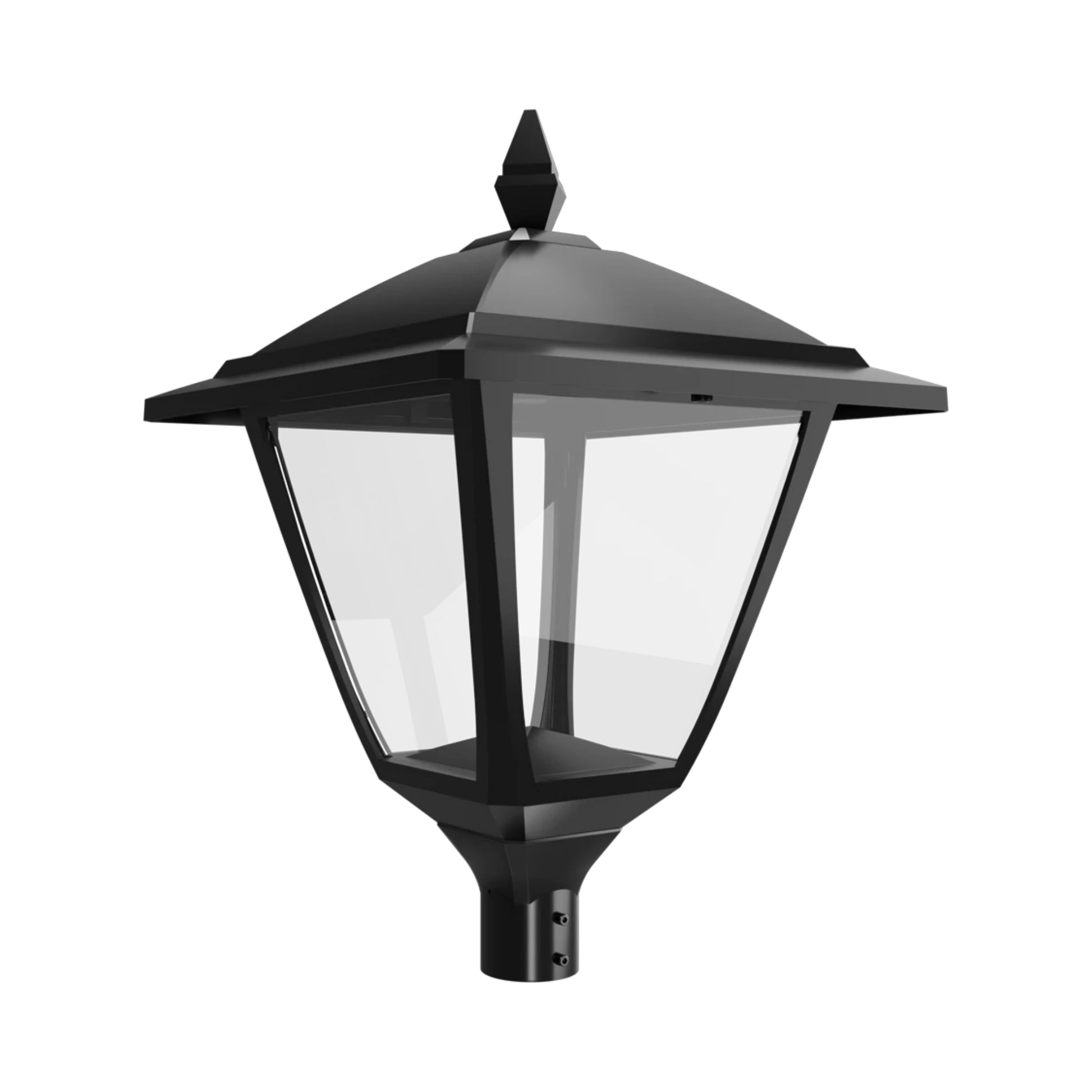

RAB HTGL-SB Heritage Square Post Top Lantern, EX39 Base, Black
RAB HTGL-SB Heritage Square Post Top Lantern, EX39 Base, Black
Available in stock (60)
Choose your location
enter a US zip code
Couldn't load pickup availability
About this item
About this item

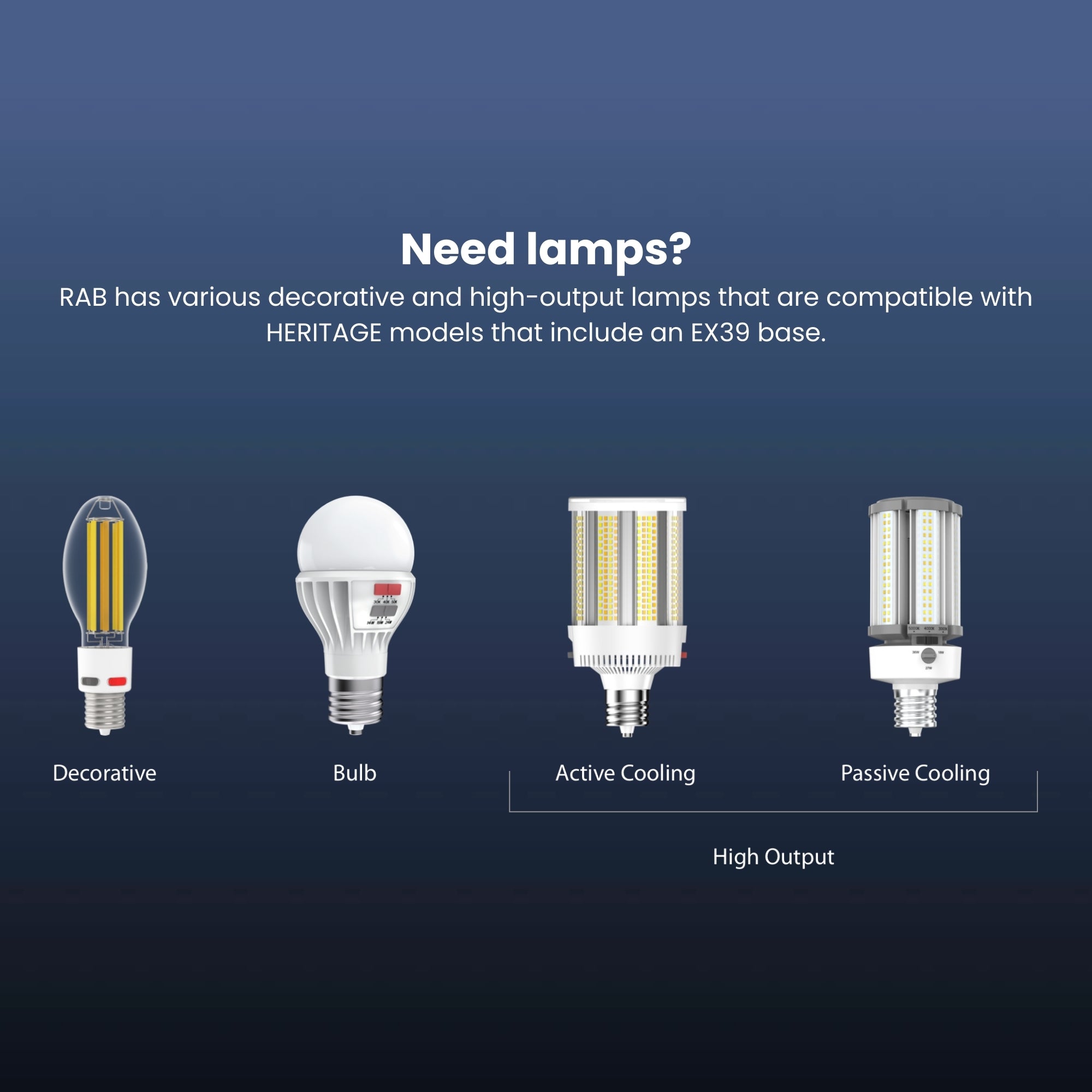

- EX39 Base: Accepts LED lamps up to 63W (250W MH equivalent) sold separately for flexible lamp selection
- Flexible Lamp Selection: Upgrade as technology advances without replacing the entire fixture
- Selectable Distribution: Type V/Type III (default Type V) for flexible outdoor lighting applications
- Integrated Photocell: On/off photocell included with switch (120/277V twistlock photocells sold separately)
- Polycarbonate Lens: Impact-resistant lens for reliable performance
Shipping & Returns
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. (Exclusions apply for oversized & commercial items). We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. (Exclusions: Special orders, clearance, and custom items).
We process payments securely and do not store credit card information.
Description
Description
Experience premium decorative outdoor lighting with the genuine RAB HTGL-SB heritage post top lantern in black. This versatile decorative lantern features an EX39 base that accepts separately sold LED lamps up to 250W MH equivalent, combining classic heritage styling with flexible lamp selection for a customizable outdoor lighting solution that pairs perfectly with traditional and contemporary architecture.
RAB HTGL-SB Features
- EX39 Base: Accepts LED lamps up to 63W (250W MH equivalent) sold separately for flexible lamp selection
- Selectable Distribution: Type V/Type III (default Type V) for flexible outdoor lighting applications
- Black Finish: Durable black powder coat resists corrosion for long-lasting decorative appeal
- Integrated Photocell: On/off photocell included with switch (default off, 120/277V twistlock photocells sold separately)
- High Performance: Supports high-output LED lamps for bright, energy-efficient post top light performance
- UL Listed: Certified for safety and quality standards
- Durable Construction: Die-cast aluminum housing with IP65 and IK08 ratings for outdoor durability
- Polycarbonate Lens: Impact-resistant lens for reliable performance
RAB HTGL-SB Applications
- Roadways: Type III distribution projects light outward for effective roadway illumination
- General Parking: Type III distribution creates larger pools of light when positioned near area edges
- Parking Lots: Type V distribution delivers wide, uniform 360° coverage for large parking areas

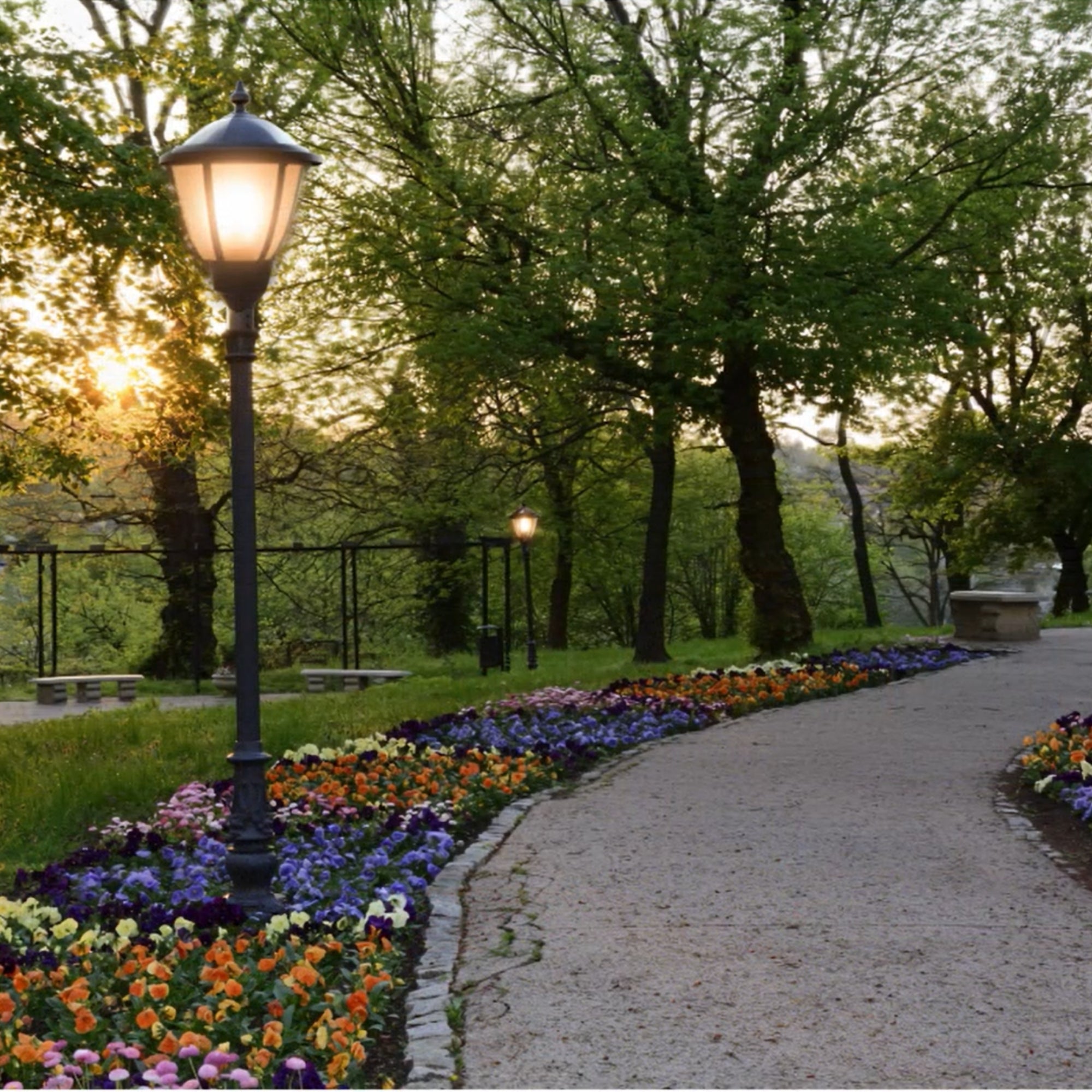

- Pathways: Type V distribution provides consistent illumination along pedestrian routes

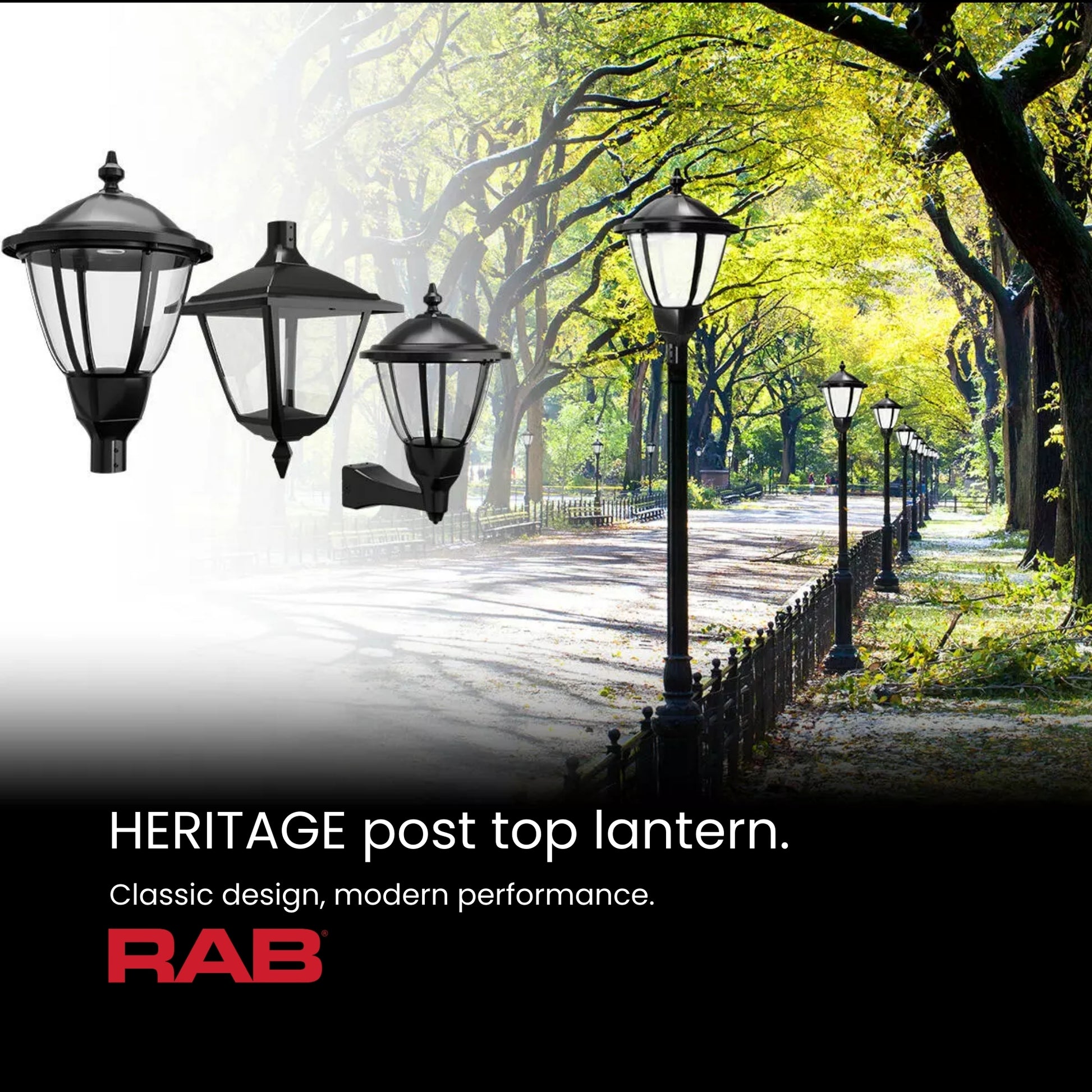

- Municipal Streetscapes: Decorative heritage styling for downtown areas and public spaces
- Commercial Properties: Retail centers, office complexes, and business districts
- Campus Lighting: Educational institutions, medical facilities, and corporate campuses
RAB HTGL-SB Specifications
- Brand: RAB Lighting
- Collection: Heritage Post Top Lantern
- Model Number: HTGL-SB
- SKU: HTGL-SB
- Color/Finish: Black

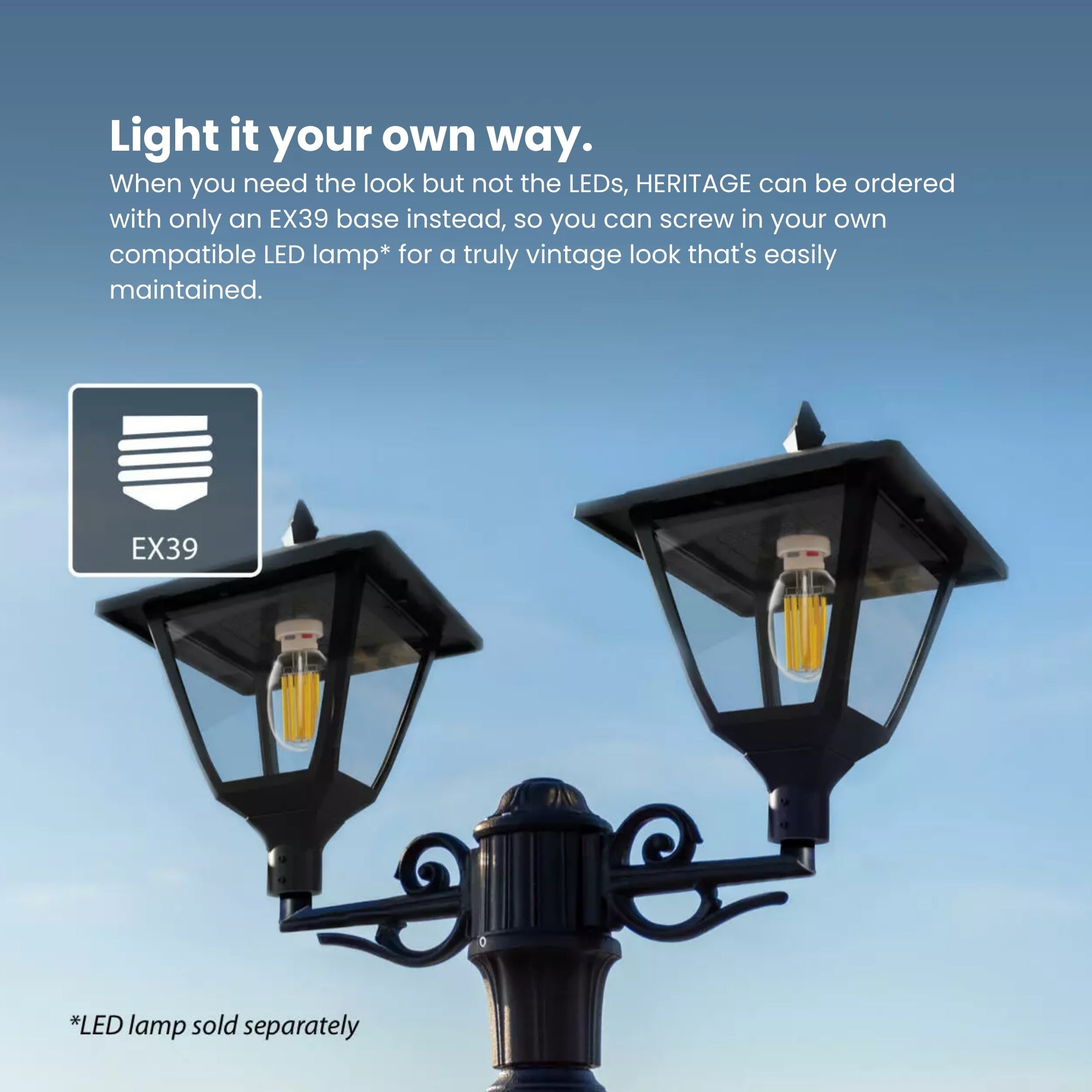

- Base Type: EX39 (LED lamp sold separately)
- Max Wattage: 63W LED (250W MH equivalent)
- Distribution: Type V/Type III (field-selectable, default Type V)
- Voltage: 120-277V

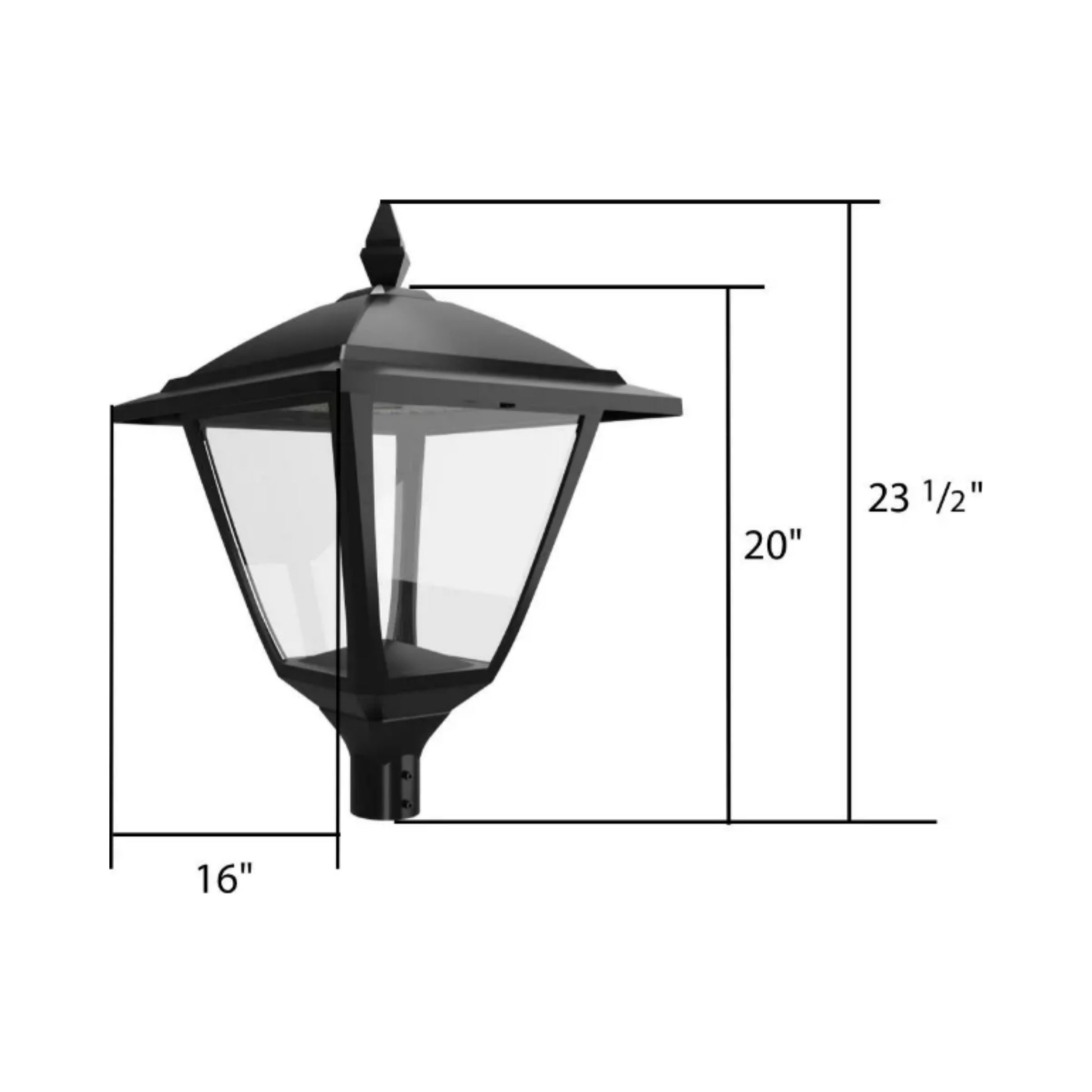

- Shape: Square decorative lantern
- Weight: 9.55 lbs
- IP Rating: IP65 (dust and water resistant)
- IK Rating: IK08 (impact resistant)
- Operating Temperature: -40°F to 104°F
- Mounting: Pole mount
- Warranty: 5-year limited
Why Choose This Heritage Post Top Lantern
EX39 base provides flexibility to choose your preferred LED lamp and upgrade as technology advances without replacing the entire fixture. Selectable Type V/III distribution adapts to different outdoor lighting applications, while IP65/IK08 ratings ensure reliable performance from -40°F to 104°F. Classic black finish and traditional lantern design enhance property appeal, all backed by a 5-year warranty.
Why Buy From Us
Authorized RAB Lighting dealer offering genuine products with full warranty support, expert technical assistance, competitive pricing, and fast shipping on commercial-grade outdoor lighting.
Specifications
Specifications
Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Frequently Asked Questions
What is a "Shoebox" light fixture?
What is a "Shoebox" light fixture?
A "shoebox" light refers to the physical shape of the fixture housing, which is typically rectangular and box-like. This design allows for effective thermal management (heat sinking) of the LED components and houses the drivers and optics efficiently. It is the most common form factor for modern LED area lights.
How do I choose the right mounting bracket?
How do I choose the right mounting bracket?
Slipfitter: Use this if you have a round pole or tenon (2 3/8" diameter) and need to angle the light.
Direct Arm: Use this for square poles where you want the light to point straight down/out.
Trunnion: Use this for mounting on walls, roofs, or wood poles where you need an adjustable bracket.
What wattage LED do I need to replace a 400W Metal Halide?
What wattage LED do I need to replace a 400W Metal Halide?
Generally, a 100W to 150W LED area light can replace a standard 400W Metal Halide fixture. Always check the lumen output; you are typically looking for 12,000 to 18,000 lumens to match the effective light output of a 400W HID lamp.

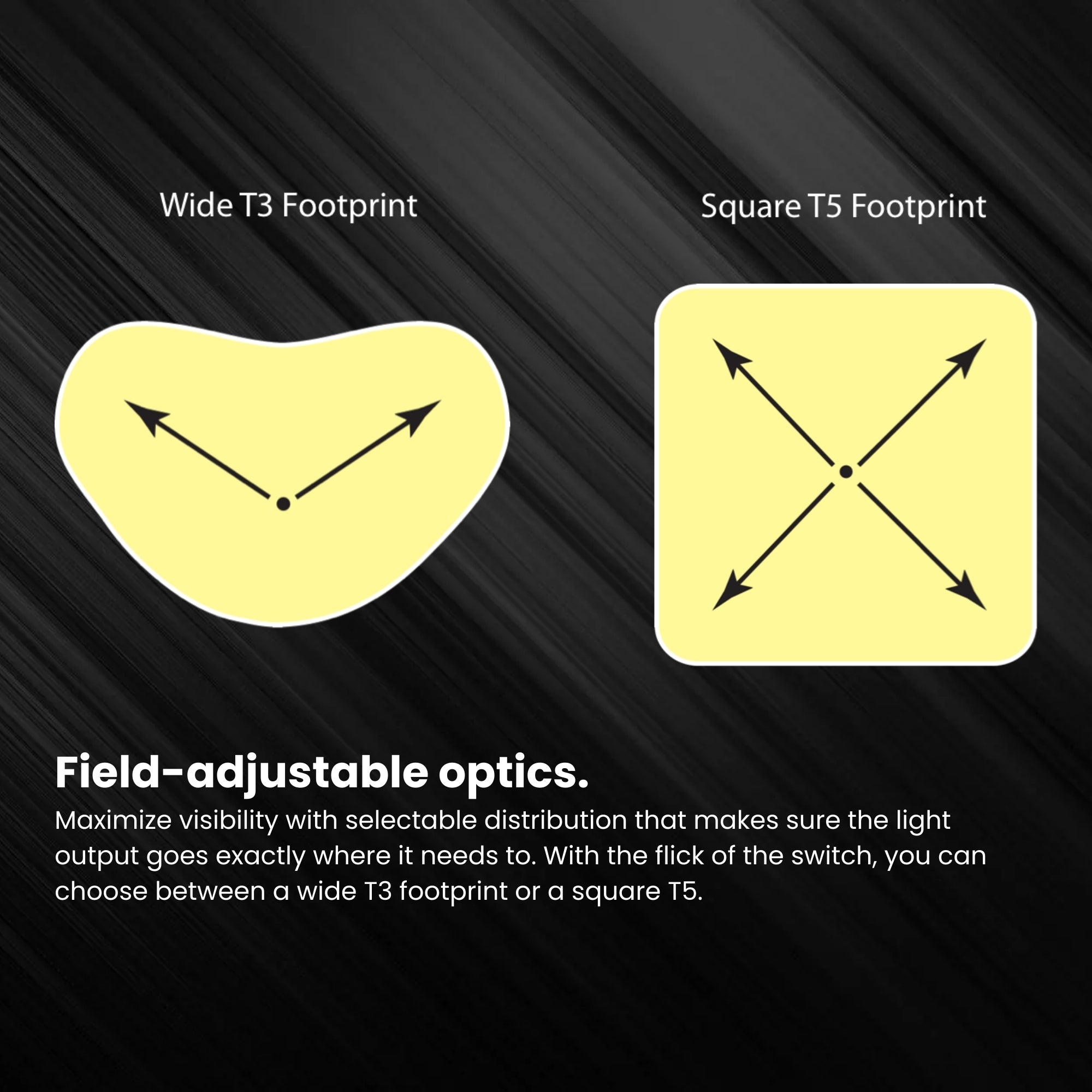

What is the difference between Type III and Type V light distribution?
What is the difference between Type III and Type V light distribution?
Type III: Throws light forward and to the sides (wide throw). This is ideal for perimeter poles or roadways where you don't want light spilling behind the pole.
Type V: Distributes light in a full 360-degree circle (square pattern). This is perfect for the center of large open areas where you need light in all directions.
Are these lights dimmable?
Are these lights dimmable?
Yes, most commercial LED pole lights come with 0-10V dimming drivers standard. This allows them to be used with compatible dimmers or smart control systems to lower light levels during off-peak hours for additional energy savings.
