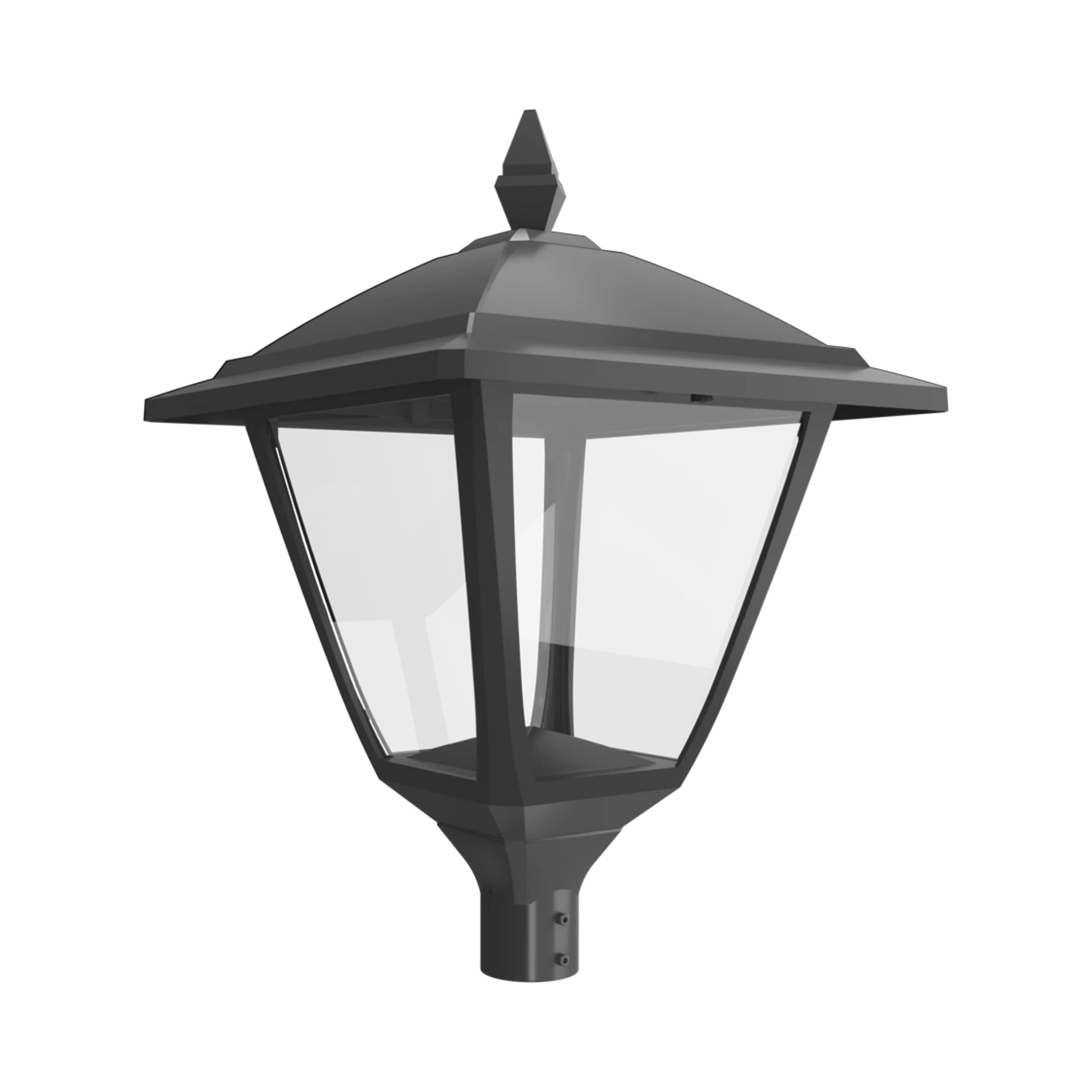

RAB Heritage HTGL-S Decorative Lantern — EX39 Mogul Base, 120-277V

The RAB HTGL-S is a square-shaped decorative lantern from the Heritage series designed for high-end site lighting requiring an EX39 mogul base. This bronze fixture features field-adjustable Type III, IV, and V optics and operates on universal 120-277V. Rated IP65 and IK08, it provides a durable, TAA compliant solution for municipal, campus, and retail environments at Bees Lighting.

Key Features

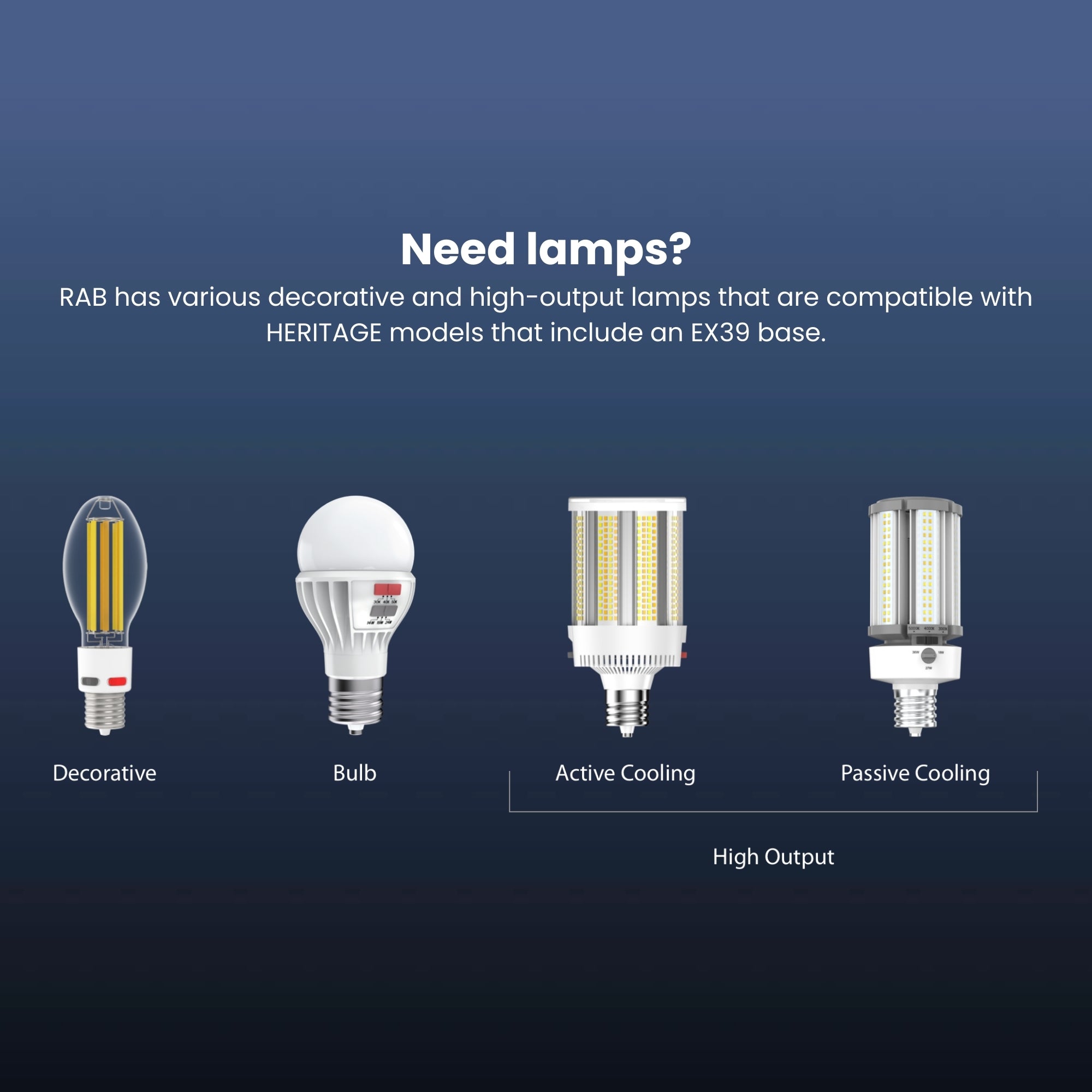

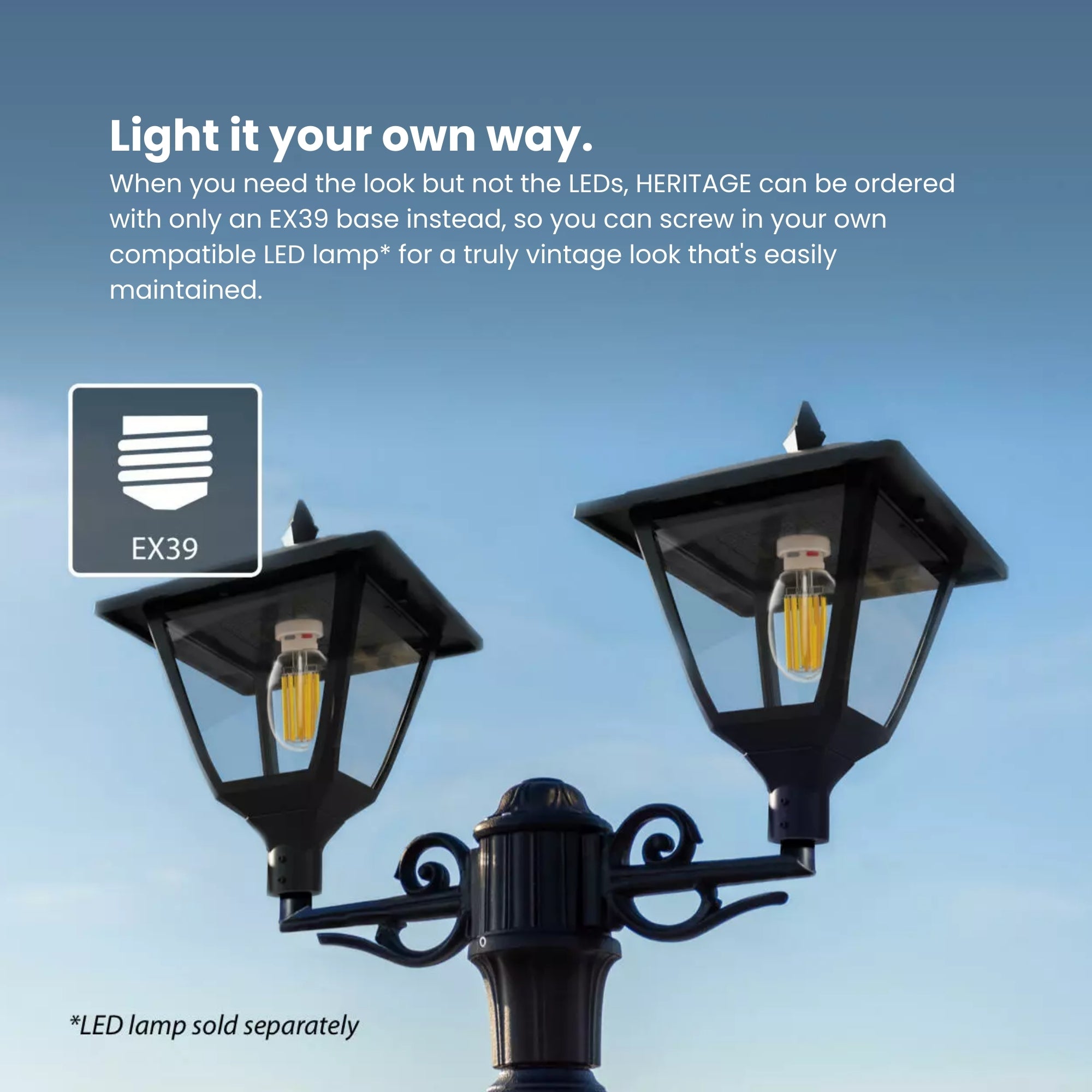

• EX39 Mogul Base: Designed for use with HID-bypass LED lamps (lamp not included).

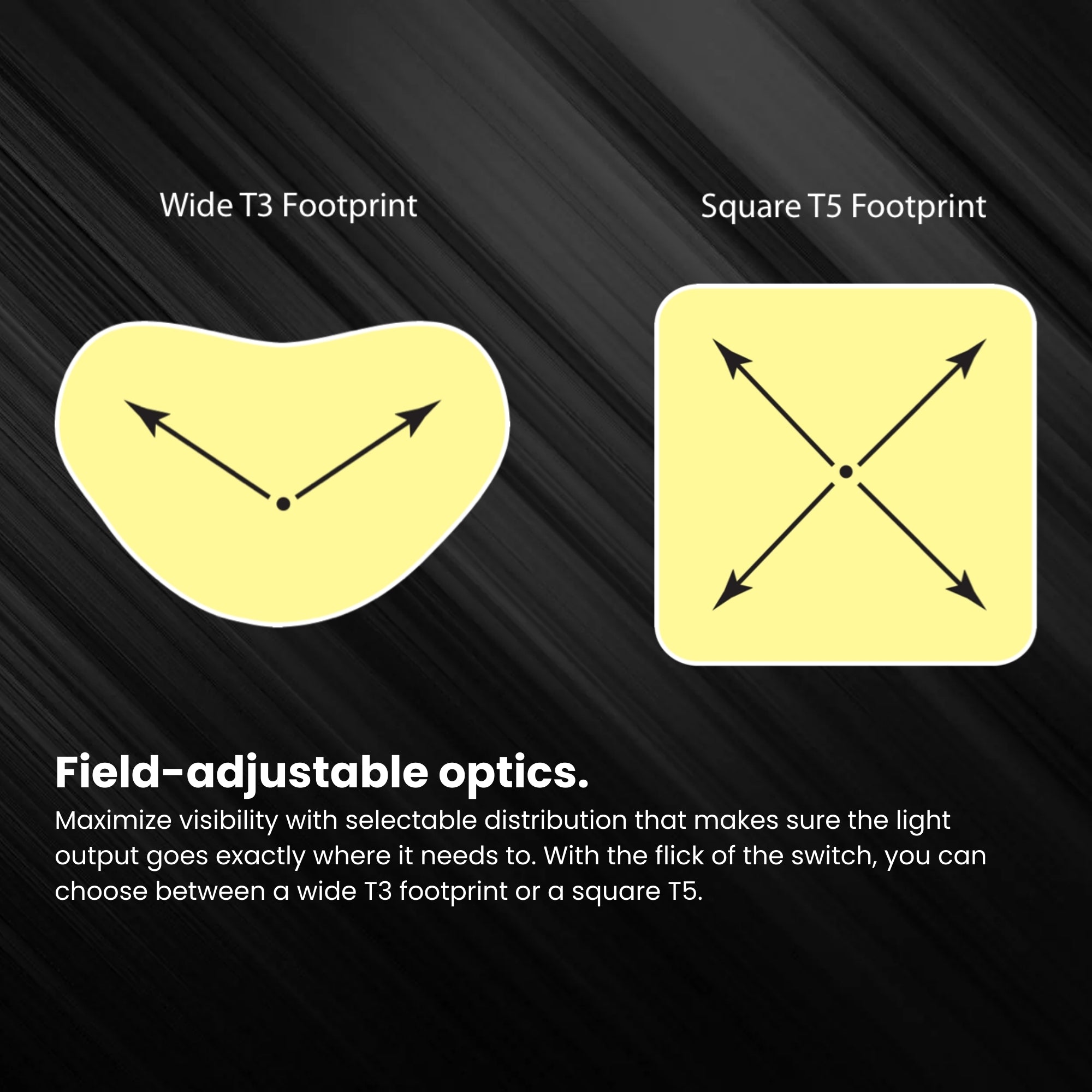

• Adjustable Optics: Field-selectable Type III, Type IV, or Type V light distributions.
• Wattage Compatibility: Supports lamps up to 63W HID or 250W Metal Halide equivalency.
• TAA Compliant: Meets Trade Agreements Act requirements for government projects.
• IP65 Rated: Dust-tight and protected against water ingress for outdoor reliability.
• IK08 Impact Rating: High-level protection against mechanical impact and vandalism.
• UL Listed: Suitable for wet locations and outdoor commercial use.
• Universal Voltage: Compatible with standard 120-277V commercial electrical systems.
• Die-Cast Aluminum: Rugged housing material for superior thermal management.
• Durable Finish: Formulated for high durability and long-lasting bronze color.

Typical Applications

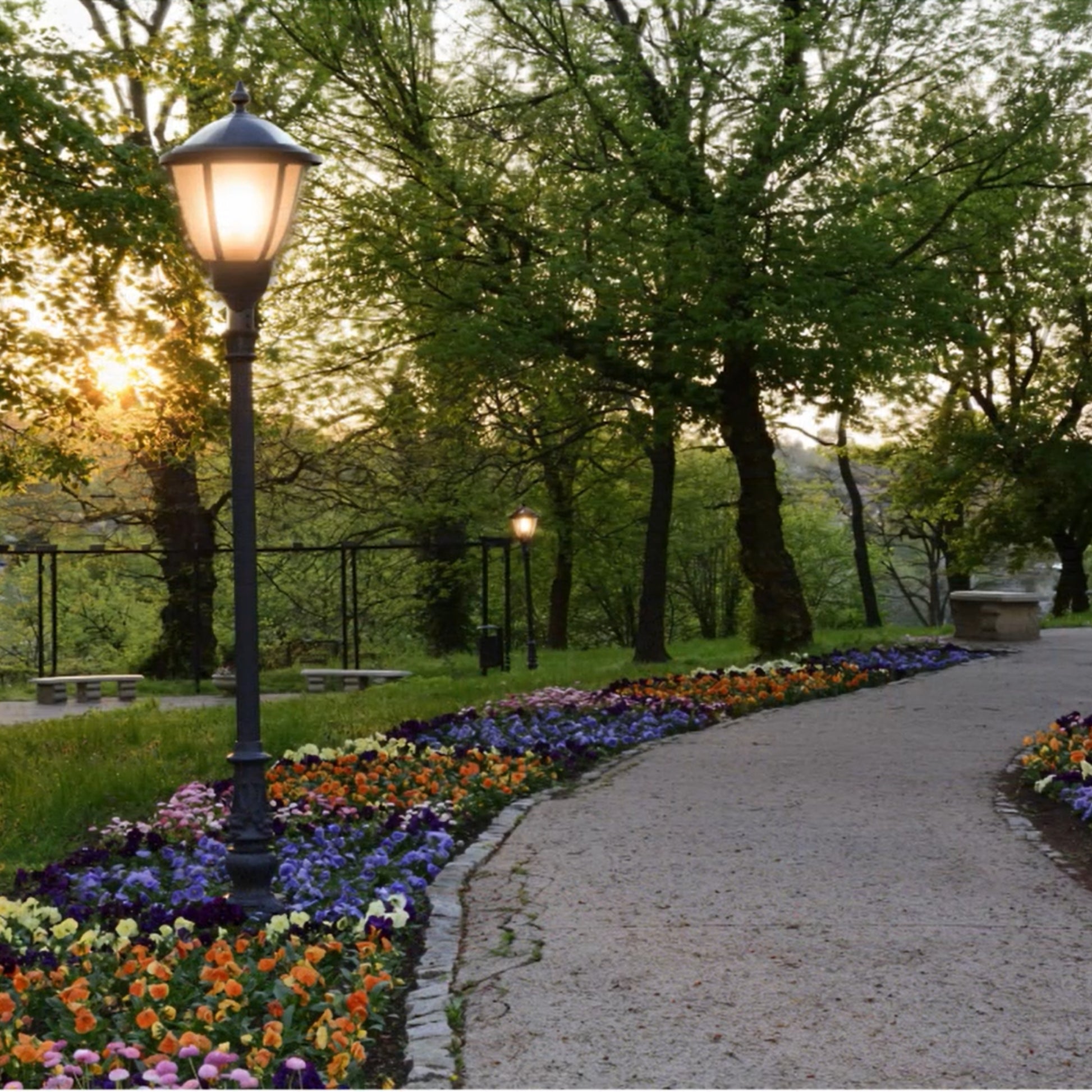

• Municipal Parks and Walkways
• Corporate and Educational Campuses
• Retail Shopping Centers
• Hospitality Perimeter Lighting
• Upscale Residential Developments
• Government and Public Facilities
• Main Street Beautification Projects

Performance & Light Output

The HTGL-S serves as a high-performance housing for EX39 base lamps, replacing up to 250W Metal Halide systems. The field-adjustable Type III, IV, or V distribution allows contractors to tailor the light spread to specific site needs, such as forward throw for perimeters or uniform patterns for open areas.

Electrical & Controls

Designed for 120-277V operation at 50/60Hz, this fixture is optimized for HID-bypass LED lamps to ensure high electrical stability and efficiency. For automated control, the fixture is compatible with optional 3-pin twistlock photocells (sold separately) to provide reliable dusk-to-dawn operation in commercial environments.

Construction & Durability

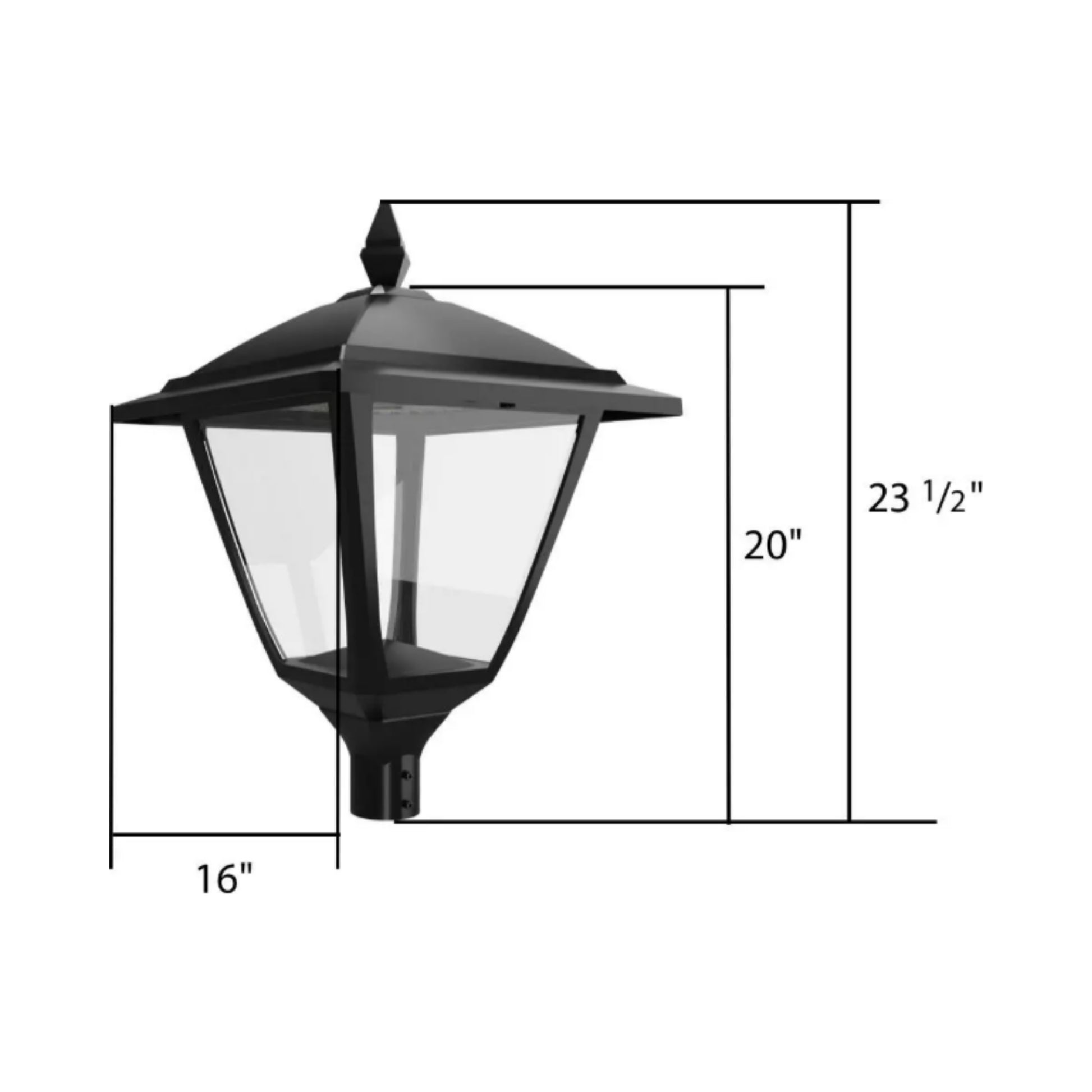

Constructed from die-cast aluminum with a UV-resistant polycarbonate lens, the unit features an IP65 rating for dust and water resistance. It is IK08 rated for impact protection and utilizes high-temperature silicone gaskets. The aerodynamic square design has an Effective Projected Area (EPA) of 0.9.

Installation & Mounting

This Heritage series lantern includes a universal pole adapter for secure mounting to standard poles. The fixture is also compatible with optional pendant or wall mount accessories. All hardware is engineered to maintain a weather-tight UL Wet Location rated seal during field installation.

What’s Included

• HTGL-S Decorative Lantern Fixture
• EX39 Mogul Base
• Universal Pole Adapter
• Installation Hardware
