RAB HTGL-RB Heritage Decorative Lantern — EX39 Mogul Base, 120-277V

The HTGL-RB is a round decorative lantern from the Heritage series featuring a black finish and an EX39 mogul base. Operating on 120-277V, this fixture supports up to 250W MH equivalency and offers field-adjustable Type III, IV, and V optics. Rated IP65 and IK08, it provides a durable, TAA compliant solution for high-end municipal and commercial site lighting at Bees Lighting.

Key Features

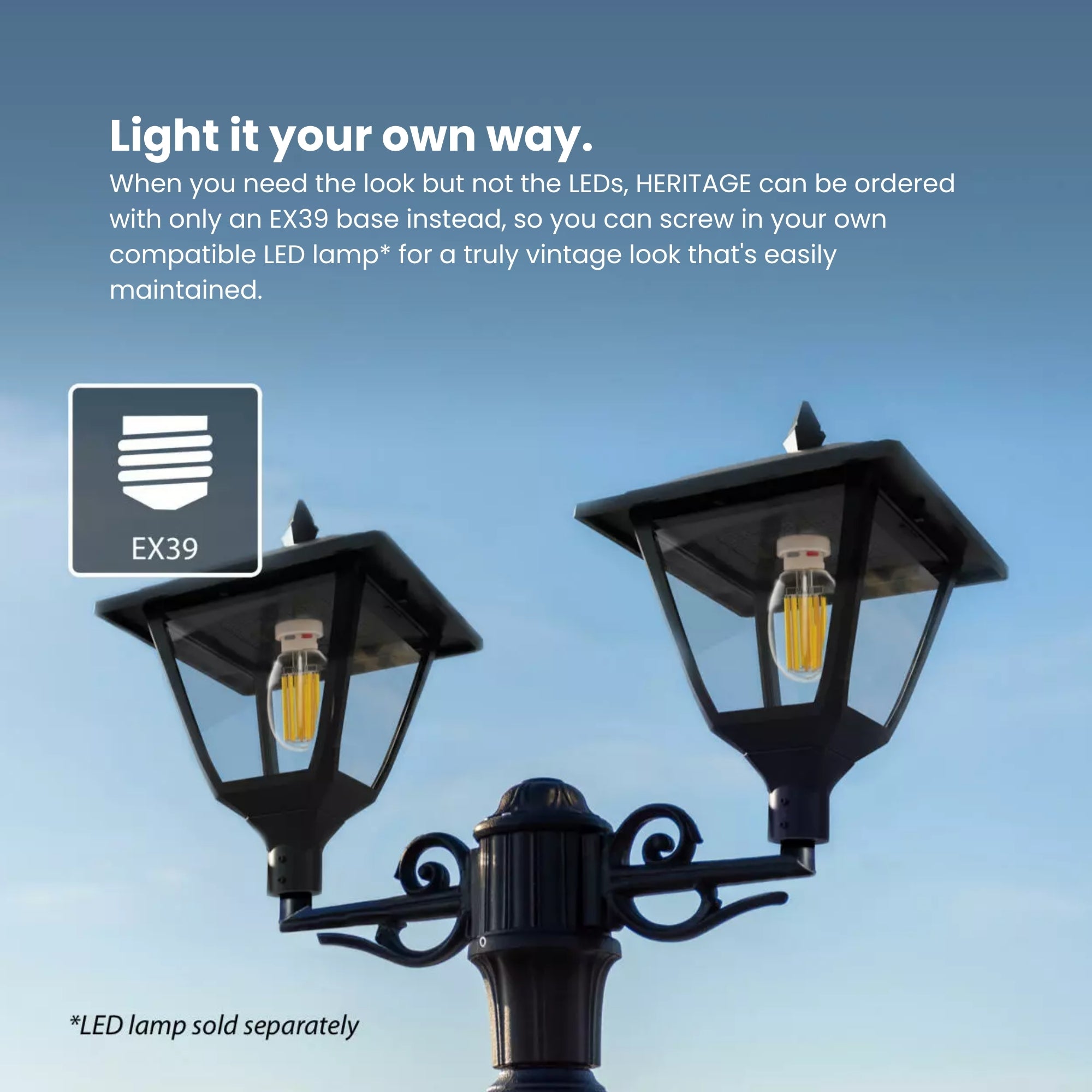

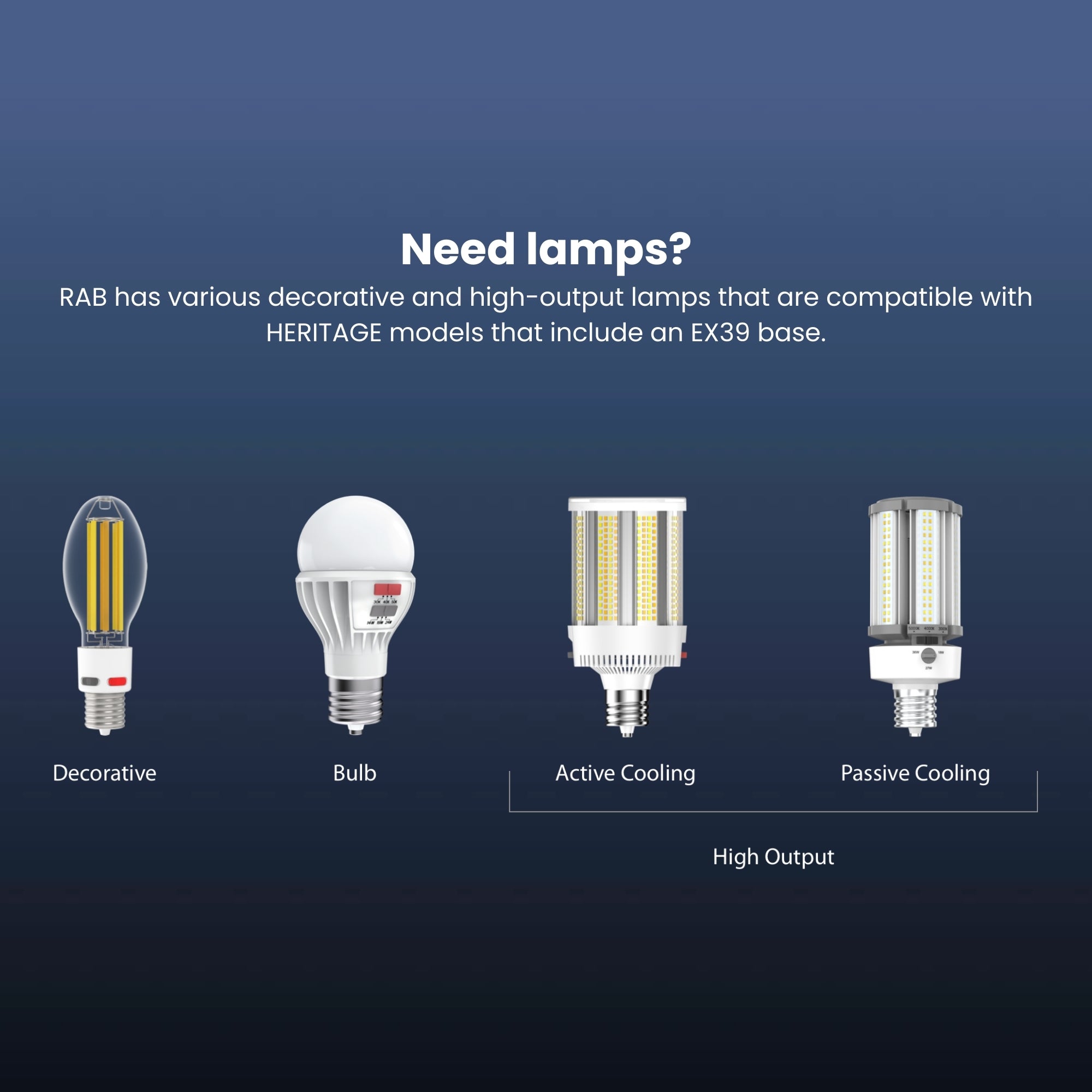

• EX39 Mogul Base: Designed for high-performance HID-bypass LED lamps.
• Adjustable Optics: Field-selectable Type III, Type IV, or Type V light distributions.
• TAA Compliant: Manufactured in Cambodia to meet federal procurement requirements.
• IP65 Rated: Dust-tight and protected against water ingress for outdoor durability.
• IK08 Impact Rating: High-level protection against mechanical impact and vandalism.
• Universal Voltage: Standard 120-277V driver for commercial electrical systems.
• Pole Mount Adapter: Includes a universal adapter for secure installation to poles.
• Die-Cast Aluminum: Rugged housing material ensures superior thermal management.
• Polycarbonate Lens: Durable clear lens standard for impact resistance.
• Surge Protection: Integrated electrical defense for long-term stability.

Typical Applications

• Municipal Parks and Walkways
• Corporate and Educational Campuses
• Retail Shopping Centers
• Main Street Beautification Projects
• Hospitality Perimeter Lighting
• Government and Public Facilities
• Upscale Residential Developments

Performance & Light Output

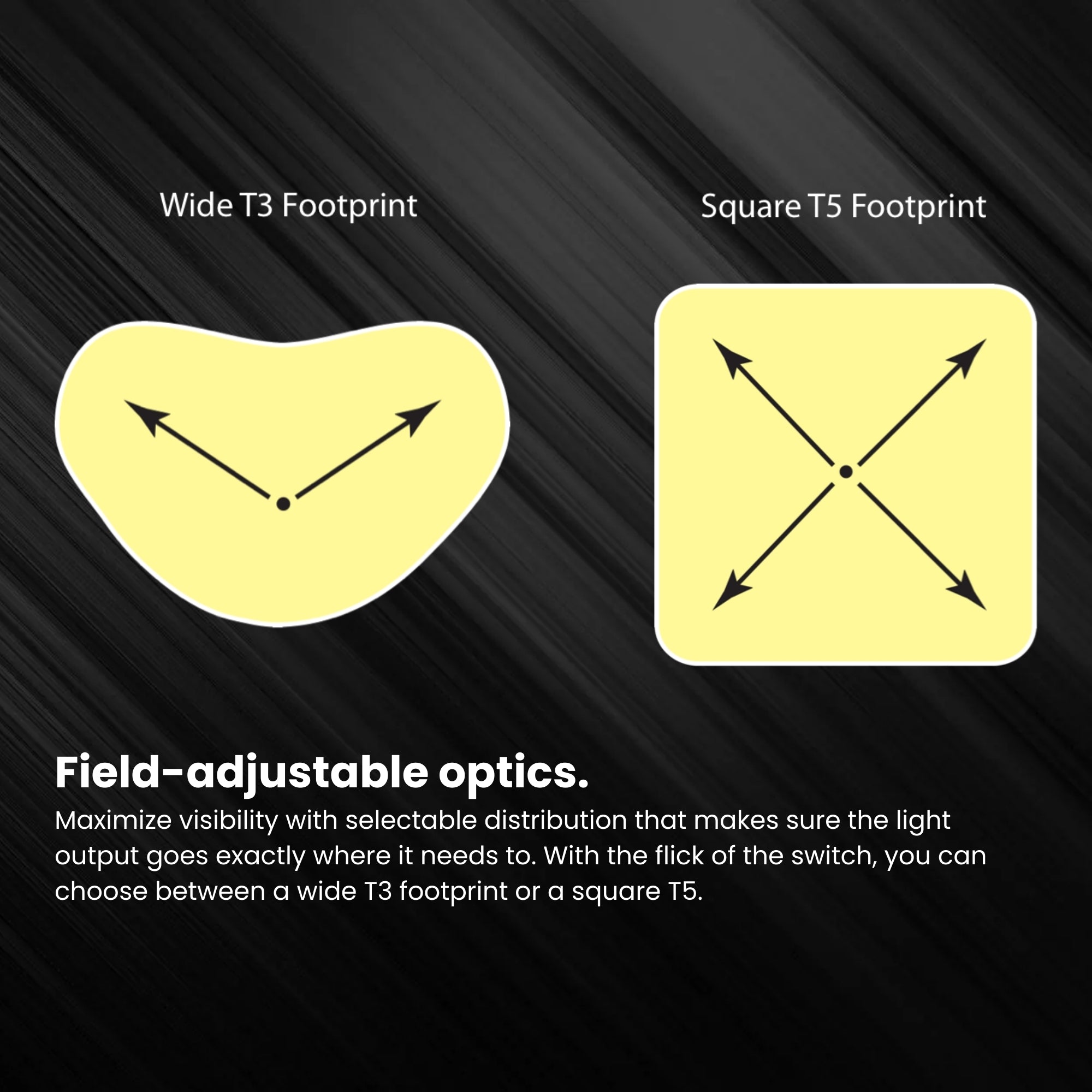

The HTGL-RB serves as a high-performance housing for EX39 base lamps, replacing legacy systems up to 250W Metal Halide. The field-adjustable Type III, IV, or V distribution allows contractors to choose between forward-throw, lateral, or 360-degree light patterns to suit specific site layouts. Precision-engineered optics ensure uniform light spread while maintaining a 100,000-hour rated lifespan.

Electrical & Controls

Designed for 120-277V operation at 50/60Hz, this fixture includes a Class 1 constant current driver. It is optimized for HID-bypass LED lamps and features an integrated on/off photocell for automated control. The electrical system maintains a high power factor of >0.9 and is compatible with standard commercial control strategies.

Construction & Durability

Constructed from die-cast aluminum with high-temperature silicone gaskets, the unit is IP65 rated for environmental protection. It is IK08 rated for impact resistance and finished with a durable polyester powder coat for long-lasting black color. The aerodynamic round design features an Effective Projected Area (EPA) of 0.7 and operates from -40°C to 40°C.

Installation & Mounting

The HTGL-RB includes a universal pole adapter as the standard mounting method. The fixture is also compatible with optional pendant or wall mount accessories, allowing for architectural flexibility across different site types. All hardware is engineered to maintain a weather-tight UL Wet Location rated seal throughout its service life.

What’s Included

• Heritage Round Decorative Lantern
• Universal Pole Adapter
• Integrated On/Off Photocell
• EX39 Mogul Base
• Installation Hardware
