RAB Heritage HTG-SB Square Decorative Lantern 15,401LM 120W Selectable 30K/40K/50K 120-277V Black
Available in stock (100)
About this item
About this item
- 15,401 Max Lumens: High-efficacy selectable output of 120W / 100W / 80W / 60W for precision site tuning

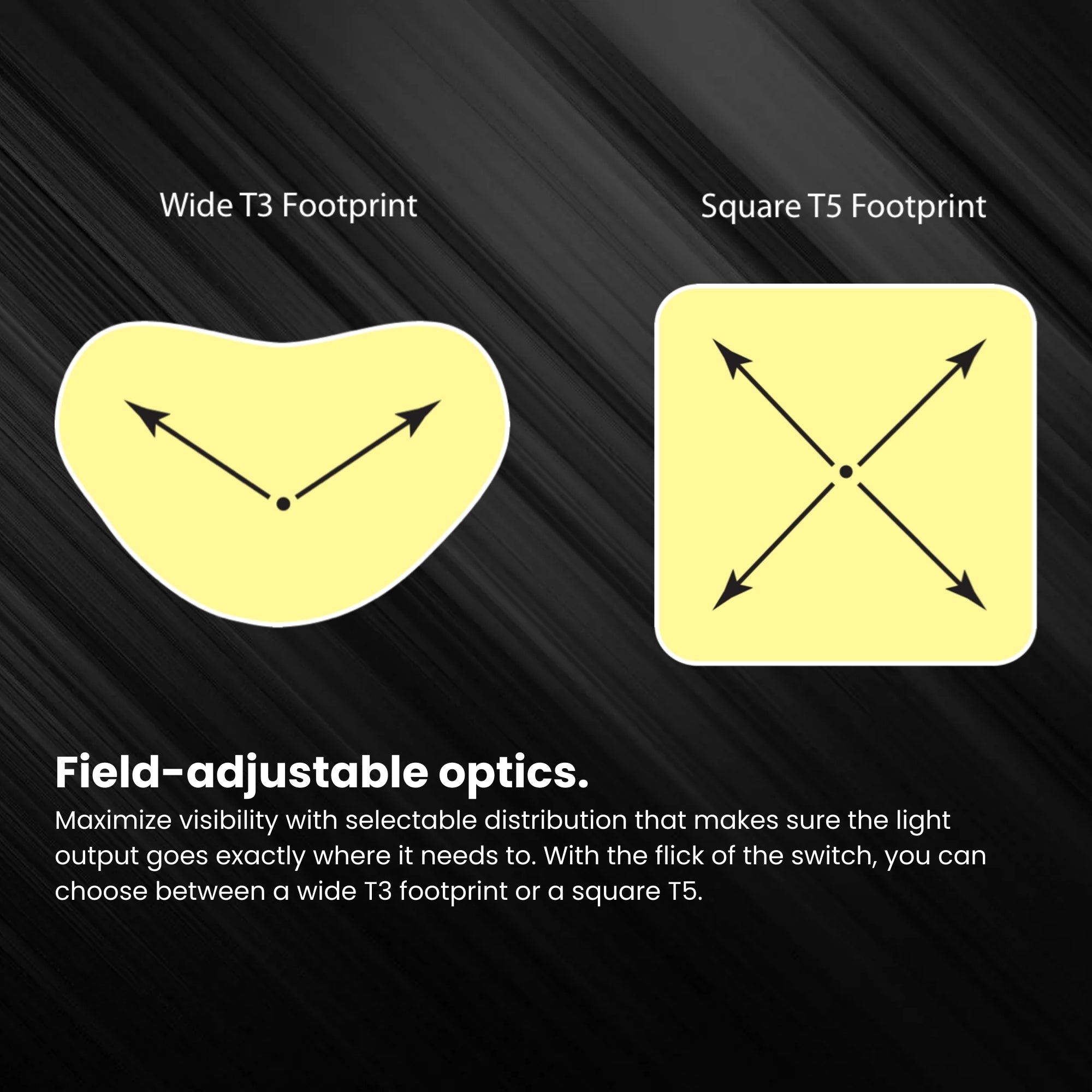

- Adjustable Optics: Field-selectable Type III or Type V distribution patterns for versatile site coverage
- Universal 120-277V: Commercial-grade multi-volt driver with standard 0-10V dimming capability
- Integrated Photocell: Standard on/off photocell switch allows for immediate automated control
- IP65 & TAA Compliant: Maximum environmental sealing and eligibility for government and federal contracts
We process payments securely and do not store credit card information.
Description
Description

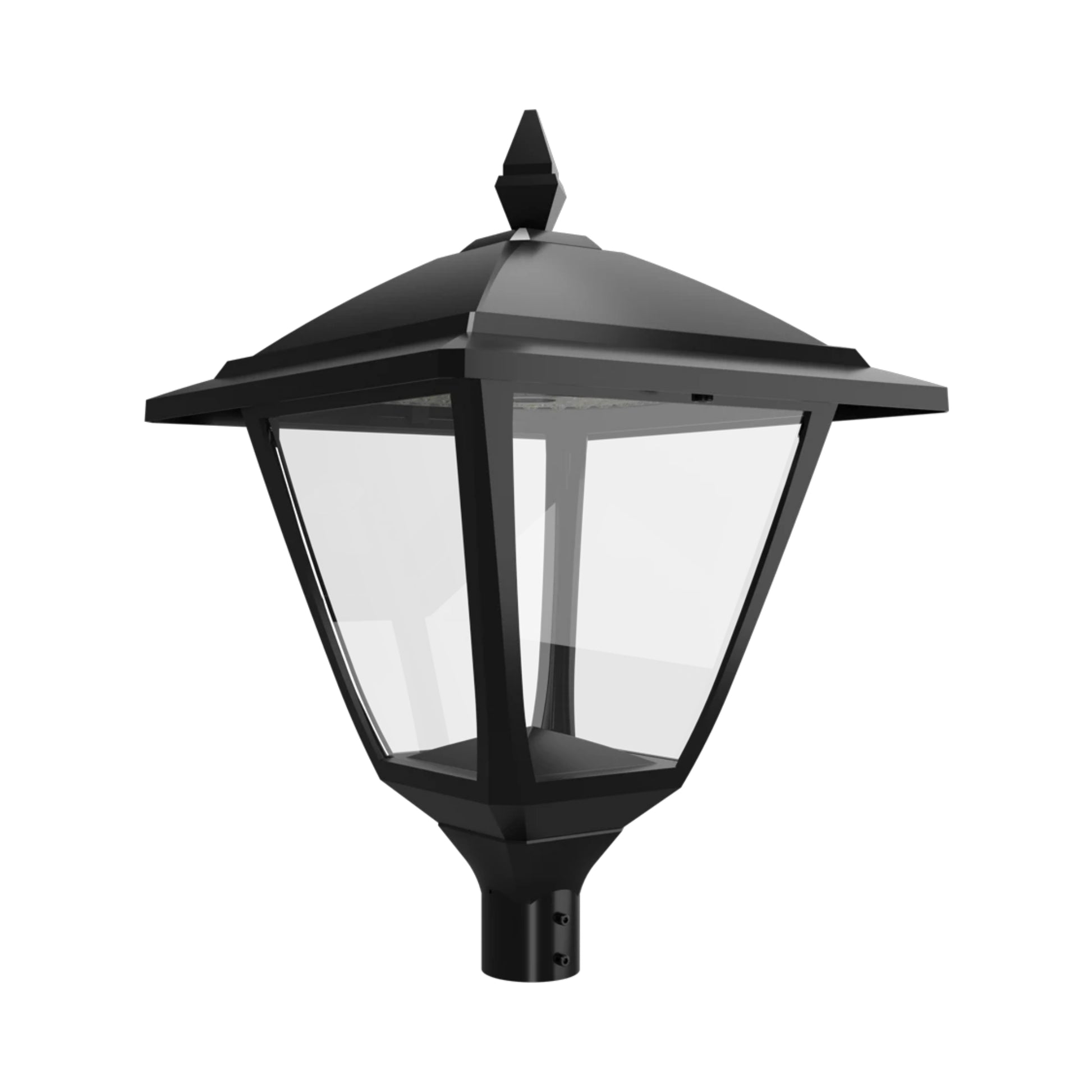

RAB HTG-SB Heritage Square Decorative Lantern — 120W Selectable, 120-277V
The HTG-SB is a square decorative lantern delivering up to 15,401 lumens with selectable 120W power and 30K/40K/50K color temperatures. Operating on 120-277V, this fixture is IP65 and IK08 rated for high-efficiency site lighting. It is DLC Premium listed and TAA compliant for municipal and commercial applications.
Key Features
- Field-Adjustable Wattage: Select between 120W, 100W, 80W, or 60W power settings
- Field-Adjustable CCT: Choose 3000K, 4000K, or 5000K color temperatures
- Selectable Distribution: Integrated Type III and Type V selectable optics
- High Output: Delivers up to 15,401 lumens for superior visibility
- High Efficacy: Reaches up to 143.8 lm/W performance
- Integrated Photocell: Pre-installed on/off photocell with manual switch
- Universal Voltage: Standard 120-277V commercial driver
- Impact Protection: IK08 rated for resistance against mechanical impact
- Ingress Protection: IP65 rated against dust and water entry
- Standard Dimming: 0-10V dimmable down to 10%
- DLC Premium: Qualified for maximum utility rebate eligibility
- TAA Compliant: Suitable for government and municipal contracts
Typical Applications

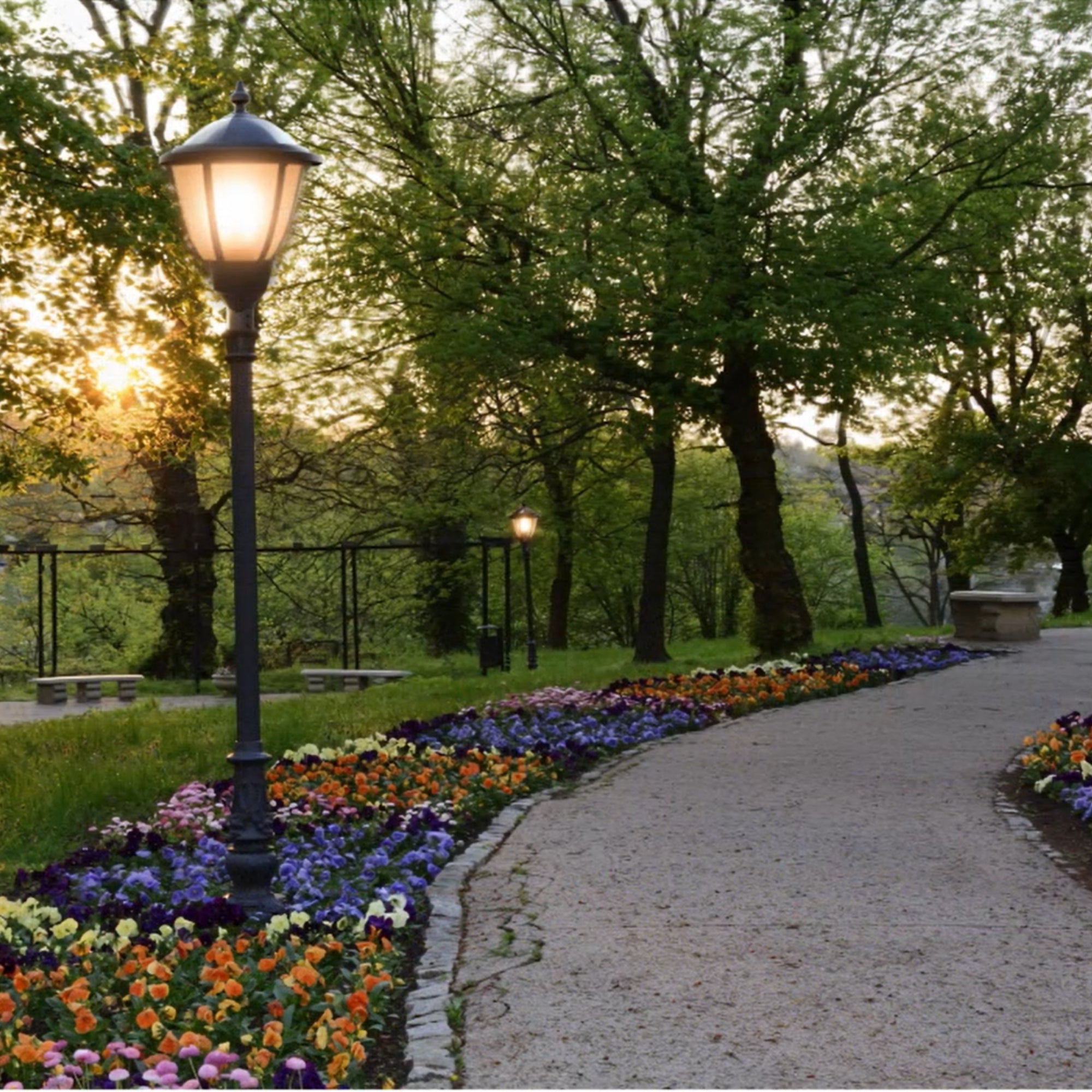

- Municipal Parks and Walkways
- Educational and Corporate Campuses
- Retail Shopping Centers
- Main Street Beautification Projects
- Hospitality Perimeter Lighting
- Government and Public Facilities
- Commercial Site Entrances
Performance & Light Output
This fixture provides a maximum 15,401 lumens with an efficacy of 143.8 lm/W. It maintains high color accuracy with an 82-86 CRI and is L70 rated for a 100,000-hour lifespan. The Type III and Type V selectable optics allow for precision light patterns in both perimeter and open area applications.
Electrical & Controls
Operating on a universal 120-277V at 50/60Hz, the system includes 0-10V dimming and an integrated on/off photocell. It features a constant current driver with a power factor of 99.8% at 120V. Advanced control options like 7-pin receptacles and microwave sensors are available for networked integration.
Construction & Durability
Constructed with die-cast aluminum and a polycarbonate lens, the housing is finished in a durable black powder coat. It is IP65 rated for environmental protection and IK08 rated for impact resistance. The aerodynamic square design features an EPA of 0.9 and operates from -40°C to 40°C.
Installation & Mounting
The HTG-SB includes a universal pole adapter as the standard mounting method for commercial site lighting. It is also compatible with optional pendant and wall mount accessories to meet diverse architectural requirements. All mounting hardware ensures a secure, UL Wet Location rated seal.
What’s Included
- HTG-SB Square LED Lantern
- Universal Pole Adapter
- Integrated On/Off Photocell
- Installation Hardware
Specifications
Specifications

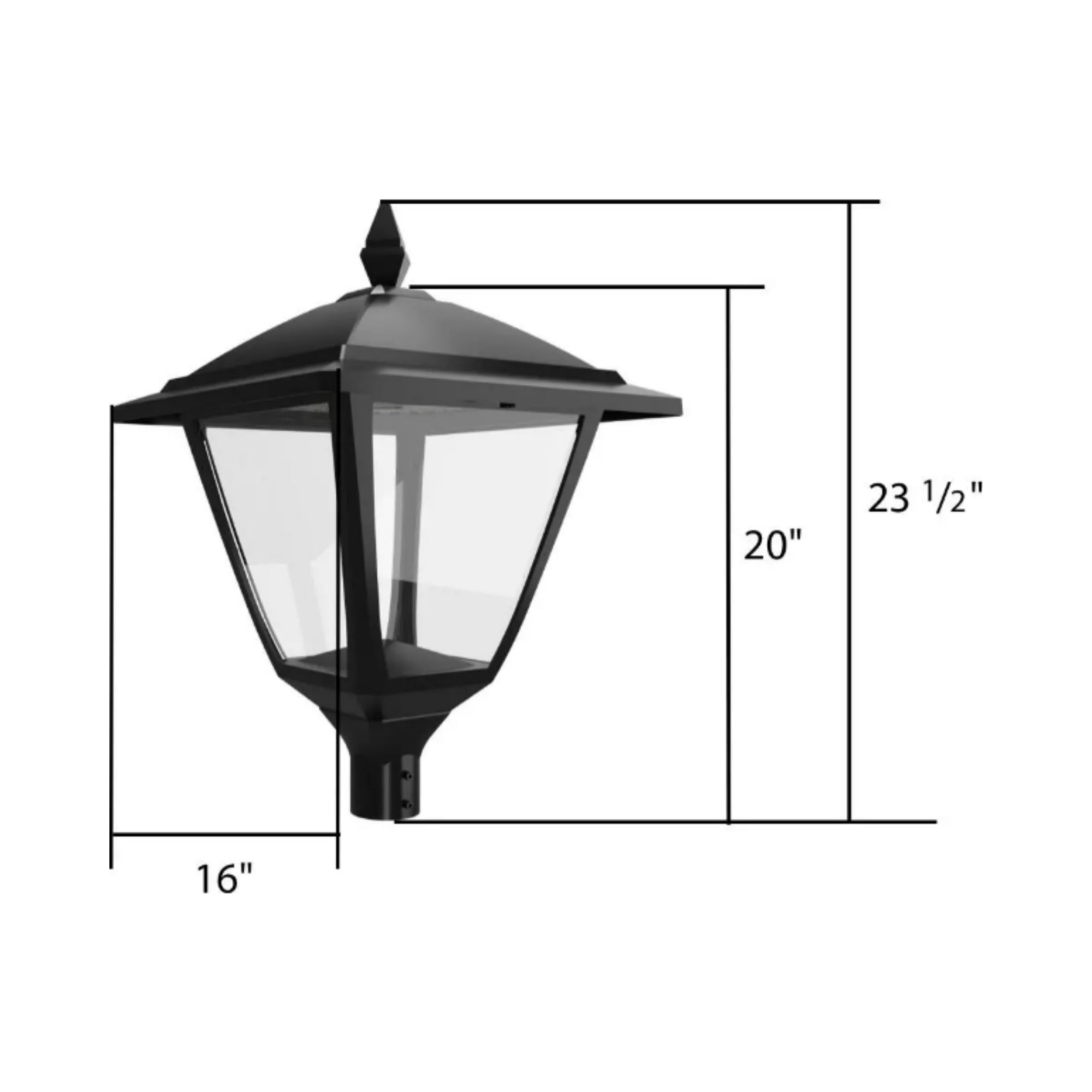

Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
How do I change the wattage and color temperature for the HTG-SB?
How do I change the wattage and color temperature for the HTG-SB?
Does this decorative lantern come with a photocell?
Does this decorative lantern come with a photocell?
What is the benefit of the Type III and Type V selectable optics?
What is the benefit of the Type III and Type V selectable optics?
Is this fixture durable enough for public spaces like parks?
Is this fixture durable enough for public spaces like parks?
What mounting options are available for this light?
What mounting options are available for this light?
