RAB Heritage HTG-S Square Decorative Lantern 15,401LM 120W Selectable 30K/40K/50K 120-277V Bronze
Available in stock (100)
About this item
About this item
- 15,401 Max Lumens: High-efficacy selectable output of 120W / 100W / 80W / 60W for precision site tuning

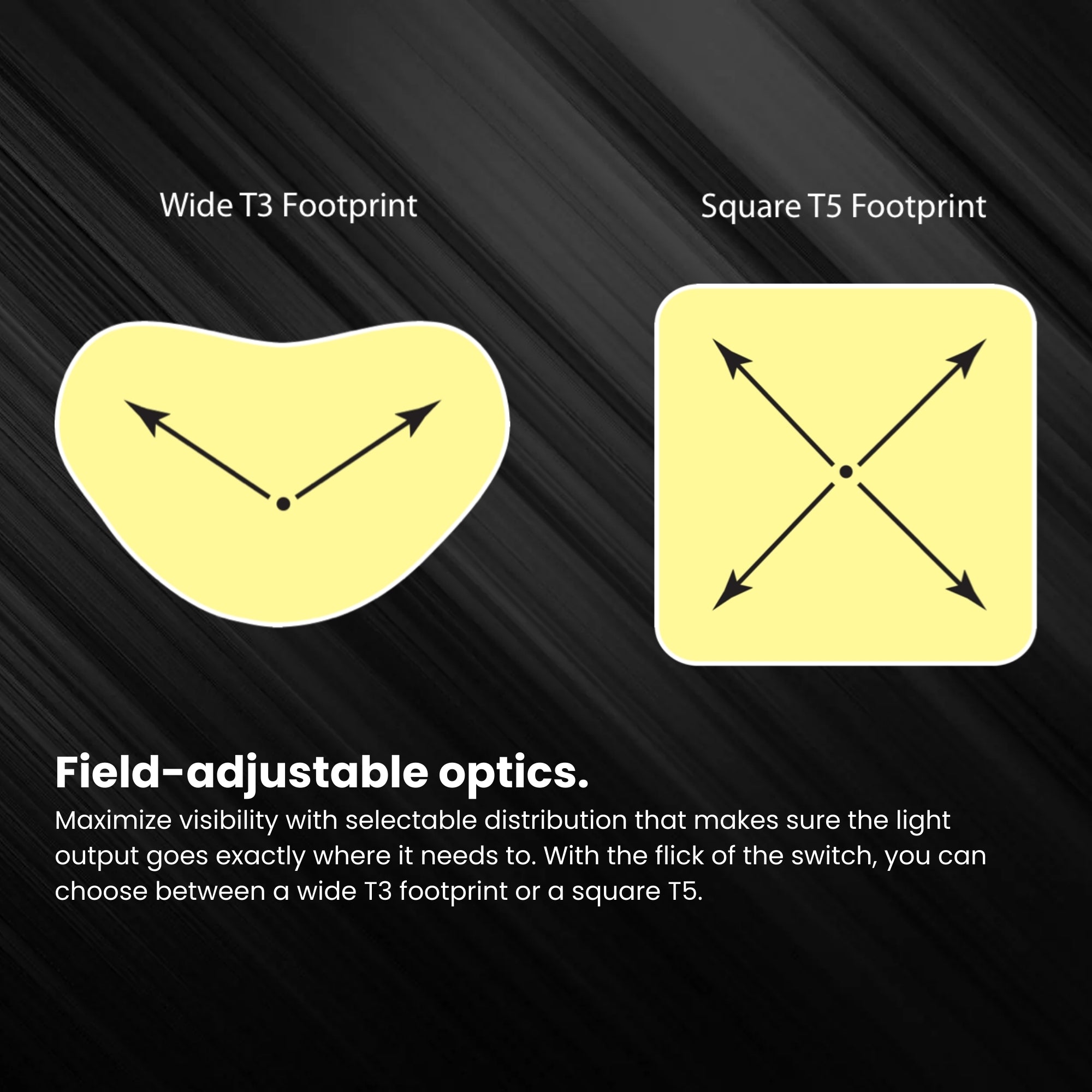

- Adjustable Optics: Field-selectable Type III or Type V distribution patterns for versatile site coverage
- Universal 120-277V: Commercial-grade multi-volt driver with standard 0-10V dimming capability
- Integrated Photocell: Standard on/off photocell switch allows for immediate automated dusk-to-dawn control
- IP65 & TAA Compliant: Maximum environmental sealing and eligibility for government and federal contracts
We process payments securely and do not store credit card information.
Description
Description

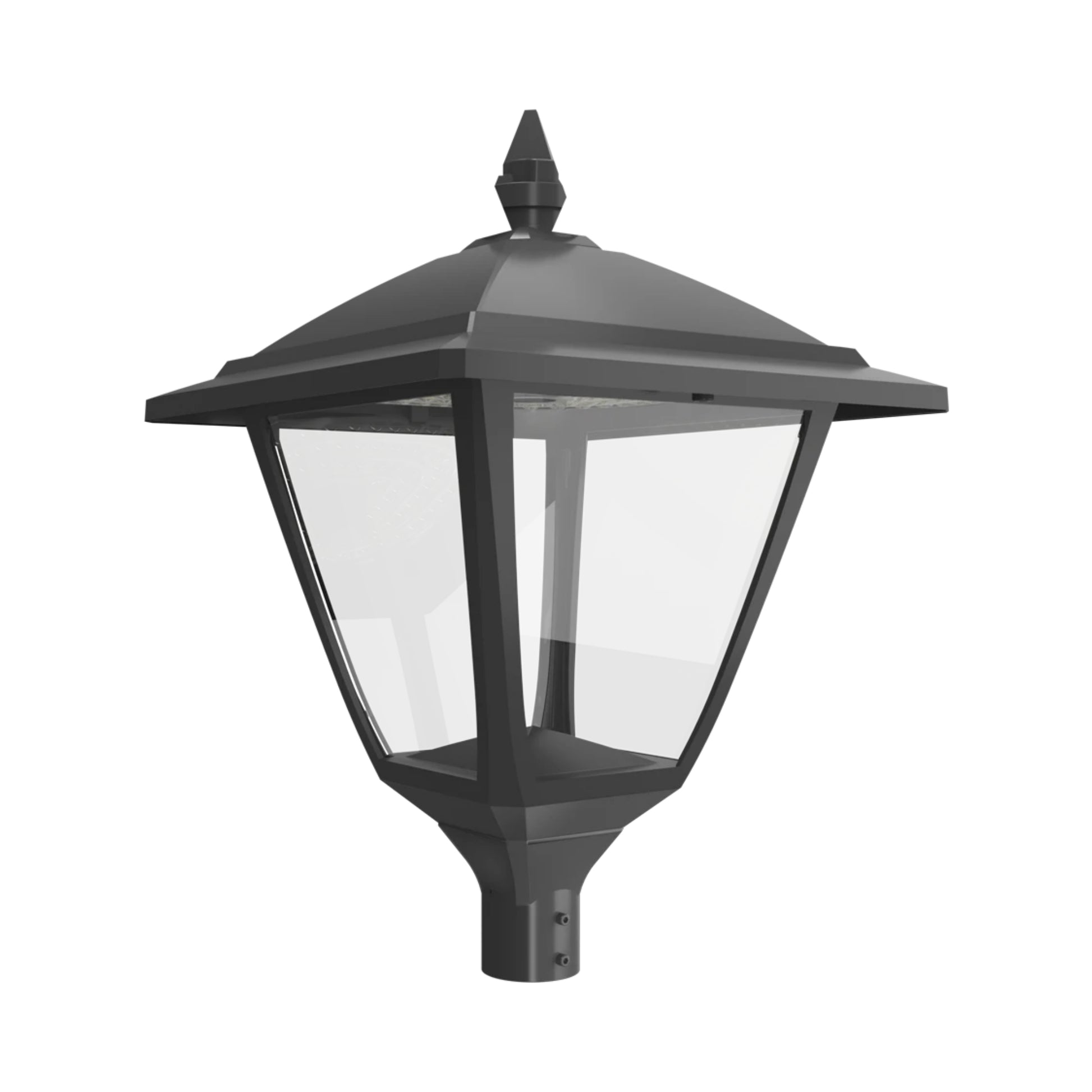

RAB Heritage HTG-S Square Decorative Lantern — 120W Selectable, 120-277V
The HTG-S is a square decorative lantern delivering up to 15,401 lumens with selectable 120W power and 30K/40K/50K color temperatures. Operating on 120-277V, this IP65 and IK08 rated fixture is DLC Premium listed for high-efficiency municipal and commercial site lighting.
Key Features
- Selectable Wattage: Field-adjustable 120W, 100W, 80W, or 60W
- Selectable CCT: Choose 3000K, 4000K, or 5000K color temperatures
- Selectable Distribution: Integrated Type III and Type V selectable optics
- High Efficacy: Reaches up to 143.8 lm/W for energy-efficient operation
- Integrated Photocell: Pre-installed on/off photocell with manual switch
- Impact Protection: IK08 rated for resistance against mechanical impact
- Ingress Protection: IP65 rated against dust and water entry
- Universal Voltage: Standard 120-277V commercial driver
- 0-10V Dimming: Driver dims down to 10%
- TAA Compliant: Suitable for government and municipal contracts

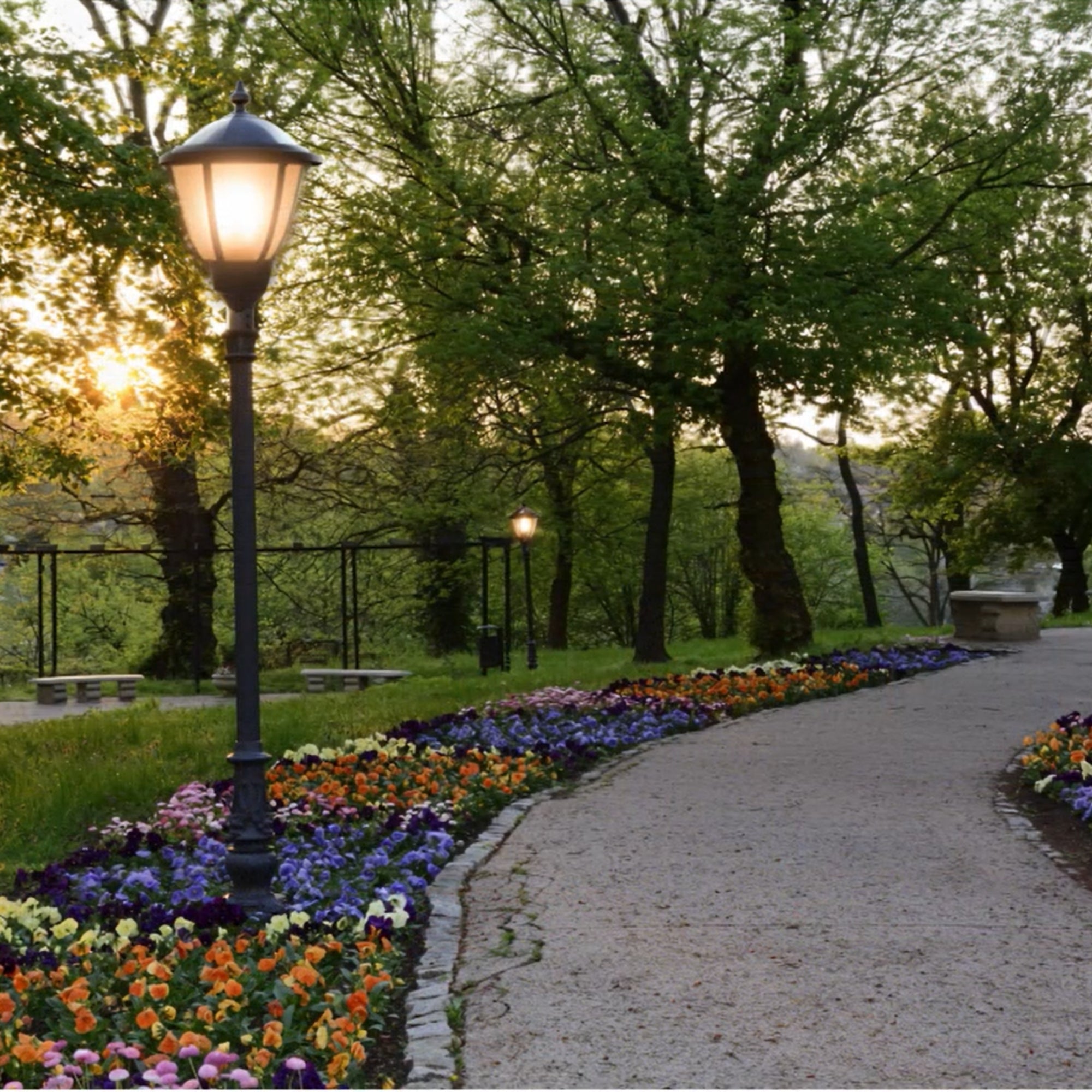

Typical Applications
- Municipal Parks and Walkways
- Educational and Corporate Campuses
- Retail Shopping Centers
- Main Street Beautification Projects
- Hospitality Perimeter Lighting
- Government and Public Facilities
Performance & Light Output
This fixture provides a maximum 15,401 lumens with a high color accuracy of 82-86 CRI. It is L70 rated for a 100,000-hour lifespan and is DLC Premium listed for top-tier energy savings. Field-adjustable Type III or Type V optics allow for precision light patterns in both perimeter and open area applications.
Electrical & Controls
The 120-277V system includes a 0-10V dimming driver and an integrated on/off photocell. It maintains a high electrical stability with a power factor of 99.8% at 120V. Advanced control options such as 7-pin receptacles and microwave sensors are available for networked integration.
Construction & Durability

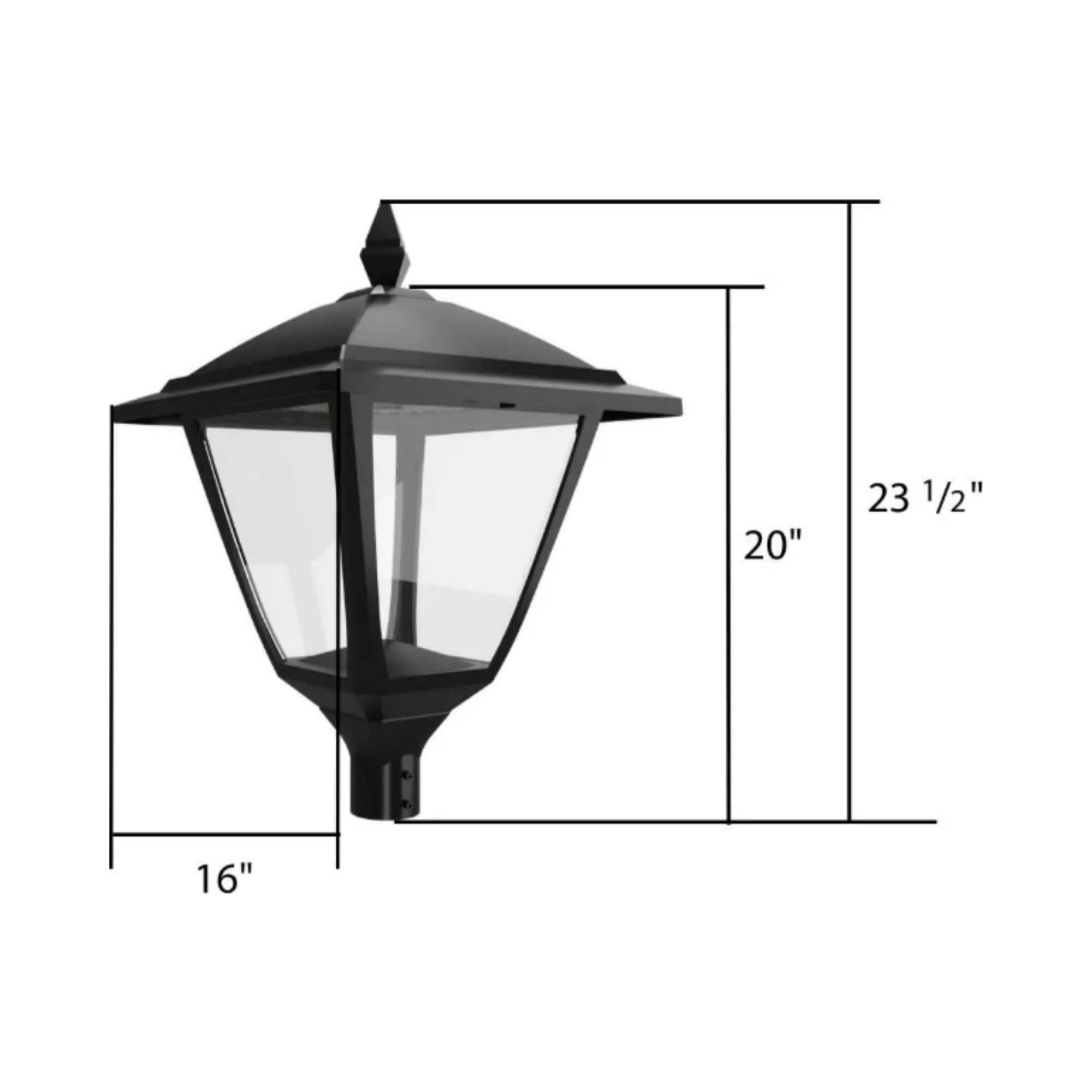

Built with a die-cast aluminum housing and polycarbonate lens, the unit is IP65 rated and IK08 impact rated. It utilizes high-temperature silicone gaskets and is finished in a durable bronze powder coat. The square design features an EPA of 0.9 and operates in temperatures ranging from -40°C to 40°C.
Installation & Mounting
The HTG-S includes a universal pole adapter as the standard mounting method for commercial site lighting. It is also compatible with optional pendant and wall mount accessories to match diverse architectural requirements. All mounting hardware ensures a secure, UL Wet Location rated seal.
What’s Included
- Heritage Square LED Lantern
- Universal Pole Adapter
- Integrated On/Off Photocell
- Installation Hardware
