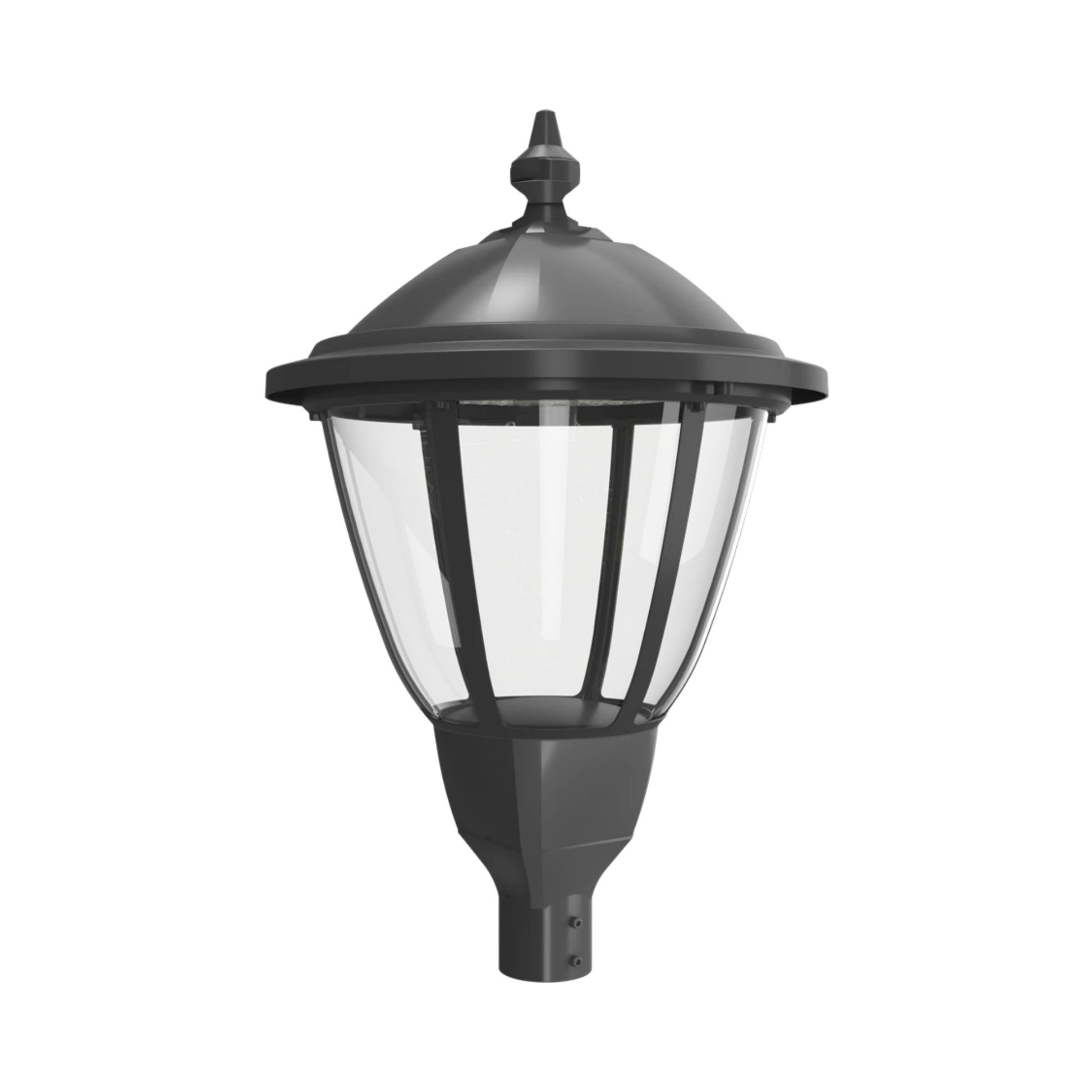

RAB HTG-R Heritage Round Decorative Lantern — 120W Selectable, 120-277V

The HTG-R is a round decorative lantern delivering up to 15,274 lumens with field-selectable 120W wattage and 30K/40K/50K color temperatures. Operating on a universal 120-277V driver, this IP65 and IK08 rated fixture is TAA compliant and DLC Premium listed for high-efficiency municipal and commercial site applications.

Key Features

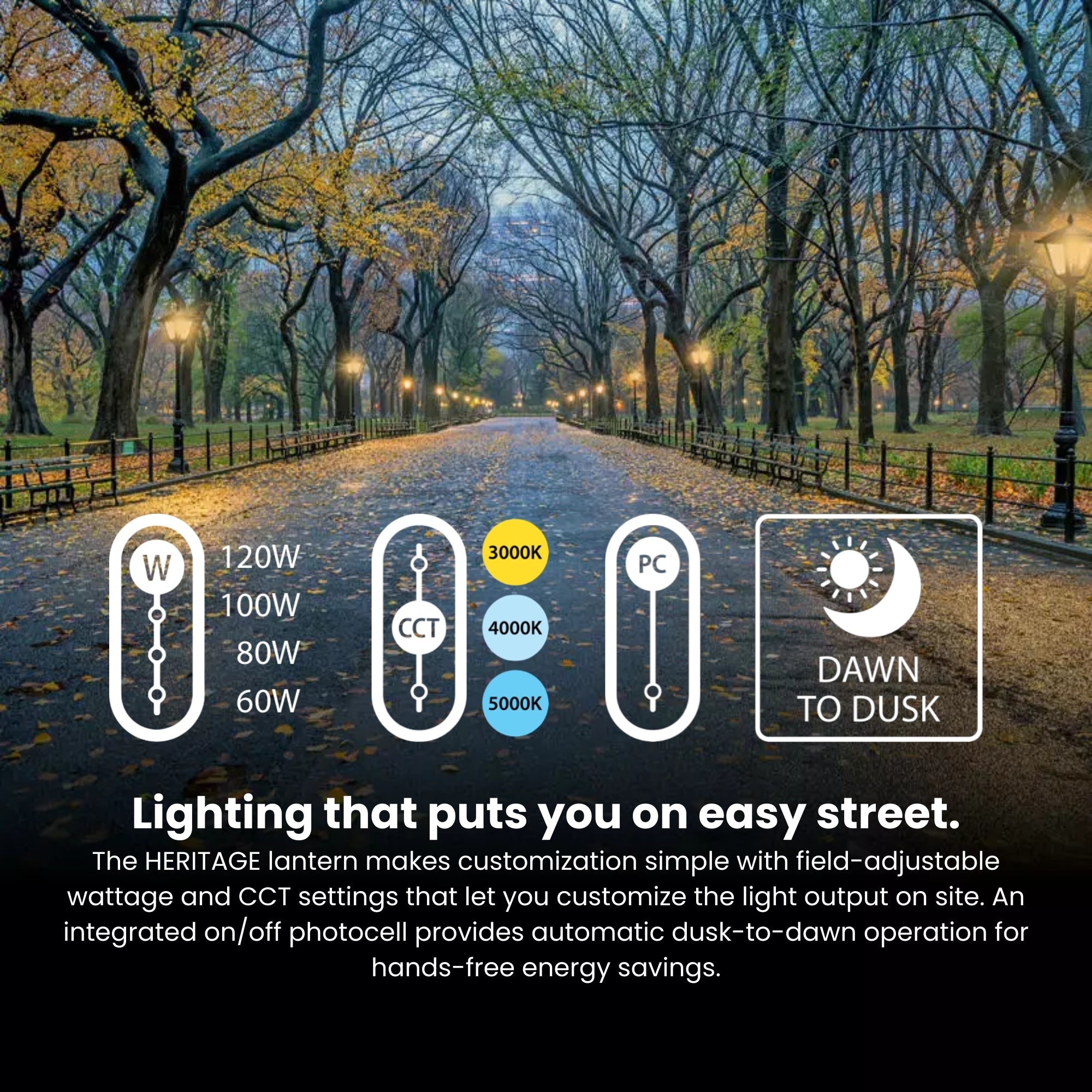

• Field-Adjustable Wattage: Select between 120W, 100W, 80W, or 60W power settings.
• Field-Adjustable CCT: Selectable 3000K, 4000K, or 5000K color temperatures.

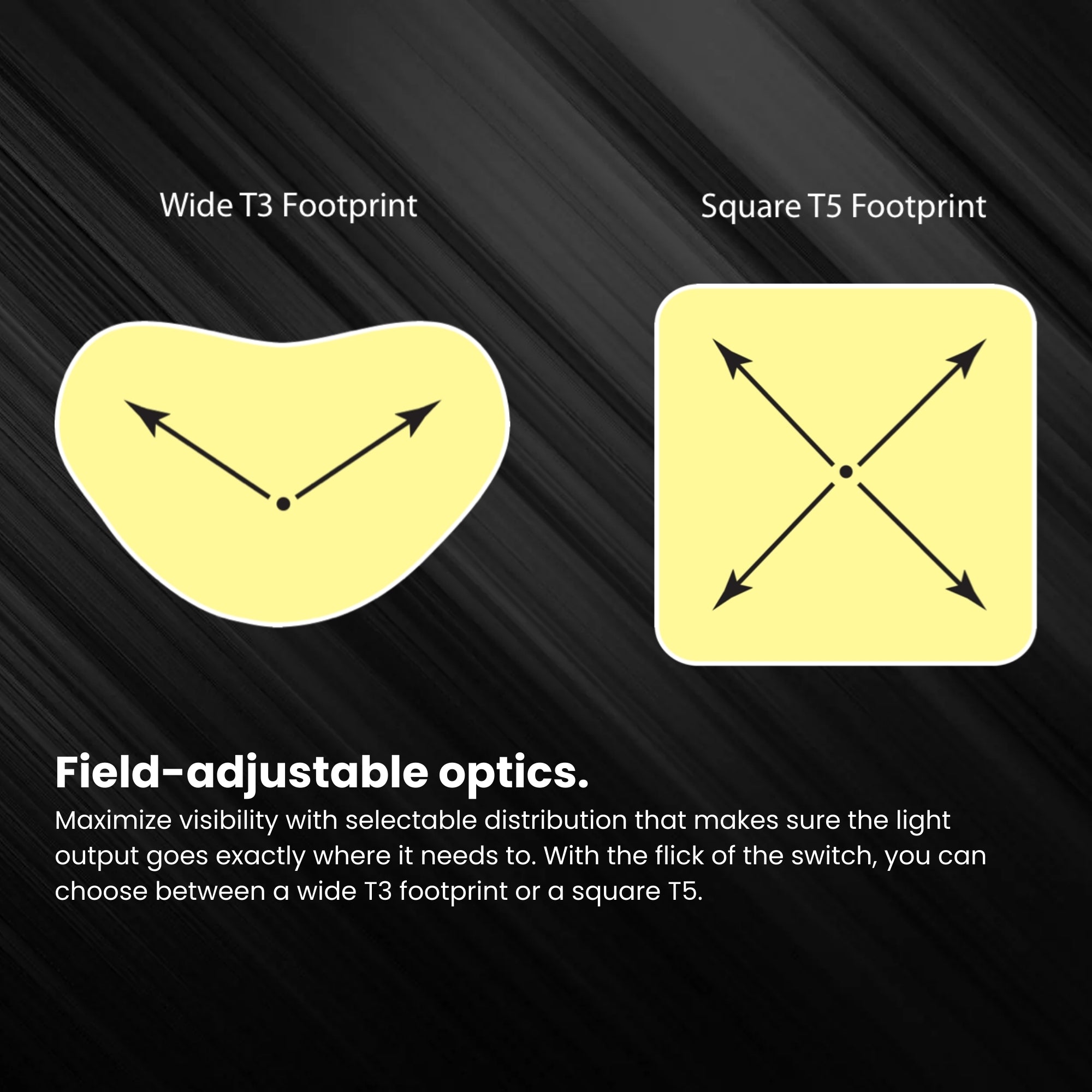

• Selectable Distribution: Integrated Type III and Type V selectable optics.
• High Efficacy: Delivers up to 143.7 lm/W for significant energy savings.
• DLC Premium: Qualifies for the highest tier of utility energy rebates.
• IP65 Rated: Dust-tight and protected against water ingress for outdoor reliability.
• IK08 Rated: Superior protection against mechanical impact and vandalism.
• Integrated Photocell: Includes an on/off switch for automated dusk-to-dawn control.
• TAA Compliant: Suitable for government and municipal "designated country" projects.
• Universal Voltage: Standard 120-277V commercial-grade driver.

Typical Applications

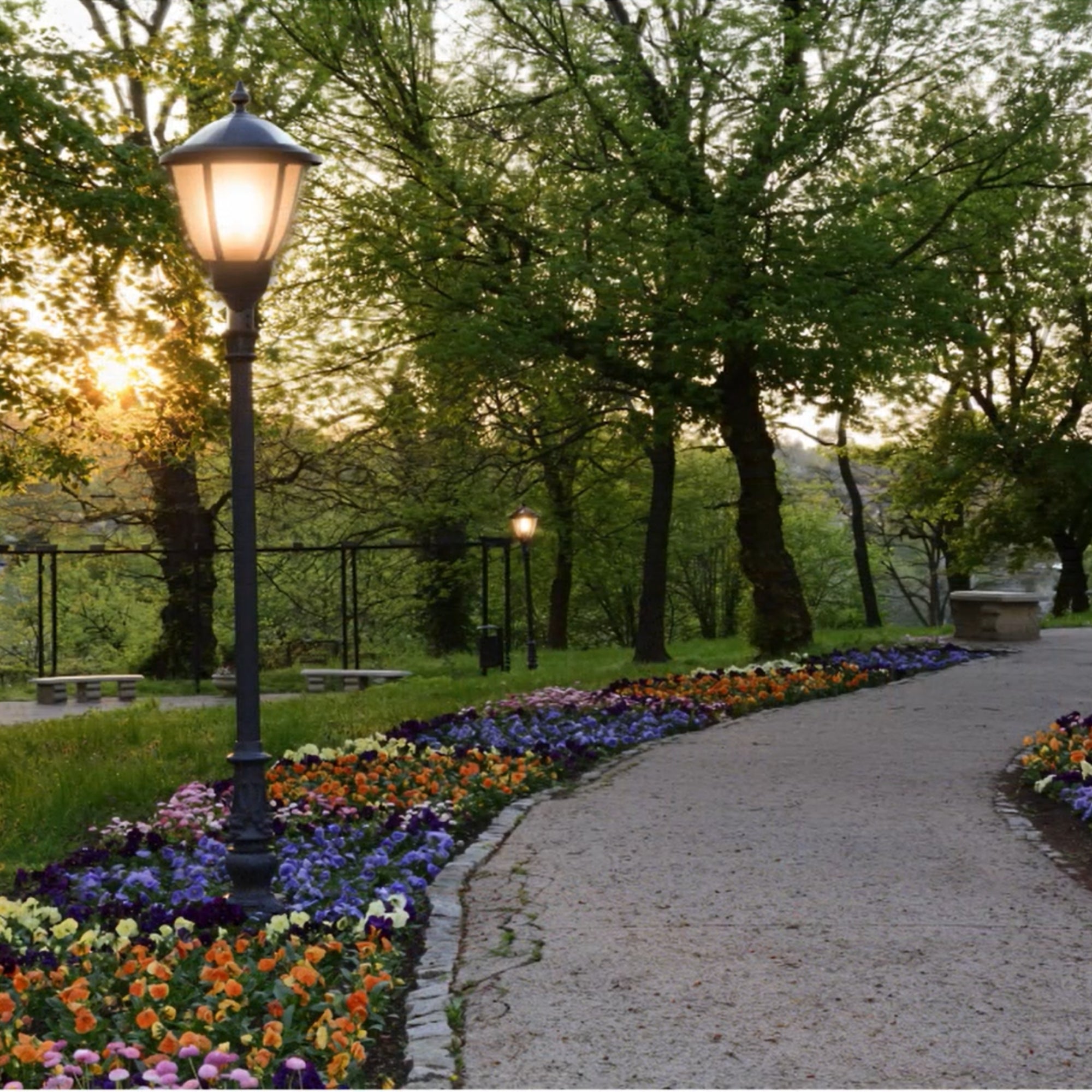

• Municipal Parks and Walkways
• Educational and Corporate Campuses
• Retail Shopping Centers
• Main Street Beautification Projects
• Hospitality Perimeter Lighting
• Government and Public Facilities

Performance & Light Output

The fixture delivers a maximum output of 15,274 lumens with a nominal efficacy of 143.7 lm/W. It maintains a color accuracy of 81-86 CRI and features a long-lasting L70 rated life of 100,000 hours. The precision-engineered Type III and Type V selectable optics provide uniform light spread for both perimeter and open area site requirements.

Electrical & Controls

Equipped with a 120-277V constant current driver, the system supports 0-10V dimming down to 10%. It includes an integrated on/off photocell and is compatible with optional 7-pin receptacles or microwave sensors for advanced wireless control. The electrical system is protected by surge suppression and maintains a power factor of 99.8% at 120V.

Construction & Durability

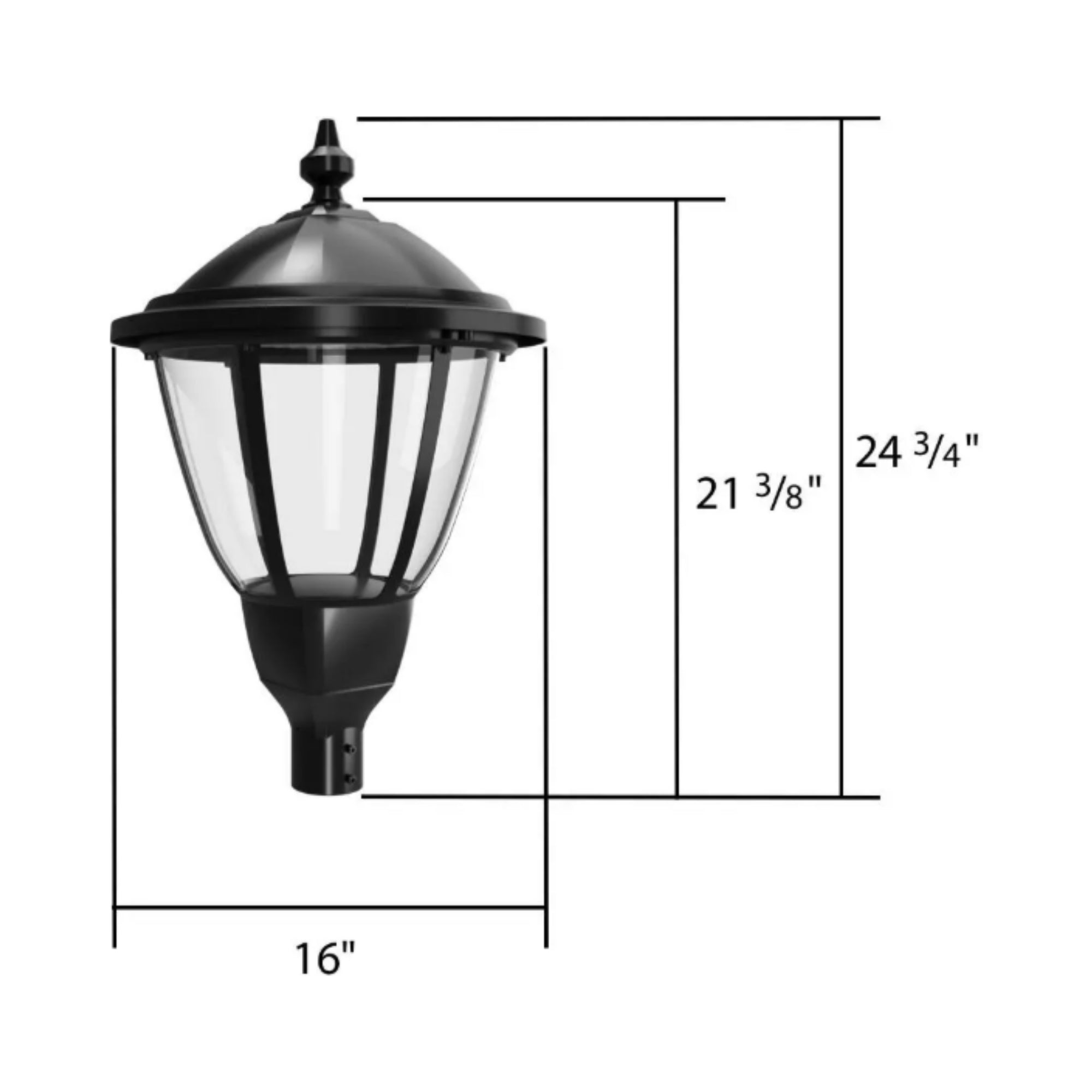

The die-cast aluminum housing features a low-profile round design with a durable bronze polyester powder coat. It is IP65 rated for environmental sealing and IK08 rated for impact resistance, utilizing high-temperature silicone gaskets and a polycarbonate lens. The unit has an EPA of 0.7 and operates in temperatures from -40°C to 40°C.

Installation & Mounting

This model includes a universal pole adapter as the standard mounting method for commercial site lighting. It is also designed for compatibility with optional pendant or wall mount accessories to meet diverse architectural site layouts. All mounting components are engineered to maintain the fixture's UL Wet Location listing.

What’s Included

• HTG-R Round LED Lantern
• Universal Pole Adapter
• Integrated On/Off Photocell
• Installation Hardware
