The RAB H22XL is the high-output evolution of the H22 platform — engineered for larger facilities, taller ceilings, and applications demanding more lumens while retaining the H22’s complete field-adjustability and industry-leading washdown durability. Three selectable wattage steps (240W / 200W / 150W — factory default 240W), tri-selectable CCT (3000K / 4000K / 5000K — factory default 4000K), and three selectable beam angles (60° / 90° / 105° — factory default 90°) are all adjustable on-site before installation. Delivers up to 36,461 lumens at 240W / 4000K / 90° with a peak efficacy of 164.3 lm/W. CRI 85 (4000K), IP69K rated for high-pressure and high-temperature cleaning, IK10 impact rated, NSF certified, and UL listed for wet locations. DLC Premium listed (DLC ID: S-YBV36Y). 7-step MacAdam Ellipse color consistency. Rated life 100,000 hours. 0–10V dimmable driver standard. Backed by RAB’s 5-year limited warranty.

Key Features

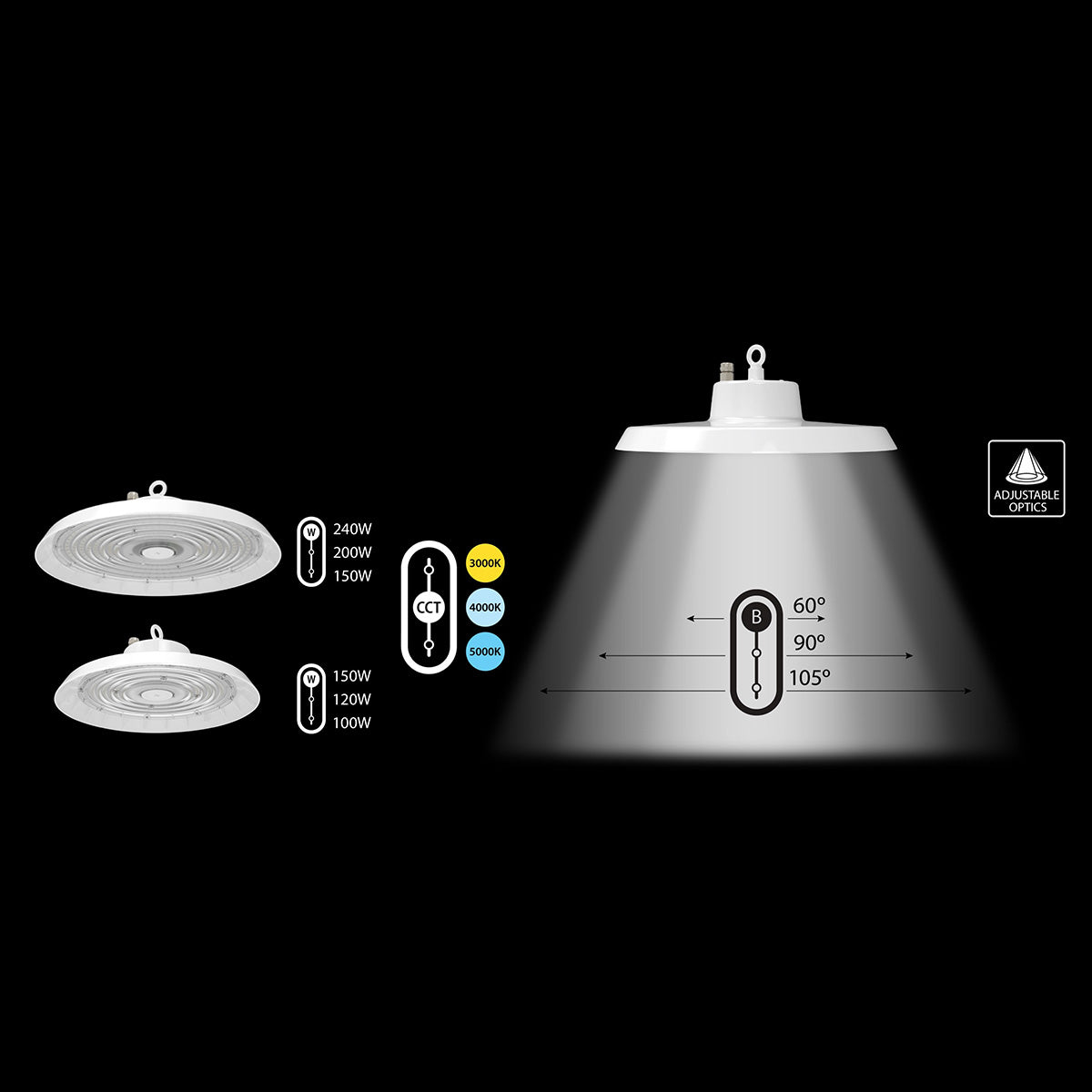

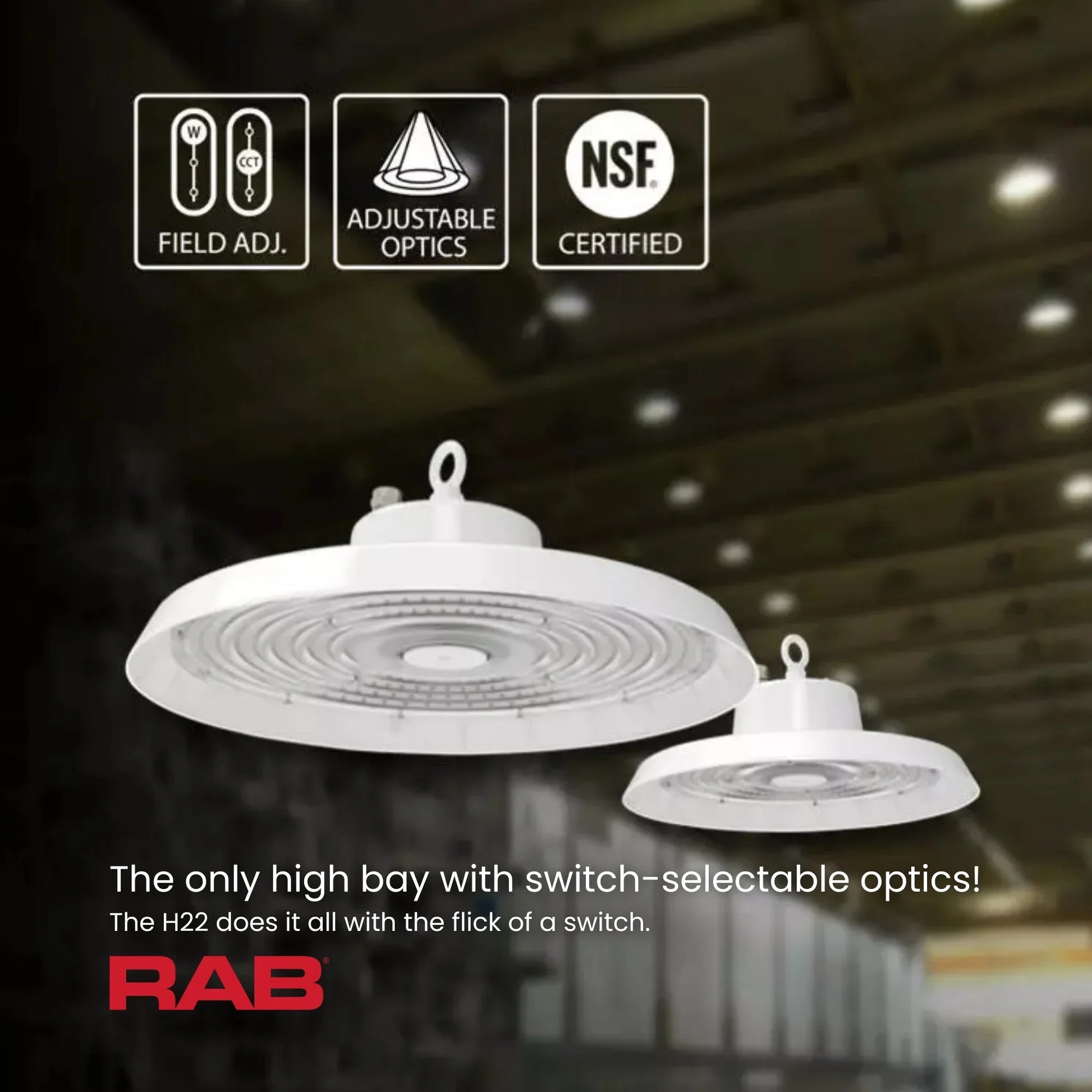

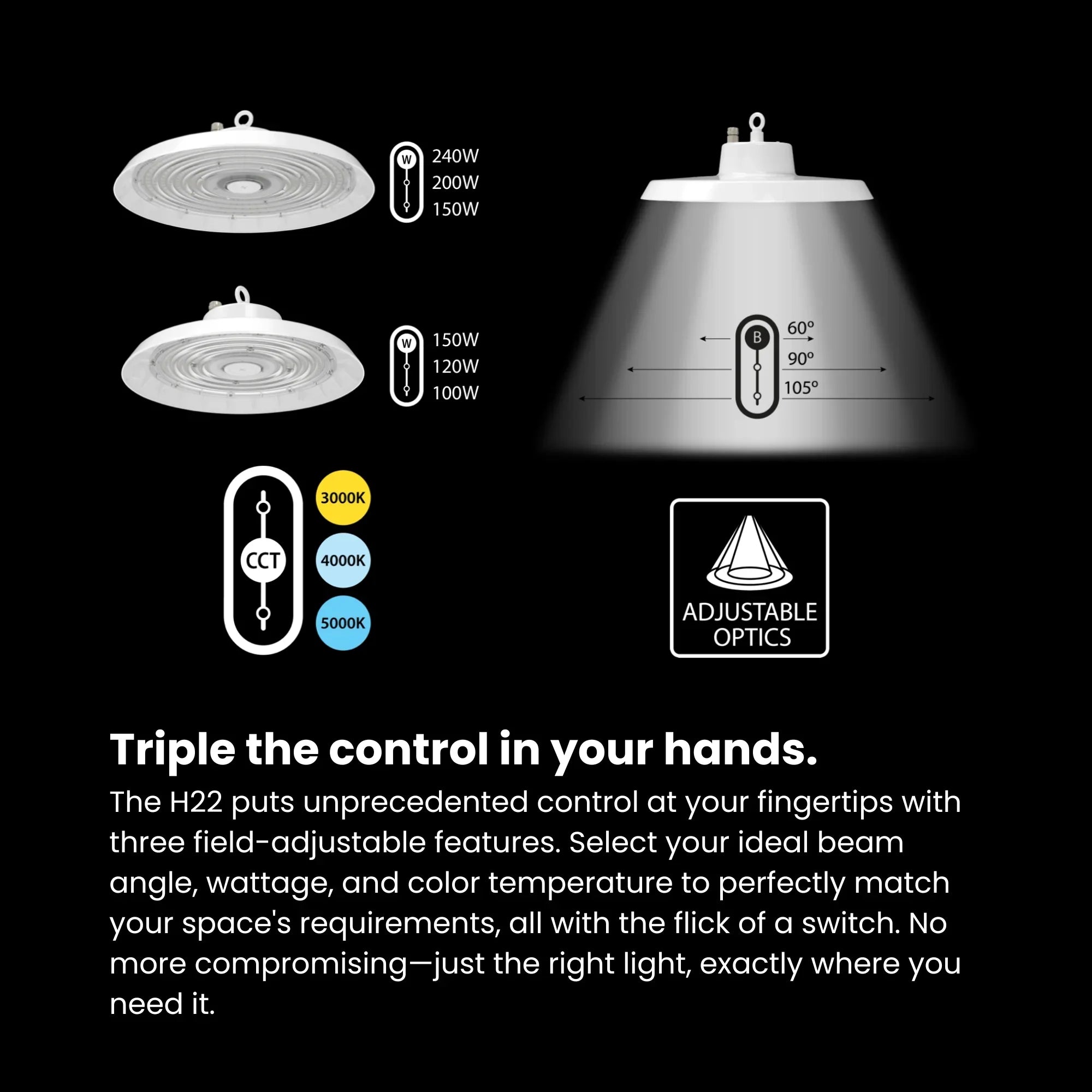

• Field-Selectable Wattage: 240W / 200W / 150W — factory default 240W
• Field-Selectable CCT: 3000K / 4000K / 5000K — factory default 4000K
• Field-Selectable Beam Angle: 60° / 90° / 105° — factory default 90°
• Maximum Lumen Output: 36,461 lm at 240W / 4000K / 90°
• Peak Efficacy: 164.3 lm/W at 240W / 4000K / 90°
• CRI: 85 (4000K) | 84 (5000K) | 82 (3000K)
• Color Consistency: 7-step MacAdam Ellipse binning
• Dimming: 0–10V dimmable driver standard (100% to 10% minimum)
• Universal Voltage: 120–277V AC, 50/60 Hz
• IP Rating: IP69K — high-pressure and high-temperature cleaning rated
• IK Rating: IK10 — impact protection rated
• NSF Certified: Public health and safety
• Location Rating: UL listed for wet locations
• Cold-Start Rated: -40°C (-40°F)
• Max Ambient Temperature: 45°C (113°F)
• Lens: Polycarbonate
• Rated Life: 100,000 hours (IES LM-80 / TM-21)
• DLC Premium: DLC ID S-YBV36Y — qualifies for utility rebate programs
• Green Technology: Mercury and UV free, RoHS-compliant components
• Warranty: 5-year limited warranty (light output, driver performance, paint finish)

Performance & Light Output

Lumen output and efficacy vary by CCT and beam angle — 4000K delivers the highest output at every wattage setting. Peak output is achieved at the 90° beam angle. At 240W: 60° — 32,437 lm / 139.2 lm/W (3000K) | 34,926 lm / 154.2 lm/W (4000K) | 34,294 lm / 147.3 lm/W (5000K); 90° — 34,078 lm / 150.4 lm/W (3000K) | 36,461 lm / 163.7 lm/W (4000K) | 36,284 lm / 159.3 lm/W (5000K); 105° — 33,317 lm / 144.0 lm/W (3000K) | 36,004 lm / 159.3 lm/W (4000K) | 35,428 lm / 152.5 lm/W (5000K). At 200W: 60° — 27,986 lm / 143.7 lm/W (3000K) | 29,531 lm / 155.9 lm/W (4000K) | 29,292 lm / 150.5 lm/W (5000K); 90° — 29,348 lm / 154.0 lm/W (3000K) | 30,772 lm / 164.3 lm/W (4000K) | 30,935 lm / 161.5 lm/W (5000K); 105° — 28,872 lm / 148.9 lm/W (3000K) | 30,577 lm / 161.4 lm/W (4000K) | 30,394 lm / 156.1 lm/W (5000K). At 150W: 60° — 21,920 lm / 149.0 lm/W (3000K) | 23,130 lm / 161.7 lm/W (4000K) | 22,943 lm / 156.1 lm/W (5000K); 90° — 22,894 lm / 158.3 lm/W (3000K) | 24,005 lm / 168.9 lm/W (4000K) | 24,132 lm / 166.0 lm/W (5000K); 105° — 22,617 lm / 154.3 lm/W (3000K) | 23,952 lm / 167.3 lm/W (4000K) | 23,810 lm / 161.8 lm/W (5000K). Rated life 100,000 hours per IES LM-80 / TM-21 projections.

Smart & Control Features

The RAB H22XL supports the Lightcloud Blue (LC Blue) wireless control ecosystem and plug-and-play sensor accessories via the standard sensor receptacle:

• MVS50: MVS 15M height IP65 occupancy sensor — sold separately
• MVS50/LCB: LC Blue controller with integrated MVS sensor — sold separately
• PIR40: PIR sensor, max 12M height, IP66 — sold separately
• PIR40/LCB: LC Blue controller with integrated PIR sensor — sold separately
• MSR1: Multi sensor remote, IP20 — sold separately

LC Blue accessories enable wireless group control, scheduling, and daylight harvesting without a separate gateway. 0–10V dimming wiring is standard on all H22XL fixtures.

Electrical

Constant current, Class 1 driver. 120–277V AC, 50/60 Hz. 0–10V dimming from 100% to 10% minimum. Input current at 240W: 120V / 1.99A, 208V / 1.12A, 240V / 0.97A, 277V / 0.86A. Input current at 200W: 120V / 1.66A, 208V / 0.96A, 240V / 0.84A, 277V / 0.74A. Input current at 150W: 120V / 1.29A, 208V / 0.75A, 240V / 0.65A, 277V / 0.59A. Battery backup operates the LED lamp for 90 minutes if power fails; wired for 120–277V. Emergency light loss factor at 240W: 15.7% | 200W: 17.7% | 150W: 21.8%. Mercury and UV free, RoHS-compliant. Green Technology.

Construction

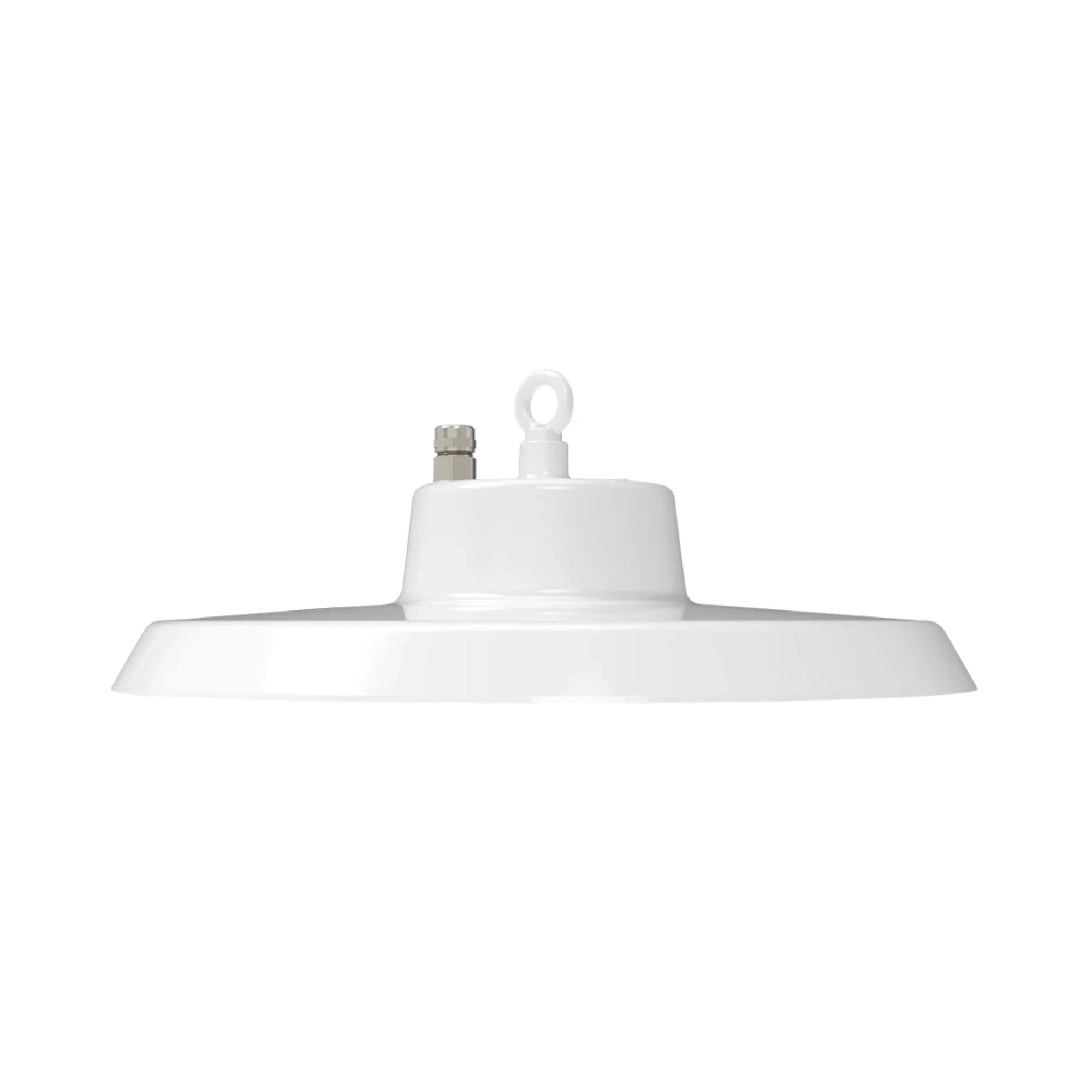

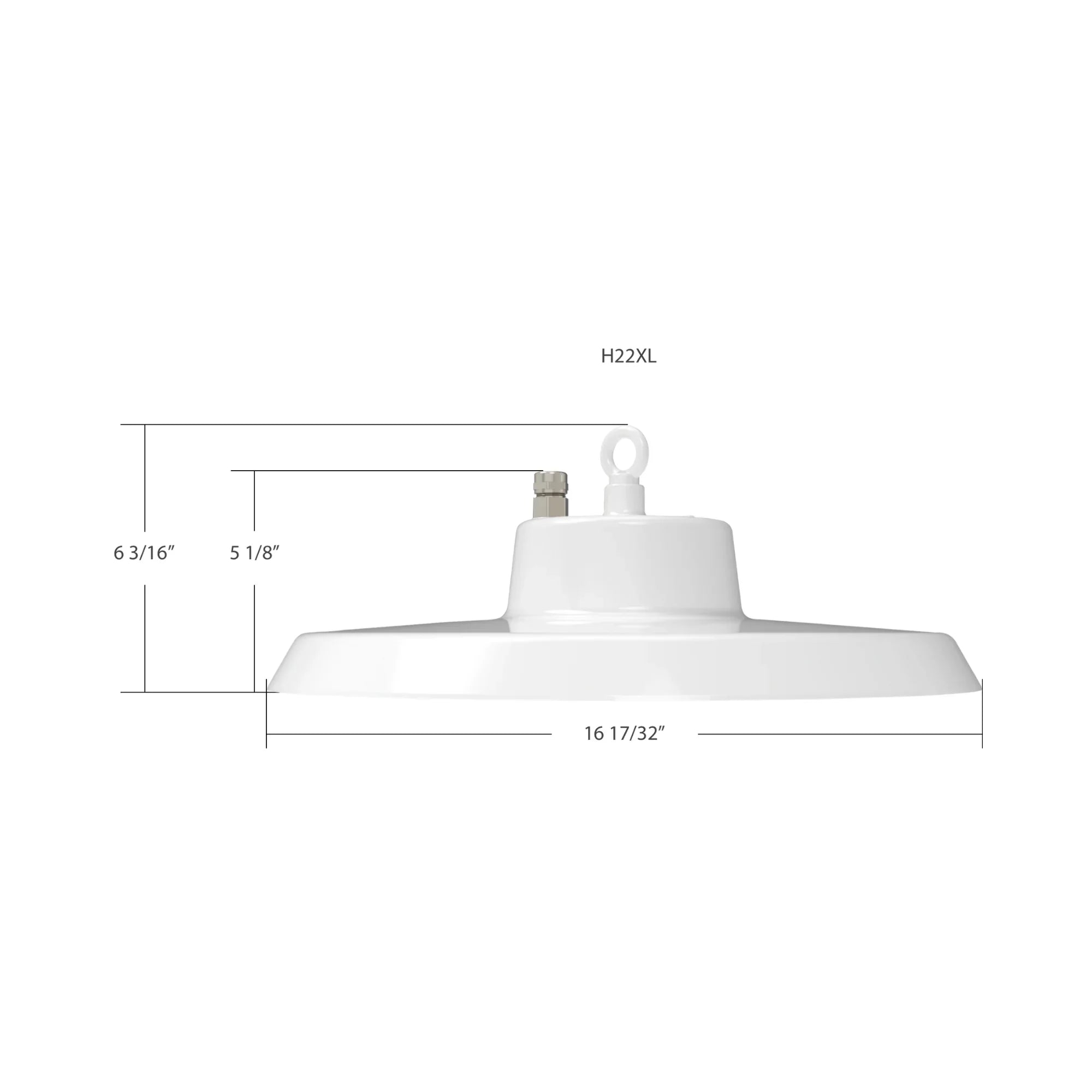

Precision die-cast aluminum housing with polycarbonate lens. IP69K rated — tested for high-pressure and high-temperature cleaning, exceeding standard IP65/IP66 washdown ratings. IK10 impact protection. Finish formulated for high durability and long-lasting color. Dimensions: Ø16-1/2" × 6-3/16"H. Weight: 7.58 lbs (120–277V).

Installation & Mounting

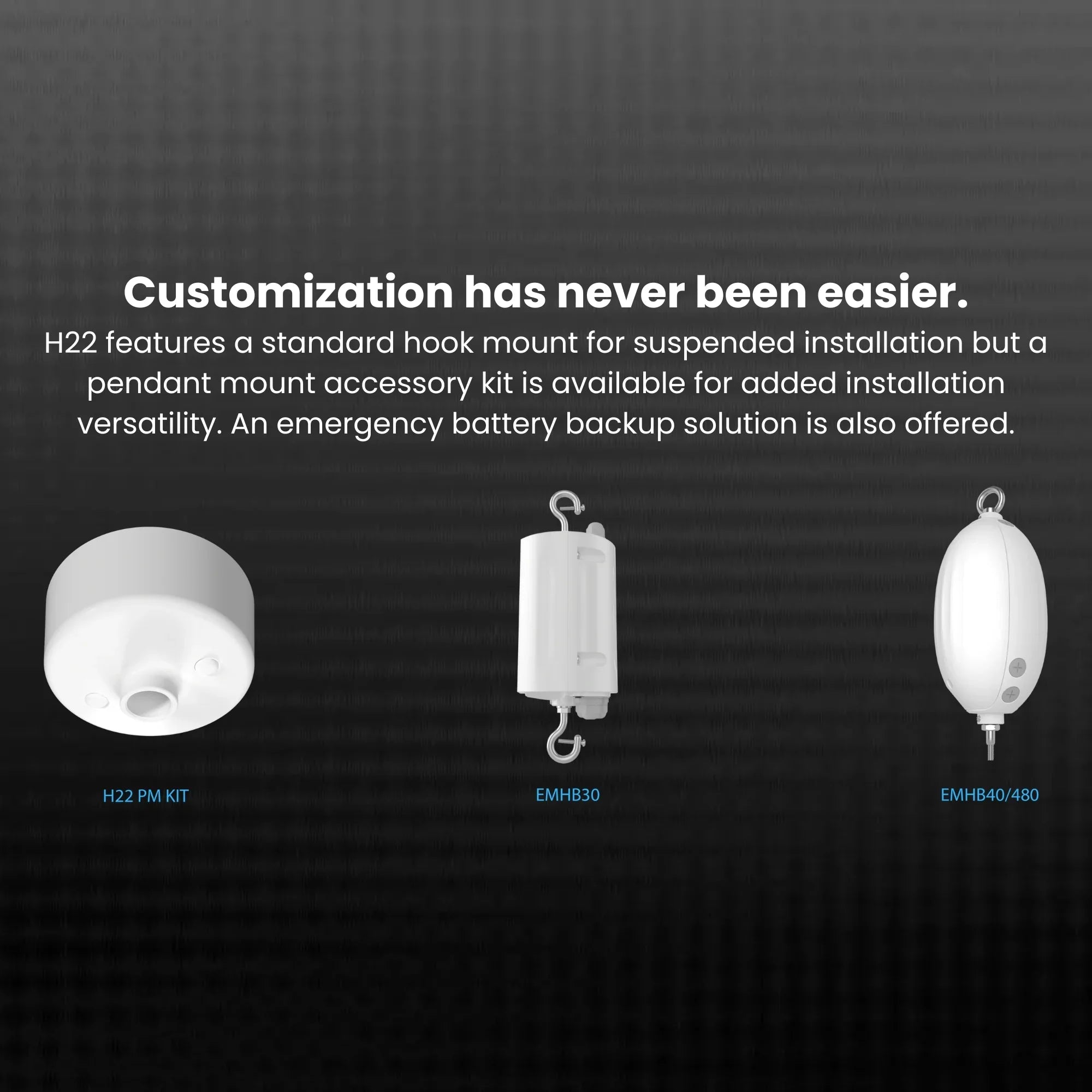

Comes standard with a hanging hook and 6-foot cord. Heavy-duty 3/4"-14 NPT hook and 3/4"-14 pendant mount capable (pendant by others).

• Pendant Mount Kit: H22 PM KIT — sold separately
• Emergency Battery (120–277V): EMHB30 (30W, 150–240W high bay) | EMHB30/LCB (with LC Blue) — sold separately
• Sensors: MVS50, MVS50/LCB, PIR40, PIR40/LCB, MSR1 — sold separately

Recommended ceiling height by wattage: 150W — 18–28 ft | 200W — 22–32 ft | 240W — 25–35 ft.

Certifications & Rebates

UL listed for wet locations. DLC Premium listed — DLC ID S-YBV36Y. Eligible for utility rebate programs in most U.S. states and Canadian provinces. Verify eligibility at designlights.org. NSF certified for public health and safety. IK10 impact rated. RoHS compliant.

Typical Applications

• Food Processing & Commercial Kitchens: IP69K + NSF certification — the high-output choice for large washdown bays, food production lines, and HACCP-compliant facilities
• High-Ceiling Warehouses & Distribution Centers: 36,461 lm at 240W covers tall racking in large-footprint facilities; selectable beam angle optimizes aisle vs. flood coverage
• Manufacturing & Heavy Industrial Facilities: IK10 impact rating and -40°C cold-start handle demanding production floor environments
• Municipal & Government Buildings: DLC Premium listed and RoHS compliant — qualifies for federally funded retrofit and new construction projects
• Commercial Garages & Auto Service: Three beam angles optimize coverage for bay width; IP69K withstands pressure washing
• Gymnasiums & Recreation Facilities: 36,461 lm high-output setting handles large open-ceiling venues; CRI 85 delivers accurate color rendering for sports and activity spaces

What's Included

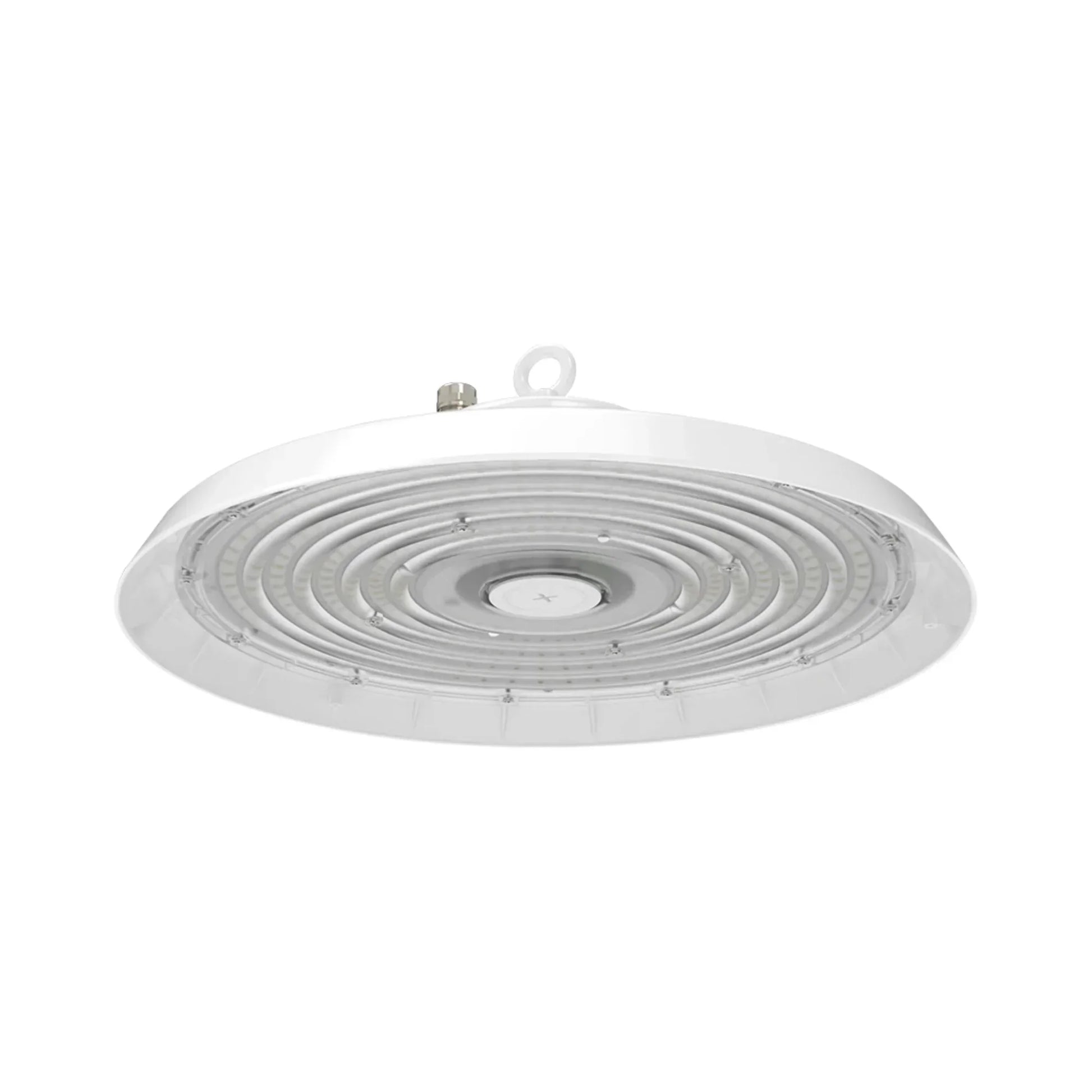

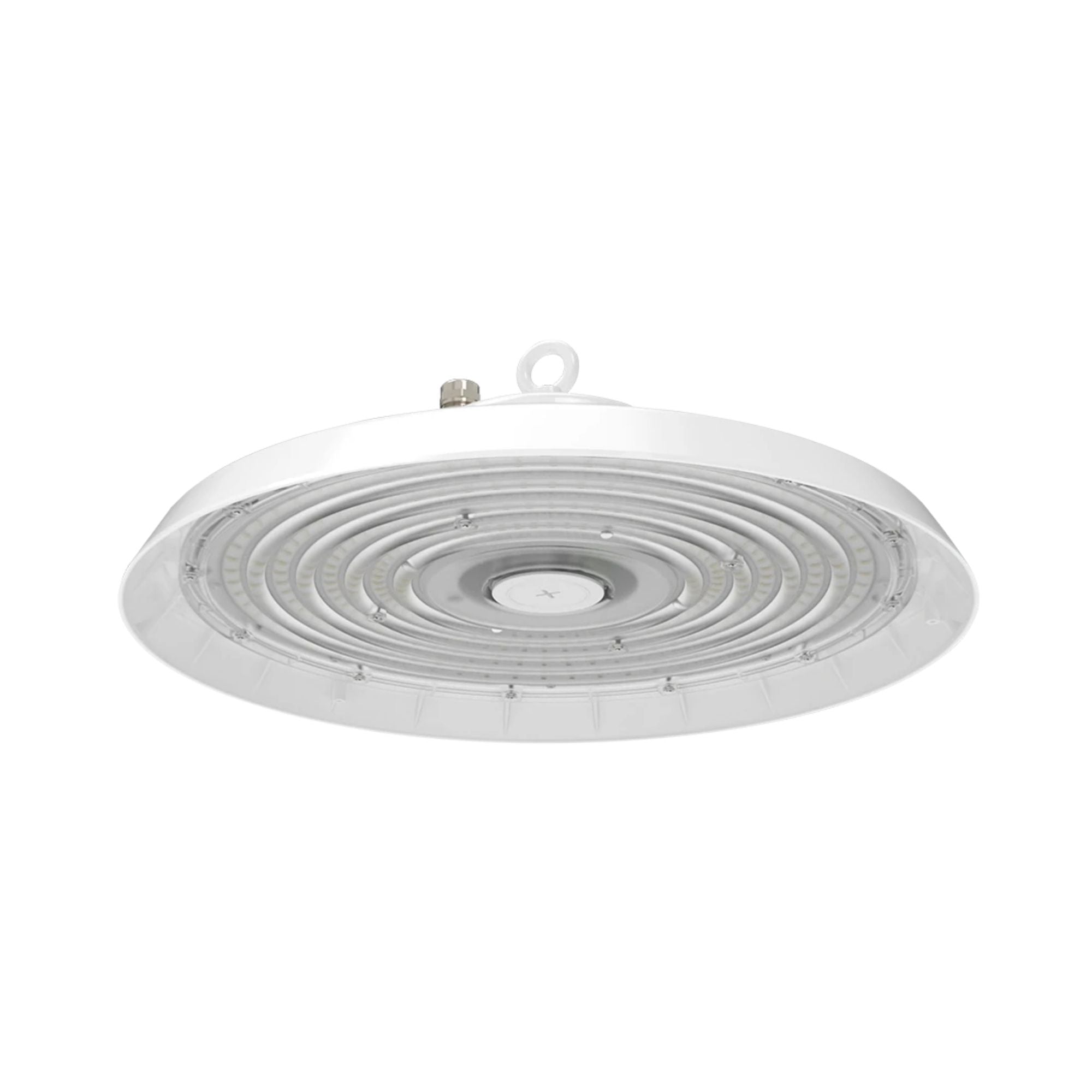

• RAB H22XL UFO LED High Bay with integrated LED engine and driver
• Hanging hook with 6-foot cord (3/4"-14 NPT)
