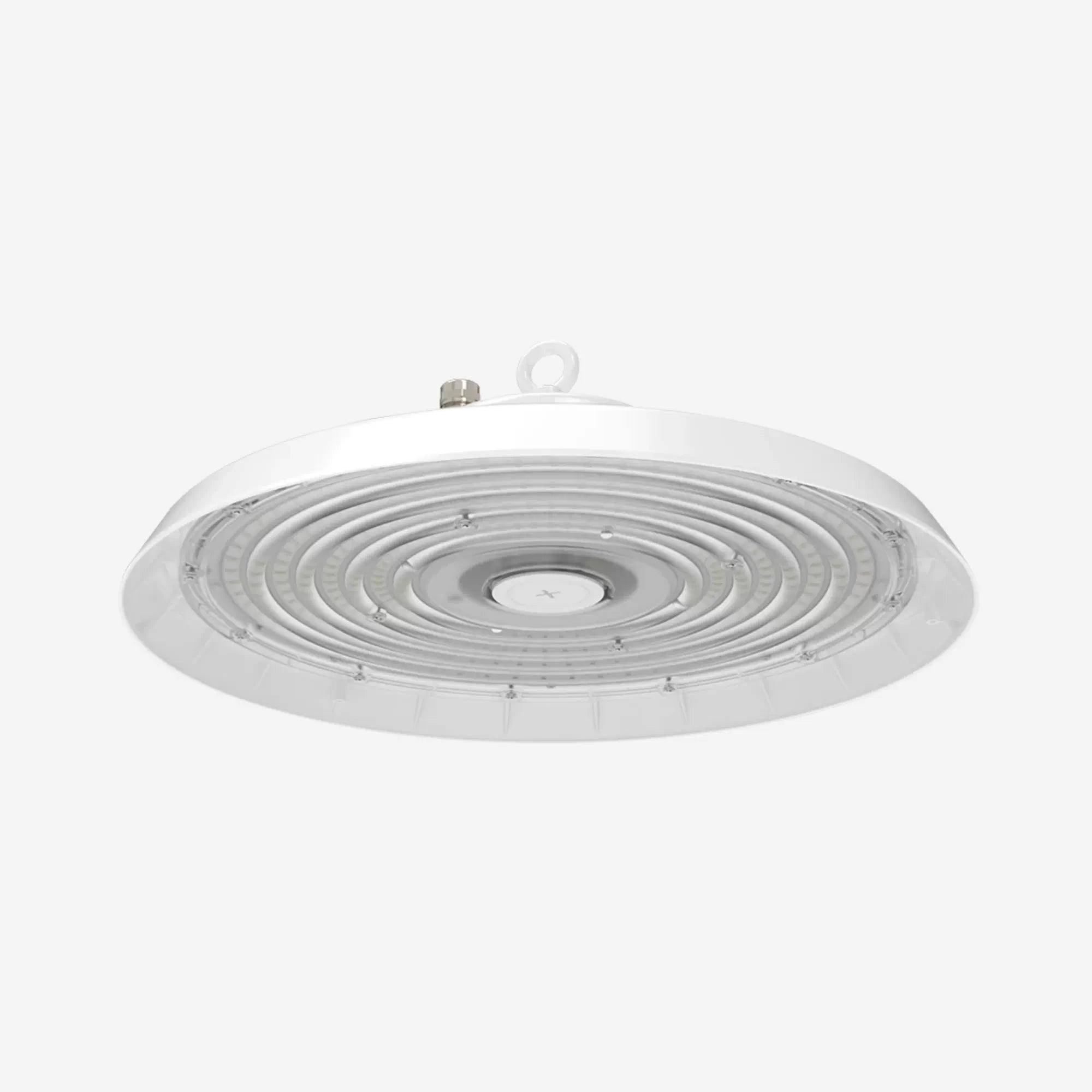

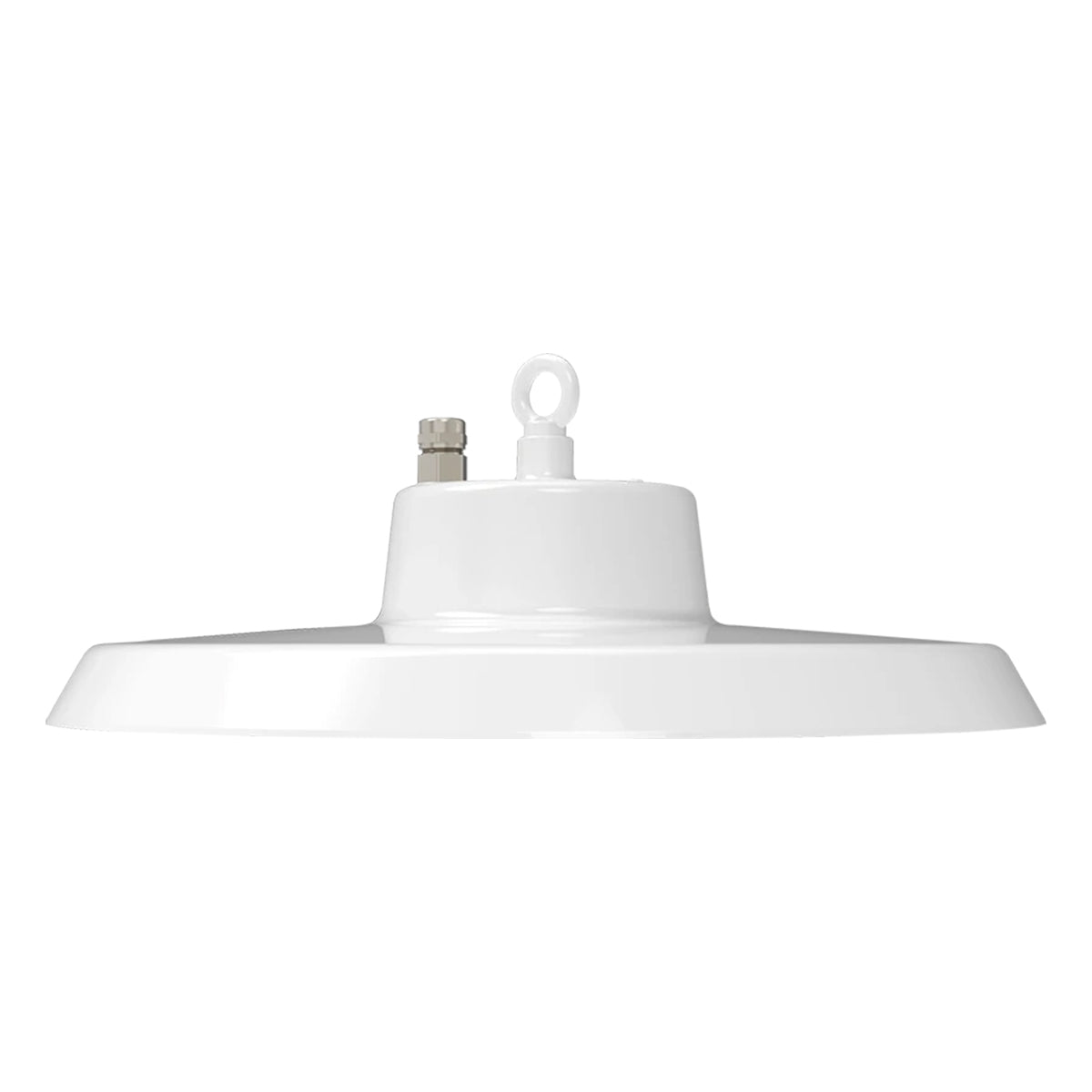

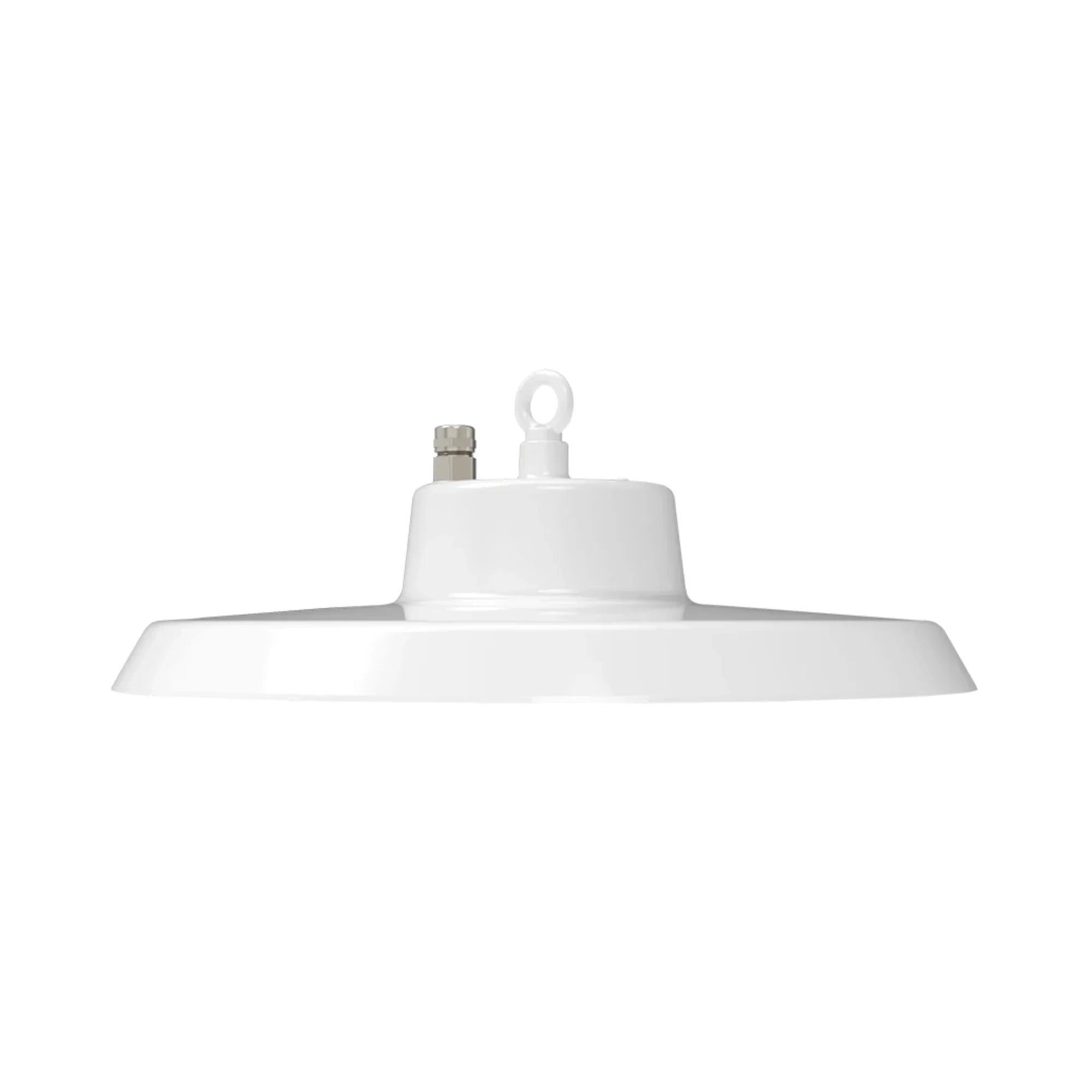

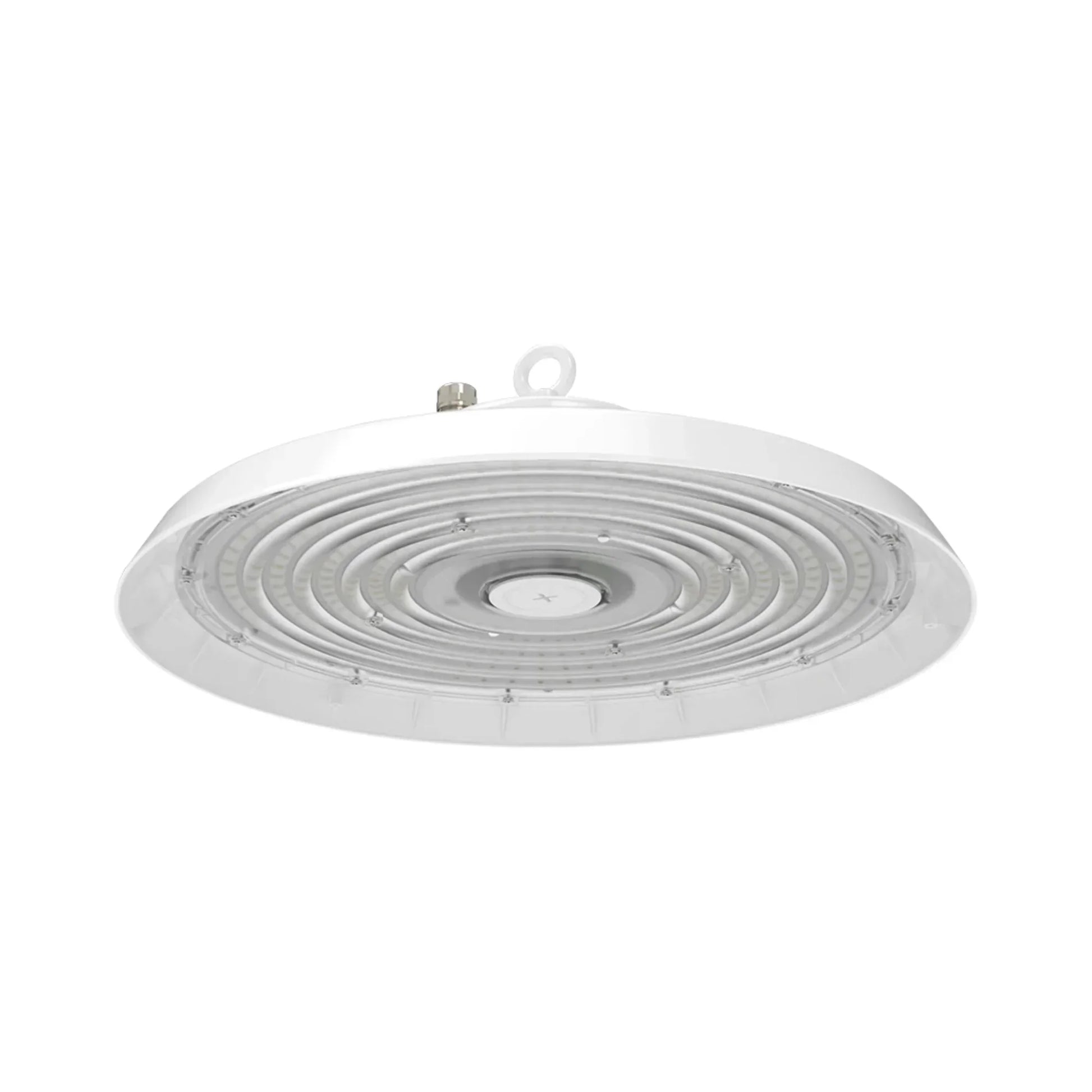

RAB H22XL/480 Field-Adjustable High Bay — 240/200/150W Selectable — 3000K/4000K/5000K — 480V — White

The RAB H22XL/480 is a commercial high bay engineered to deliver up to 36,461 lumens with field-adjustable 240W / 200W / 150W power settings and switchable 3000K / 4000K / 5000K color temperatures. Operating on 480V electrical systems with 0–10V continuous dimming, this luminaire provides energy-efficient replacement for legacy fixtures up to 750W Metal Halide. Built with an IP69K washdown rating and UL Certification, it is qualified for commercial utility rebates under DLC Premium standards and features an innovative 3-axis selectability including an onboard beam angle adjustment switch.

Key Features

• Selectable Wattage: 240W / 200W / 150W — field-adjustable via onboard switch
• Wattage Equivalency: Replaces legacy 750W Metal Halide fixtures for direct energy savings
• Maximum Lumen Output: 36,461 lm at 240W
• Peak Efficacy: 168.9 lm/W for high-efficiency commercial operation
• Color Consistency: 7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
• CRI: >82 color rendering across all settings
• Selectable CCT: 3000K / 4000K / 5000K — field-adjustable via onboard switch
• Lens & Optics: Adjustable beam angle selection of 60°, 90°, and 105°
• Dimming: 0–10V continuous dimming standard (dims down to 10%)
• Voltage: 480V AC, 50/60Hz constant current driver
• Location Rating: UL Certified for wet locations; IP69K rated for high-pressure and high-temperature cleaning
• Operating Temperature: −40°F (−40°C) to 122°F (50°C) ambient range
• Certifications: DLC Premium, UL Certified, NSF Certified, IK10 Impact Rated, RoHS Compliant
• Rated Life: L70 >100,000 hours per IES TM-21 standards
• Warranty: 5-year limited warranty — RAB
• Sensor Compatibility: Integrated expansion port accepts plug-and-play controls without internal wiring

Lens & Optics

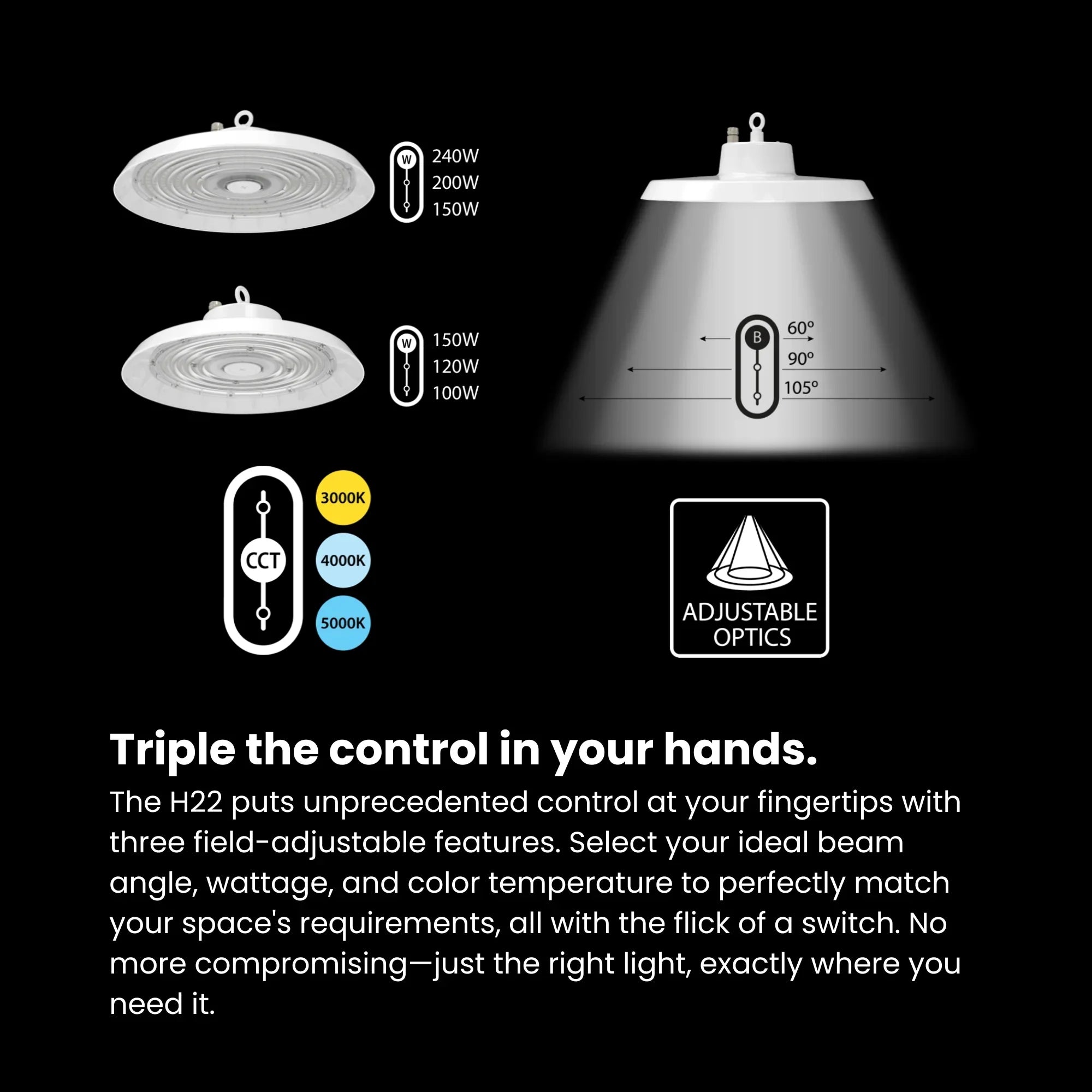

The adjustable optical system provides interchangeable aisle and open-area optics on the job site without tools or rewiring. The built-in beam selection switch allows installers to instantly toggle between three distinct distributions:

• 60° Narrow Optic (Included): Concentrates beam distribution for narrow racking aisles, focused task areas, and elevated mounting heights.
• 90° Standard Optic (Included): Delivers balanced distribution for standard warehouse floors.
• 105° Wide Optic (Included): Delivers broad, uniform beam distribution for open warehouse floors, staging areas, and general open-ceiling commercial layouts.

Smart & Control Features

The H22XL/480 features an integrated low-voltage control receptacle supporting modular sensing and automated facility lighting control:

• 0–10V Continuous Dimming (Standard): Standard dimming control compatible with commercial 0–10V dimmers.
• Sensor Compatibility (Accessory): Accepts field-installable PIR and microwave occupancy sensors via the integrated expansion port without opening the internal driver compartment.
• Lightcloud Blue (Accessory): Compatible with Bluetooth mesh controllers for wireless group control, automated scheduling, and occupancy sensing.

Compatible plug-and-play sensors include the PIR40 and MVS50 series — sold separately. Field sensor adjustments can also be managed using an optional handheld wireless remote (catalog # MSR1, sold separately).

Electrical

Powered by a Class 1 constant current driver operating on 480V AC at 50/60Hz. Delivers high electrical efficiency with a Power Factor >0.90 and Total Harmonic Distortion (THD) <20%. Integrated 4kV + 6kV surge protection protects internal electronics against line-to-line and line-to-ground transient voltage spikes. Includes pre-wired 0–10V dimming leads. Factory-equipped with a 6-foot cord. RoHS compliant.

Operating current and amp draw across input voltages for branch circuit and breaker loading calculations:

Construction

Housing & Thermal: Precision die-cast aluminum housing. The housing functions as a high-efficiency passive heatsink, dissipating heat away from LED arrays and internal driver circuits to preserve lumen maintenance across the 100,000-hour rated lifespan.

Lens & Optics: Features a durable polycarbonate lens with an IK10 impact rating.

Finish: Commercial finish in White formulated for high resistance against corrosion and surface wear in demanding industrial facilities.

Environmental Sealing: IP69K rated and UL Certified for wet locations, providing a sealed barrier resistant to high-pressure washdown, dust, and moisture ingress. Ambient operating temperature range: −40°F (−40°C) to 122°F (50°C).

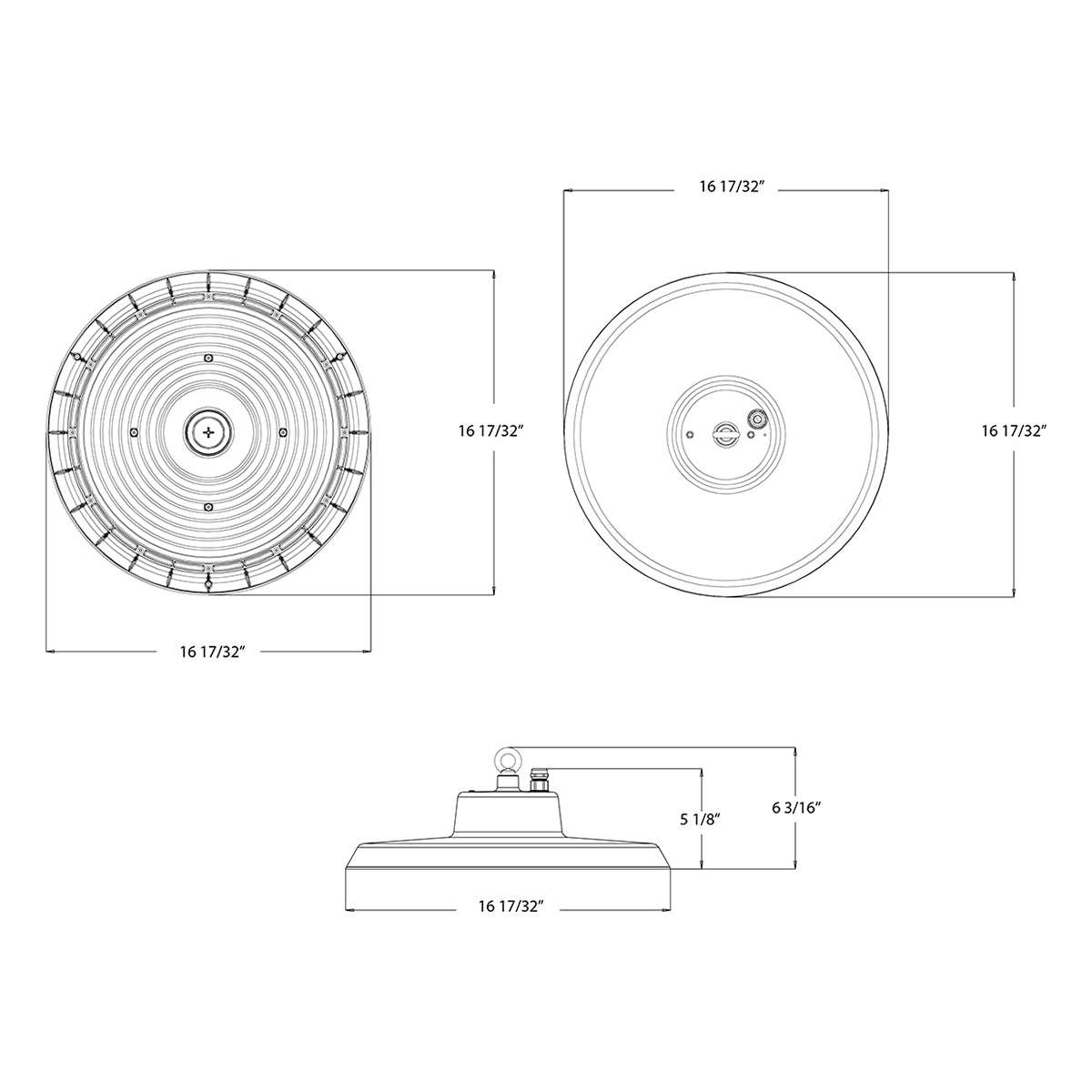

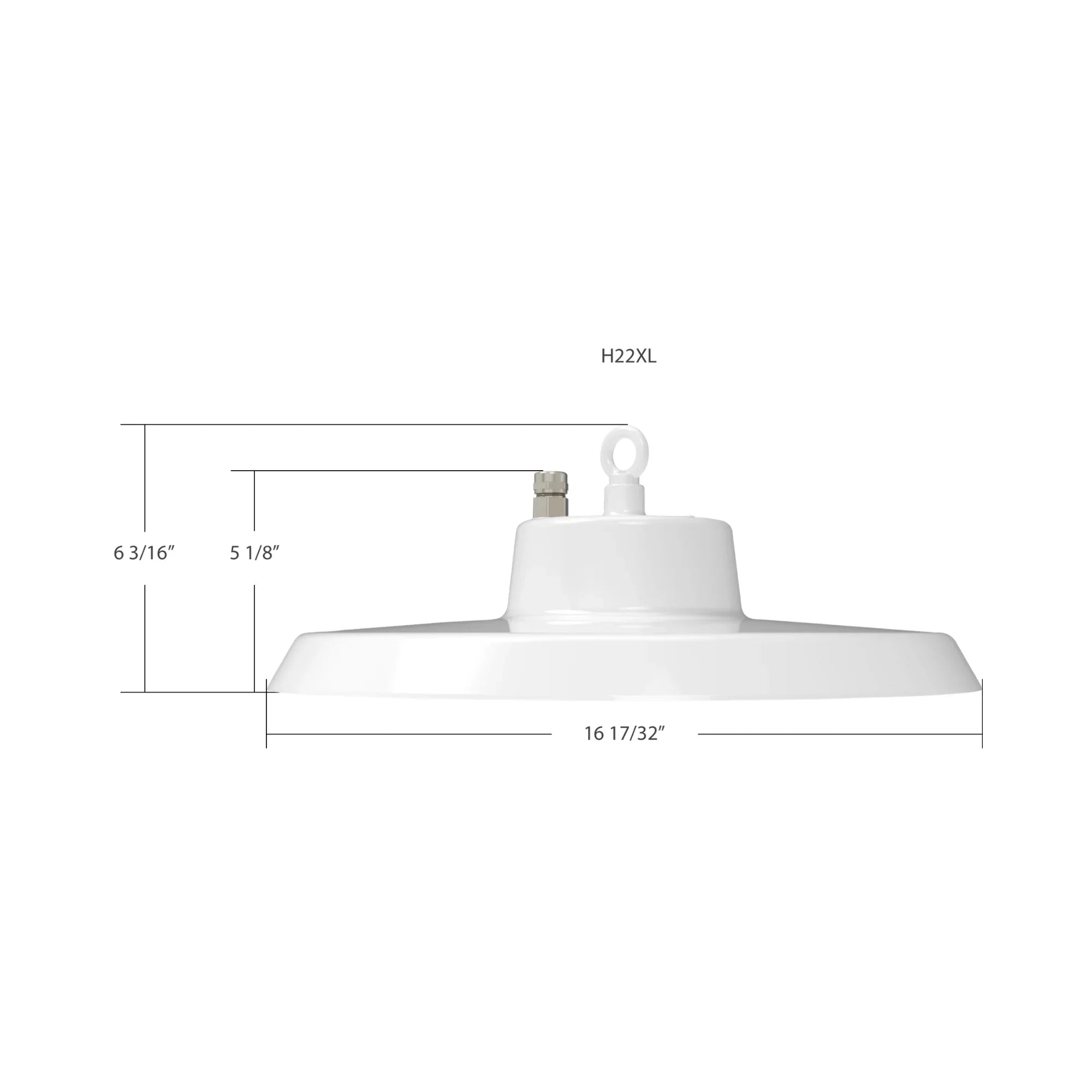

Dimensions & Weight: 16.5" Dia × 6.19" H. Fixture weight: 8.64 lbs.

Installation & Mounting

Standard Hardware: Ships standard with a heavy-duty 3/4"-14 NPT hanging hook accessory for quick suspension installation.

Mounting Options: Compatible with rigid pendant mounting via the PM KIT (sold separately).

Wiring: Includes a factory-installed 6-foot cord for power input and 0–10V dimming leads.

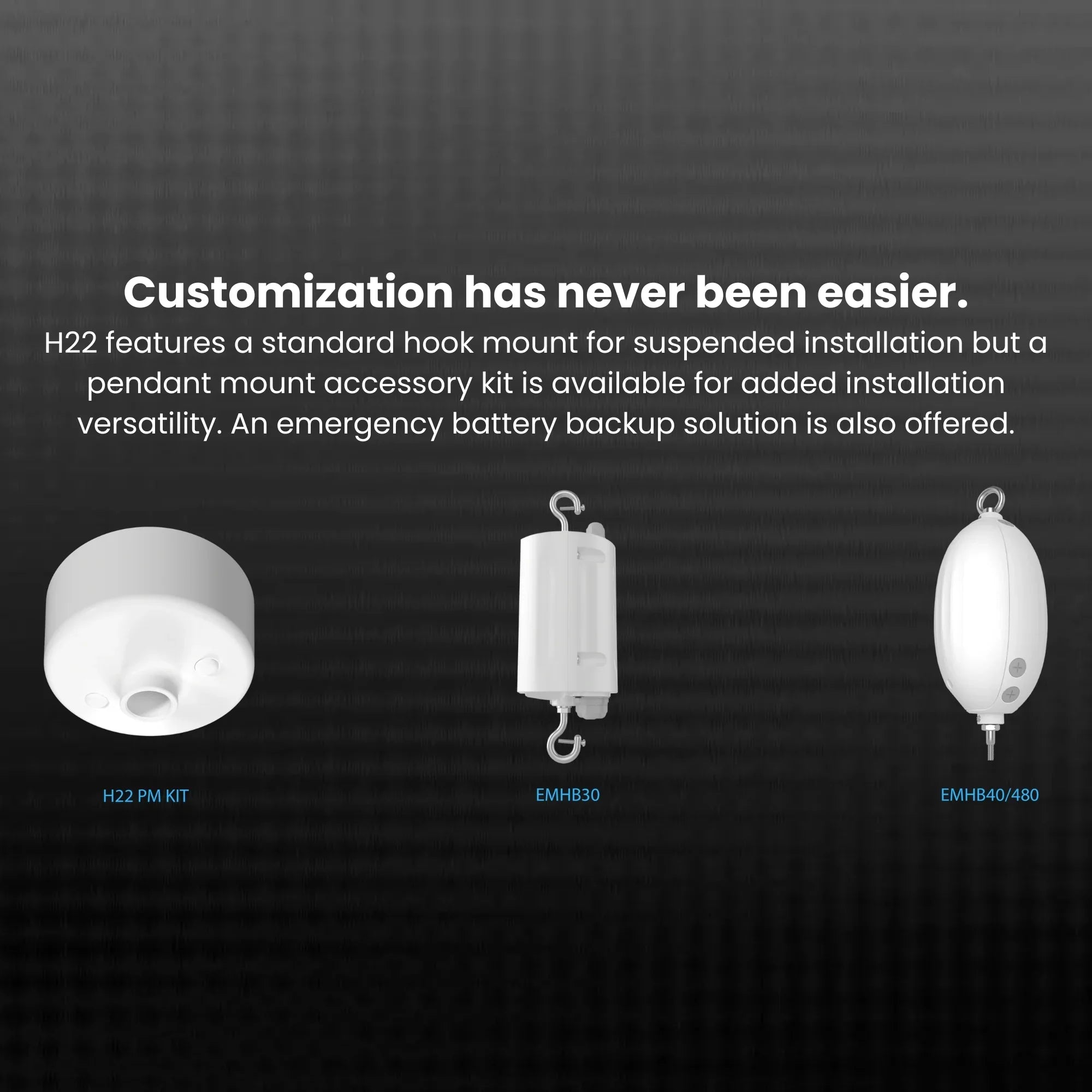

Accessories (Sold Separately):

• Mounting Brackets: H22-PM-KIT (Pendant Mount Kit)
• Emergency Battery Backup: EMHB40/480 (40W, White)
• Sensors & Controls: PIR40 (PIR Sensor) | MVS50 (Microwave Sensor) | PIR20 (Low Ceiling PIR) | MVS20 (Low Ceiling MVS) | PIR40/LCB (Lightcloud Blue PIR) | MVS50/LCB (Lightcloud Blue MVS) | MSR1 (Programming Remote)

Certifications & Rebates

• DLC Premium: Qualifies for utility rebates (searchable on designlights.org under code S-0W2CS8)
• UL Certified: Certified for wet locations per UL standards for commercial luminaires
• NSF Certified: Certified by public health and safety for splash zones and food processing environments
• RoHS Compliant: Manufactured free of lead, mercury, and hazardous heavy metals

Typical Applications

• Food Processing & Washdown — NSF certification and IP69K sealing support strict sanitation and hose-down requirements
• Warehouses & Distribution Centers — replaces legacy 750W Metal Halide systems for direct energy savings
• Manufacturing & Assembly Facilities — field-adjustable CCT and 7-step MacAdam Ellipse binning supports visual task accuracy and tailored comfort
• Gymnasiums & Athletic Facilities — IK10 impact-rated lens provides robust durability against mechanical impacts

What's Included

• RAB H22XL/480 Field-Adjustable High Bay — White
• Heavy-duty 3/4"-14 NPT hanging hook accessory
• Factory-installed 6-foot power cord
• Installation and operation instructions
