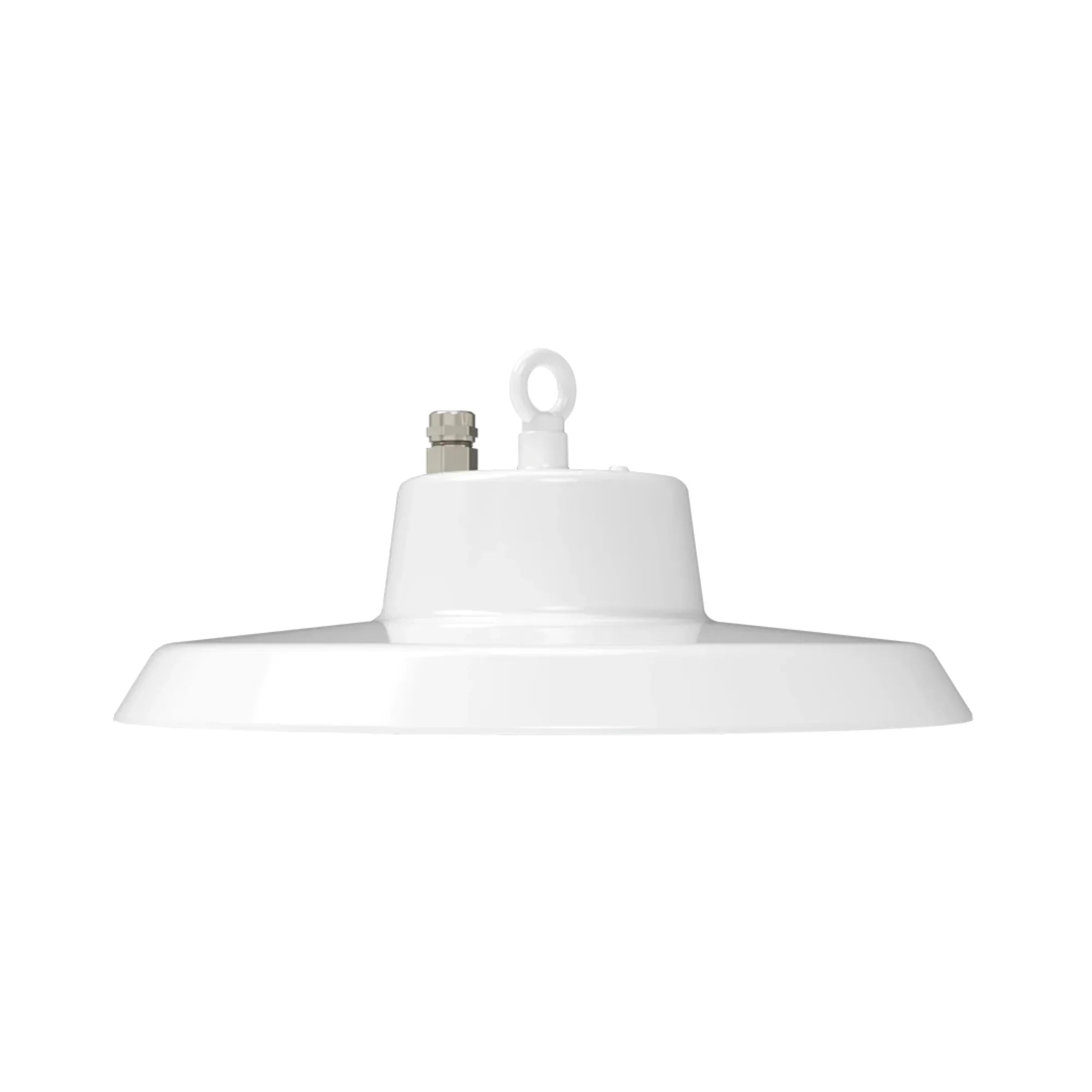

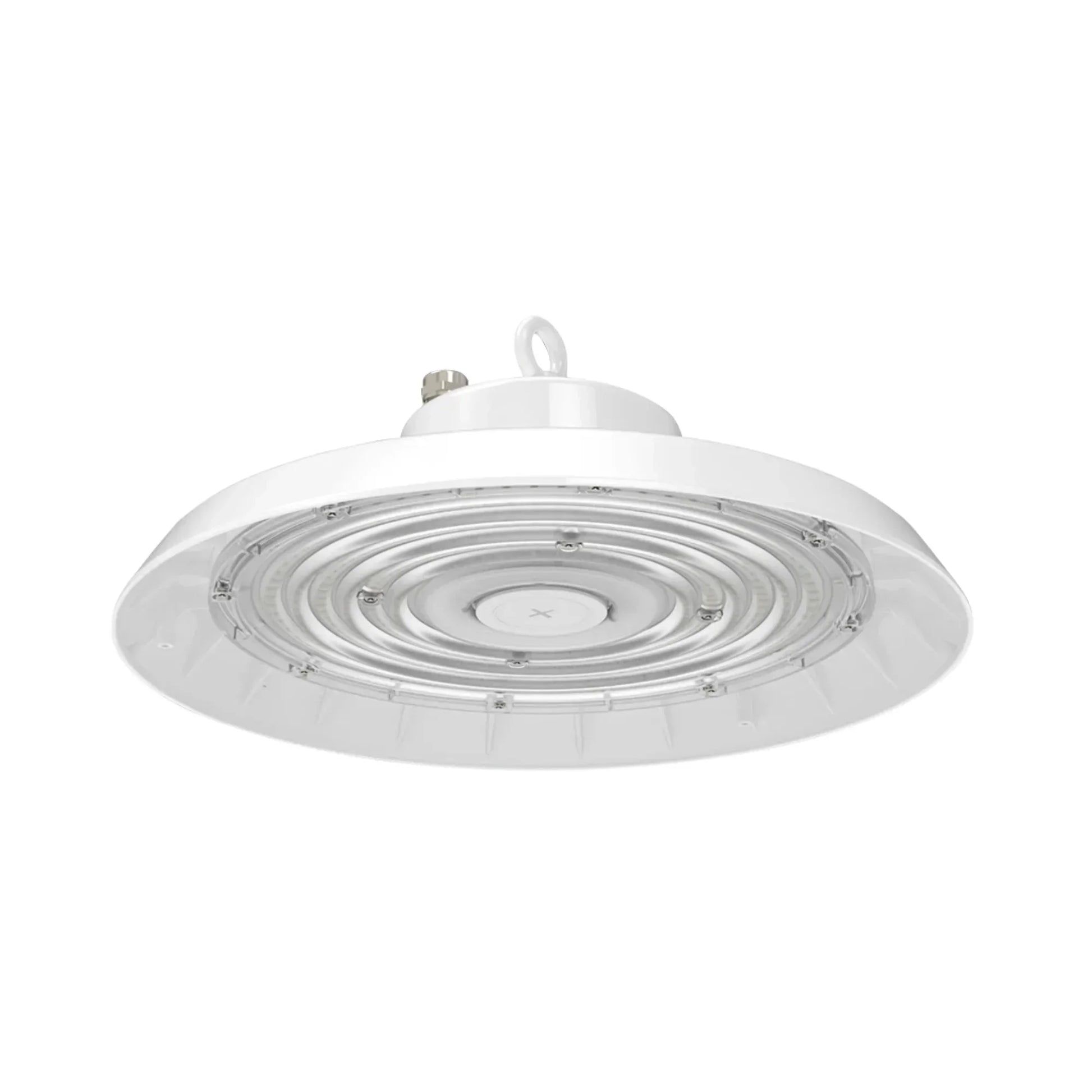

The RAB H22 is a precision-engineered, field-adjustable UFO LED high bay built for commercial and industrial facilities that demand top-tier performance, flexibility, and washdown durability. Three selectable wattage steps (150W / 120W / 100W — factory default 150W), tri-selectable CCT (3000K / 4000K / 5000K — factory default 4000K), and three selectable beam angles (60° / 90° / 105° — factory default 90°) are all adjustable on-site before installation. Delivers up to 24,005 lumens at 150W / 4000K / 90° with a peak efficacy of 168.9 lm/W. CRI 85 (4000K), IP69K rated for high-pressure and high-temperature cleaning, IK10 impact rated, NSF certified, and UL listed for wet locations. DLC Premium listed (DLC ID: S-13J0R4) for utility rebate eligibility. 7-step MacAdam Ellipse color consistency. Rated life 100,000 hours. 0–10V dimmable driver standard (10% minimum). Backed by RAB’s 5-year limited warranty.

Key Features

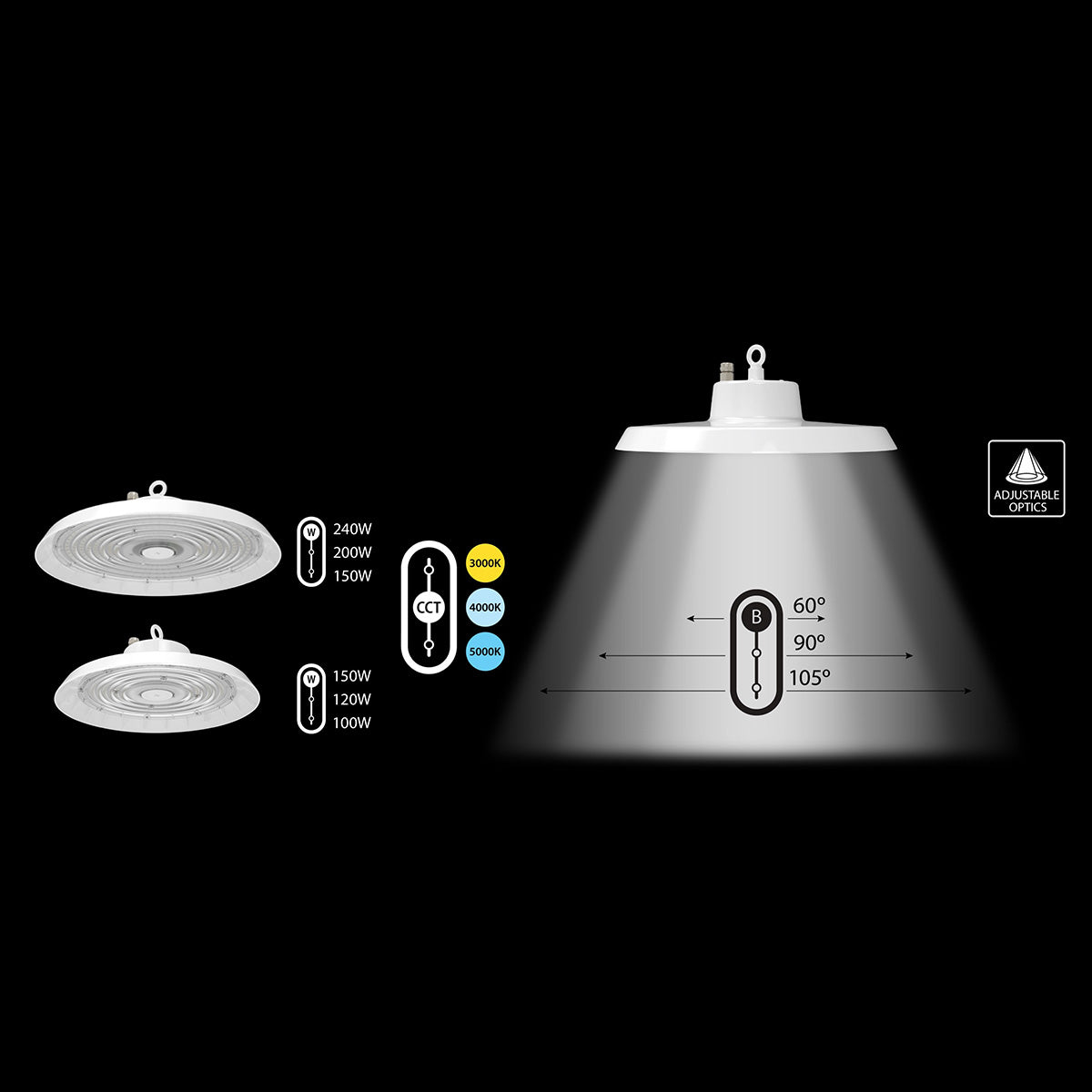

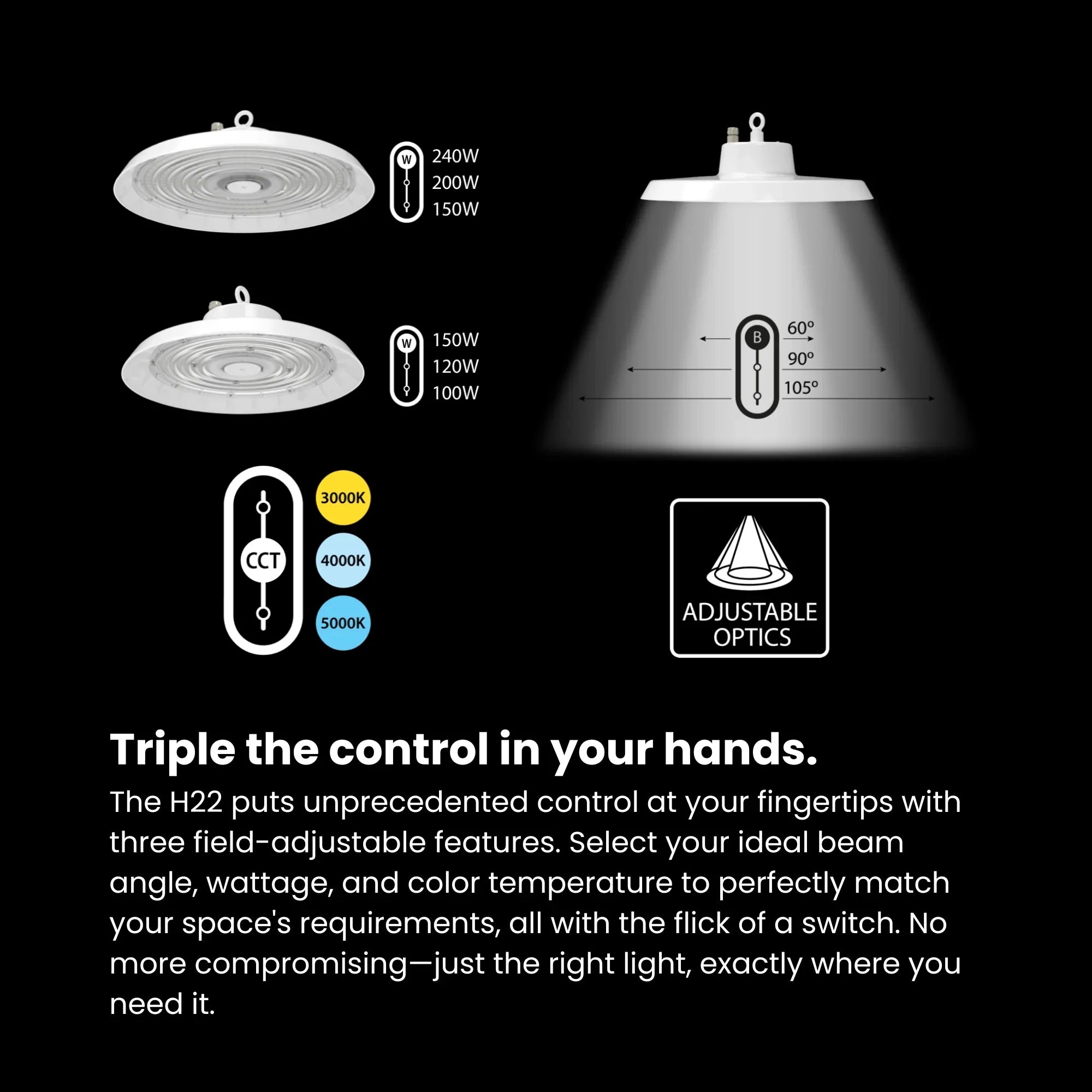

• Field-Selectable Wattage: 150W / 120W / 100W — factory default 150W
• Field-Selectable CCT: 3000K / 4000K / 5000K — factory default 4000K
• Field-Selectable Beam Angle: 60° / 90° / 105° — factory default 90°
• Maximum Lumen Output: 24,005 lm at 150W / 4000K / 90°
• Peak Efficacy: 168.9 lm/W at 150W / 4000K / 90°
• CRI: 85 (4000K) | 84 (5000K) | 82 (3000K)
• Color Consistency: 7-step MacAdam Ellipse binning
• Dimming: 0–10V dimmable driver standard (100% to 10% minimum)
• Universal Voltage: 120–277V AC, 50/60 Hz
• IP Rating: IP69K — high-pressure and high-temperature cleaning rated
• IK Rating: IK10 — impact protection rated
• NSF Certified: Public health and safety
• Location Rating: UL listed for wet locations
• Cold-Start Rated: -40°C (-40°F)
• Max Ambient Temperature: 50°C (122°F)
• Lens: Polycarbonate
• Rated Life: 100,000 hours (IES LM-80 / TM-21)
• DLC Premium: DLC ID S-13J0R4 — qualifies for utility rebate programs
• Green Technology: Mercury and UV free, RoHS-compliant components
• Warranty: 5-year limited warranty (light output, driver performance, paint finish)

Performance & Light Output

Lumen output and efficacy vary by CCT and beam angle — 4000K delivers the highest output at every wattage setting. Peak output is achieved at the 90° beam angle. At 150W: 60° — 21,920 lm / 149.0 lm/W (3000K) | 23,130 lm / 161.7 lm/W (4000K) | 22,943 lm / 156.1 lm/W (5000K); 90° — 22,894 lm / 158.3 lm/W (3000K) | 24,005 lm / 168.9 lm/W (4000K) | 24,132 lm / 166.0 lm/W (5000K); 105° — 22,617 lm / 154.3 lm/W (3000K) | 23,952 lm / 167.3 lm/W (4000K) | 23,810 lm / 161.8 lm/W (5000K). Per-wattage breakdown at 120W and 100W available on the RAB spec sheet. Rated life 100,000 hours per IES LM-80 / TM-21 projections. L70 lumen maintenance standard.

Smart & Control Features

The RAB H22 supports the Lightcloud Blue (LC Blue) wireless control ecosystem and plug-and-play sensor accessories via the standard sensor receptacle:

• MVS50: MVS 15M height IP65 occupancy sensor — sold separately
• MVS50/LCB: LC Blue controller with integrated MVS sensor — sold separately
• PIR40: PIR sensor, max 12M height, IP66 — sold separately
• PIR40/LCB: LC Blue controller with integrated PIR sensor — sold separately
• MSR1: Multi sensor remote, IP20 — sold separately

LC Blue accessories enable wireless group control, scheduling, and daylight harvesting without a separate gateway. 0–10V dimming wiring is standard on all H22 fixtures.

Electrical

Constant current, Class 1 driver. 120–277V AC, 50/60 Hz. 0–10V dimming from 100% to 10% minimum. Input current at 150W: 120V / 1.17A, 208V / 0.68A, 240V / 0.61A, 277V / 0.39A. Input current at 120W: 120V / 0.78A, 208V / 0.56A, 240V / 0.50A, 277V / 0.45A. Input current at 100W: 120V / 0.82A, 208V / 0.48A, 240V / 0.43A, 277V / 0.39A. Battery backup operates the LED lamp for 90 minutes if power fails; wired for 120–277V. Emergency light loss factor at 150W: 23.3% | 120W: 27.6% | 100W: 31.3%. Mercury and UV free, RoHS-compliant. Green Technology.

Construction

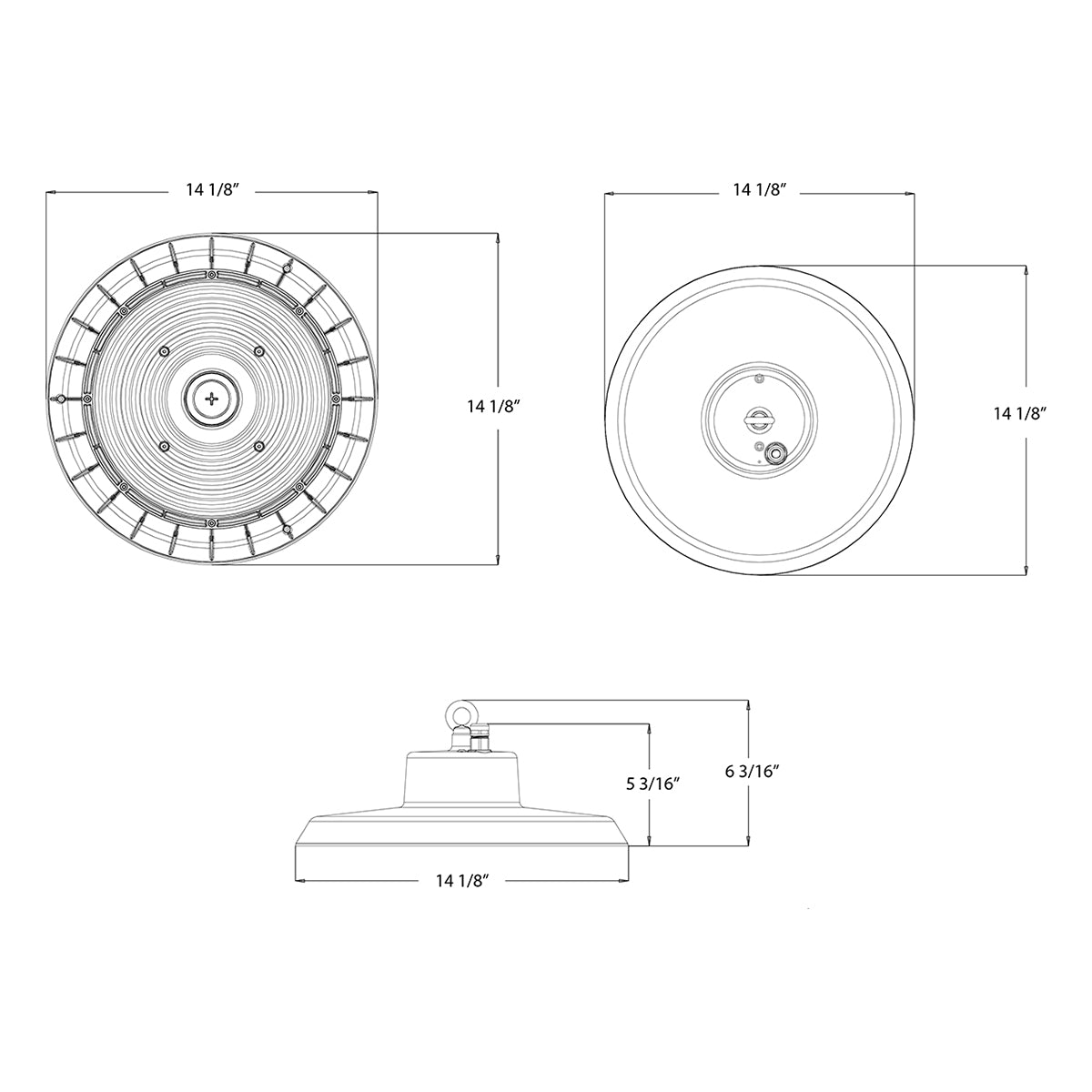

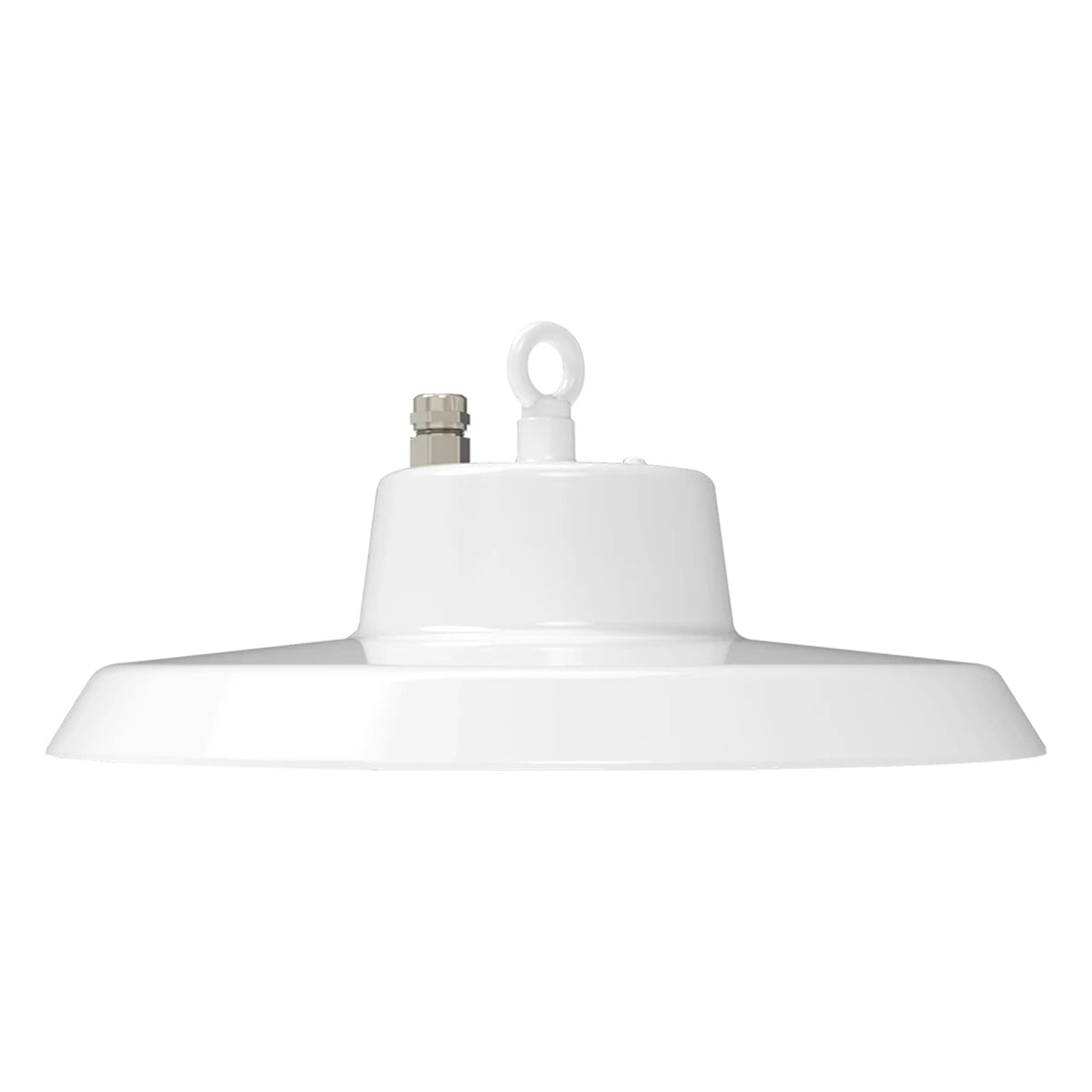

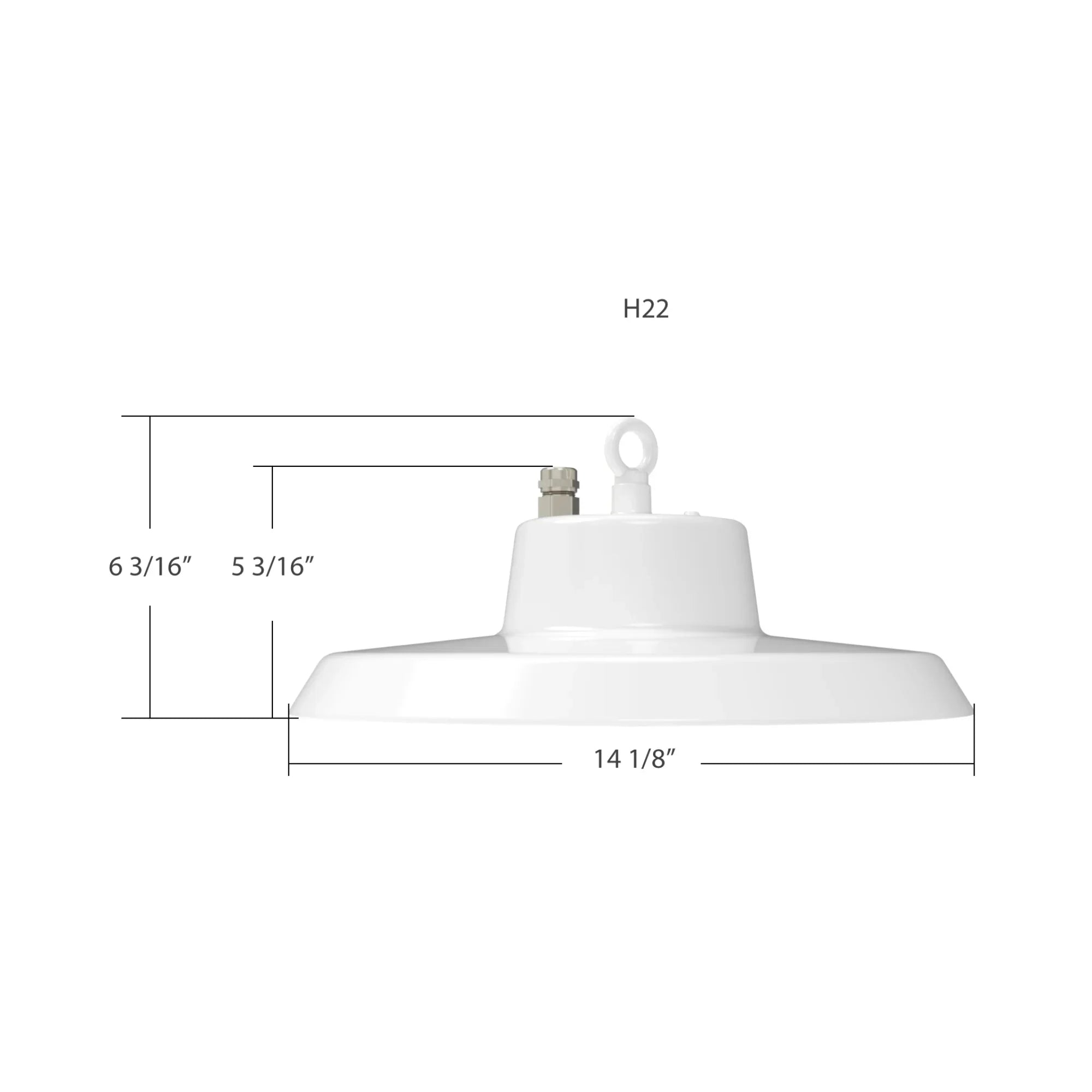

Precision die-cast aluminum housing with polycarbonate lens. IP69K rated — tested for high-pressure (80 bar) and high-temperature cleaning, exceeding standard IP65/IP66 washdown ratings. IK10 impact protection. Finish formulated for high durability and long-lasting color. Dimensions: Ø14-1/8" × 6-3/16"H. Weight: 5.56 lbs (120–277V).

Installation & Mounting

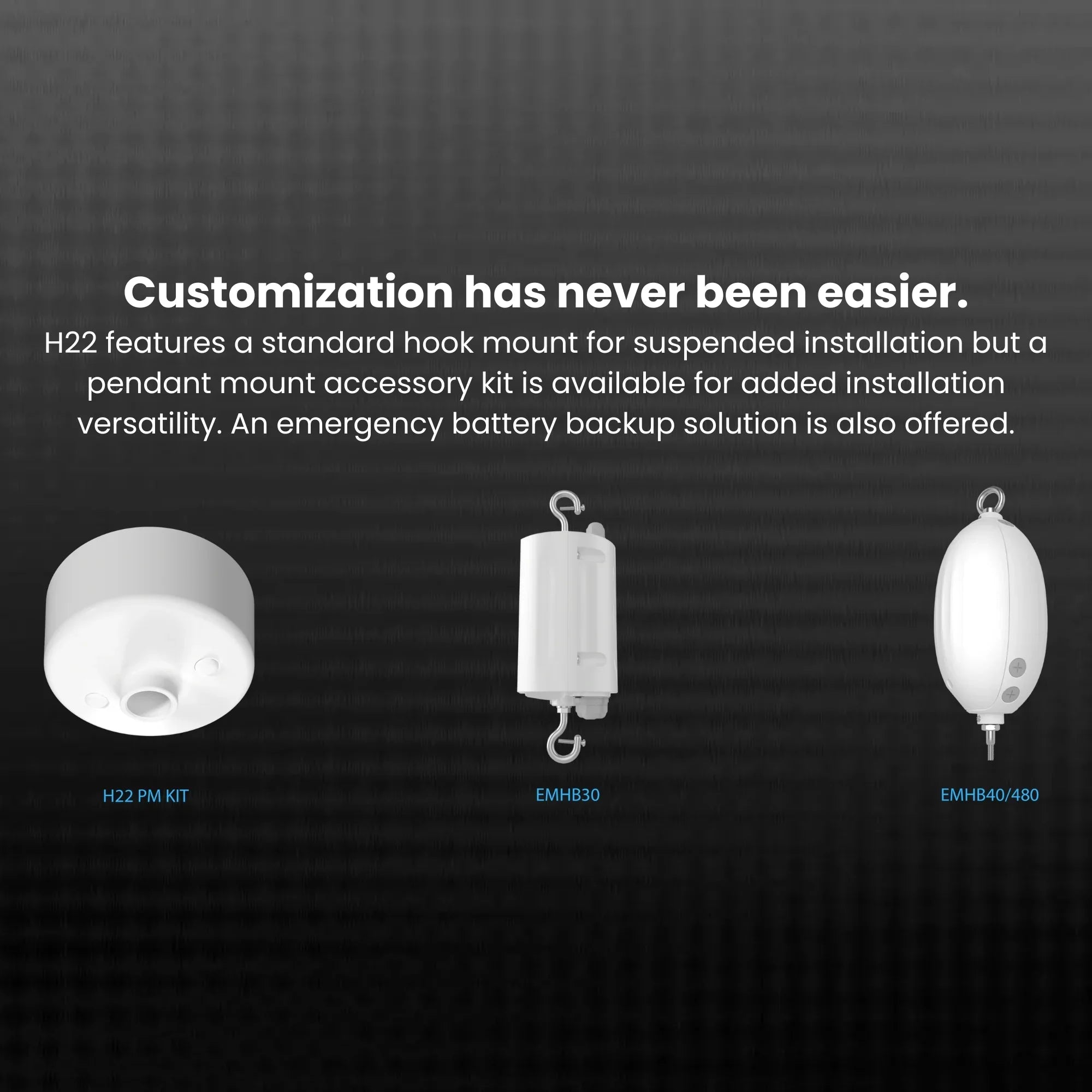

Comes standard with a hanging hook and 6-foot cord. Heavy-duty 3/4"-14 NPT hook and 3/4"-14 pendant mount capable (pendant by others).

• Pendant Mount Kit: H22 PM KIT — sold separately
• Emergency Battery (120–277V): EMHB30 (30W, 150–240W high bay) | EMHB30/LCB (with LC Blue) — sold separately
• Sensors: MVS50, MVS50/LCB, PIR40, PIR40/LCB, MSR1 — sold separately

Recommended ceiling height by wattage: 100W — 12–18 ft | 120W — 16–22 ft | 150W — 18–28 ft.

Certifications & Rebates

UL listed for wet locations. DLC Premium listed — DLC ID S-13J0R4. Eligible for utility rebate programs in most U.S. states and Canadian provinces. Verify eligibility at designlights.org. NSF certified for public health and safety. IK10 impact rated. RoHS compliant.

Typical Applications

• Food Processing & Commercial Kitchens: IP69K + NSF certification makes the H22 the spec-correct choice for washdown zones, food prep areas, and HACCP-compliant facilities
• Warehouses & Distribution Centers: Selectable wattage and beam angle right-size output for racking height and aisle spacing without restocking multiple SKUs
• Manufacturing & Industrial Facilities: IK10 impact rating and -40°C cold-start handle the most demanding production floor environments
• Municipal & Government Buildings: DLC Premium listed and RoHS compliant — qualifies for federally funded retrofit and new construction projects
• Commercial Garages & Auto Service: Three beam angles optimize coverage for bay width and ceiling height; IP69K withstands pressure washing
• Cold-Storage & Refrigerated Warehouses: -40°C cold-start rated — powers on at full output in freezer environments

What's Included

• RAB H22 UFO LED High Bay with integrated LED engine and driver
• Hanging hook with 6-foot cord (3/4"-14 NPT)
