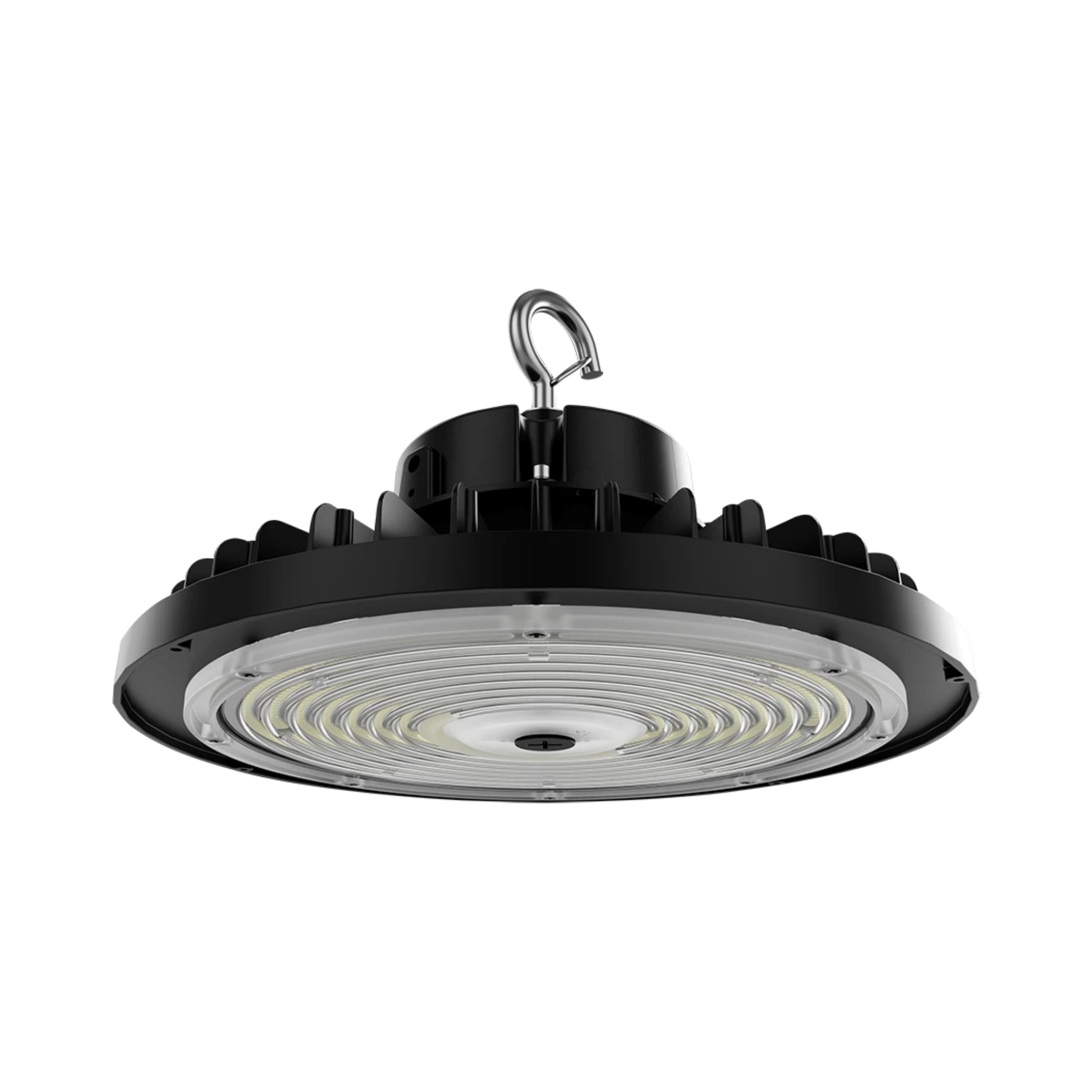

RAB H15XLB Field-Adjustable UFO LED High Bay — 240W / 200W / 150W Selectable — Black

The RAB H15XLB is a high-output field-adjustable UFO LED high bay in a black powder coat finish, delivering up to 35,618 lumens with selectable wattage of 240W, 200W, and 150W and selectable CCT of 3000K, 4000K, and 5000K. It operates on universal 120-277V with integrated 0-10V dimming to 10%, carries a UL Wet Location listing and IP65 ingress protection rating, and is certified DLC Premium (S-H250NX) — qualifying for the highest tier of utility rebate programs. Cold weather rated to -40°F (-40°C). Replaces up to 750W Metal Halide at the 240W setting.

Key Features

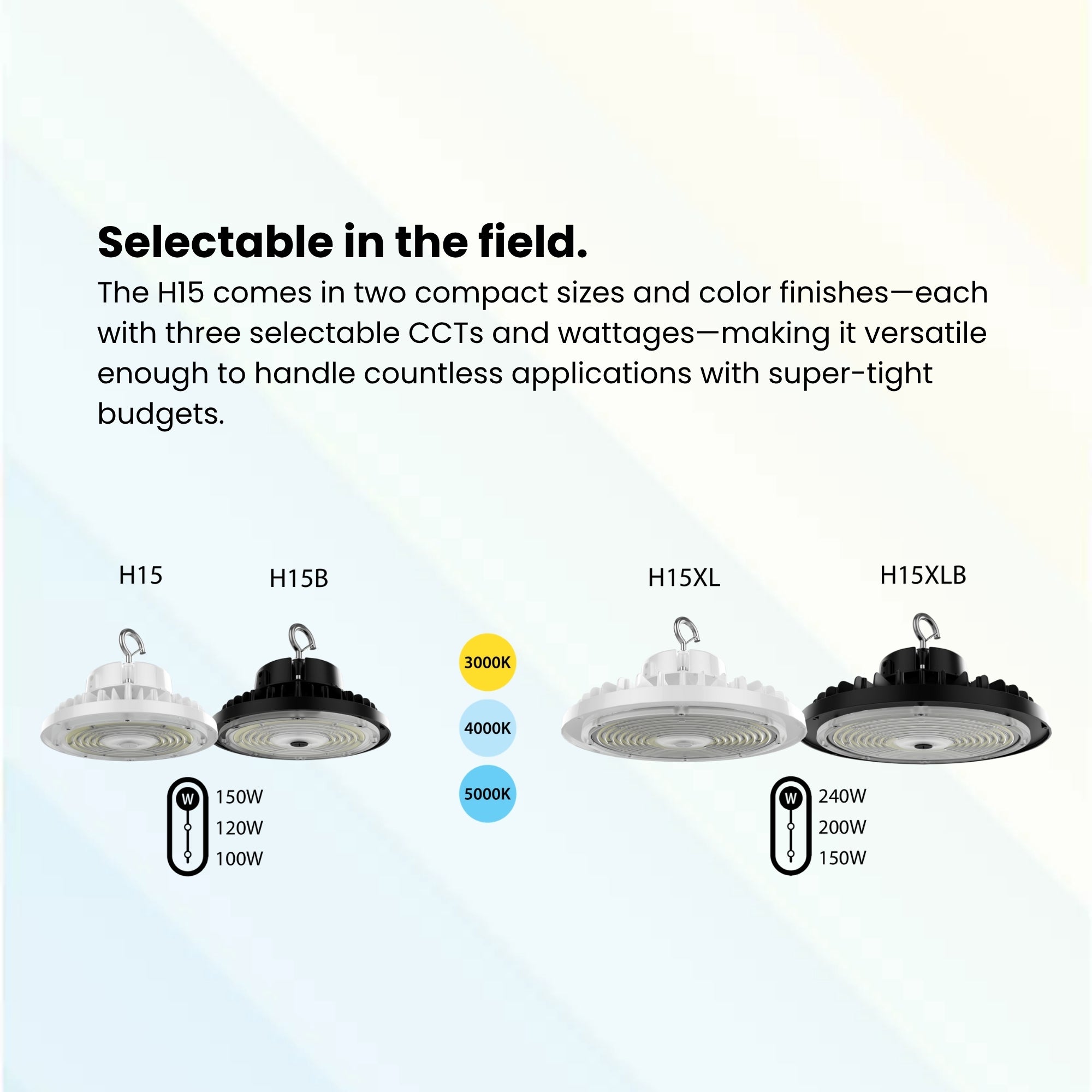

• Selectable Wattage: 240W / 200W / 150W — field-adjustable via built-in selector switch, factory default 240W
• Selectable CCT: 3000K / 4000K / 5000K — field-adjustable, factory default 4000K
• Maximum Lumen Output: 35,618 lm at 240W / 4000K
• Peak Efficacy: 169.9 lm/W at 150W / 5000K
• CRI: 81–84 across all wattage and CCT configurations
• Color Consistency: 7-step MacAdam Ellipse binning for consistent fixture-to-fixture color
• Dimming: 0-10V dimming standard, dim to 10%; Dim to Off capable
• Voltage: Universal 120-277V, 50/60Hz; constant current driver; 480V available (/480 suffix)
• Location Rating: UL Listed for wet locations; IP65 rated for dust and water ingress
• Cold Weather Start: Minimum starting temperature -40°F (-40°C)
• Maximum Ambient Temperature: 122°F (50°C)
• Certifications: UL Wet Location, DLC Premium (S-H250NX), IES LM-79 and LM-80 tested
• Rated Life: 100,000 hours L70 (IES LM-80 / TM-21)
• Warranty: 5-year limited — covers light output, driver performance, and paint finish
• Wattage Equivalency: 240W and 200W replace up to 750W MH; 150W replaces up to 400W MH or 7× F5HO

Performance & Light Output

At 240W: 31,998 lm (3000K / 135.3 lm/W), 35,618 lm (4000K / 157.7 lm/W), 33,753 lm (5000K / 142.5 lm/W). At 200W: 27,899 lm (3000K / 142.7 lm/W), 30,592 lm (4000K / 162.9 lm/W), 29,282 lm (5000K / 149.5 lm/W). At 150W: 22,427 lm (3000K / 152.8 lm/W), 24,142 lm (4000K / 169.9 lm/W), 23,552 lm (5000K / 160.2 lm/W). CRI 81–84 across all configurations. Rated life 100,000 hours L70 per IES LM-80 / TM-21.

Smart & Control Features

The H15XLB supports two factory-configured control options:

• 0-10V Dimming (standard): Dims to 10% via standard 0-10V DC circuit, Dim to Off capable. Compatible with most commercial building control and energy management systems.
• Lightcloud Blue (accessory): Add PIR40B/LCB or MVS50B/LCB sensor/controller accessories for wireless Bluetooth mesh group control without additional wiring.

Remote control accessory (catalog# MSR1) available for field adjustment of wattage and CCT on 0-10V models. Occupancy sensors: PIR40B (PIR, max 12m, IP66) and MVS50B (microwave, max 15m, IP65) available with or without Lightcloud Blue integration. Order /LCBS suffix for factory-installed Lightcloud Blue sensor; /LCBS/E for Lightcloud Blue with emergency battery backup.

Electrical

Constant current driver, 120–277V AC, 50/60Hz. Power Factor 99.9% at 120V, 96.2% at 277V. THD 2.03% at 120V, 7.46% at 277V. Surge protection 6 kV + 6 kV. Dimming driver includes wiring for 0-10V dimming systems, dim to 10%. Dim to Off capable. Auxiliary power supply included.

Construction

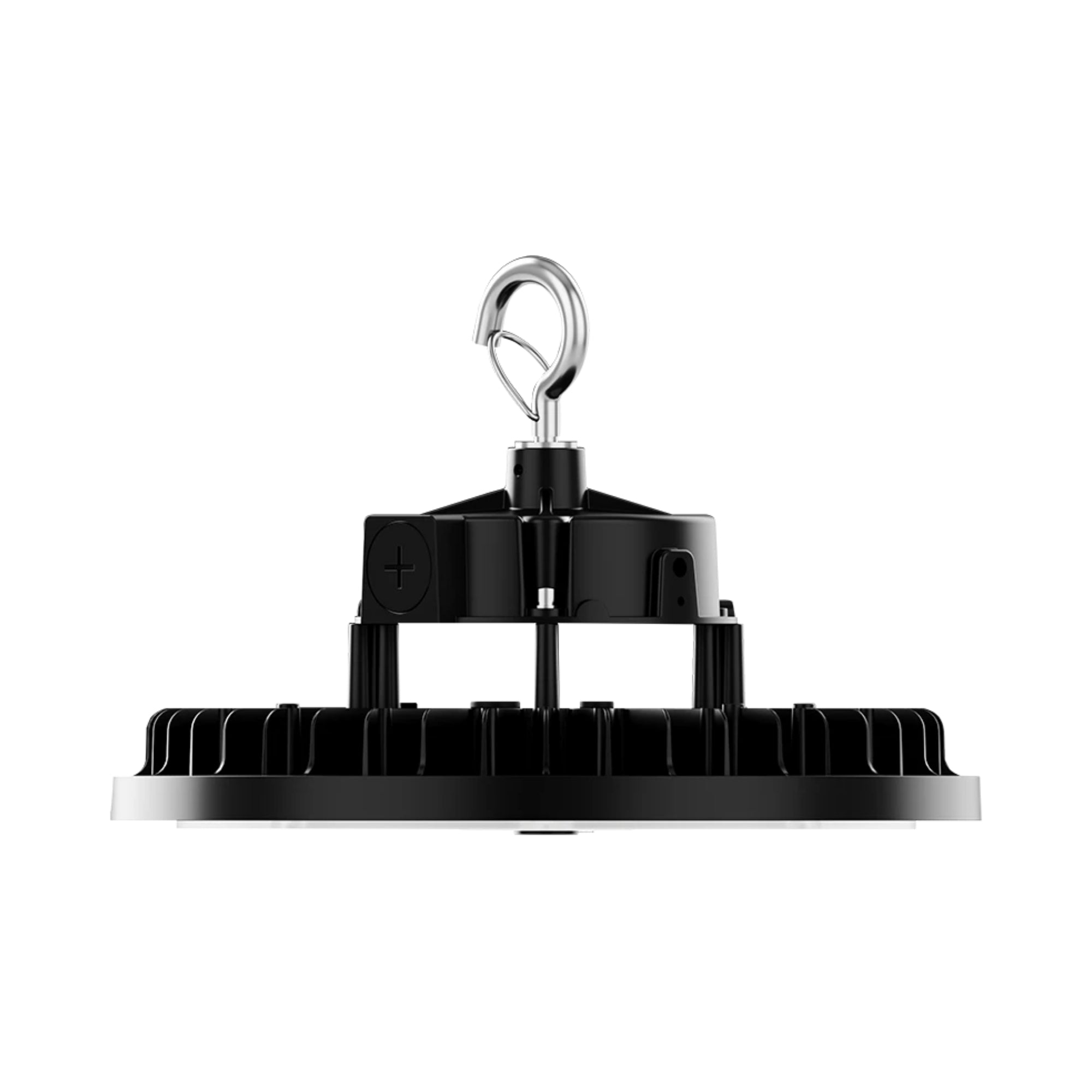

Housing & Thermal: Precision die-cast aluminum housing — the aluminum body serves as an active heatsink for maximum thermal dissipation to protect internal electronics and support the rated 100,000-hour lifespan.

Lens & Optics: Clear, shatter-resistant polycarbonate lens designed to protect the surface-mount LEDs. Internal reflector: polycarbonate with aluminum plating for uniform light distribution and glare control. Reflector accessories sold separately (see Installation & Mounting).

Finish: Formulated polyester powder-coat finish in Black — designed for high durability, weather resistance, and long-lasting color retention.

Environmental & Safety: IP65 rated — completely dust-tight and sealed against low-pressure water jets. UL Listed for wet locations. Mercury-free, UV-free, RoHS-compliant components. Operating range: −40°F to +122°F (−40°C to +50°C).

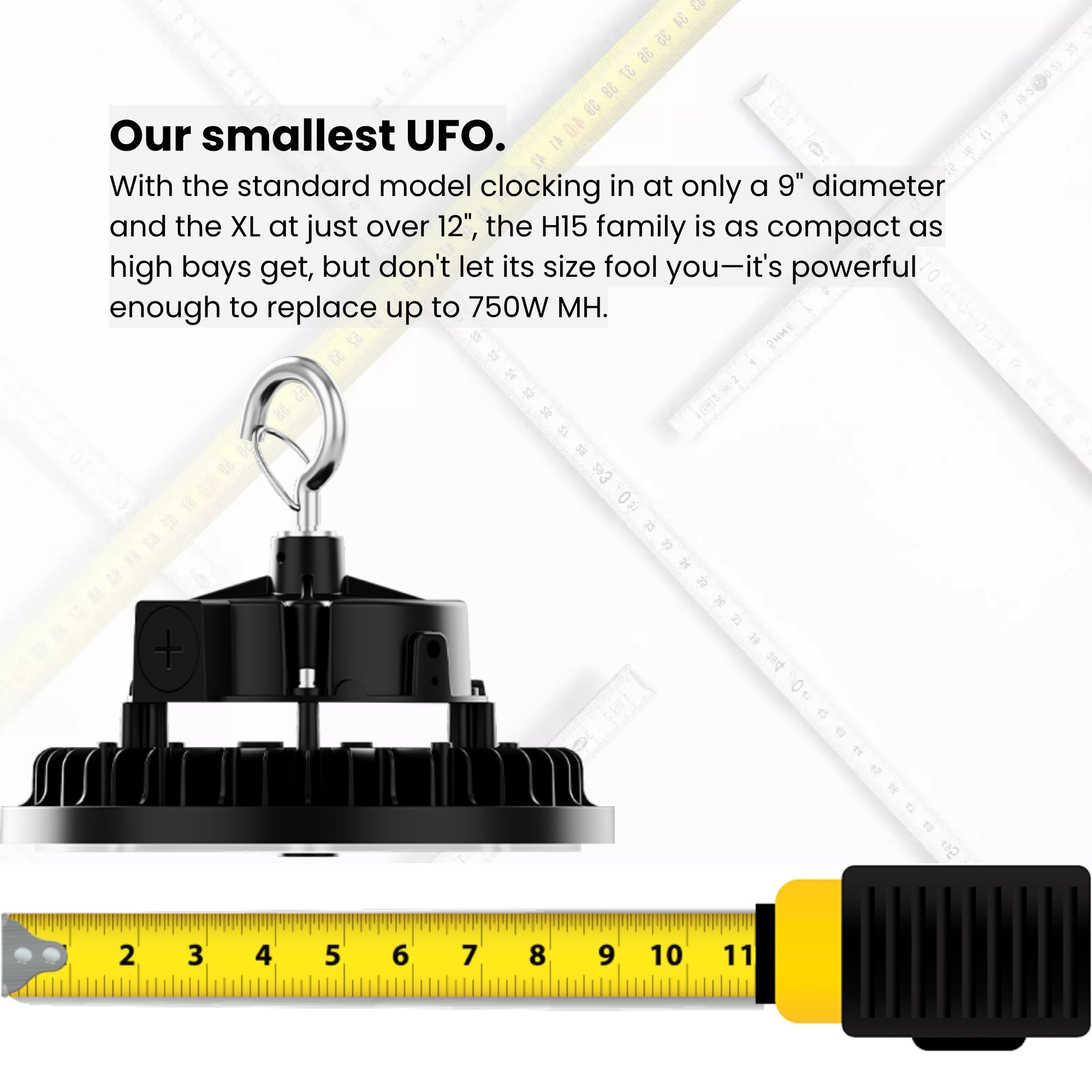

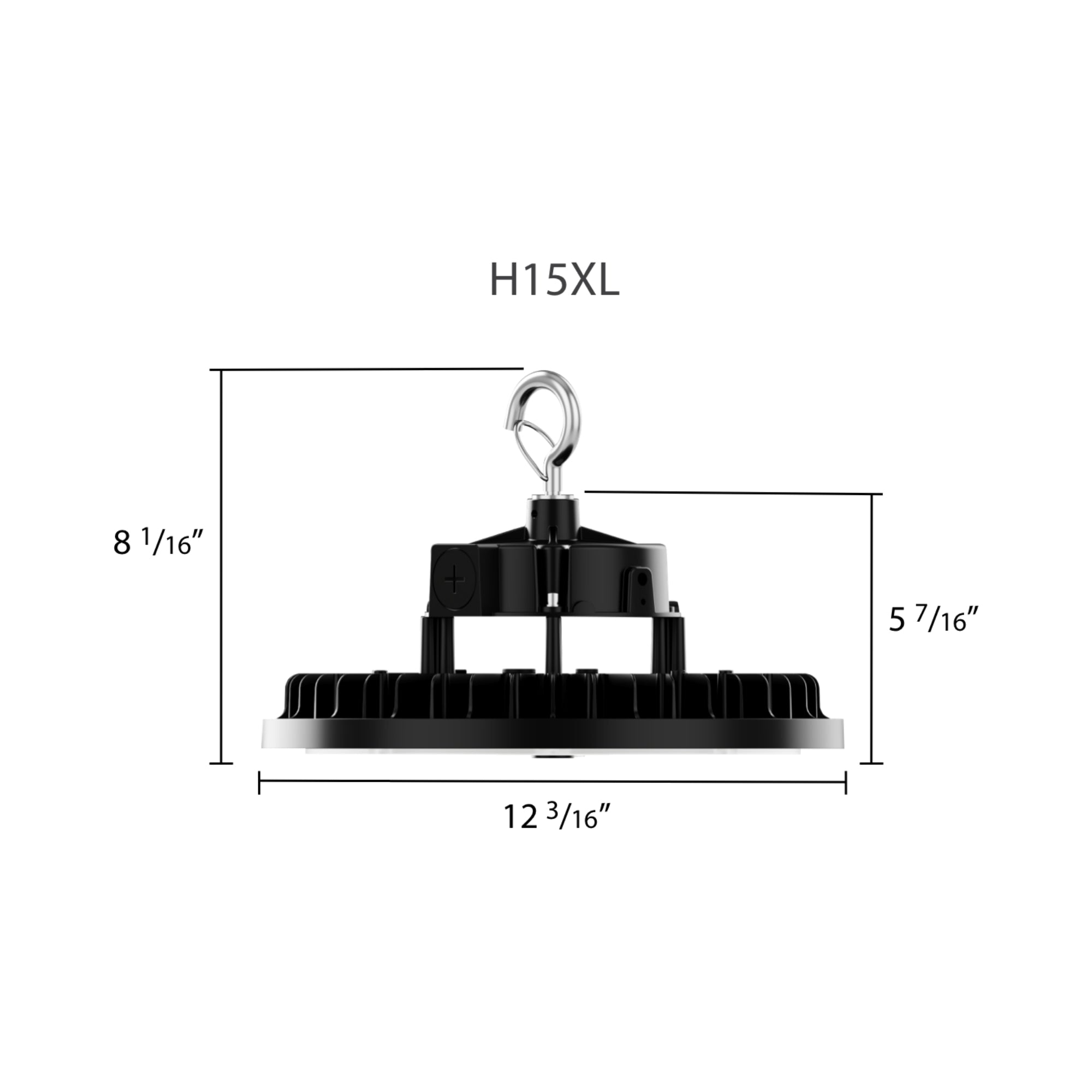

Dimensions & Weight: 12.19" dia × 8.06" H. Weight: 6.4 lbs.

Installation & Mounting

Standard Hardware: Comes standard with a heavy-duty integrated 3/4"-14 NPT threaded hanging hook.

Mounting Options: Pendant mount compatible with standard 3/4" conduit/pendant rods (pendant by others). Surface and yoke mount kits available as accessories.

Wiring: Factory-installed 6-foot heavy-duty power cord included standard.

Recommended Mounting Heights: 240W — 35 to 50 ft; 200W — 25 to 40 ft; 150W — 20 to 35 ft. For lower ceiling applications (20 ft and under), see RAB H15B (150/120/100W).

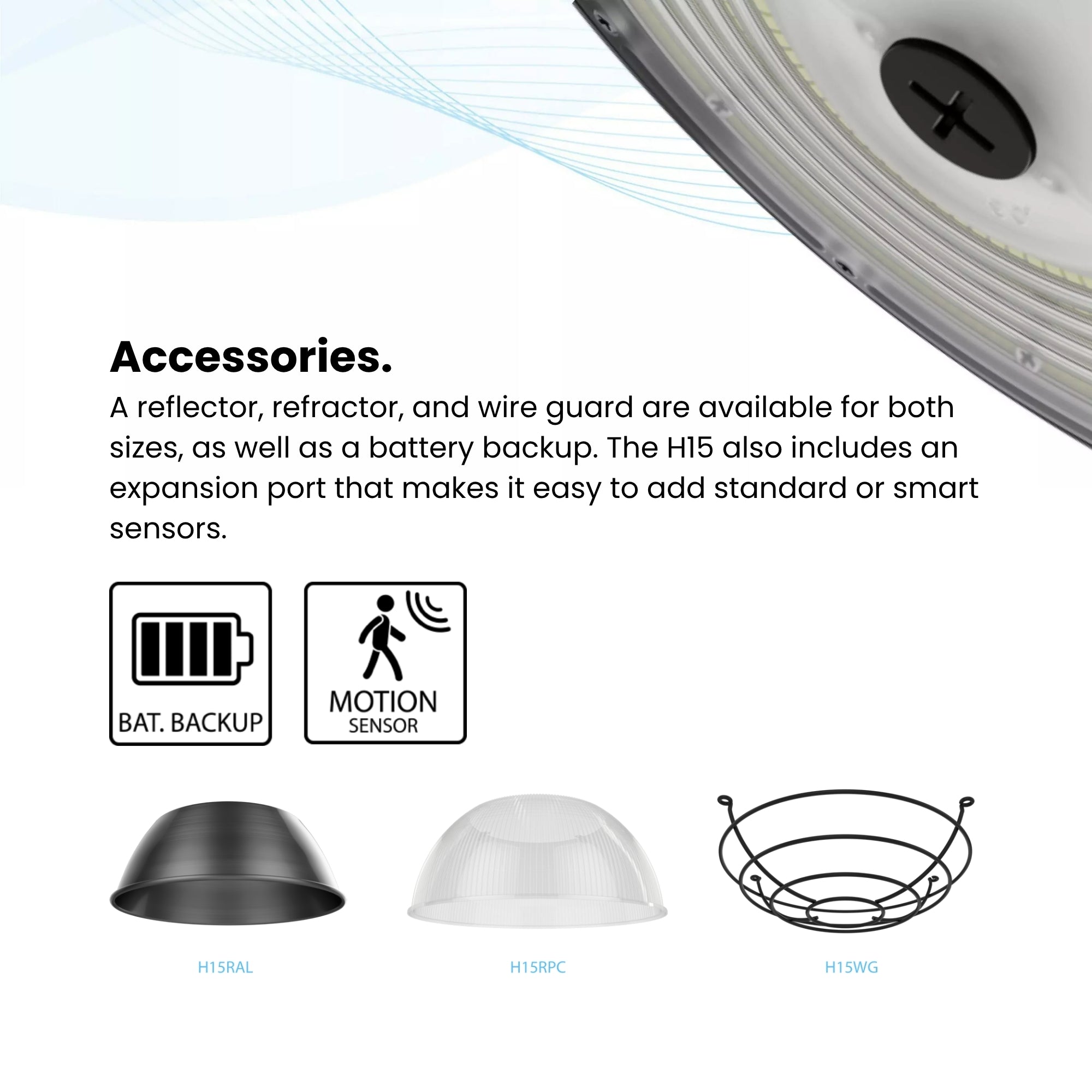

Accessories (Sold Separately):

• Reflectors: H15XL-RAL (Aluminum) | H17XL-RPC (Polycarbonate)
• Wire Guards: H15XLB-WG (Black)
• Drop Lens: H17-RDL
• Pendant Mount Kit: H17B-PM KIT (Black)
• Surface / Yoke Mount Kit: H17B-SM KIT (Black)
• Emergency Battery Backup: EMHB30B (Black) | EMHB30B/LCB (Lightcloud Blue, Black)
• Occupancy Sensors: PIR40B | MVS50B (with /LCB variants for Lightcloud Blue)

Certifications & Rebates

• UL Listed — wet locations
• DLC Premium — qualifies for the highest tier of utility rebate programs. To verify rebate eligibility with your utility provider, visit designlights.org and search product code S-H250NX.
• RoHS Compliant
• IES LM-79 & LM-80 — tested per IESNA standards

Typical Applications

• High-ceiling warehouses and distribution centers — 240W setting delivers 35,618 lm for ceilings 35–50 ft with wide, uniform coverage
• Cold storage and freezer warehouses — rated to -40°F (-40°C) for dependable cold-start performance
• Manufacturing and heavy assembly facilities — high lumen output and 81–84 CRI support detail-critical work at elevated mounting heights
• Covered loading docks and car washes — UL wet location listing and IP65 rating support direct moisture exposure
• Gymnasiums and large recreation centers — black finish preferred for dark ceiling aesthetics with full-output high bay performance

What’s Included

• RAB H15XLB UFO LED high bay fixture — Black
• Heavy-duty hanging hook
• 6-foot cord
• Mounting hardware
