RAB H15XL/480 UFO High Bay 36,125 Lumens 240/200/150W Selectable 3000K/4000K/5000K 480V White
Available in stock (600)
About this item
About this item

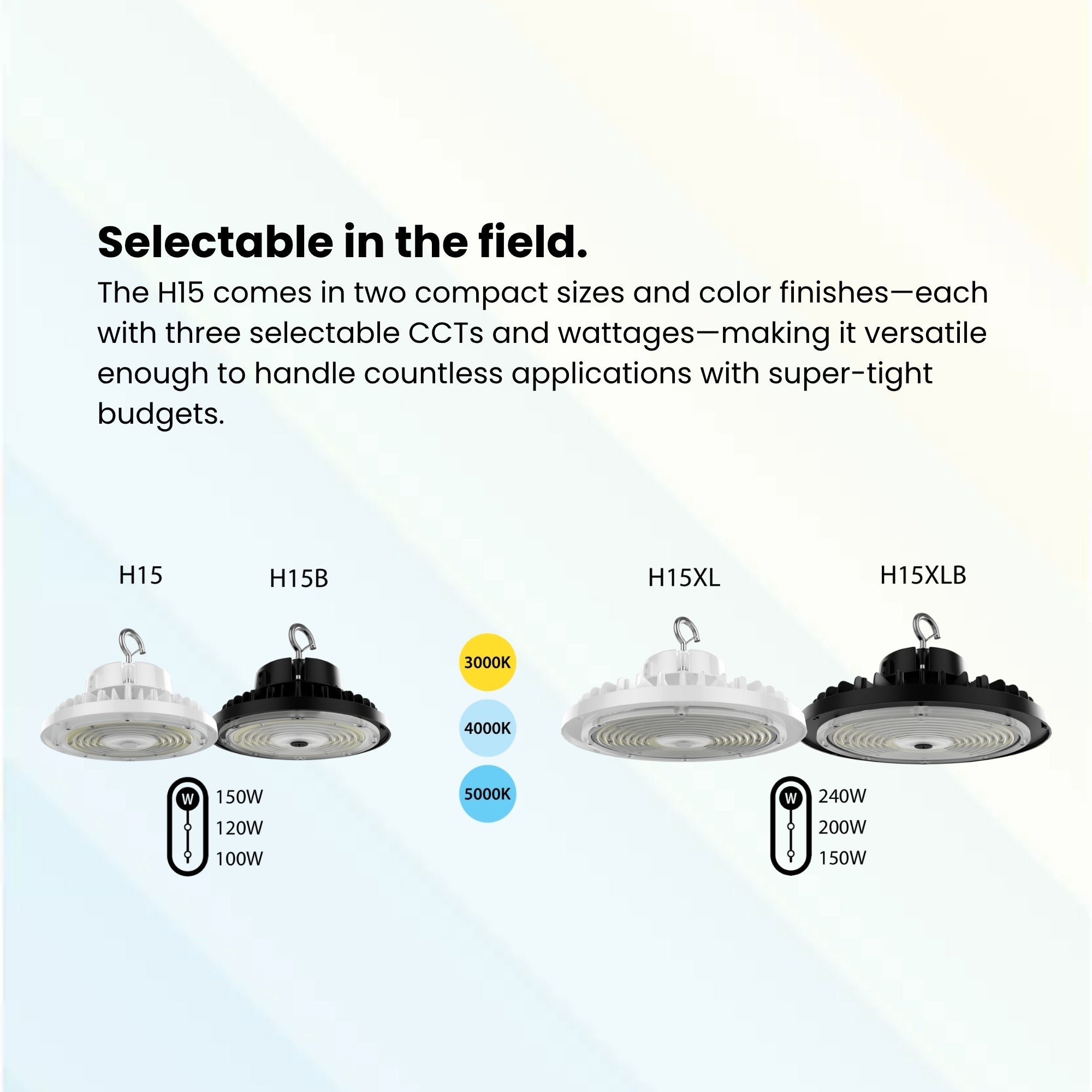

- High Output Field Adjustability: Selectable wattage and CCT in one fixture
- Industrial Voltage: 480V input with 0-10V dimming
- Environmental Rating: IP65 wet location listed
- Certifications: DLC Premium and UL Listed
- Mounting Included: Hanging hook and cord
We process payments securely and do not store credit card information.
Description
Description

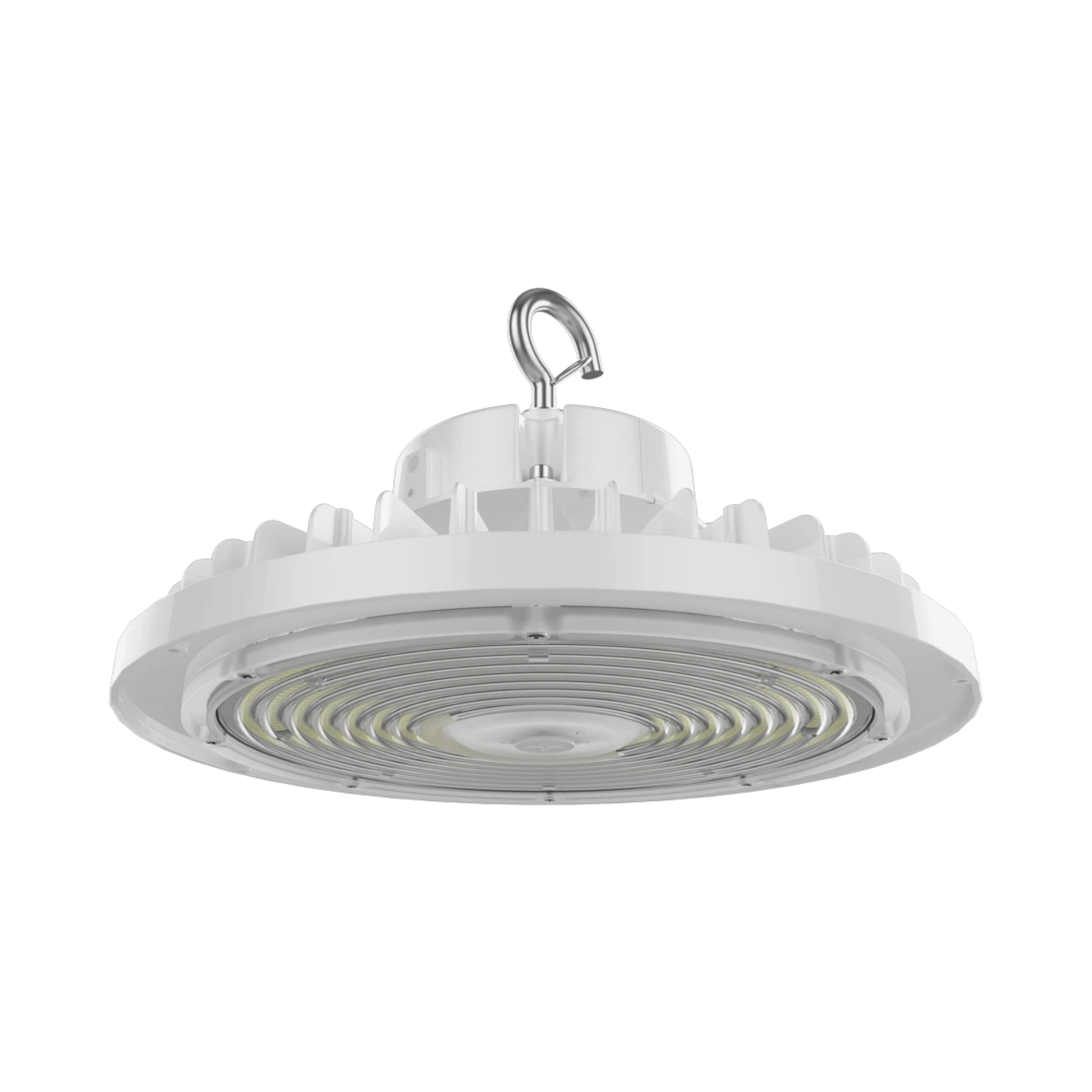

RAB H15XL/480 Field-Adjustable LED High Bay — 240W / 200W / 150W Selectable
The RAB H15XL/480 is a high-output, field-adjustable LED high bay designed for 480V industrial electrical systems. It delivers up to approximately 36,092 lumens with selectable wattage options of 240W, 200W, and 150W and selectable CCT of 3000K / 4000K / 5000K. The fixture includes an integrated 0-10V dimmable driver and is rated for wet locations with IP65 protection. It is DLC Premium listed and UL Wet Location listed for demanding commercial and industrial environments.
Key Features
- Selectable Wattage: 240W / 200W / 150W
- Selectable CCT: 3000K / 4000K / 5000K
- Maximum Output: Up to ~36,092 lumens
- Voltage: 480V industrial input
- Dimming: 0-10V dimming to 10%
- Environmental Rating: IP65 wet location listed
- Certifications: DLC Premium, UL Listed
- LED Lifespan: 100,000 hours L70
Typical Applications
- Large industrial facilities with 480V feed
- Manufacturing plants
- Distribution centers
- Warehouses with high ceilings
- Heavy commercial interiors
Performance & Light Output:
Delivered lumen output varies by selected wattage and CCT settings. The fixture provides high-level illumination for deep industrial spaces requiring robust lighting performance.
Electrical & Controls:
Operates on 480V, 50/60 Hz with a constant current driver. Includes integrated 0-10V dimming control compatible with standard low-voltage control systems.
Construction & Durability:
Die-cast aluminum housing with durable finish and polycarbonate lens. Rated IP65 for protection against dust and water ingress in wet locations.
Installation & Mounting:
Includes heavy-duty hanging hook and 6-foot cord for suspended mounting. Compatible with 3/4″-14 NPT pendant mount hardware (sold separately).
Included
LED high bay fixture, hanging hook, and 6-foot cord.
Accessories

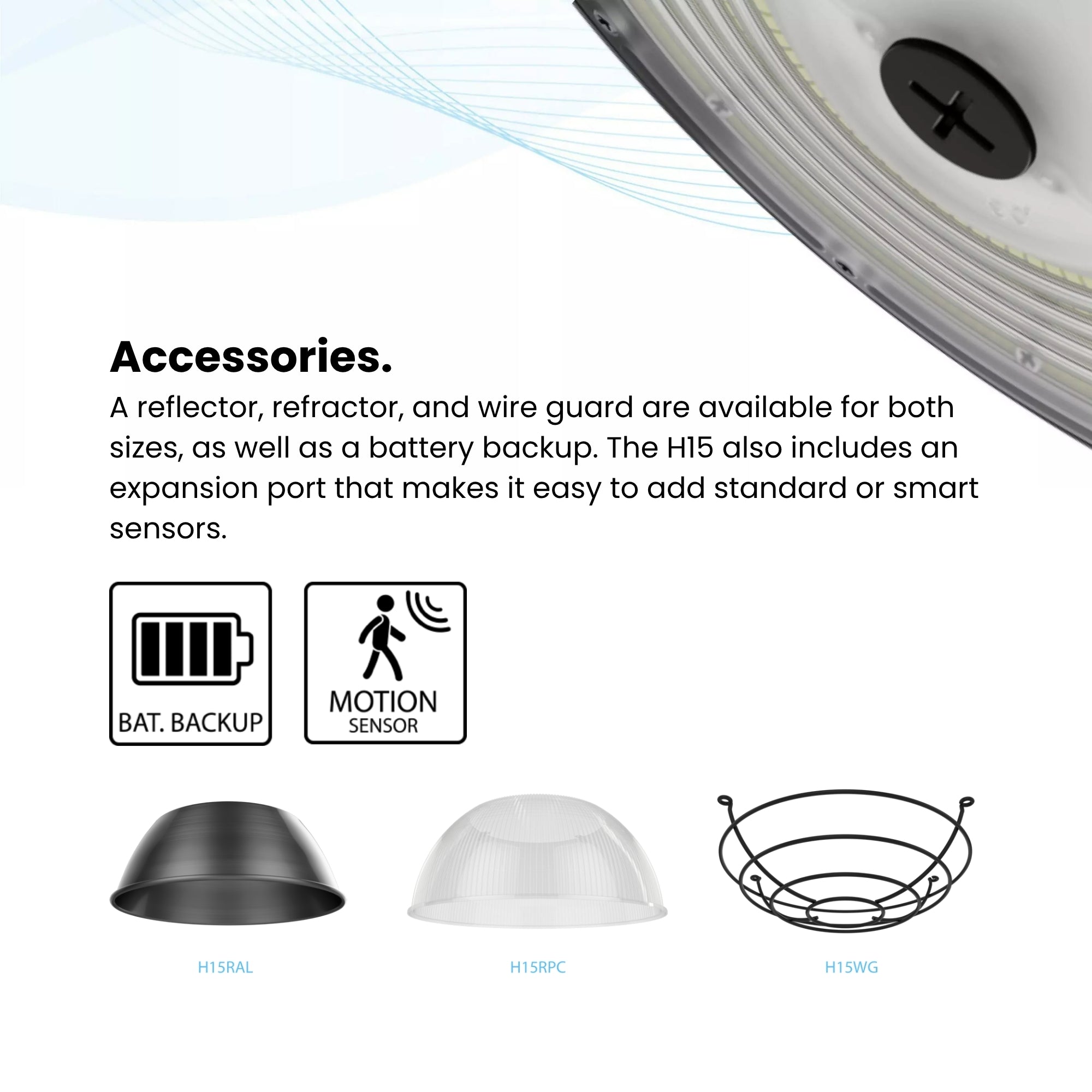

Optional accessories include pendant and surface mount kits, reflectors, refractors, wire guard kits, occupancy sensors, Lightcloud Blue sensor/controller options, MSR1 remote, and emergency battery backup solutions (sold separately).
Specifications
Specifications
Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What mounting height is recommended for the H15XL/480?
What mounting height is recommended for the H15XL/480?
What voltage does this model operate on?
What voltage does this model operate on?
Can wattage and CCT be changed in the field?
Can wattage and CCT be changed in the field?
Is the fixture rated for wet locations?
Is the fixture rated for wet locations?
Is this model DLC listed for rebates?
Is this model DLC listed for rebates?
