RAB H15B/480 Field-Adjustable UFO LED High Bay — 150W / 120W / 100W Selectable — Black

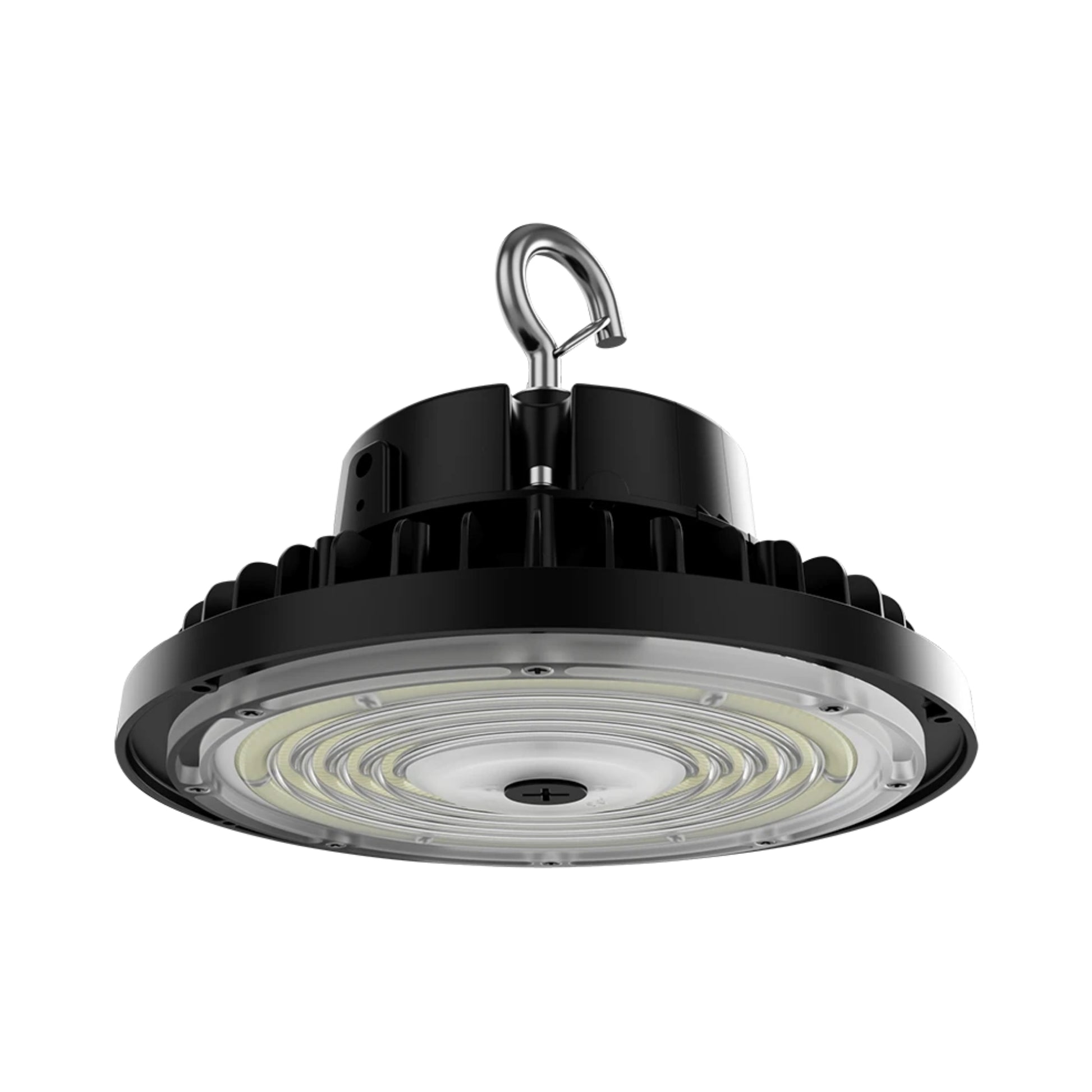

The RAB H15B/480 is a field-adjustable UFO LED high bay in a black powder coat finish, engineered specifically for 480V industrial electrical systems. It delivers up to 23,066 lumens with selectable wattage of 150W, 120W, and 100W and selectable CCT of 3000K, 4000K, and 5000K. It operates on 480V only with integrated 0-10V dimming to 10%, carries a UL Wet Location listing and IP65 ingress protection rating, and is certified DLC Premium (S-N13W3S) — qualifying for the highest tier of utility rebate programs. Cold weather rated to -40°F (-40°C). Replaces up to 400W Metal Halide at the 150W setting. For 120-277V applications, see the RAB H15B.

Key Features

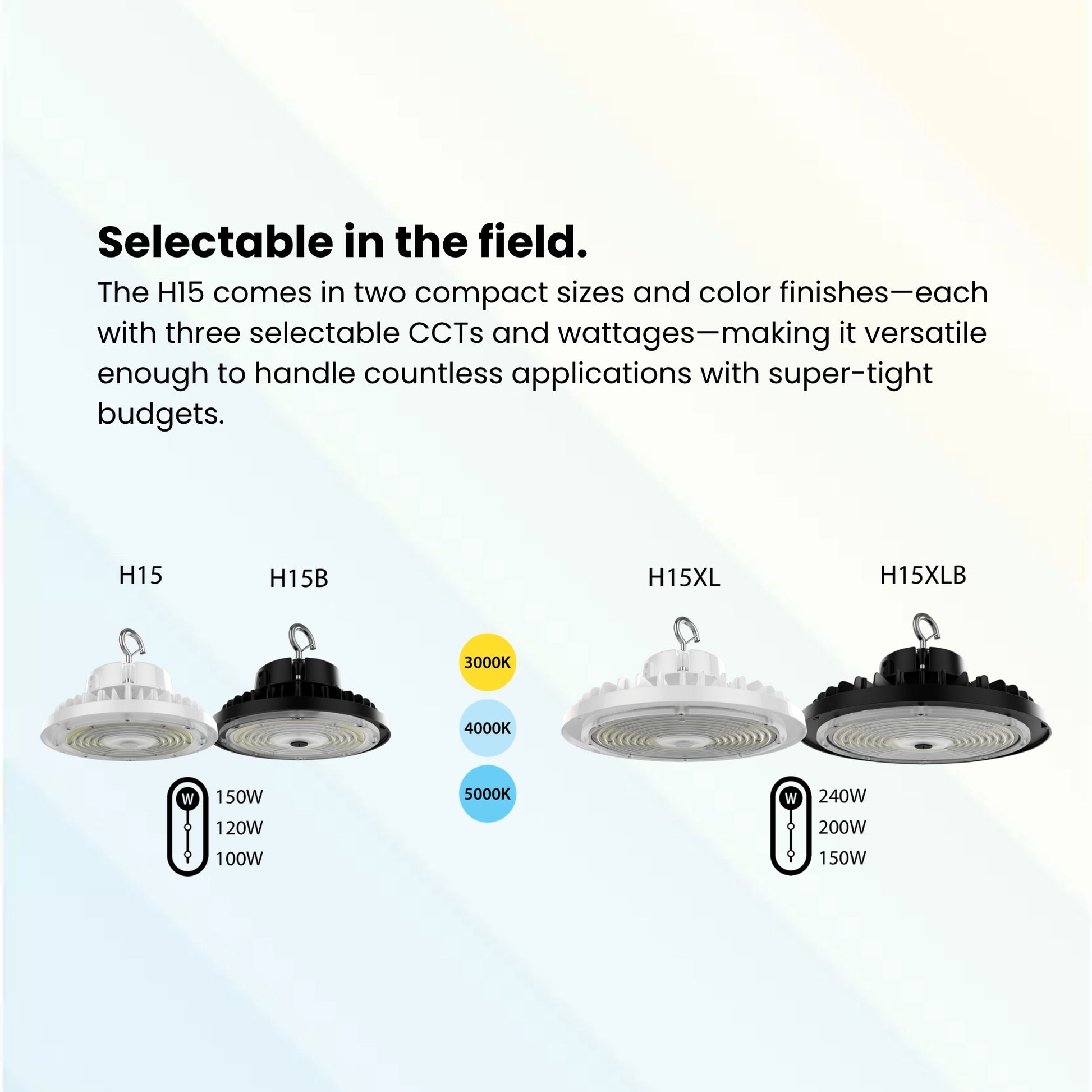

• Selectable Wattage: 150W / 120W / 100W — field-adjustable via built-in selector switch, factory default 150W
• Selectable CCT: 3000K / 4000K / 5000K — field-adjustable, factory default 4000K
• Maximum Lumen Output: 23,066 lm at 150W / 5000K
• Peak Efficacy: 164.4 lm/W
• CRI: 80–83 across all wattage and CCT configurations
• Color Consistency: 7-step MacAdam Ellipse binning for consistent fixture-to-fixture color
• Dimming: 0-10V dimming standard, dim to 10%; Dim to Off capable
• Voltage: 480V only, 50/60Hz; constant current driver
• Location Rating: UL Listed for wet locations; IP65 rated for dust and water ingress
• Cold Weather Start: Minimum starting temperature -40°F (-40°C)
• Maximum Ambient Temperature: 122°F (50°C)
• Certifications: UL Wet Location, DLC Premium (S-N13W3S), IES LM-79 and LM-80 tested
• Rated Life: 100,000 hours L70 (IES LM-80 / TM-21)
• Warranty: 5-year limited — covers light output, driver performance, and paint finish
• Wattage Equivalency: 150W replaces 7× F5HO or 400W MH; 120W replaces 5× F5HO or 400W MH; 100W replaces 8× F32T8 or 4× F5HO or 350W MH

Performance & Light Output

Lumen output range across all wattage and CCT configurations: 15,049 lm (minimum, 100W / 3000K) to 23,066 lm (maximum, 150W / 5000K). Peak efficacy: 164.4 lm/W. Input watts: 99–152.8W at 480V. CRI 80–83 across all configurations. Rated life 100,000 hours L70 per IES LM-80 / TM-21. Note: per-CCT lumen breakdown by wattage is not published in the RAB H15B/480 specification sheet; contact RAB Lighting for full photometric data.

Smart & Control Features

The H15B/480 supports two factory-configured control options:

• 0-10V Dimming (standard): Dims to 10% via standard 0-10V DC circuit, Dim to Off capable. Compatible with most commercial building control and energy management systems.
• Lightcloud Blue (accessory): Add PIR40B/LCB or MVS50B/LCB sensor/controller accessories for wireless Bluetooth mesh group control without additional wiring.

Remote control accessory (catalog# MSR1) available for field adjustment of wattage and CCT on 0-10V models. Occupancy sensors: PIR40B (PIR, max 12m, IP66) and MVS50B (microwave, max 15m, IP65) available with or without Lightcloud Blue integration. Order /LCBS suffix for factory-installed Lightcloud Blue sensor; /LCBS/E for Lightcloud Blue with emergency battery backup (confirm 480V compatibility with RAB Lighting).

Electrical

Constant Current, Class 1 driver. Input: 480V only, 50/60Hz. Input amps at 480V: 0.33A (150W) / 0.27A (120W) / 0.23A (100W). Input watts: 99–152.8W. THD: 9.82% at 480V. Power Factor: 93.7% at 480V. Surge protection: 6kV + 6kV (L-N and L&N-GND). Auxiliary power supply: included. Mercury-free, UV-free, RoHS-compliant components. Note: emergency battery backup compatibility — confirm with RAB Lighting for 480V model applicability.

Construction

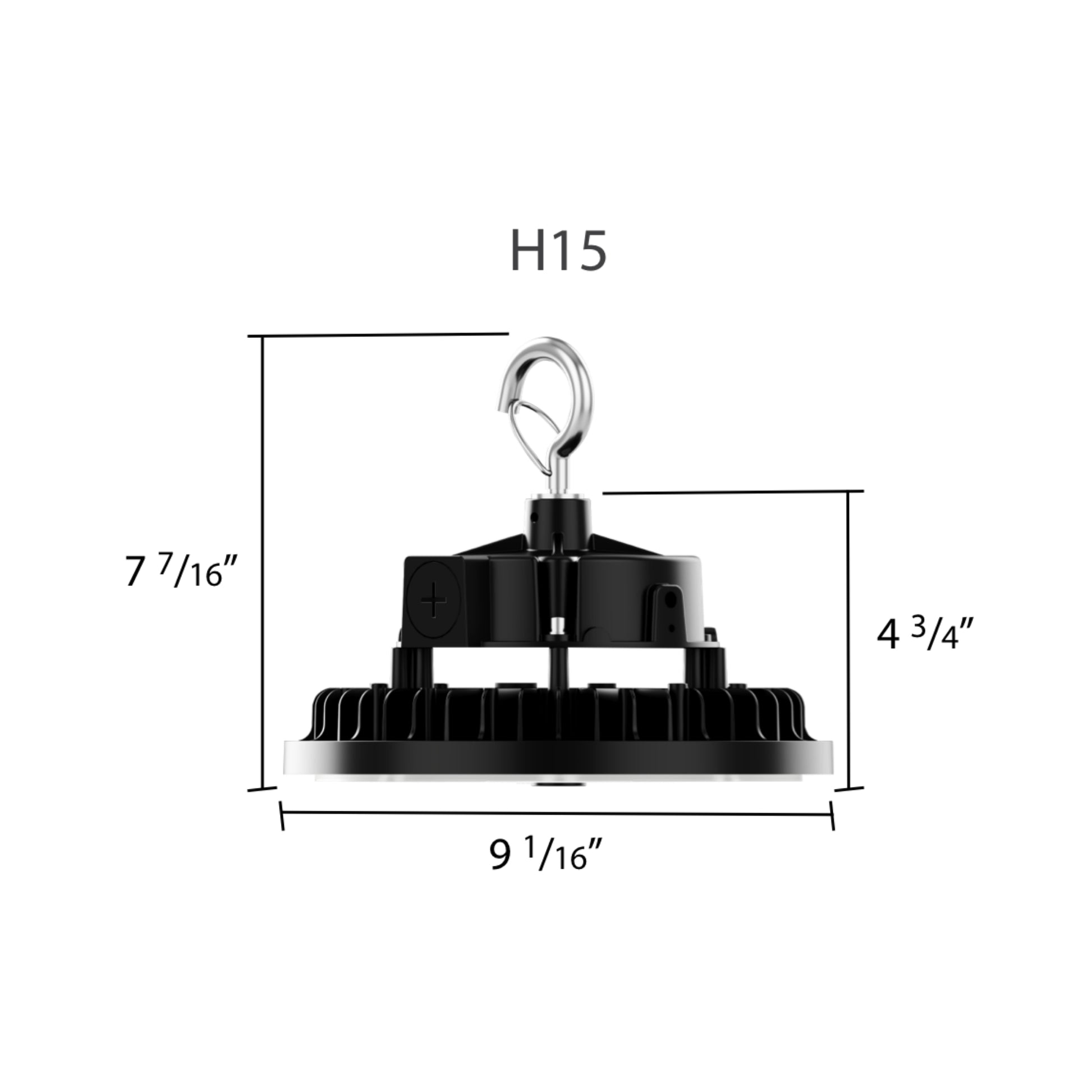

Precision die-cast aluminum housing in black powder coat finish formulated for high durability and long-lasting color. Polycarbonate lens. Polycarbonate with aluminum plating reflector (reflector accessories sold separately). IP65 rated for dust and water ingress. Weight: 5.0 lbs. Dimensions: 9 1/16 in dia × 7 7/16 in H.

Installation & Mounting

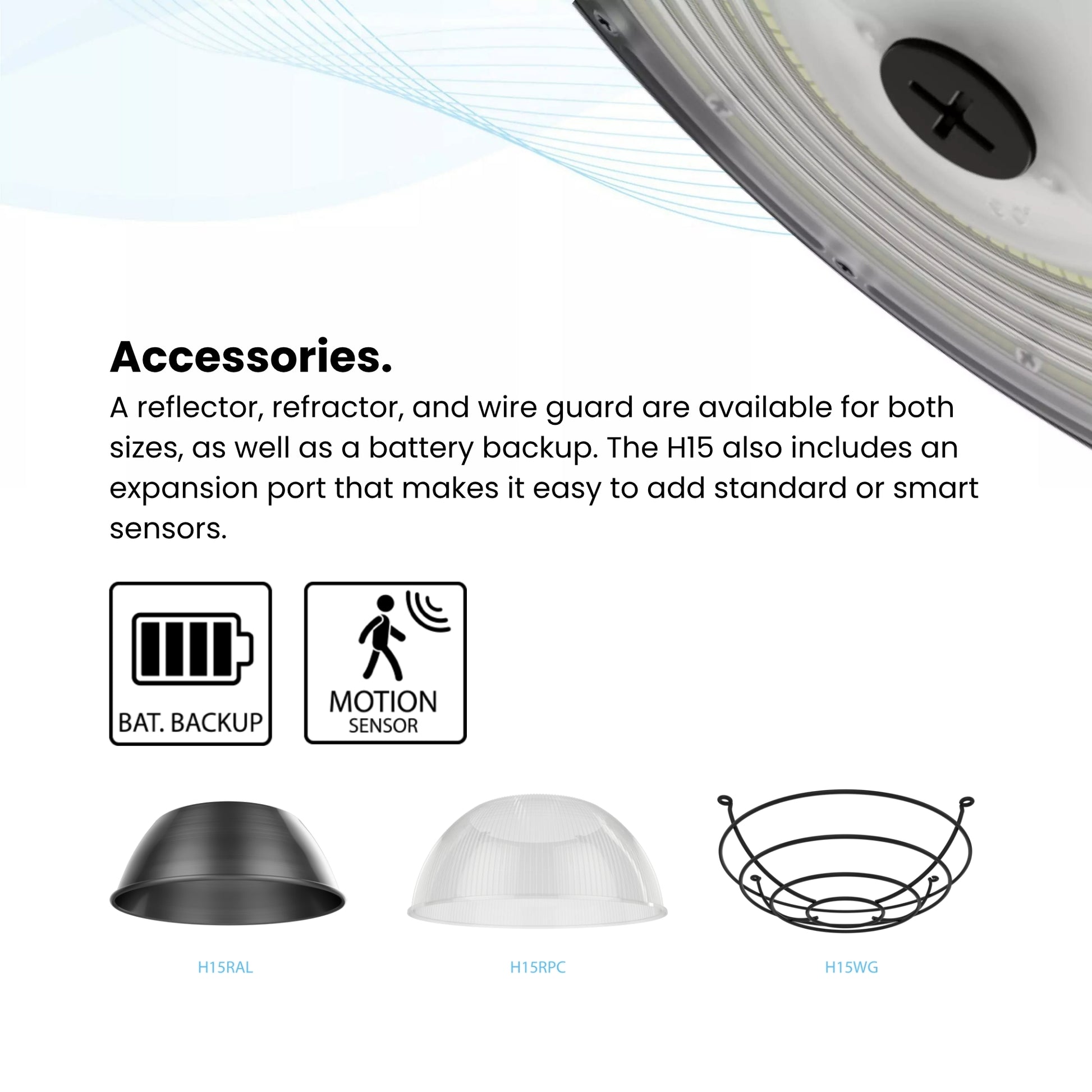

Comes standard with a heavy-duty hanging hook and 6-foot cord. Heavy-duty 3/4–14 NPT hook and 3/4–14 pendant mount capable (pendant by others). Recommended ceiling heights by wattage: 150W for ceilings 25–45 ft; 120W for 20–35 ft; 100W for 15–25 ft. For 480V high-bay applications requiring higher output, see RAB H15XL/480 if available. Optional accessories (sold separately):

• Reflectors: H15-RPC (Polycarbonate) | H15-RAL (Aluminum)
• Wire Guards: H15B-WG (Black)
• Drop Lens: H17-RDL
• Pendant Mount Kit: H17B-PM KIT (Black)
• Surface / Yoke Mount Kit: H17B-SM KIT (Black)
• Occupancy Sensors: PIR40B | MVS50B (with /LCB variants for Lightcloud Blue)

Certifications & Rebates

UL Listed for wet locations. DLC Premium listed — product code S-N13W3S. To verify rebate eligibility with your utility provider, visit designlights.org and search product code S-N13W3S. RoHS compliant. IES LM-79 and LM-80 tested per IESNA standards.

Typical Applications

• Large warehouses and distribution centers on 480V service — eliminates step-down transformer cost and complexity for facilities already wired at 480V
• Heavy manufacturing and industrial facilities — black finish preferred for dark ceiling aesthetics; 480V input aligns with standard industrial panel configurations
• Cold storage and freezer warehouses — rated to -40°F (-40°C) for dependable cold-start performance at industrial voltages
• Covered loading docks and car washes — UL wet location listing and IP65 rating handle direct moisture exposure
• Maintenance and operations facilities — selectable wattage right-sizes output to task area without rewiring

What’s Included

• RAB H15B/480 UFO LED high bay fixture — Black
• Heavy-duty hanging hook
• 6-foot cord
• Mounting hardware
