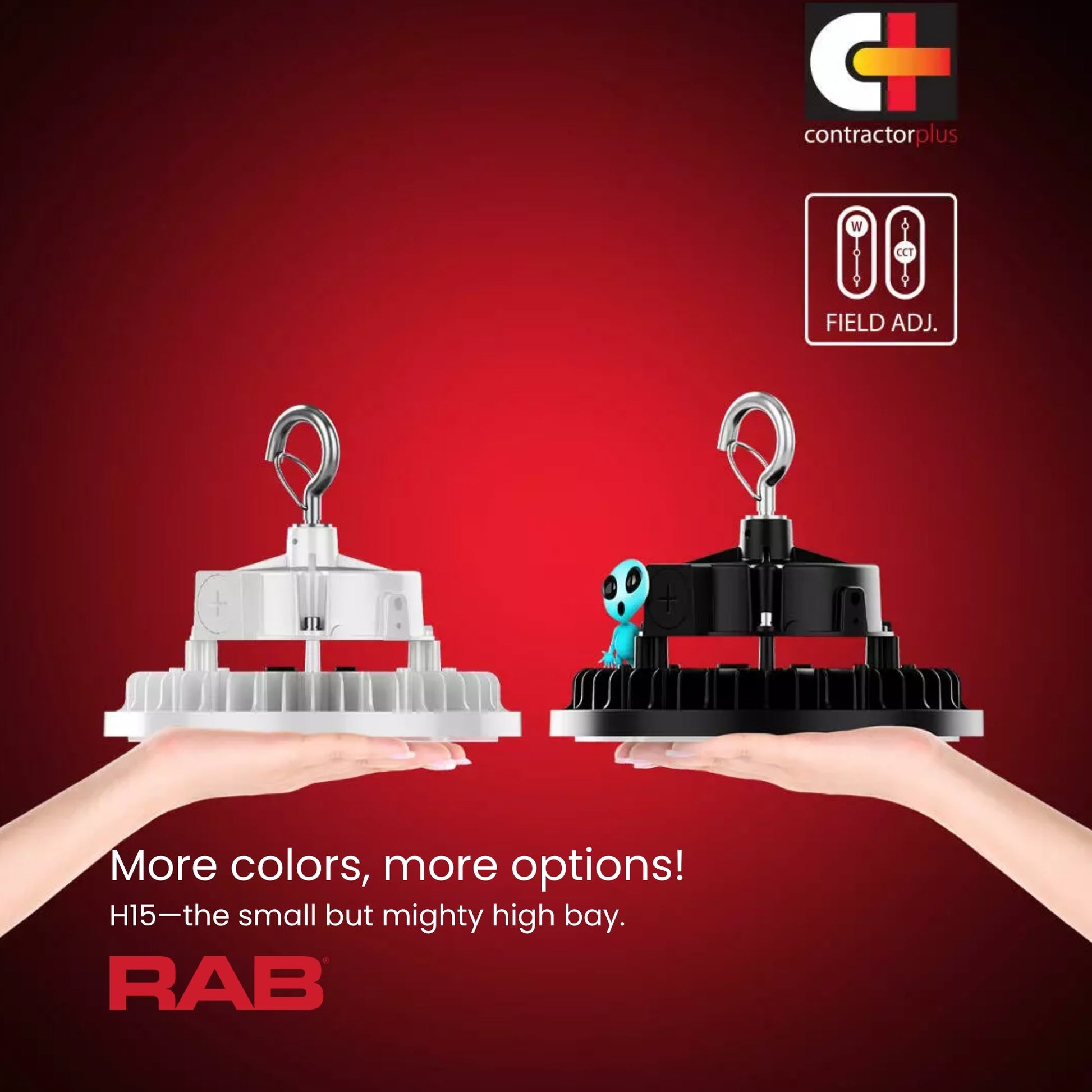

RAB H15 Field-Adjustable UFO LED High Bay — 150W / 120W / 100W Selectable

The RAB H15 is a compact, field-adjustable UFO LED high bay delivering up to 23,024 lumens with selectable wattage of 150W, 120W, and 100W and selectable CCT of 3000K / 4000K / 5000K. Operates on universal 120–277V with integrated 0–10V dimming to 10%. UL Listed for wet locations with an IP65 ingress protection rating. DLC Premium Listed (Product Code: 5-XDBZ3C). Cold weather rated to -40°C (-40°F) — suitable for cold storage and unheated industrial facilities. Equivalent to a 400W metal halide fixture.

Key Features

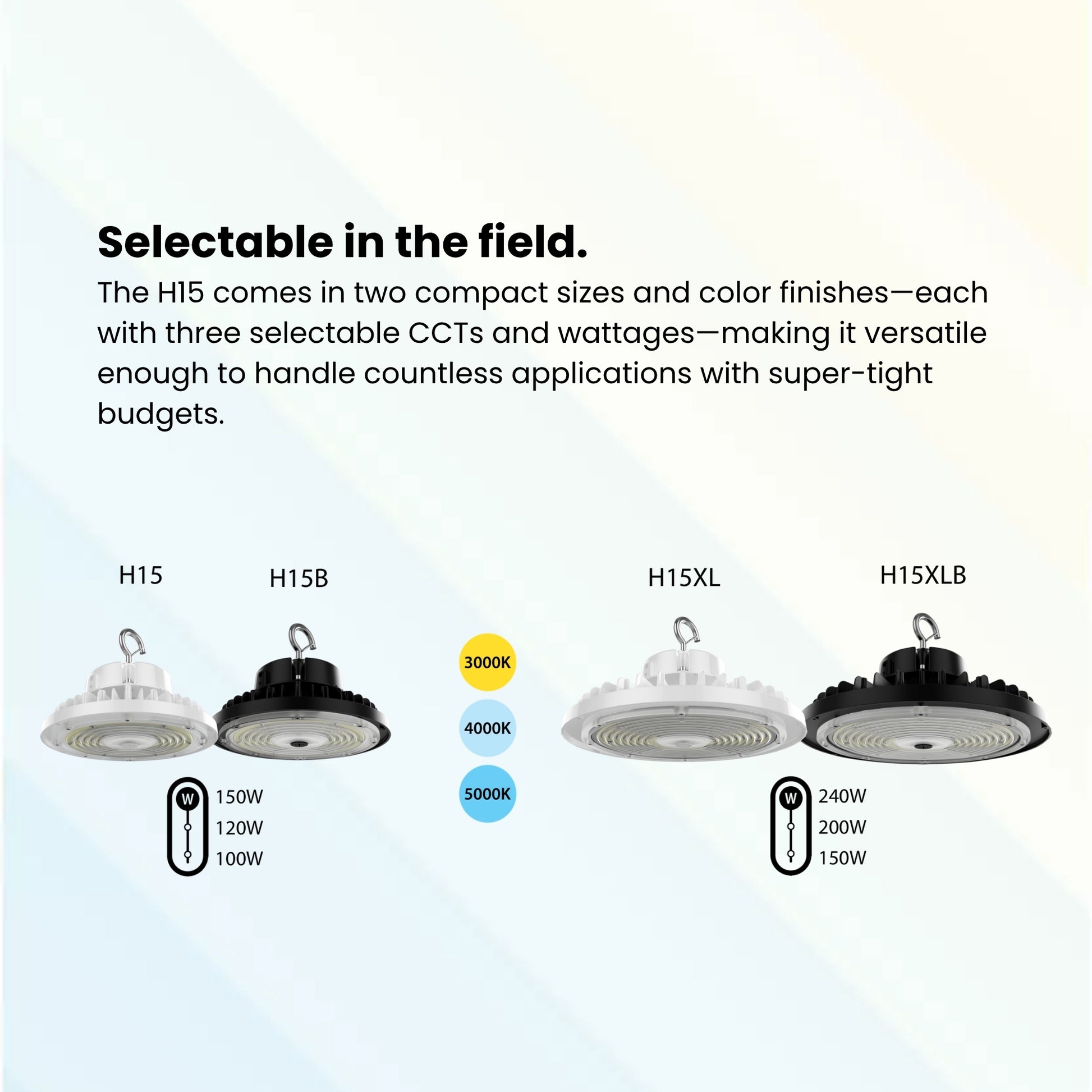

• Selectable Wattage: 150W / 120W / 100W (factory default: 150W)
• Selectable CCT: 3000K / 4000K / 5000K (factory default: 4000K)
• Maximum Lumen Output: 23,024 lm at 150W / 4000K
• Peak Efficacy: Up to 167.7 lm/W at 100W / 4000K
• CRI: 81–83
• Color Consistency: 7-step MacAdam Ellipse binning — consistent fixture-to-fixture color
• Dimming: 0–10V dimming to 10%
• Voltage: 120–277V, 50/60Hz (Constant Current, Class 1)
• Location Rating: UL Listed for wet locations | IP65
• Cold Weather Starting: -40°C (-40°F)
• Maximum Ambient Temperature: 50°C (122°F)
• Certifications: UL Listed; DLC Premium Listed (Code: 5-XDBZ3C)
• Rated Life: 100,000 hours (L70, per IES LM-80 and TM-21)
• Warranty: 5-Year Limited (covers light output, driver, and paint finish)
• Wattage Equivalency: Replaces up to 400W Metal Halide

Performance & Light Output

The H15 delivers precise, selectable lumen output across all wattage and CCT combinations. At 150W: 20,675 lm (3000K / 133.3 lm/W), 23,024 lm (4000K / 156.1 lm/W), 21,570 lm (5000K / 139.6 lm/W). At 120W: 17,214 lm (3000K / 142.7 lm/W), 18,929 lm (4000K / 162.8 lm/W), 18,229 lm (5000K / 150.4 lm/W). At 100W: 14,708 lm (3000K / 149.9 lm/W), 15,953 lm (4000K / 167.7 lm/W), 15,488 lm (5000K / 157.6 lm/W). CRI: 81–83 across all configurations. Rated life: 100,000 hours L70 per IES LM-80 and TM-21.

Smart & Control Features

The H15 supports two factory-configured control options:

• 0–10V Dimming (standard): Dims to 10% via standard 0–10V DC circuit. Compatible with most commercial building control and energy management systems.
• Lightcloud Blue (accessory): Add PIR40/LCB or MVS50/LCB sensor/controller accessories for wireless Bluetooth mesh group control without additional wiring.

Remote control accessory (catalog# MSR1) available for field adjustment of wattage and CCT on 0–10V models. Occupancy sensors: PIR40 (PIR, max 12m, IP66) and MVS50 (microwave, max 15m, IP65) available with or without Lightcloud Blue integration.

Electrical

Constant Current, Class 1 driver. Input voltage: 120–277V, 50/60Hz. Surge protection: 6kV + 6kV. THD @ 4000K: 3.1–3.5% at 120V / 7.8–10.0% at 277V. Power factor @ 4000K: 99.8% at 120V / 93.2–95.2% at 277V. Mercury-free, UV-free, RoHS-compliant. Emergency battery backup available separately (EMHB30 / EMHB30B — 30W, 120–277V).

Construction

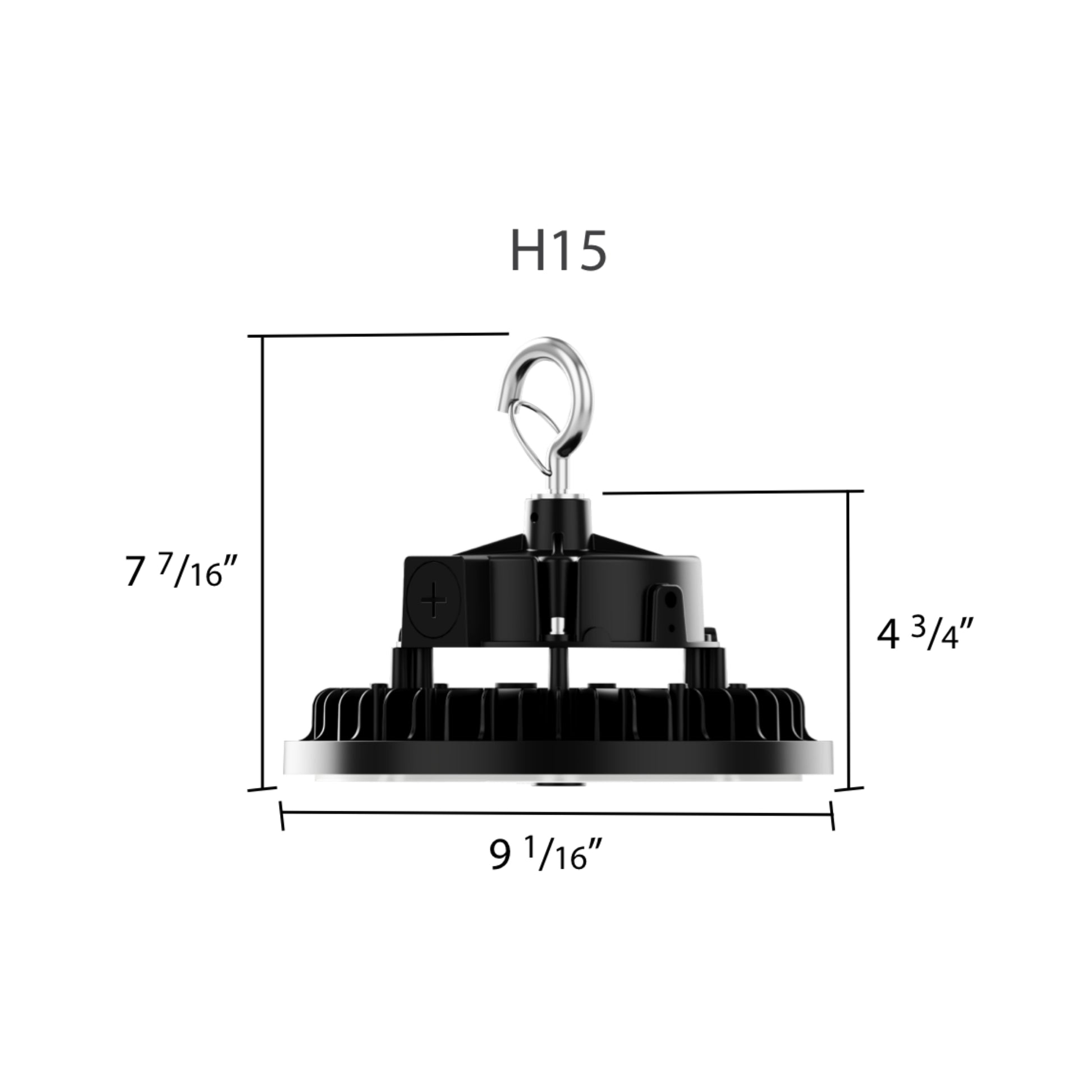

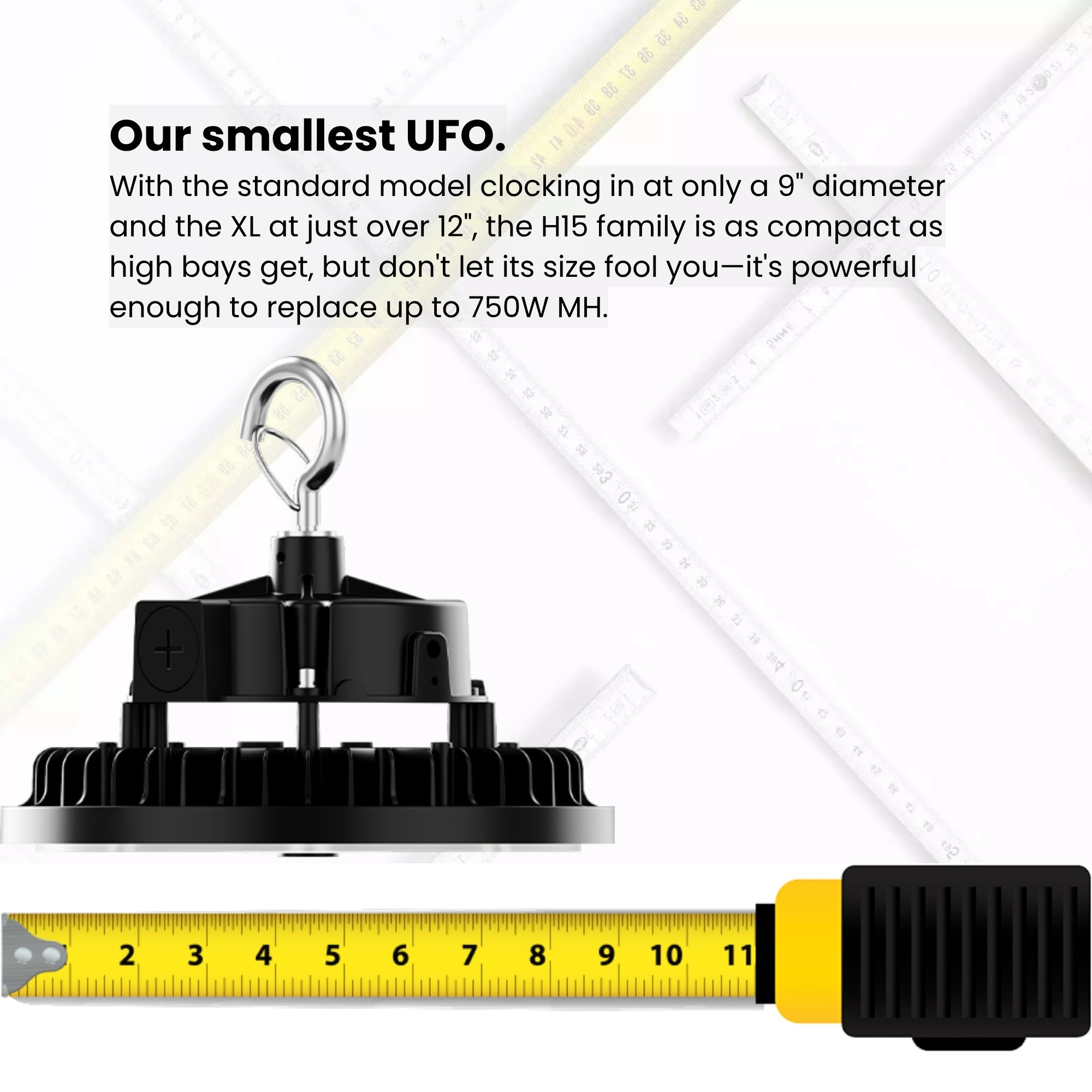

Precision die-cast aluminum housing. Polycarbonate lens. Polycarbonate with aluminum plating reflector. White finish formulated for high durability and long-lasting color. IP65 rated for dust and water ingress. Weight: 4.1 lbs. Dimensions: 9 1/16 in dia × 7 7/16 in H.

Installation & Mounting

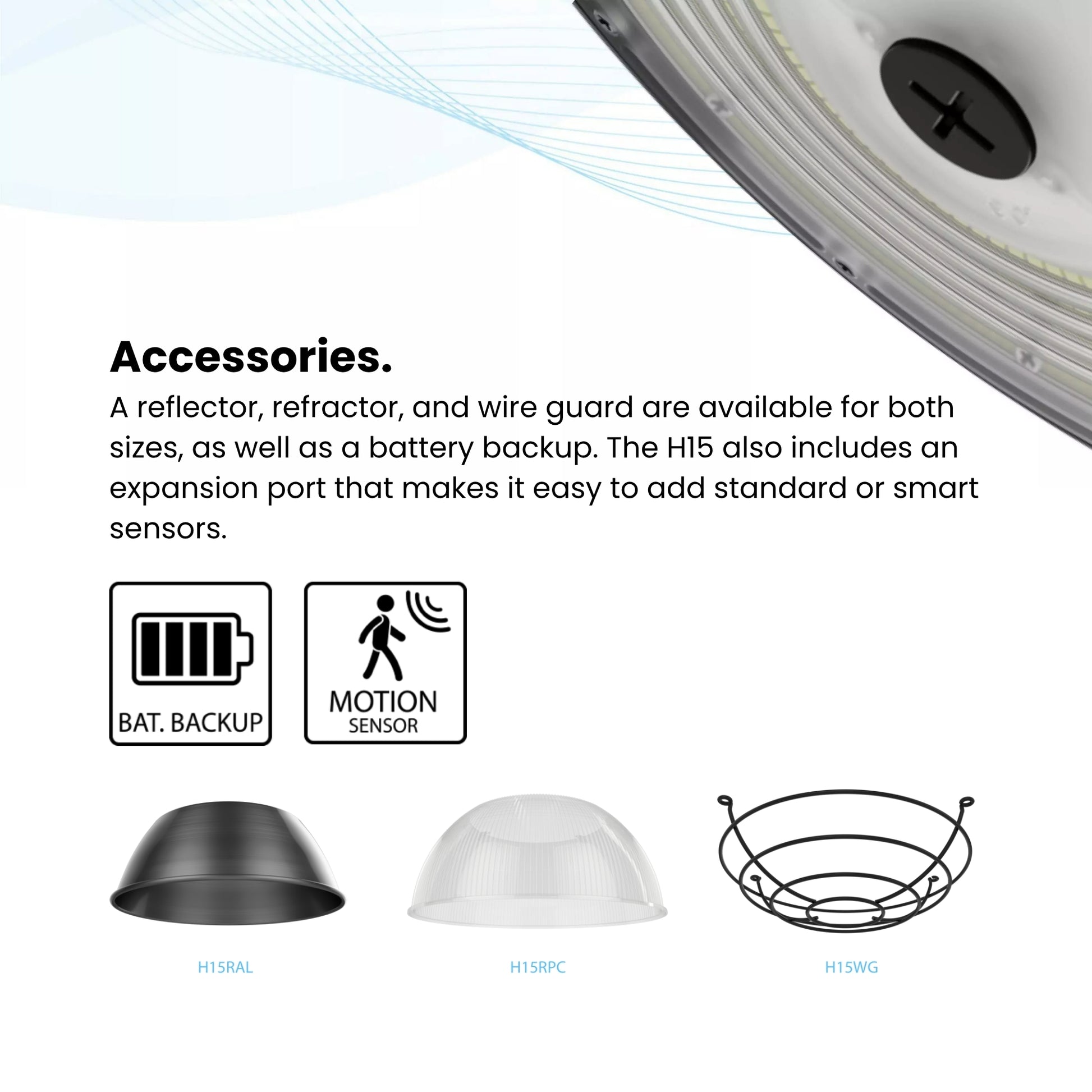

Comes standard with a hanging hook and 6-foot cord. Heavy-duty 3/4–14 NPT hook and 3/4–14 pendant mount capable. Optional accessories (sold separately):

• Reflectors: H15-RPC (Polycarbonate) | H15-RAL (Aluminum)
• Wire Guards: H15-WG (White) | H15B-WG (Black)
• Drop Lens: H17-RDL
• Pendant Mount Kit: H17-PM KIT (White) | H17B-PM KIT (Black)
• Surface/Yoke Mount Kit: H17-SM KIT (White) | H17B-SM KIT (Black)
• Emergency Battery Backup: EMHB30 (White) | EMHB30B (Black) | EMHB30/LCB (Lightcloud Blue, White) | EMHB30B/LCB (Lightcloud Blue, Black)
• Occupancy Sensors: PIR40 | PIR40B | MVS50 | MVS50B (with /LCB variants for Lightcloud Blue)

Certifications & Rebates

The RAB H15 is UL Listed for wet locations and DLC Premium Listed (Product Code: 5-XDBZ3C), qualifying it for the highest tier of utility rebate programs in most U.S. markets. Visit designlights.org and search code 5-XDBZ3C to confirm rebate eligibility with your local utility. RoHS-compliant. Mercury-free.

Typical Applications

• Warehouses and distribution centers — high-ceiling areas requiring reliable, energy-efficient illumination
• Cold storage and freezer warehouses — rated to -40°C for dependable cold-start performance
• Manufacturing and assembly facilities — consistent CCT and CRI for detail-critical work environments
• Gymnasiums and large recreation centers
• Wet and washdown environments — IP65 rated for moisture-exposed industrial spaces
• Covered outdoor facilities and loading docks

What's Included

• RAB H15 UFO LED high bay fixture
• Hanging hook and 6-foot cord for suspension mounting
