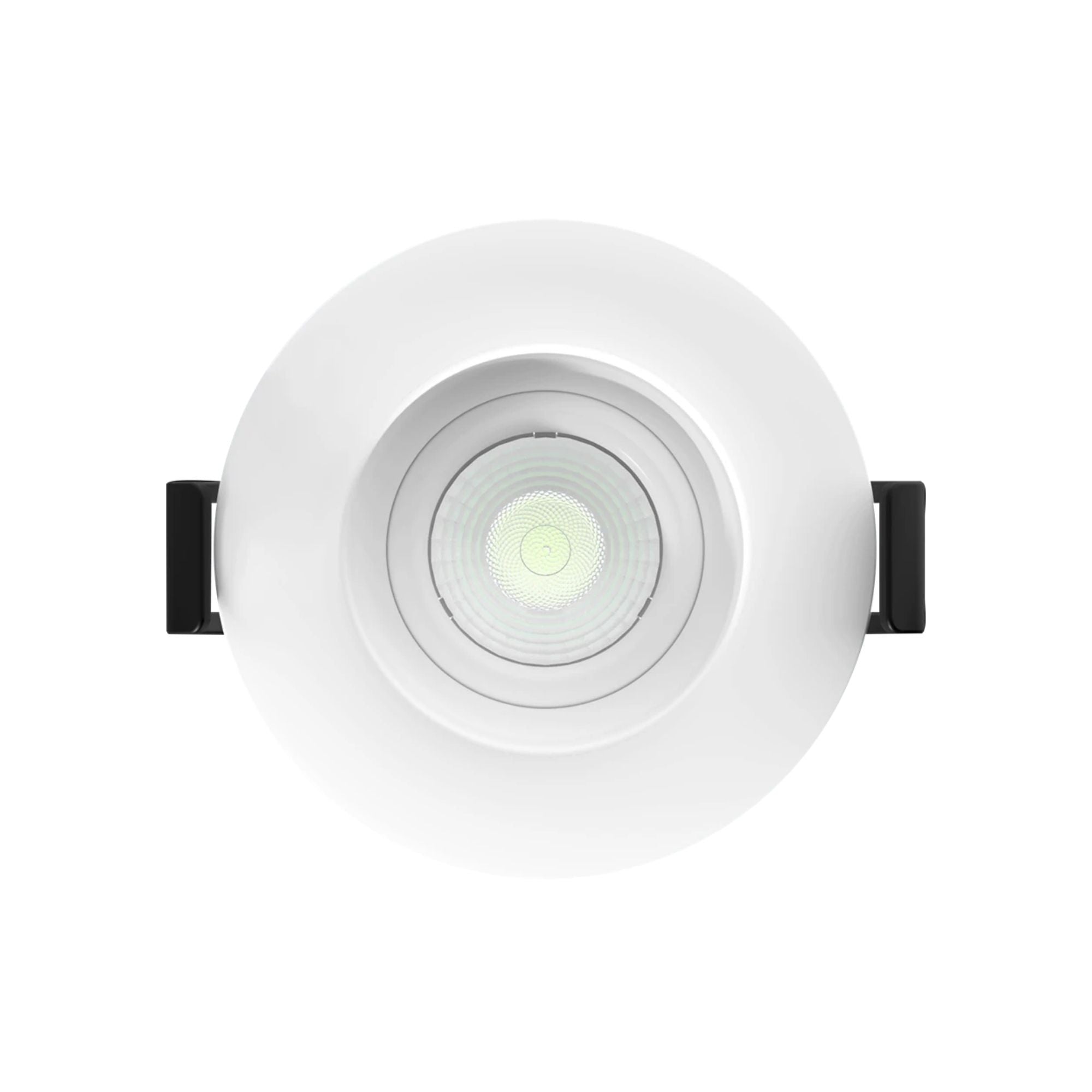

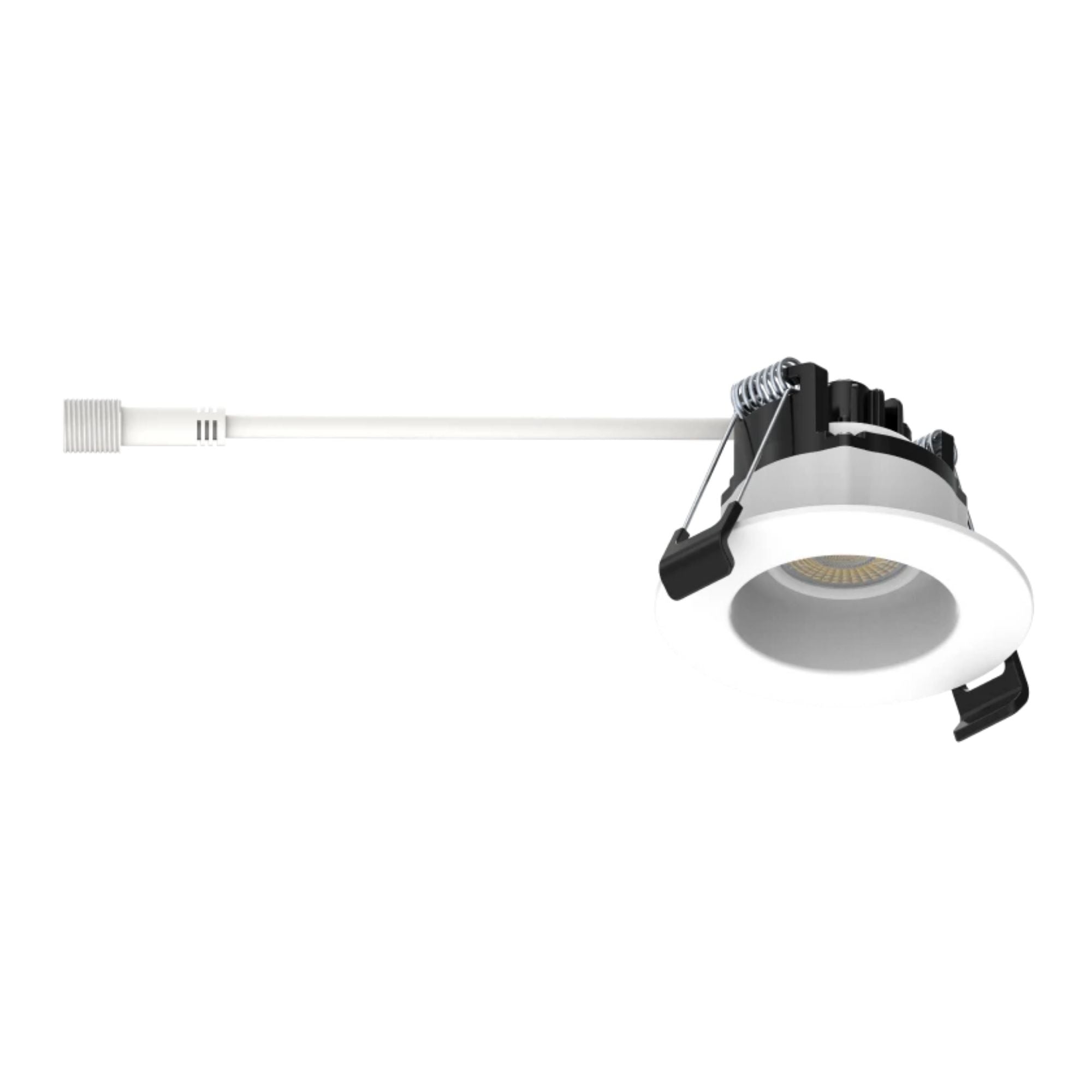

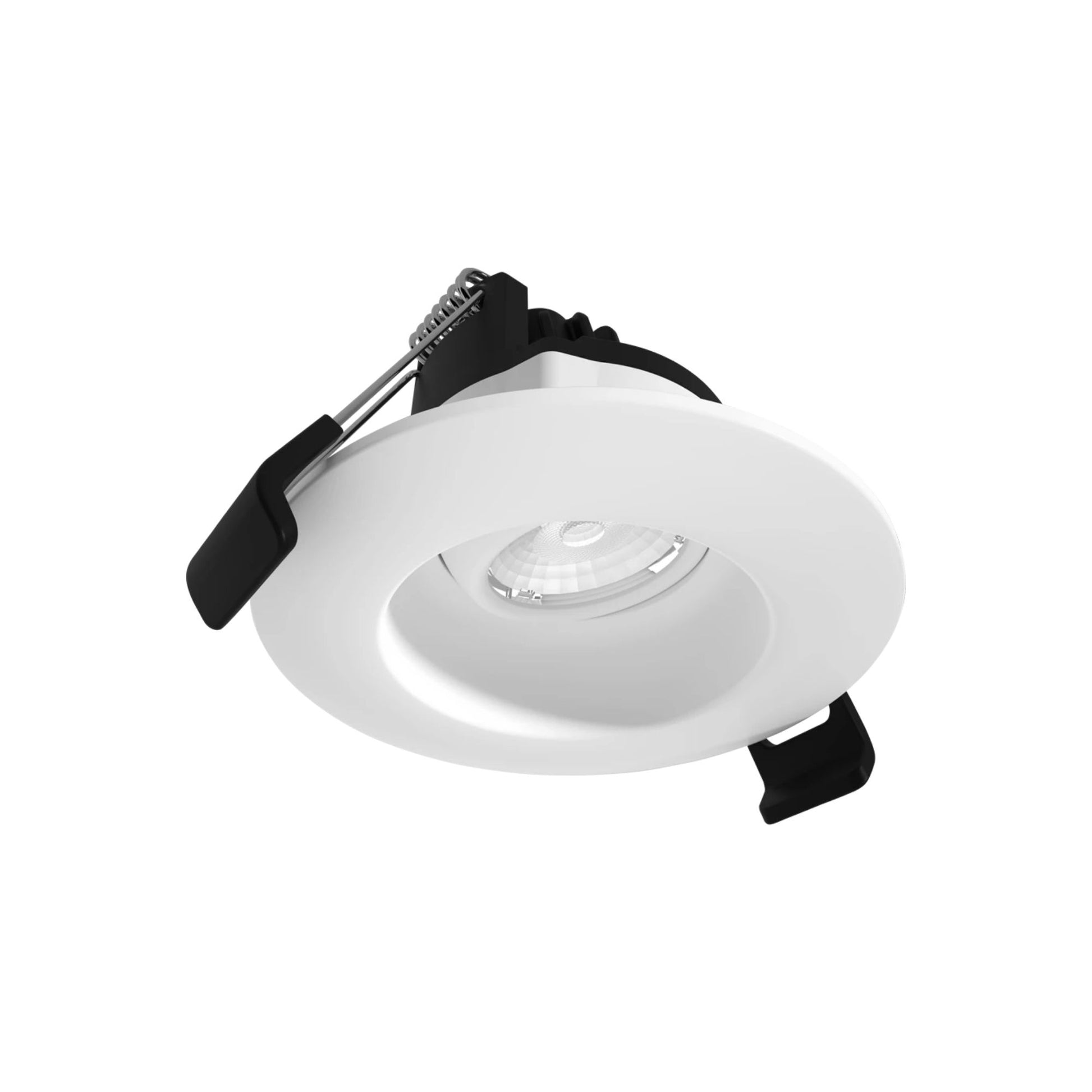

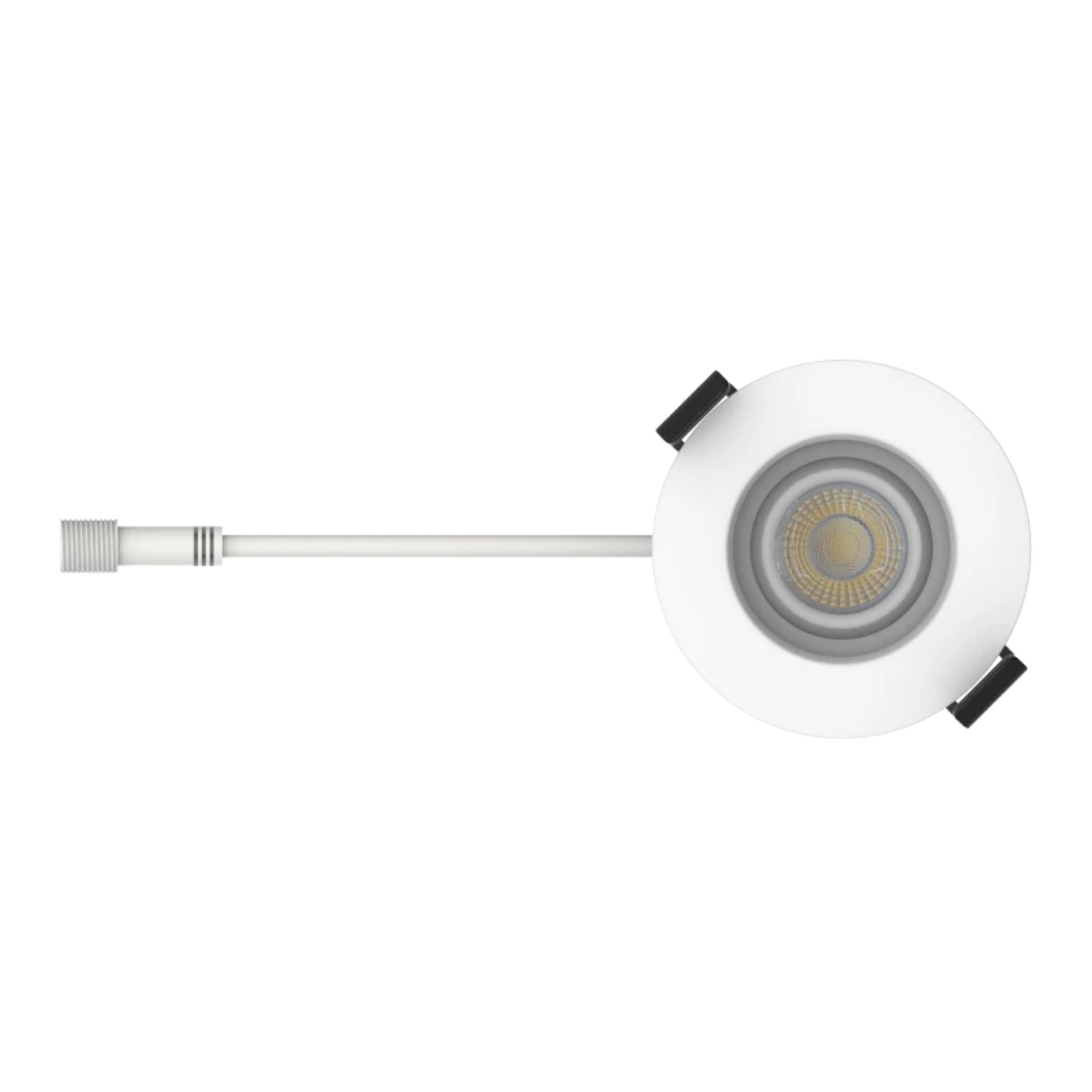

RAB GR2NB 2 in Round Deep Regress Narrow Beam Gimbal Recessed Downlight — 6W / Selectable CCT / 120V / White

The RAB GR2NB combines a deep regress lens for superior glare control with a tight 20° narrow beam angle and 30° tilt, delivering 400 lumens at 6W in white with a remote driver. No housing or J-box required — installs via spring-loaded retention clips in new construction or retrofit ceilings. CCT is field-selectable 2700K–5000K via dip switch (default: 3000K) with TRIAC/ELV dimming at 120V.

Key Features

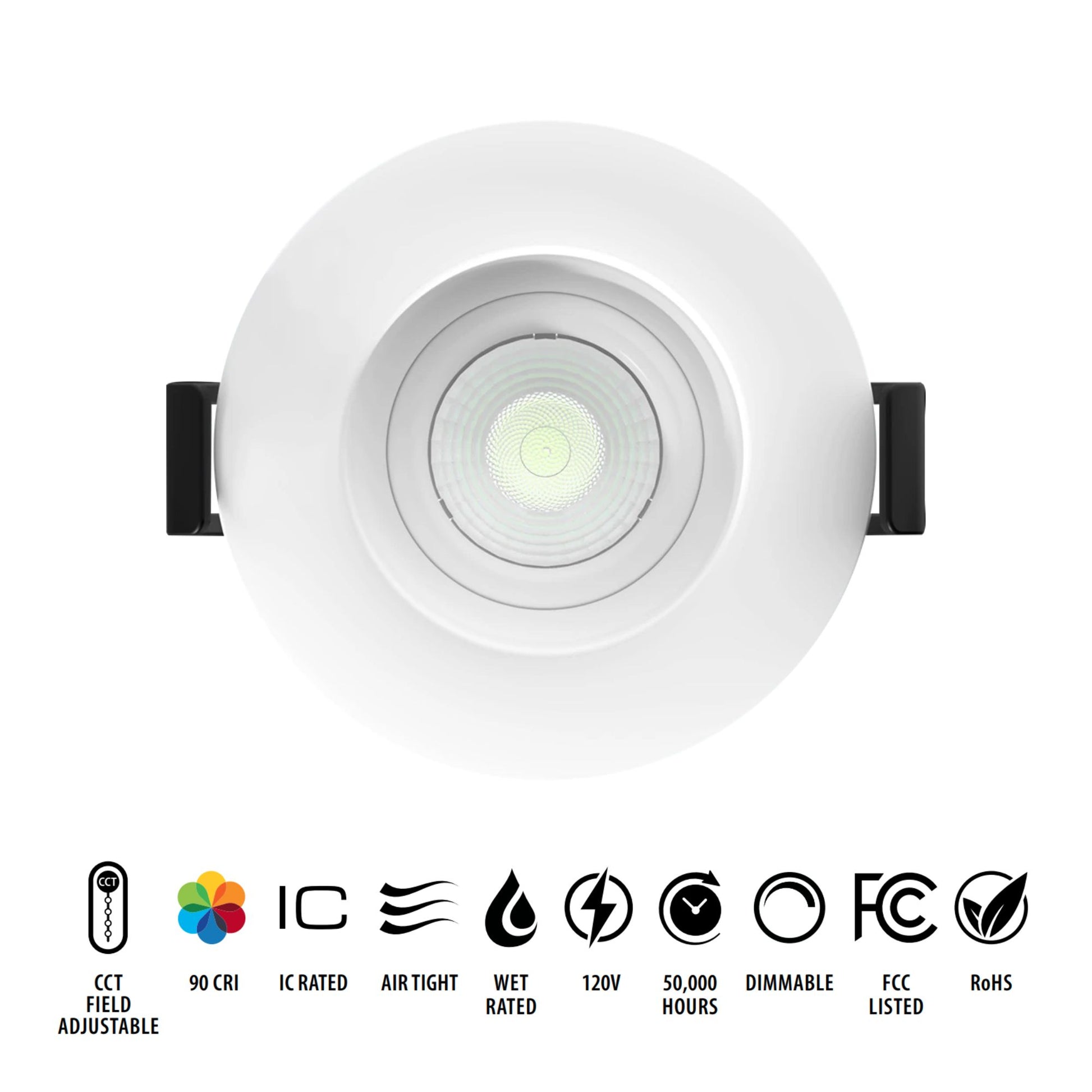

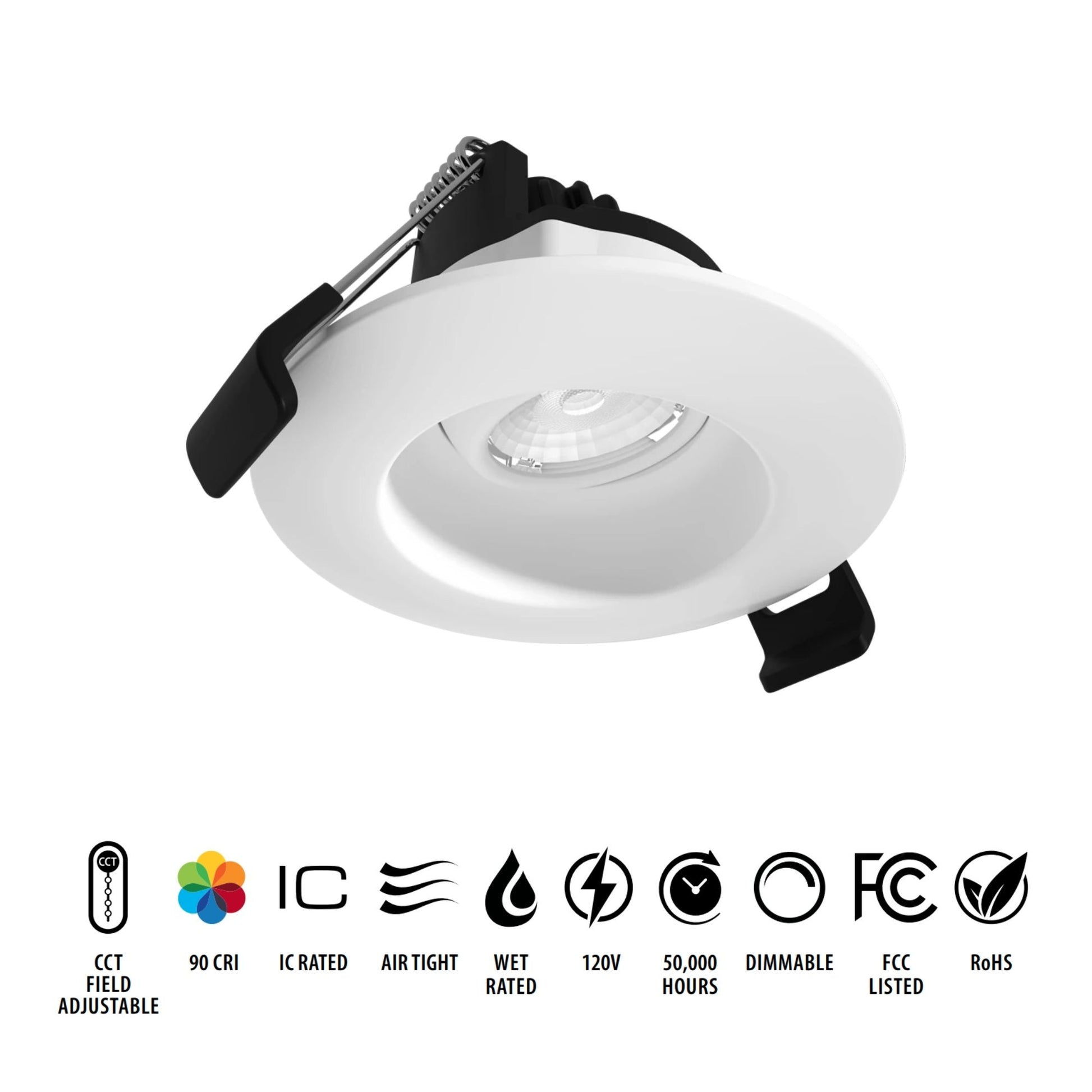

• 2 in Round Deep Regress Narrow Beam Gimbal — White Smooth: Metal enclosure; polycarbonate light diffuser; remote driver; deep regress lens for superior glare control
• No Housing Required: Spring-loaded retention clips; new construction and retrofit applications

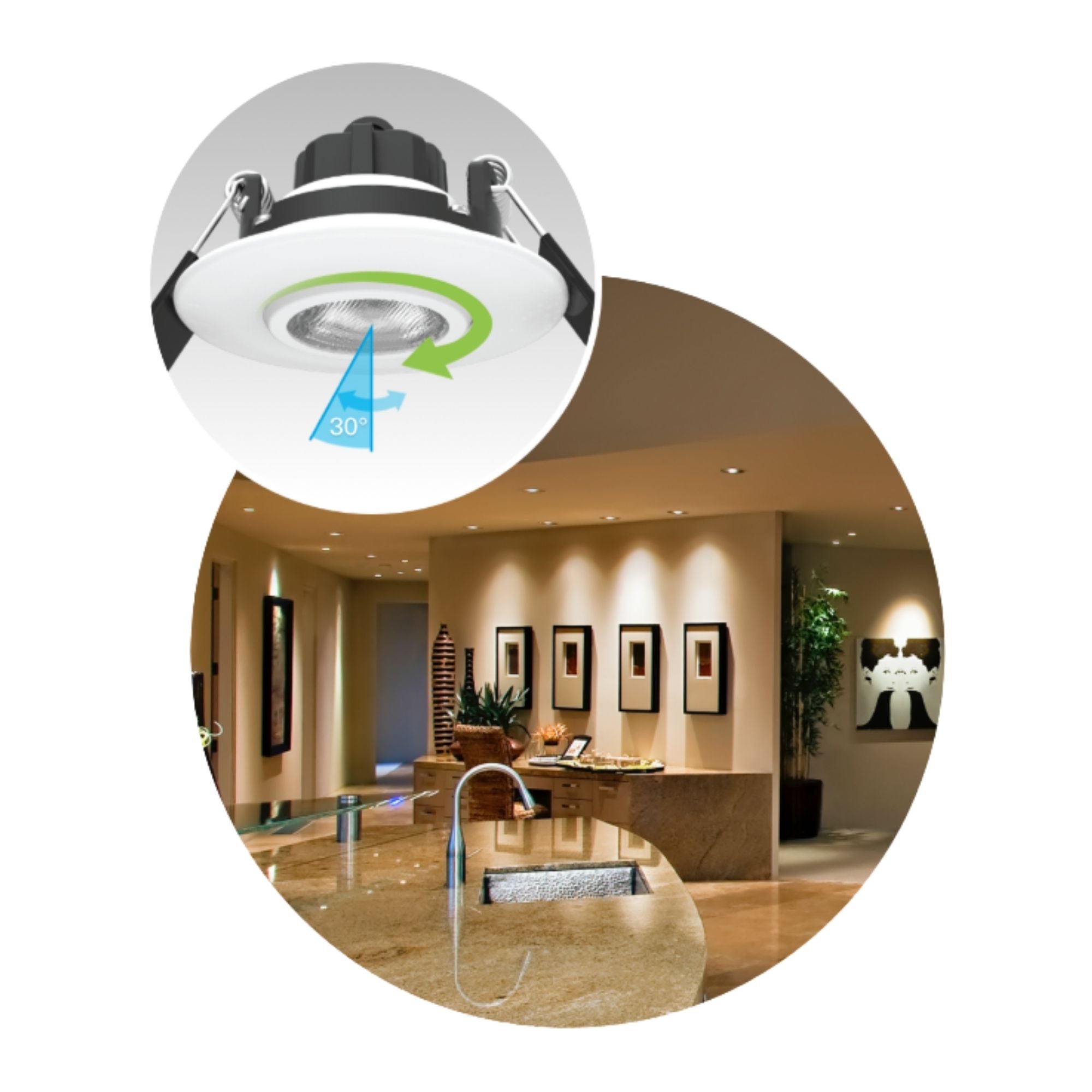

• 30° Tilt / 20° Narrow Beam Angle (±3°): Tighter beam than standard RAB GR2 (38°) — ideal for precise accent and display lighting with glare control
• Field-Selectable CCT: Dip-switch adjustable between 2700K, 3000K, 3500K, 4000K, and 5000K (default: 3000K); 5 CCTs in 1 SKU
• Lumen Output: 359 lm (2700K) | 395 lm (3000K) | 415 lm (3500K) | 423 lm (4000K) | 412 lm (5000K)
• Efficacy: 62 lm/W (2700K) | 69 lm/W (3000K) | 75 lm/W (3500K) | 75 lm/W (4000K) | 71 lm/W (5000K)
• Wattage: 6W | 50W incandescent equivalent | 400 lm nominal | 66.67 lm/W
• CRI: 90+, R9 ≥ 50 | 4-step MacAdam Ellipse consistency
• Dimming: TRIAC/ELV dimmable to 10% at 120V
• Voltage: 120V | 50mA (0.05A)
• IC Rated — airtight per ASTM E283 | Wet location rated
• Certifications: ETL Listed | ENERGY STAR v2.2 | Title 24 JA8 | RoHS | FCC Part 15B | NEC closet compliant Sec. 410.16 (A)(1) & (C3)
• Note: This product does NOT meet California Title 20 requirements
• Color Stability: Color temperature warranted to shift no more than 200K over 5 years
• Lifespan: 50,000 hours L70 | Warranty: 5-year no-compromise warranty

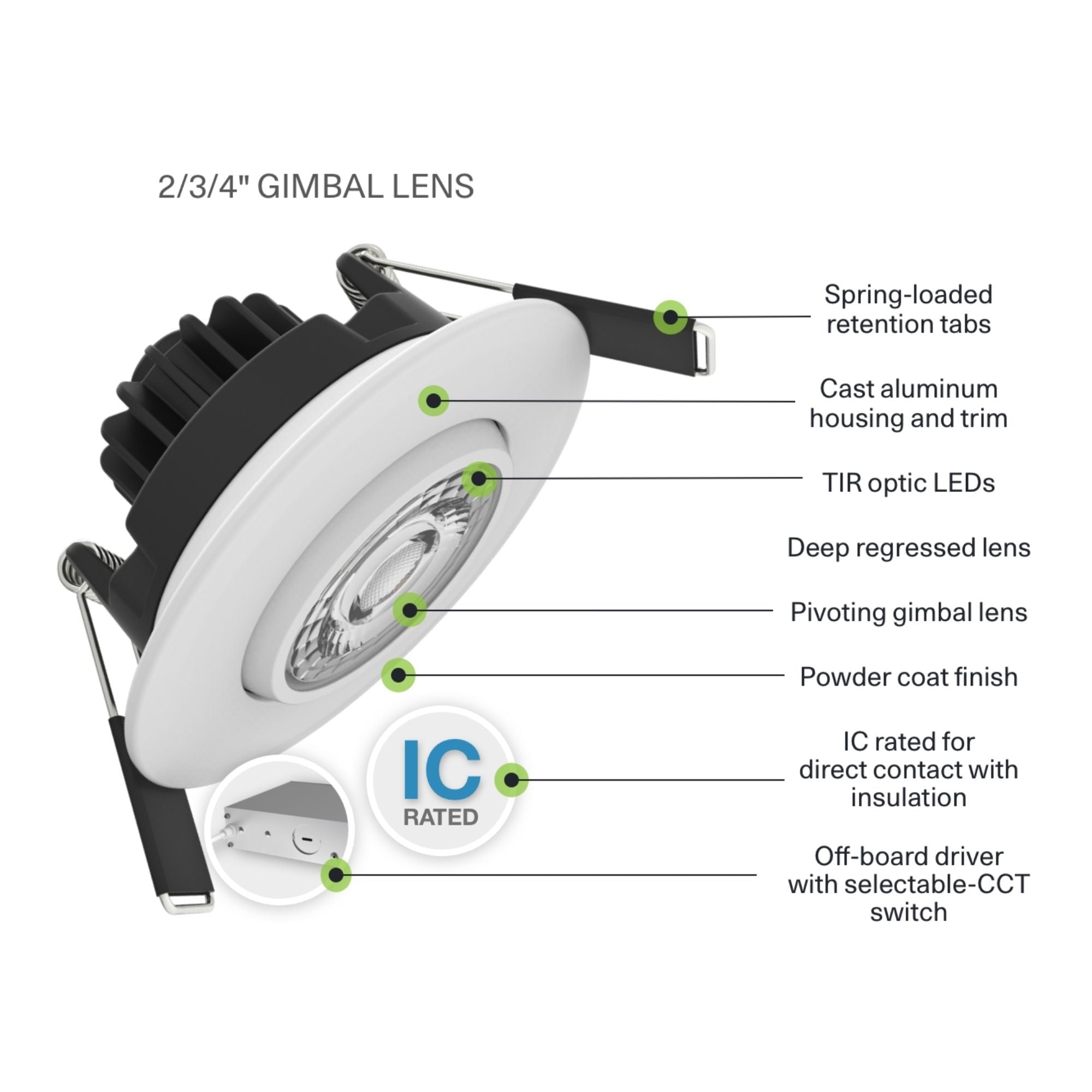

Construction & Design

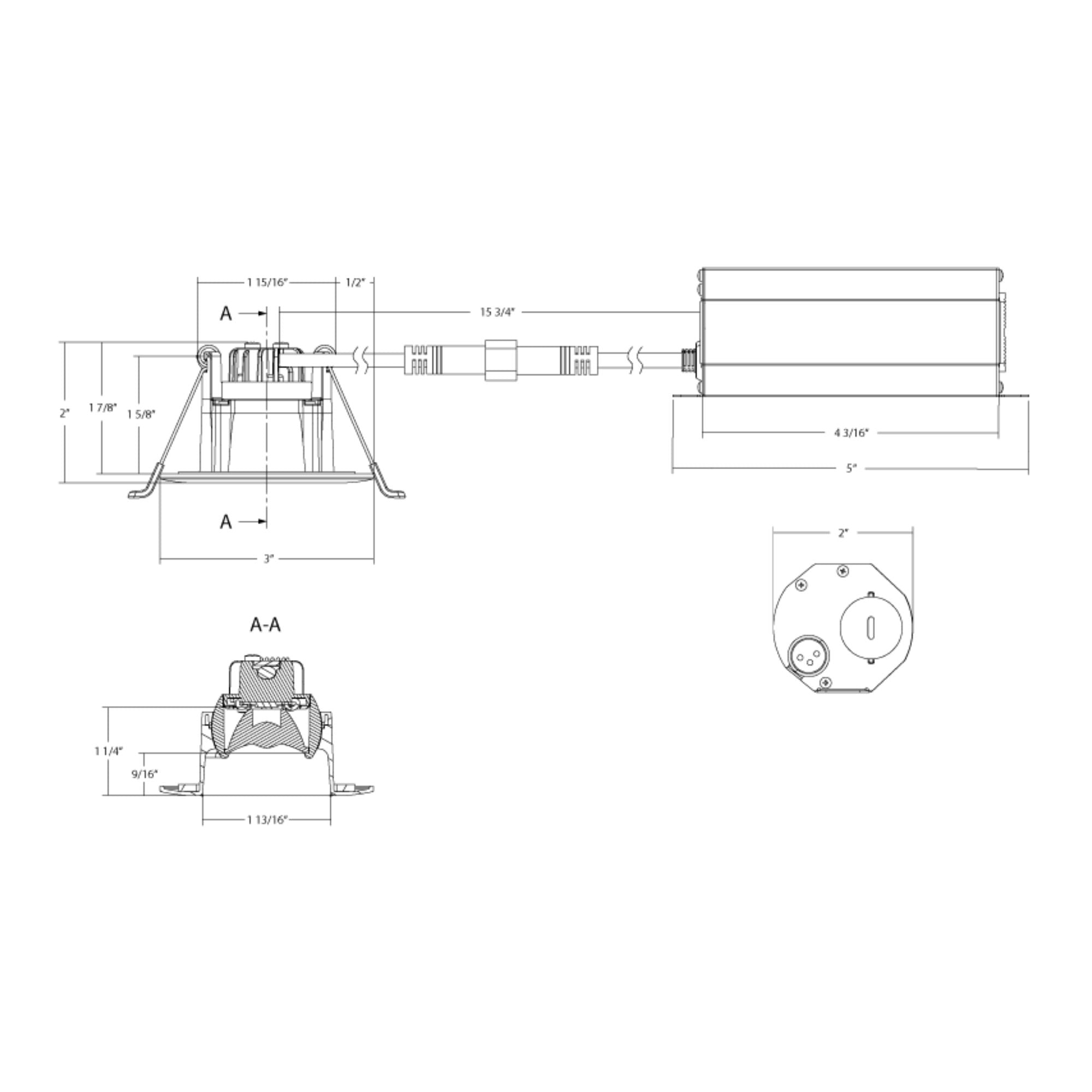

Metal enclosure with white smooth trim. Deep regress polycarbonate light diffuser for superior glare control. Remote driver (Class 2, 60 Hz, 120V, 0.05A). Housing certified airtight per ASTM E283. IC rated for direct contact with insulation (not spray foam; consult NEMA LSD57-2013). Wet location rated. Weight: 0.5 lbs.

Light Output & Performance

400 lm nominal at 66.67 lm/W. Per-CCT: 359 lm (2700K), 395 lm (3000K), 415 lm (3500K), 423 lm (4000K), 412 lm (5000K). 90+ CRI, R9 ≥ 50. 4-step MacAdam Ellipse. MBCP: 1,815. Color temperature warranted to shift no more than 200K over 5 years. Flicker ≤30%.

Electrical & Installation

120V Constant Current Class 2 remote driver (50mA / 0.05A). TRIAC/ELV dimmable to 10%. No housing or J-box required — spring-loaded retention clips; new construction or retrofit. THD ≤25%, PF ≥0.9. Operating temp: -13°F to 104°F (-25°C to 40°C).

What’s Included

• RAB GR2NB 2 in round deep regress narrow beam gimbal recessed downlight (white)

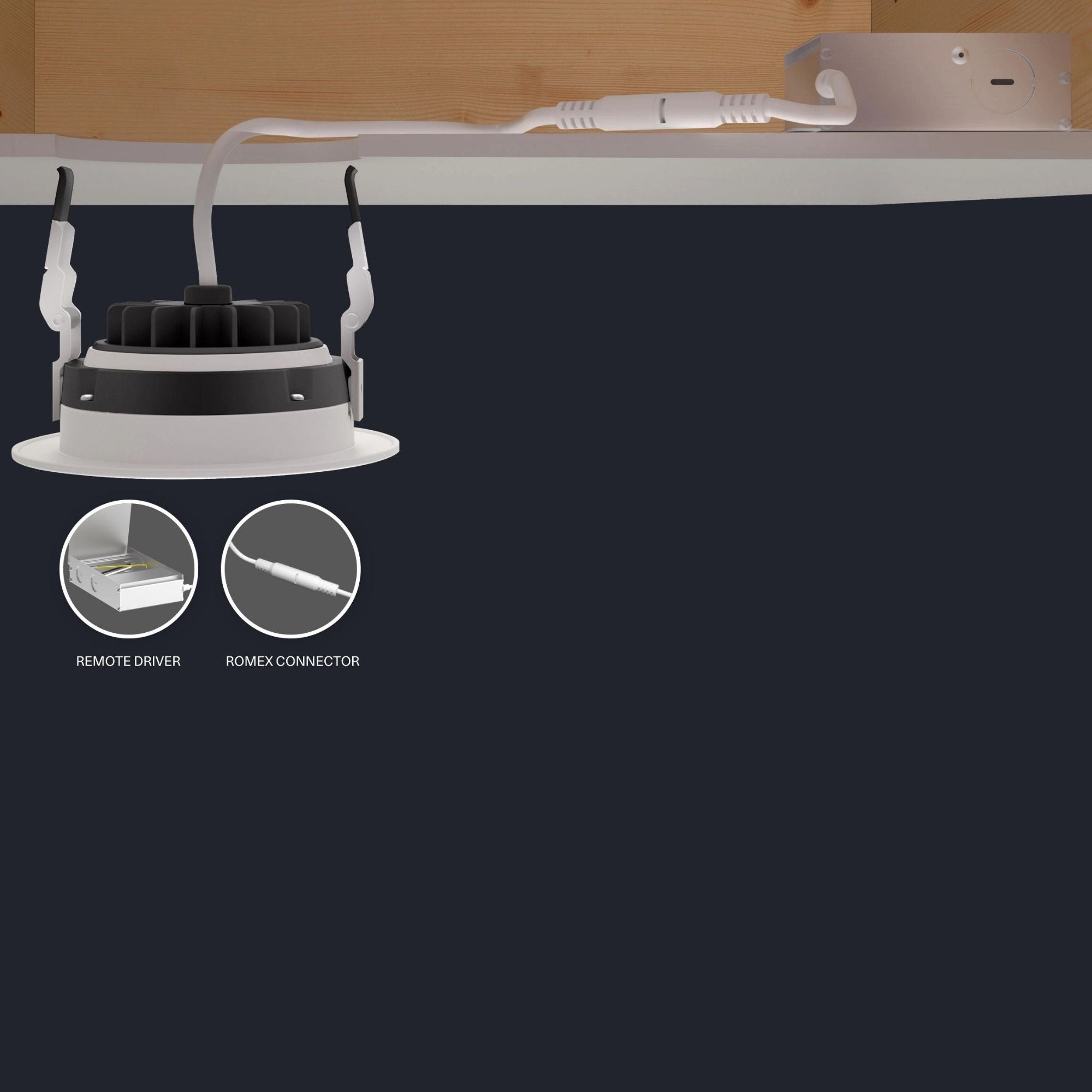

• Remote driver

Typical Applications

• Precision accent lighting where both tight beam control and glare reduction are required
• Gallery, museum, hospitality, and high-end retail applications
• Small-aperture recessed lighting in residential new construction and remodels
• Kitchens, bathrooms, hallways, and closets
• Wet, damp, and dry interior and covered outdoor environments
