RAB GR2 2 in Round Deep Regress Gimbal Recessed Downlight — 6W / Selectable CCT / 120V / White

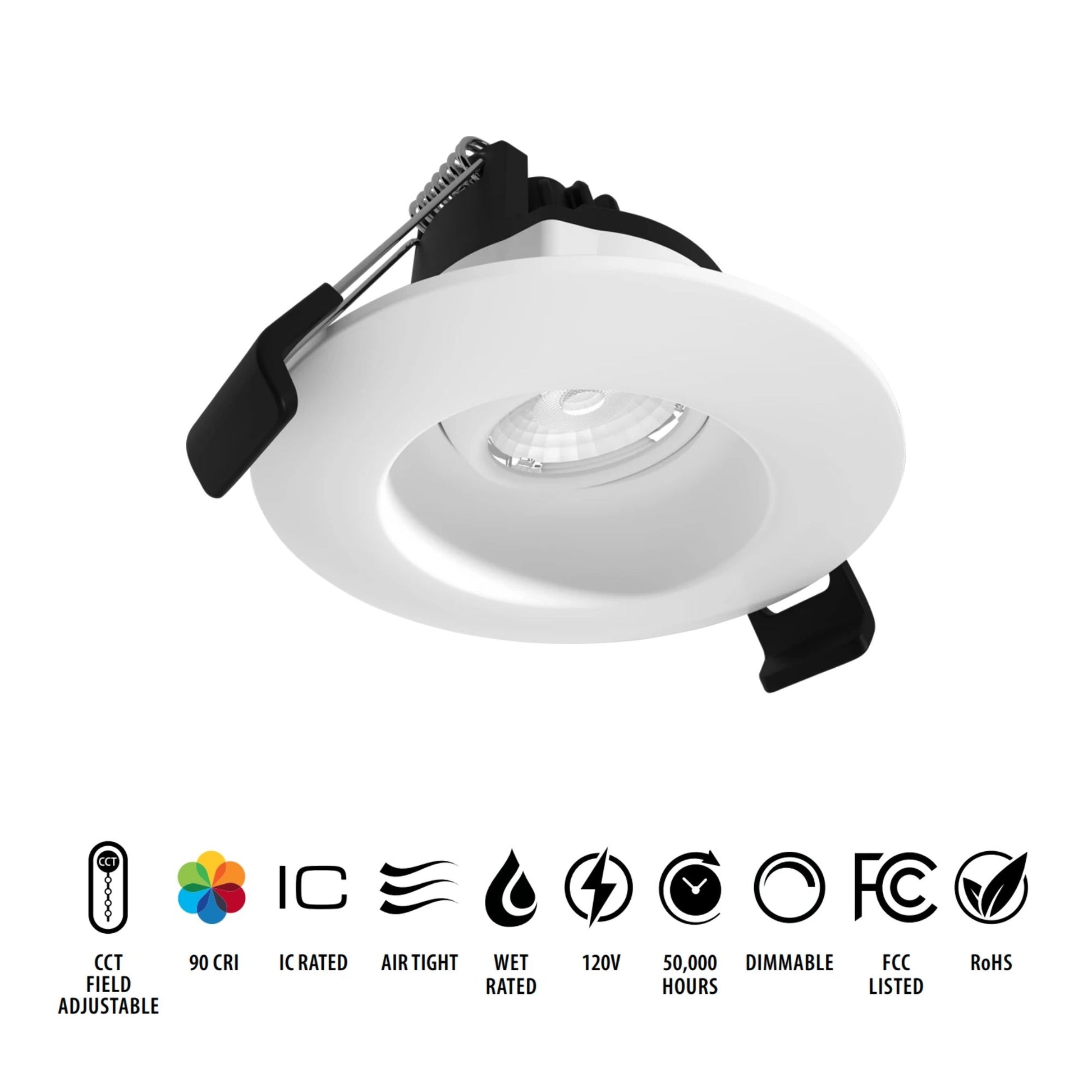

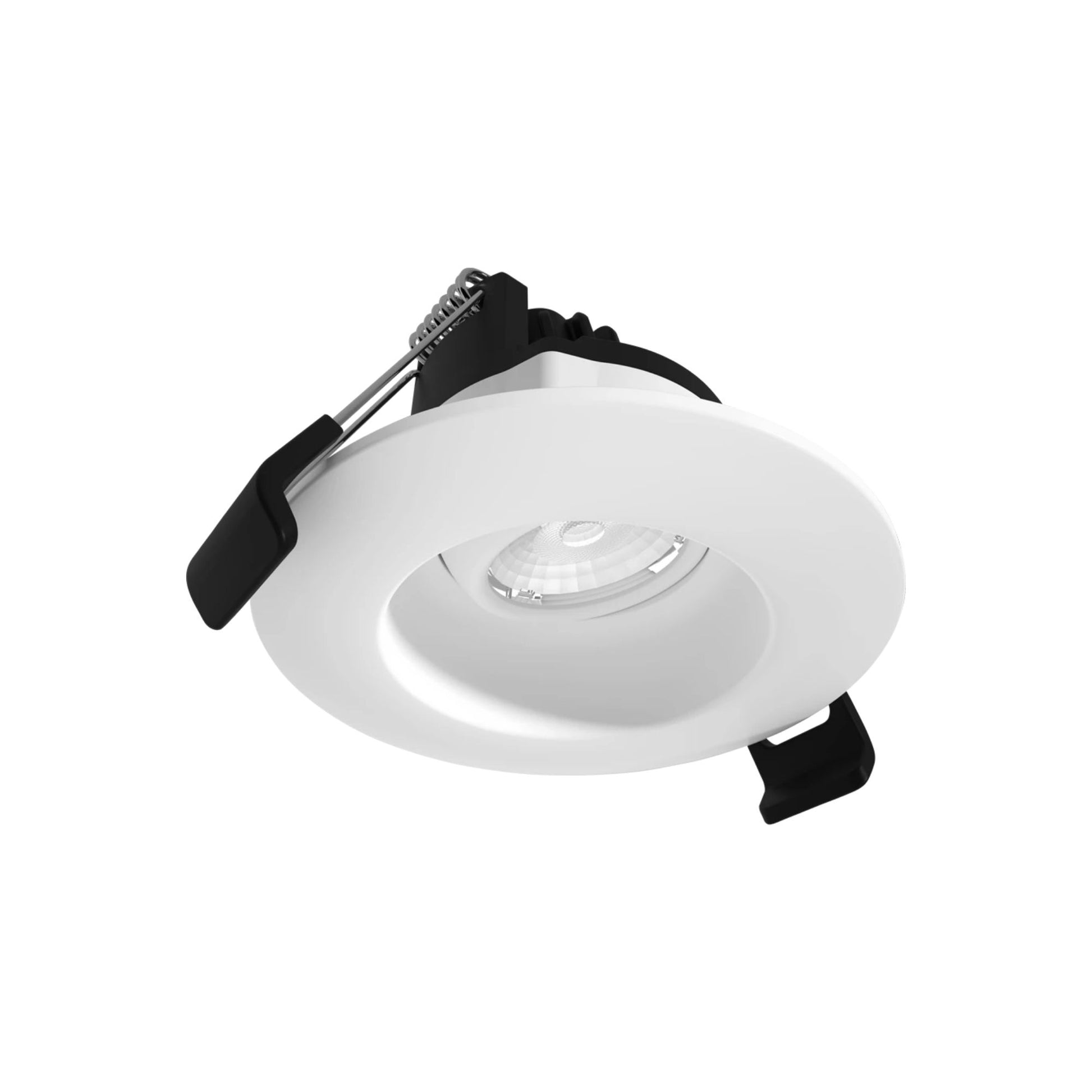

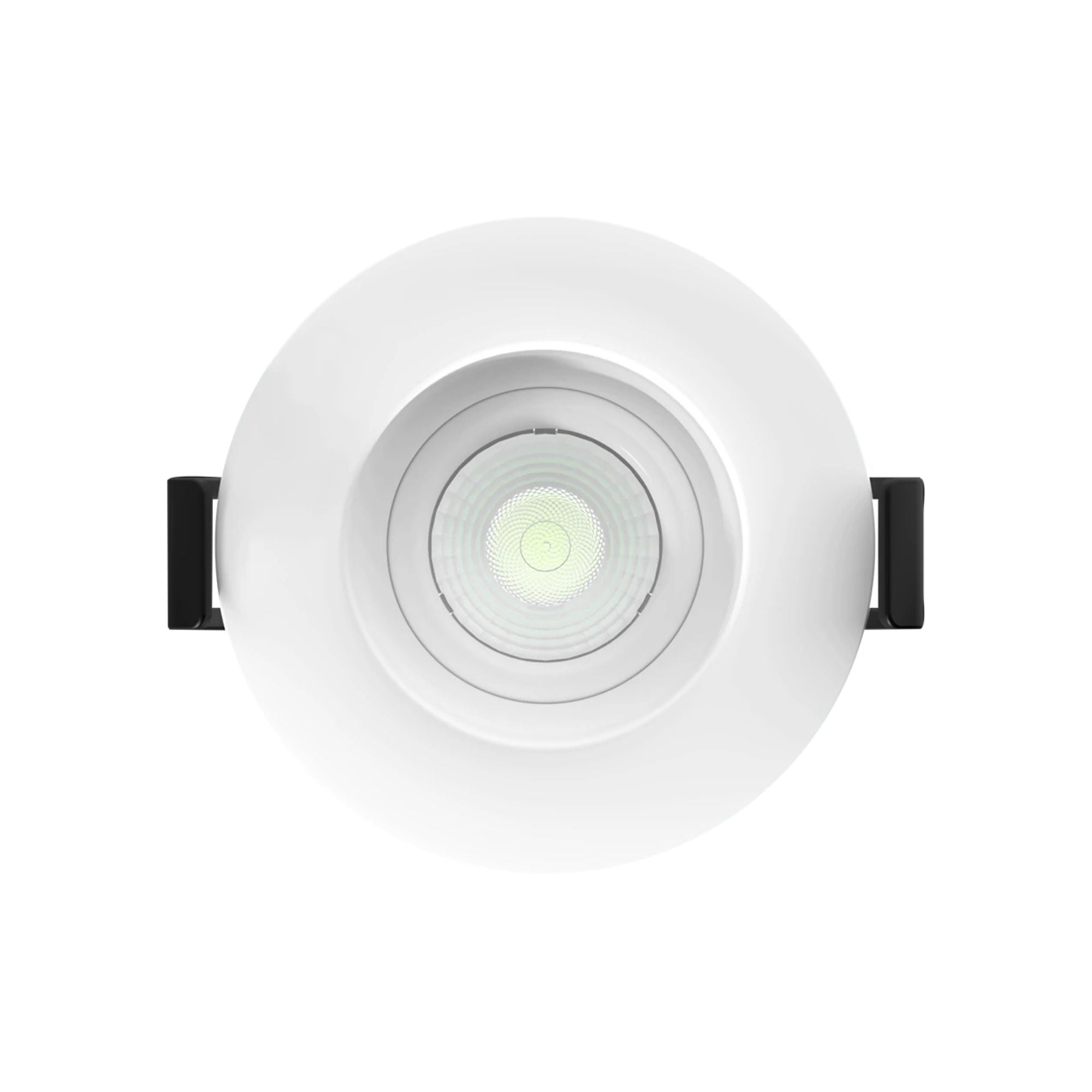

The RAB GR2 is a 2 in round deep regress gimbal recessed downlight in white with a remote driver, delivering 400 lumens at 6W and 66.67 lm/W with a 38° beam angle and 30° tilt. The deep regress lens positions the light source further into the fixture for superior glare control vs the standard RAB G2. No housing or J-box required — installs via spring-loaded retention clips in new construction or retrofit ceilings. CCT is field-selectable 2700K–5000K via dip switch (default: 3000K) with TRIAC/ELV dimming at 120V.

Key Features

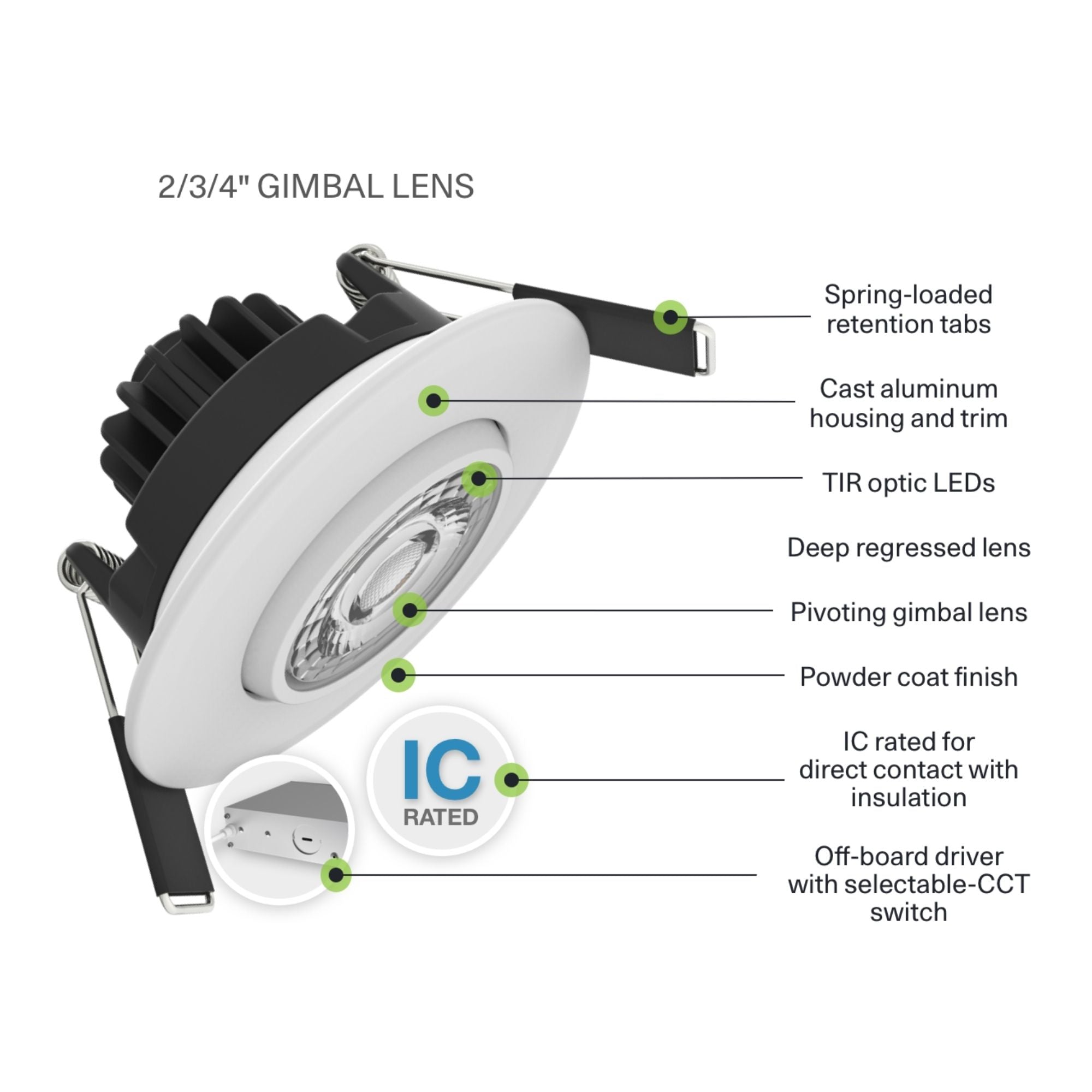

• 2 in Round Deep Regress Gimbal — White Smooth: Metal enclosure; polycarbonate light diffuser; remote driver; deep regress lens for superior glare control
• No Housing Required: Spring-loaded retention clips; new construction and retrofit applications

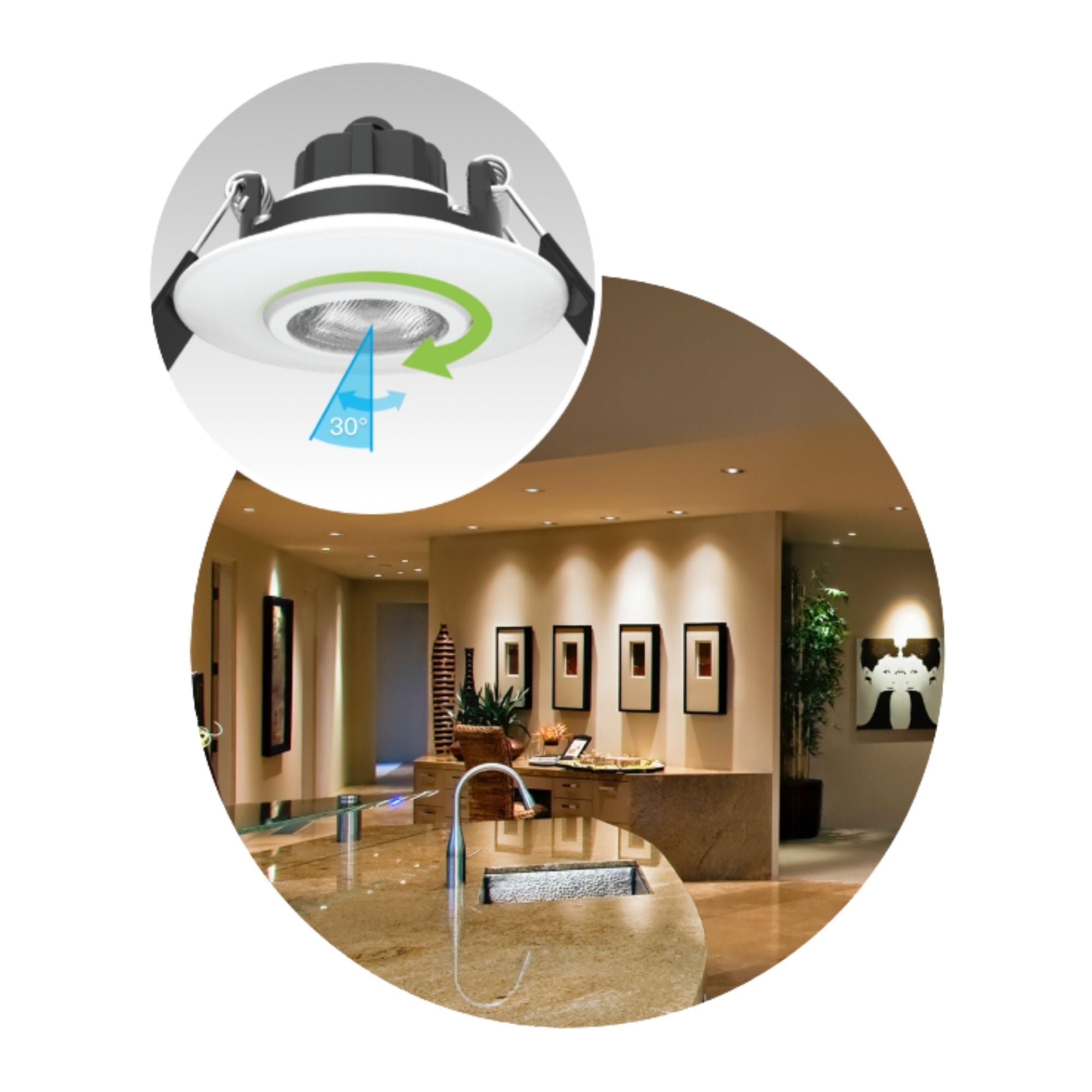

• 30° Tilt / 38° Beam Angle (±5°): Gimbal for directional accent and task lighting

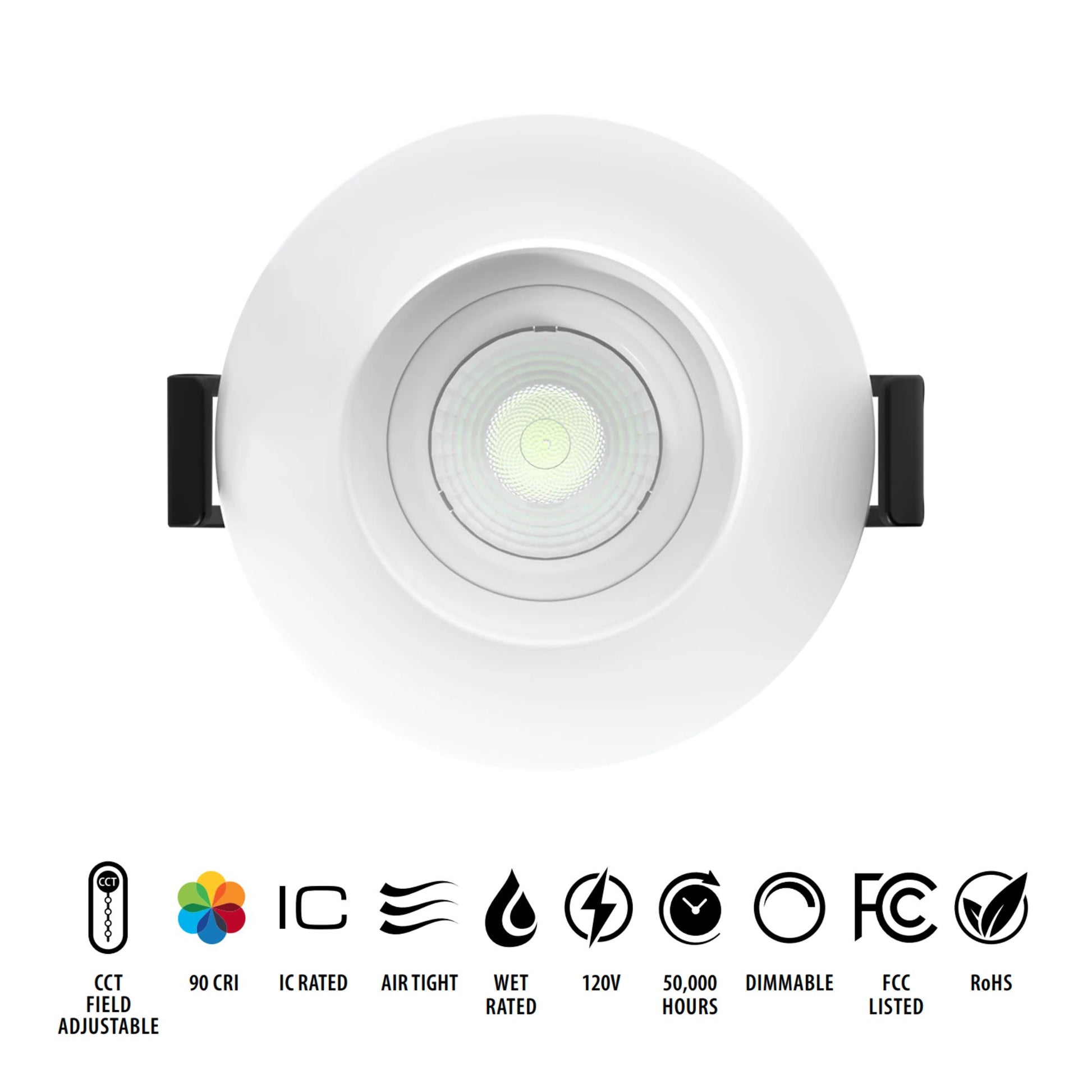

• Field-Selectable CCT: Dip-switch adjustable between 2700K, 3000K, 3500K, 4000K, and 5000K (default: 3000K); 5 CCTs in 1 SKU
• Lumen Output: 367 lm (2700K) | 404 lm (3000K) | 425 lm (3500K) | 434 lm (4000K) | 424 lm (5000K)
• Efficacy: 61 lm/W (2700K) | 69 lm/W (3000K) | 74 lm/W (3500K) | 75 lm/W (4000K) | 71 lm/W (5000K)
• Wattage: 6W | 50W incandescent equivalent | 400 lm nominal | 66.67 lm/W
• CRI: 90+, R9 ≥ 50 | 4-step MacAdam Ellipse consistency
• Dimming: TRIAC/ELV dimmable to 10% at 120V
• Voltage: 120V | 50mA (0.05A)
• IC Rated — airtight per ASTM E283 | Wet location rated
• Certifications: ETL Listed | ENERGY STAR v2.2 | Title 24 JA8 | RoHS | FCC Part 15B | NEC closet compliant Sec. 410.16 (A)(1) & (C3)
• Note: This product does NOT meet California Title 20 requirements
• Color Stability: Color temperature warranted to shift no more than 200K over 5 years
• Lifespan: 50,000 hours L70 | Warranty: 5-year no-compromise warranty

Construction & Design

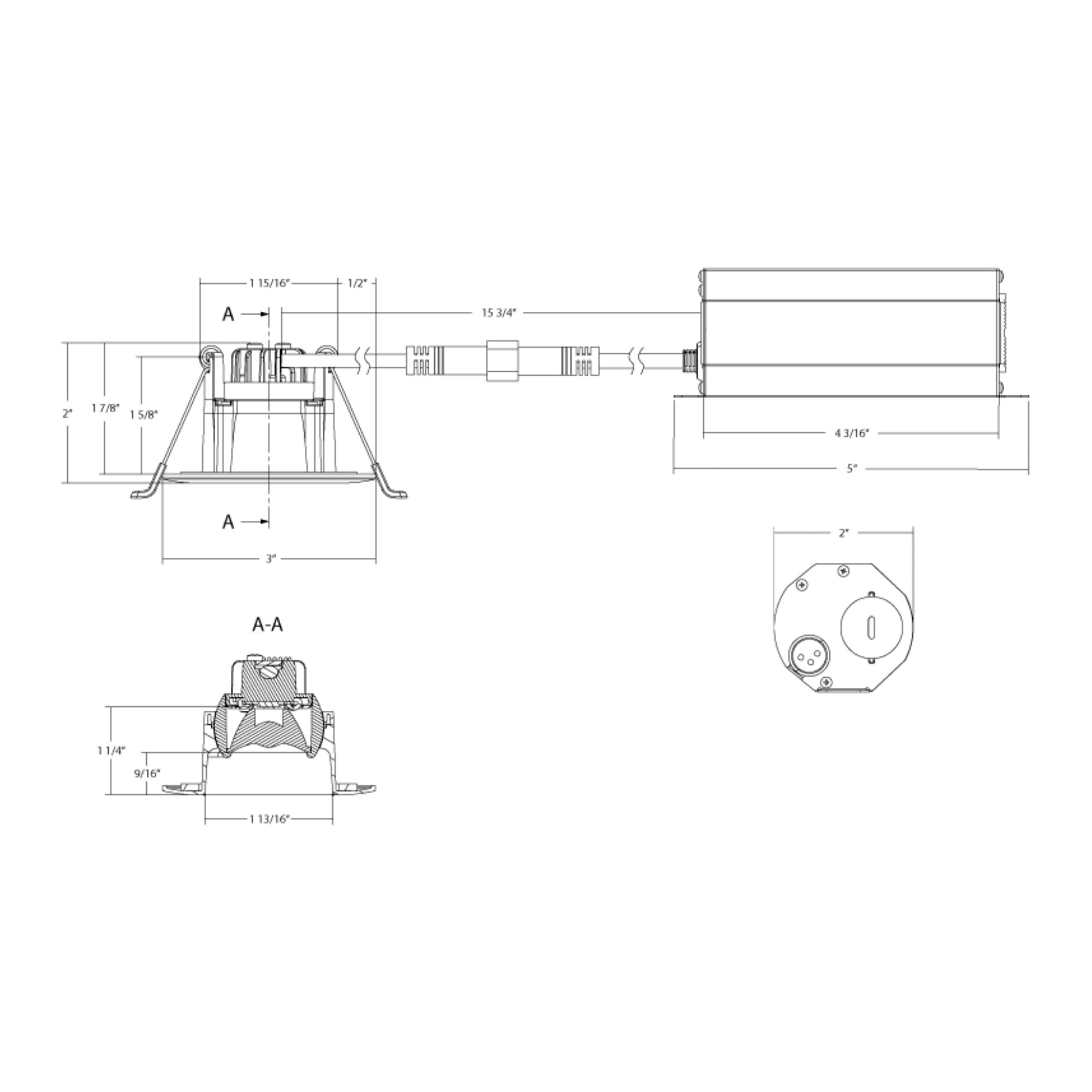

Metal enclosure with white smooth trim. Deep regress polycarbonate light diffuser for superior glare control. Remote driver (Class 2, 60 Hz, 120V, 0.05A). Housing certified airtight per ASTM E283. IC rated for direct contact with insulation (not spray foam; consult NEMA LSD57-2013). Wet location rated. Weight: 0.5 lbs.

Light Output & Performance

400 lm nominal at 66.67 lm/W. Per-CCT: 367 lm (2700K), 404 lm (3000K), 425 lm (3500K), 434 lm (4000K), 424 lm (5000K). 90+ CRI, R9 ≥ 50. 4-step MacAdam Ellipse. MBCP: 885. Color temperature warranted to shift no more than 200K over 5 years. Flicker ≤30%.

Electrical & Installation

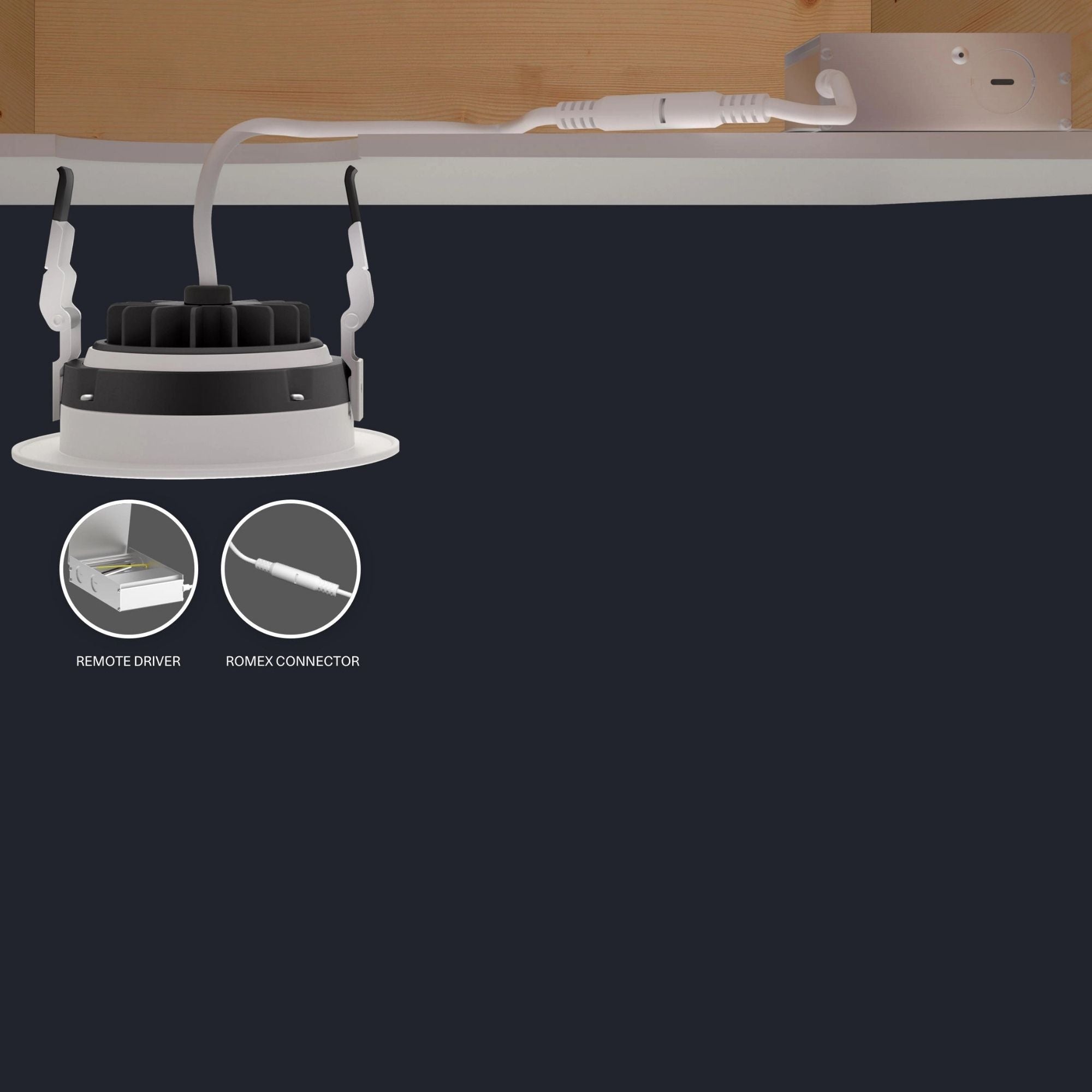

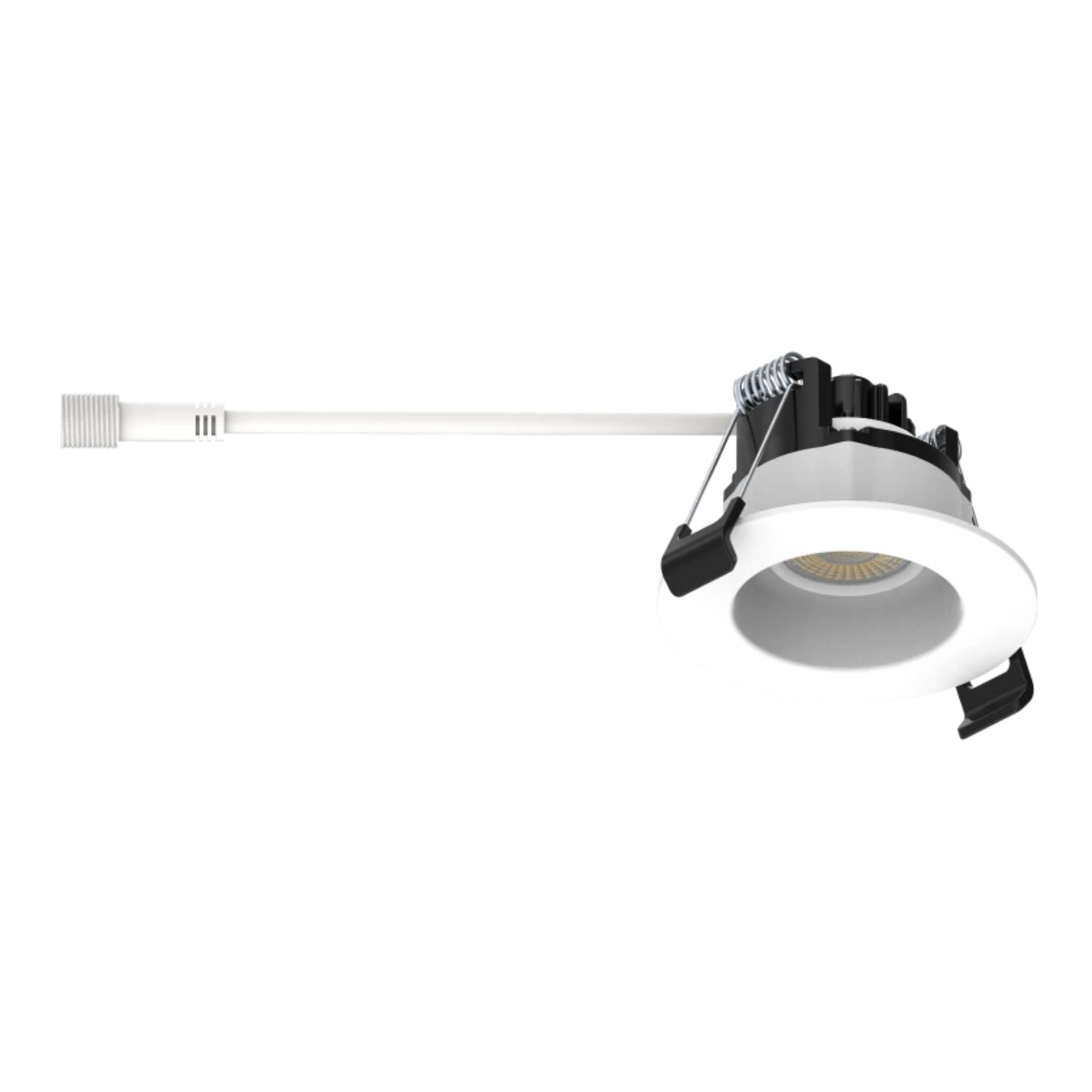

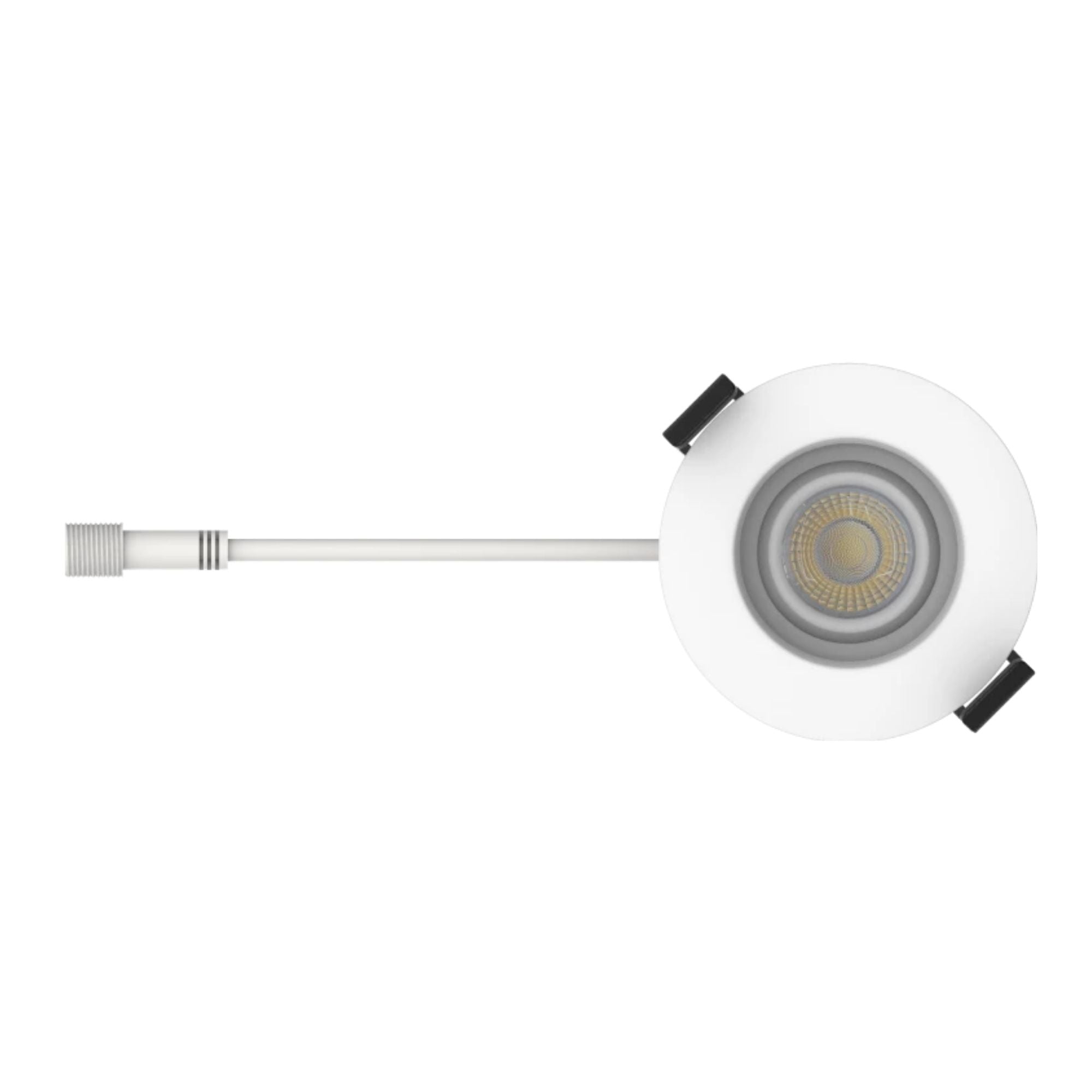

120V Constant Current Class 2 remote driver (50mA / 0.05A). TRIAC/ELV dimmable to 10%. No housing or J-box required — spring-loaded retention clips; new construction or retrofit. THD ≤25%, PF ≥0.9. Operating temp: -13°F to 104°F (-25°C to 40°C).

What’s Included

• RAB GR2 2 in round deep regress gimbal recessed downlight (white)
• Remote driver

Typical Applications

• Accent and task lighting where glare control is a priority
• Gallery, hospitality, and retail applications requiring low-glare aesthetics
• Small-aperture recessed lighting in residential new construction and remodels
• Kitchens, bathrooms, hallways, and closets
• Wet, damp, and dry interior and covered outdoor environments
