RAB GF4 4 in Round Trimless Floating Gimbal Recessed Downlight — 12W / Selectable CCT / 120V / White

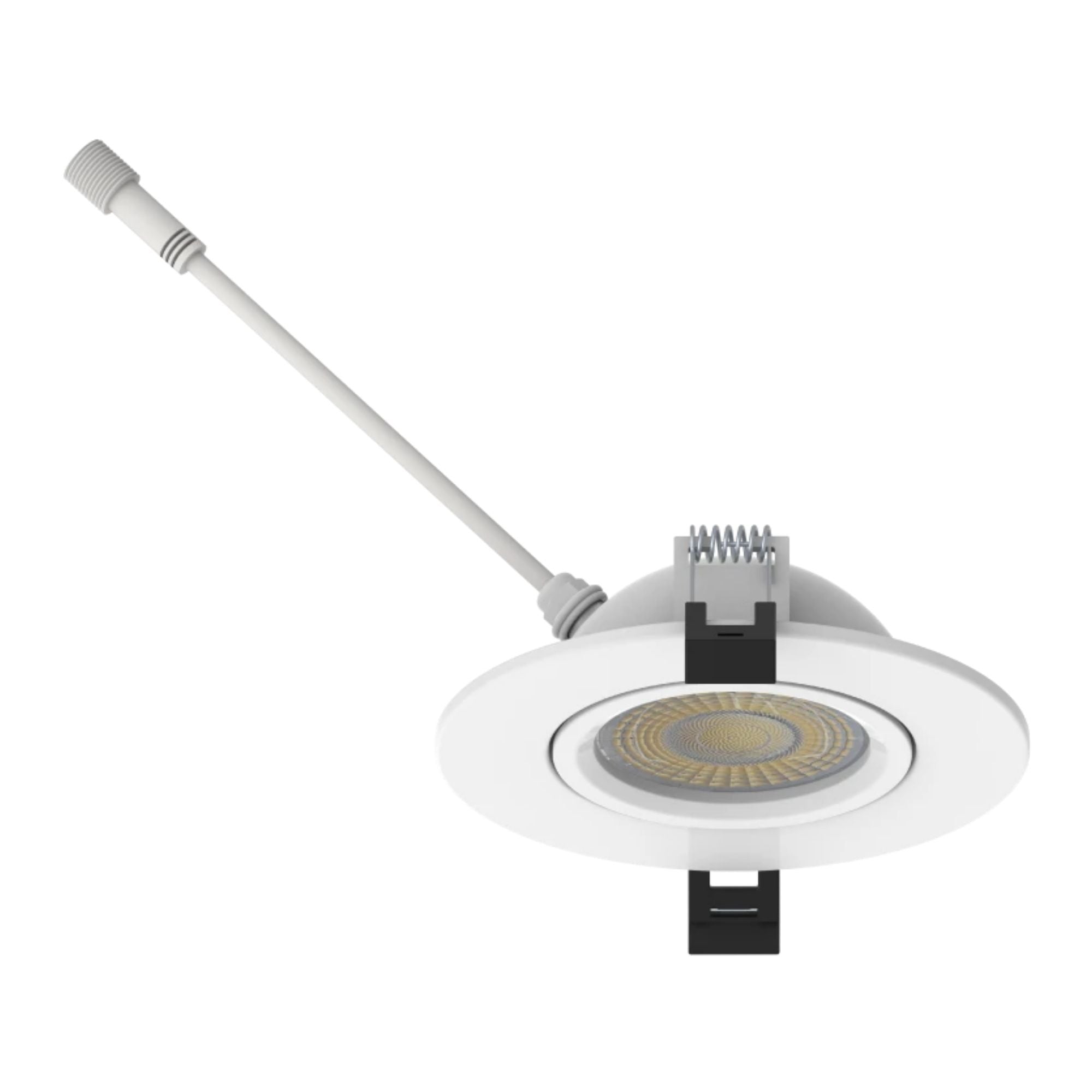

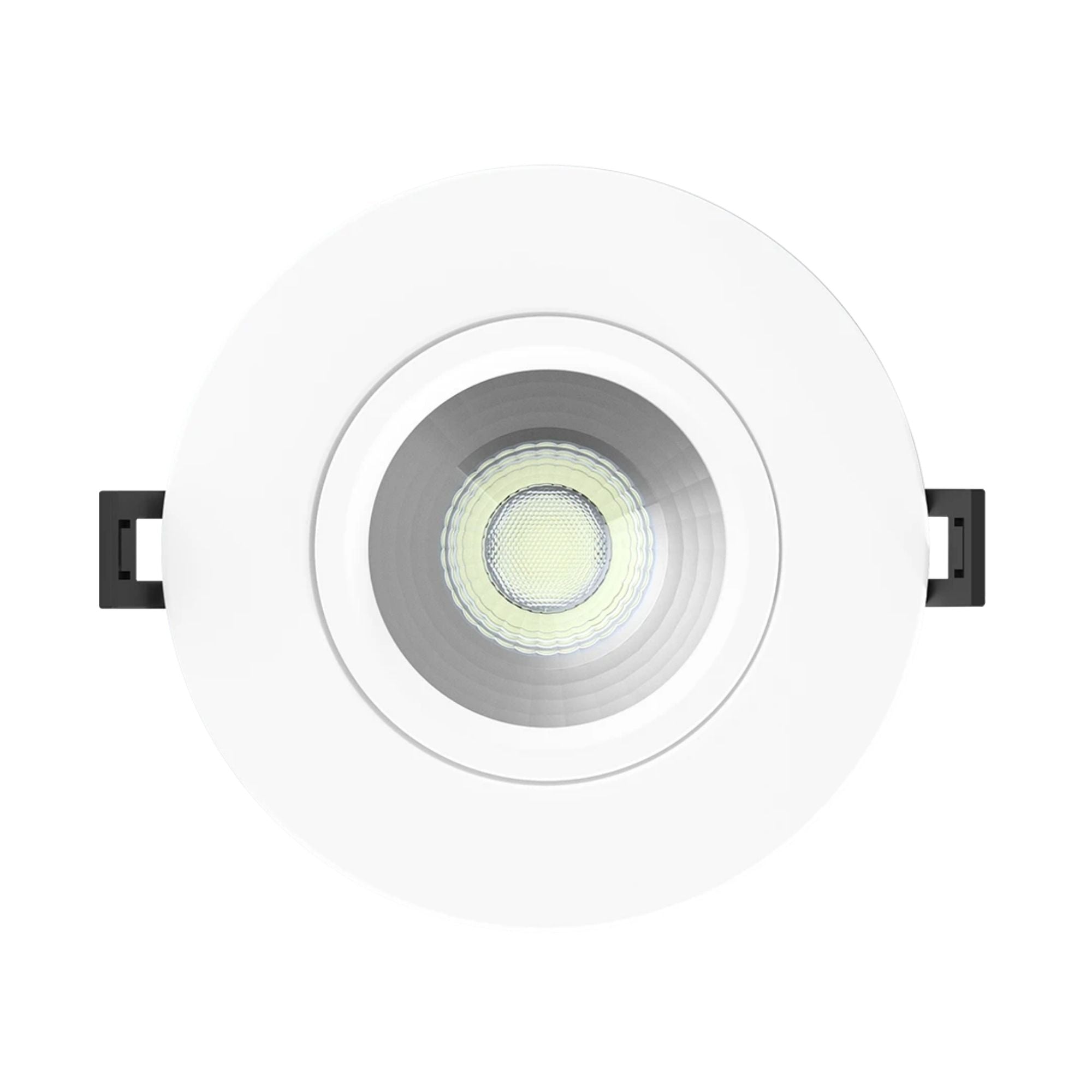

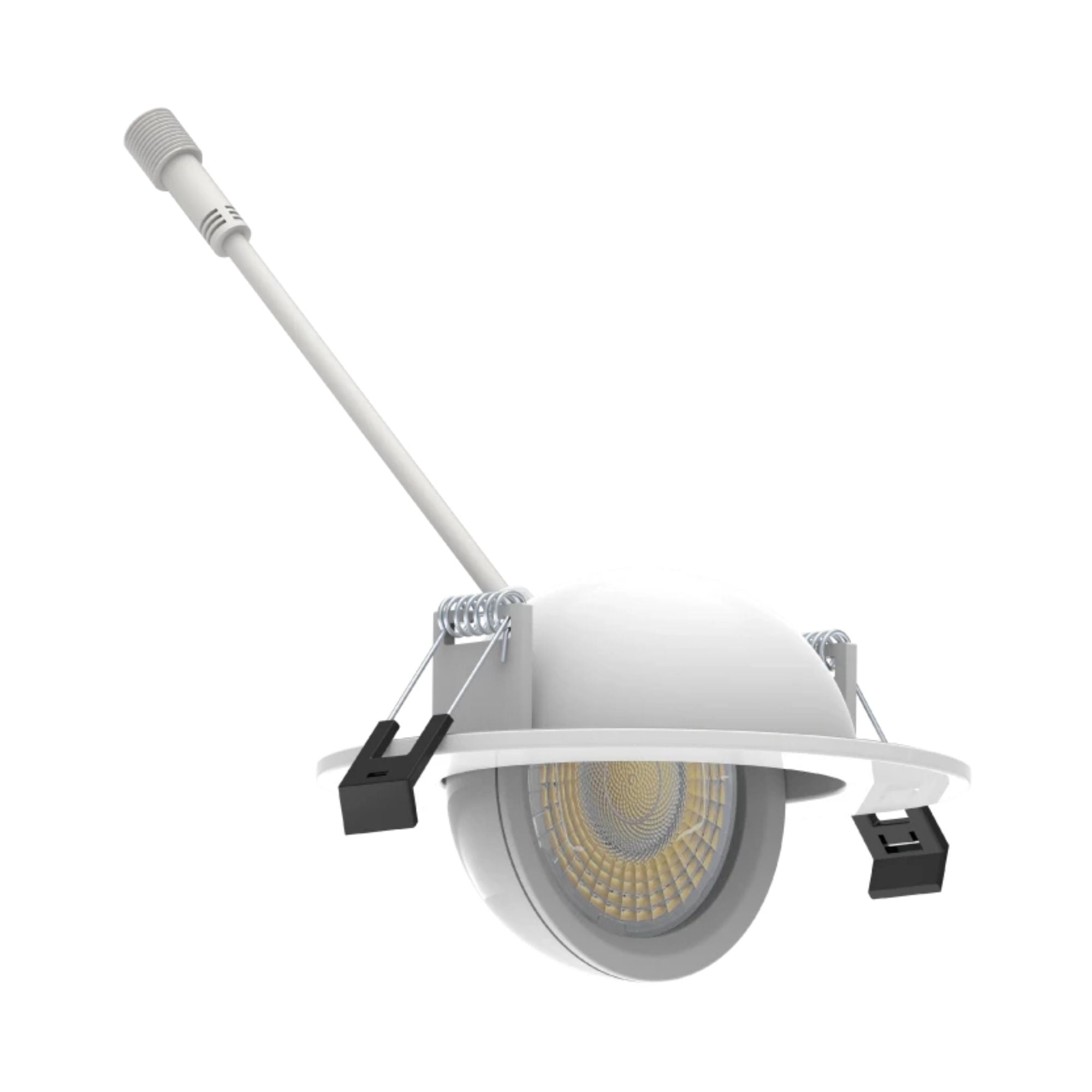

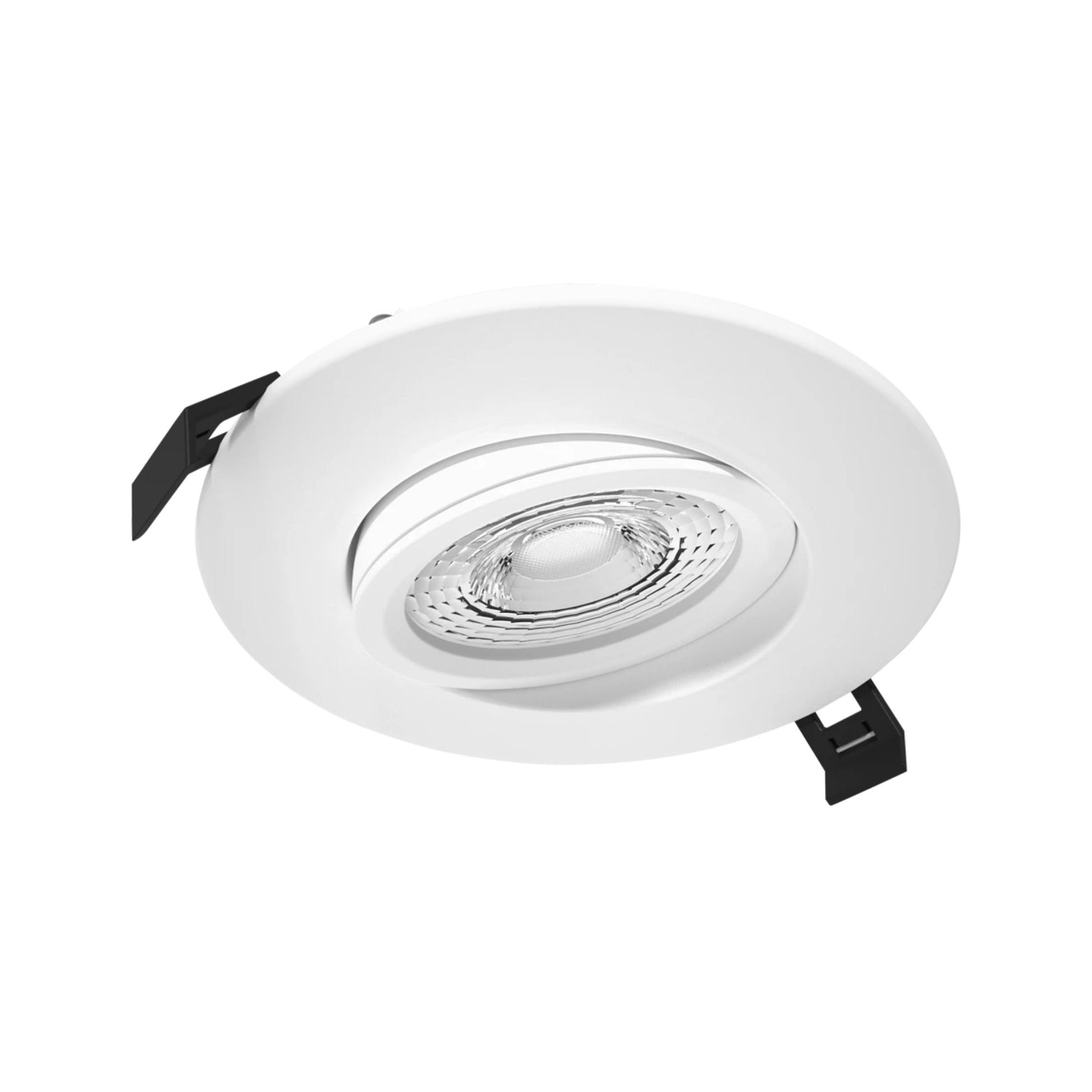

The RAB GF4 is a 4 in round trimless floating gimbal recessed downlight in white with a remote driver, delivering 850 lumens at 12W and 70.83 lm/W with a 38° beam angle and 30° tilt. The trimless floating design eliminates the visible trim ring for a seamless, flush ceiling appearance. No housing or J-box required — installs via spring-loaded retention clips in new construction or retrofit ceilings. Cut out template size: 4 5/16 in. CCT is field-selectable 2700K–5000K via dip switch (default: 3000K) with TRIAC/ELV dimming at 120V.

Key Features

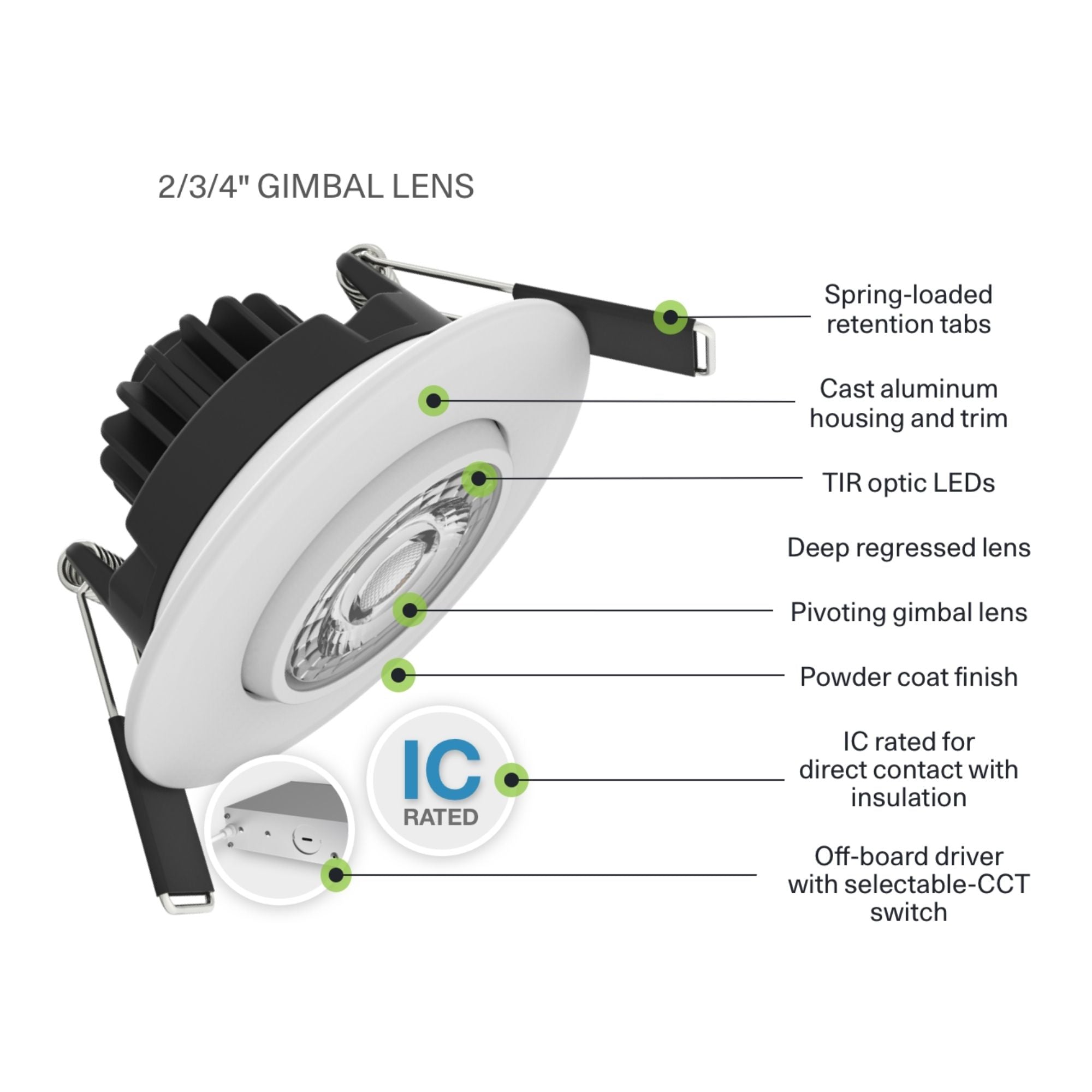

• 4 in Round Trimless Floating Gimbal — White Smooth: Metal enclosure; polycarbonate light diffuser; remote driver; no visible trim ring for flush ceiling aesthetic
• No Housing Required: Spring-loaded retention clips; new construction and retrofit applications; cut out template size: 4 5/16 in

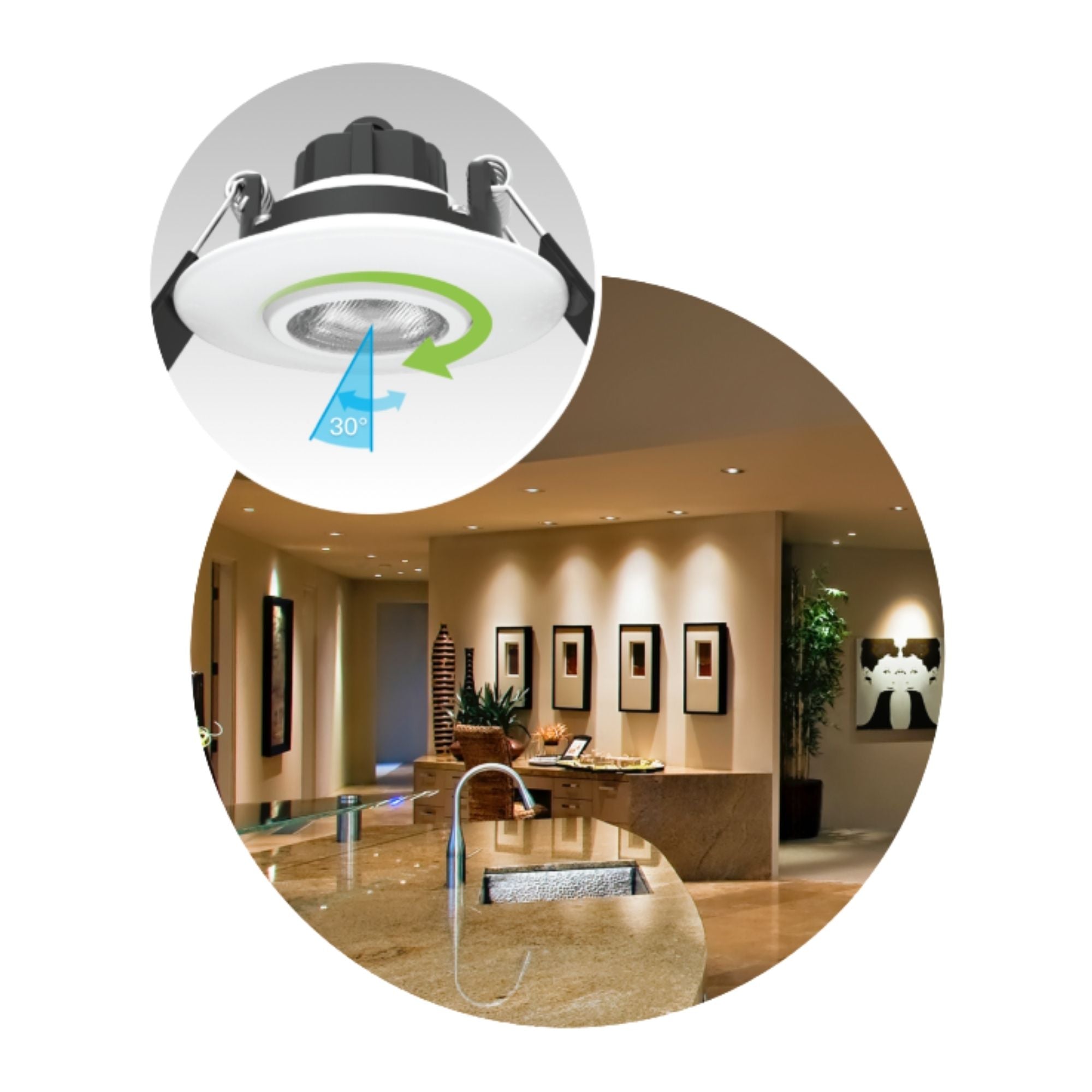

• 30° Tilt / 38° Beam Angle (±5°): Gimbal for directional accent and task lighting
• Field-Selectable CCT: Dip-switch adjustable between 2700K, 3000K, 3500K, 4000K, and 5000K (default: 3000K); 5 CCTs in 1 SKU
• Lumen Output: 889 lm (2700K) | 961 lm (3000K) | 1,022 lm (3500K) | 1,049 lm (4000K) | 1,049 lm (5000K)
• Efficacy: 76 lm/W (2700K) | 84 lm/W (3000K) | 92 lm/W (3500K) | 94 lm/W (4000K) | 90 lm/W (5000K)
• Wattage: 12W | 120W incandescent equivalent | 850 lm nominal | 70.83 lm/W
• CRI: 90+, R9 ≥ 50 | 4-step MacAdam Ellipse consistency
• Dimming: TRIAC/ELV dimmable to 10% at 120V
• Voltage: 120V | 97mA (0.10A)
• IC Rated — airtight per ASTM E283 | Wet location rated
• Certifications: ETL Listed | ENERGY STAR v2.2 | Title 24 JA8 | RoHS | FCC Part 15B | NEC closet compliant Sec. 410.16 (A)(1) & (C3)
• Note: This product does NOT meet California Title 20 requirements
• Color Stability: Color temperature warranted to shift no more than 200K over 5 years
• Lifespan: 50,000 hours L70 | Warranty: 5-year no-compromise warranty

Construction & Design

Metal enclosure with white smooth trimless finish. Polycarbonate light diffuser. Remote driver (Class 2, 60 Hz, 120V, 0.10A). Housing certified airtight per ASTM E283. IC rated for direct contact with insulation (not spray foam; consult NEMA LSD57-2013). Wet location rated. Weight: 0.9 lbs.

Light Output & Performance

850 lm nominal at 70.83 lm/W. Per-CCT: 889 lm (2700K), 961 lm (3000K), 1,022 lm (3500K), 1,049 lm (4000K), 1,049 lm (5000K). 90+ CRI, R9 ≥ 50. 4-step MacAdam Ellipse. MBCP: 1,905. Color temperature warranted to shift no more than 200K over 5 years. Flicker ≤30%.

Electrical & Installation

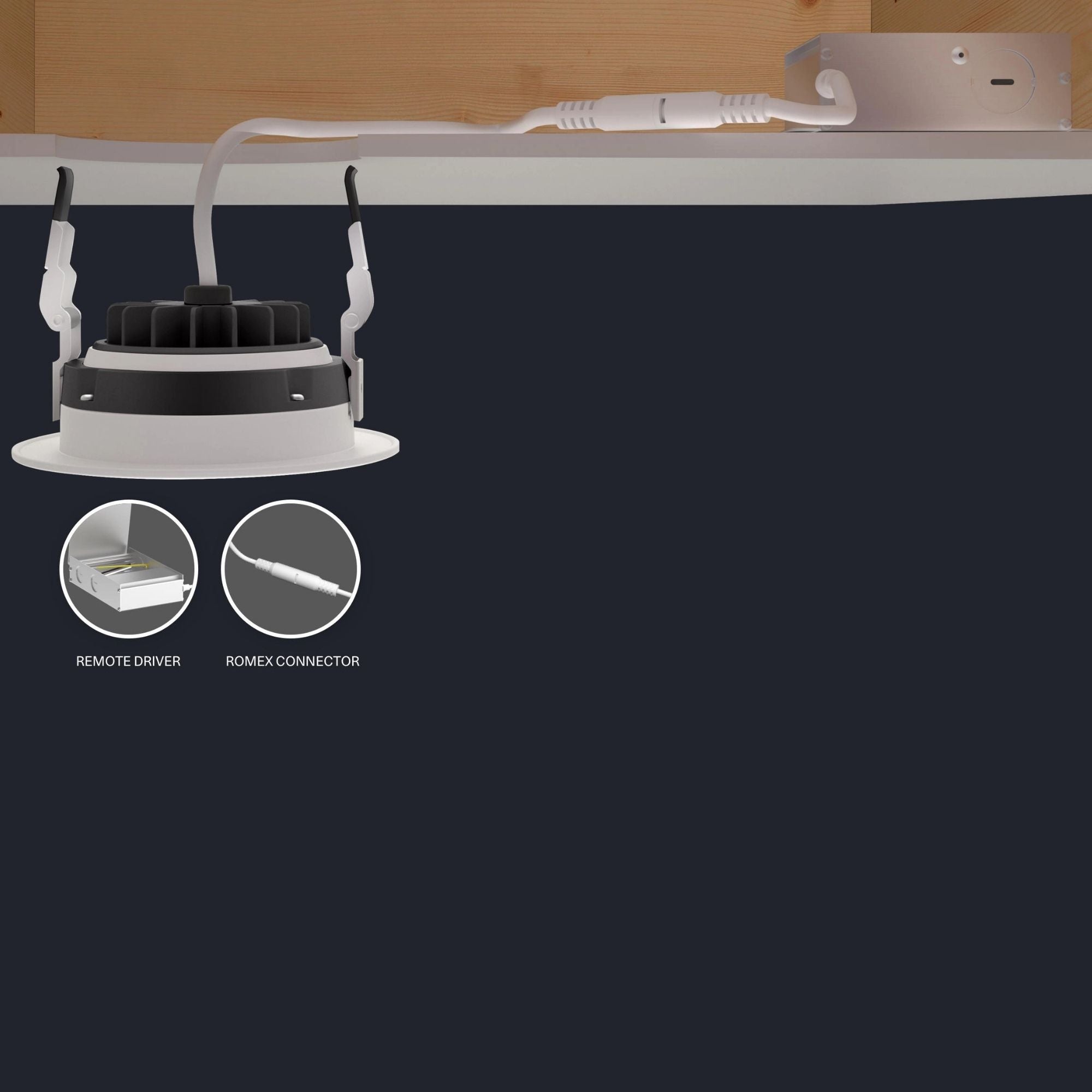

120V Constant Current Class 2 remote driver (97mA / 0.10A). TRIAC/ELV dimmable to 10%. No housing or J-box required — spring-loaded retention clips; new construction or retrofit. Cut out template size: 4 5/16 in. THD ≤25%, PF ≥0.9. Operating temp: -13°F to 104°F (-25°C to 40°C).

What’s Included

• RAB GF4 4 in round trimless floating gimbal recessed downlight (white)
• Remote driver

Typical Applications

• Modern and minimalist interiors requiring a flush, seamless ceiling appearance
• High-end residential and hospitality accent lighting
• Gallery and retail applications requiring a clean ceiling aesthetic
• Kitchens, bathrooms, hallways, and closets
• Wet, damp, and dry interior and covered outdoor environments
