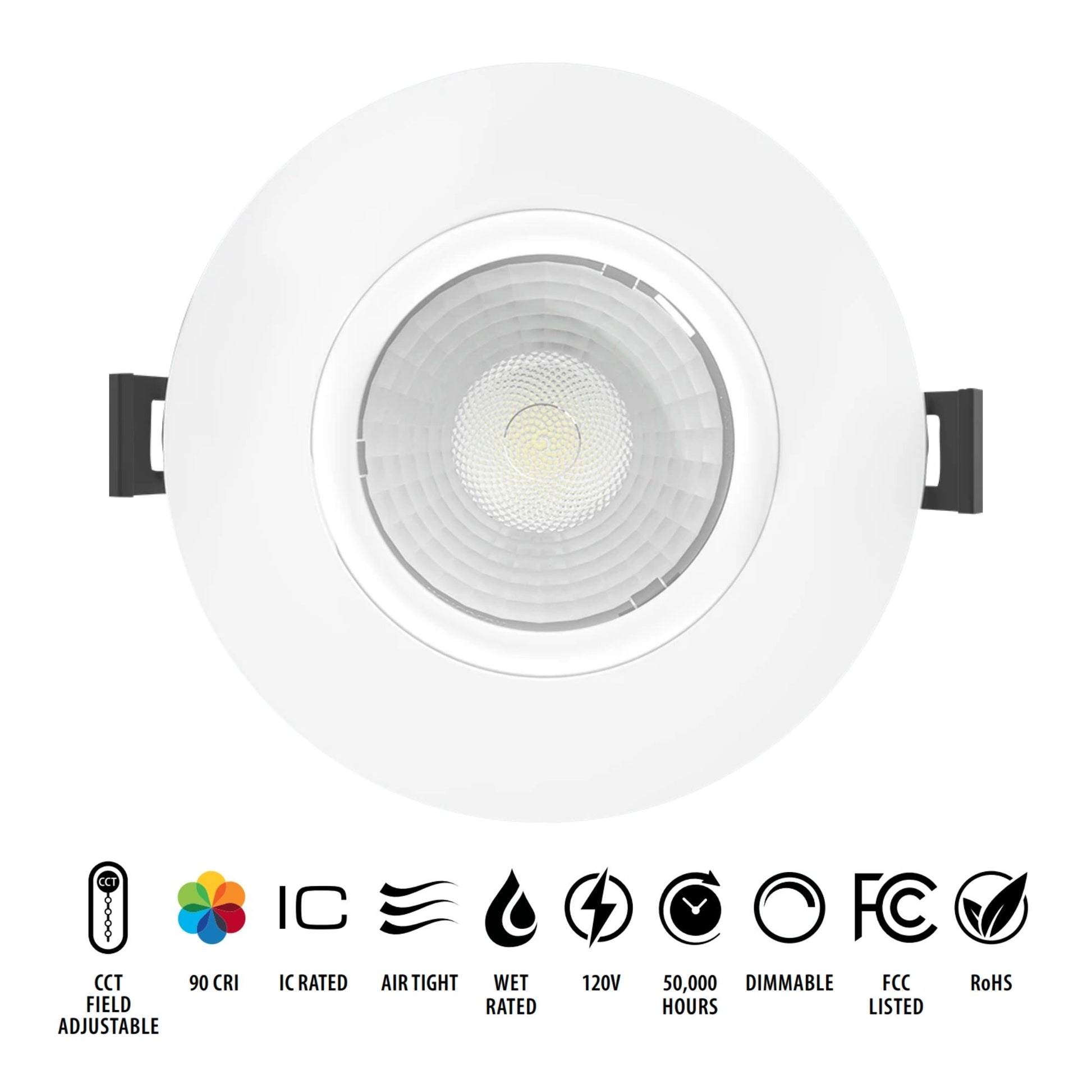

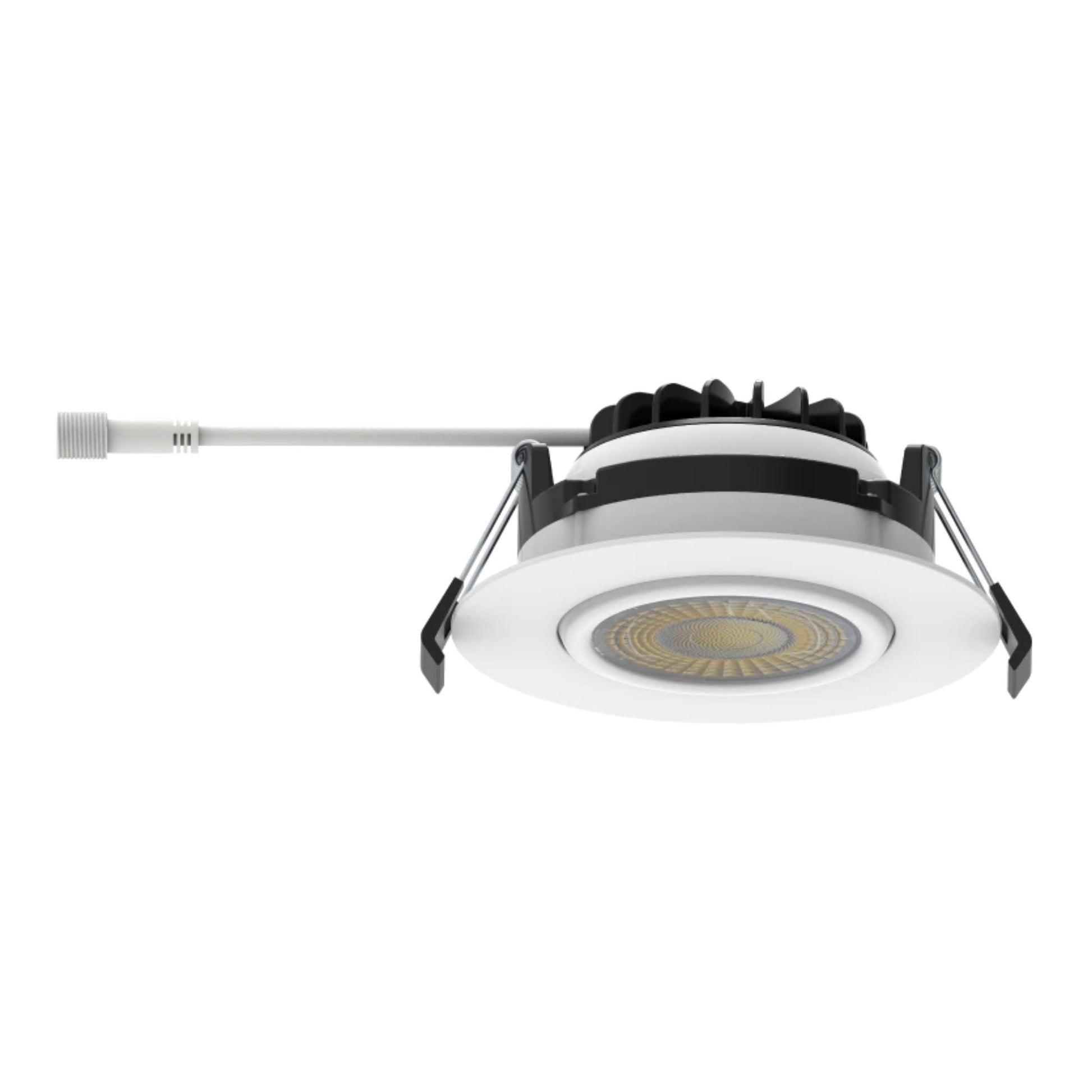

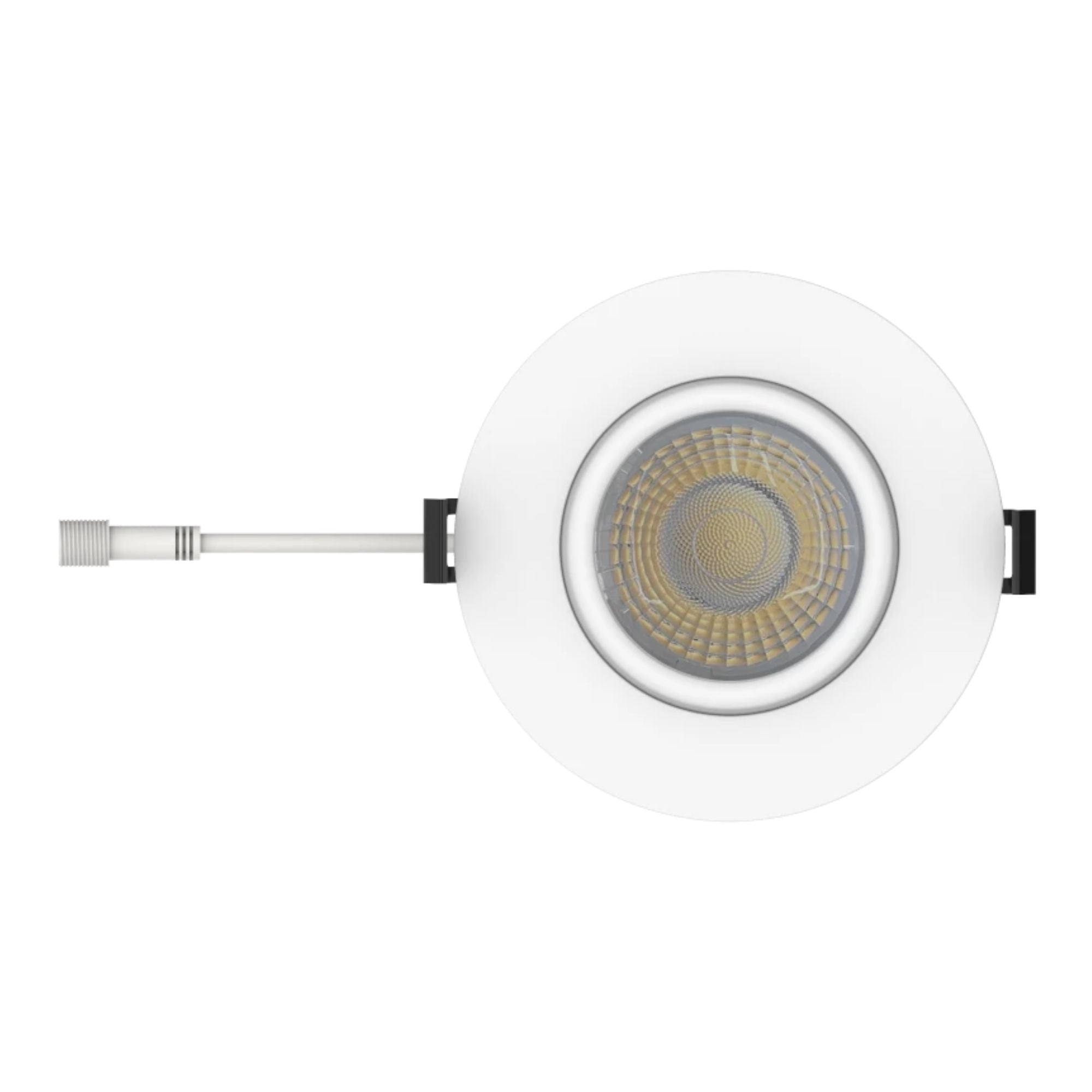

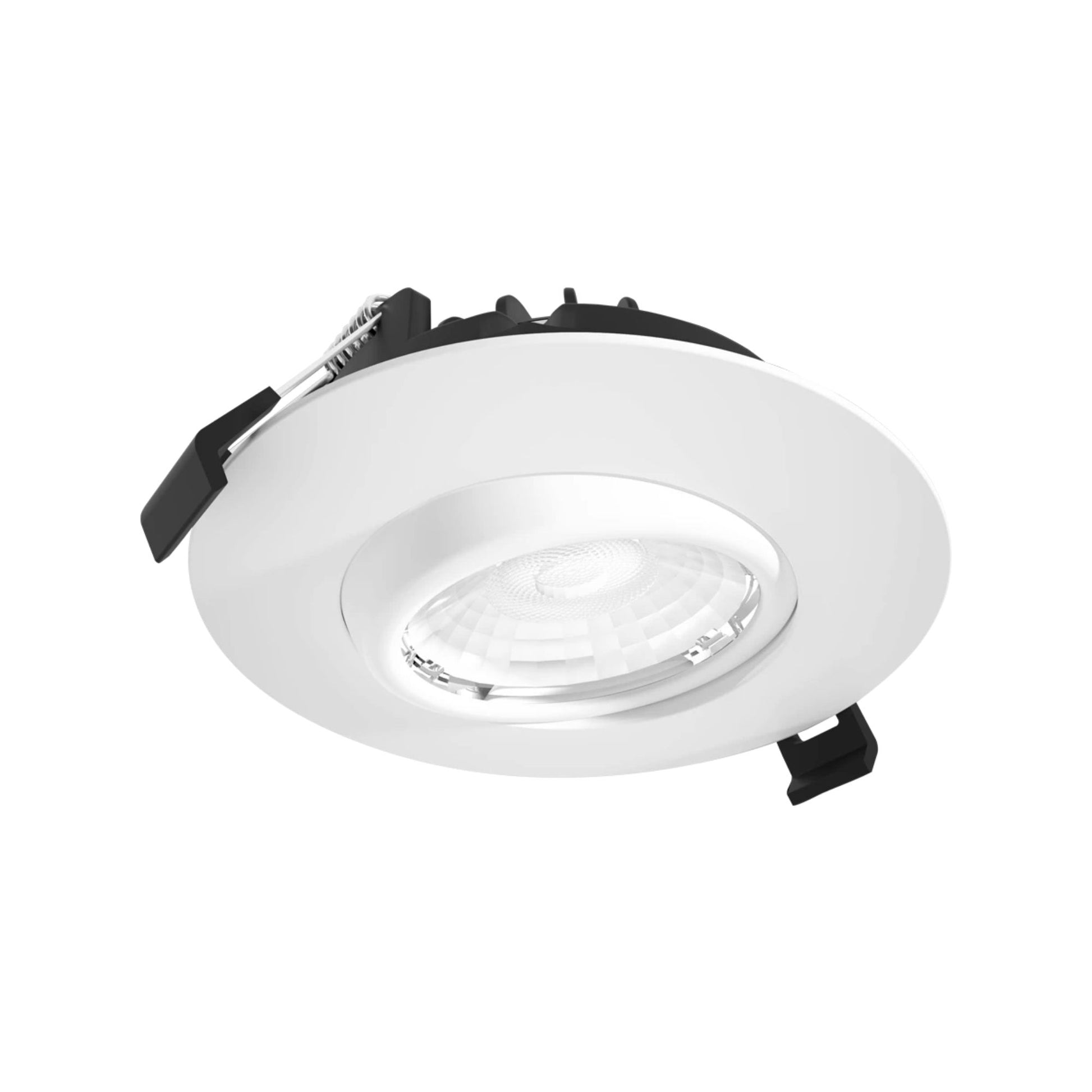

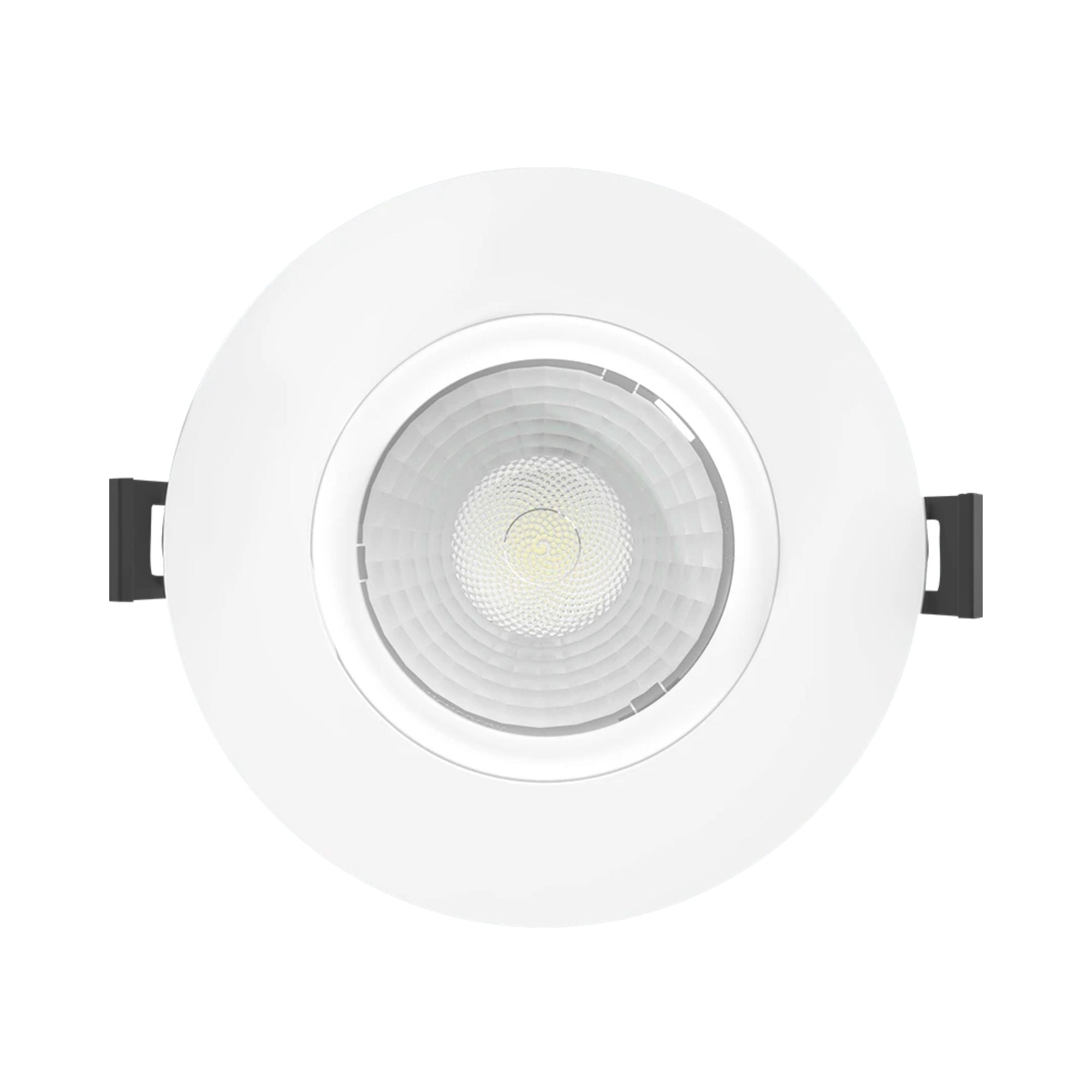

RAB G4 4 in Round Gimbal Recessed Downlight — 15W / Selectable CCT / 120V / White

The RAB G4 is a 4 in round gimbal recessed downlight in white with a remote driver, delivering 1,050 lumens at 15W and 70 lm/W with a 38° beam angle and 30° tilt. No housing or J-box required — installs via spring-loaded retention clips in new construction or retrofit ceilings. Cut out template size: 4 5/16 in. CCT is field-selectable 2700K–5000K via dip switch (default: 3000K) with TRIAC/ELV dimming at 120V.

Key Features

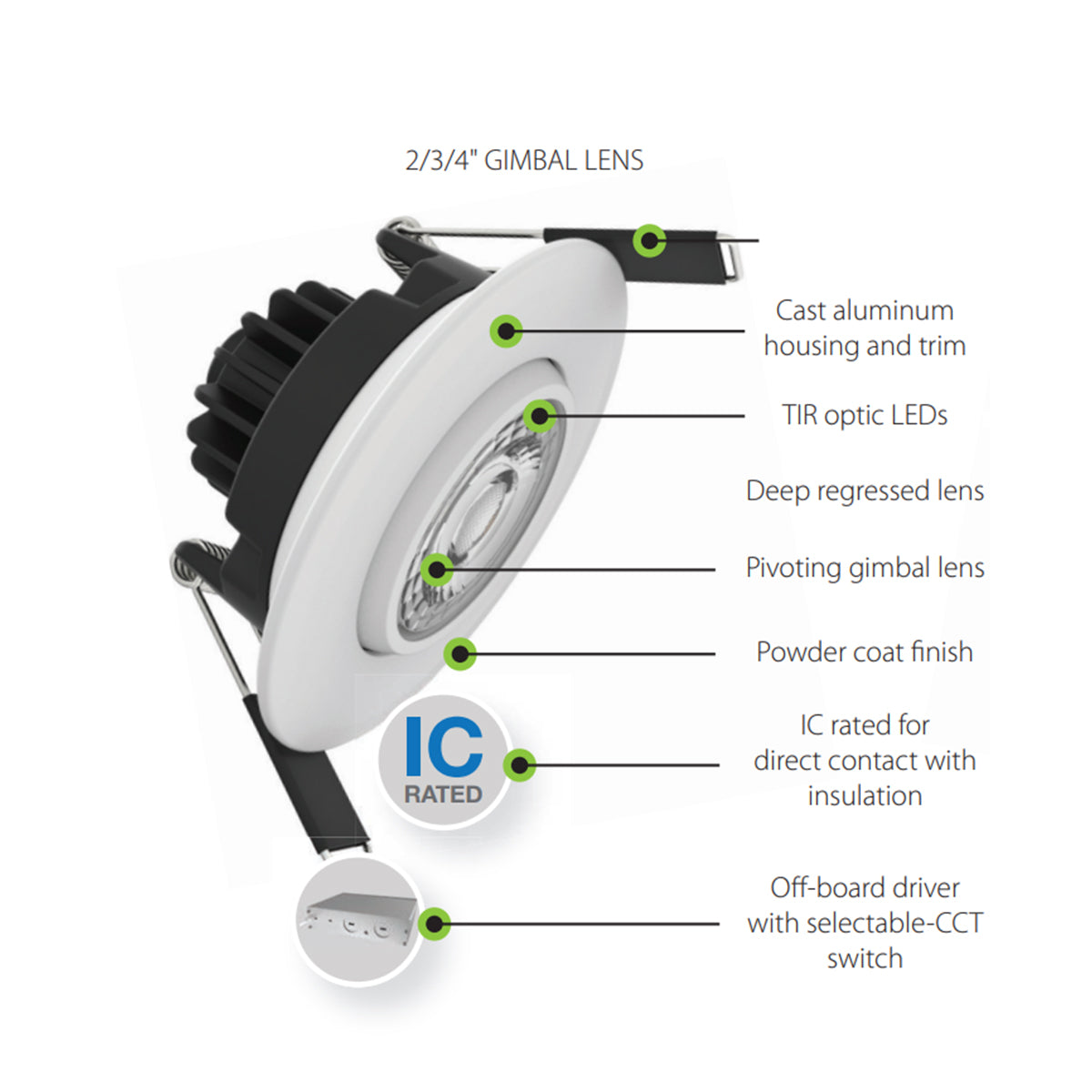

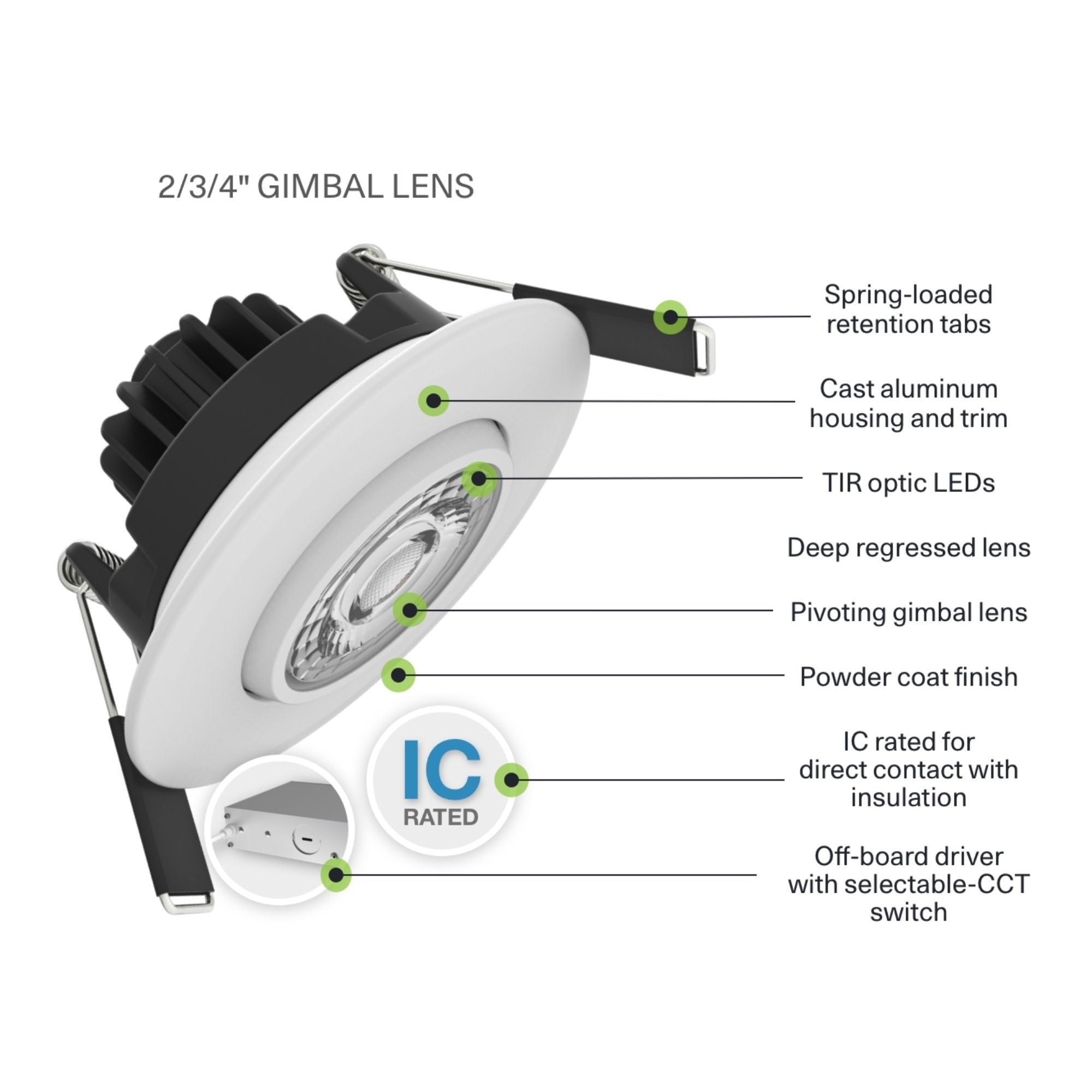

• 4 in Round Gimbal — White Smooth: Metal enclosure; polycarbonate light diffuser; remote driver

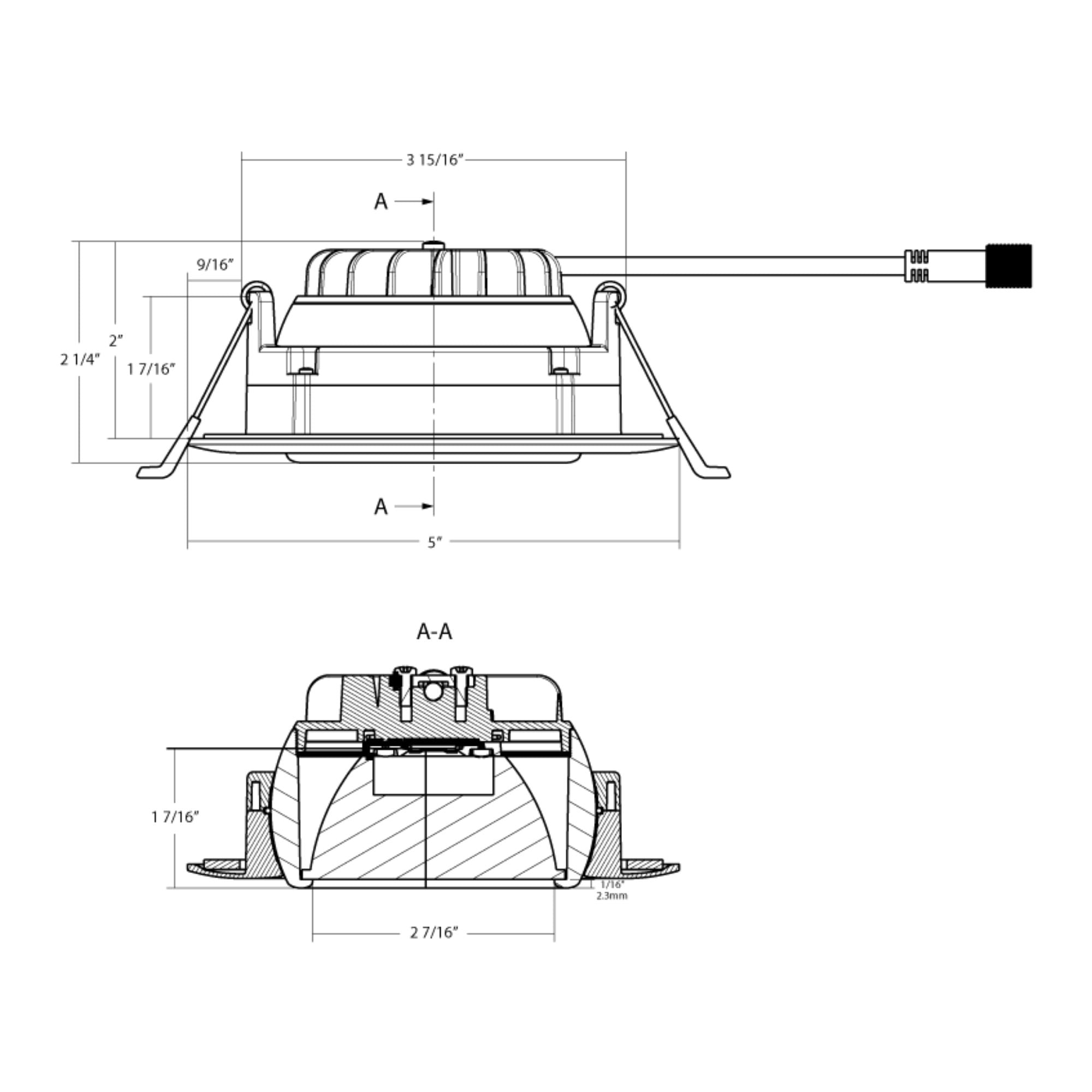

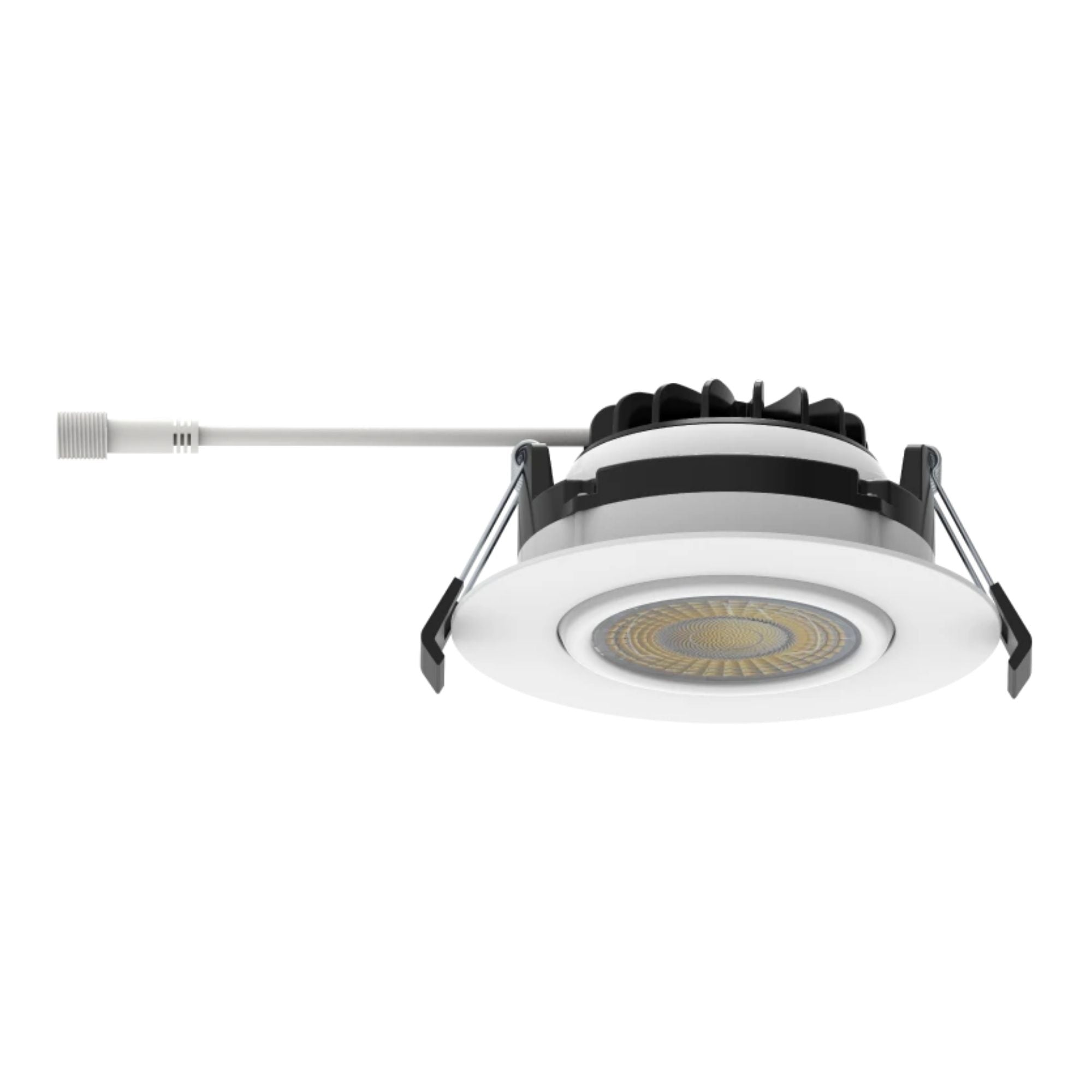

• No Housing Required: Spring-loaded retention clips; new construction and retrofit applications; cut out template size: 4 5/16 in

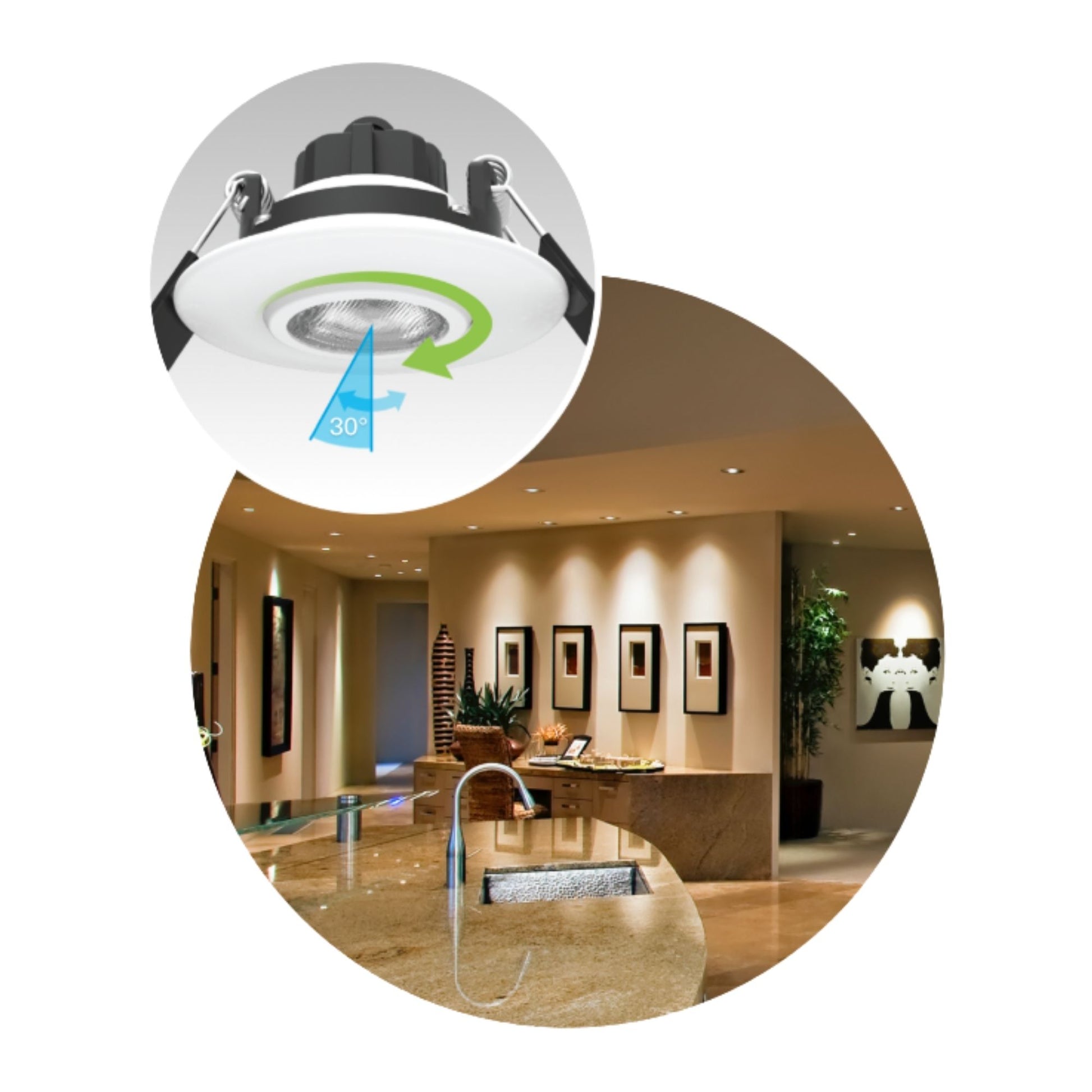

• 30° Tilt / 38° Beam Angle (±5°): Gimbal for directional accent and task lighting
• Field-Selectable CCT: Dip-switch adjustable between 2700K, 3000K, 3500K, 4000K, and 5000K (default: 3000K); 5 CCTs in 1 SKU
• Lumen Output: 1,054 lm (2700K) | 1,150 lm (3000K) | 1,234 lm (3500K) | 1,270 lm (4000K) | 1,251 lm (5000K)
• Efficacy: 73 lm/W (2700K) | 82 lm/W (3000K) | 90 lm/W (3500K) | 92 lm/W (4000K) | 87 lm/W (5000K)
• Wattage: 15W | 125W incandescent equivalent | 1,050 lm nominal | 70 lm/W
• CRI: 90+, R9 ≥ 50 | 4-step MacAdam Ellipse consistency
• Dimming: TRIAC/ELV dimmable to 10% at 120V
• Voltage: 120V | 122mA (0.12A)

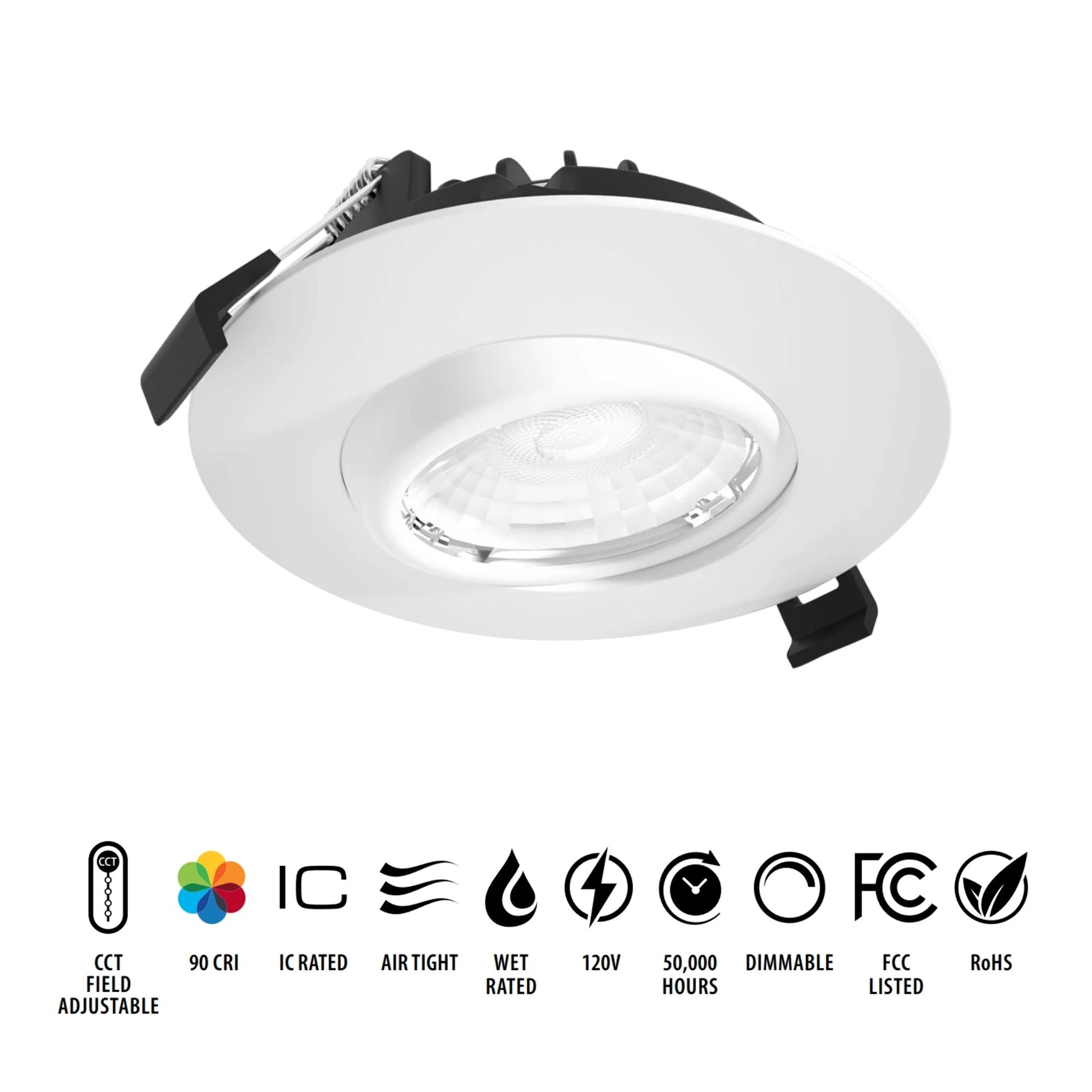

• IC Rated — airtight per ASTM E283 | Wet location rated
• Certifications: ETL Listed | ENERGY STAR v2.2 | Title 24 JA8 | RoHS | FCC Part 15B | NEC closet compliant Sec. 410.16 (A)(1) & (C3)
• Note: This product does NOT meet California Title 20 requirements
• Color Stability: Color temperature warranted to shift no more than 200K over 5 years
• Lifespan: 50,000 hours L70 | Warranty: 5-year no-compromise warranty

Construction & Design

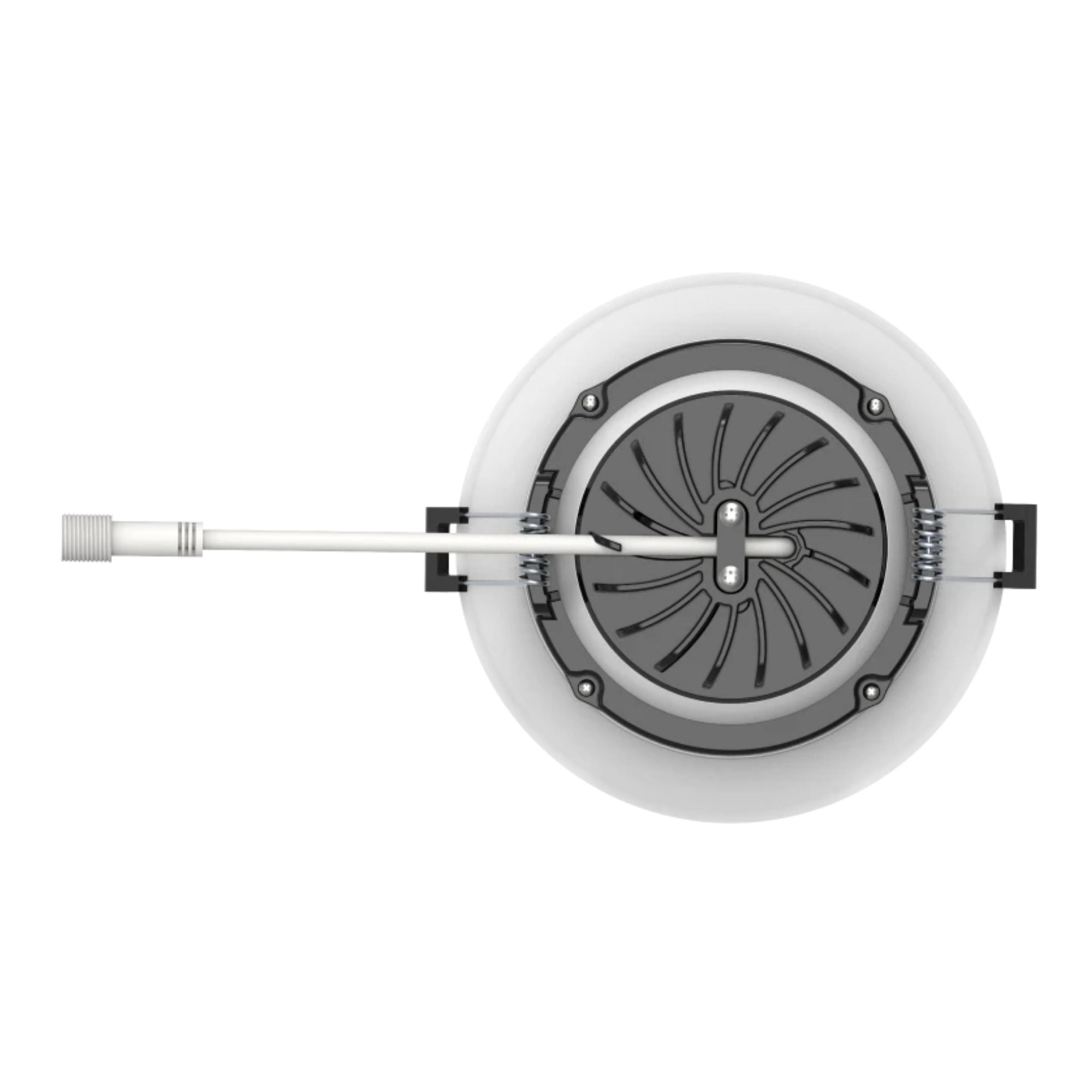

Metal enclosure with white smooth trim. Polycarbonate light diffuser. Remote driver (Class 2, 60 Hz, 120V, 0.12A). Housing certified airtight per ASTM E283. IC rated for direct contact with insulation (not spray foam; consult NEMA LSD57-2013). Wet location rated. Weight: 1.5 lbs.

Light Output & Performance

1,050 lm nominal at 70 lm/W. Per-CCT: 1,054 lm (2700K), 1,150 lm (3000K), 1,234 lm (3500K), 1,270 lm (4000K), 1,251 lm (5000K). 90+ CRI, R9 ≥ 50. 4-step MacAdam Ellipse. MBCP: 2,925. Color temperature warranted to shift no more than 200K over 5 years. Flicker ≤30%.

Electrical & Installation

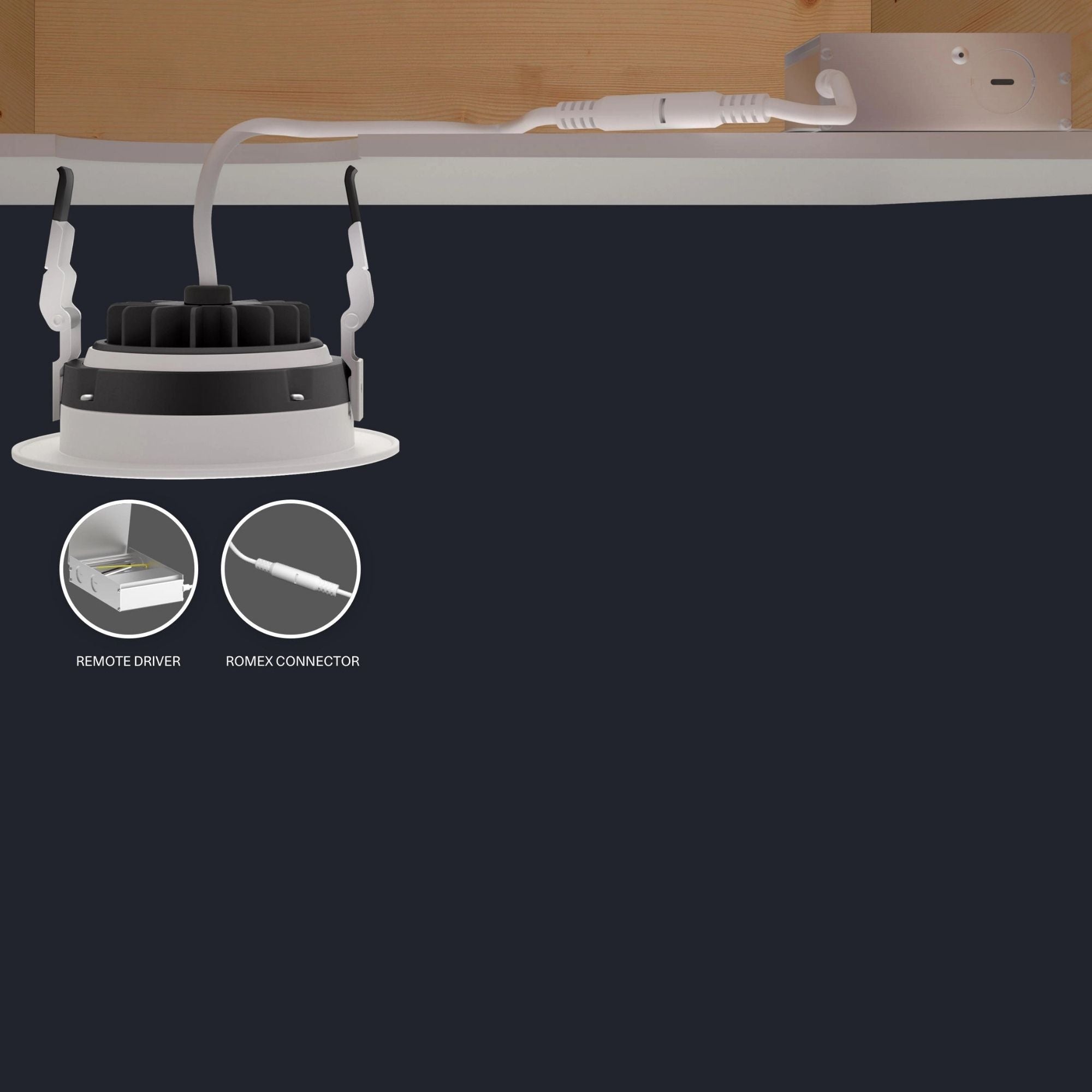

120V Constant Current Class 2 remote driver (122mA / 0.12A). TRIAC/ELV dimmable to 10%. No housing or J-box required — spring-loaded retention clips; new construction or retrofit. Cut out template size: 4 5/16 in. THD ≤25%, PF ≥0.9. Operating temp: -13°F to 104°F (-25°C to 40°C).

What’s Included

• RAB G4 4 in round gimbal recessed downlight (white)
• Remote driver

Typical Applications

• Accent and task lighting in residential new construction and remodels
• 4 in recessed lighting in living rooms, dining rooms, and kitchens
• Retail display and gallery accent lighting
• Kitchens, bathrooms, hallways, and closets
• Wet, damp, and dry interior and covered outdoor environments
