RAB ENTRA Field-Adjustable Entry Light Mini Wall Pack — 14W — 3000K/4000K/5000K — Bronze
Available in stock (20)
About this item
About this item
- Field-Adjustable Output: Onboard selector adjusts between 14W (factory default), 11W, and 7W settings, delivering up to 1,791 lumens at a peak efficacy of 133.7 lm/W.
- ADA Vandal-Resistant Profile: Frosted polycarbonate lens with high-reflectance white aluminum reflector and ADA-compliant die-cast aluminum housing resist doorway impacts.
- Selectable White CCT: Switchable 3000K, 4000K (factory default), and 5000K color temperatures with 84–86 CRI visual clarity.
- Photocell & Dim-to-Off: Integrated on/off photocell (default Off), 120-277V Class 1 driver, and 0-10V dim-to-off control.
- Rebates & Ingress: UL Listed for wet locations, IP65 weatherproof rated, ADA compliant, TAA compliant, and protected by 2kV surge suppression.
Description
Description
RAB ENTRA Field-Adjustable Entry Light Mini LED Wall Pack — 14/11/7W Selectable — 3000K/4000K/5000K — Bronze
The RAB ENTRA is a commercial Field-Adjustable Entry Light and mini LED wall pack—engineered as a field-adjustable entry light with selectable photocell—delivering up to 1,791 lumens at up to 133.7 lm/W across field-adjustable 14W / 11W / 7W power settings (default 14W) and switchable 3000K, 4000K, and 5000K color temperatures (default 4000K). Operating on universal 120-277V electrical systems with 0-10V dimming down to off, it complies with the Trade Agreements Act (TAA) for government procurement. Built with a weatherproof IP65 vandal-resistant die-cast aluminum body and UL wet-location listing, this compact doorway luminaire features a slim 2-7/8" ADA-compliant wall projection depth (5-3/4" W x 8" H), ultra-lightweight 1.84 lb housing, a frosted polycarbonate lens with a high-reflectance white aluminum reflector, an integrated selectable on/off photocell, and 2kV surge protection.
Key Features
- Field-Adjustable Wattage: 14W / 11W / 7W selectable (factory default 14W)
- Maximum Lumen Output: Up to 1,791 lm (at 14W, 5000K)
- Peak Efficacy: Up to 133.7 lm/W (at 14W, 5000K)
- CRI: 84 CRI (3000K & 5000K), 86 CRI (4000K)
- Field-Adjustable CCT: 3000K / 4000K / 5000K selectable (factory default 4000K)
- Color Consistency: 7-step MacAdam Ellipse binning per ANSI C78.377-2017
- Lens & Optics: Vandal-resistant frosted polycarbonate lens with high-reflectance white aluminum reflector (B0-U3-G2)
- Photocell & Controls: Integrated selectable on/off photocell included (factory default Off)
- Dimming: 0-10V continuous dimming down to off (requires separate 0-10V DC dimming circuit)
- Voltage & Surge Protection: 120-277V AC, 50/60Hz; 2kV L-L and 2kV L/N-G surge protection
- Location & Body Rating: UL Listed for wet locations; IP65 weatherproof rated; Vandal Resistant; ADA Compliant
- Operating Temperature: -40°F (-40°C) to 104°F (40°C)
- Certifications: UL Listed, IP65 Rated, ADA Compliant, TAA Compliant (Product of Cambodia), IESNA LM-79 & LM-80 tested, RoHS Compliant
- Rated Life: L70 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
- Warranty: 5-year limited warranty covering light output, driver performance, and paint finish - RAB
Performance & Light Output
| Wattage Tier (Input Watts) | Selectable CCT | Total Lumens | Efficacy | CRI |
|---|---|---|---|---|
| 14W Default (13.4W) | 3000K | 1,699 lm | 126.8 lm/W | 84 |
| 14W Default (13.2W) | 4000K (Default) | 1,763 lm | 133.6 lm/W | 86 |
| 14W Default (13.4W) | 5000K | 1,791 lm | 133.7 lm/W | 84 |
| 11W (10.6W) | 3000K | 1,329 lm | 125.4 lm/W | 84 |
| 11W (10.4W) | 4000K (Default) | 1,363 lm | 131.1 lm/W | 86 |
| 11W (10.6W) | 5000K | 1,393 lm | 131.4 lm/W | 84 |
| 7W (6.9W) | 3000K | 825 lm | 119.6 lm/W | 84 |
| 7W (6.9W) | 4000K (Default) | 840 lm | 121.7 lm/W | 86 |
| 7W (6.9W) | 5000K | 865 lm | 125.4 lm/W | 84 |
Engineered with long-life, high-efficacy, surface-mount LEDs delivering 84–86 CRI across all configurations. Achieves an IES BUG Rating of B0-U3-G2. Rated life of 100,000 hours (L70) based on independent laboratory IESNA LM-79 and LM-80 testing and TM-21 calculations.
Lens & Optics
Engineered with a vandal-resistant frosted polycarbonate lens and an internal aluminum reflector with a high-reflectance white finish delivering soft, low-glare pedestrian walkway and doorway illumination (B0-U3-G2) from a slim 2-7/8" ADA-compliant profile. Mercury-free and UV-free optical construction diffuses LED point sources evenly while maintaining chromaticity within ANSI C78.377-2017 standards.
Smart & Control Features
Engineered for automated dusk-to-dawn operation, field-adjustable commissioning, and dim-to-off control:
- Integrated Selectable On/Off Photocell: Built-in dusk-to-dawn photocell features an onboard on/off switch (factory default Off) so installers can enable automated nighttime operation or keep it bypassed for wall-switch or timer circuits.

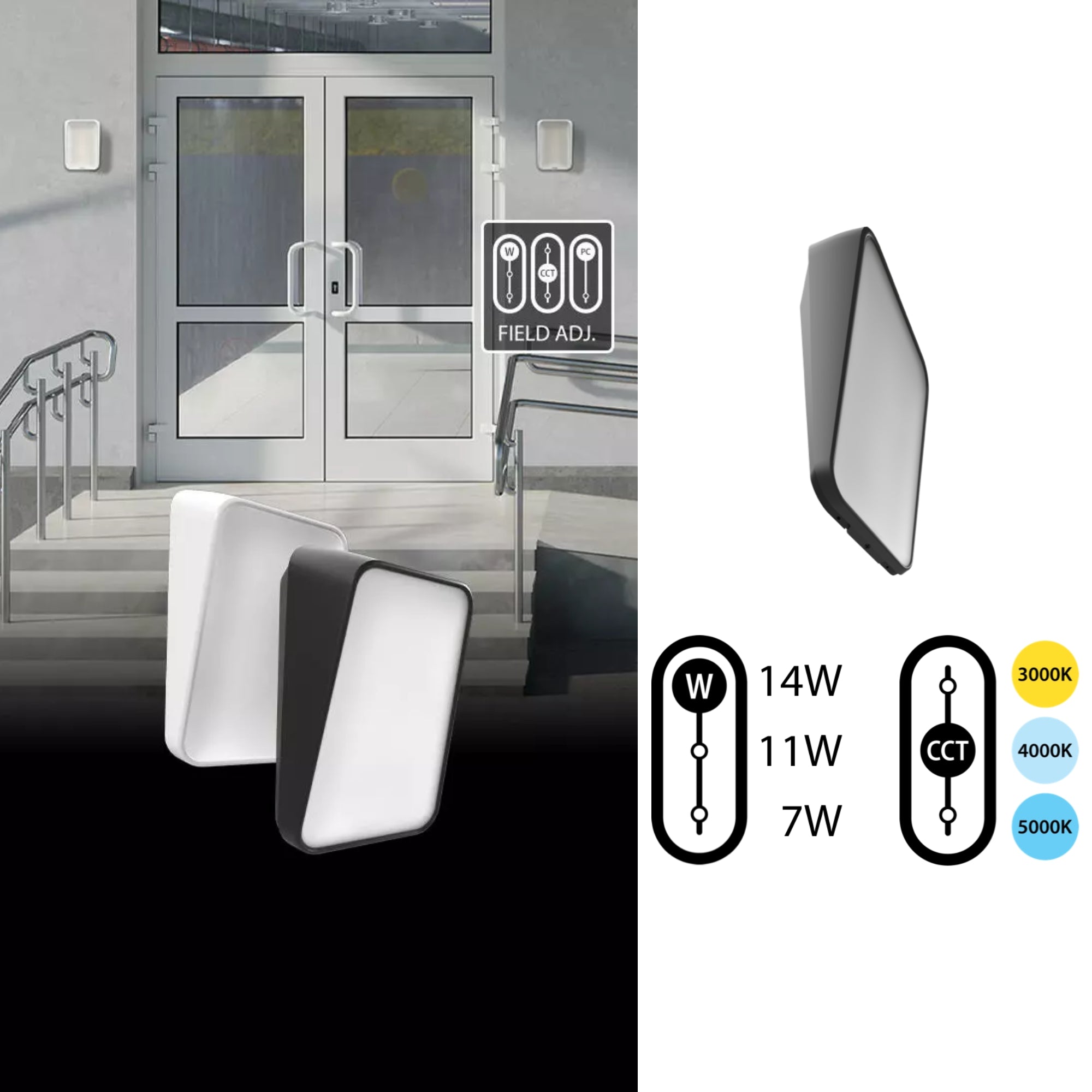

- Field-Adjustable Wattage & CCT Switches: Onboard selectors adjust between 14W (default), 11W, and 7W output levels and 3000K, 4000K (default), and 5000K color temperatures.
- 0-10V Dimming Down to Off: Driver includes control wiring for 0-10V DC dimming systems (requires separate 0-10V DC dimming circuit) and dims smoothly all the way to off.
Electrical
Powered by a Class 1 constant current driver operating on universal 120-277V AC at 50/60Hz with high Power Factor (14W: 99.5% at 120V / 94.5% at 277V; 11W: 99.6% at 120V / 91.1% at 277V; 7W: 98.4% at 120V / 82.9% at 277V) and low THD at 4000K (14W: 5.46% at 120V / 10.99% at 277V; 11W: 4.79% at 120V / 16.23% at 277V; 7W: 11.63% at 120V / 24.93% at 277V). Integrated 2kV L-L and 2kV L/N-G surge protection safeguards internal electronics against electrical transients. Includes 0-10V dim-to-off control leads.
Operating current and amp draw across input voltages for branch circuit and breaker loading calculations:
| Wattage | 120V Current (A) | 208V Current (A) | 240V Current (A) | 277V Current (A) |
|---|---|---|---|---|
| 14W | 0.12A | 0.07A | 0.06A | 0.05A |
| 11W | 0.10A | 0.06A | 0.05A | 0.04A |
| 7W | 0.06A | 0.04A | 0.04A | 0.03A |
Construction
Housing & Thermal: Vandal-resistant precision die-cast aluminum body engineered for passive thermal management and physical durability.
Finish: Architectural Bronze powder-coat finish formulated for high outdoor durability and long-lasting color stability.
Environmental Sealing: IP65 weatherproof rated for dust and water ingress and UL Listed for wet locations with continuous silicone gaskets. Ambient operating temperature: -40°F (-40°C) to 104°F (40°C).

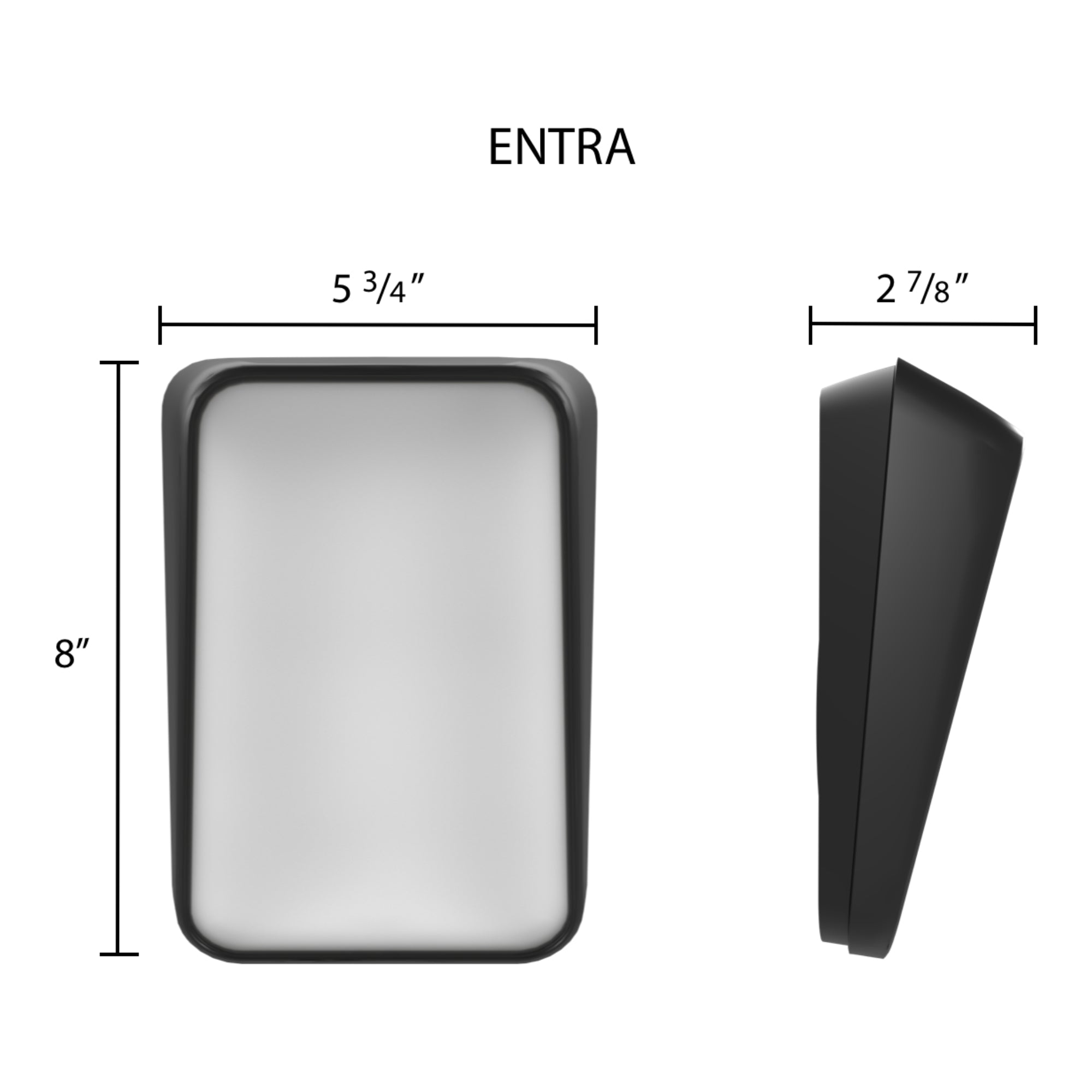

Dimensions & Weight: 8" H x 5-3/4" W x 2-7/8" D. Fixture weight: 1.84 lbs.
Installation & Mounting

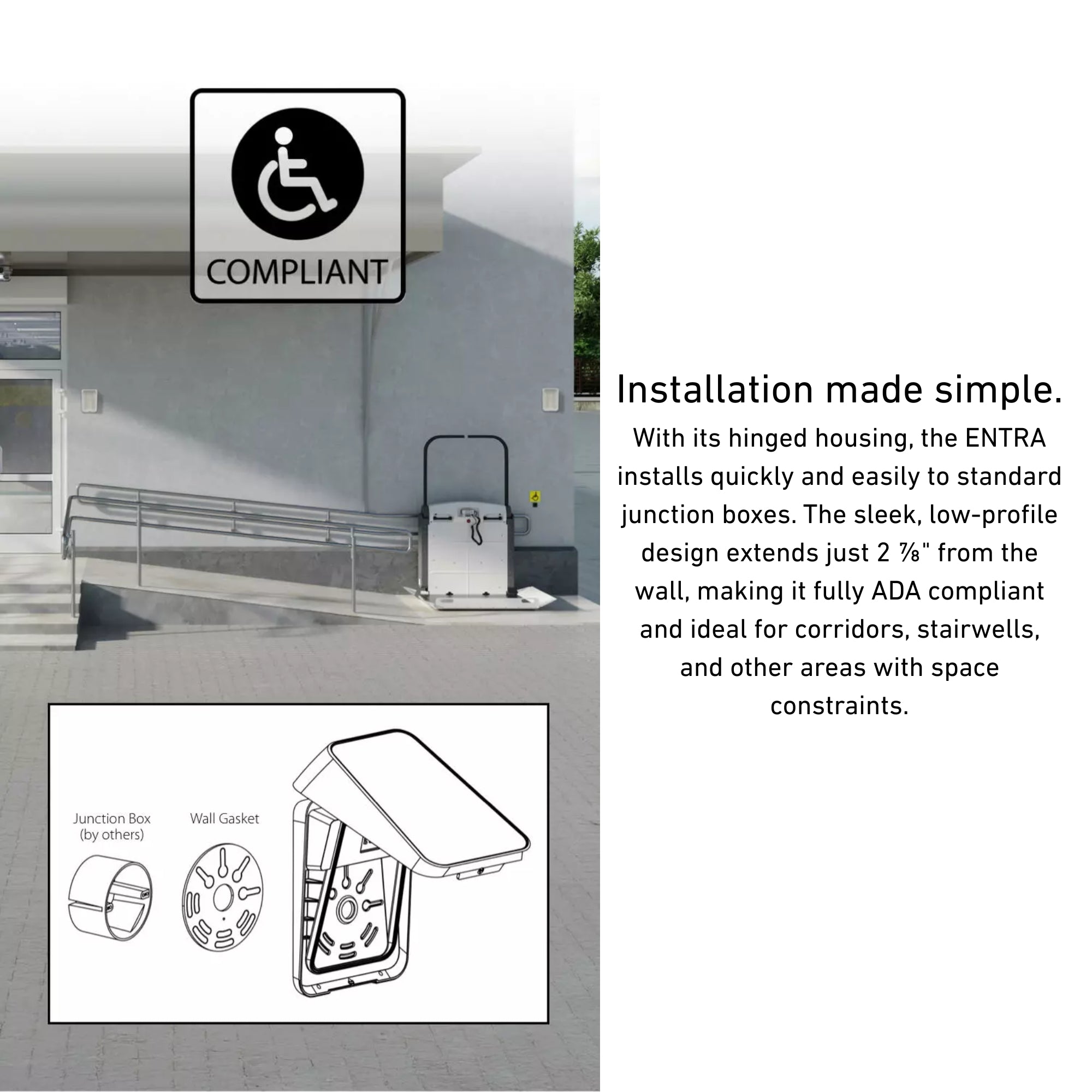

Mounting Hardware: Ultra-lightweight 1.84 lb wall-mount die-cast housing projects only 2-7/8" from the wall (5-3/4" W x 8" H footprint), meeting ADA (Americans with Disabilities Act) wall-protrusion requirements (<4") for pedestrian corridors, stairwells, and doorways.
Conduit & Wiring Access: Mounts directly over standard recessed junction boxes for clean, flush architectural entry installations.
Certifications & Rebates
- UL Listed: Certified suitable for wet locations
- IP65 Rated: Ingress protection rating of IP65 for dust and water
- ADA Compliant: Slim 2-7/8" wall projection meets ADA requirements for wall-mounted luminaires
- TAA Compliant: Product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act (TAA)
- IESNA LM-79 & LM-80 Tested: Tested by an independent laboratory in accordance with IESNA LM-79 and LM-80 standards
- RoHS Compliant: Green technology with mercury-free and UV-free RoHS-compliant components
Typical Applications
- ADA Pedestrian Walkways & Corridors - Slim 2-7/8" depth meets ADA wall-mounted protrusion standards while delivering diffused, low-glare illumination
- Federal, Military & Municipal Entryways - Trade Agreements Act (TAA) compliance meets U.S. government procurement requirements
- Commercial Doorways & Service Exits - Vandal-resistant die-cast aluminum body and frosted polycarbonate lens withstand high-traffic doorway impacts
- Multi-Family Balconies & Stairwells - Field-adjustable 14W/11W/7W wattages (825 to 1,791 lm) and 3000K/4000K/5000K CCT adapt to covered or open passages
- All-Climate Exterior Entrances - Silicone-gasketed IP65 wet-location construction operates reliably from -40°F (-40°C) to 104°F (40°C)
What's Included
- RAB ENTRA Field-Adjustable Entry Light Mini LED Wall Pack - Bronze
- Pre-installed selectable on/off dusk-to-dawn photocell
- Installation hardware and operation manual
