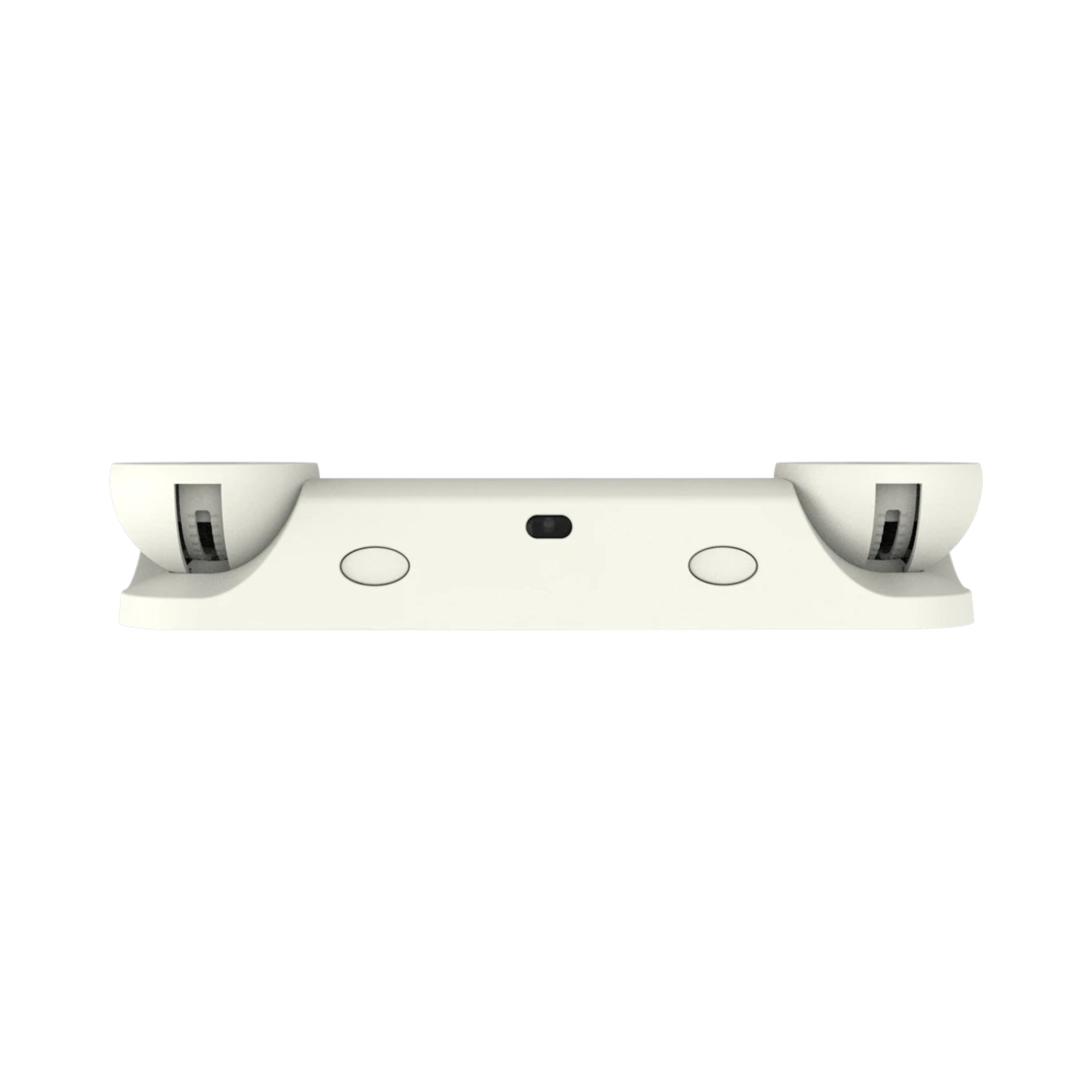

RAB Lighting EM34 Emergency Light — 90-Minute Battery / 120-277V

The EM34 is a compact, ultra-economical emergency light designed to provide critical illumination when primary power systems fail. Featuring a reliable 90-minute battery backup and a universal 120-277V electrical input, this fixture integrates seamlessly into commercial safety networks. Built to strict safety standards, it ensures egress paths remain brightly lit, safeguarding occupants during unexpected emergencies and power outages.

Key Features

• Illumination Output: Delivers a combined 160 lumens of emergency lighting through dual high-performance optics.
• Color Temperature: Produces a crisp, high-visibility 6500K daylight white beam to clearly illuminate egress paths.
• Head Shape & Adjustability: Features two round lamp heads with 330-degree rotation and 40-degree tilt for precise aiming.
• Battery Backup: Integrates a 3.6V Nickel-Metal Hydride battery providing a minimum of 90 minutes of emergency power.
• Input Voltage: Operates efficiently across a universal 120-277V input, consuming only 1.8W during normal standby.
• Housing Material: Constructed from low-profile, injection-molded thermoplastic ABS for long-lasting commercial durability.
• Flame Resistance: Carries a strict UL 94V-0 flammability classification to ensure structural integrity during fire emergencies.
• Mounting Configuration: Includes a universal back plate that accommodates standard junction boxes for both wall and ceiling installations.
• Diagnostic Testing: Equipped with an integrated manual test switch and visual charge indicator for routine compliance checks.

Performance & Illumination

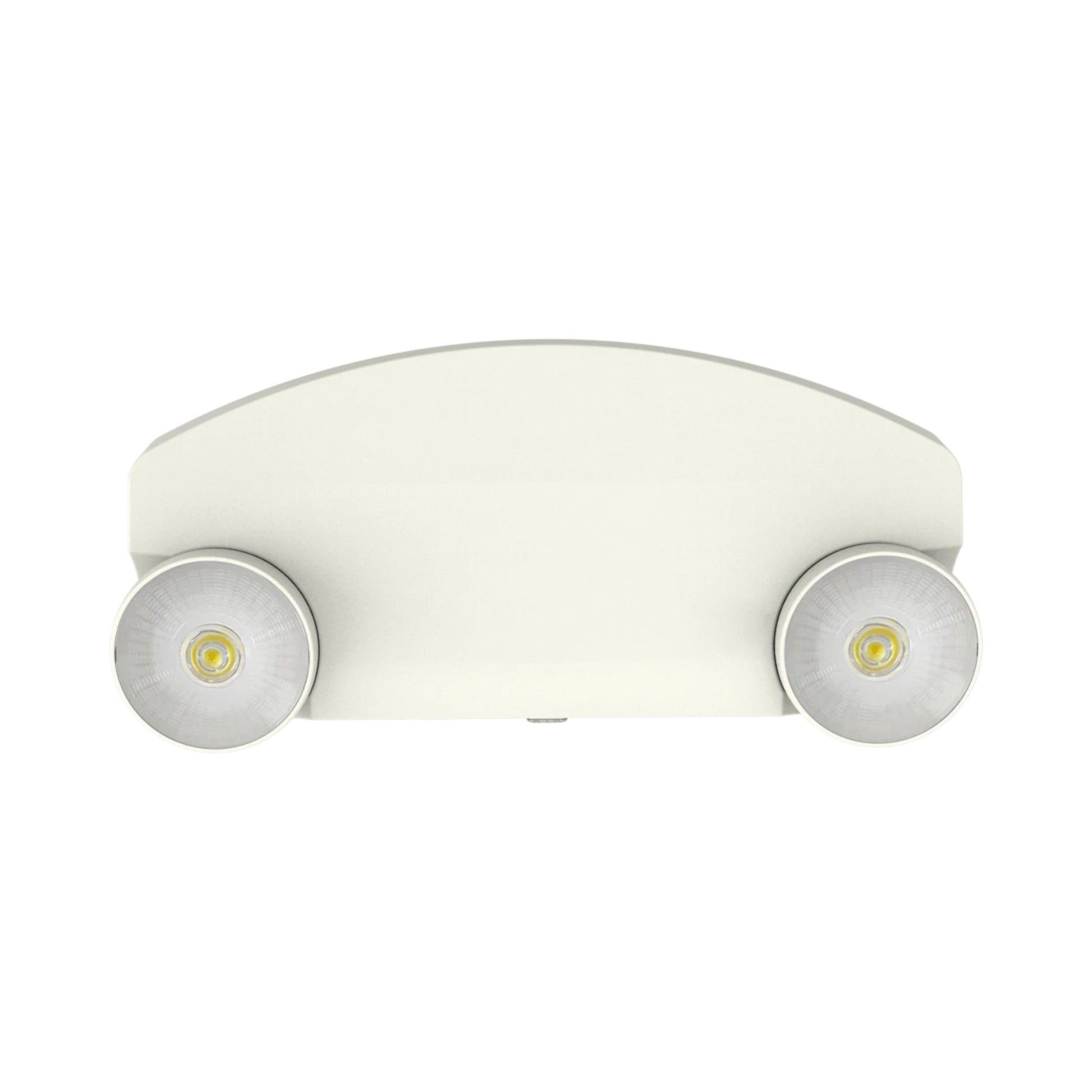

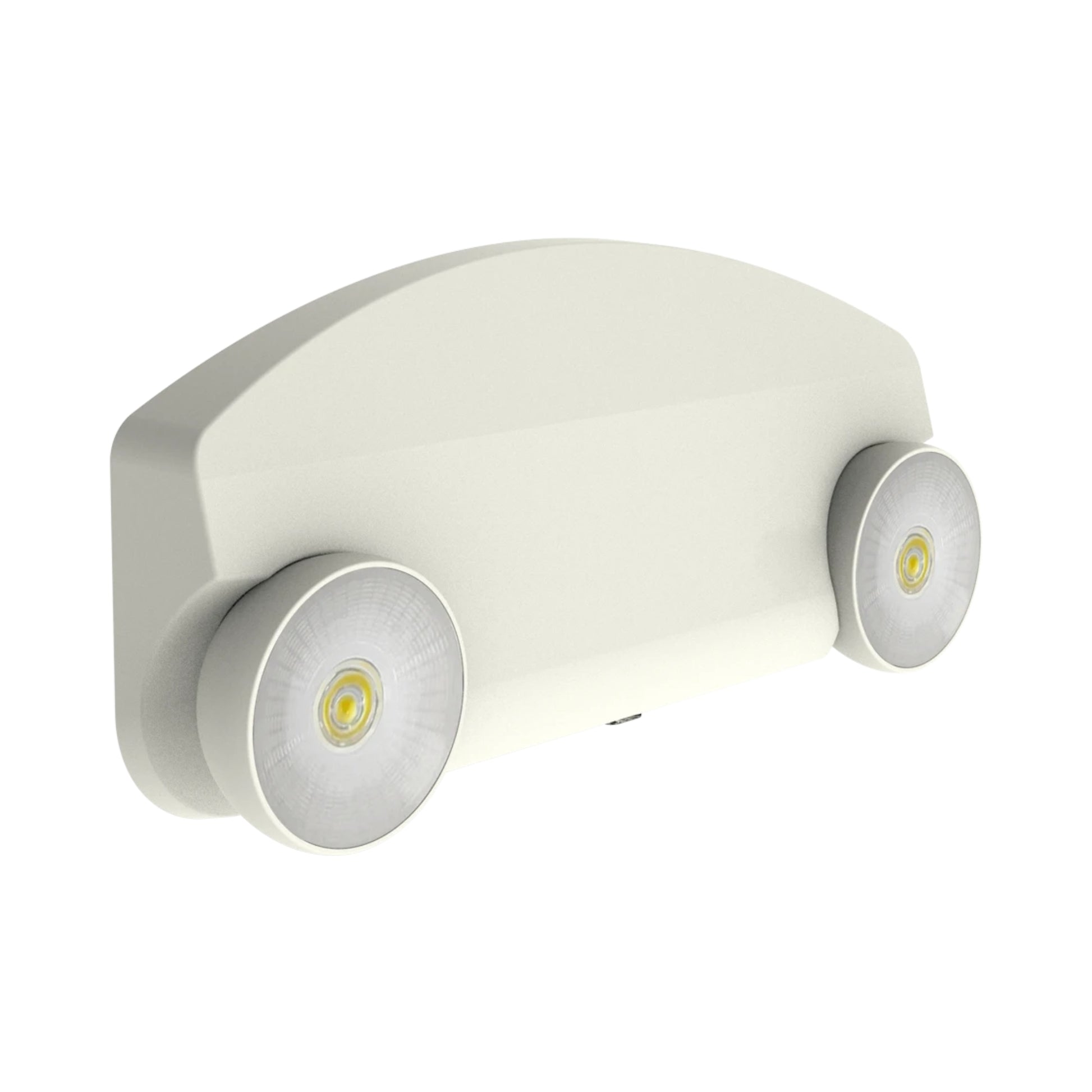

This low-profile fixture is equipped with two round lamp heads that deliver a combined 160 lumens of bright, 6500K daylight illumination. Engineered for maximum coverage, the dual heads feature high-performance chrome-plated reflectors and polycarbonate lenses. For precise aiming along egress paths, each head offers a versatile 330-degree rotation and 40-degree tilt, ensuring the emergency light is directed exactly where it is needed most.

Electrical & Battery

Operating on a universal 120-277V input, this highly efficient unit consumes just 1.8W of power during normal standby mode. It is equipped with a built-in 3.6V 1000mAh Nickel-Metal Hydride battery that automatically engages during a power failure to provide a full 90 minutes of emergency backup. The system fully recharges within 24 hours upon the restoration of AC power. For routine maintenance and code compliance, the unit includes an integrated manual test switch and a visual charge indicator.

Physical & Installation Details

The durable, low-profile housing is constructed from impact-resistant, injection-molded thermoplastic ABS finished in a clean commercial white. Designed for fast and flexible deployment, the fixture includes a universal surface mount back plate that effortlessly fits most industry-standard size junction boxes. This adaptable design allows contractors to easily mount the unit on either walls or ceilings, ensuring rapid installation across diverse facility layouts.

Compliance & Safety

Engineered to meet stringent life safety standards, the thermoplastic housing carries a UL 94V-0 flame rating to resist fire propagation. The fixture is UL924 Listed and complies with NFPA 101, NEC, and OSHA illumination standards. It is rated for use in indoor damp locations with an operating temperature range of 32°F to 104°F. Additionally, this highly efficient unit is fully compliant with California Title 20 requirements.

What's Included

• Thermoplastic Emergency Light Fixture
• Universal Mounting Back Plate
• Installation Hardware
