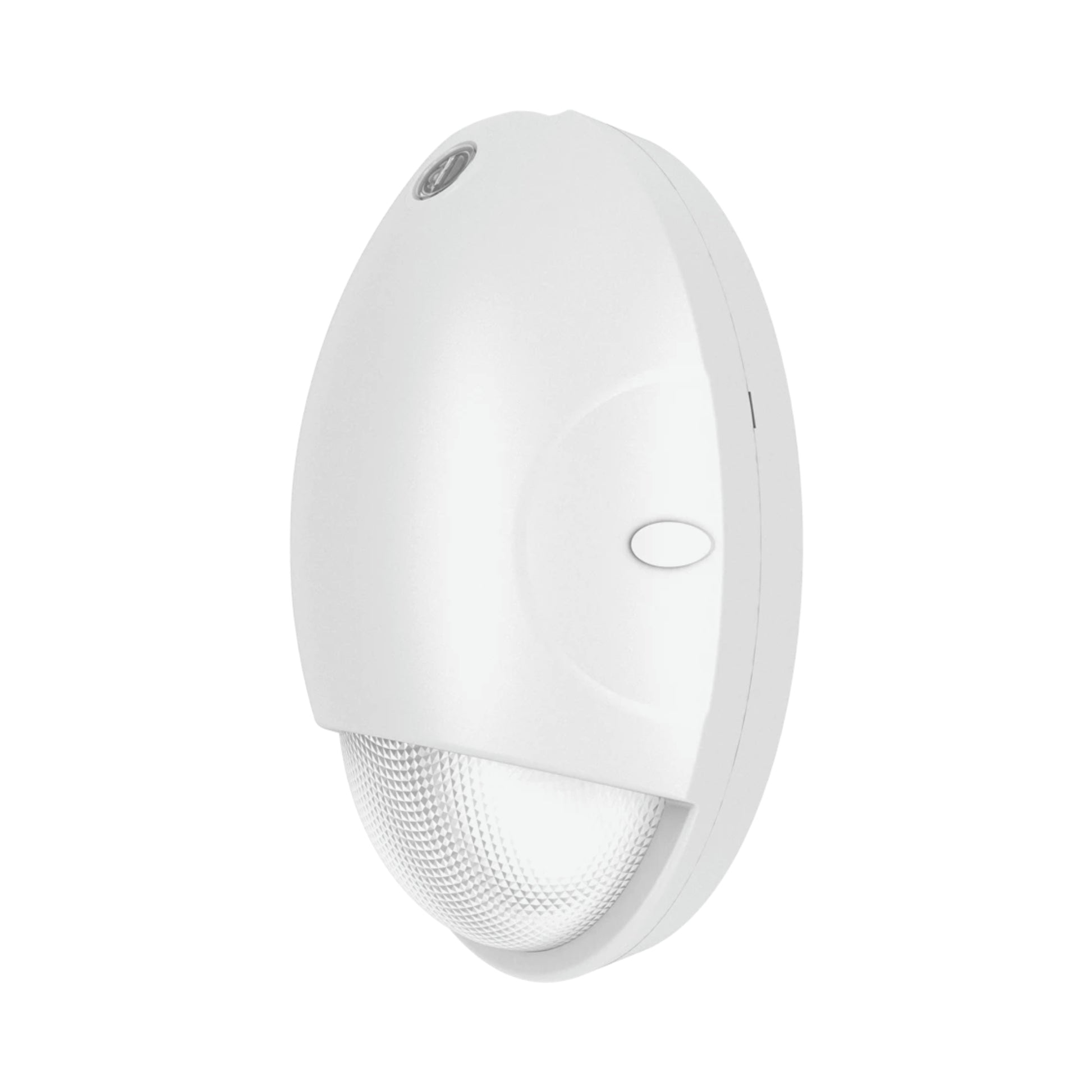

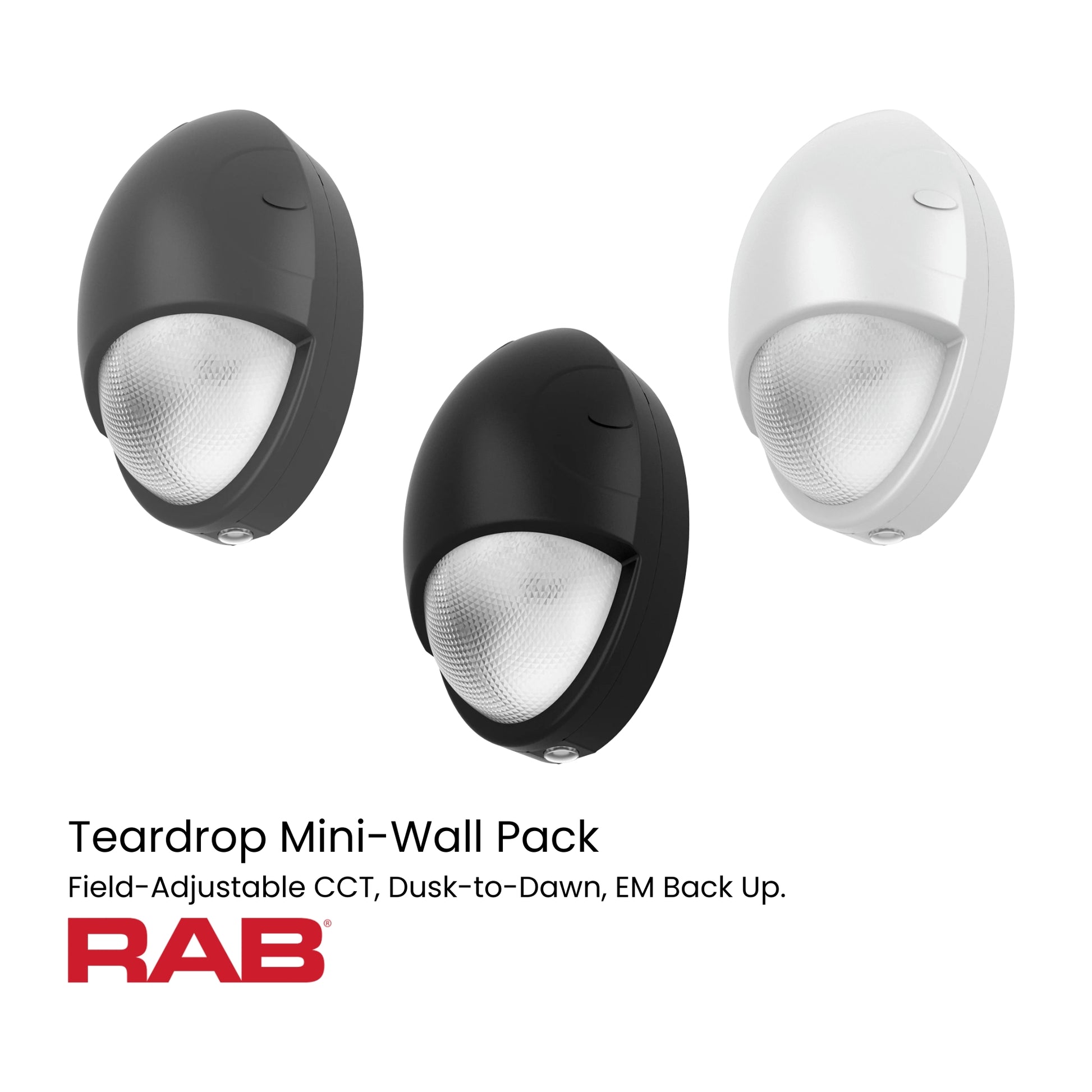

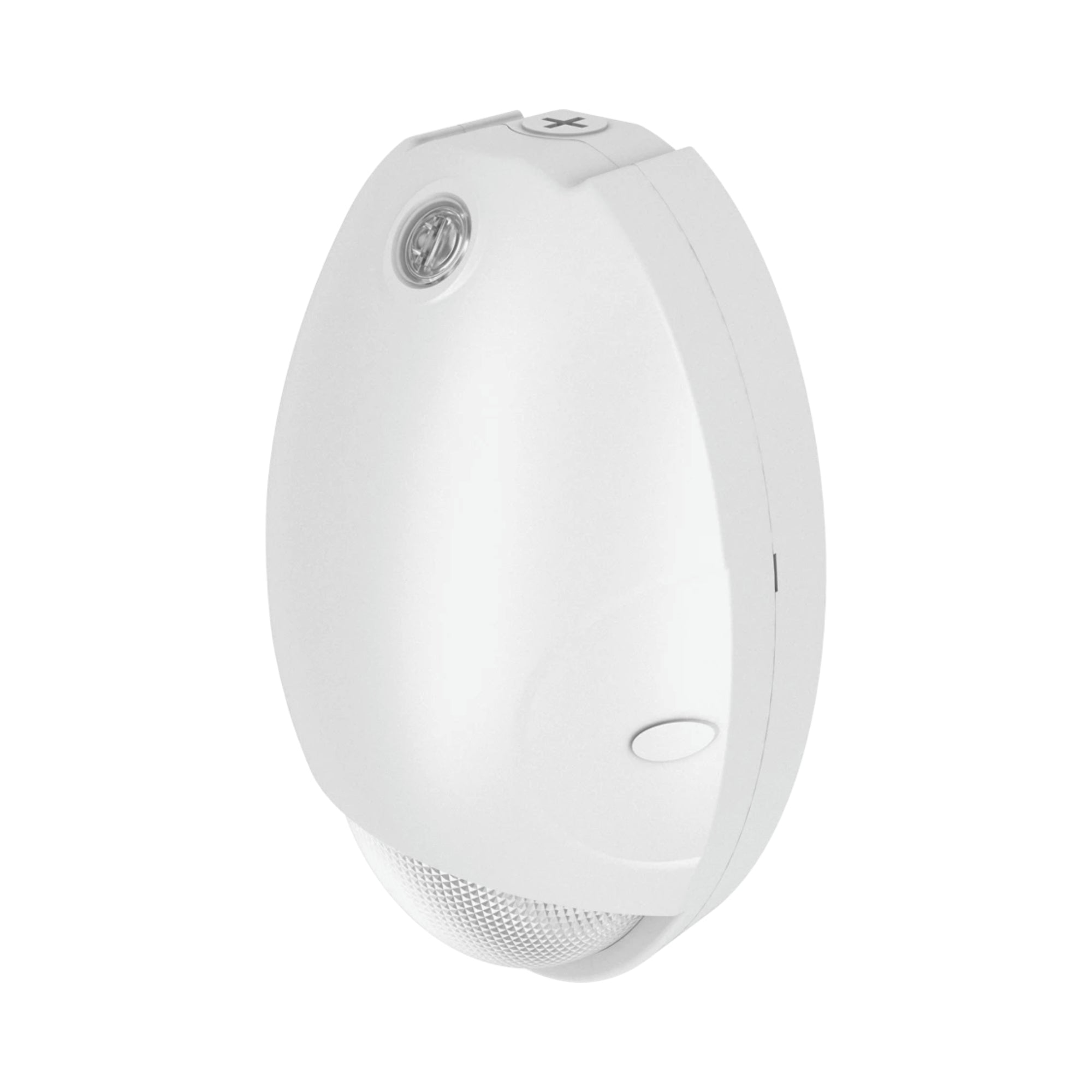

RAB DROPW Field-Adjustable Mini LED Wall Pack — 15W — 3500K/4000K/5000K — White

The RAB DROPW is a commercial field-adjustable teardrop mini wall pack engineered to deliver up to 1,815 lumens at 15W across dip-switch-selectable 3500K/4000K/5000K color temperatures (4000K factory default). Operating on 120-277V electrical systems with 0-10V dimming down to 10%, this compact doorway luminaire achieves peak efficacy up to 138.5 lm/W while qualifying for DLC 5.1 utility rebates. Built with a weatherproof IP65 anti-corrosion die-cast housing in a White powder-coat finish, this UL wet-location luminaire features a decorative 3.81"-deep teardrop architectural profile (6.50" W x 10.50" H x 3.81" D) weighing 3.00 lbs, a glass prismatic lens with a 100° beam angle, and an integrated selectable dip-switch photocell.

Key Features

• Wattage: 15W fixed nominal wattage
• Maximum Lumen Output: Up to 1,815 lm
• Peak Efficacy: Up to 138.5 lm/W
• CRI & R9 Value: >80 CRI; R9 values of 4 (3500K), 6 (4000K), and -2 (5000K)
• Selectable CCT: 3500K / 4000K / 5000K via dip switch (4000K factory default)
• Color Consistency: <6-step (3500K/4000K/5000K) and <7-step (4000K) MacAdam Ellipse binning; ANSI C78.377-2017 compliant
• Lens & Optics: Glass prismatic lens with 100° beam angle
• Photocell & Controls: Integrated dusk-to-dawn photocell selectable via onboard dip switch
• Dimming: 0-10V continuous dimming down to 10%
• Voltage & Power Factor: 120-277V AC, 50/60Hz; Power Factor 0.9; Flicker <70%
• Location & Body Rating: UL Listed & UL Classified for dry, damp, and wet locations; IP65
• Operating Temperature: -40°F (-40°C) to 122°F (50°C)
• Certifications: DLC 5.1 Listed (S-T9925P), UL Listed, UL Classified, IESNA LM-79 & LM-80 tested, FCC Part 15, RoHS Compliant
• Rated Life: L70 50,000 hours
• Warranty: 5-year no-compromise warranty covering light output, color stability (no more than 200K shift over 5 years), driver performance, and fixture finish - RAB

Performance & Light Output

At 15W: 1,740 lm (3500K / 130.3 lm/W), 1,815 lm (4000K Factory Default / 138.5 lm/W), and 1,776 lm (5000K / 133.8 lm/W).

Delivers CRI >80 (R9: 4/6/-2) across all configurations with a 100° beam angle. Rated life 50,000 hours (L70) based on independent IESNA LM-79 and LM-80 laboratory testing.

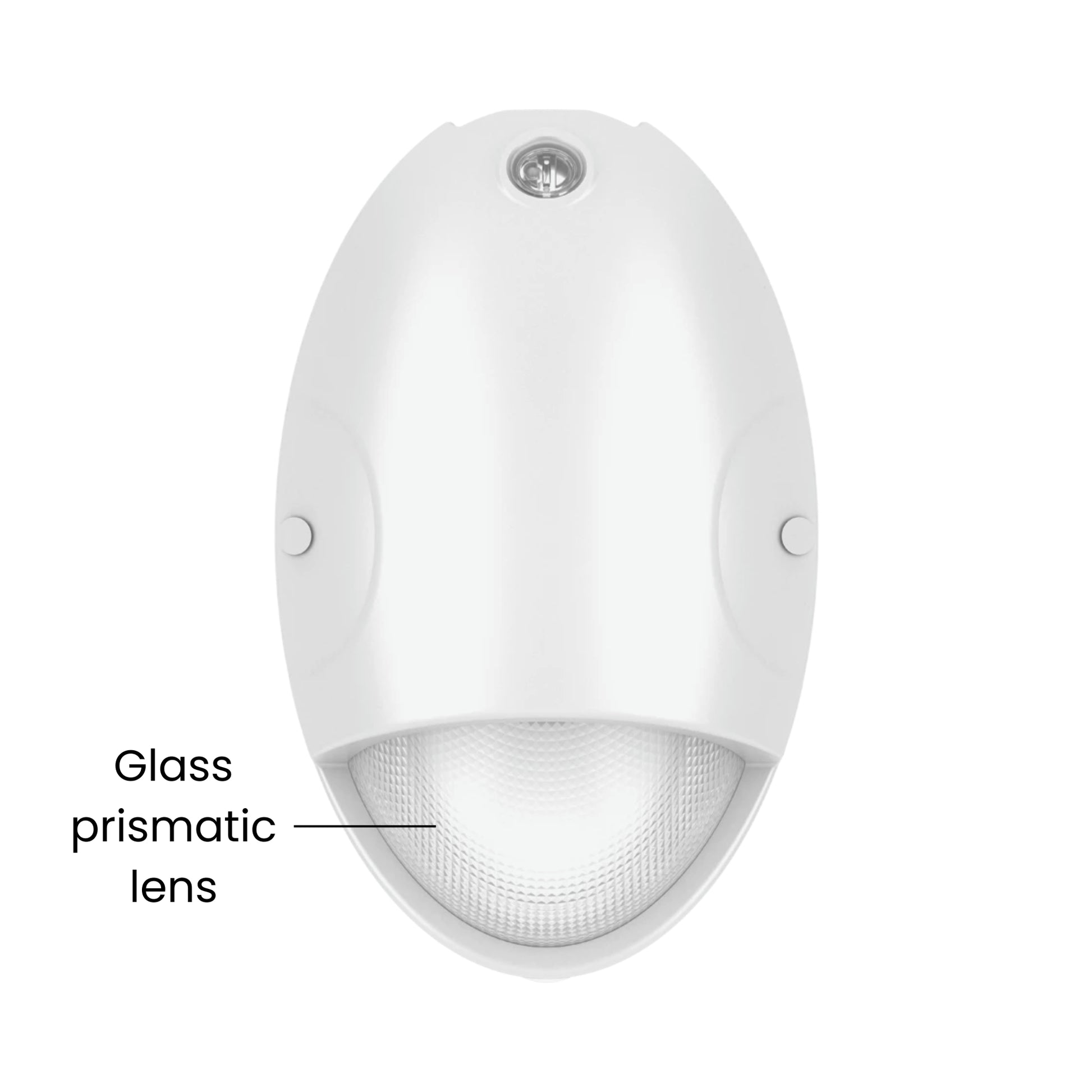

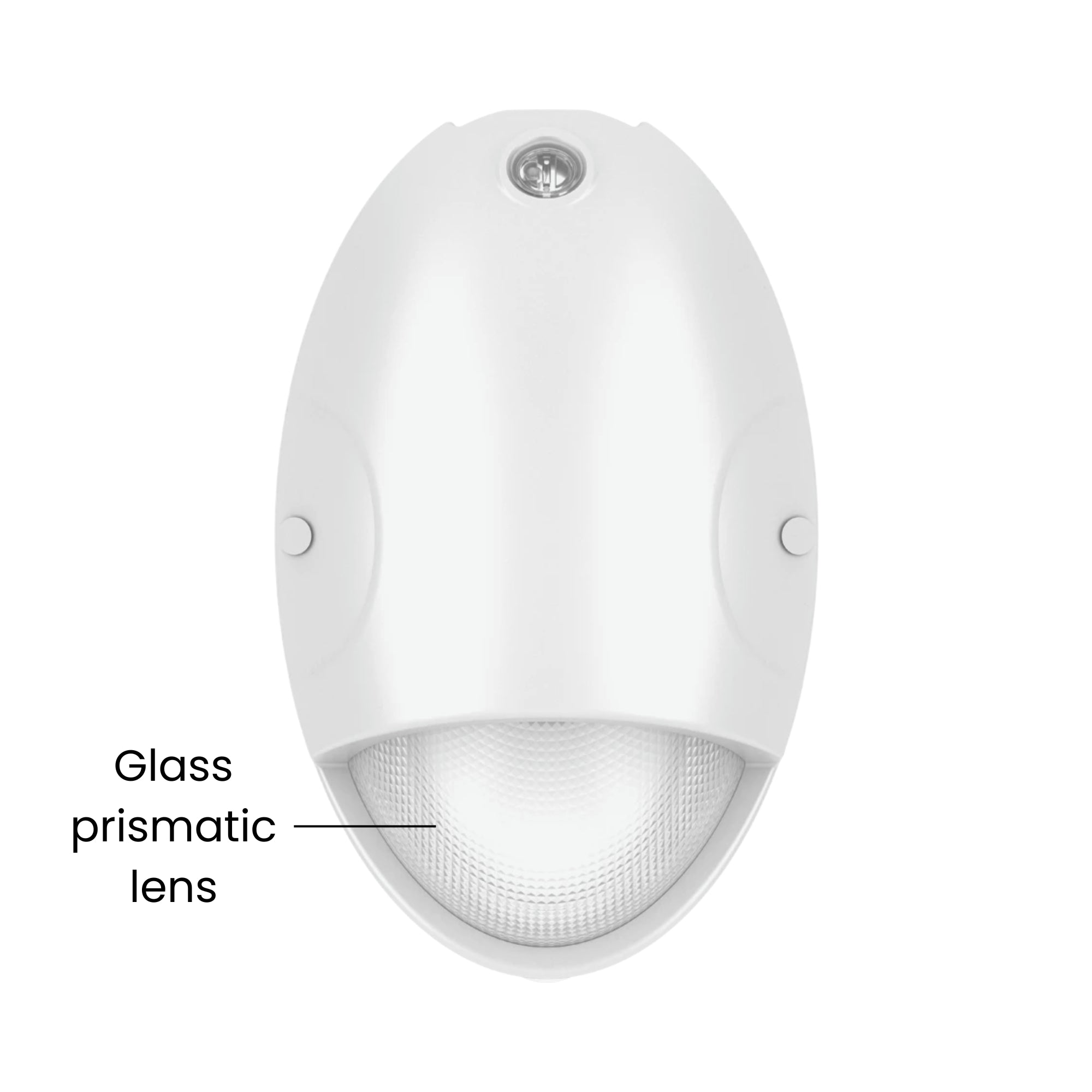

Lens & Optics

Engineered with a non-yellowing glass prismatic lens delivering a wide 100° beam angle for uniform doorway, walkway, and egress illumination. At a 7.5-foot mounting height (3500K, 1,740 lm, 0° tilt), a single luminaire illuminates a 32-foot path of egress at 3 feet out (38 feet at 6 feet out) and multiple luminaires space up to 39 feet on center at 3 feet out (46 feet at 6 feet out) to meet NFPA 101 illumination requirements of 1 FC average, 0.1 FC minimum, and 40:1 max-to-min uniformity.

Smart & Control Features

Engineered for automated exterior operation and commercial lighting control integration:

• Dusk-to-Dawn Photocell (Integrated): Factory-installed integrated photocell is selectable via an internal dip switch for automatic dusk-to-dawn operation or manual wall-switch and timeclock control.
• 0-10V Continuous Dimming: Dims smoothly down to 10% on compatible 0-10V dimming systems (requires separate 0-10V DC dimming circuit).

Electrical

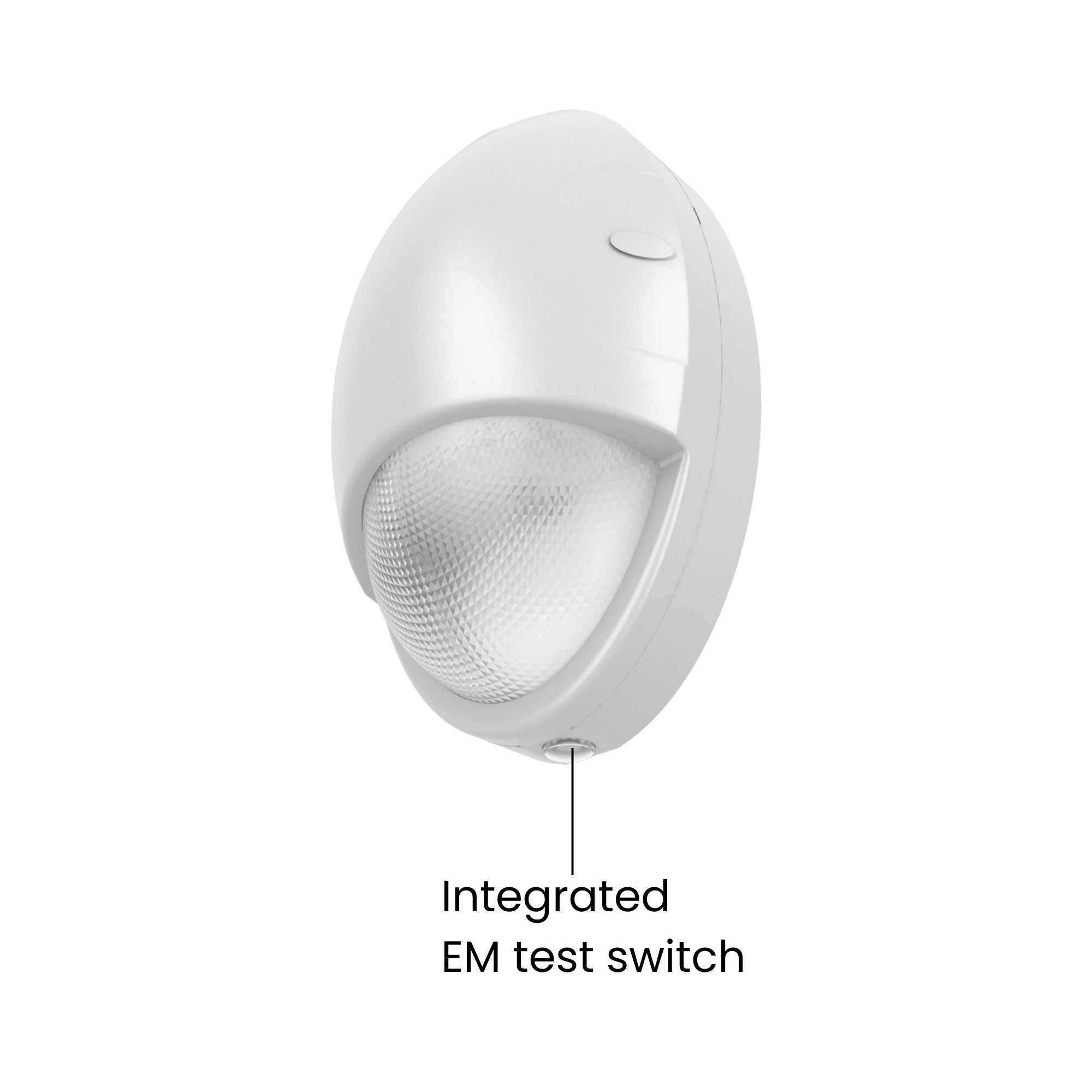

Powered by a Constant Current, Class 2 driver operating on 120-277V AC at 50/60Hz with a Power Factor of 0.9 and Flicker <70%. Includes pre-wired 0-10V dimming leads (dimmable down to 10%) and a dip-switch-selectable photocell. (Also available in 18.5W /E emergency battery backup configurations featuring an integrated Ni-Cad battery, UL 924 listing, integrated EM test switch, 24-hour recharge time, and 500 lumens for 90 minutes).

Construction

Housing & Thermal: Decorative, low-profile teardrop anti-corrosion die-cast housing with passive convection thermal management.

Finish: Durable White powder-coated finish formulated for high durability and long-lasting color.

Environmental Sealing: IP65 weatherproof rated for dust and water ingress protection and UL Listed for indoor and outdoor dry, damp, and wet environments. Ambient operating temperature: -40°F (-40°C) to 122°F (50°C).

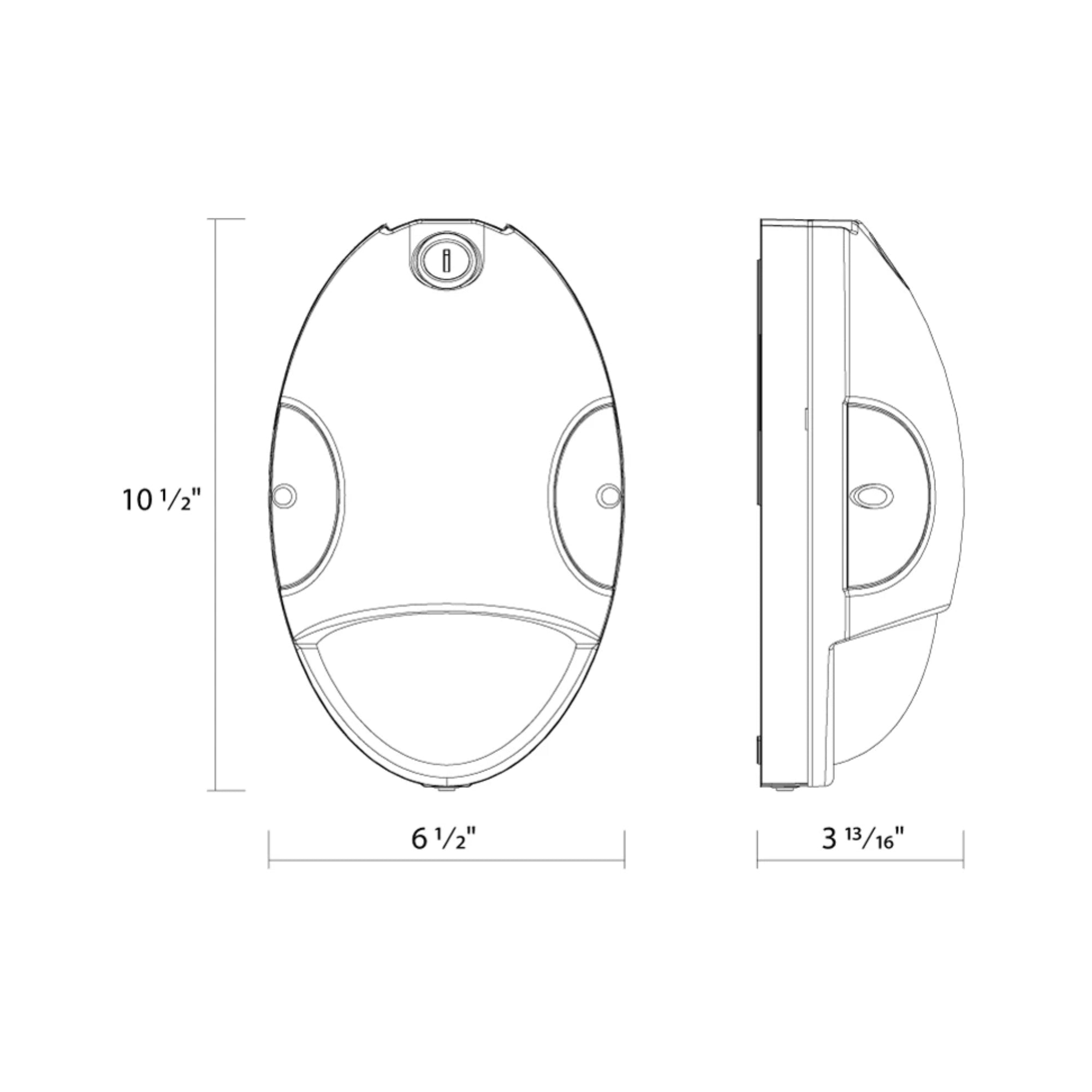

Dimensions & Weight: 6.50" W x 10.50" H x 3.81" D (6 1/2" W x 10 1/2" H x 3 13/16" D). Fixture weight: 3.00 lbs.

Installation & Mounting

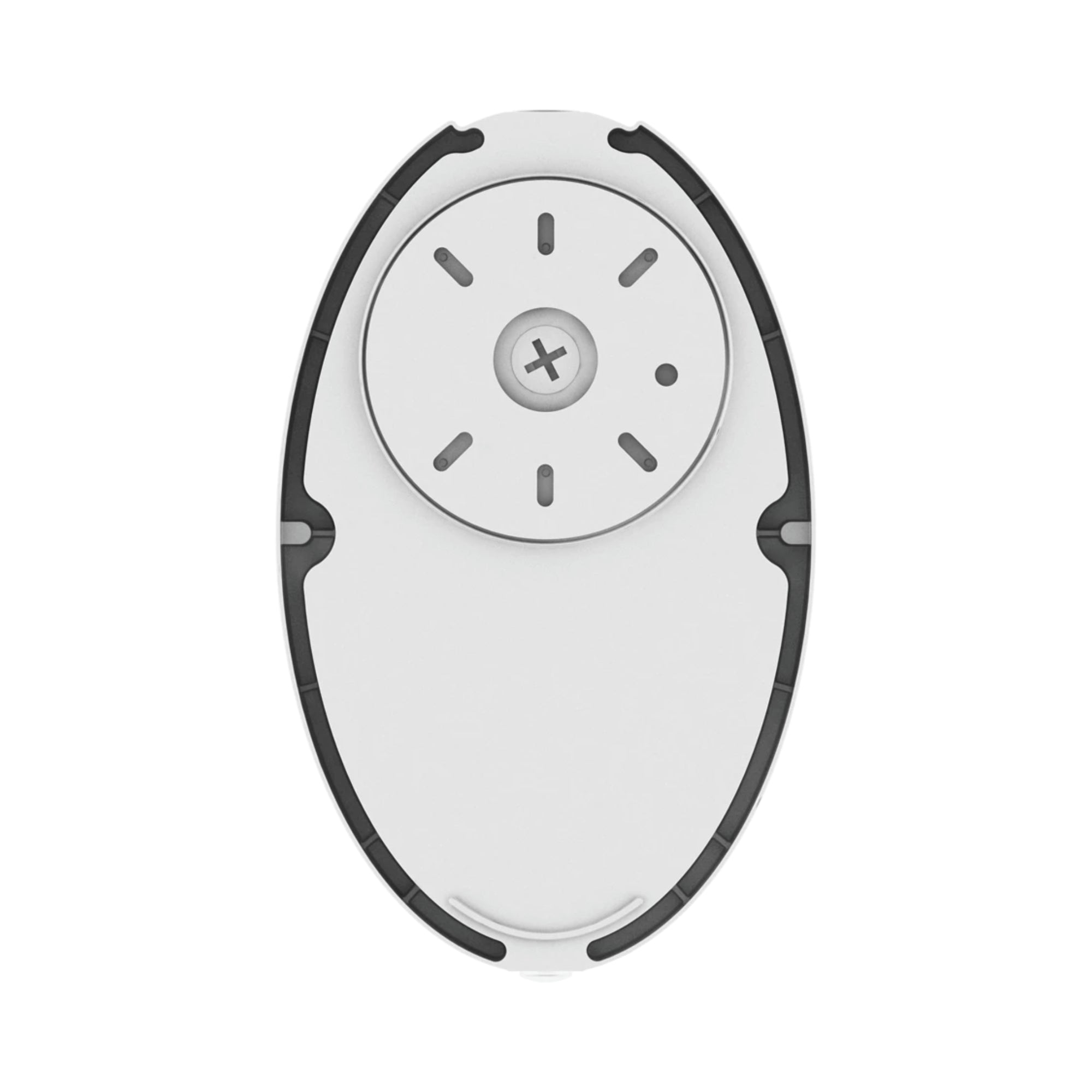

Mounting Hardware: Compact 3.00 lbs decorative teardrop wall-mount housing (6.50" W x 10.50" H x 3.81" D) installs directly onto exterior walls and over standard junction boxes via dual side mounting screw points.

Conduit & Wiring Access: Top threaded conduit entry plug and rear junction box feed access simplify surface or recessed wiring.

Recommended Mounting Height: Tested at a 7.5-foot mounting height for NFPA 101 path-of-egress compliance (up to 39 ft center-to-center spacing on a 3 ft path of egress).

Certifications & Rebates

• DLC 5.1 Listed: Qualifies for utility rebates (searchable on designlights.org under code S-T9925P)
• UL Listed & UL Classified: Certified for indoor and outdoor dry, damp, and wet locations
• IP65 Rated: Ingress protection rating of IP65 for dust and water
• NFPA 101 Egress Spacing Verified: Meets NFPA 101 life-safety illumination requirements (1 FC average, 0.1 FC minimum, and 40:1 max:min) at 7.5 ft mounting height
• IESNA LM-79 & LM-80 Tested: Tested by an independent laboratory in accordance with IESNA LM-79 and LM-80 standards
• FCC Part 15 Compliant: Complies with Part 15 of the FCC Rules
• RoHS Compliant: Mercury and UV free with RoHS-compliant components

Typical Applications

• Building Entrances, Exits & Egress Doorways - Verified NFPA 101 1 FC average egress spacing (at 7.5 ft height) illuminates exterior exit doors
• Pedestrian Walkways, Breezeways & Stairwells - Low-profile 3.81"-deep decorative teardrop housing and 100° glass prismatic lens project wide, low-glare pathway light
• Multi-Family, Hospitality & Retail Perimeters - Dip-switch-selectable 3500K/4000K/5000K CCT and integrated selectable photocell customize storefront and residential entryways
• Commercial & Industrial Service Doors - Anti-corrosion IP65 die-cast housing in White and -40°F (-40°C) to 122°F (50°C) temperature rating withstand harsh outdoor weather
• Municipal & Educational Campuses - DLC 5.1 qualification (Code S-T9925P) and 5-year no-compromise warranty reduce operating and maintenance costs

What's Included

• RAB DROPW Field-Adjustable Mini Wall Pack - White (UPC 192552054119)
• Pre-installed dip-switch-selectable photocell
• Installation hardware and operation manual
