RAB Teardrop Mini LED Wall Pack — 15W / Battery Backup

The DROPB/E is a compact, life-safety compliant teardrop mini LED wall pack engineered to provide critical perimeter illumination during power failures. Delivering up to 1,814 lumens under normal 15W operation across a 120-277V input, it seamlessly switches to a 90-minute battery backup during emergencies. With field-adjustable CCT and an integrated photocell, this black fixture adapts perfectly to demanding commercial environments.

Key Features

• Battery Backup: Integrated battery provides 90 minutes of emergency lighting at up to 628 lumens.
• Wattage: High-efficiency 15W power consumption during normal operation.
• Light Output: Generates up to 1,814 lumens with an efficacy of up to 138.5 LPW.

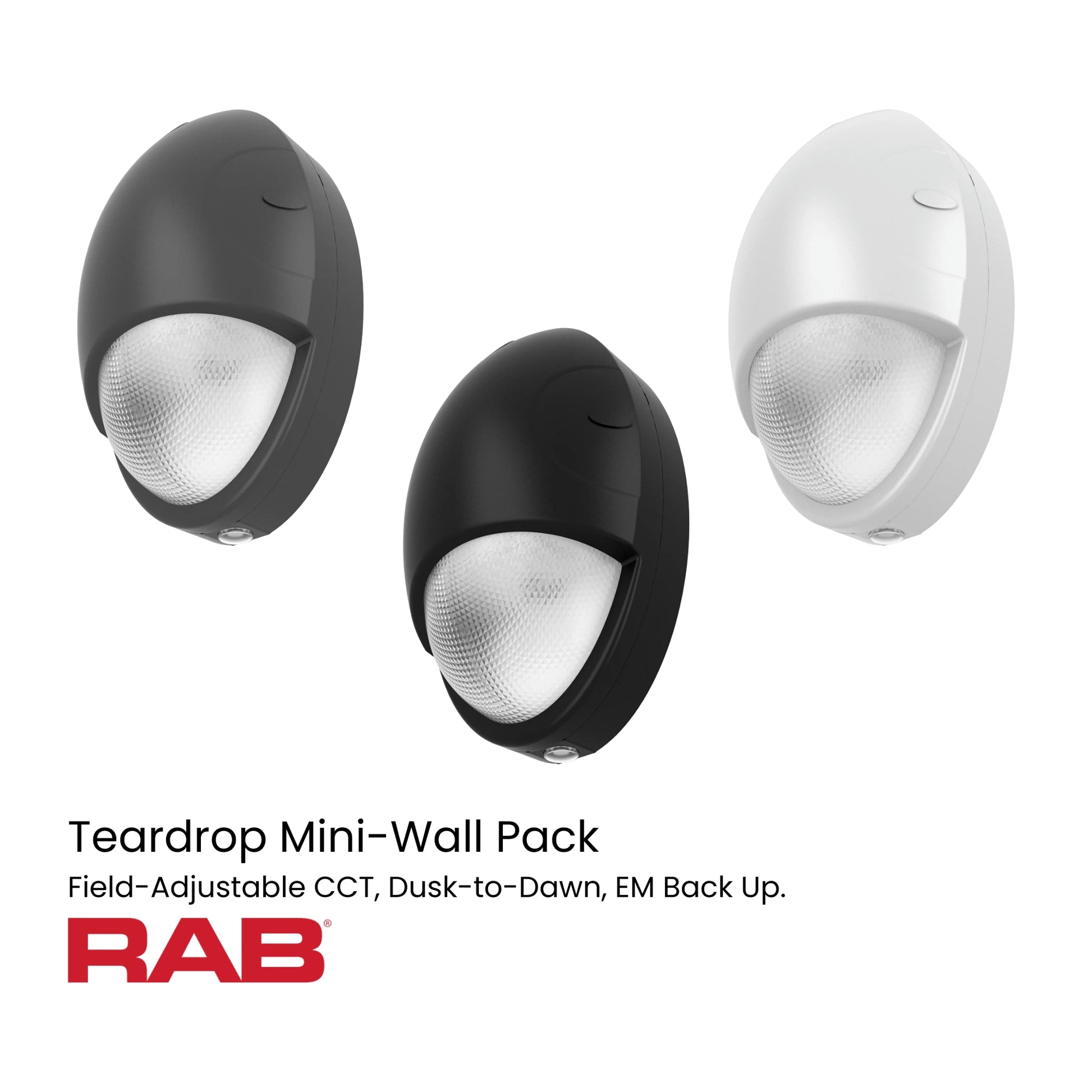

• CCT Selectable: Field-adjustable color temperatures of 3000K, 4000K, and 5000K.
• Voltage: Operates seamlessly on a universal 120-277V input range.
• Photocell: Integrated selectable dipswitch photocell for dusk-to-dawn operation.
• Dimming: Includes a 0-10V dimming driver capable of dimming down to 10 percent.
• Housing: Anti-corrosion, die-cast aluminum construction in a teardrop profile.
• Safety Listing: UL924 Listed for emergency lighting equipment.

Typical Applications

• Commercial building egress paths and architectural facades.
• Apartment complexes and residential walkways.
• Hotel corridors and exterior hospitality lighting.
• Entryways requiring life-safety compliant illumination.
• Retail exteriors and tight alleyways.

Performance & Light Output

This compact fixture delivers up to 1,814 lumens of highly efficient illumination at 138.5 LPW during normal AC operation. During a power failure, the integrated battery generates up to 628 emergency lumens to safely light egress paths. The versatile 100-degree beam angle provides uniform coverage, while the surface-mount LEDs maintain an 80+ CRI over a 50,000-hour rated lifespan.

Electrical & Controls

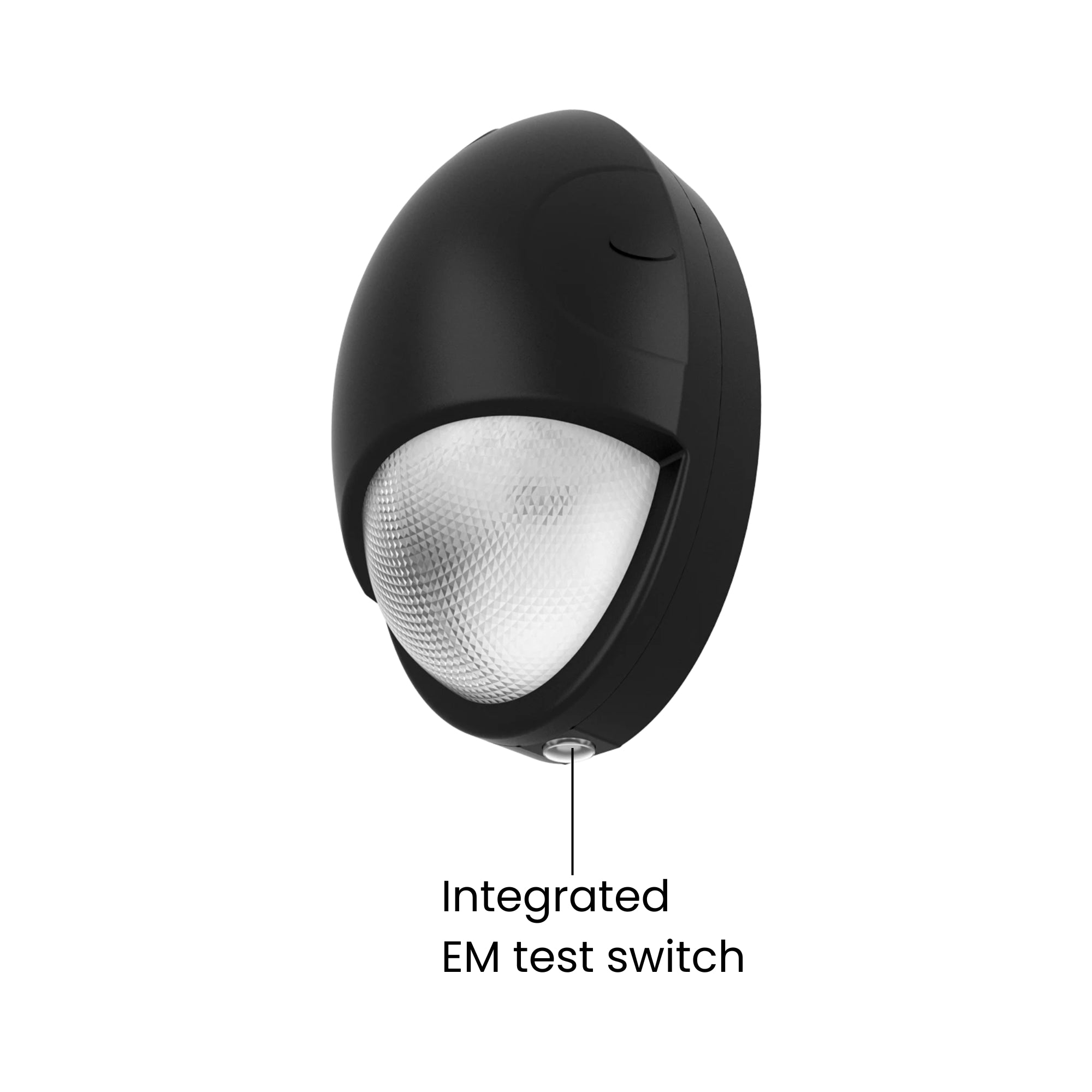

Powered by a robust constant current Class 2 driver, the unit operates on a universal 120-277V electrical input. It comes equipped with a dependable emergency battery backup system that includes an integrated test switch for routine life-safety compliance checks. The system also features a 0-10V dimming interface, an integrated selectable photocell, and 2.5kV surge protection.

Construction & Durability

The rounded teardrop housing is constructed from rugged, anti-corrosion die-cast aluminum finished in a highly durable black powder coat. Certified air-tight per ASTM-E283 standards, the IP65-rated fixture completely blocks dust and low-pressure water ingress. It ensures reliable, continuous operation in extreme ambient temperatures ranging from -40°F up to 122°F.

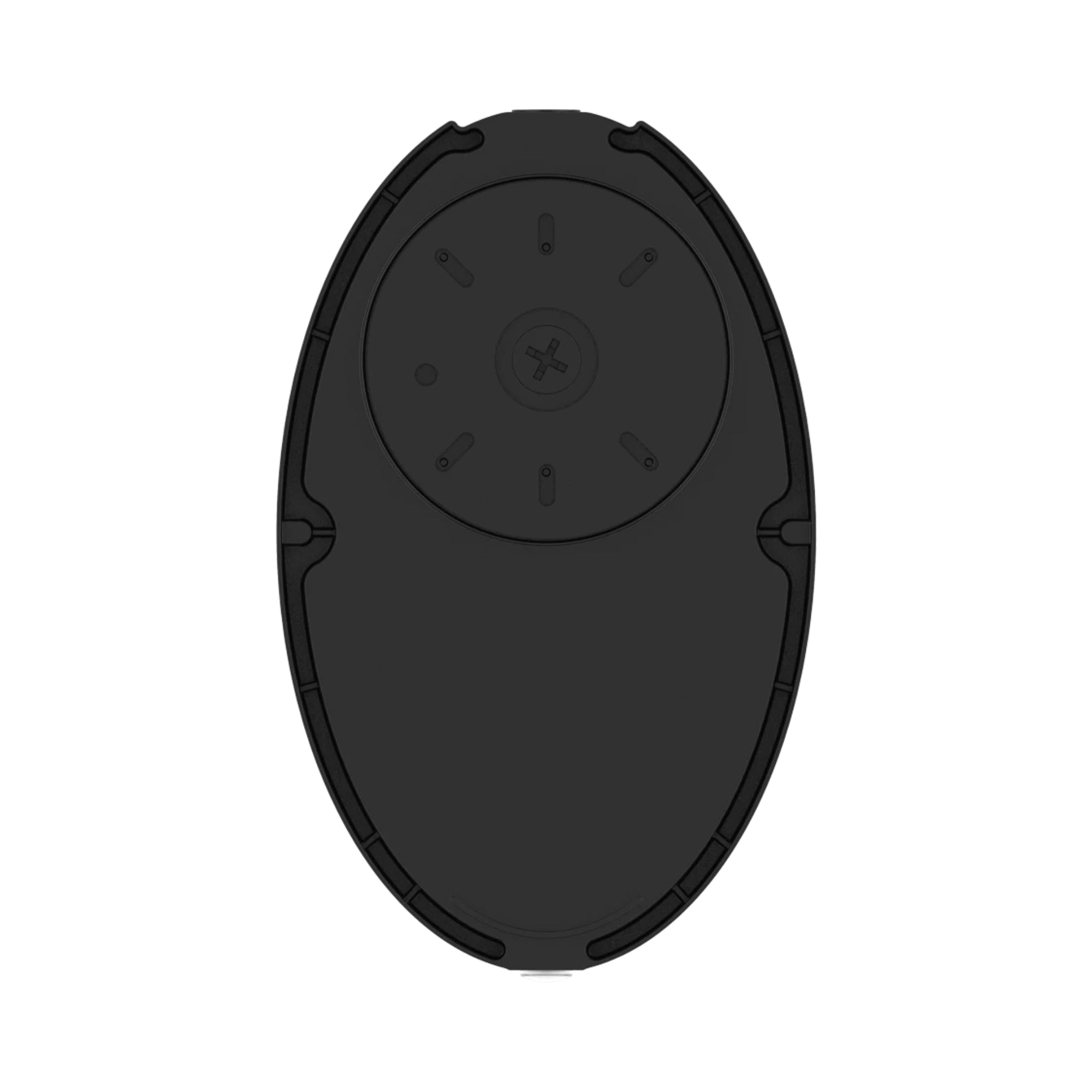

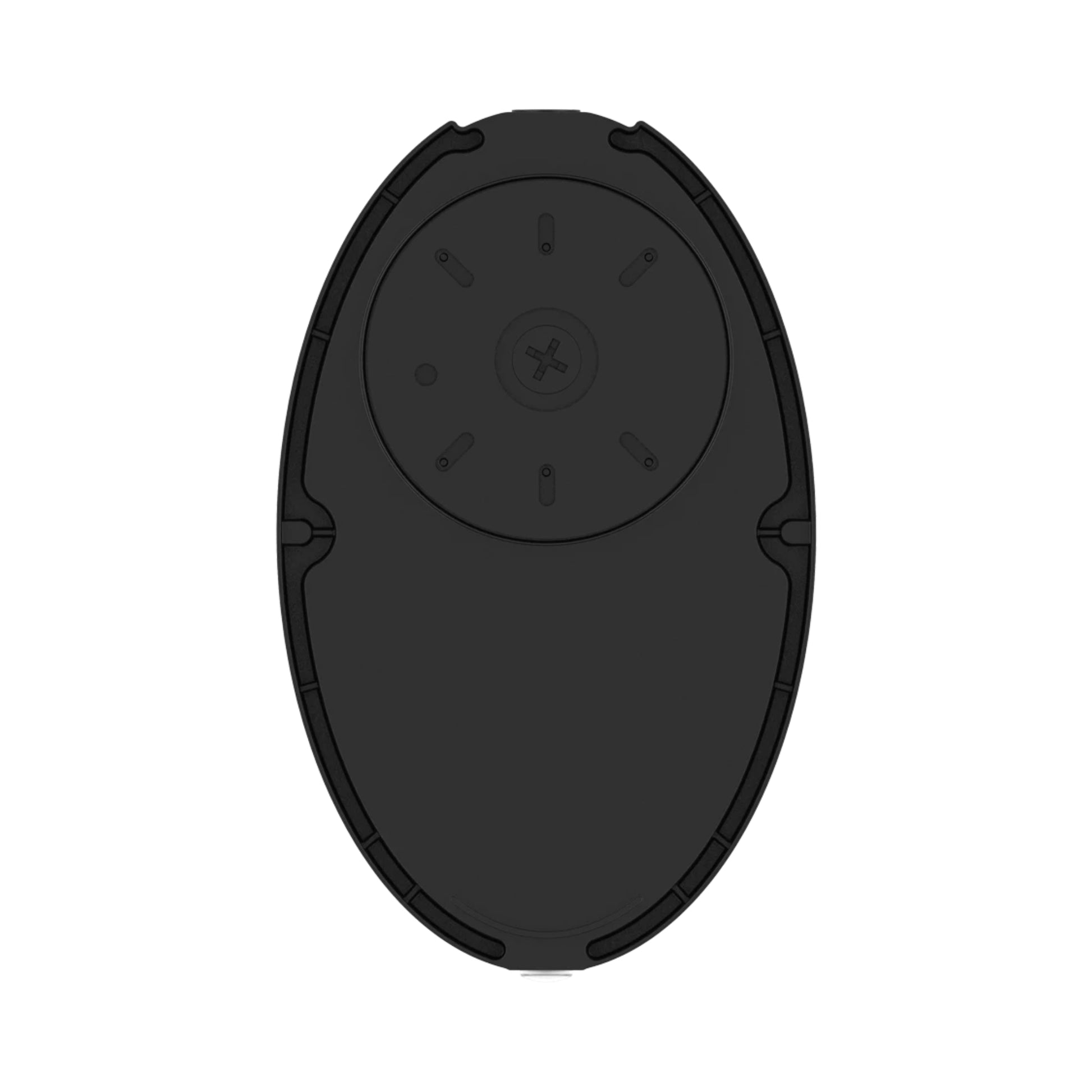

Installation & Mounting

Designed for straightforward surface wall mounting, the compact 3.22-pound fixture provides a secure and stable attachment to commercial and residential exteriors. Its mini teardrop profile is specifically engineered to fit cleanly onto tight structural columns and narrow architectural fascias while meeting critical emergency lighting codes.

What's Included

• Teardrop Mini LED Wall Pack with Battery Backup (Black Finish)
• Integrated Selectable Photocell
• Mounting Hardware
