RAB C-WALLS LED Field-Adjustable Wall Pack 4,349 Lumens 17/25/32W Selectable 30K/40K/50K 120-277V Photocell Bronze
Available in stock (200)
About this item
About this item
- Selectable Output: Field-adjustable 17W / 25W / 32W delivering up to 4,349 lumens to perfectly suit your specific entryway or perimeter.
- Selectable CCT: Easily switch between warm 3000K, neutral 4000K, or daylight 5000K color temperatures directly on the fixture.
- Integrated Photocell: Comes standard with a built-in on/off photocell for automated, hands-free dusk-to-dawn energy savings.
- Universal Voltage: Operates on a 120–277V constant current driver equipped with standard 0–10V dimming.
- Rugged Construction: Made of recycled aluminum and sheet metal with a bio-based PMMA lens and a sealed wet location rating.
We process payments securely and do not store credit card information.
Description
Description

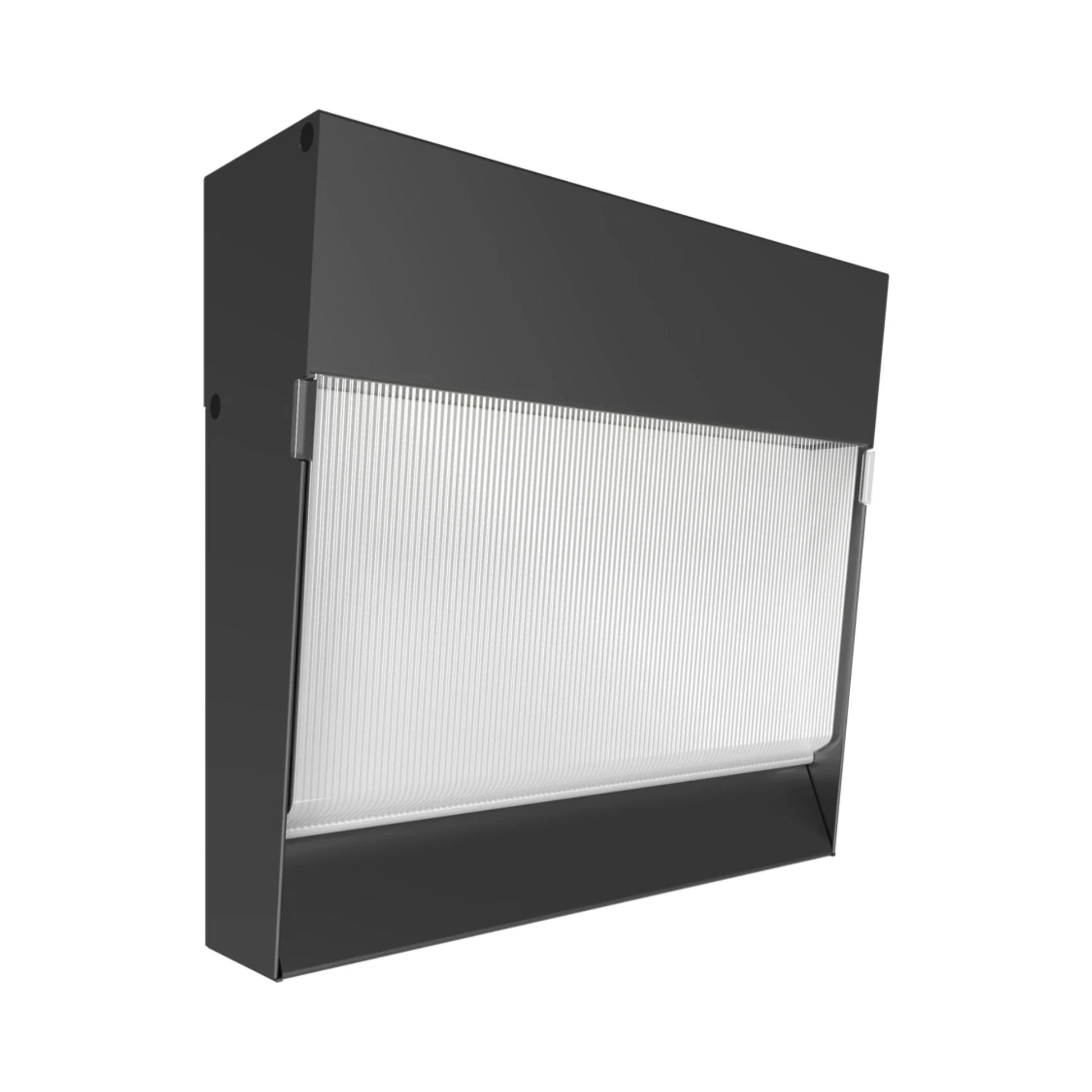

RAB C-WALLS Field-Adjustable LED Wall Pack — 17/25/32W Selectable, 120–277V
The RAB C-WALLS is a highly versatile, small-sized LED wall pack delivering up to 4,349 lumens with field-selectable 17W/25W/32W output and adjustable 3000K/4000K/5000K color temperatures. Operating on a 120–277V universal driver, this luminaire comes standard with an integrated on/off photocell for automated dusk-to-dawn operation. Built with a Wet Location rating and DLC Premium listing, it provides an ultra-durable, adaptable lighting solution for building entryways, perimeters, and walkways.
Key Features

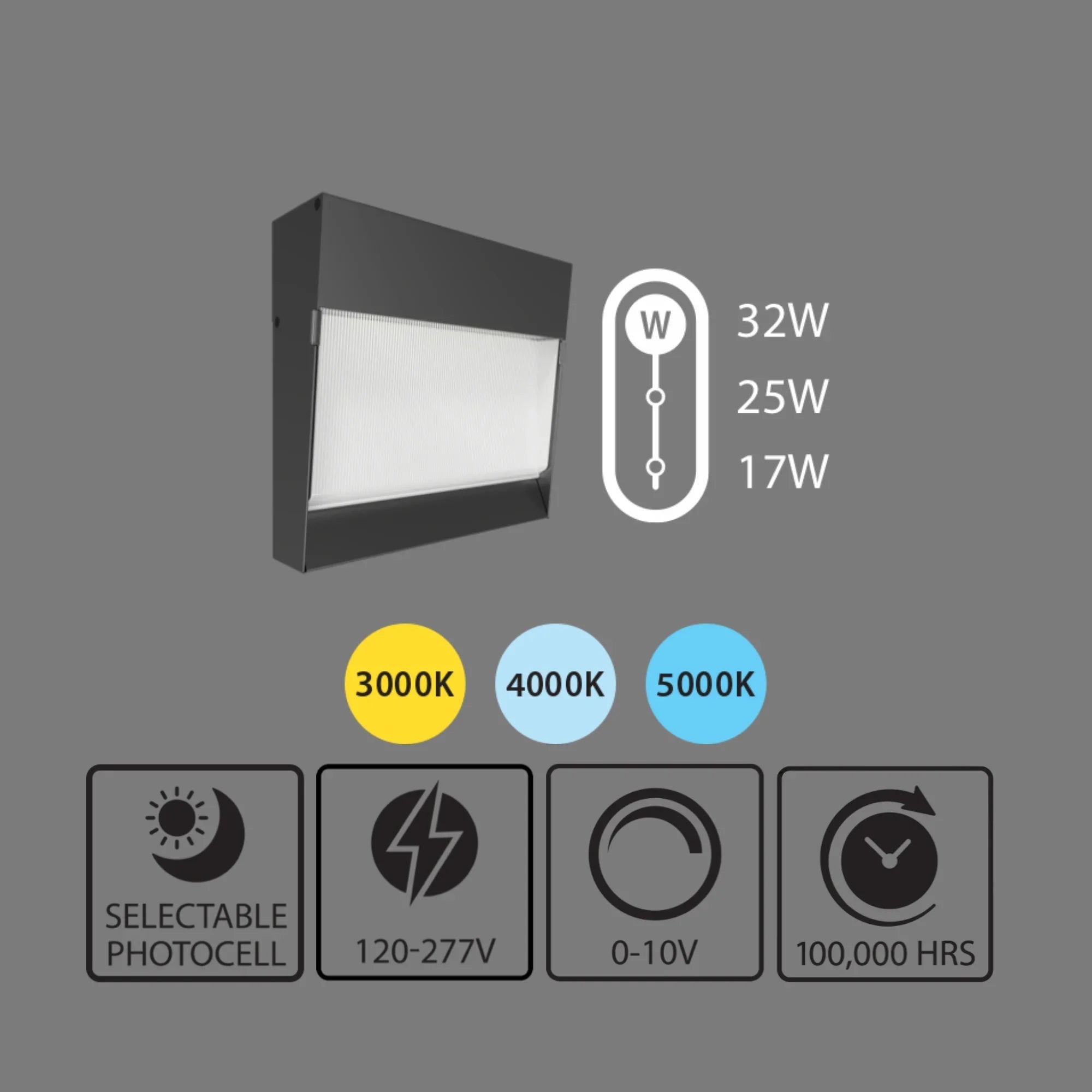

- Selectable Wattage: 17W / 25W / 32W (25W default)
- Selectable CCT: 3000K / 4000K / 5000K (4000K default)
- Delivered Lumens: 2,066 to 4,349 lumens
- Voltage: 120–277V input
- Dimming: 0–10V dimming (dims down to 10%)
- Controls: Integrated on/off photocell
- CRI: 81-84
- Environmental Ratings: Suitable for wet locations
- Certifications: UL Listed, TAA Compliant, DLC Premium Listed
- Estimated Life: 100,000 hours (L70 / TM-21 calculations)
Typical Applications
- Building entryways and doorways
- Perimeter and security lighting
- Pedestrian walkways
- Commercial and residential exteriors
Performance & Light Output

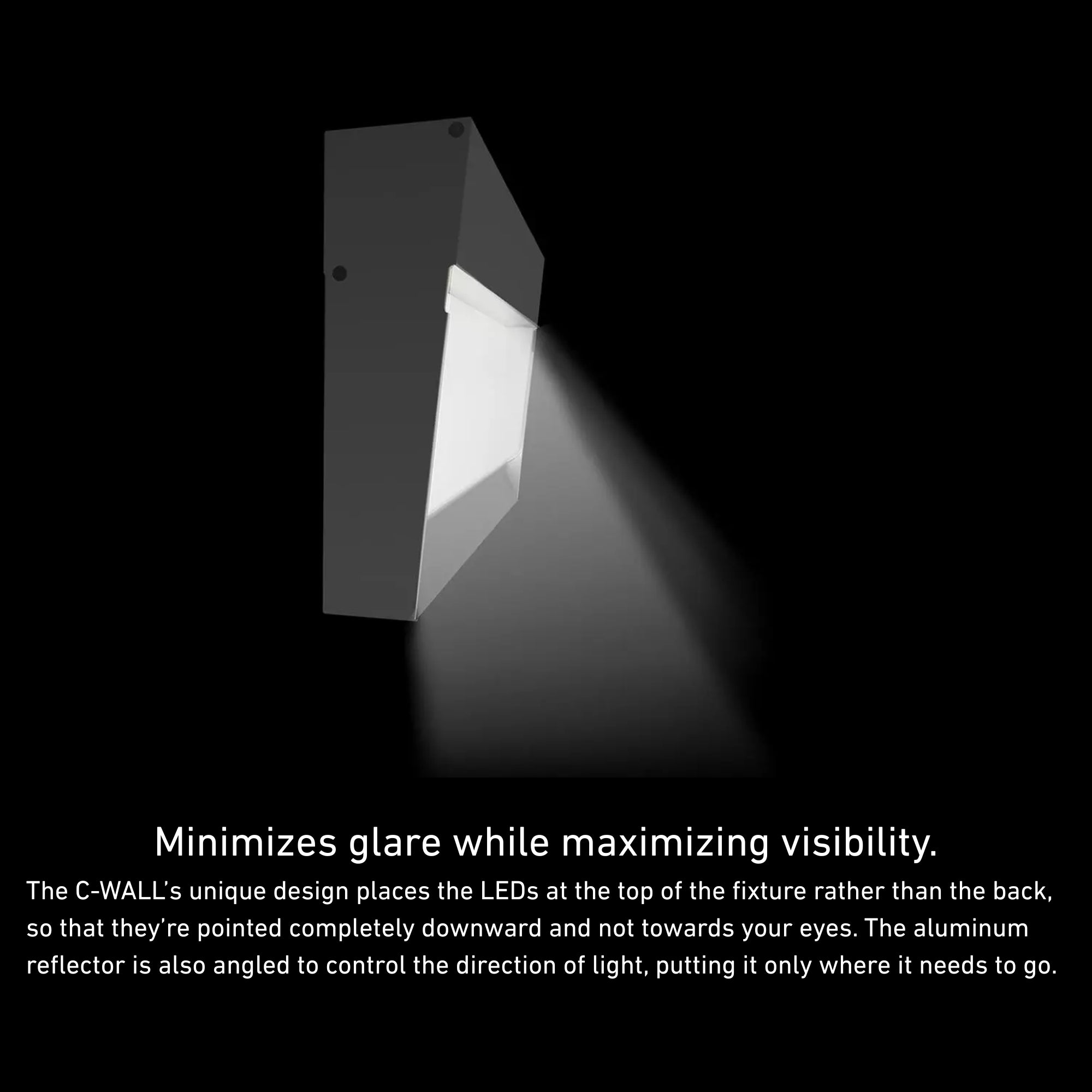

This compact wall pack provides scalable illumination ranging from 2,066 to 4,349 lumens depending on the selected wattage and color temperature, achieving an excellent efficacy of up to 136.6 lumens per watt. It features a bio-based Polymethyl Methacrylate (PMMA) lens that ensures smooth, uniform light distribution. The high-performance, surface-mount LEDs deliver consistent color with a CRI over 80 and maintain a highly prolonged rated life of 100,000 hours based on TM-21 calculations.
Electrical & Controls
This fixture operates on a constant current 120–277V AC driver with standard 0–10V dimming functionality (requires a separate 0-10V DC dimming circuit to operate, dims down to 10%). The electrical components are securely protected by built-in 4KV surge protection. To maximize energy savings out of the box, the C-WALLS includes an integrated on/off photocell enabling hands-free dusk-to-dawn operation without the need for external sensors.
Construction & Durability
Engineered for tough outdoor environments, the luminaire features a housing made from recycled aluminum and sheet metal, finished in a high-durability, long-lasting bronze color. It carries a UL listing for wet locations, indicating protection against water ingress. The fixture operates reliably in extreme temperatures, starting as low as -40°C (-40°F) and handling ambient heat up to 40°C (104°F).
Installation & Mounting

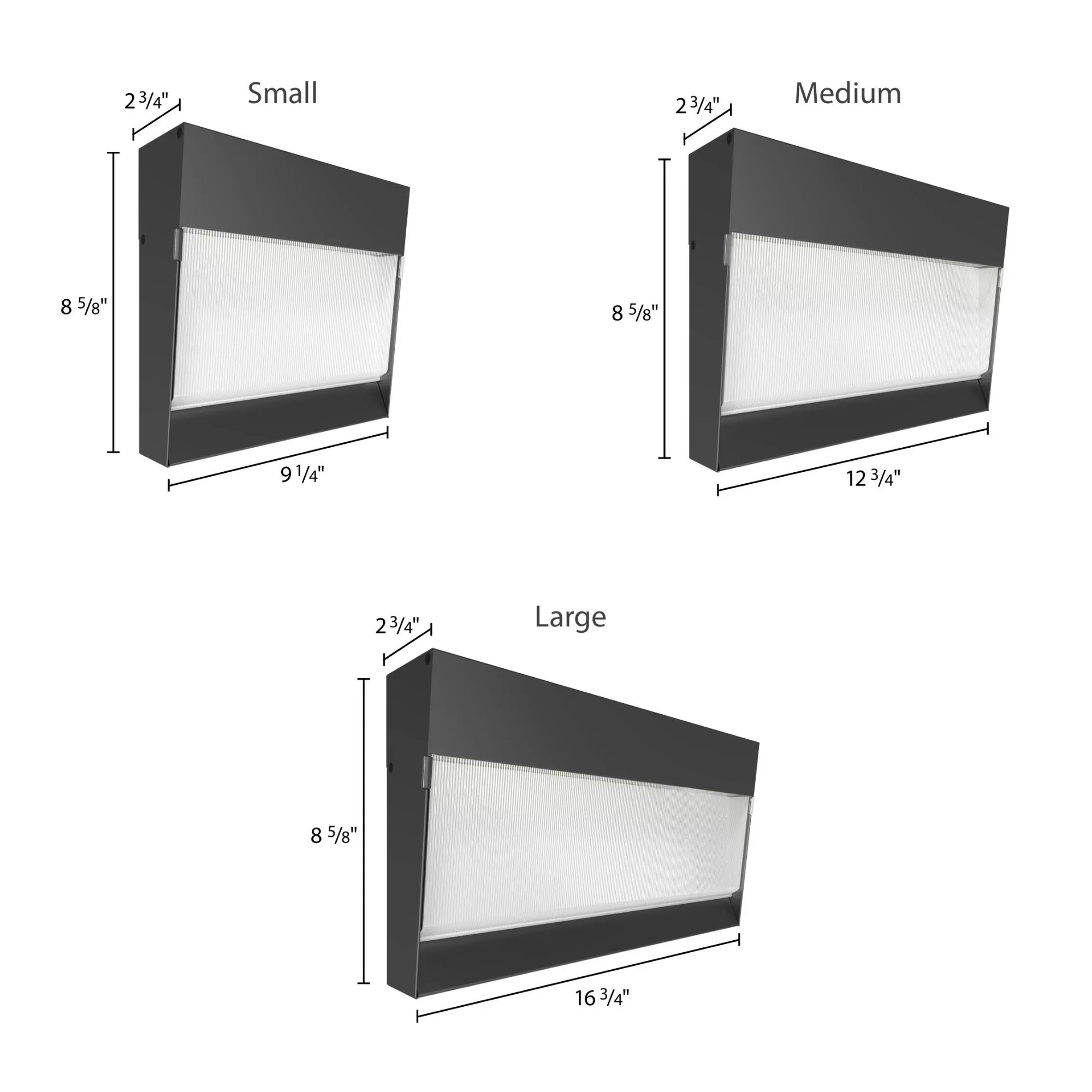

The C-WALLS is designed for simple surface mounting. Its compact dimensions (8-5/8" H x 9-1/4" W x 2-3/4" D) and light weight (1.87 lbs) make it exceptionally easy to handle and install over recessed junction boxes, utilizing its 3 conduit entry points.
What's Included
- RAB C-WALLS LED Wall Pack Fixture (Bronze)
- Integrated Photocell
Specifications
Specifications
Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
Yes, the C-WALLS comes standard with an integrated on/off photocell, enabling hands-free dusk-to-dawn functionality.
Yes, the C-WALLS comes standard with an integrated on/off photocell, enabling hands-free dusk-to-dawn functionality.
Is the RAB C-WALLS suitable for wet and harsh environments?
Is the RAB C-WALLS suitable for wet and harsh environments?
Yes, it is UL Listed for wet locations, ensuring protection against water ingress. The rugged recycled aluminum housing and bio-based lens are built for outdoor durability.
Yes, it is UL Listed for wet locations, ensuring protection against water ingress. The rugged recycled aluminum housing and bio-based lens are built for outdoor durability.
What are the dimensions of this small wall pack?
What are the dimensions of this small wall pack?
The C-WALLS measures 8-5/8" high, 9-1/4" wide, and has a depth of 2-3/4", weighing just 1.87 lbs.
The C-WALLS measures 8-5/8" high, 9-1/4" wide, and has a depth of 2-3/4", weighing just 1.87 lbs.
