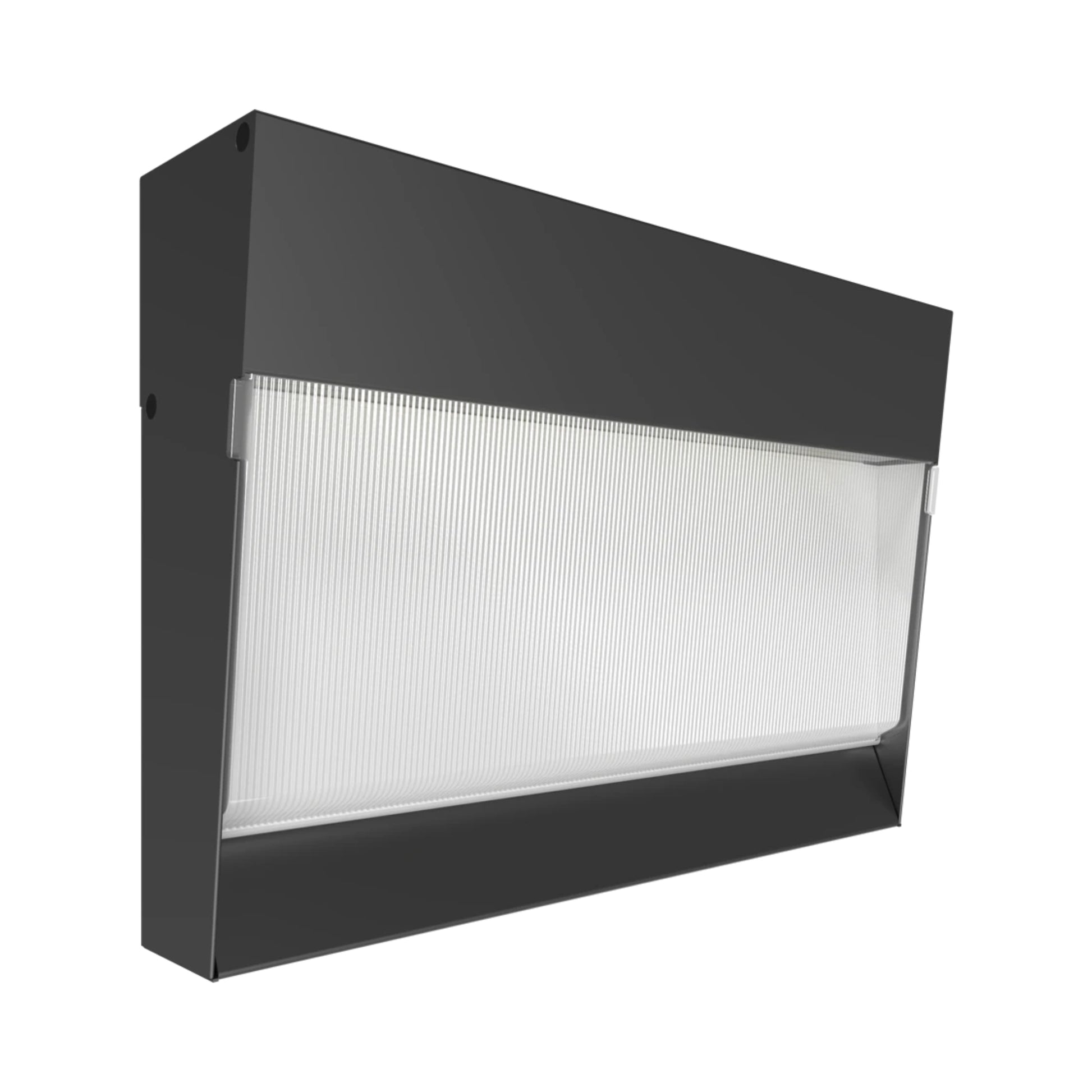

RAB C-WALLM Field-Adjustable Traditional LED Wall Pack — 75W/60W/40W Selectable — 3000K/4000K/5000K — Bronze

The RAB C-WALLM is a commercial field-adjustable traditional LED wall pack engineered to deliver up to 10,383 lumens across field-adjustable 75W/60W/40W power settings (60W factory default) and switchable 3000K/4000K/5000K color temperatures (4000K factory default). Operating on 120-277V electrical systems with 0-10V dimming down to 10%, this low-profile 2.75"-deep perimeter luminaire delivers peak efficacy up to 147.4 lm/W while qualifying for DLC 5.1 Premium utility rebates and Trade Agreements Act (TAA) compliance. Built with a weatherproof recycled aluminum and sheet metal housing in a Bronze finish with high-temperature silicone gasketing, this UL wet-location luminaire includes an ultra-lightweight 2.34 lb surface-mount backbox (12.75" W x 8.63" H x 2.75" deep) for recessed junction boxes with 3 conduit entry points and features a bio-based polymethyl methacrylate (PMMA) lens, an internal aluminum reflector, an integrated photocell with on/off switch (factory default On), and 4kV surge protection.

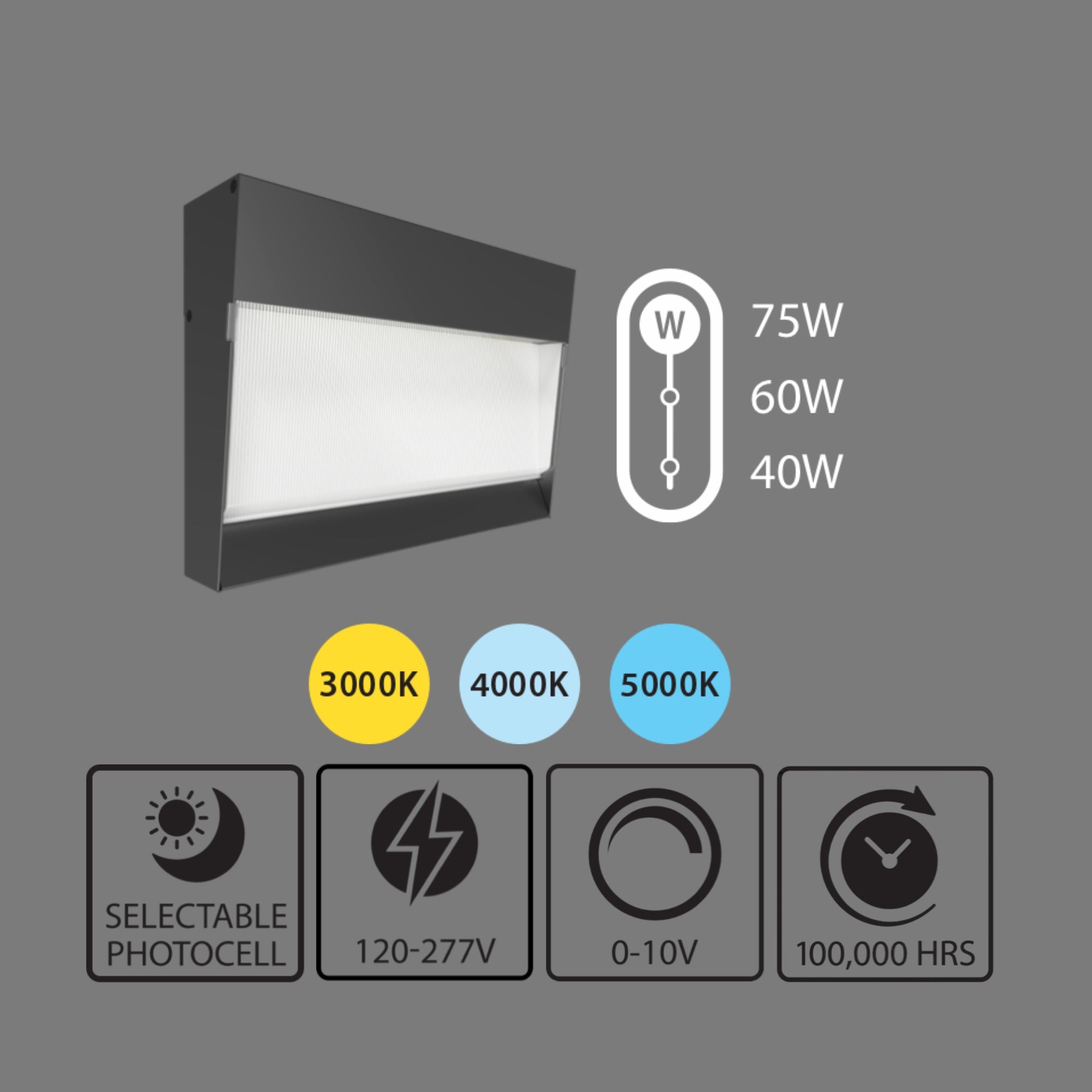

Key Features

• Selectable Wattage: 75W / 60W / 40W (60W factory default)
• Maximum Lumen Output: Up to 10,383 lm
• Peak Efficacy: Up to 147.4 lm/W
• CRI: 81-84
• Selectable CCT: 3000K / 4000K / 5000K (4000K factory default)
• Color Consistency: 7-step MacAdam Ellipse binning; ANSI C78.377-2017 compliant
• Lens & Optics: Bio-based polymethyl methacrylate (PMMA) lens with internal aluminum reflector
• Photocell & Controls: Integrated photocell with on/off switch (default On); Lightcloud Blue (/LCB) option available
• Dimming: 0-10V continuous dimming (dims down to 10%)
• Voltage & Surge Protection: 120-277V AC, 50/60Hz; 4kV surge protection
• Location & Body Rating: UL Listed Wet Location
• Operating Temperature: -40°F (-40°C) to 104°F (40°C)
• Certifications: DLC 5.1 Premium (S-FCQXYM), UL Listed, TAA Compliant, RoHS Compliant
• Rated Life: L70 100,000 hours
• Warranty: 5-year no-compromise warranty covering light output, color stability, driver performance, paint finish, and labor - RAB

Performance & Light Output

At 75W (75.0W at 3000K; 72.8W at 4000K; 75.2W at 5000K): 9,405 lm (3000K / 125.4 lm/W / 81 CRI), 10,117 lm (4000K / 139.0 lm/W / 84 CRI), and 10,383 lm (5000K / 138.1 lm/W / 83 CRI).

At 60W (Factory Default) (60.3W at 3000K; 59.0W at 4000K; 60.6W at 5000K): 7,778 lm (3000K / 129.0 lm/W / 81 CRI), 8,356 lm (4000K / 141.6 lm/W / 84 CRI), and 8,638 lm (5000K / 142.5 lm/W / 82 CRI).

At 40W (39.8W at 3000K; 39.1W at 4000K; 39.8W at 5000K): 5,279 lm (3000K / 132.6 lm/W / 81 CRI), 5,606 lm (4000K / 143.4 lm/W / 83 CRI), and 5,866 lm (5000K / 147.4 lm/W / 82 CRI).

Engineered with long-life, high-efficacy surface-mount LEDs delivering CRI 81-84 across all configurations. Rated life 100,000 hours (L70) based on IES LM-80 results and TM-21 calculations.

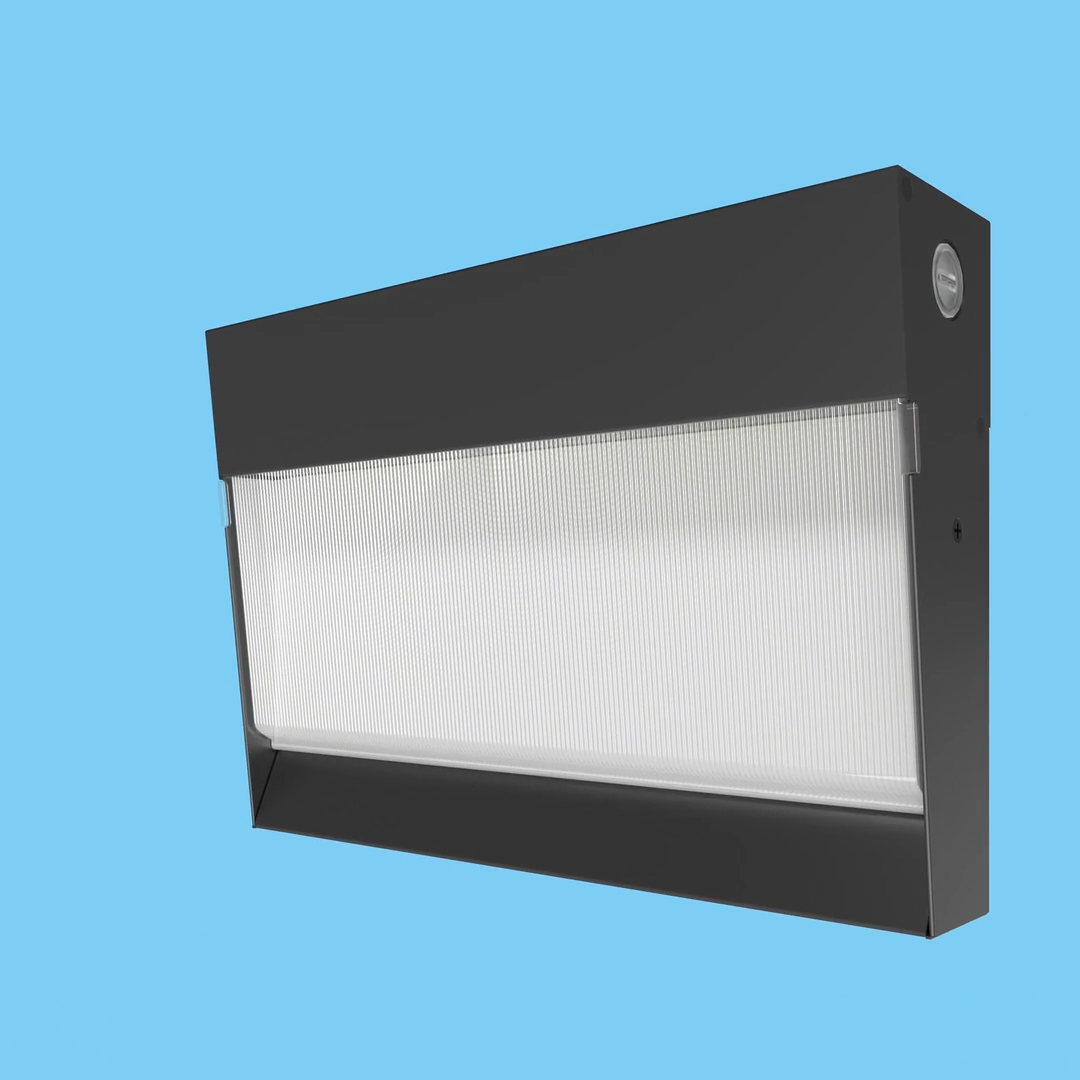

Lens & Optics

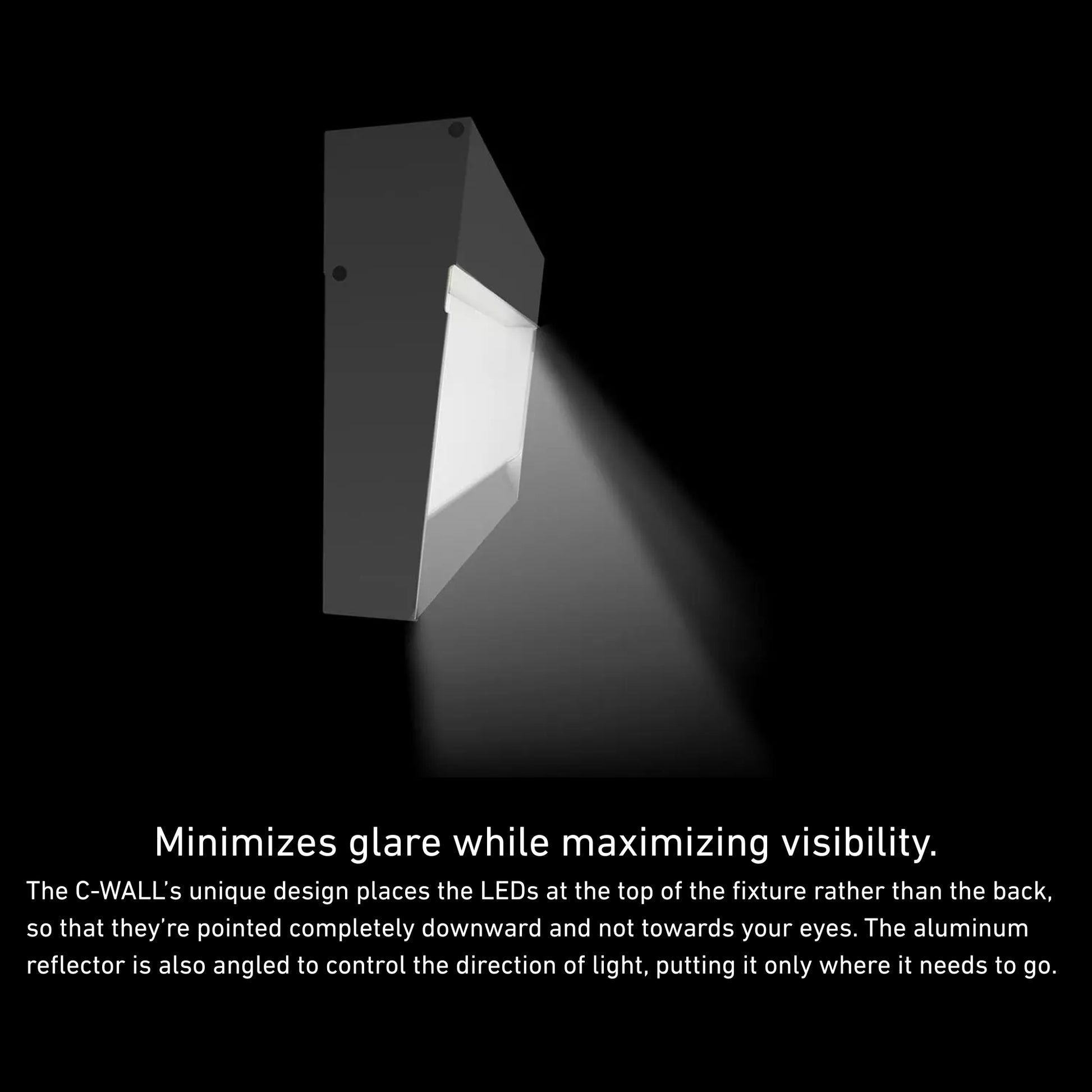

Engineered with a biorenewable, bio-based polymethyl methacrylate (PMMA) lens and internal aluminum reflector delivering a standard forward-throw LED wall pack optical distribution. The impact- and UV-resistant PMMA refractor projects low-glare pedestrian walkway, doorway, and perimeter illumination from a slim 2.75"-deep architectural housing profile without yellowing.

Smart & Control Features

Engineered for automated exterior operation and commercial lighting control integration:

• Dusk-to-Dawn Photocell (Integrated): Factory-installed integrated photocell with on/off switch (shipped in the On position by default) provides automatic dusk-to-dawn operation or can be switched off for manual wall-switch and timer control.
• 0-10V Continuous Dimming: Driver includes dimming control wiring for 0-10V dimming systems (requires separate 0-10V DC dimming circuit) and dims smoothly down to 10%.
• Lightcloud Blue Wireless Option: Available in Lightcloud Blue (/LCB) Bluetooth Mesh wireless lighting control configurations (DLC system IDs N1XMLOEATBA Interior / NHCZ2B17L Exterior) for mobile-app commissioning without a gateway or hub.

Electrical

Powered by a Constant Current, Class 1 driver operating on 120-277V AC at 50/60Hz with a Power Factor of 95.5%–99.6% at 120V (89.3%–99.7% at 277V) and Total Harmonic Distortion (THD) of 3.8%–15.3% at 120V (4.9%–15.9% at 277V). Integrated 4kV surge protection safeguards internal electronics against utility line transients and lightning strikes. Includes pre-wired 0-10V dimming leads (dims down to 10%) and a factory-installed integrated photocell with on/off switch.

Operating current and amp draw across input voltages for branch circuit and breaker loading calculations:

Construction

Housing & Thermal: Recycled aluminum and sheet metal housing with passive convection cooling and an ultra-lightweight architectural profile.

Finish: High-durability Bronze powder-coat finish formulated for long-lasting color and weather resistance.

Environmental Sealing: UL Listed for wet locations with high-temperature silicone gaskets to seal out moisture and dust. Ambient operating temperature: -40°F (-40°C) to 104°F (40°C).

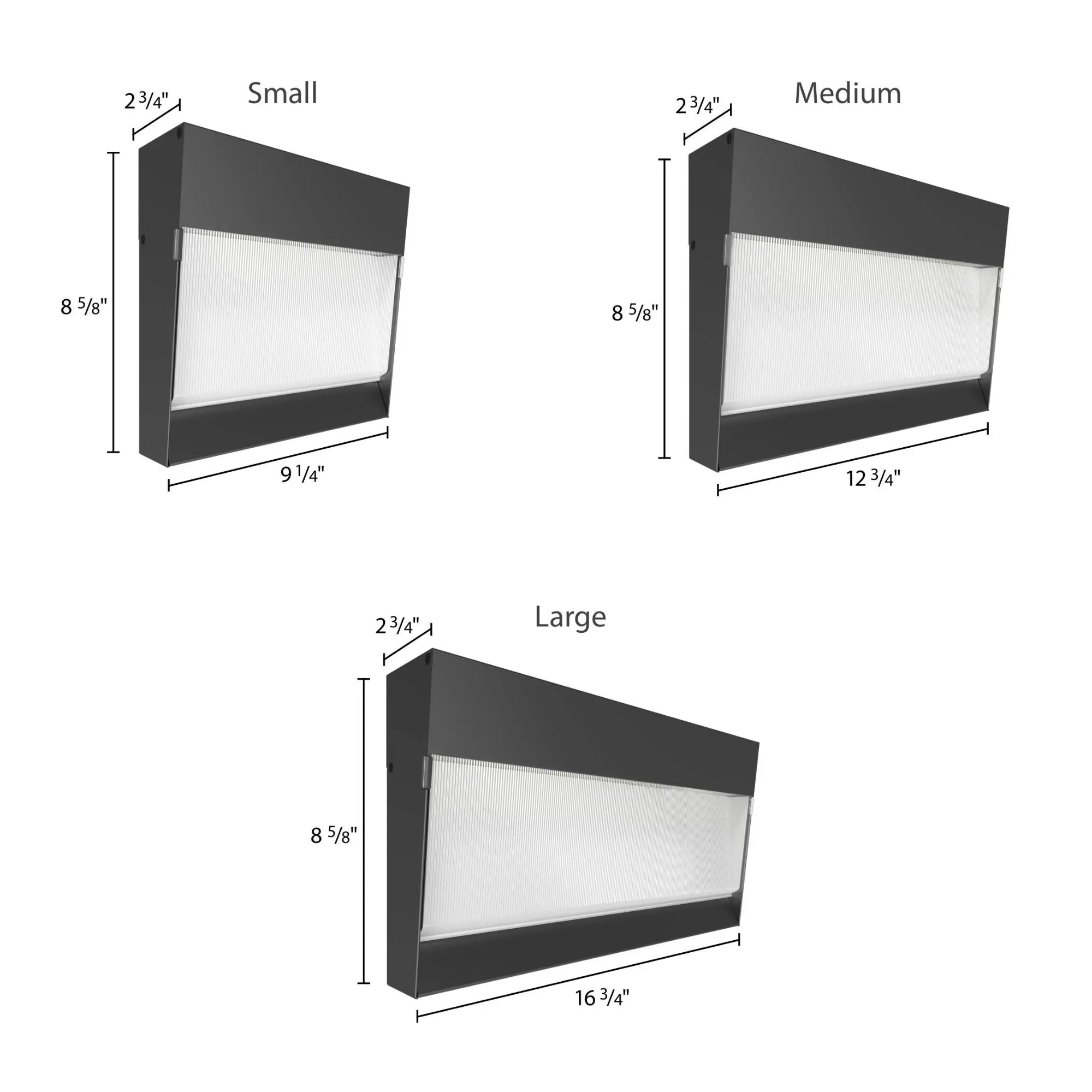

Dimensions & Weight: 12.75" W x 8.63" H x 2.75" D (12 3/4" W x 8 5/8" H x 2 3/4" D). Fixture weight: 2.34 lbs.

Installation & Mounting

Mounting Hardware: Ultra-lightweight 2.34 lb surface-mount backbox (12.75" W x 8.63" H x 2.75" D) mounts directly over recessed junction boxes with a slim 2.75" (2 3/4") architectural wall projection depth for fast one-person installation.

Conduit & Wiring Access: Three (3) conduit entry points accommodate surface conduit routing.

Certifications & Rebates

• DLC 5.1 Premium: Qualifies for utility rebates (searchable on designlights.org under code S-FCQXYM)
• UL Listed: Certified for wet locations per UL outdoor luminaire standards
• TAA Compliant: Product of Cambodia and a designated country end product that complies with the Trade Agreements Act (TAA) for federal and municipal procurement
• RoHS Compliant: Mercury and UV free with RoHS-compliant components and biorenewable lens material

Typical Applications

• Building Entrances, Exits & Egress Doorways - Slim 2.75" depth and selectable 75W/60W/40W output with default-on photocell automate dusk-to-dawn doorway security
• Federal, Military & Municipal Facilities - Trade Agreements Act (TAA) compliance (designated country end product of Cambodia) and DLC 5.1 Premium listing meet government specification requirements
• Commercial Perimeter Walls & Walkways - Lightweight 2.34 lbs recycled aluminum and sheet metal housing with bio-based PMMA lens installs easily over recessed junction boxes
• Loading Docks & Warehouse Exteriors - Multi-volt 120-277V Class 1 driver with 4kV surge protection and 0.63A max current at 120V (0.28A at 277V) supports long exterior branch circuits
• Sustainable & LEED-Focused Campuses - Recycled aluminum construction, biorenewable PMMA lens, and 100,000-hour L70 lifespan support green building goals

What's Included

• RAB C-WALLM Field-Adjustable Wall Pack - Bronze
• Pre-installed integrated photocell with on/off switch
• Installation hardware and operation manual
