RAB C-WALLL LED Field-Adjustable Wall Pack 17,021 Lumens 65/100/125W Selectable 30K/40K/50K 120-277V Photocell Bronze
Available in stock (200)
About this item
About this item

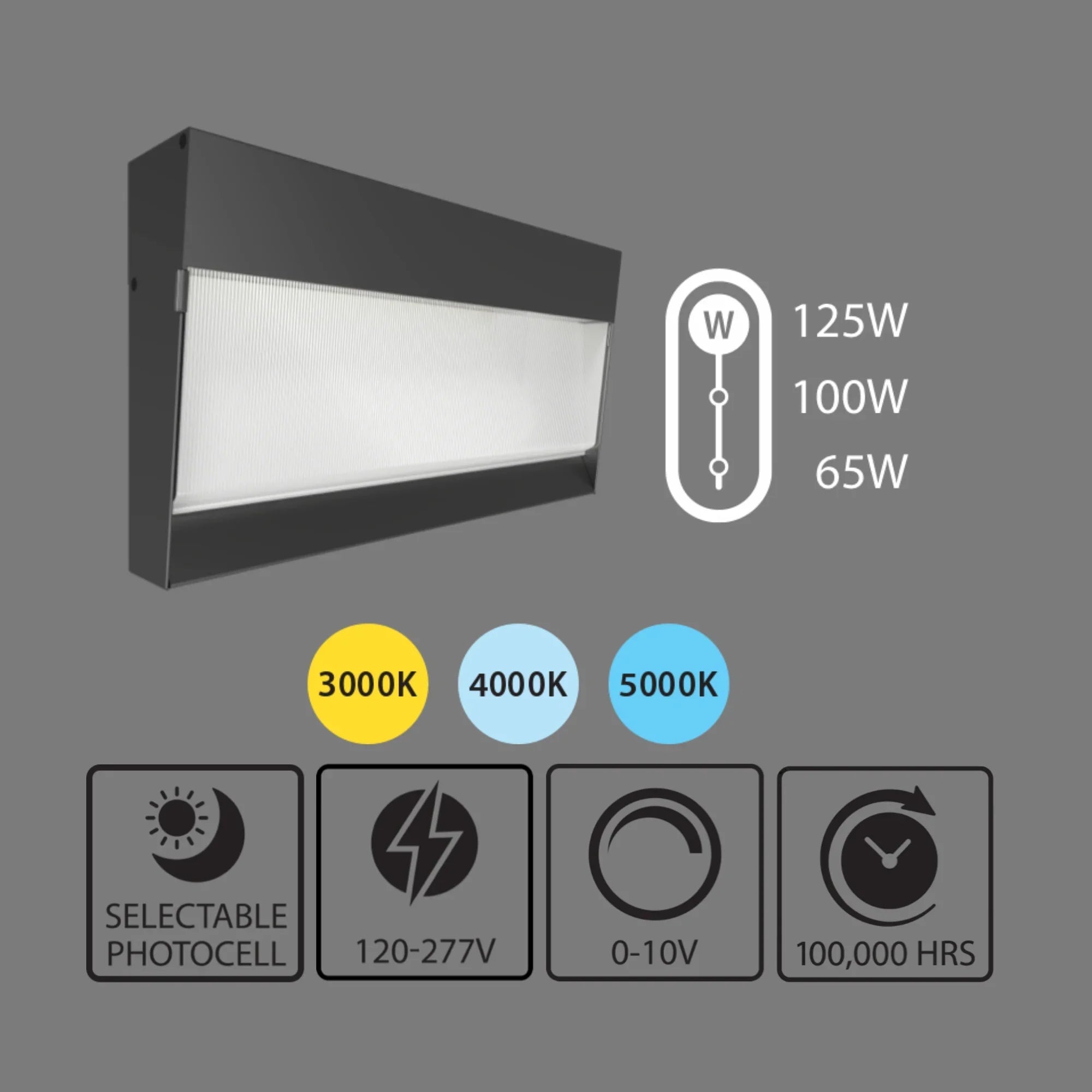

- Selectable Output: Field-adjustable 65W / 100W / 125W delivering up to 17,021 lumens to illuminate large building perimeters and expansive commercial exteriors.
- Selectable CCT: Easily switch between warm 3000K, neutral 4000K, or daylight 5000K color temperatures directly on the fixture.
- Integrated Photocell: Comes standard with a built-in on/off photocell for automated, hands-free dusk-to-dawn energy savings.
- Universal Voltage: Operates on a 120–277V constant current driver equipped with standard 0–10V dimming.
- Rugged Construction: Made of recycled aluminum and sheet metal with a bio-based PMMA lens and a sealed wet location rating.
We process payments securely and do not store credit card information.
Description
Description

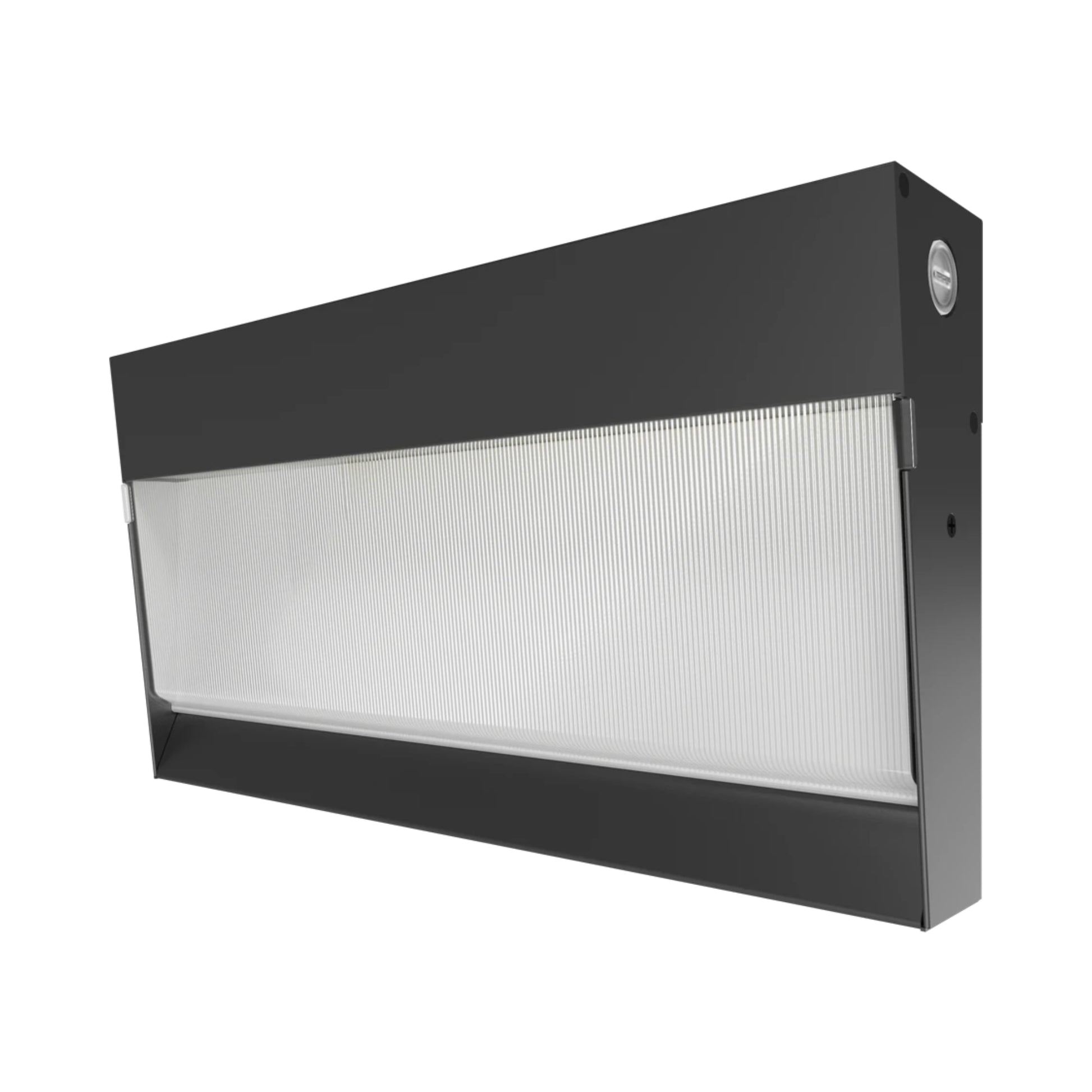

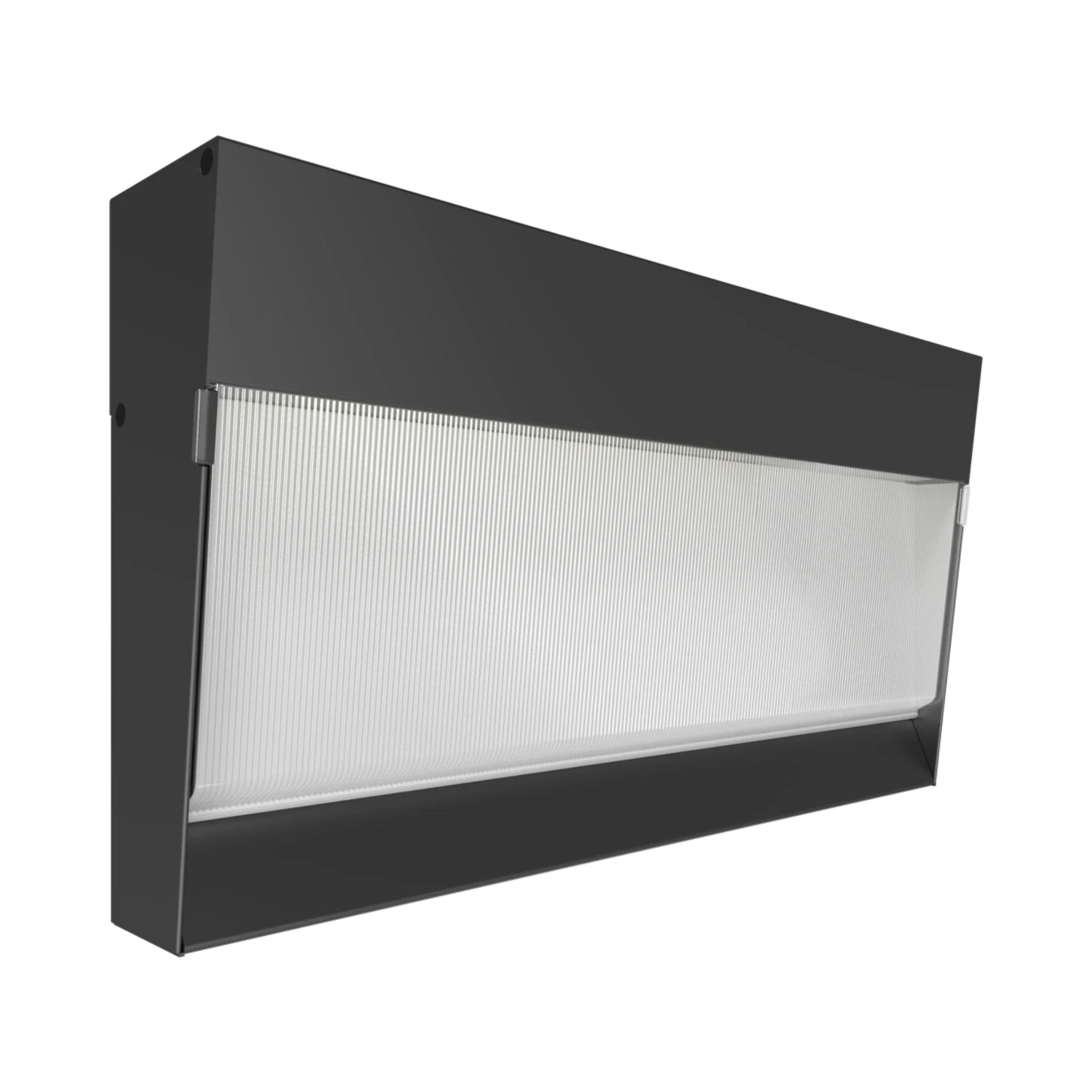

RAB C-WALLL Field-Adjustable LED Wall Pack — 65/100/125W Selectable, 120–277V
The RAB C-WALLL is a highly versatile, large-sized LED wall pack delivering a massive 17,021 lumens with field-selectable 65W/100W/125W output and adjustable 3000K/4000K/5000K color temperatures. Operating on a 120–277V universal driver, this luminaire comes standard with an integrated on/off photocell for automated dusk-to-dawn operation. Built with a Wet Location rating and DLC Premium listing, it provides an ultra-durable, adaptable lighting solution for large commercial building exteriors, wide perimeters, and expansive parking areas.
Key Features
- Selectable Wattage: 65W / 100W / 125W (100W default)
- Selectable CCT: 3000K / 4000K / 5000K (4000K default)
- Delivered Lumens: 8,881 to 17,021 lumens
- Voltage: 120–277V input
- Dimming: 0–10V dimming (dims down to 10%)
- Controls: Integrated on/off photocell
- CRI: 81-84
- Environmental Ratings: Suitable for wet locations
- Certifications: UL Listed, TAA Compliant, DLC Premium Listed
- Estimated Life: 100,000 hours (L70 / TM-21 calculations)
Typical Applications
- Large building perimeters and facades
- Security and expansive pathway lighting
- Commercial and industrial exteriors
- Parking areas and loading docks
Performance & Light Output

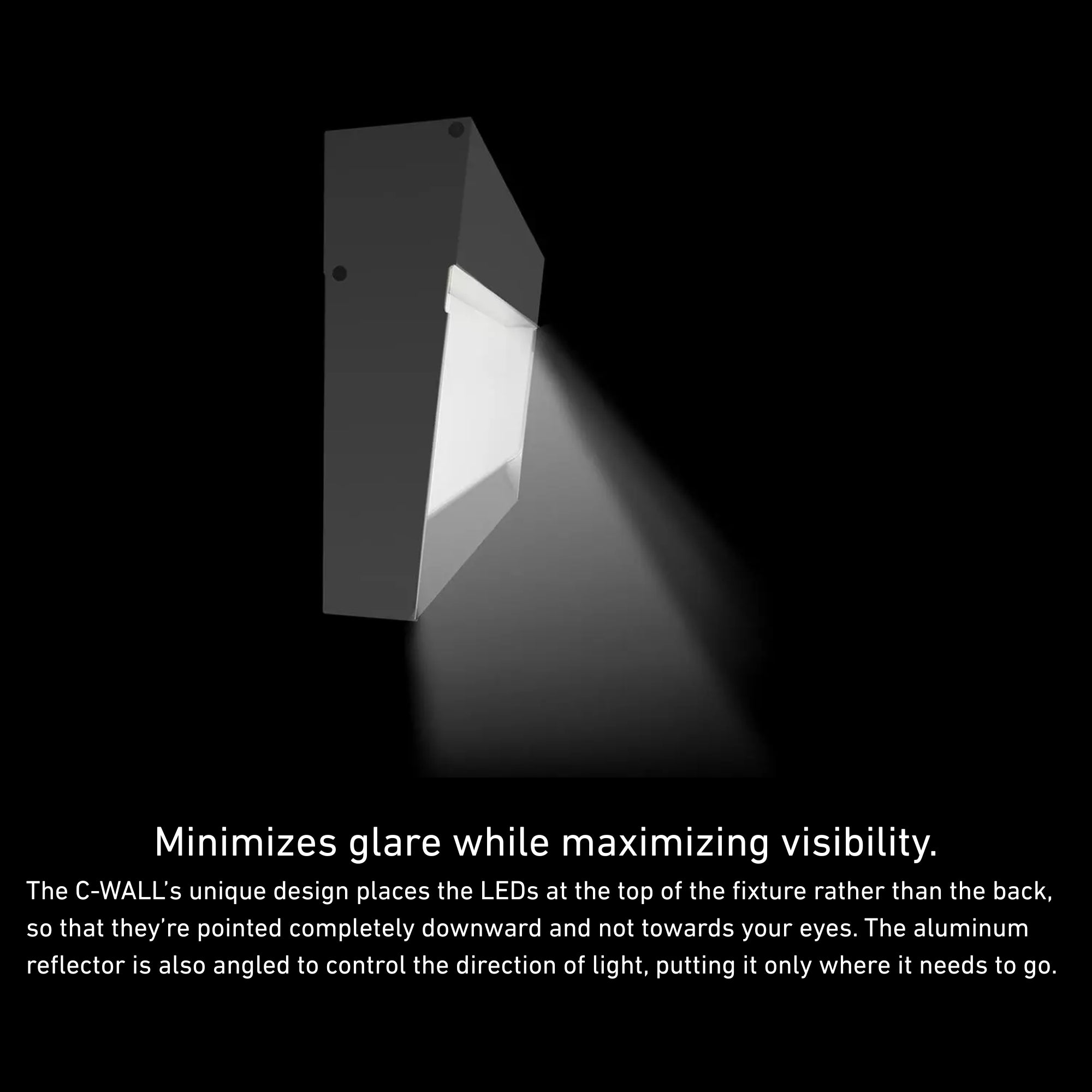

This large wall pack provides highly scalable illumination ranging from 8,881 to 17,021 lumens depending on the selected wattage and color temperature, achieving an excellent efficacy of up to 145.7 lumens per watt. It features a bio-based Polymethyl Methacrylate (PMMA) lens that ensures smooth, uniform light distribution across wide areas. The high-performance, surface-mount LEDs deliver consistent color with a CRI over 80 and maintain a highly prolonged rated life of 100,000 hours based on TM-21 calculations.
Electrical & Controls
This fixture operates on a constant current 120–277V AC driver with standard 0–10V dimming functionality (requires a separate 0-10V DC dimming circuit to operate, dims down to 10%). The robust electrical components are securely protected by built-in 4KV surge protection. To maximize energy savings out of the box, the C-WALLL includes an integrated on/off photocell, enabling hands-free dusk-to-dawn operation without the need for external timers or networked sensors.
Construction & Durability
Engineered for tough outdoor environments, the luminaire features a housing made from recycled aluminum and sheet metal, finished in a high-durability, long-lasting bronze color. It carries a UL listing for wet locations, indicating reliable protection against water ingress. The fixture operates safely in extreme temperatures, starting as low as -40°C (-40°F) and handling ambient heat up to 40°C (104°F).
Installation & Mounting

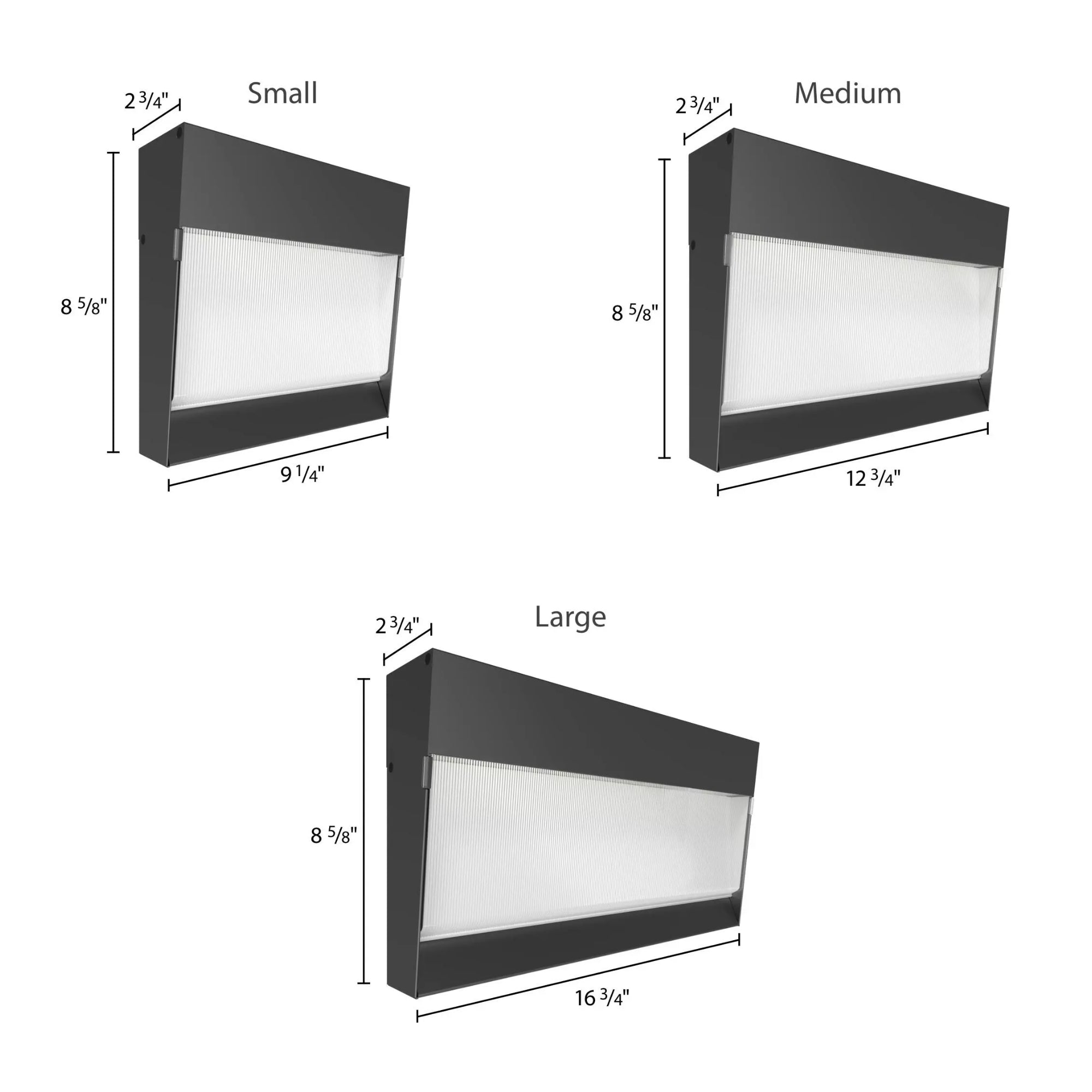

The C-WALLL is designed for simple, flush surface mounting. Its large dimensions (8-5/8" H x 16-3/4" W x 2-3/4" D) and weight of 3.57 lbs provide substantial coverage while remaining easy to handle and install over recessed junction boxes, utilizing its 3 conduit entry points.
What's Included
- RAB C-WALLL LED Wall Pack Fixture (Bronze)
- Integrated Photocell
Specifications
Specifications
Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
Yes, the C-WALLL comes standard with an integrated on/off photocell, enabling hands-free dusk-to-dawn security lighting right out of the box.
Yes, the C-WALLL comes standard with an integrated on/off photocell, enabling hands-free dusk-to-dawn security lighting right out of the box.
Is the RAB C-WALLL suitable for wet and harsh environments?
Is the RAB C-WALLL suitable for wet and harsh environments?
Yes, it is UL Listed for wet locations, ensuring protection against water ingress. The rugged recycled aluminum housing and bio-based lens are built for extended outdoor durability.
Yes, it is UL Listed for wet locations, ensuring protection against water ingress. The rugged recycled aluminum housing and bio-based lens are built for extended outdoor durability.
What are the dimensions of this large wall pack?
What are the dimensions of this large wall pack?
The C-WALLL measures 8-5/8" high, 16-3/4" wide, and has a low-profile depth of 2-3/4", weighing 3.57 lbs.
The C-WALLL measures 8-5/8" high, 16-3/4" wide, and has a low-profile depth of 2-3/4", weighing 3.57 lbs.
