RAB A34T3XL LED Area Light — 220W/270W/340W, 120-277V

The RAB A34T3XL is an extra-large field-adjustable LED area light delivering up to 51,563 lumens with selectable wattage and selectable CCT. Operating on 120-277V, the fixture is rated IP65 and DLC Premium for maximum-efficiency large-scale outdoor applications. This powerful fixture is designed for expansive parking lots and high-traffic roadways, utilizing a Type III distribution to project a wide, uniform forward-throw pattern from pole-mounted positions.

Key Features

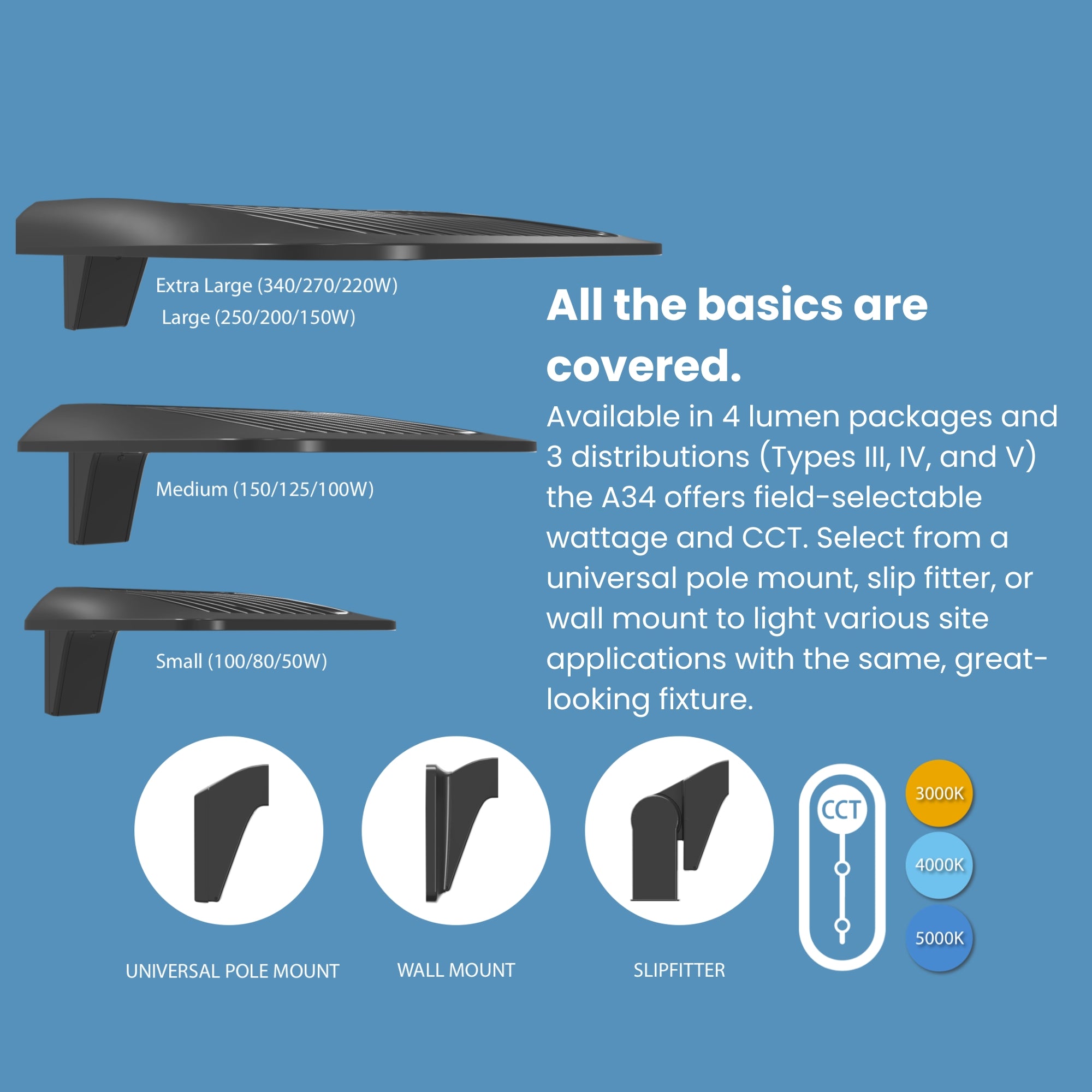

• Field-Adjustable Wattage: Selectable settings of 220W, 270W, and 340W
• Selectable CCT: Choice of 3000K, 4000K, or 5000K color temperatures
• Maximum Output: Delivers a peak of 51,563 lumens for high-demand areas
• Optical Distribution: Type III IES classification for roadway and site perimeter lighting
• Integrated Photocell: Included standard with an on/off switch for automated dusk-to-dawn operation
• Universal Voltage: 120–277V commercial-grade constant current driver
• High Efficacy: Performance up to 168 lm/W, qualifying for top-tier DLC Premium rebates
• Surge Protection: Robust 10kV protection to safeguard against electrical spikes
• Dimming: 0-10V dimmable down to 10% for precise light level management
• Longevity: Rated for a 100,000-hour LED lifespan to minimize maintenance

Typical Applications

• Expansive commercial parking lots
• Municipal roadway and intersection lighting
• Regional distribution center perimeters
• Industrial shipping and logistics hubs
• Major retail shopping center developments
• Large-scale campus and sports complex perimeters

Performance & Light Output

The A34T3XL provides the series' highest output, ranging from 34,476 to 51,563 lumens with an efficacy reaching up to 168 lm/W. It maintains a CRI of 80+ for accurate color rendering and a long L70 lifespan of 100,000 hours based on IES testing. This extra-large area light effectively replaces up to 1000W metal halide or high-pressure sodium fixtures, providing extensive forward-throw coverage through a Type III distribution pattern.

Electrical & Controls

The integrated constant current driver operates on a universal voltage of 120–277V at 50/60Hz and supports 0–10V dimming as a standard feature. For enhanced electrical reliability, the unit includes 10kV surge protection in addition to the surge suppression built into the driver. The fixture includes an integrated photocell with a manual on/off switch, allowing for automated control based on ambient daylight.

Construction & Durability

Constructed from heavy-duty die-cast aluminum with a clear polycarbonate lens, the A34T3XL is built to withstand extreme outdoor conditions. It carries an IP65 rating for protection against dust and water jet ingress and is cold-weather rated for operation down to -40°C (-40°F). The fixture is finished with a high-durability bronze powder coat and holds a 2G vibration rating for stability in challenging environments.

Installation & Mounting

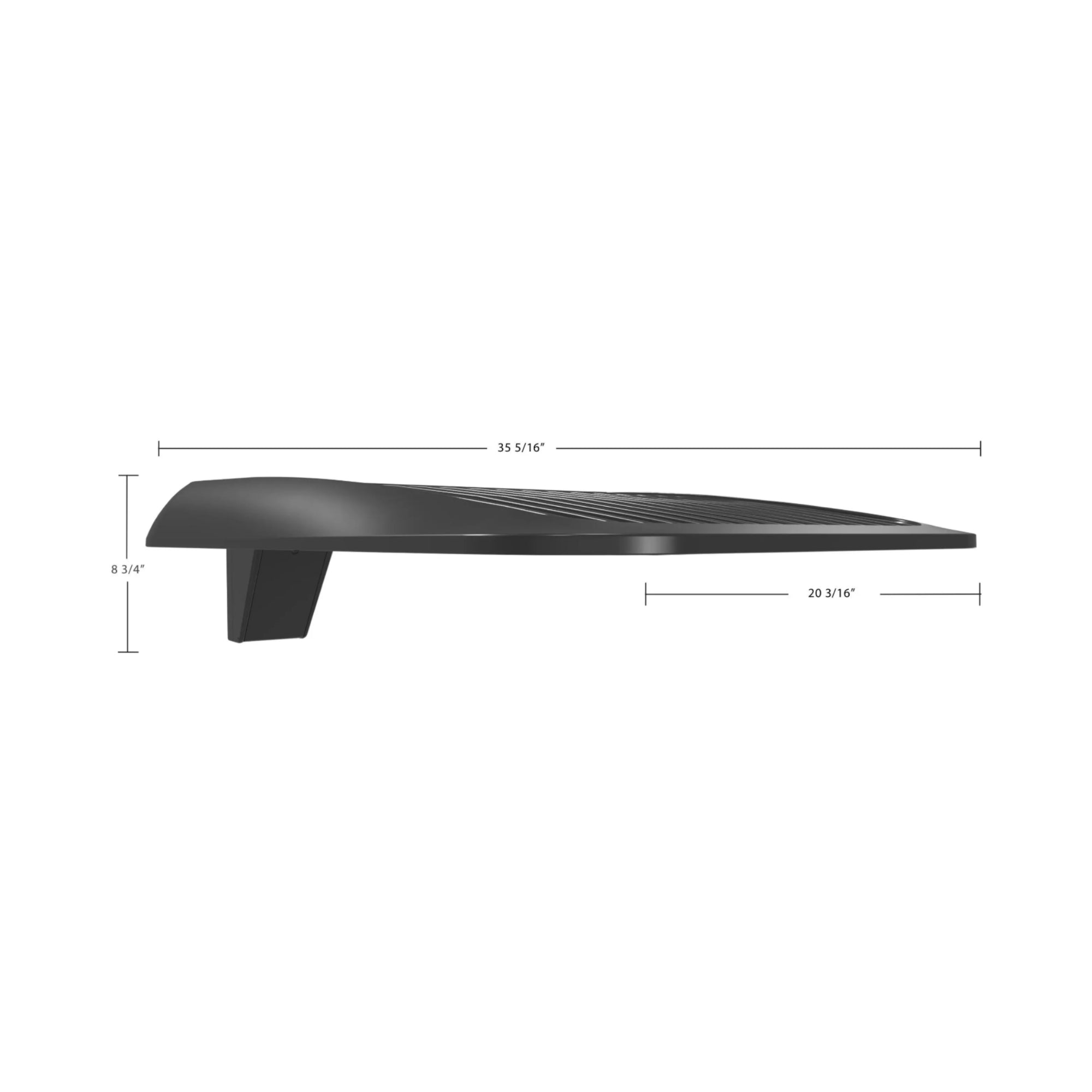

This fixture includes a universal mounting arm compatible with existing pole hole spacing patterns from 1" to 5 1/2" center-to-center. A round pole adapter plate is included standard, and the system uses an easy slide-and-lock mechanism for streamlined mounting. The extra-large housing has an Effective Projected Area (EPA) of 0.4 and weighs approximately 34 lbs.

What’s Included

• A34T3XL LED Area Light
• Universal Pole Mounting Arm
• Round Pole Adapter Plate
• Integrated On/Off Photocell
