RAB A34T3M LED Area Light — 100W/125W/150W, 120-277V

The RAB A34T3M is a field-adjustable LED area light delivering up to 24,510 lumens with selectable wattage and selectable CCT. Operating on 120-277V, the fixture is rated IP65 and DLC Premium for high-efficiency commercial and industrial applications. This robust fixture is designed for parking lots and roadway lighting, utilizing a Type III distribution to project a wide, uniform light pattern from the perimeter of a site.

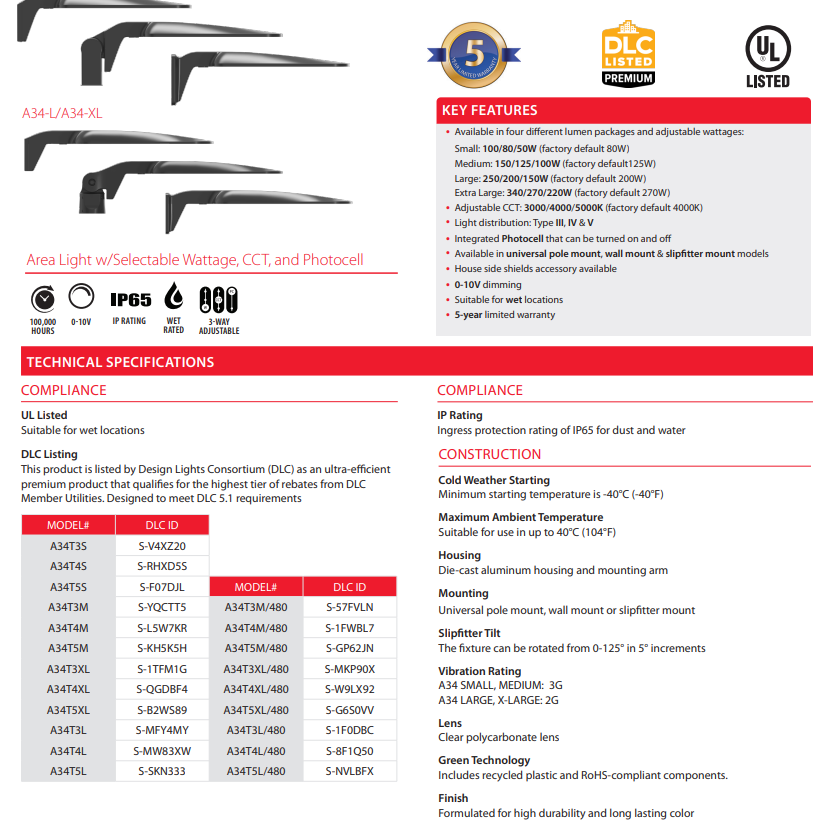

Key Features

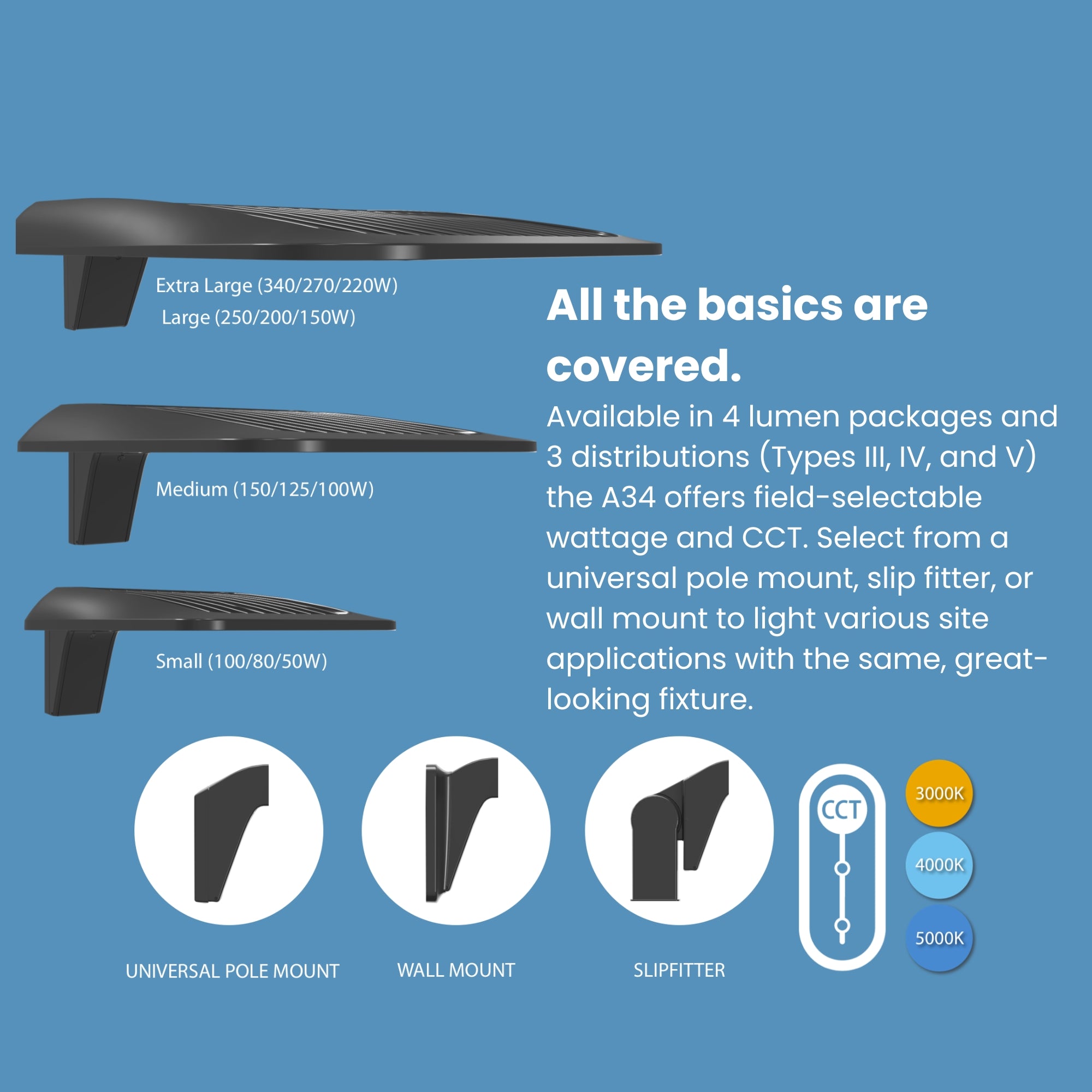

• Field-Adjustable Wattage: Choice of 100W, 125W, or 150W power settings
• Selectable CCT: Choice of 3000K, 4000K, or 5000K color temperatures
• Lumen Output: Maximum delivery of 24,510 lumens
• Optical Distribution: Type III IES classification for wide area and roadway coverage
• Integrated Photocell: Integrated photocell included with an on/off switch for automated control
• Universal Voltage: 120–277V commercial-grade driver

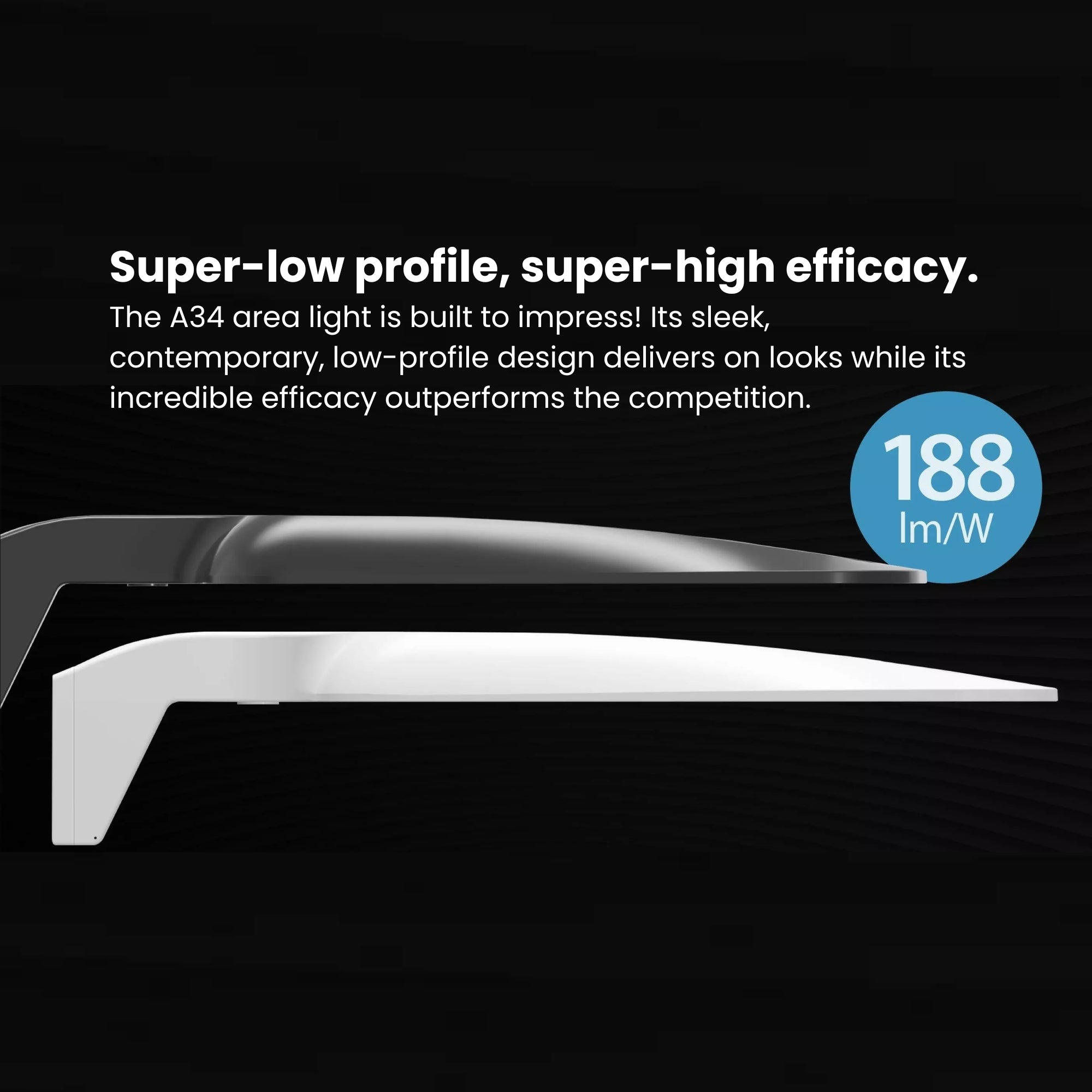

• High Efficiency: Efficacy up to 178.4 lm/W, qualified for DLC Premium rebates
• Vibration Rating: 3G vibration rating for stability in high-traffic environments
• Dimming: 0-10V dimmable down to 10%
• Operating Temperature: Cold-weather rated from -40°F (-40°C) to 104°F (40°C)

Typical Applications

• Commercial parking lots
• Municipal roadways and streets
• Campus walkways and building perimeters
• Industrial shipping yards and manufacturing sites
• Retail shopping centers and plazas
• Security perimeter lighting

Performance & Light Output

The A34T3M provides an expansive light output range from 15,856 to 24,510 lumens with an ultra-efficient efficacy reaching up to 178.4 lm/W. It maintains a CRI of 80+ for accurate color rendering and a long L70 lifespan of 100,000 hours based on IES testing. This medium-sized area light replaces up to 750W metal halide or 400W high-pressure sodium fixtures, utilizing a Type III distribution ideal for projecting light outward into large parking areas.

Electrical & Controls

The integrated constant current driver operates on a universal voltage of 120–277V at 50/60Hz and supports 0–10V dimming as standard. For surge protection, the unit is rated at 6kV for both line-to-line and line-to-ground protection. The fixture includes an integrated photocell with a manual on/off switch, allowing installers to enable dusk-to-dawn operation or bypass it for site-level control systems.

Construction & Durability

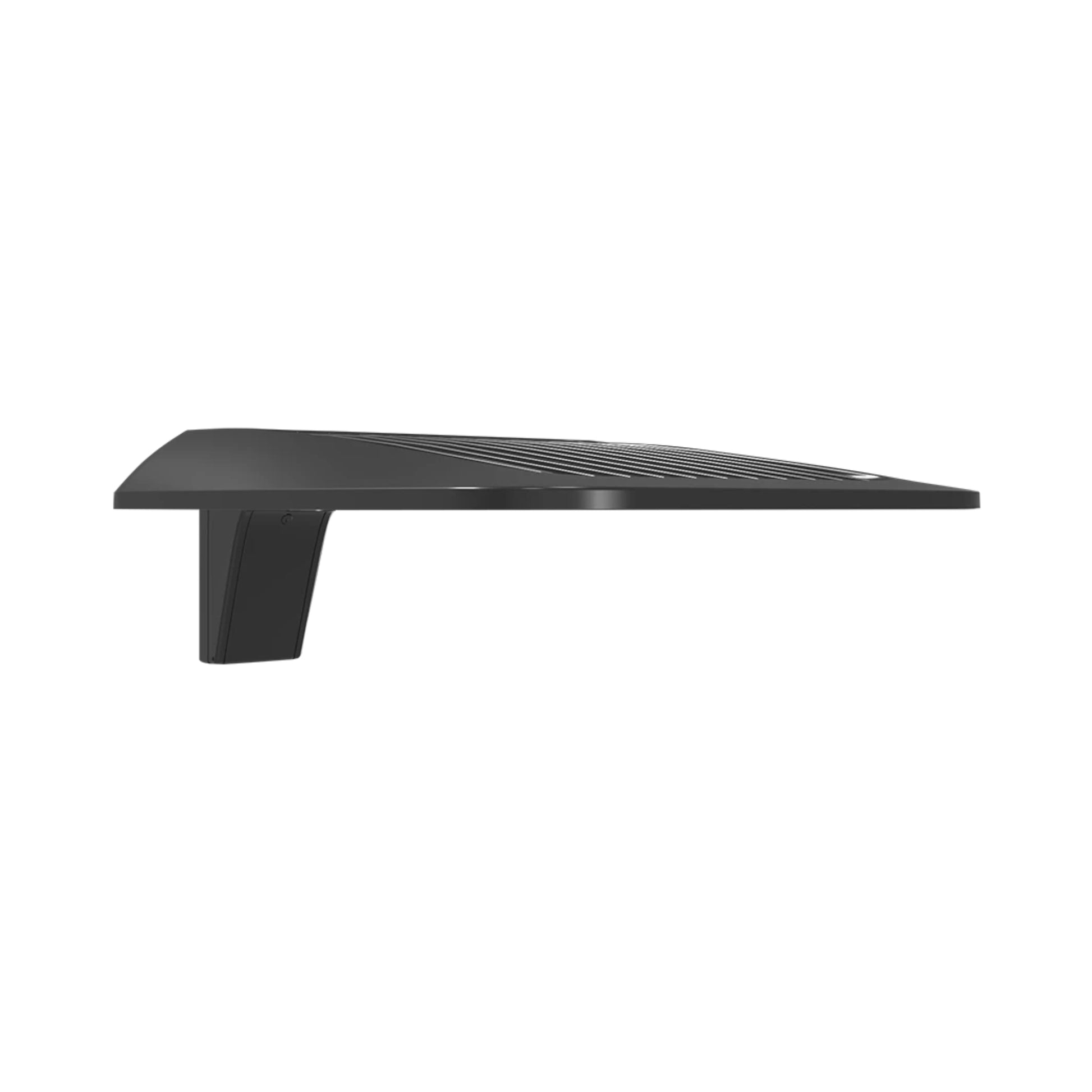

Constructed from durable die-cast aluminum, the A34T3M features a clear polycarbonate lens designed for high-impact protection. It carries an IP65 ingress protection rating and a 3G vibration rating, ensuring reliable performance in high-wind and high-traffic outdoor locations. The fixture's bronze finish is formulated for long-lasting color retention and high durability against environmental elements.

Installation & Mounting

This fixture includes a universal mounting arm compatible with existing hole spacing patterns from 1" to 5 1/2" center-to-center. A round pole adapter plate is included as standard to accommodate various pole shapes. The mounting system uses an easy slide-and-lock mechanism for streamlined installation, and the fixture has an Effective Projected Area (EPA) of 0.3.

What’s Included

• A34T3M LED Area Light
• Universal Pole Mounting Arm
• Round Pole Adapter Plate
• Integrated On/Off Photocell
