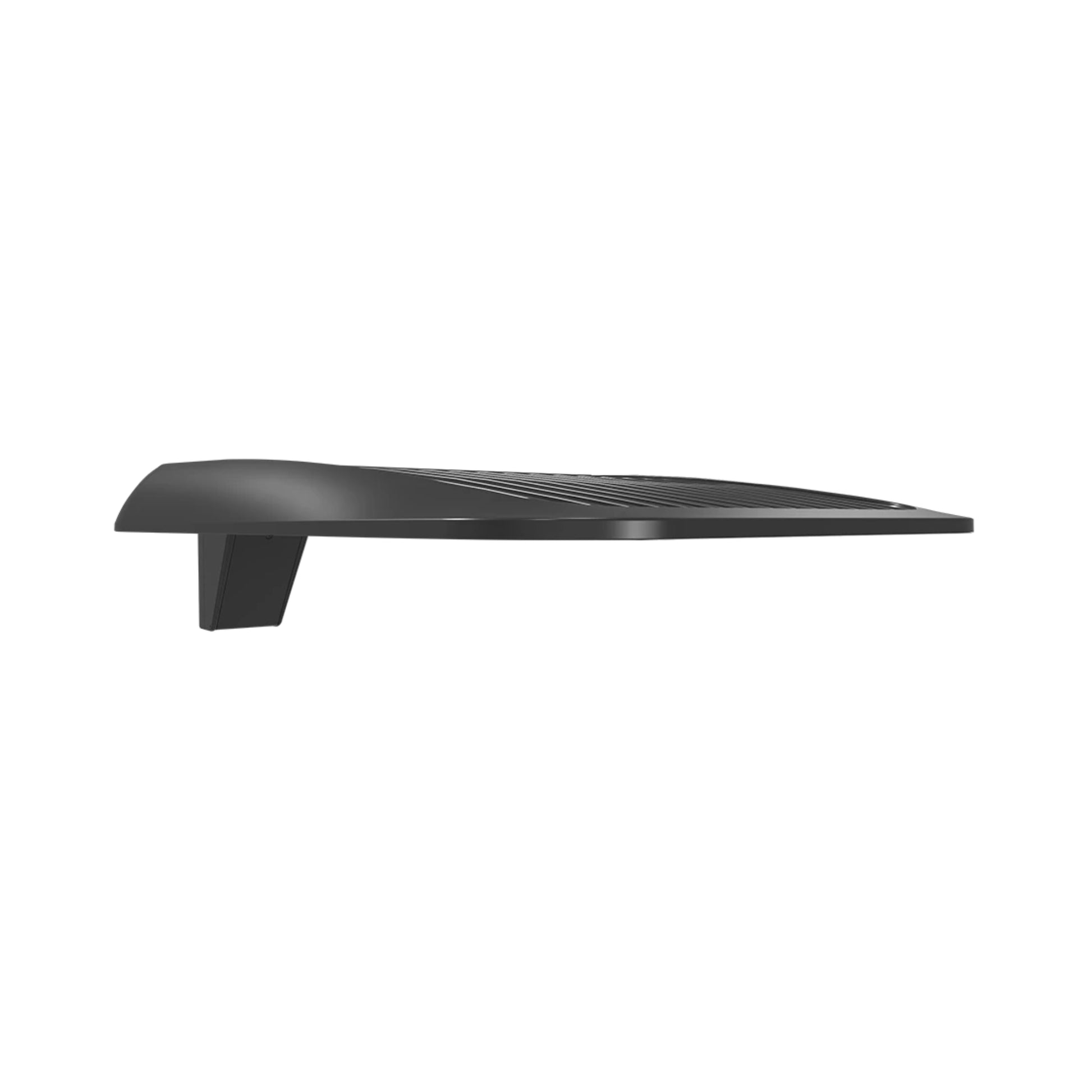

RAB A34T3L LED Area Light — 150W/200W/250W, 120-277V

The RAB A34T3L is a field-adjustable LED area light delivering up to 39,793 lumens with selectable wattage and selectable CCT. Operating on 120-277V, the fixture is rated IP65 and DLC Premium for high-efficiency commercial and industrial applications. This high-output fixture is optimized for large parking lots and roadway lighting, utilizing a Type III distribution to project a wide, uniform light pattern from the perimeter of a site.

Key Features

• Field-Adjustable Wattage: Choice of 150W, 200W, or 250W power settings
• Selectable CCT: Choice of 3000K, 4000K, or 5000K color temperatures
• Lumen Output: Maximum delivery of 39,793 lumens
• Optical Distribution: Type III IES classification for wide area and roadway coverage
• Integrated Photocell: Integrated photocell included with an on/off switch for automated control
• Universal Voltage: 120–277V commercial-grade driver
• High Efficiency: Efficacy up to 169.8 lm/W, qualified for DLC Premium rebates
• Vibration Rating: 3G vibration rating for stability in high-traffic environments
• Dimming: 0-10V dimmable down to 10%
• Operating Temperature: Cold-weather rated from -40°F (-40°C) to 104°F (40°C)

Typical Applications

• Regional shopping center parking lots
• Municipal roadway and street lighting
• Large-scale campus perimeters and walkways
• Industrial shipping hubs and logistics yards
• Automotive dealerships and outdoor showrooms
• High-security perimeter illumination

Performance & Light Output

The A34T3L provides an expansive light output range from 23,969 to 39,793 lumens with an ultra-efficient efficacy reaching up to 169.8 lm/W. It maintains a CRI of 80+ for accurate color rendering and a long L70 lifespan of 100,000 hours based on IES testing. This large-scale area light effectively replaces up to 1000W metal halide fixtures, utilizing a Type III distribution ideal for projecting light outward into expansive parking areas from pole positions.

Electrical & Controls

The integrated constant current driver operates on a universal voltage of 120–277V at 50/60Hz and supports 0–10V dimming as standard. For surge protection, the unit is rated at 6kV for both line-to-line and line-to-ground protection to ensure reliability against electrical spikes. The fixture includes an integrated photocell with a manual on/off switch, allowing installers to enable dusk-to-dawn operation or bypass it for site-level control systems.

Construction & Durability

Constructed from durable die-cast aluminum, the A34T3L features a clear polycarbonate lens designed for high-impact protection. It carries an IP65 ingress protection rating and a 3G vibration rating, ensuring reliable performance in high-wind and high-traffic outdoor locations. The fixture's bronze finish is formulated for long-lasting color retention and high durability against environmental elements.

Installation & Mounting

This fixture includes a universal mounting arm compatible with existing hole spacing patterns from 1" to 5 1/2" center-to-center. A round pole adapter plate is included as standard to accommodate various pole shapes. The mounting system uses an easy slide-and-lock mechanism for streamlined installation, and the fixture has an Effective Projected Area (EPA) of 0.4.

What’s Included

• A34T3L LED Area Light
• Universal Pole Mounting Arm
• Round Pole Adapter Plate
• Integrated On/Off Photocell
