RAB RA6R119FA120BS 6 in Round Gimbal Retrofit Downlight 11W Selectable CCT Black
Available in stock (100)
About this item
About this item
- 6 in Round Gimbal Retrofit Trim — Black: Spun aluminum; regressed adjustable gimbal lens with 35° tilt and 360° rotation; housing required — compatible with most standard 6 in recessed housings
- 1,100 lm at 100 lm/W: 11W, 100W incandescent equivalent; default CCT 3000K
- Field-Selectable CCT: Dipswitch-adjustable 2700K–5000K — 5 color temperatures in 1 SKU; 90 CRI, R9 > 50; <4-step MacAdam Ellipse
- TRIAC/ELV Dimmable to 10%: Wet location rated; IC rating depends on housing used; not airtight
- ENERGY STAR, Title 20 & Title 24 JA8: NEC closet compliant; 50,000 hrs L70; 5-year no-compromise warranty
We process payments securely and do not store credit card information.
Description
Description

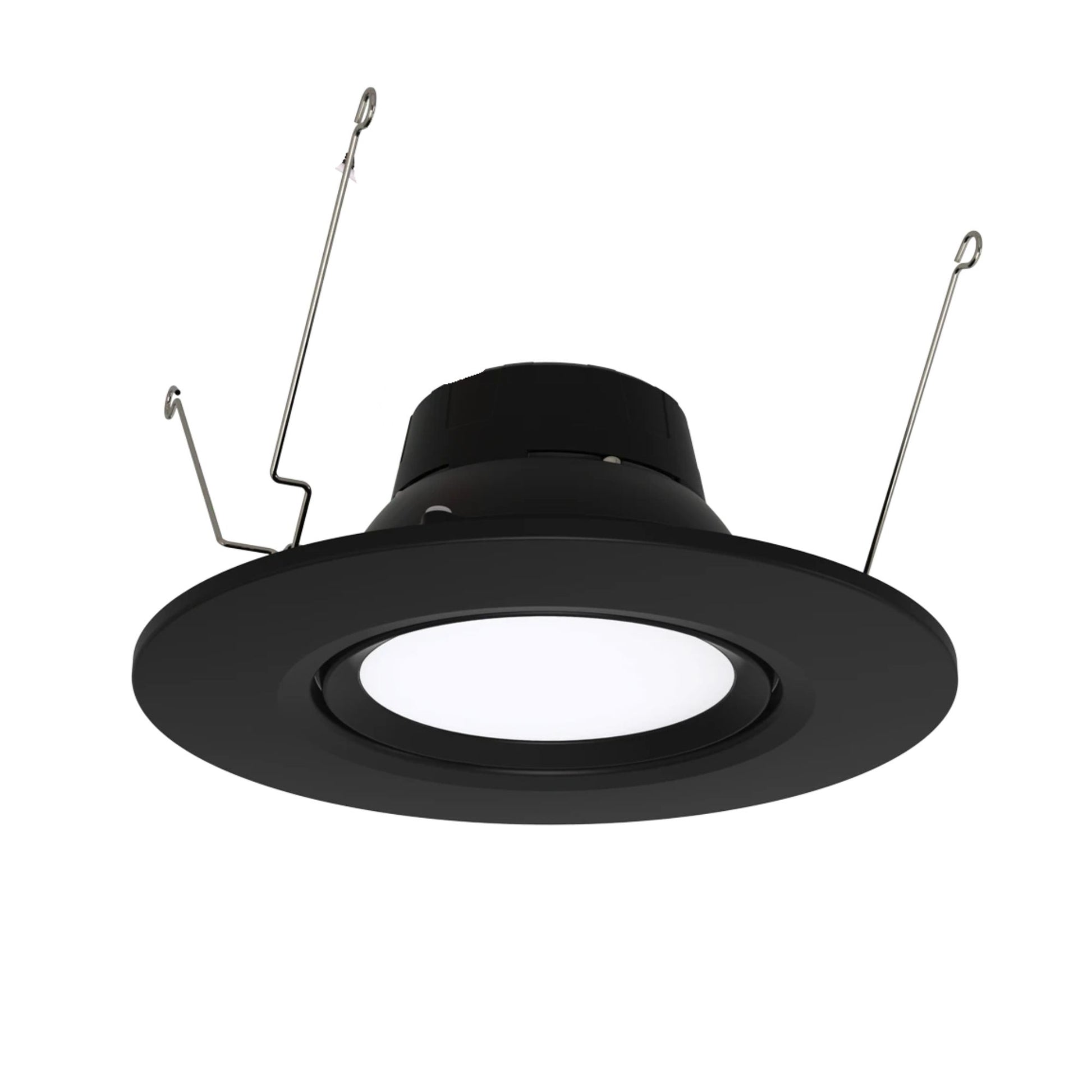

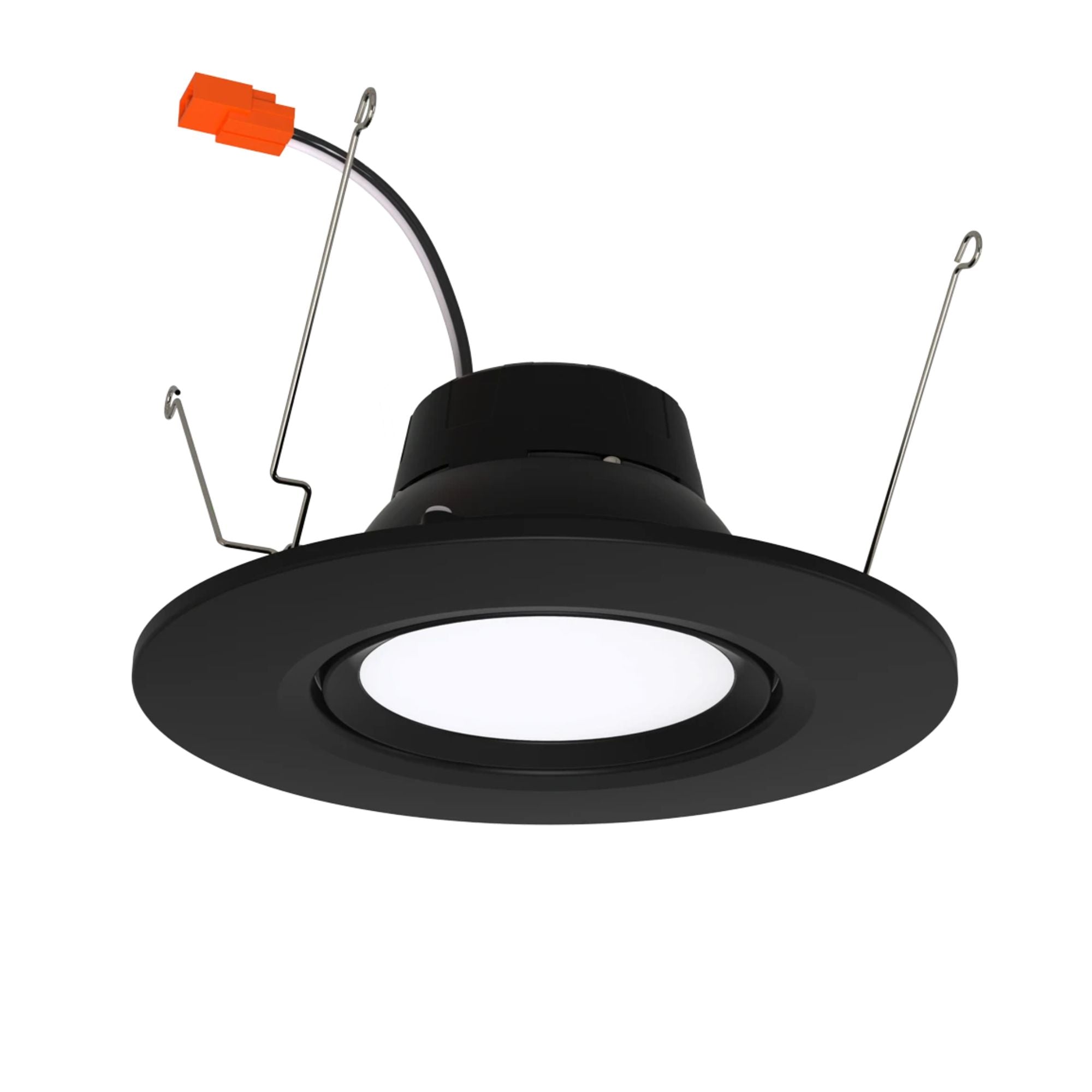

RAB RA6R119FA120BS 6 in Round Gimbal Retrofit Downlight — 11W / Selectable CCT / 120V / Black
The RAB RA6R119FA120BS is a 6 in round gimbal retrofit downlight trim in black, delivering 1,100 lumens at 11W and 100 lm/W. Features a regressed adjustable gimbal lens with 35° tilt and 360° rotation for precise directional aiming. Compatible with most standard 6 in recessed housings — housing required. CCT is field-selectable 2700K–5000K via dipswitch (default: 3000K) with TRIAC/ELV dimming at 120V.
Key Features

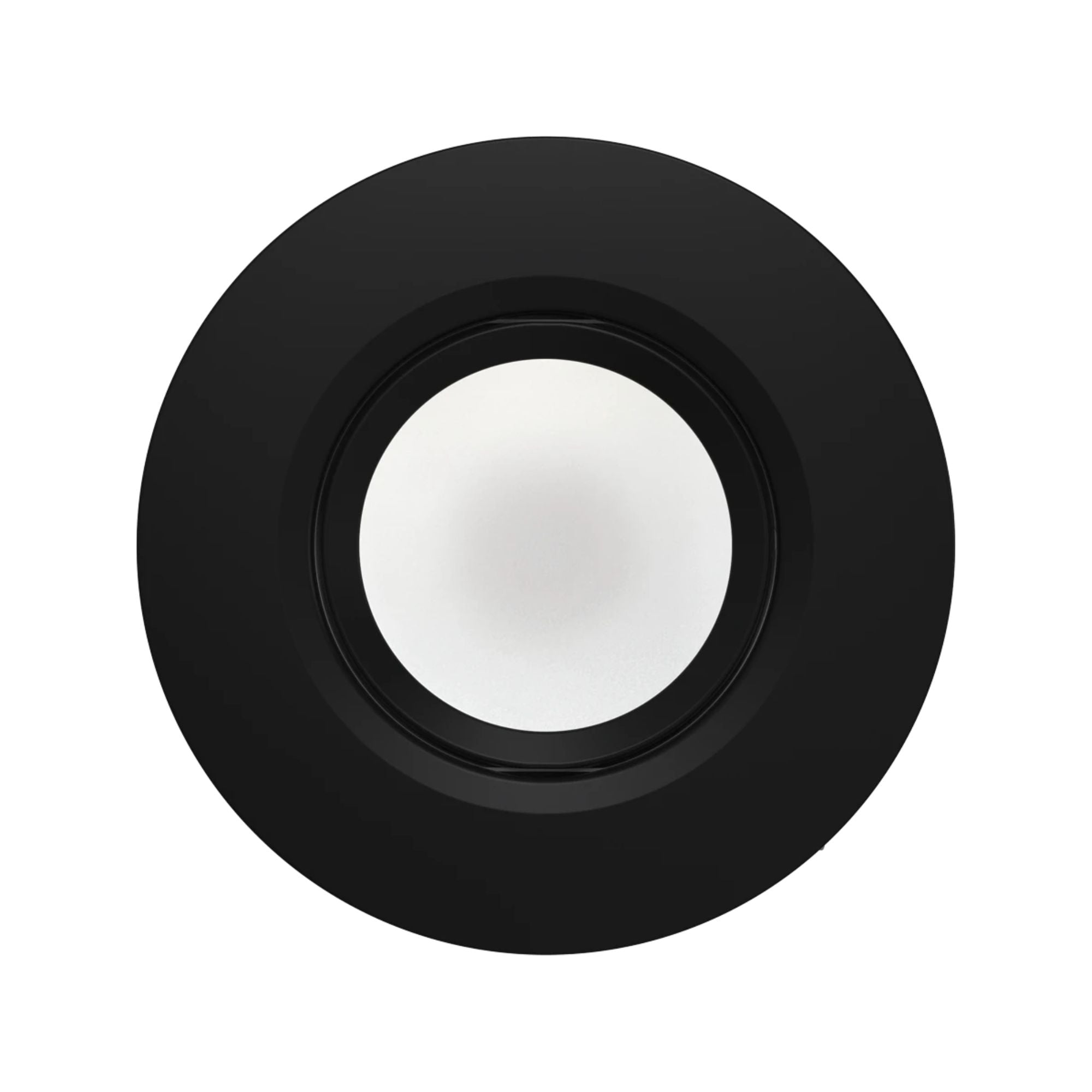

- 6 in Round Gimbal Retrofit Trim — Black: Spun aluminum construction; smooth splay trim; frosted regressed gimbal lens

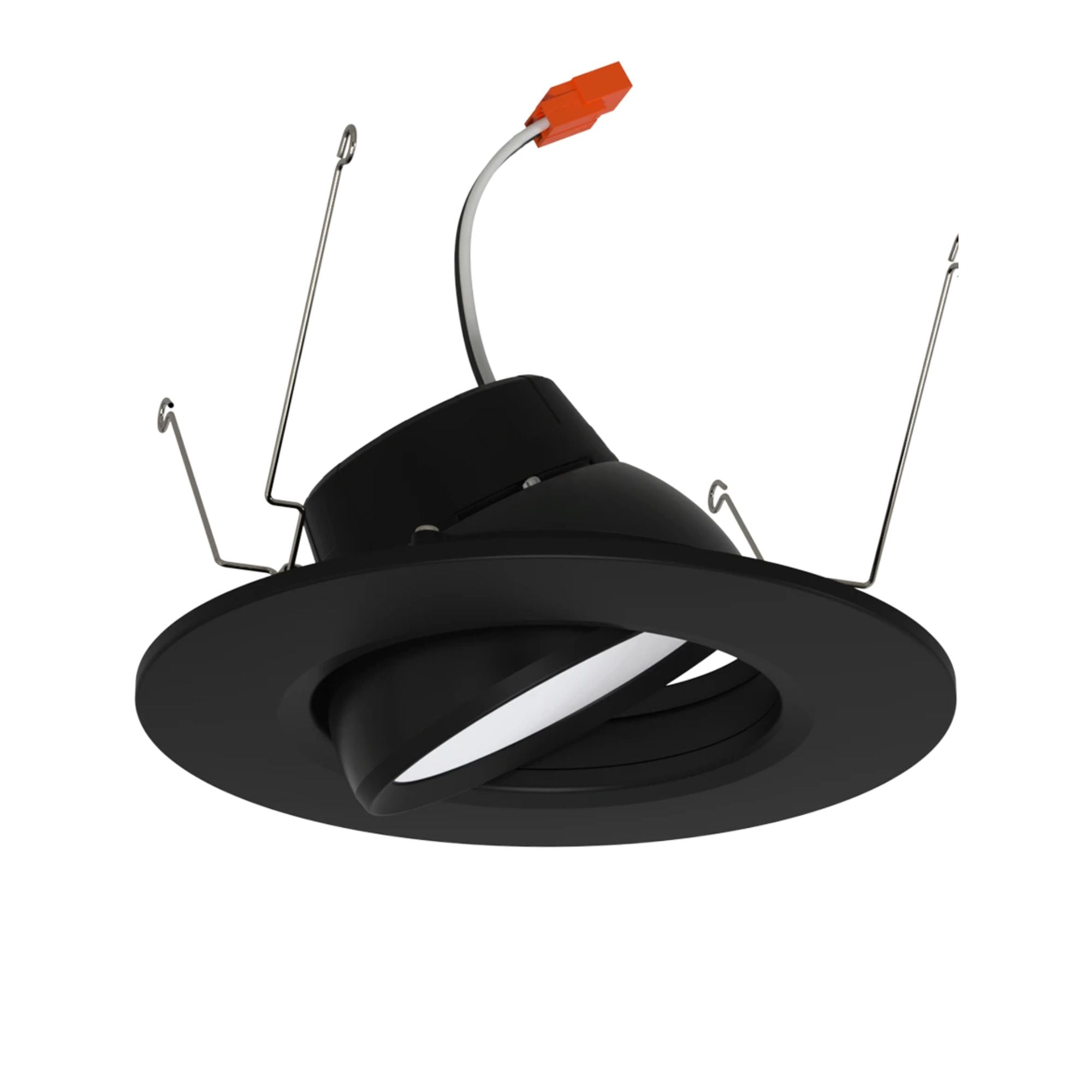

- 35° Tilt / 360° Rotation: Adjustable gimbal for precise accent and task lighting direction
- Housing Required: Compatible with most standard 6 in recessed housings; IC rating depends on housing used
- Field-Selectable CCT: Dip-switch adjustable between 2700K, 3000K, 3500K, 4000K, and 5000K (default: 3000K); 5 CCTs in 1 SKU
- Lumen Output: 1,127 lm (2700K) | 1,163 lm (3000K) | 1,213 lm (3500K) | 1,236 lm (4000K) | 1,227 lm (5000K)
- Wattage: 11W | 100W incandescent equivalent | 1,100 lm nominal | 100 lm/W
- CRI: 90+, R9 > 50 | <4-step MacAdam Ellipse consistency
- Dimming: TRIAC/ELV dimmable to 10% at 120V
- Voltage: 120V | 100mA
- Not Airtight | Wet location rated

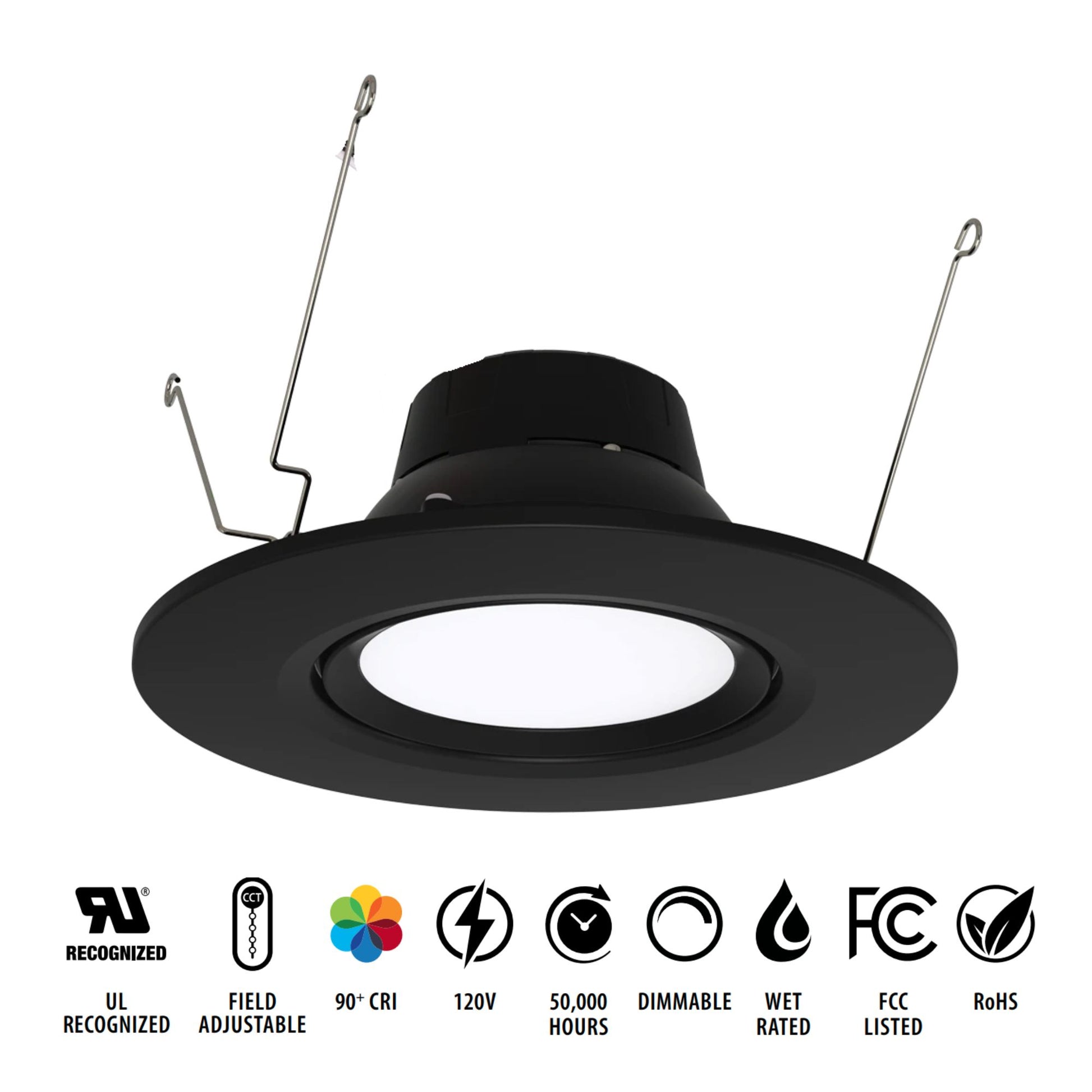

- Certifications: UL Listed, UL Recognized | ENERGY STAR, Title 20, Title 24 JA8, RoHS, FCC Part 15 | NEC closet compliant Sec. 410.16 (A)(1) & (C3)
- Color Stability: Color temperature warranted to shift no more than 200K over 5 years
- Lifespan: 50,000 hours | Warranty: 5-year no-compromise warranty
Construction & Design
Spun aluminum housing with black smooth splay trim. Frosted polycarbonate lens on a regressed adjustable gimbal with 35° tilt and 360° rotation. Not airtight. Wet location rated. IC rating depends on recessed housing used.
Light Output & Performance
1,100 lm nominal at 100 lm/W. Per-CCT: 1,127 lm (2700K), 1,163 lm (3000K), 1,213 lm (3500K), 1,236 lm (4000K), 1,227 lm (5000K). 90 CRI, R9 > 50. <4-step MacAdam Ellipse. Color temperature warranted to shift no more than 200K over 5 years. Flicker ≤30%.
Electrical & Installation

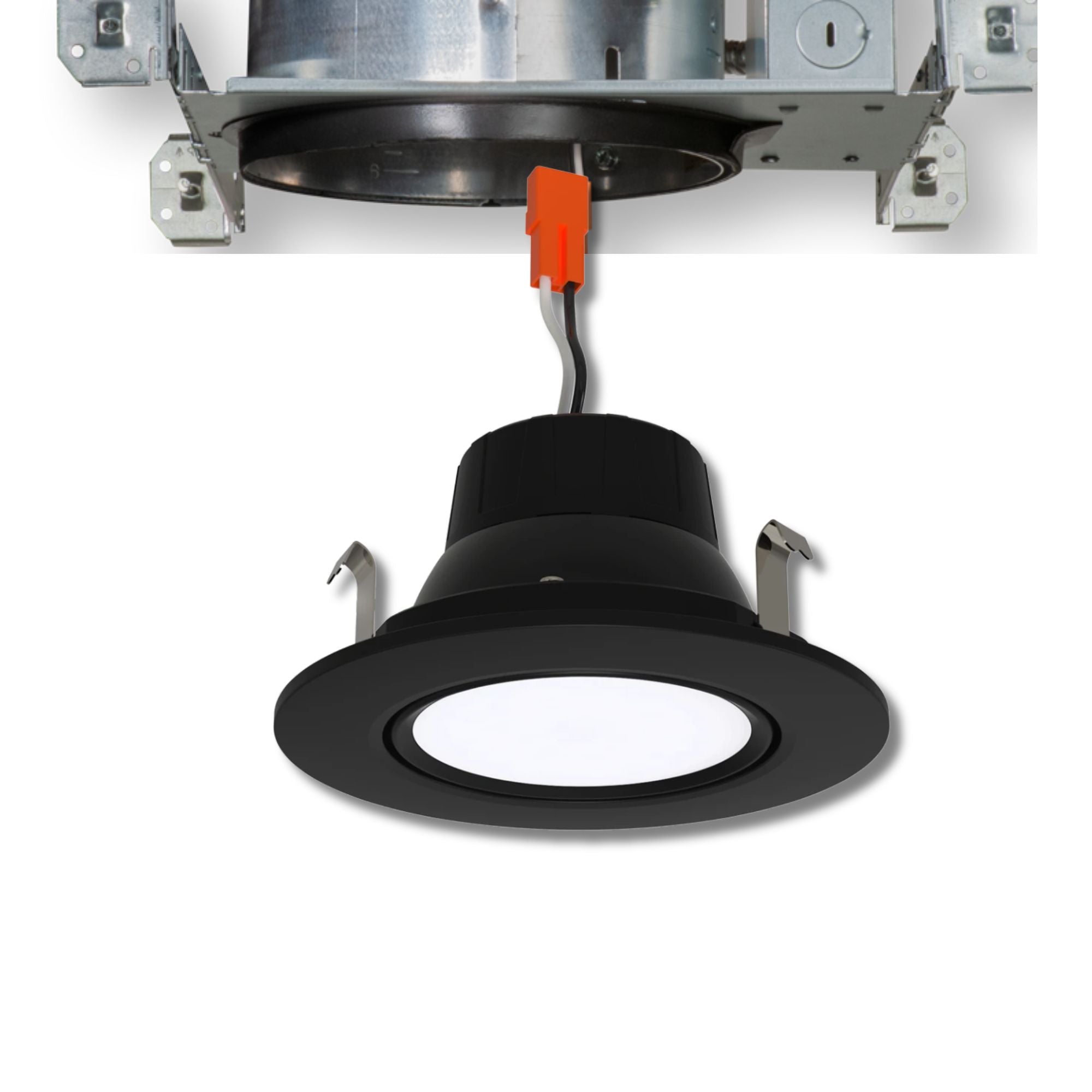

120V Constant Current driver (100mA). TRIAC/ELV dimmable to 10%. Installs into existing standard 6 in recessed housing — compatible with most housings; housing required. THD ≤20%, PF ≥0.9. Operating temp: -4°F to 104°F (-20°C to 40°C).
Compatible Accessories (sold separately)
- NDCANIC6R — 6 in new construction housing
- RDCANIC6R — 6 in retrofit housing
What’s Included

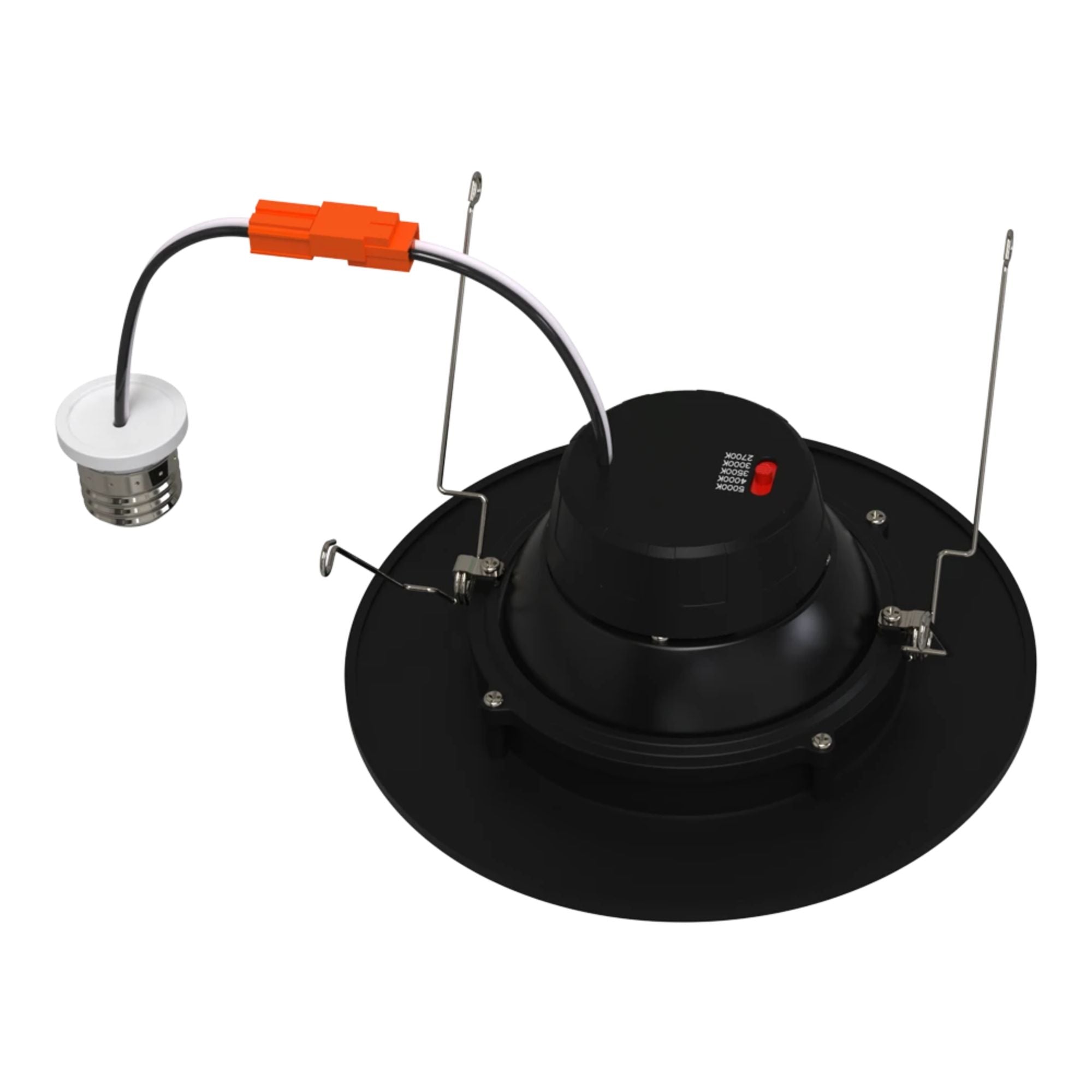

- RAB RA6R119FA120BS 6 in round gimbal retrofit downlight trim (black)
- E26 Edison socket adapter
Typical Applications
- Accent and wall-wash lighting in living rooms, dining rooms, and galleries
- Task lighting in kitchens and home offices
- Retail and hospitality accent lighting
- Residential retrofit upgrades replacing existing 6 in gimbal or fixed downlights
- Wet, damp, and dry interior and covered outdoor environments
