RAB RA6R109FA120WS 6 in Round Gimbal Retrofit Downlight 10W Selectable CCT White
Available in stock (97)
About this item
About this item
- 6 in Round Gimbal Retrofit Trim — White: Spun aluminum; regressed adjustable gimbal lens with 35° tilt and 360° rotation; housing required — compatible with most standard 6 in recessed housings
- 900 lm at 90 lm/W: 10W, 75W incandescent equivalent; default CCT 3000K
- Field-Selectable CCT: Dipswitch-adjustable 2700K–5000K — 5 color temperatures in 1 SKU; 90 CRI, R9 > 50; <4-step MacAdam Ellipse
- TRIAC/ELV Dimmable to 10%: Wet location rated; IC rating depends on housing used; not airtight
- ENERGY STAR, Title 20 & Title 24 JA8: NEC closet compliant; 50,000 hrs L70; 5-year no-compromise warranty
We process payments securely and do not store credit card information.
Description
Description
RAB RA6R109FA120WS 6 in Round Gimbal Retrofit Downlight — 10W / Selectable CCT / 120V / White
The RAB RA6R109FA120WS is a 6 in round gimbal retrofit downlight trim in white, delivering 900 lumens at 10W and 90 lm/W. Features a regressed adjustable gimbal lens with 35° tilt and 360° rotation for precise directional aiming. Compatible with most standard 6 in recessed housings — housing required. CCT is field-selectable 2700K–5000K via dipswitch (default: 3000K) with TRIAC/ELV dimming at 120V.
Key Features
- 6 in Round Gimbal Retrofit Trim — White: Spun aluminum construction; smooth splay trim; frosted regressed gimbal lens
- 35° Tilt / 360° Rotation: Adjustable gimbal for precise accent and task lighting direction
- Housing Required: Compatible with most standard 6 in recessed housings; IC rating depends on housing used

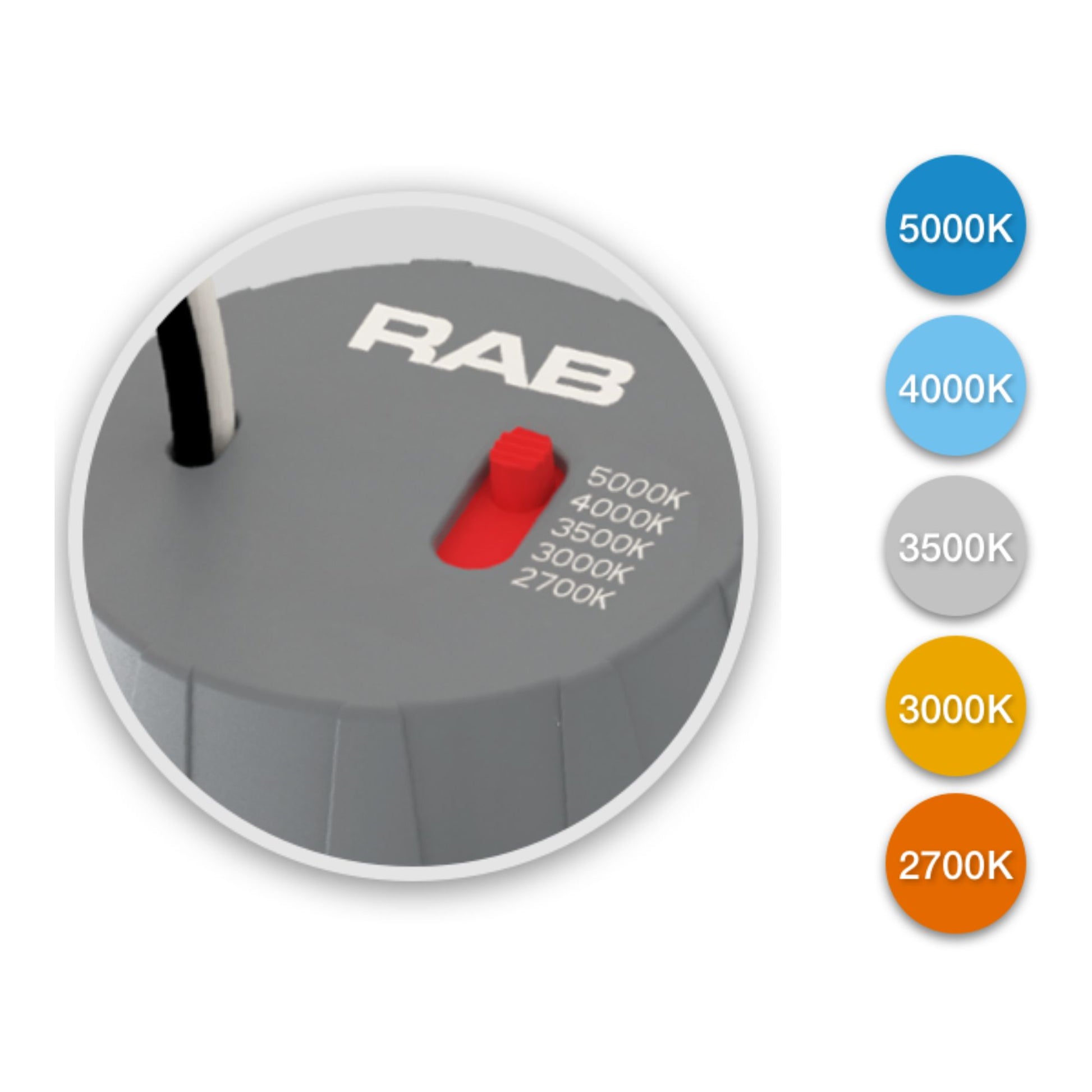

- Field-Selectable CCT: Dip-switch adjustable between 2700K, 3000K, 3500K, 4000K, and 5000K (default: 3000K); 5 CCTs in 1 SKU
- Lumen Output: 921 lm (2700K) | 938 lm (3000K) | 956 lm (3500K) | 967 lm (4000K) | 979 lm (5000K)
- Wattage: 10W | 75W incandescent equivalent | 900 lm nominal | 90 lm/W
- CRI: 90+, R9 > 50 | <4-step MacAdam Ellipse consistency
- Dimming: TRIAC/ELV dimmable to 10% at 120V
- Voltage: 120V | 80mA
- Not Airtight | Wet location rated
- Certifications: UL Classified, UL Recognized | ENERGY STAR, Title 20, Title 24 JA8, RoHS, FCC Part 15 | NEC closet compliant Sec. 410.16 (A)(1) & (C3)
- Color Stability: Color temperature warranted to shift no more than 200K over 5 years
- Lifespan: 50,000 hours | Warranty: 5-year no-compromise warranty
Construction & Design
Spun aluminum housing with white smooth splay trim. Frosted polycarbonate lens on a regressed adjustable gimbal with 35° tilt and 360° rotation. Not airtight. Wet location rated. IC rating depends on recessed housing used. Weight: 0.6 lbs.
Light Output & Performance
900 lm nominal at 90 lm/W. Per-CCT: 921 lm (2700K), 938 lm (3000K), 956 lm (3500K), 967 lm (4000K), 979 lm (5000K). 90 CRI, R9 > 50. <4-step MacAdam Ellipse. Color temperature warranted to shift no more than 200K over 5 years. Flicker ≤30%.
Electrical & Installation
120V Constant Current driver (80mA). TRIAC/ELV dimmable to 10%. Installs into existing standard 6 in recessed housing — compatible with most housings; housing required. THD ≤20%, PF ≥0.9. Operating temp: -22°F to 104°F (-30°C to 40°C).
Compatible Accessories (sold separately)
- NDCANIC6R — 6 in new construction housing
- RDCANIC6R — 6 in retrofit housing
What’s Included
- RAB RA6R109FA120WS 6 in round gimbal retrofit downlight trim (white)
- E26 Edison socket adapter
Typical Applications
- Accent and wall-wash lighting in living rooms, dining rooms, and galleries
- Task lighting in kitchens and home offices
- Retail and hospitality accent lighting
- Residential retrofit upgrades replacing existing 6 in gimbal or fixed downlights
- Wet, damp, and dry interior and covered outdoor environments
Specifications
Specifications
Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
