RAB RA4R89FA120WS 4 in Round Gimbal Retrofit Downlight 8W Selectable CCT White
Available in stock (100)
About this item
About this item
- 4 in Round Gimbal Retrofit Trim — White: Spun aluminum; regressed adjustable gimbal lens with 35° tilt and 360° rotation; housing required — compatible with most standard 4 in recessed housings
- 800 lm at 100 lm/W: 8W, 65W incandescent equivalent; default CCT 3000K
- Field-Selectable CCT: Dipswitch-adjustable 2700K–5000K — 5 color temperatures in 1 SKU; 90 CRI, R9 > 50; <4-step MacAdam Ellipse
- TRIAC/ELV Dimmable to 10%: Wet location rated; IC rating depends on housing used; not airtight
- ENERGY STAR, Title 20 & Title 24 JA8: NEC closet compliant; 50,000 hrs L70; 5-year no-compromise warranty
We process payments securely and do not store credit card information.
Description
Description
RAB RA4R89FA120WS 4 in Round Gimbal Retrofit Downlight — 8W / Selectable CCT / 120V / White

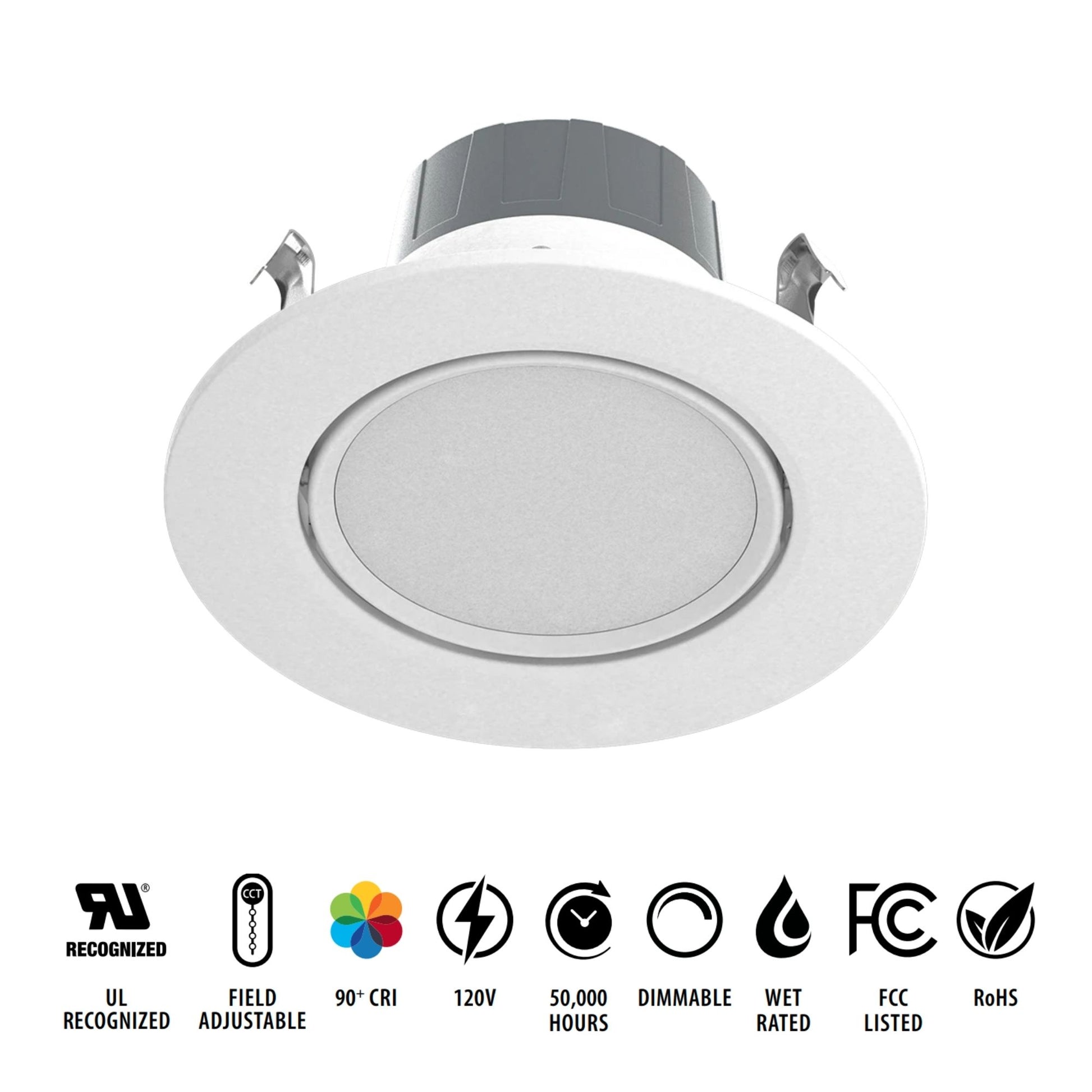

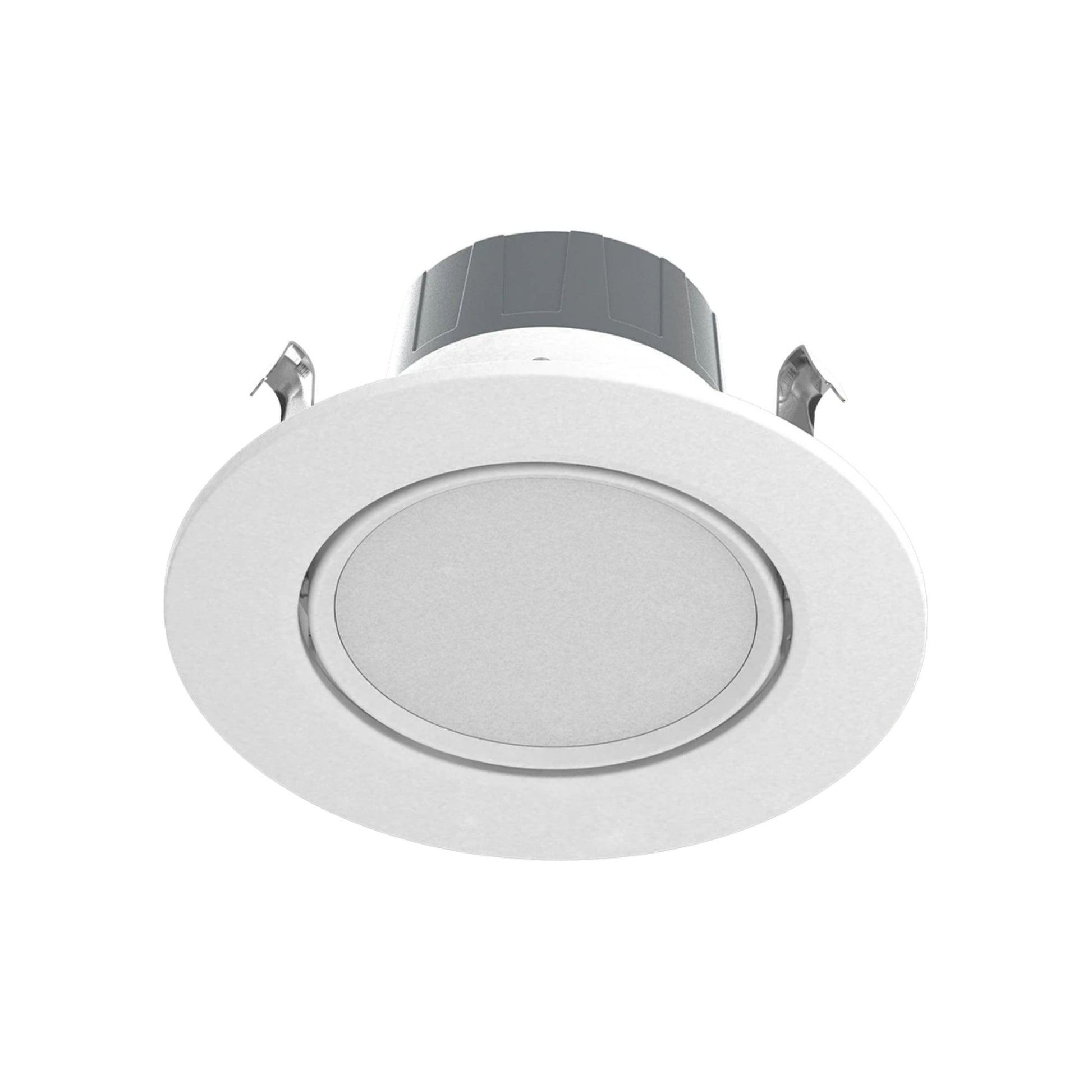

The RAB RA4R89FA120WS is a 4 in round gimbal retrofit downlight trim in white, delivering 800 lumens at 8W and 100 lm/W. Features a regressed adjustable gimbal lens with 35° tilt and 360° rotation for precise directional aiming. Compatible with most standard 4 in recessed housings — housing required. CCT is field-selectable 2700K–5000K via dipswitch (default: 3000K) with TRIAC/ELV dimming at 120V.
Key Features
- 4 in Round Gimbal Retrofit Trim — White: Spun aluminum construction; smooth splay trim; frosted regressed gimbal lens
- 35° Tilt / 360° Rotation: Adjustable gimbal for precise accent and task lighting direction
- Housing Required: Compatible with most standard 4 in recessed housings; IC rating depends on housing used

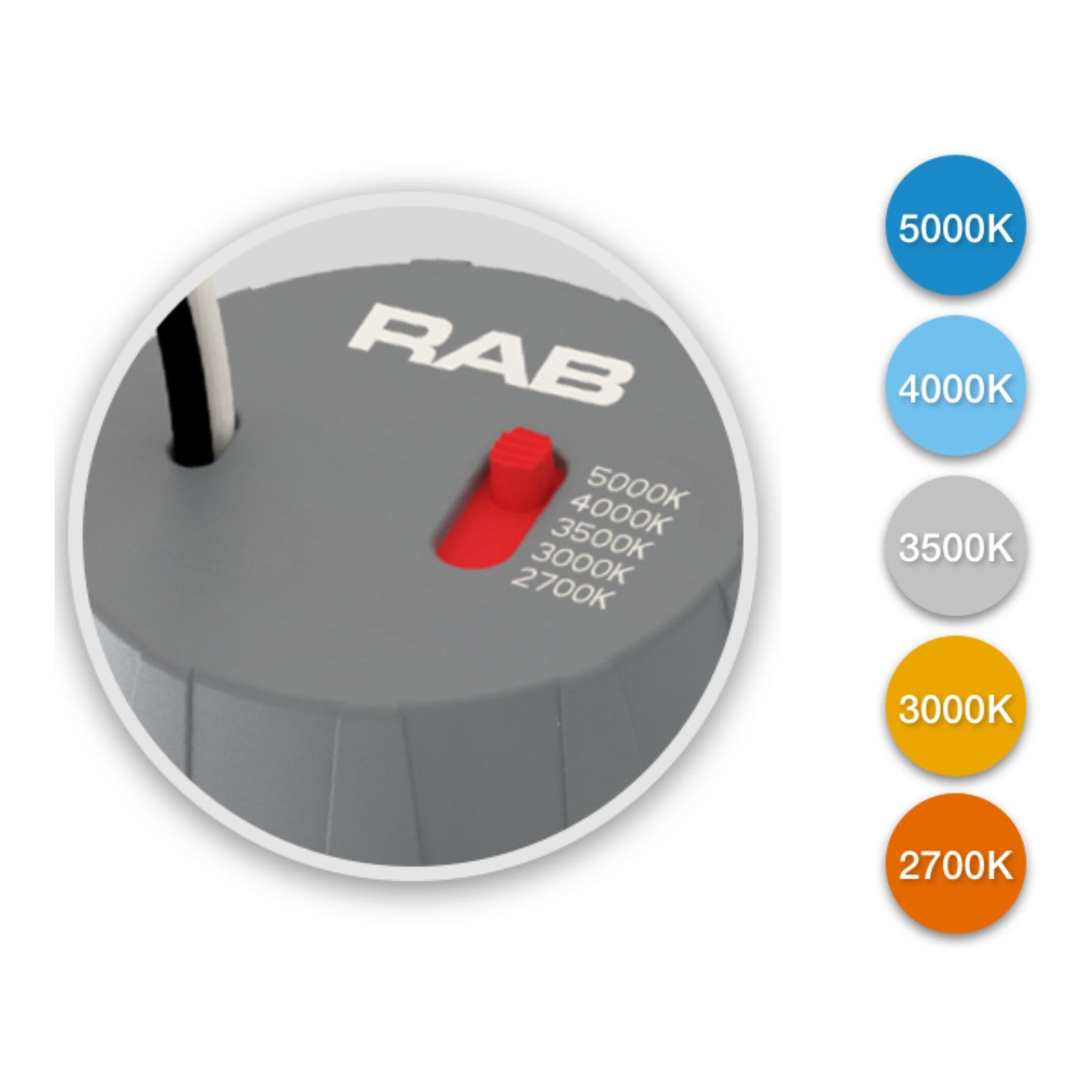

- Field-Selectable CCT: Dip-switch adjustable between 2700K, 3000K, 3500K, 4000K, and 5000K (default: 3000K); 5 CCTs in 1 SKU
- Lumen Output: 804 lm (2700K) | 840 lm (3000K) | 883 lm (3500K) | 894 lm (4000K) | 873 lm (5000K)
- Wattage: 8W | 65W incandescent equivalent | 800 lm nominal | 100 lm/W
- CRI: 90+, R9 > 50 | <4-step MacAdam Ellipse consistency
- Dimming: TRIAC/ELV dimmable to 10% at 120V
- Voltage: 120V | 65mA
- Not Airtight | Wet location rated
- Certifications: UL Classified, UL Recognized | ENERGY STAR, Title 20, Title 24 JA8, RoHS, FCC Part 15 | NEC closet compliant Sec. 410.16 (A)(1) & (C3)
- Color Stability: Color temperature warranted to shift no more than 200K over 5 years
- Lifespan: 50,000 hours | Warranty: 5-year no-compromise warranty
Construction & Design
Spun aluminum housing with white smooth splay trim. Frosted polycarbonate lens on a regressed adjustable gimbal with 35° tilt and 360° rotation. Not airtight. Wet location rated. IC rating depends on recessed housing used.
Light Output & Performance
800 lm nominal at 100 lm/W. Per-CCT: 804 lm (2700K), 840 lm (3000K), 883 lm (3500K), 894 lm (4000K), 873 lm (5000K). 90 CRI, R9 > 50. <4-step MacAdam Ellipse. Color temperature warranted to shift no more than 200K over 5 years. Flicker ≤30%.

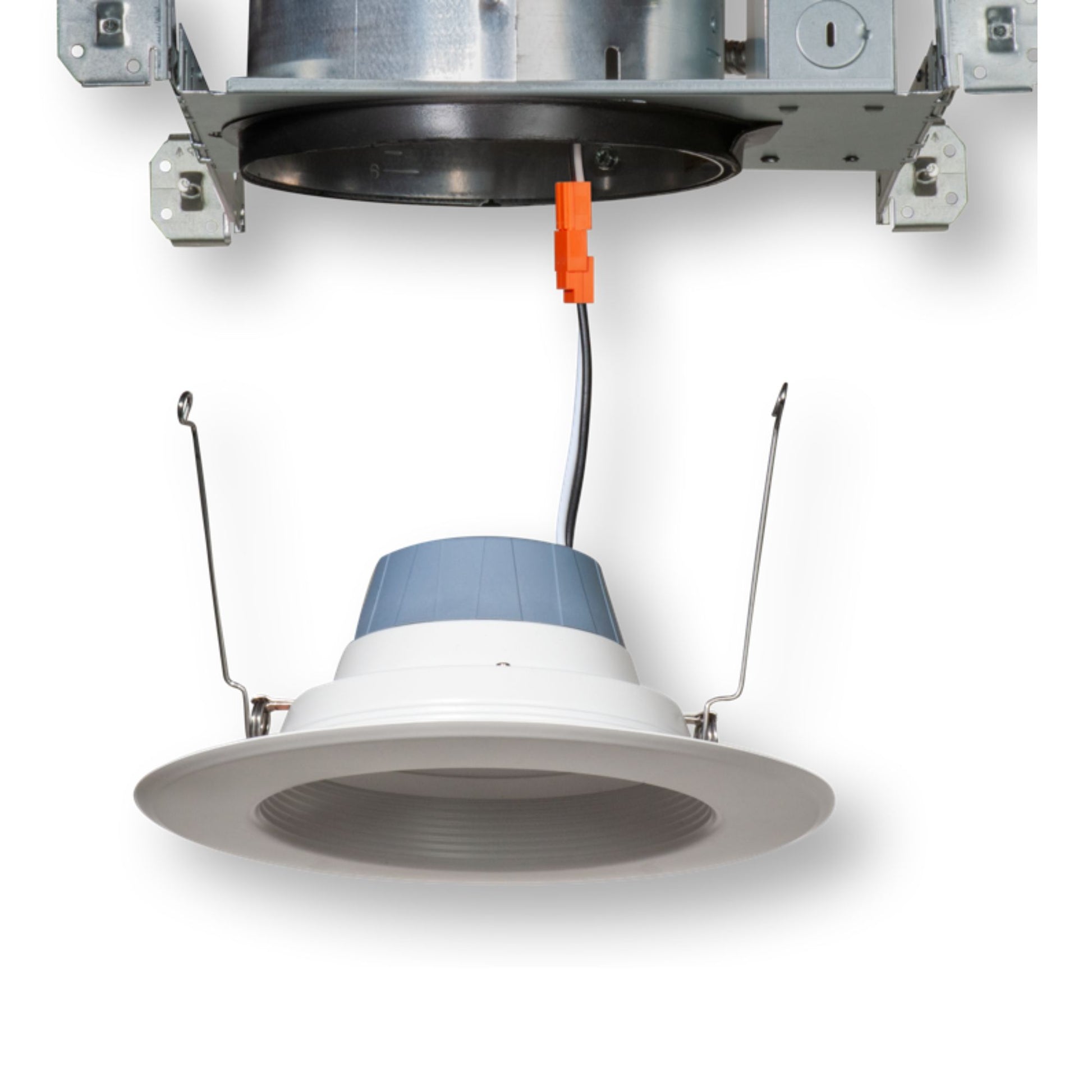

Electrical & Installation
120V Constant Current driver (65mA). TRIAC/ELV dimmable to 10%. Installs into existing standard 4 in recessed housing — compatible with most housings; housing required. THD ≤20%, PF ≥0.9. Operating temp: -22°F to 104°F (-30°C to 40°C).
Compatible Accessories (sold separately)
- NDCANIC4R — 4 in new construction housing
- RDCANIC4R — 4 in retrofit housing
What’s Included
- RAB RA4R89FA120WS 4 in round gimbal retrofit downlight trim (white)
- E26 Edison socket adapter
Typical Applications
- Accent and wall-wash lighting in living rooms, dining rooms, and galleries
- Task lighting in kitchens and home offices
- Retail and hospitality accent lighting
- Residential retrofit upgrades replacing existing 4 in gimbal or fixed downlights
- Wet, damp, and dry interior and covered outdoor environments
Specifications
Specifications

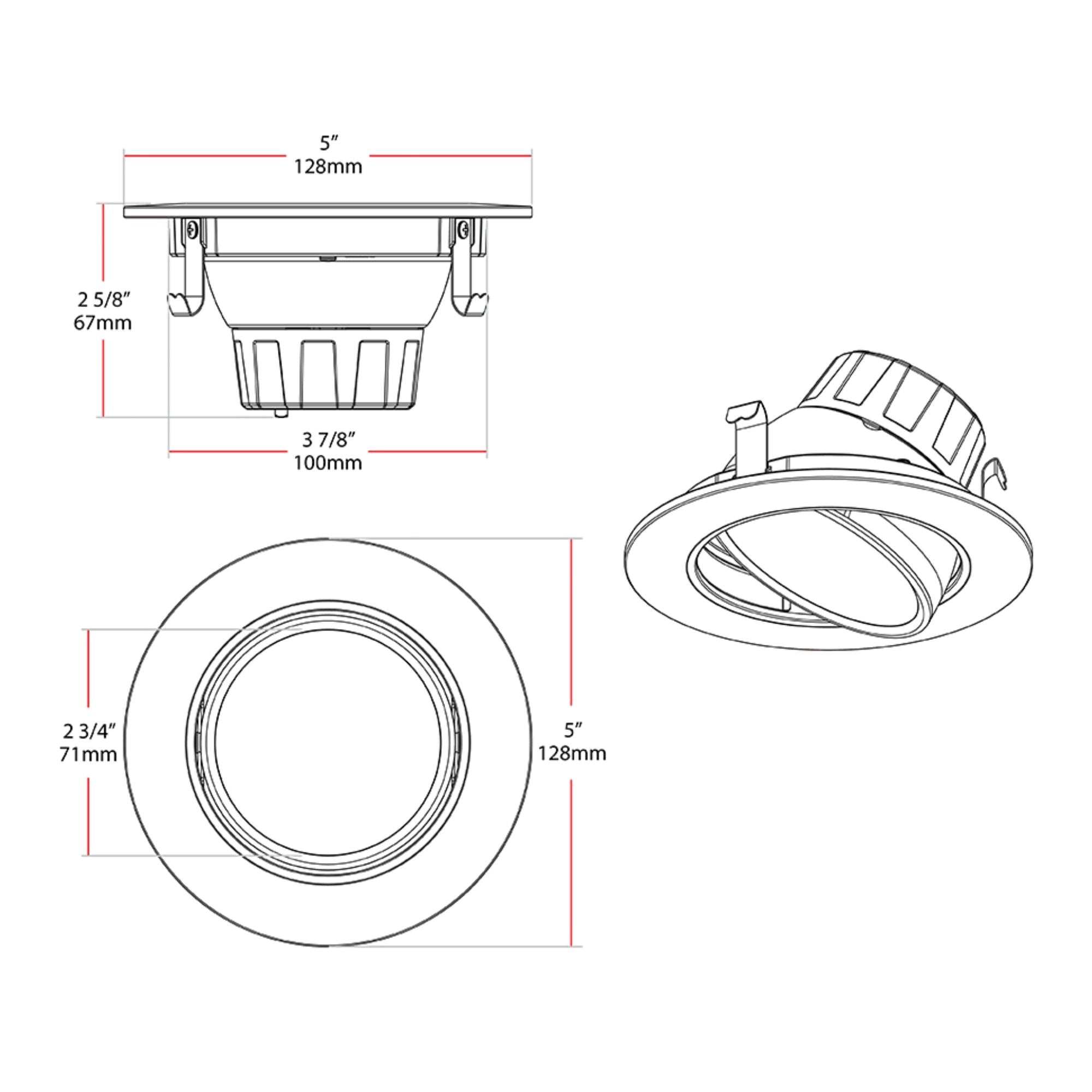

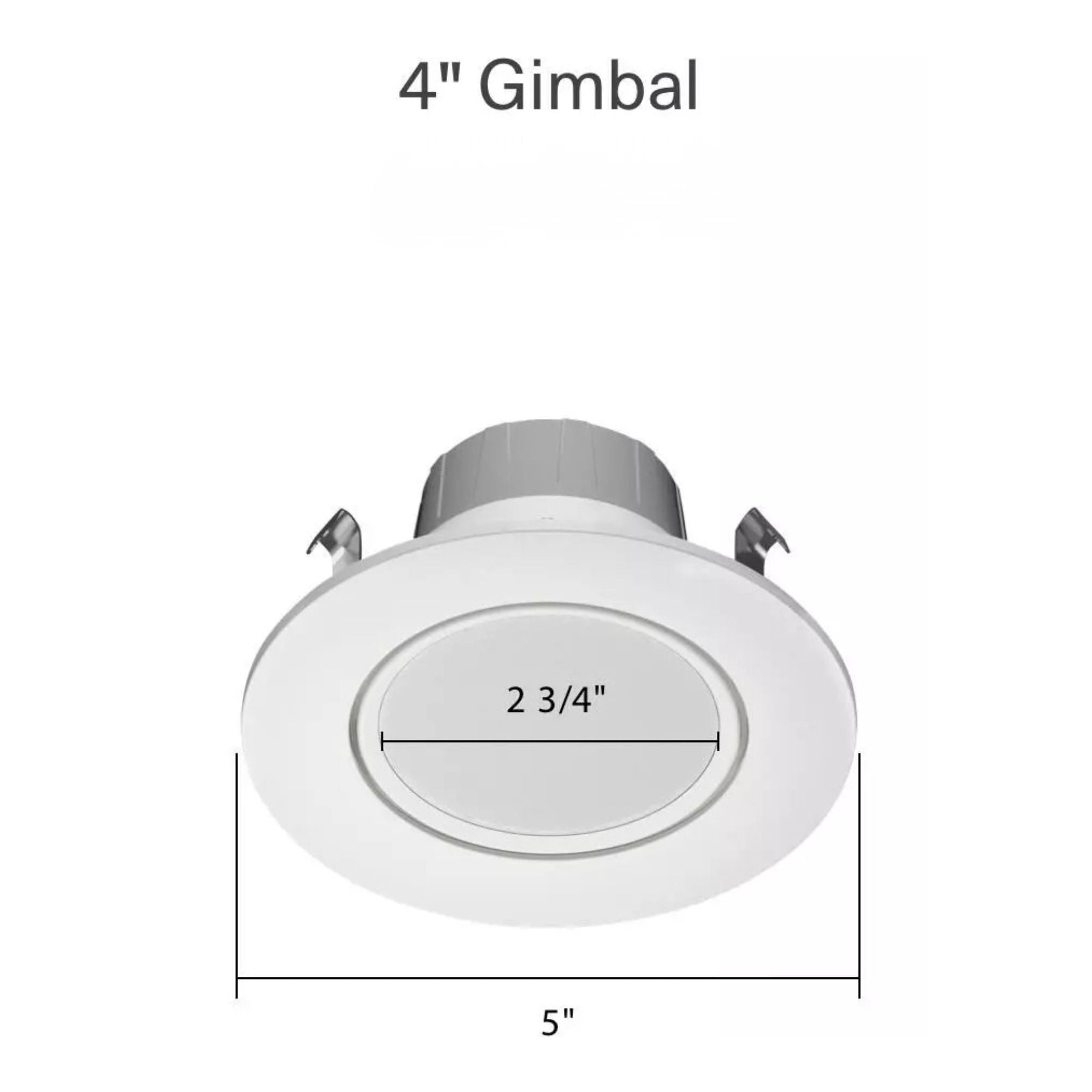

Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
Does the RAB RA4R89FA120WS require a recessed housing?
Does the RAB RA4R89FA120WS require a recessed housing?
What color temperatures are available on the RAB RA4R89FA120WS?
What color temperatures are available on the RAB RA4R89FA120WS?
Is the RAB RA4R89FA120WS dimmable?
Is the RAB RA4R89FA120WS dimmable?
What is the tilt range of the RAB RA4R89FA120WS gimbal?
What is the tilt range of the RAB RA4R89FA120WS gimbal?
Is the RAB RA4R89FA120WS rated for wet or outdoor locations?
Is the RAB RA4R89FA120WS rated for wet or outdoor locations?
Customers praised this retrofit gimbal downlight as an excellent replacement for old can lights. Shoppers highlighted the quality materials, impressive finish, and increased brightness. The fixture received consistent 5-star ratings with customers recommending it for its stylish design and superior performance.
Bought from them before and ordering is always a breeze. This fixture looks really good and will definitely last a long time.
One of the leading brands for these types of fixtures. You will not regret buying this for sure.
I got the item quick and in great condition. Website was easy to use and ordering was fast.
Great quality and the materials used are impressive. Finish looks great.
The fixture has good quality. I would recommend it.
Fixtures from this brand are always great quality. Highly recommended!!!!
The fixture has good quality. I would recommend it.
Great product! Easy installation too
Although I haven't put them up yet, the process to purchase on the website was flawless. If I'm able to comment on the products at a later time, once installed and working, I will !!

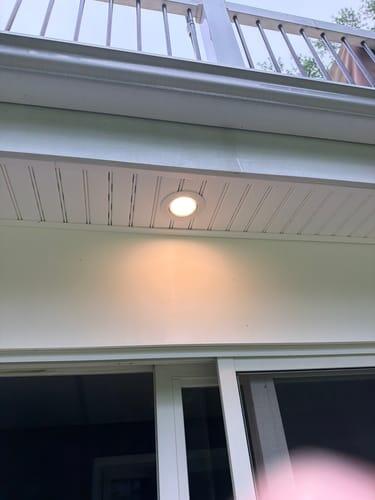

This is an excellent replacement for an old can light. They are brighter and much more stylish.
