RAB R4TL 4 in. Trimless Round Downlight 20W Selectable CCT Wet Rated
Available in stock (200)
About this item
About this item
- Selectable CCT: Field adjustable from 2700K to 5000K
- Lumen Output: Up to 2,050 lumens
- Energy Efficient: 20W replaces 125W incandescent
- Dimmable: Compatible with TRIAC/ELV dimmers
- Wet Rated: Suitable for indoor and outdoor use
We process payments securely and do not store credit card information.
Description
Description

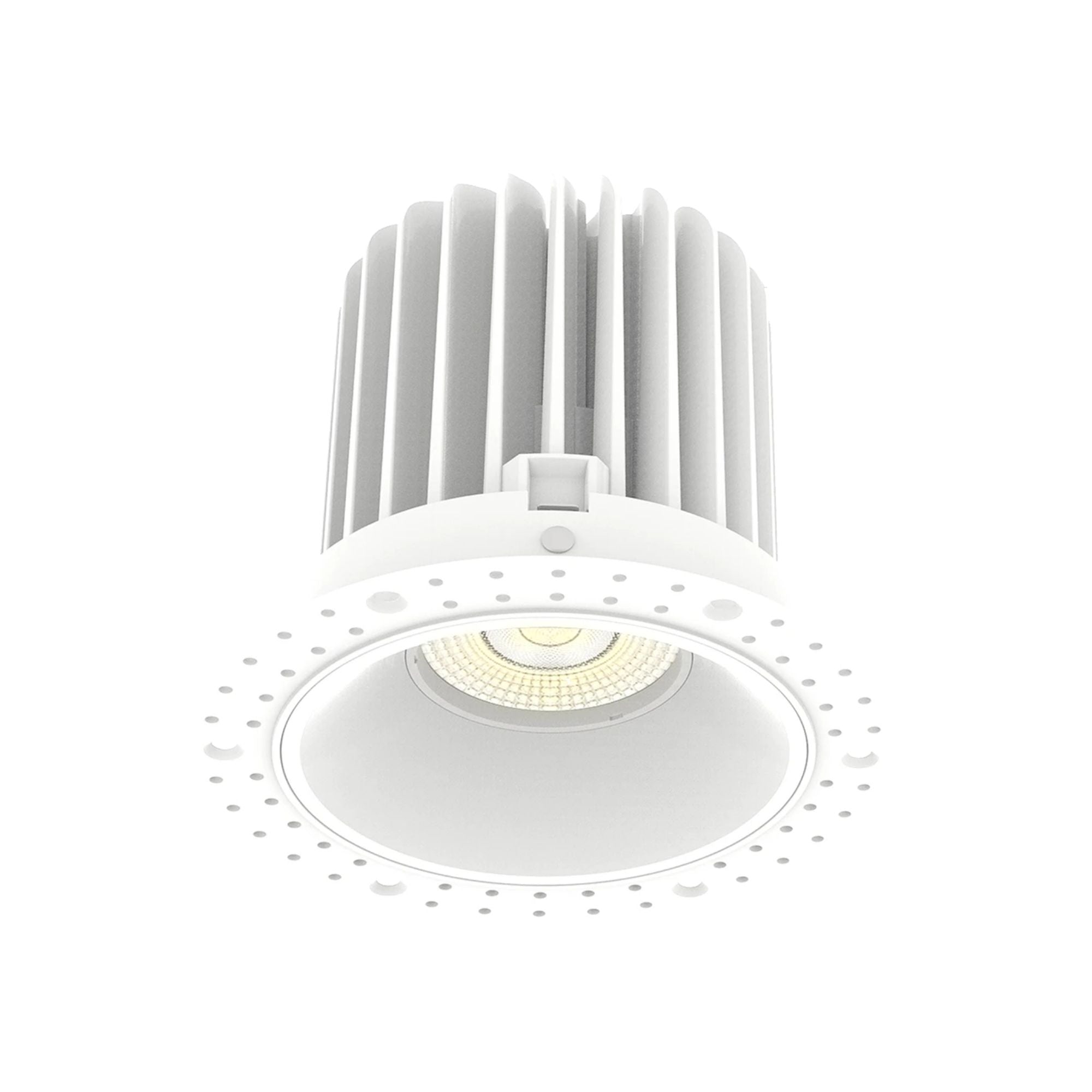

RAB R4TL 4 in. Trimless Downlight — 20W / Selectable CCT
The RAB R4TL is a 4-inch trimless downlight delivering up to 2,050 lumens using 20W. This model offers selectable CCT ranging from 2700K to 5000K, making it versatile for various lighting needs. Its high color accuracy of 90 CRI ensures vibrant and true-to-life colors.
Key Features
- Wattage: 20W
- Lumens: 2700K @ 1,767lm; 3000K @ 1,876lm; 3500K @ 1,995lm; 4000K @ 2,050lm; 5000K @ 2,049lm
- Voltage: 120V
- Dimming: TRIAC/ELV dimmable down to 10%
- Beam Angle: 38°
- CRI: 90
- Lifespan: 50,000 hours
- Compliance: Energy Star, Title 24 JA8, RoHS
- Operating Temperature: -13°F to 104°F
- Power Factor: ≥0.9
- Flicker: ≤30%
- Air Tight: Certified per ASTM E283
Construction & Aesthetics
This downlight features a smooth, trimless design with a white finish and a clear polycarbonate lens for even light distribution. It is constructed from durable metal, ensuring longevity and reliability. The trimless style offers a sleek, modern look suitable for high-end applications.
Electrical & Installation

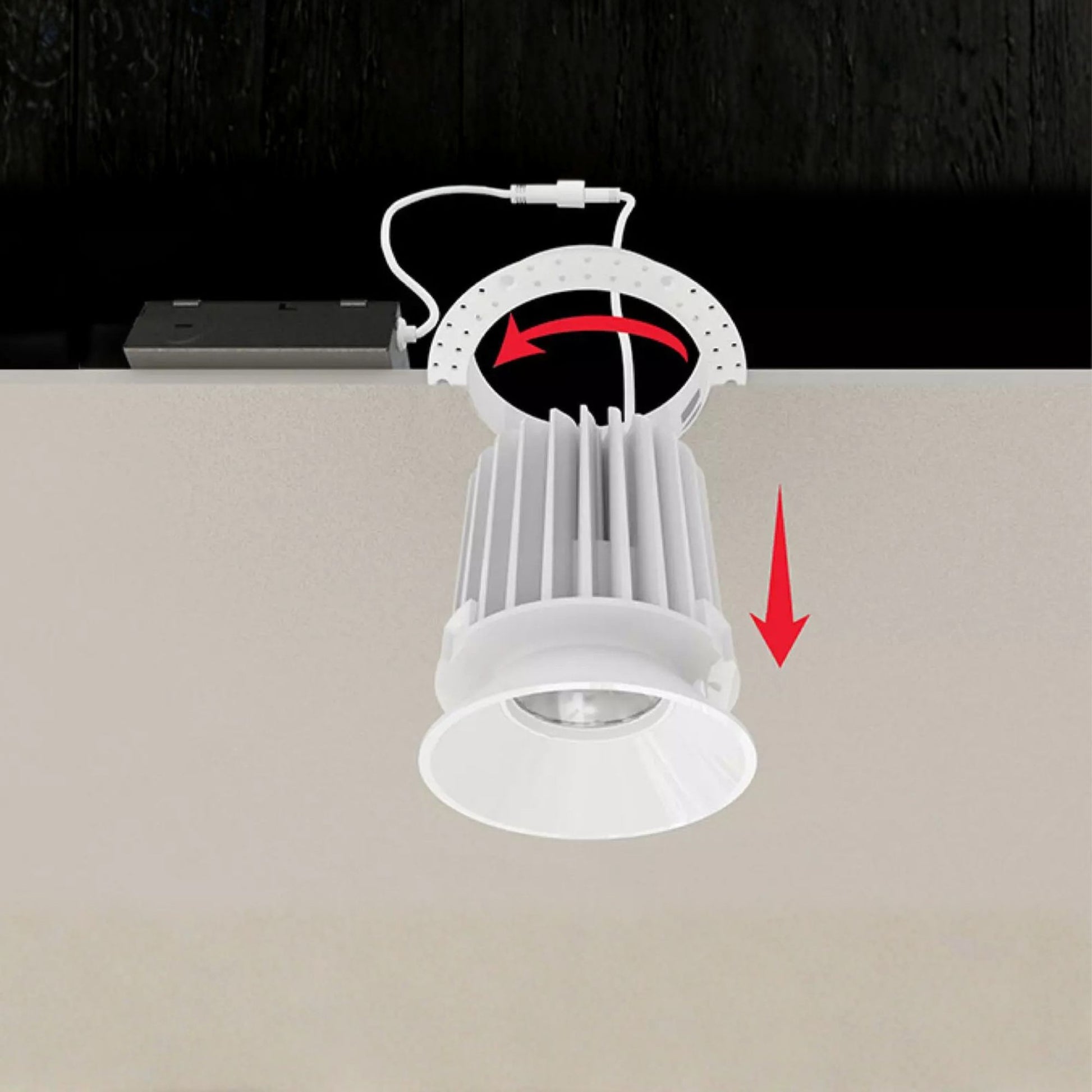

Designed for recessed mounting, the R4TL does not require a recessed housing or J-box, simplifying installation. It includes a constant current, Class 2 driver and is compatible with TRIAC/ELV dimming systems. Accessories such as the DRI-21-EMGR-DC-D10 emergency driver are available for enhanced functionality.
Light Output & Performance
With a high efficacy of up to 105 lm/W, this downlight provides excellent energy savings. The field-adjustable CCT allows for customization of the lighting environment, while the 90 CRI ensures superior color rendering.
Typical Applications
- Residential lighting
- Commercial spaces
- Hospitality environments
- Retail settings
- Outdoor covered areas
Specifications
Specifications

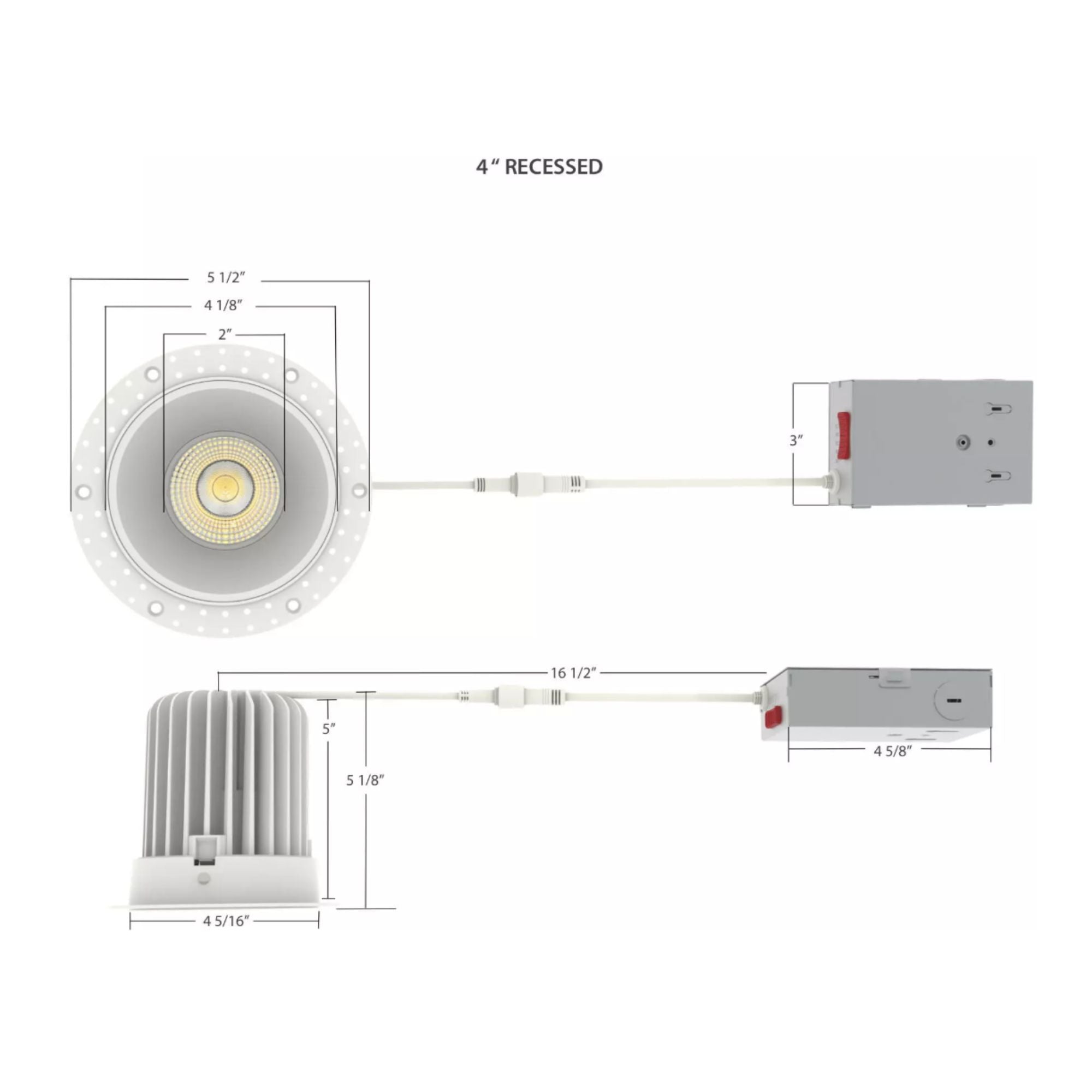

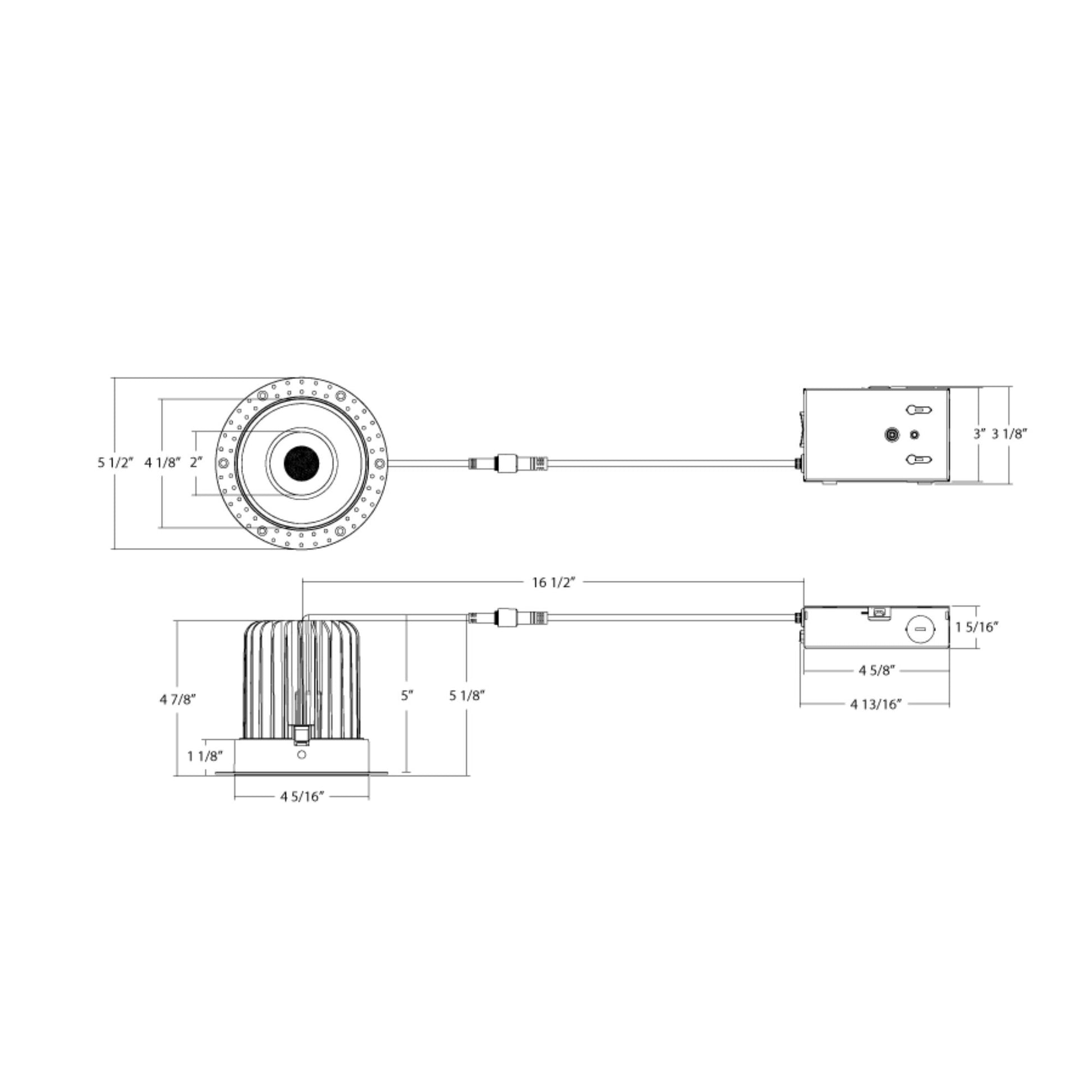

Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the R4TL downlight's wattage equivalency?
What is the R4TL downlight's wattage equivalency?
Can the R4TL be used in wet locations?
Can the R4TL be used in wet locations?
Is the R4TL downlight dimmable?
Is the R4TL downlight dimmable?
Does the R4TL require a recessed housing?
Does the R4TL require a recessed housing?
What is the beam angle of the R4TL downlight?
What is the beam angle of the R4TL downlight?
