RAB R4STLB 4 in. Trimless Square Downlight 20W 1600 Lumens Selectable CCT
Available in stock (200)
About this item
About this item
- Selectable CCT: 2700K, 3000K, 3500K, 4000K, 5000K
- High Lumens: Delivers up to 1,900 lumens
- Energy Efficient: Consumes only 20 watts
- Wet Rated: Suitable for wet environments
- Trimless Design: Provides a sleek, modern look
We process payments securely and do not store credit card information.
Description
Description
RAB R4STLB 4 in. Trimless Downlight — 20W / Selectable CCT
The RAB R4STLB is a 4-inch trimless square downlight delivering up to 1,900 lumens using 20W. This fixture offers a selectable CCT from 2700K to 5000K, making it versatile for various lighting needs. Its trimless design provides a sleek, modern aesthetic suitable for high-end applications.
Key Features
- Wattage: 20W
- Lumens: 1,638lm to 1,876lm depending on CCT
- Voltage: 120V
- Dimmable: Yes, down to 10% with TRIAC/ELV systems
- Beam Angle: 38°
- CRI: 90
- Lifespan: 50,000 hours
- IC Rated: Suitable for direct contact with insulation
- Energy Star Approved: Certified for energy efficiency
- Title 24 Compliant: Meets California Title 24 requirements
- RoHS Compliant: Mercury and UV free
Construction & Aesthetics
Constructed with a die-formed metal enclosure and a clear polycarbonate lens, the R4STLB features a smooth trimless design in a black finish. It is suitable for both indoor and outdoor wet locations.
Electrical & Installation

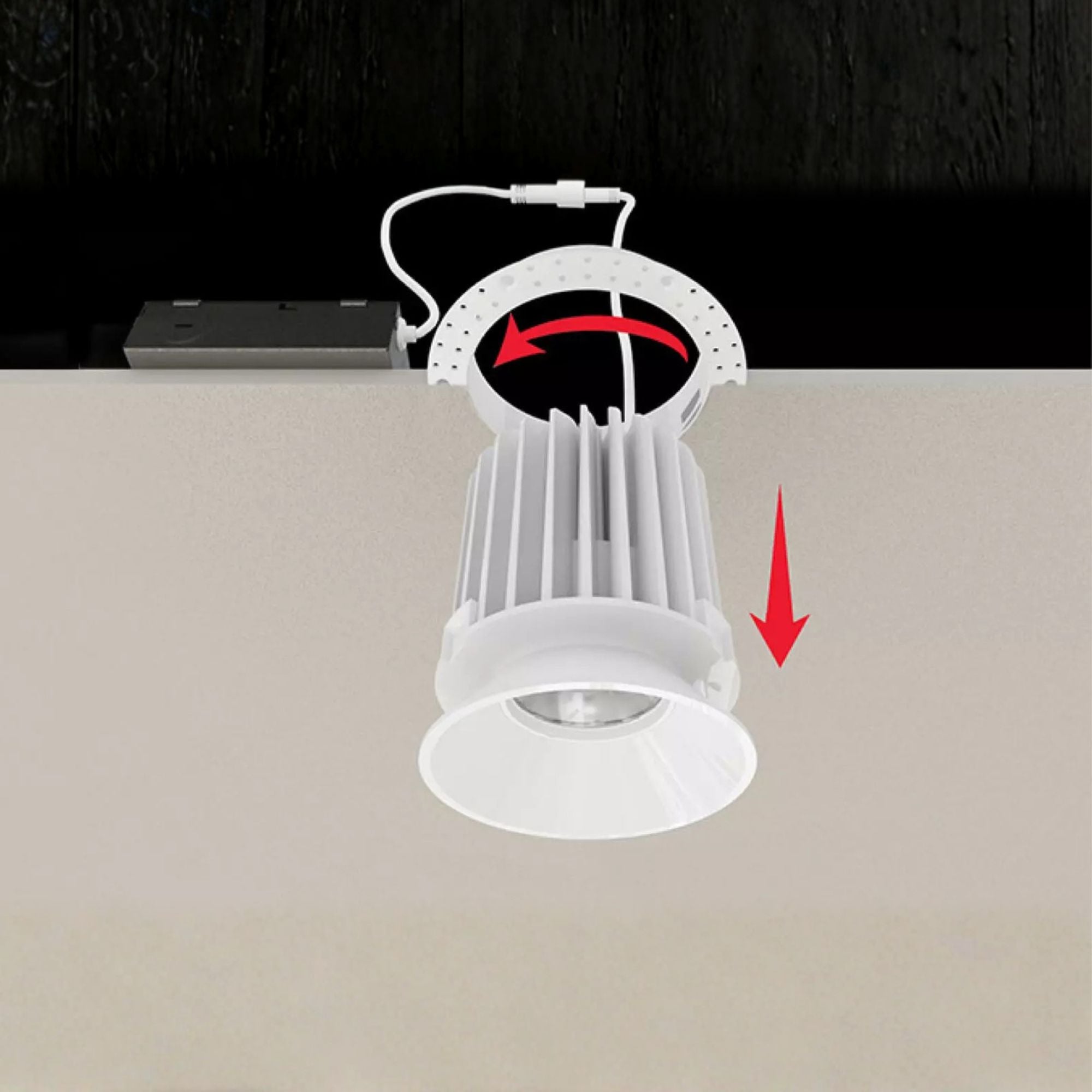

Operating at 120V with a constant current driver, this downlight is dimmable and includes a remote driver and junction box for easy installation. It does not require a recessed housing or J-box.
Light Output & Performance
With a high efficacy of up to 98 lm/W, this downlight provides consistent color uniformity and stability, maintaining its color temperature within 200K over five years.
Typical Applications
- Residential Living Areas
- Commercial Offices
- Retail Spaces
- Hospitality Venues
- Outdoor Patios
Specifications
Specifications

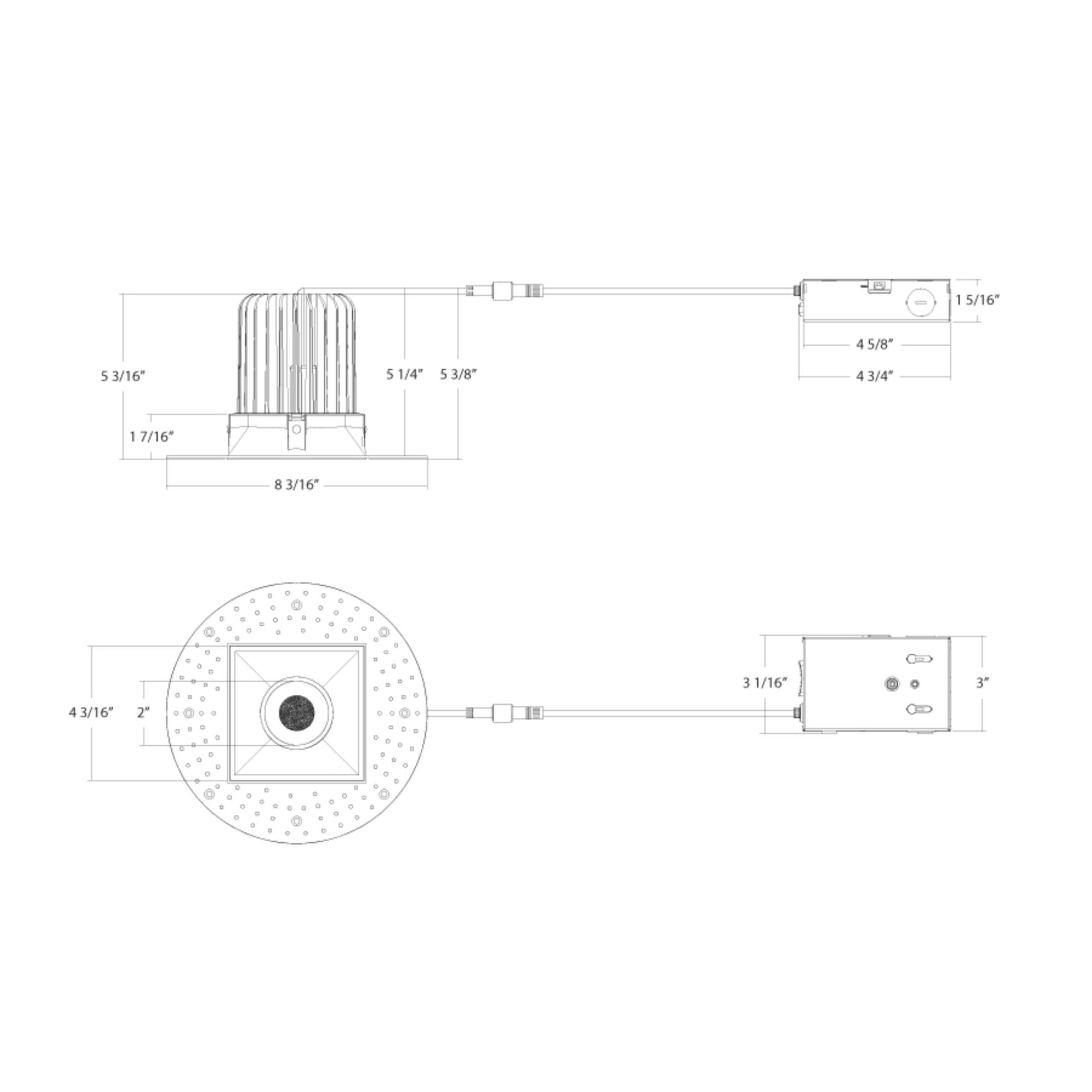

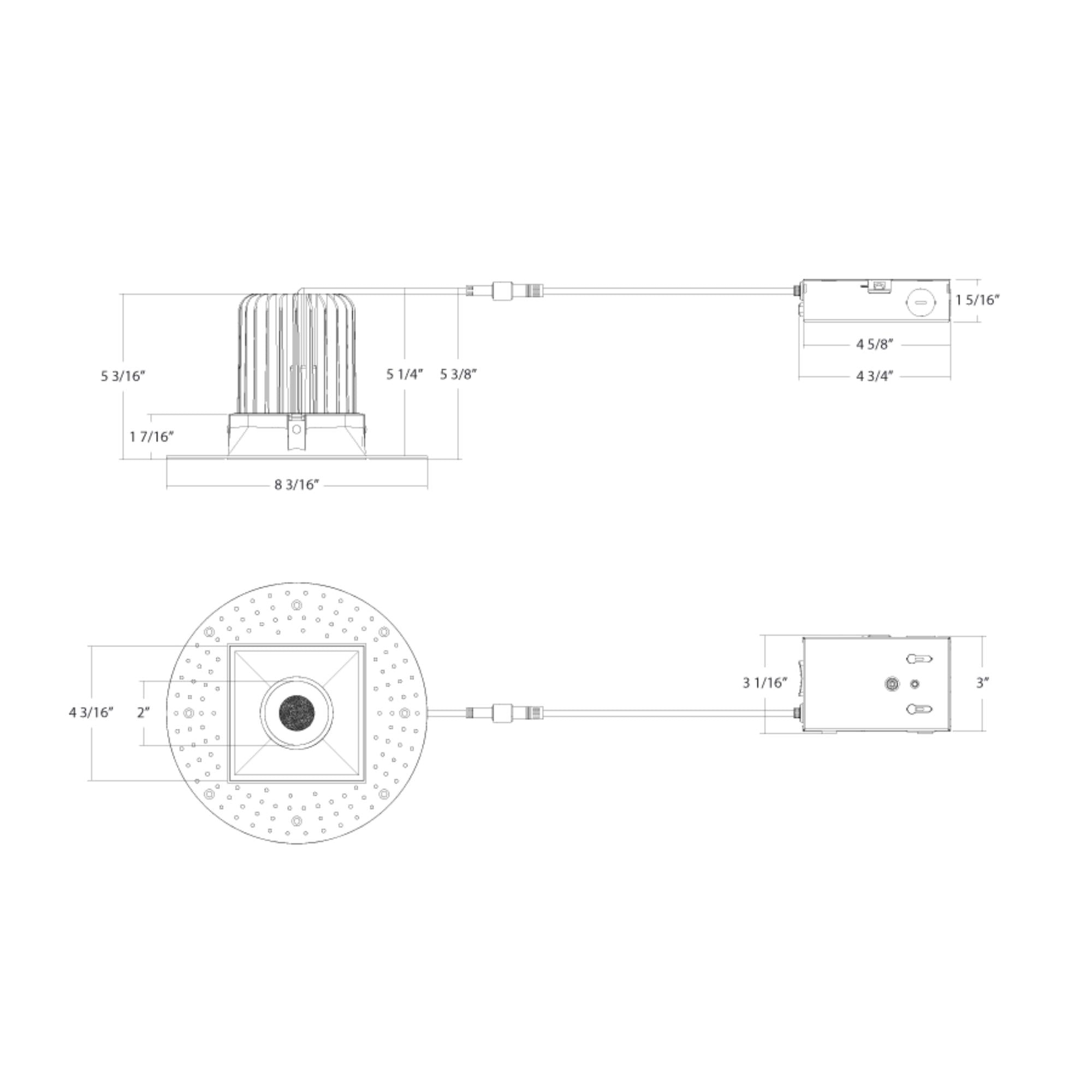

Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
