RAB R3TL 3 in. Trimless Downlight 15W 1000 Lumens Selectable CCT
Out of stock
About this item
About this item
- Selectable CCT: Field adjustable 2700K to 5000K
- Luminous Output: Up to 1,354 lumens
- Energy Efficient: 15W replaces 90W incandescent
- High CRI: 90 CRI for superior color rendering
- Wet Rated: Suitable for wet locations
We process payments securely and do not store credit card information.
Description
Description

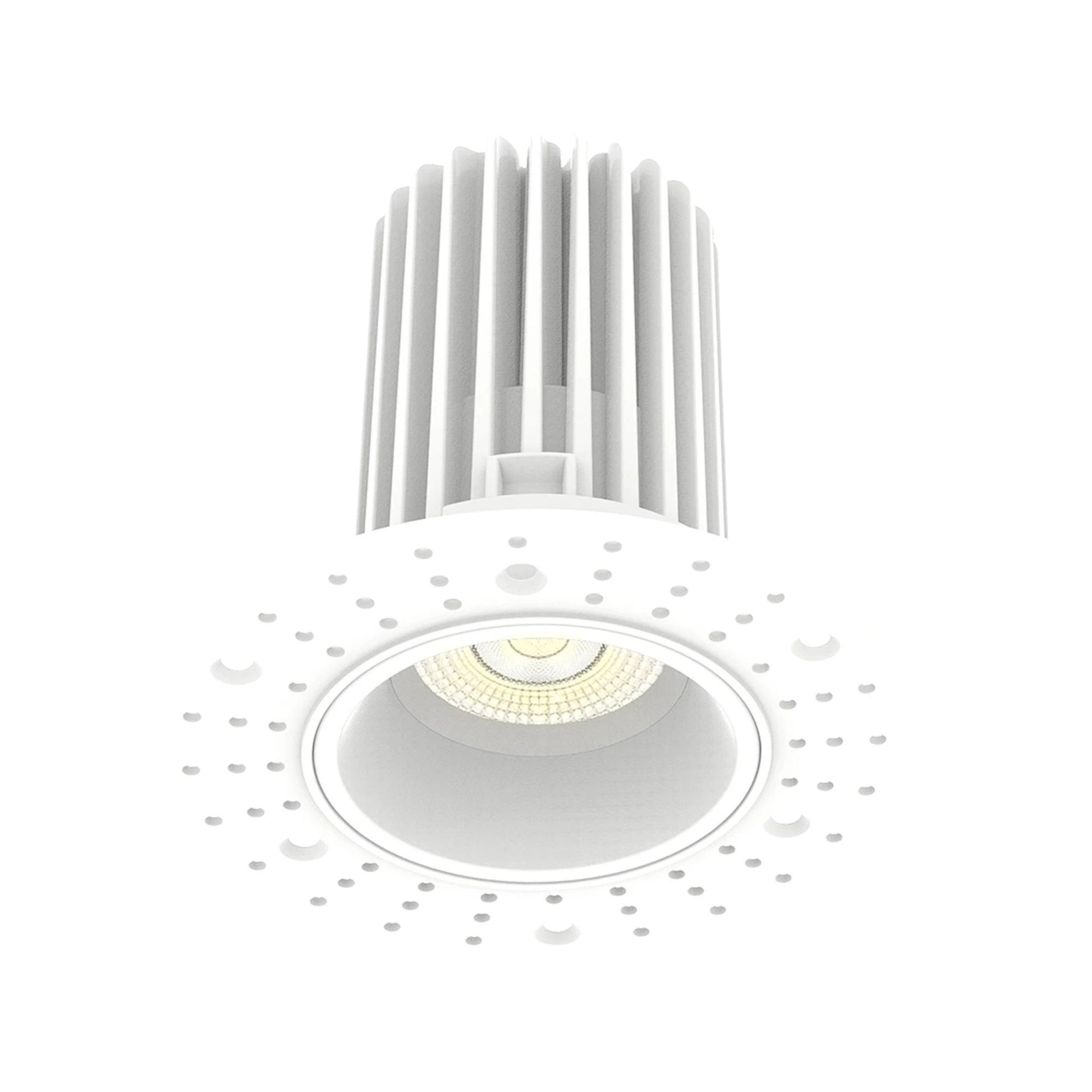

RAB R3TL 3 in. Trimless Downlight — 15W / Selectable CCT
The RAB R3TL is a 3-inch trimless downlight delivering up to 1,354 lumens using 15W. This versatile fixture features a selectable CCT ranging from 2700K to 5000K, making it ideal for various lighting needs. Its trimless design offers a sleek, high-end look suitable for both new construction and retrofit applications.
Key Features
- Wattage Equivalency: 90W incandescent
- Input Voltage: 120V
- Dimmable: TRIAC/ELV dimming down to 10%
- Beam Angle: 38°
- L70 Lifespan: 50,000 hours
- Color Accuracy: 90 CRI
- Compliance: Energy Star, Title 24 JA8, RoHS
- Operating Temperature: -13°F to 104°F
- Construction: Metal enclosure with polycarbonate lens
- Mounting: Recessed, no housing required
- Accessories: Compatible with emergency driver T20
Construction & Aesthetics
The R3TL features a smooth, trimless design with a white finish. It includes a clear polycarbonate lens for even light distribution. This downlight is suitable for both indoor and outdoor wet locations.
Electrical & Installation

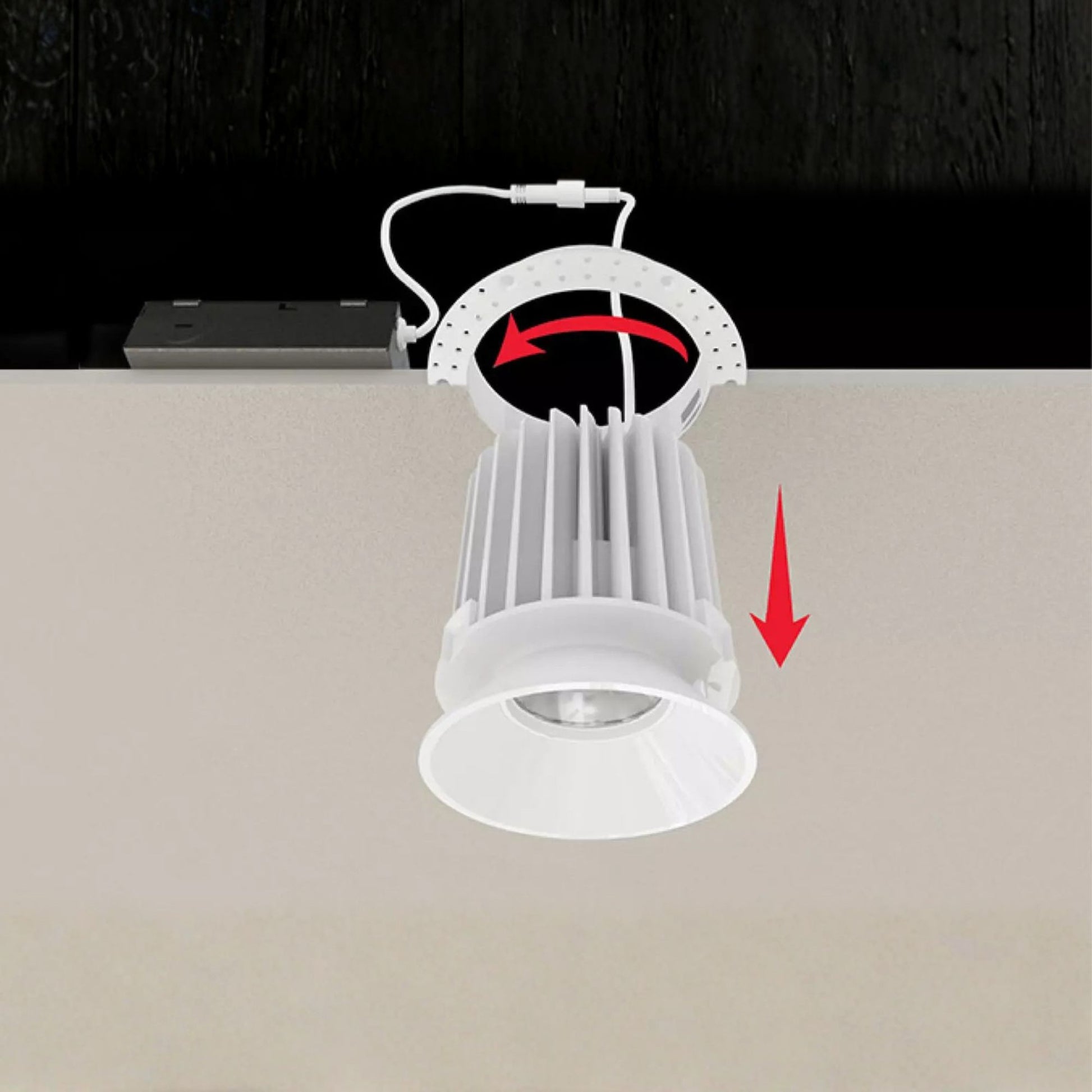

Operating at 120V, this fixture includes a constant current, Class 2 driver. It is dimmable with TRIAC/ELV systems and requires no recessed housing or J-box, simplifying installation.
Light Output & Performance
With a high CRI of 90, the R3TL provides excellent color rendering. It offers a beam angle of 38° and a long lifespan of 50,000 hours, ensuring reliable performance.
Typical Applications
- Residential lighting
- Commercial spaces
- Hospitality environments
- Retail settings
- Outdoor wet locations
Specifications
Specifications

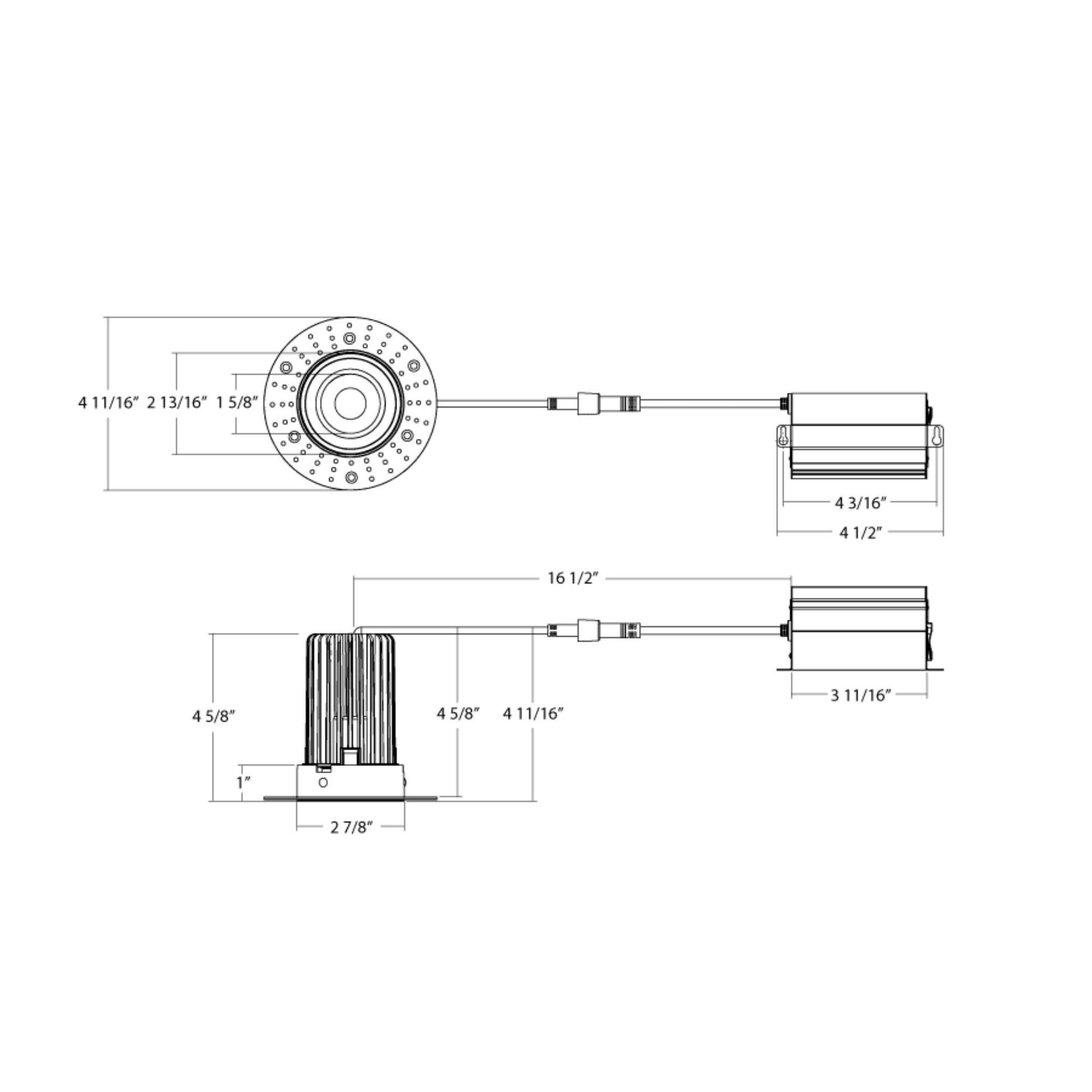

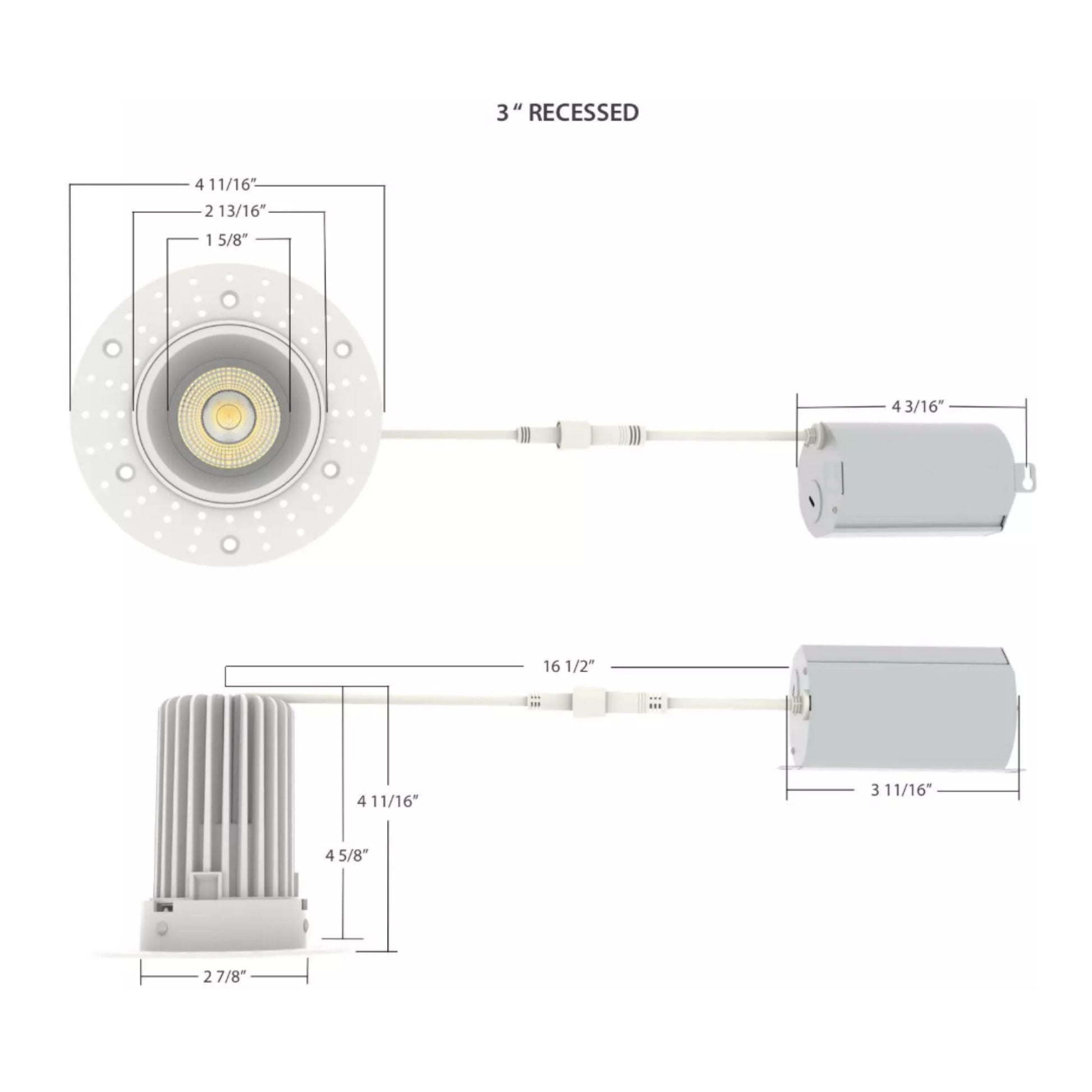

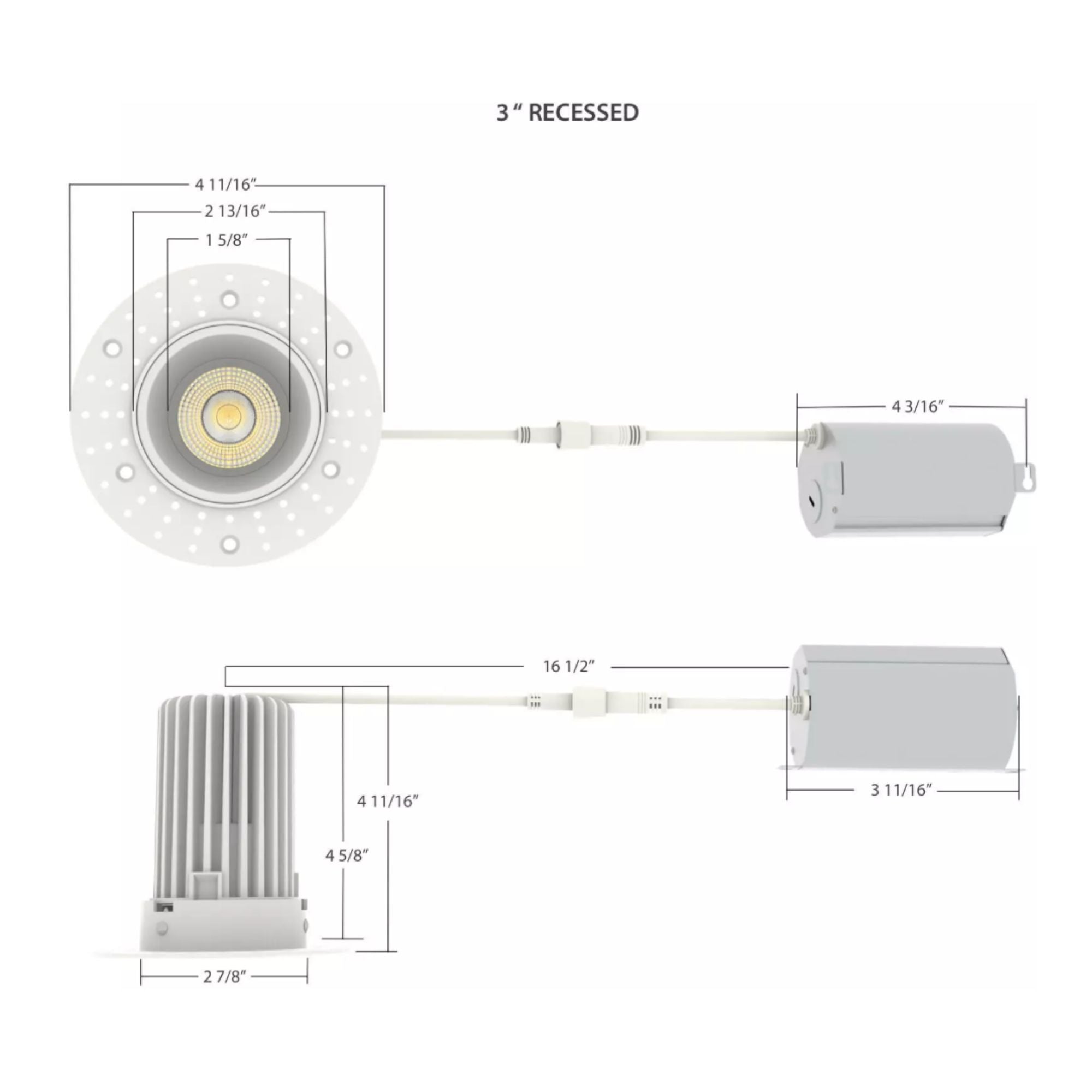

Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the wattage equivalency of the RAB R3TL downlight?
What is the wattage equivalency of the RAB R3TL downlight?
Is the RAB R3TL downlight suitable for wet locations?
Is the RAB R3TL downlight suitable for wet locations?
Can the RAB R3TL downlight be dimmed?
Can the RAB R3TL downlight be dimmed?
Does the RAB R3TL require a recessed housing for installation?
Does the RAB R3TL require a recessed housing for installation?
What color temperatures are available for the RAB R3TL downlight?
What color temperatures are available for the RAB R3TL downlight?
