RAB R34X-6B-B 6 in Round Baffle Retrofit LED Downlight — 14/11/7.5W / Selectable CCT & Lumen / 120V / Black

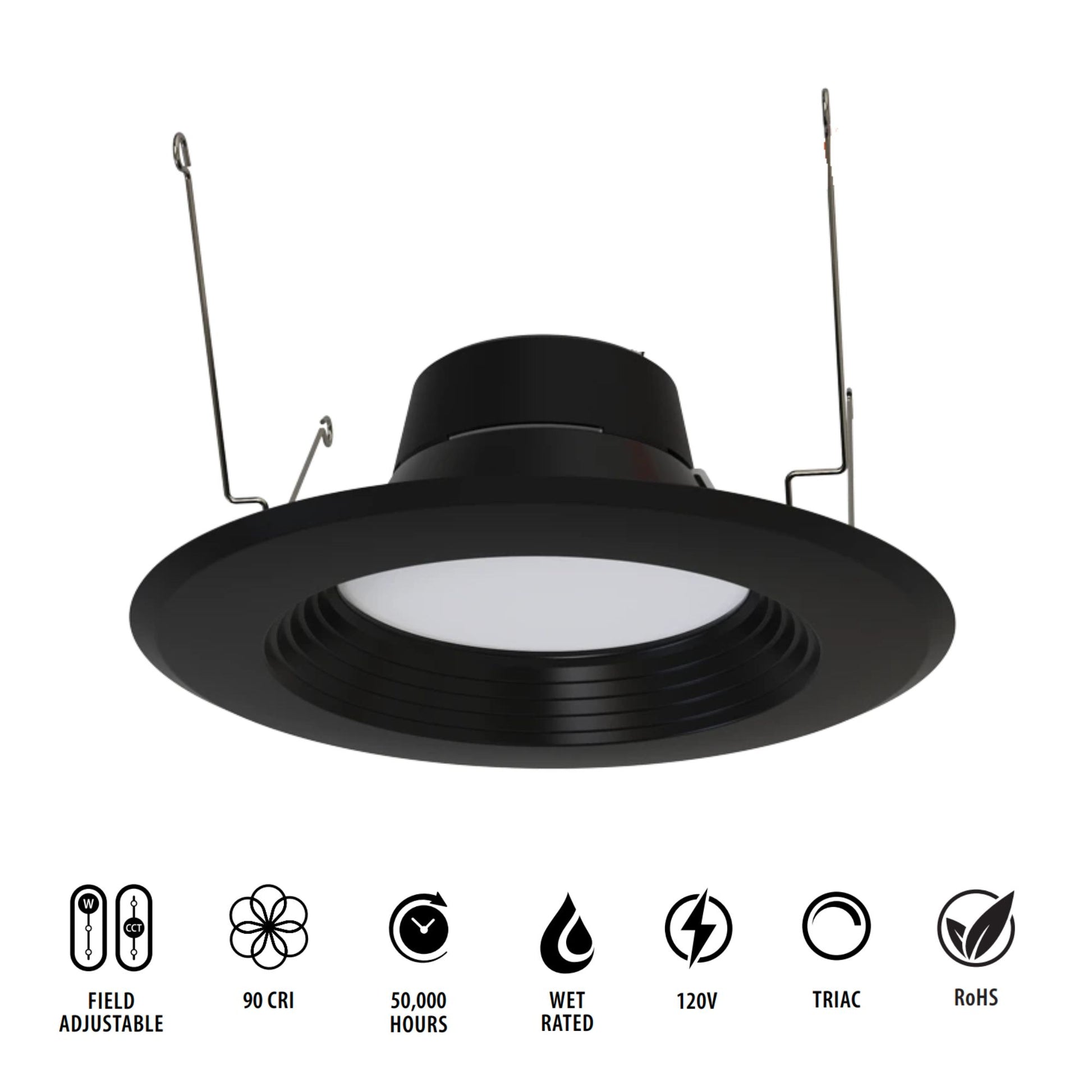

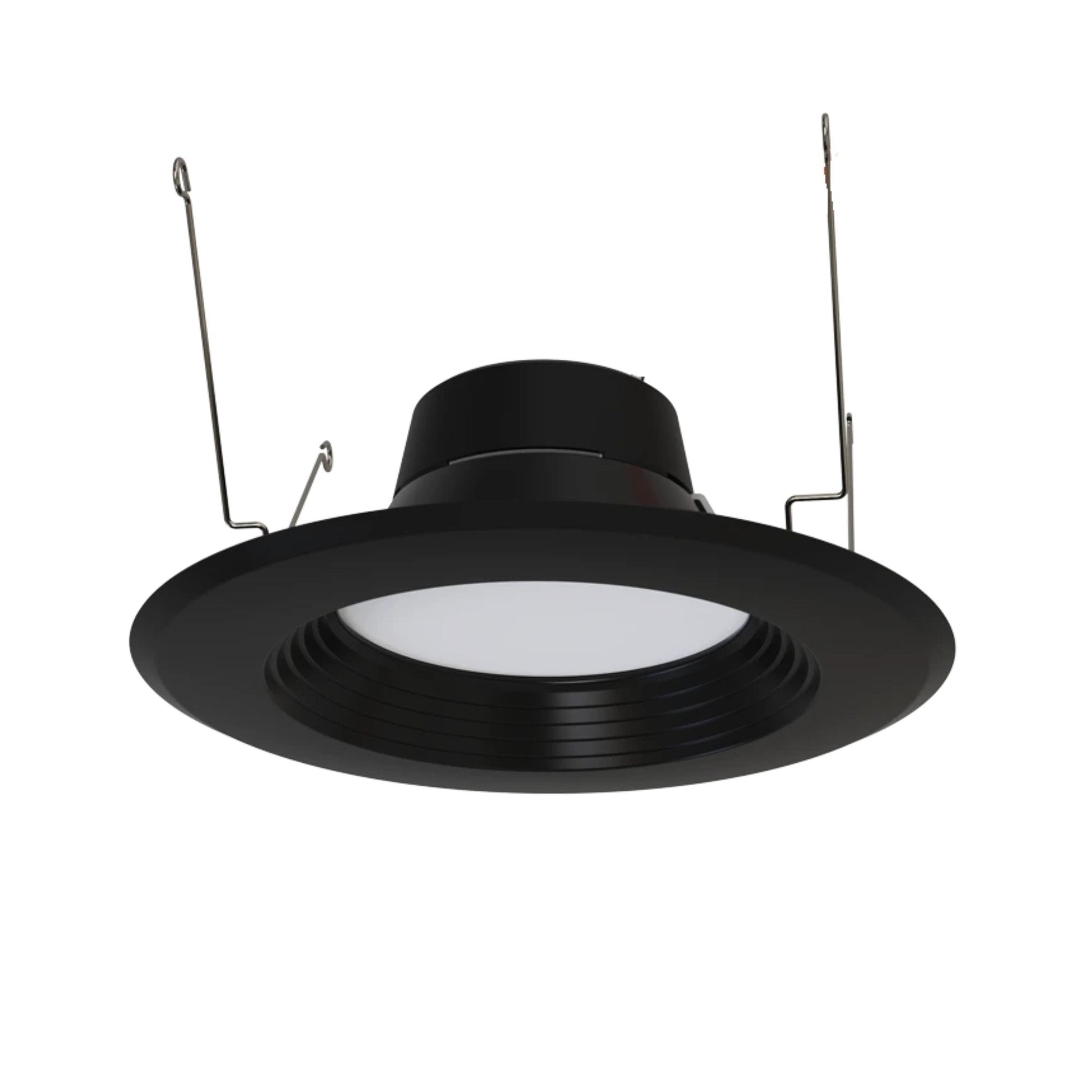

The RAB R34X-6B-B is a 6 in round baffle retrofit LED downlight in black with a frosted lens, delivering 1,300/1,050/750 lumens at 14/11/7.5W and 100 lm/W with an 85° wide flood beam angle. Both brightness and CCT are independently field-selectable via integrated dip switches. The baffle trim in black reduces glare while delivering a modern dark ceiling aesthetic. Requires an existing 5/6 in recessed housing — E26 base adapter included.

Key Features

• 6 in Round Baffle — Black: Spun aluminum; frosted lens; single optic full-face lens for precise beam angle control

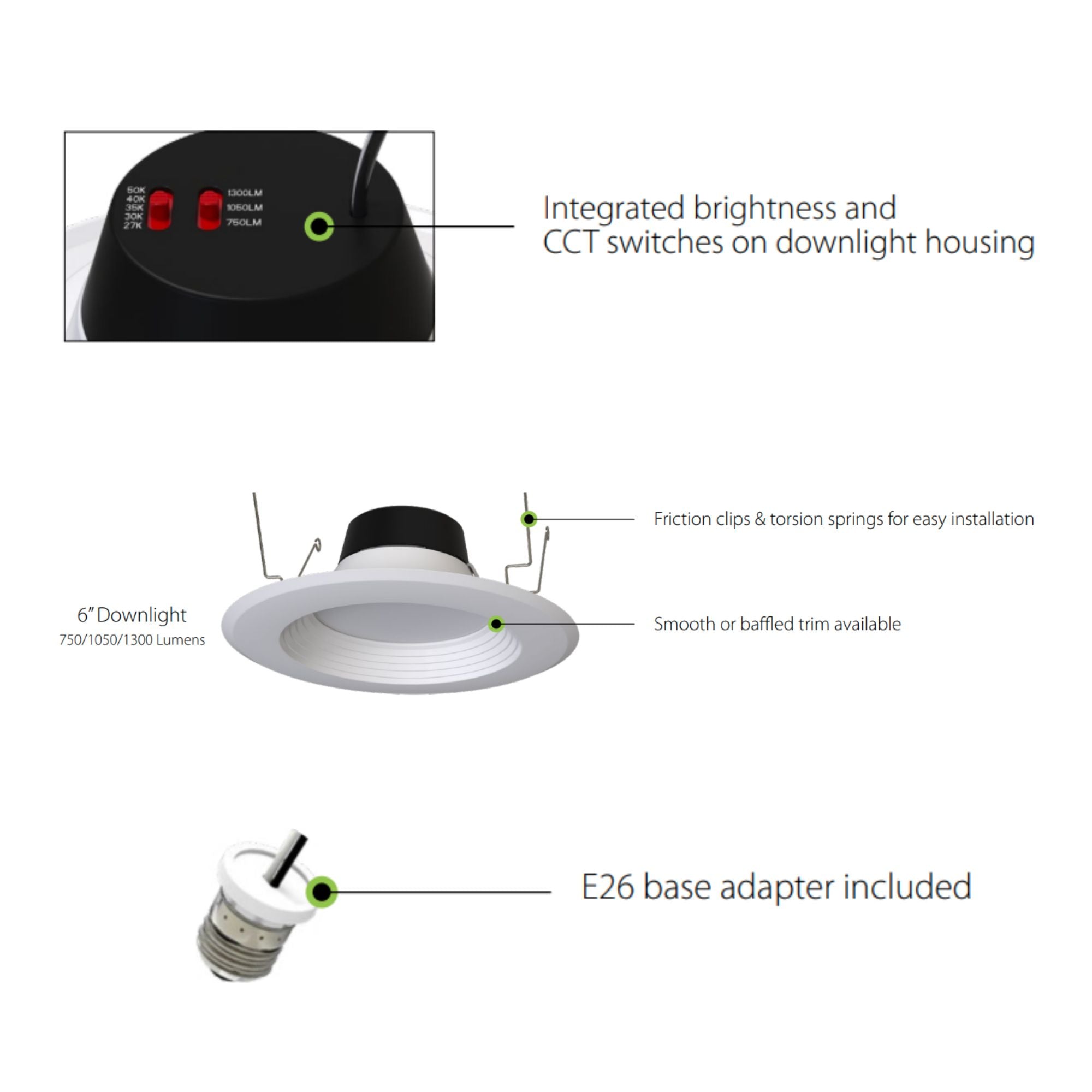

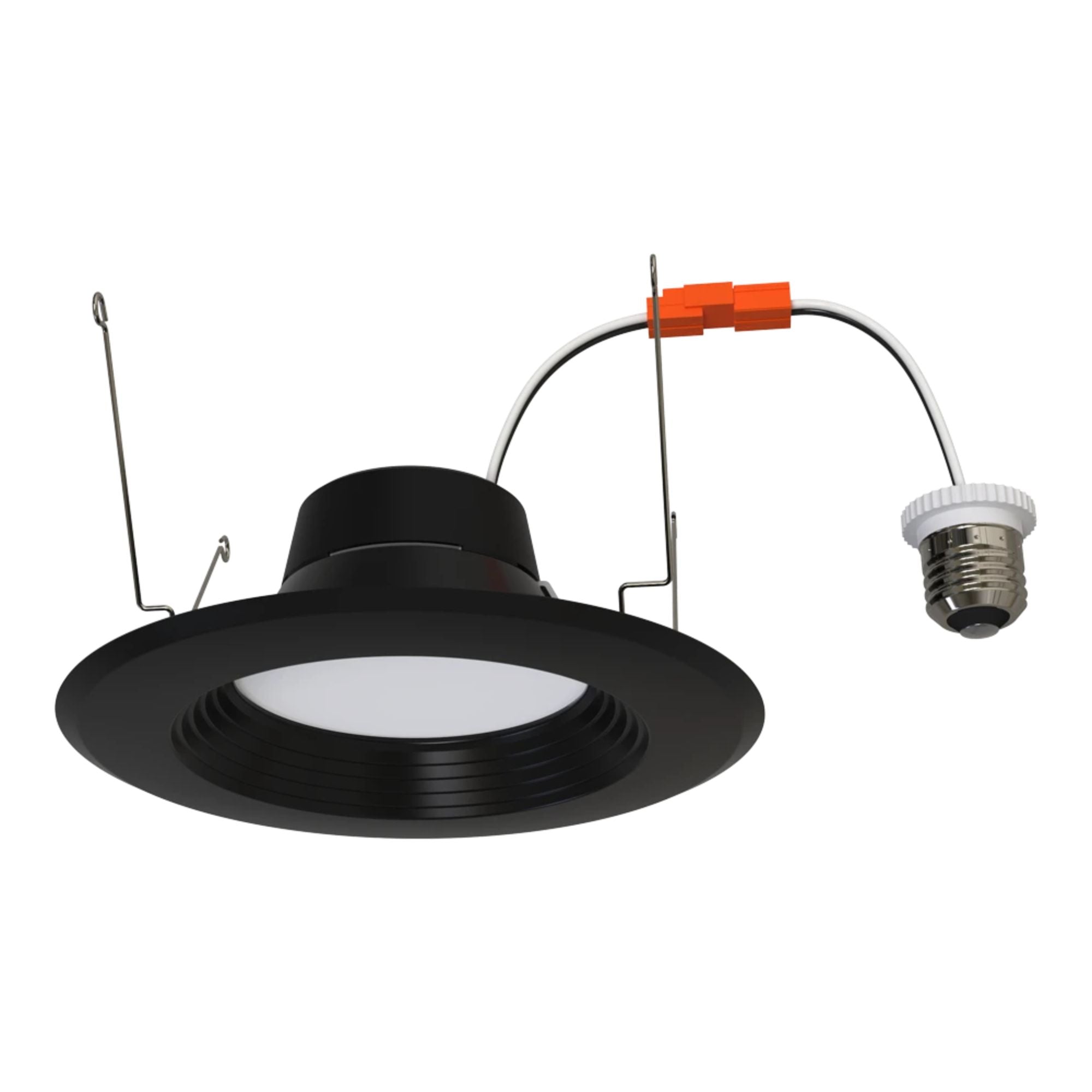

• Requires Existing 5/6 in Housing: E26 base adapter included; friction clips & torsion springs; compatible with most standard recessed housings
• 85° Wide Flood Beam Angle (±10°): Smooth, uniform light distribution for general illumination
• Dual-Selectable Brightness: 1,300 lm (14W) | 1,050 lm (11W) | 750 lm (7.5W) via integrated dip switch; 100W/75W/60W incandescent equivalent
• Field-Selectable CCT: 2700K, 3000K, 3500K, 4000K, 5000K via integrated dip switch (default: 3000K)
• Efficacy: 100 lm/W | CRI: 90+, R9 ≥ 50 | 4-step MacAdam Ellipse
• Dimming: TRIAC/ELV dimmable to 10% at 120V
• Voltage: 120V | 60mA (0.06A)
• Wet location rated — suitable for showers and covered outdoor locations
• Note: IC Rated and Air Tight ratings apply to the recessed housing, not the trim. Verify housing IC/AT rating for your installation.
• Certifications: UL Classified | UL Recognized | ENERGY STAR Certified | Title 20 Compliant | Title 24 JA8 | RoHS | FCC Part 15 | Trade Agreements Act Compliant
• Color Stability: Color temperature warranted to shift no more than 200K over 5 years
• Lifespan: 50,000 hours L70 | Warranty: 5-year no-compromise warranty

Construction & Design

Spun aluminum construction in black finish. Frosted lens — single optic full-face lens for precise beam angle control and smooth, uniform light distribution. Constant Current driver, 120V, 60mA (0.06A). Operating temp: -4°F to 104°F (-20°C to 40°C). THD ≤20%, PF ≥0.9. Weight: 0.5 lbs. Country of origin: Cambodia.

Compatible Accessories

• RAB Housings: RDCANIC6R (6 in remodeler) | NDCANIC6R (6 in new construction)
• RFLED-GOOF-6R-8R-W — 6 in–8 in goof ring white
• RFLED-RETROBAND — 6 in retrofit band
• 6 in color trim overlays — available in smooth and baffle styles; brushed nickel, bronze, and black finishes sold separately

What’s Included

• RAB R34X-6B-B 6 in round baffle retrofit LED downlight (black)
• E26 base adapter

Typical Applications

• Retrofit upgrade of existing 5/6 in recessed housings

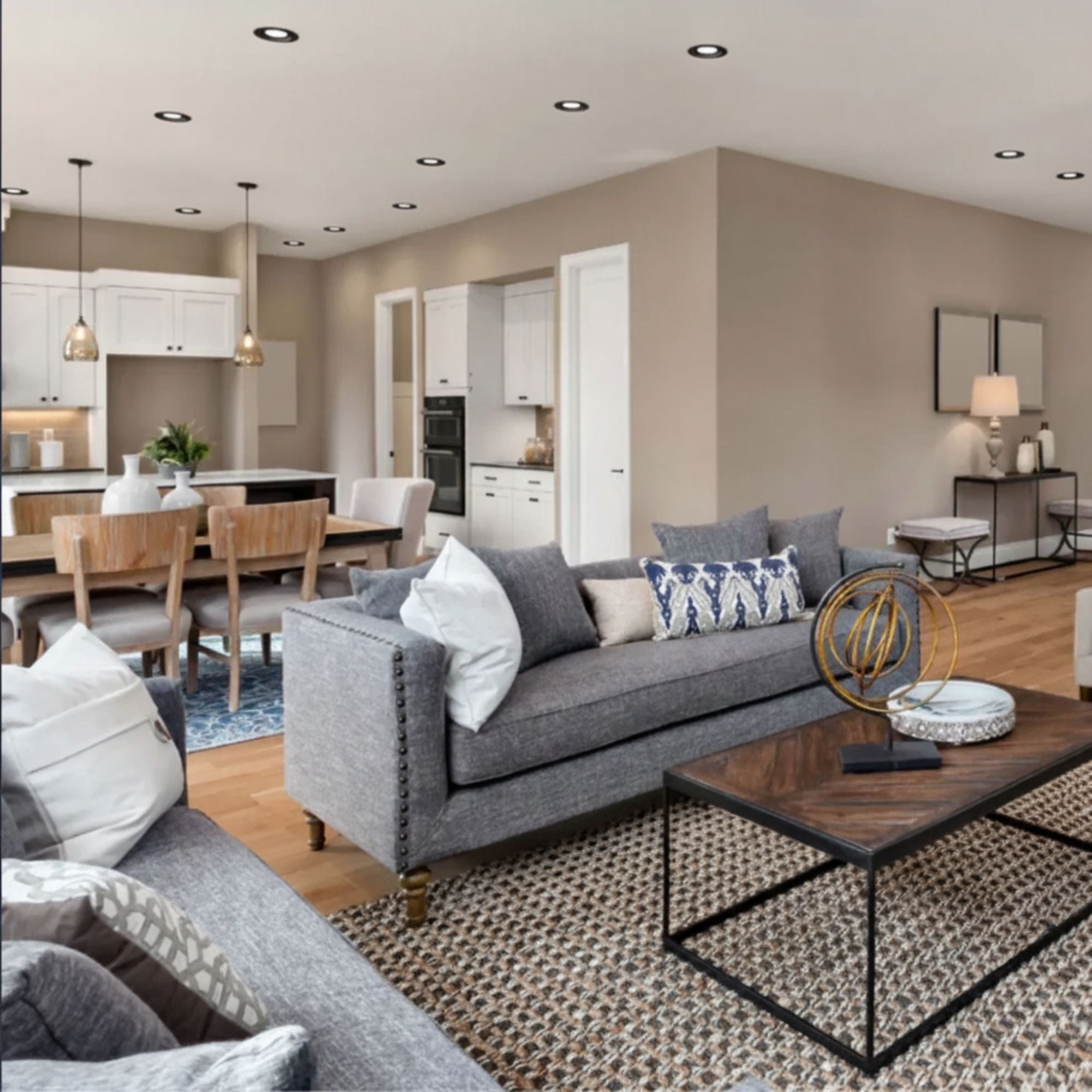

• General and ambient lighting in living rooms, bedrooms, kitchens, and hallways
• Showers, bathrooms, and covered outdoor locations
• Applications requiring black trim for design contrast or accent
• Projects requiring Title 20 and Title 24 JA8 compliance
